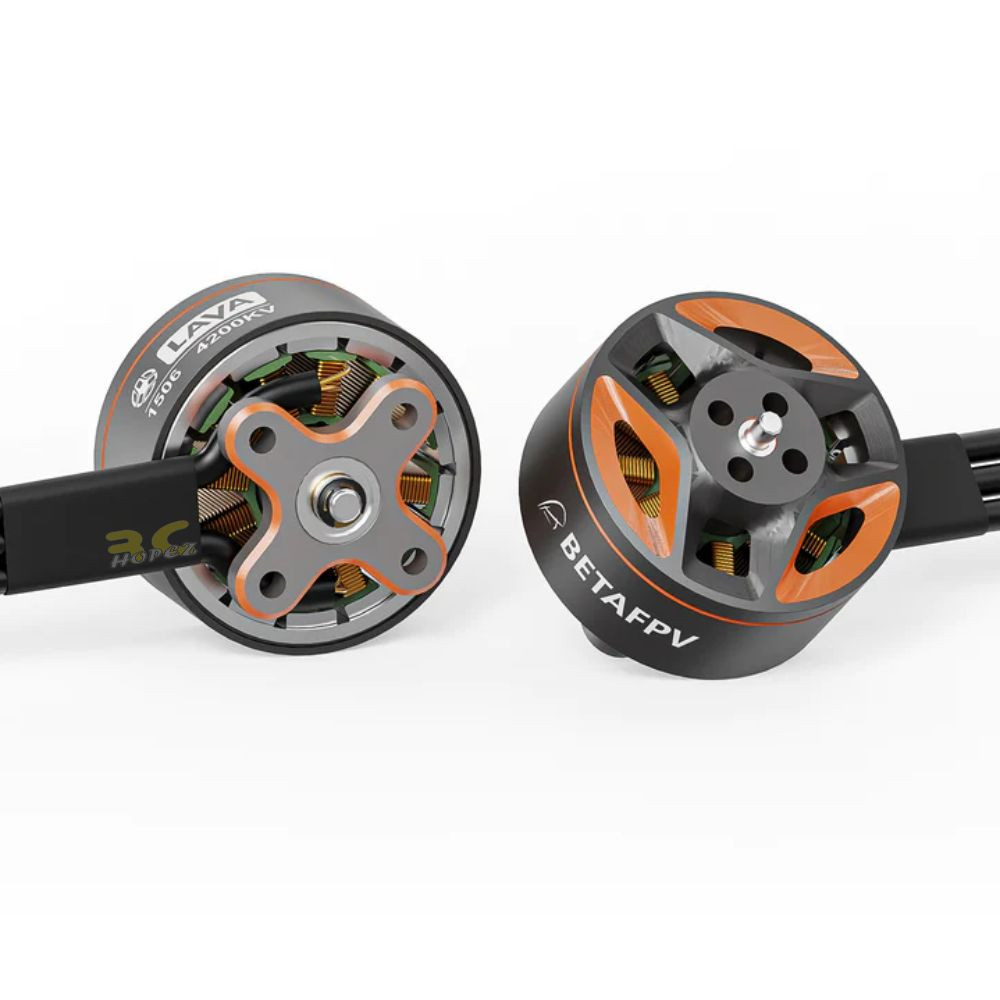

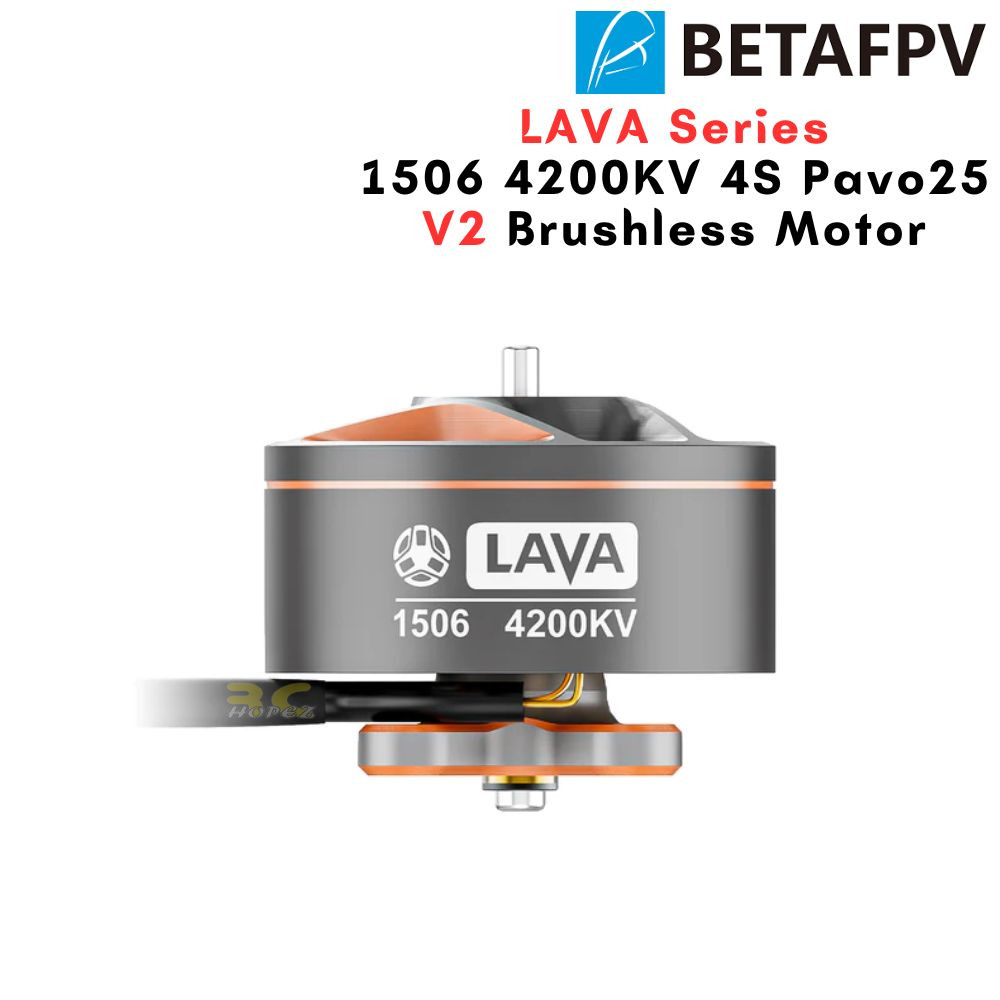

BetaFPV LAVA Series 1506 4200KV 4S Brushless Motors 1.5mm Shaft For 2.5Inch FPV Drone BT1506-42

RM68.00

8 in stock

SKU: BTL1506-42 Categories: ,

BetaFPV LAVA Series 1506 4200KV 4S Brushless Motors 1.5mm Shaft For 2.5Inch FPV Drone BT1506-42

Bullet Point

  • The LAVA Series 1506 Brushless Motors are designed specifically for 4S 2.5'' quads, providing a significant boost in power and taking our Pavo25 V2 Brushless Whoop Quadcopter to new heights.
  • GF D63 3-Blade Propellers 1.5mm Shaft will be the best match with LAVA Series 1506 Brushless Motors, which forms a highly efficient power system, guaranteeing powerful flight capabilities and reduced noise levels.
  • When paired with the F722 35A AIO V2 Flight Controller, the LAVA Series 1506 Brushless Motors lets pilots experience a powerful and thrilling flight.

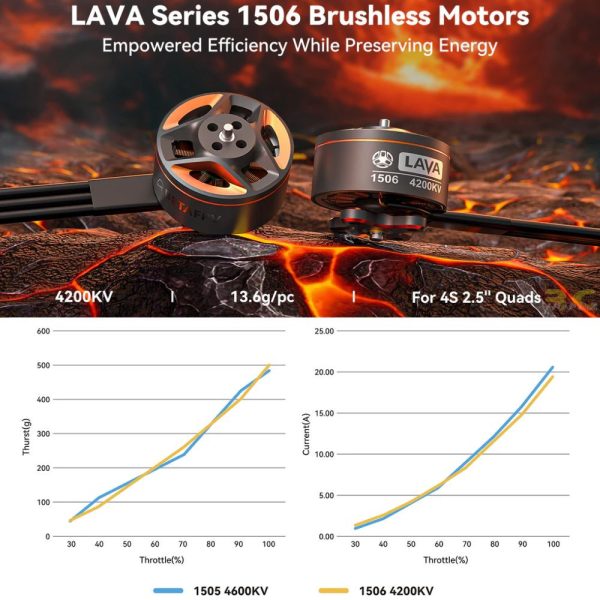

  • Compared to the 1505 4600KV Brushless Motor, it boasts a 15g increase in maximum thrust, ensuring smoother and more efficient power output while conserving energy, and enhancing pilots' overall flying experience.

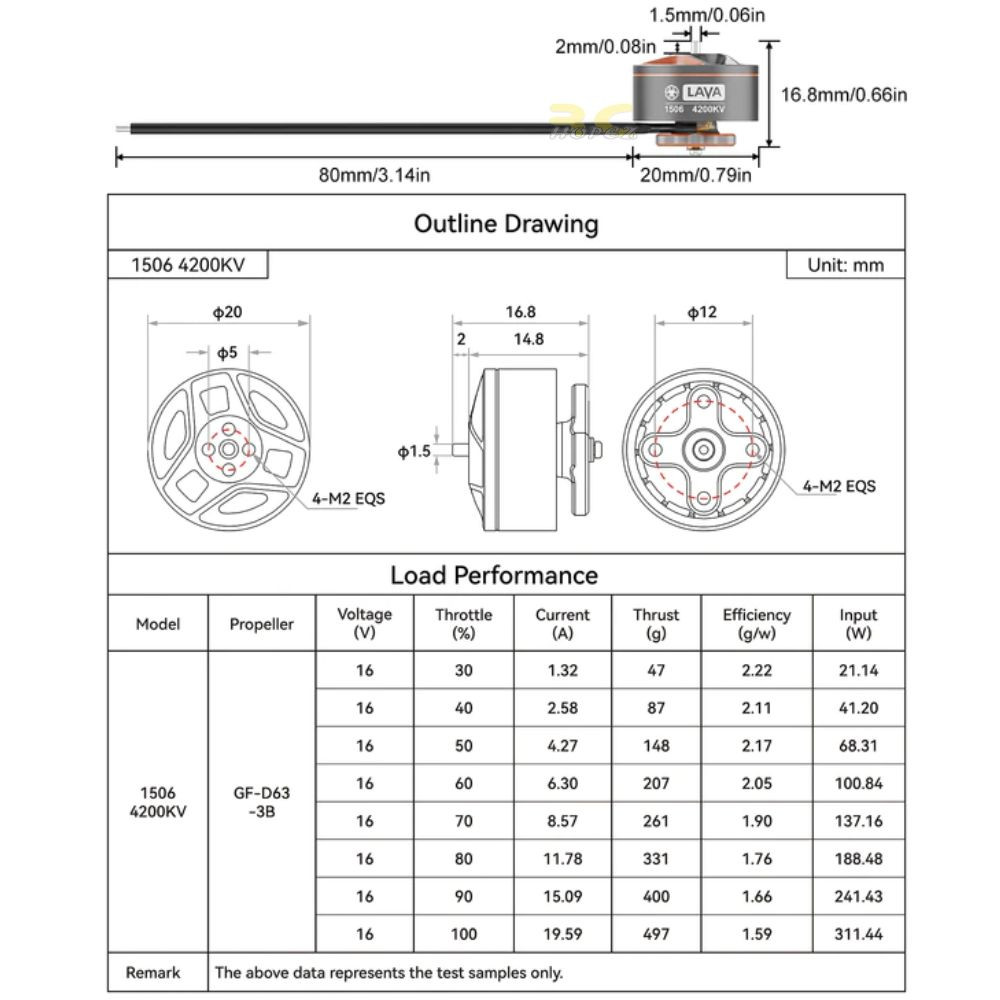

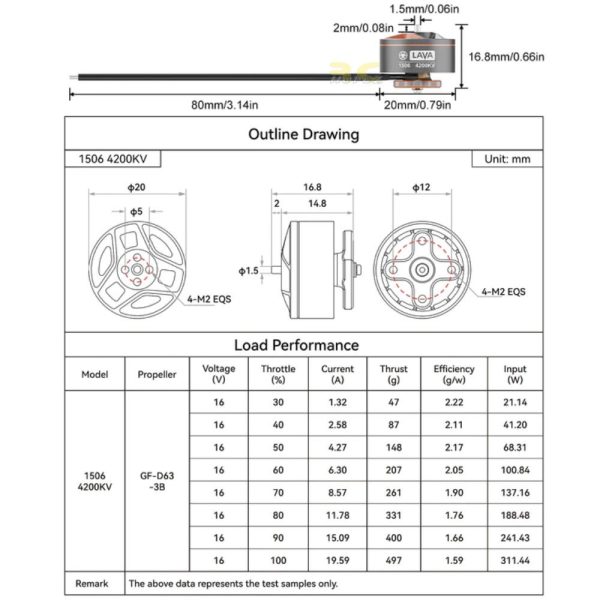

Specification

  • Items: LAVA Series 1506 4200KV Brushless Motors
  • Maximum Power: 313.44W
  • Maximum Current: 19.59A

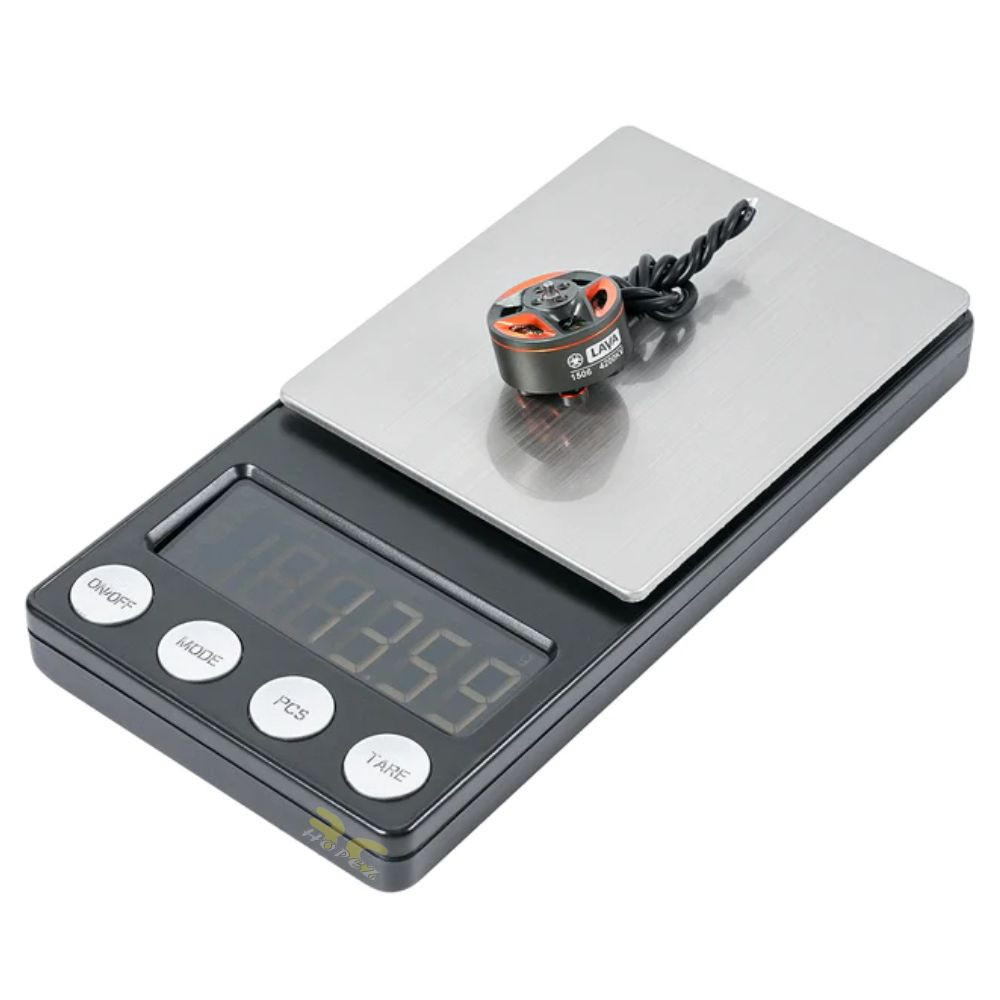

  • Weight: 13.6g
  • Shaft Diameter: ø1.5mm
  • Shaft Length: 4mm
  • Wire Specification: 24AWG
  • Wire Length: 80mm
  • Motor Mounting Hole Size: 4*M2 Ø12mm
  • Propeller Mounting Hole Size: 4*M2 Ø5mm

Recommended Parts: (Not Included)

  • Props: GF D63 3-Blade Propellers 1.5mm Shaft
  • Quad: Pavo25 V2 Brushless Whoop Quadcopter
  • FC: F722 35A AIO V2 FC
  • Battery: LAVA Series 4S 850mAh LiPo Battery, 4S 650mAh LiPo Battery

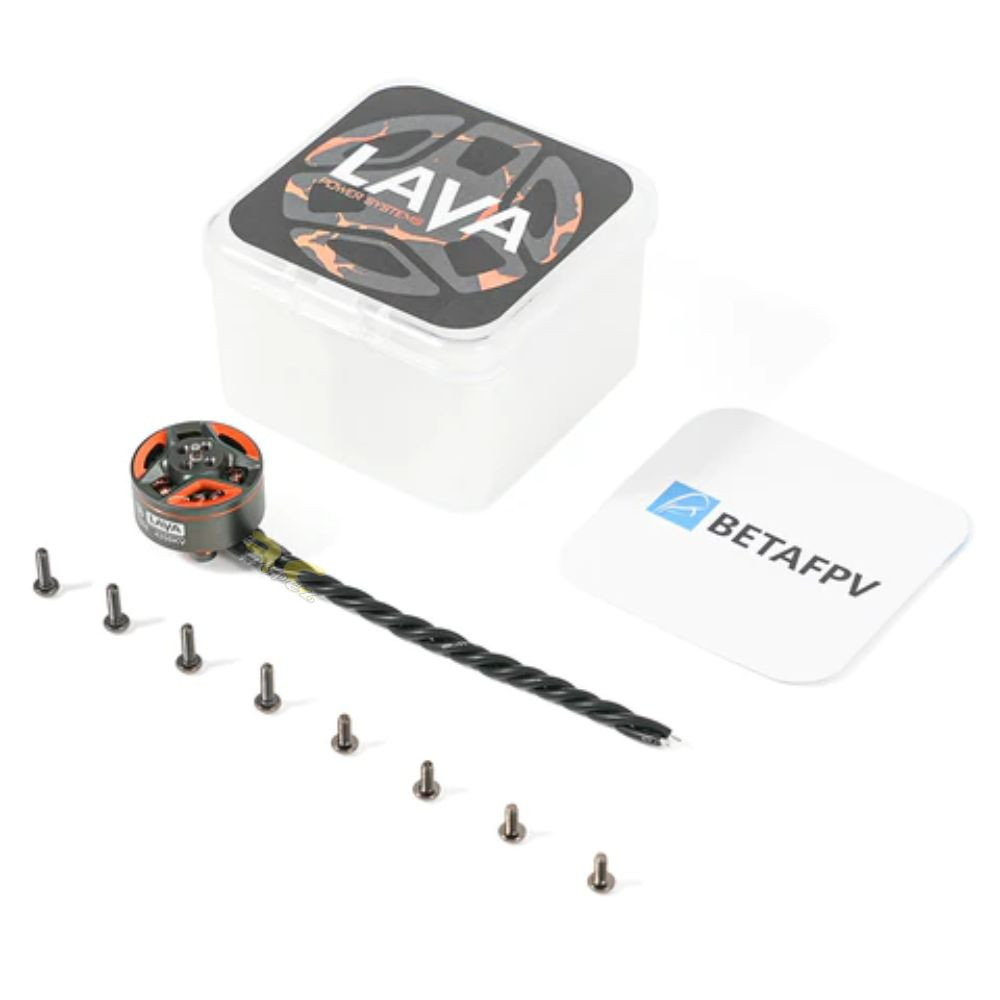

Package Included

1 x LAVA Series 1506 4200KV Brushless Motors
4 x M2 * 5 Hex Flat Head Screw
4 x M2 * 7 Hex Flat Head Screw

Weight 0.12 kg
Dimensions 8.00 × 5.00 × 5.00 cm
