BetaFPV F4 5A AIO ELRS 2.4G 1S (26X26mm) Brushless Flight Controller For Meteor65/65 Pro/75/75 Pro BT-F4AIO5A
The F4 1S 5A AIO Brushless Flight Controller is back in stock with new and upgraded features. The new board integrates Serial ExpressLRS 2.4G receiver. Compared with the original built-in SPI ELRS 2.4G receiver, it could flash the newest ELRS official firmware like V3.0 easily. Also, we updated the FC with high-quality BMI270 gyro, BB51 ESC hardware with Bluejay ESC firmware, and 8MB Betaflight Blackbox flash.
Bullet Point

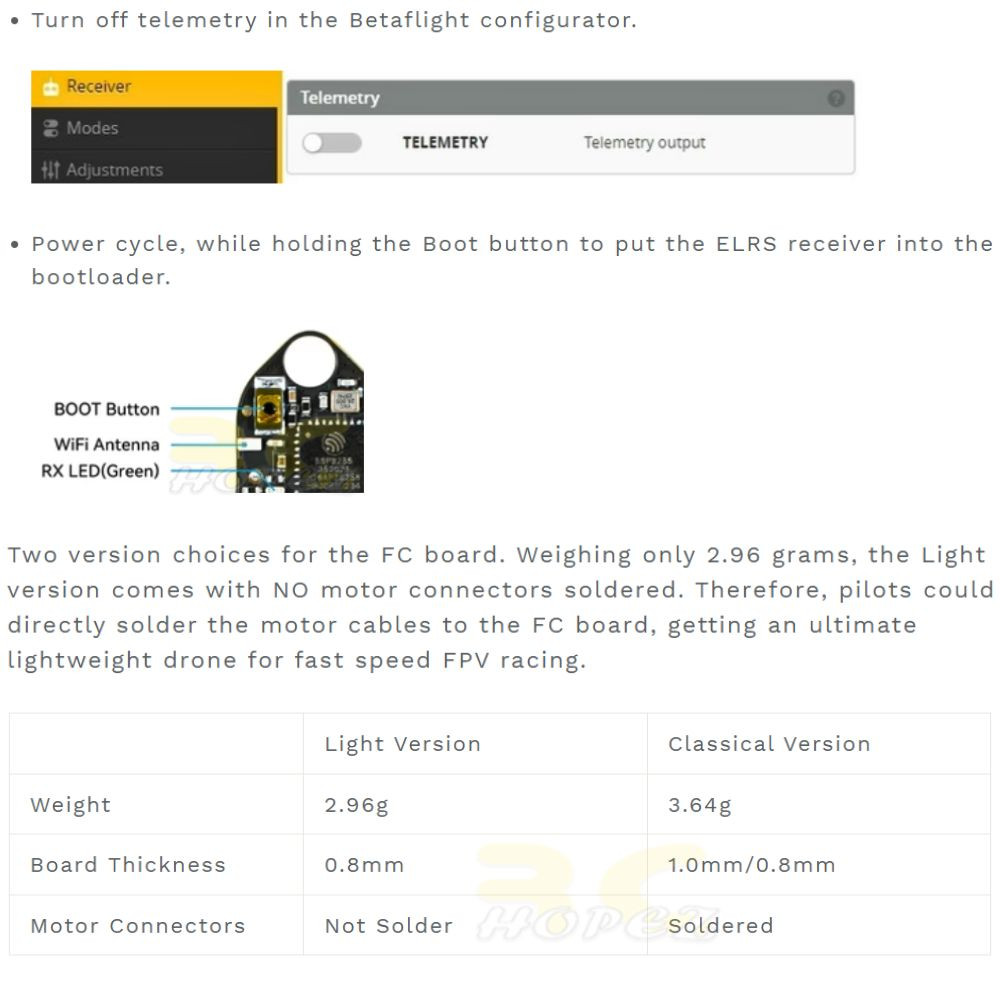

Come with a Serial ExpressLRS 2.4G receiver, which can be updated via Wi-Fi or Betaflight serial passthrough. It is convenient for pilots to flash any version of ELRS RX firmware and especially can flash ExpressLRS V3.0 without updating flight controller firmware.
Built-in an 8MB flash memory chip dedicated to Blackbox logging. It’s an extremely powerful tool for tuning and troubleshooting an FPV drone.

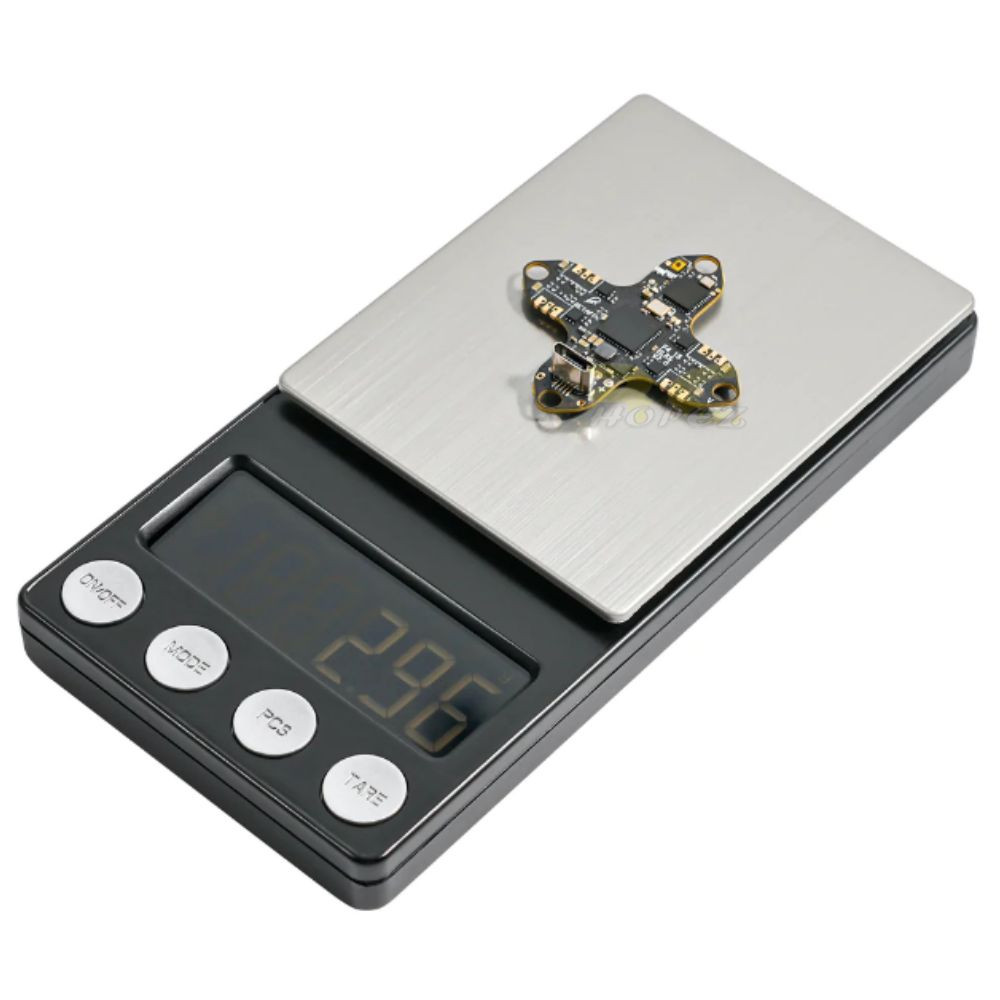

Particular design with a weight of 3.64g (Classical) and 2.96g (Light), reasonable layout, and easy to build. With a 26*26mm mounting hole size, it is fully compatible with the whoop frame in the current market.
The Light version requires soldering motor wires to the pad directly, which allows lower resistance for more current on motors. It also comes with motor pin connectors for convenience to use.
Specification of FC
CPU: STM32F411CEU6 (100MHZ)
Six-Axis: BMI270
Built-in Receiver: Serial ExpressLRS 2.4G
Receiver Antenna: Line antenna
FC Size: 30*30mm
Mounting Hole Size: 26*26mm
Firmware Version: betaflight_4.3.0_BETAFPVF411 (ELRS)
OSD: Built-in BetaFlight OSD
Blackbox: 8MB
Recommend VTX: >=200mW, like BETAFPV M03 350mW VTX or TBS Unify VTX
Power Cable: 55mm, with BT2.0 connector
Weight: 2.96g (without motor connectors) / 3.64g (with motor connectors), excluding power cable
Specification of ESC
Power supply: 1S
Current: 5A continuous and peak 6A (3 seconds)
ESC firmware: A_X_5_.HEX for Bluejay BB51 hardware
Signal Support: D-shot150, D-shot300, D-shot600, Oneshot125, Multishot, PWM
Note: The RX RSSI values drop when the flight controller is installed on the quadcopter with HD digital VTX (Walksnail or HDZero). For example, the theoretical failsafe RSSI values for 250Hz packet rate are -108dBm. Actually, the RX will be possibly lost in control when the RX RSSI values reach about -92dBm.

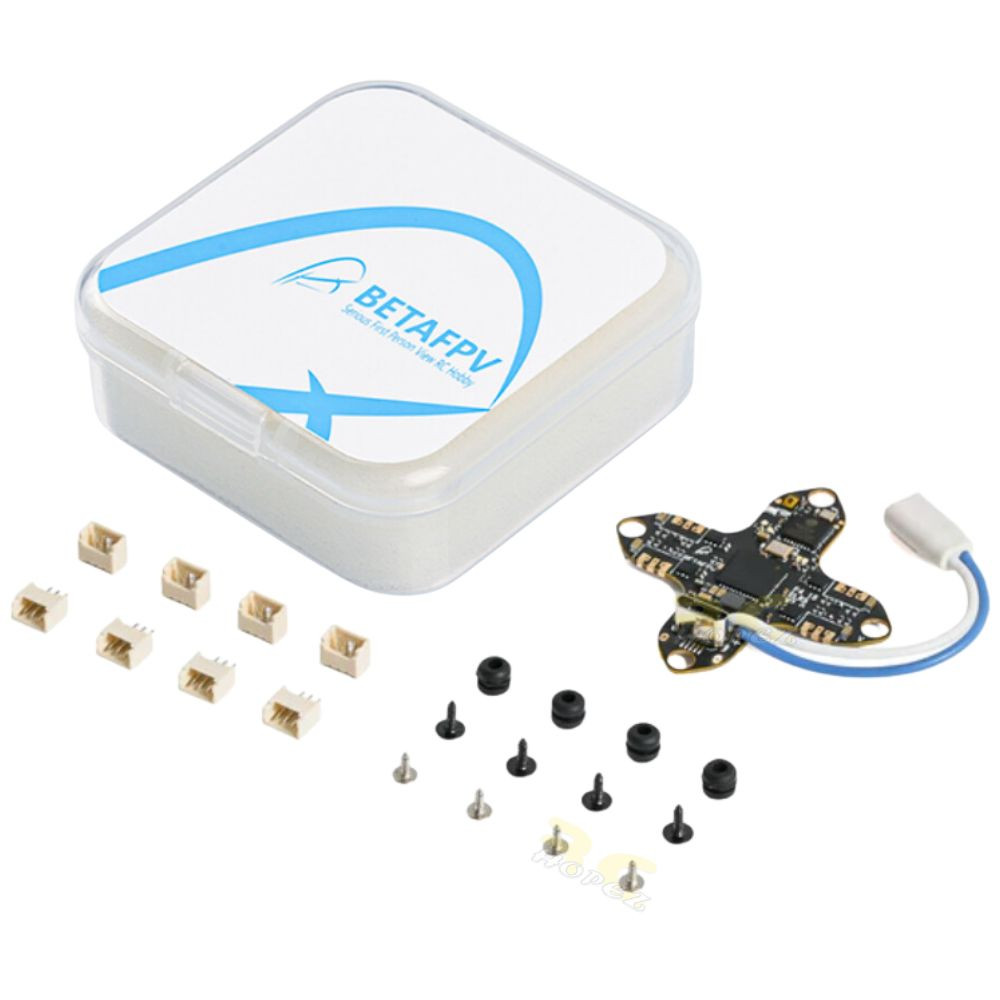

Package Included:
Light Version (Motor Connectors Not Solder)
1 x Toothpick F4 5A AIO ELRS 2.4G 1S FC (Board Thickness 0.8mm)
4 x M1.2x4mm Screws
4 x M1.4x5mm Screws
4 x Anti-vibration Rubber Dampers
8 x Motor Pin Connectors (Light version included)
OR
Classical Version (Motor Connectors Soldered)
1 x Toothpick F4 5A AIO ELRS 2.4G 1S FC (Board Thickness 1.0mm)
4 x M1.2x4mm Screws
4 x M1.4x5mm Screws
4 x Anti-vibration Rubber Dampers
