Summary

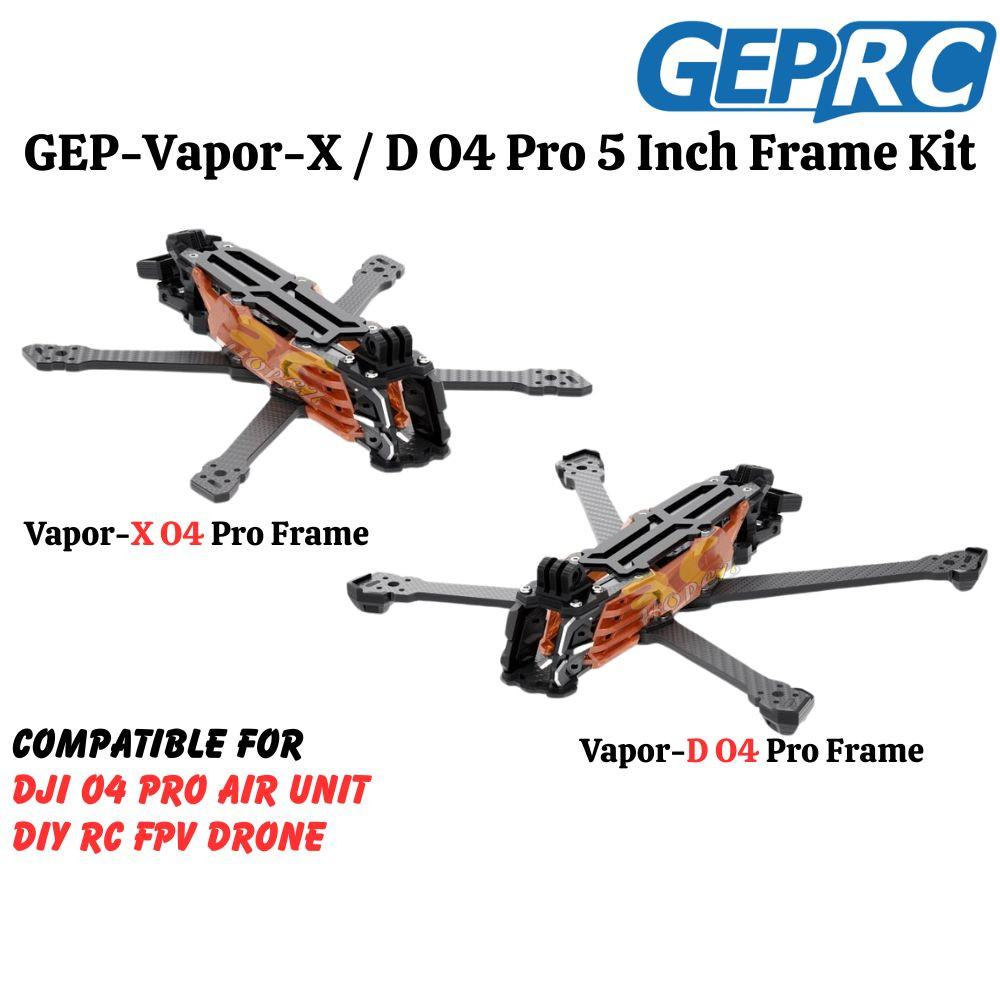

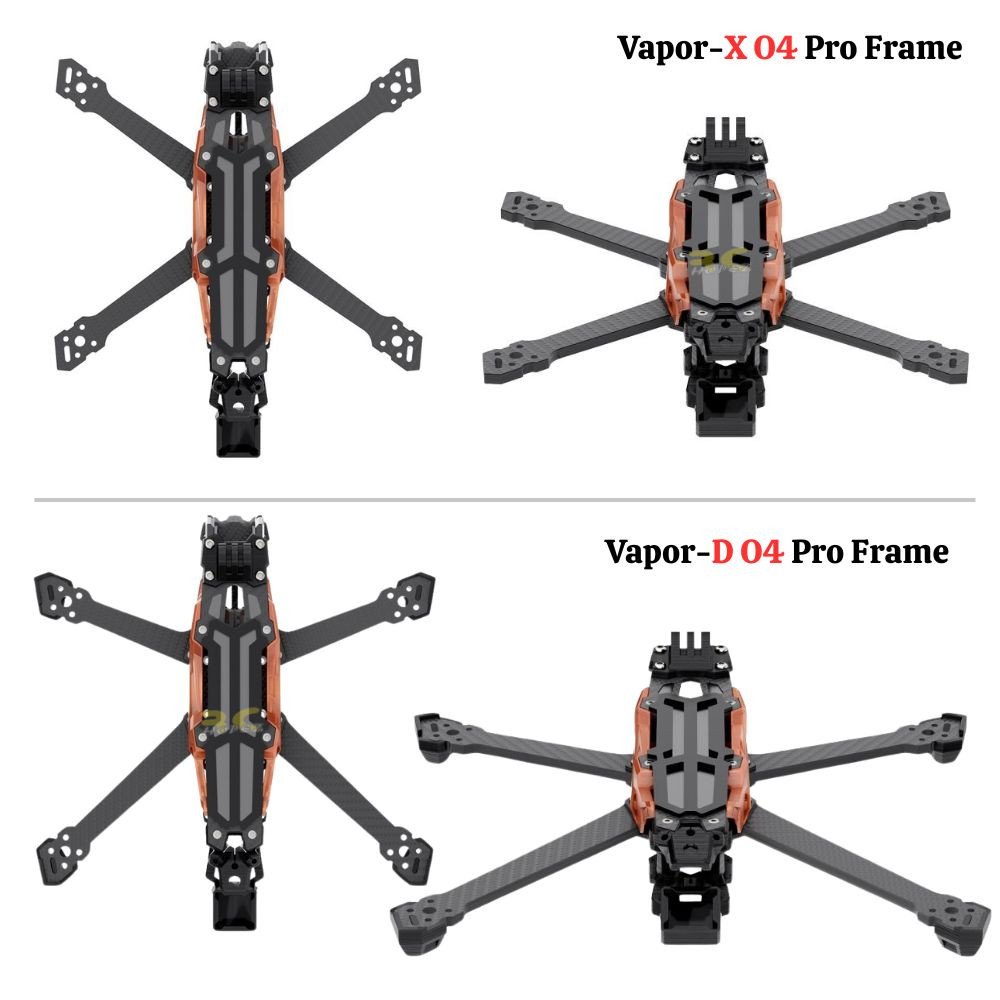

The GEPRC team presents the Vapor O4 Pro frame, designed specifically for the DJI O4 Air Unit Pro.
With redesigned aluminum camera parts and improved vibration-damping silicone, this frame offers better compatibility. The new mech-inspired side panels add a bold, sharp look, enhancing the frame’s stylish design. Made from high-strength carbon fiber, it’s lightweight yet durable, ensuring top-notch performance in any flight.

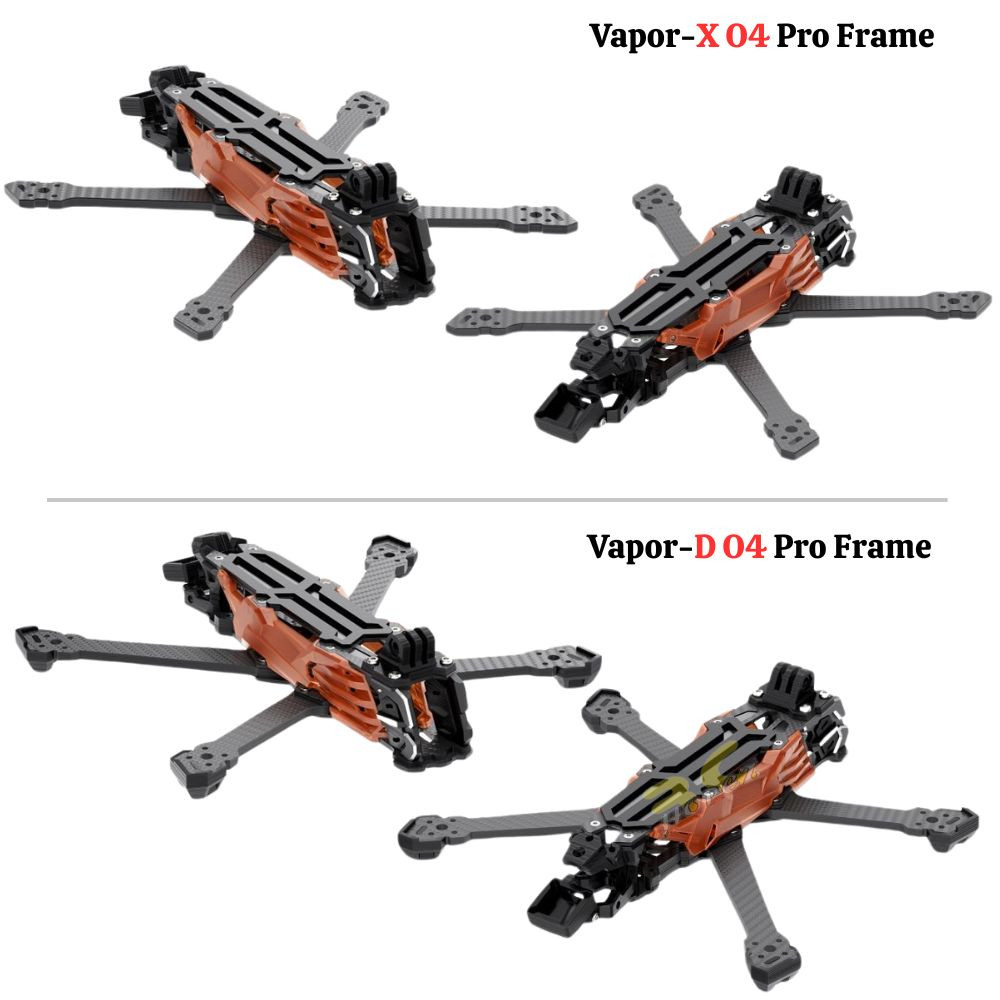

With its XH structure, the GEP-Vapor-X O4 Pro frame offers superior stability and precise handling.

The GEP-Vapor-D O4 Pro ensures clean footage and dependable flight for aerial filming.

**GEP-Vapor-D

Features
1. 5mm wide carbon fiber arms for better rigidity and durability.
2. Dual protection with camera guard side panels and a front lip design for better impact resistance.
3. Available in both 5-inch and 6-inch options to cater to every pilot’s flying preferences.
4. Quick-release design for easy repairs and maintenance.
5. Redesigned aluminum lens mount, perfectly matched to the O4 Pro VTX.

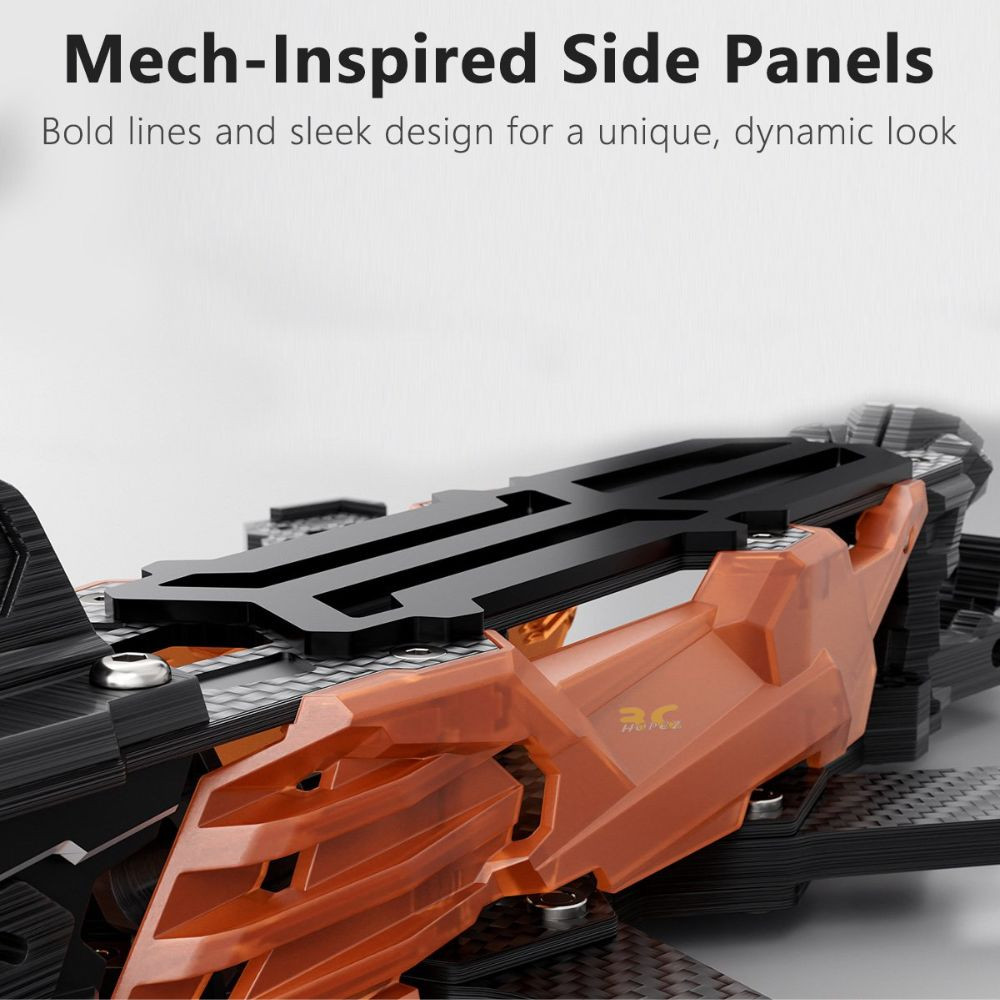

6. New mech-inspired side panels with a bold, sharp design.
7. Rear antenna mount supports both the original O4 Pro antenna and SMA adapters.
8. Clear footage with no prop in view and agile flight with DC frame.

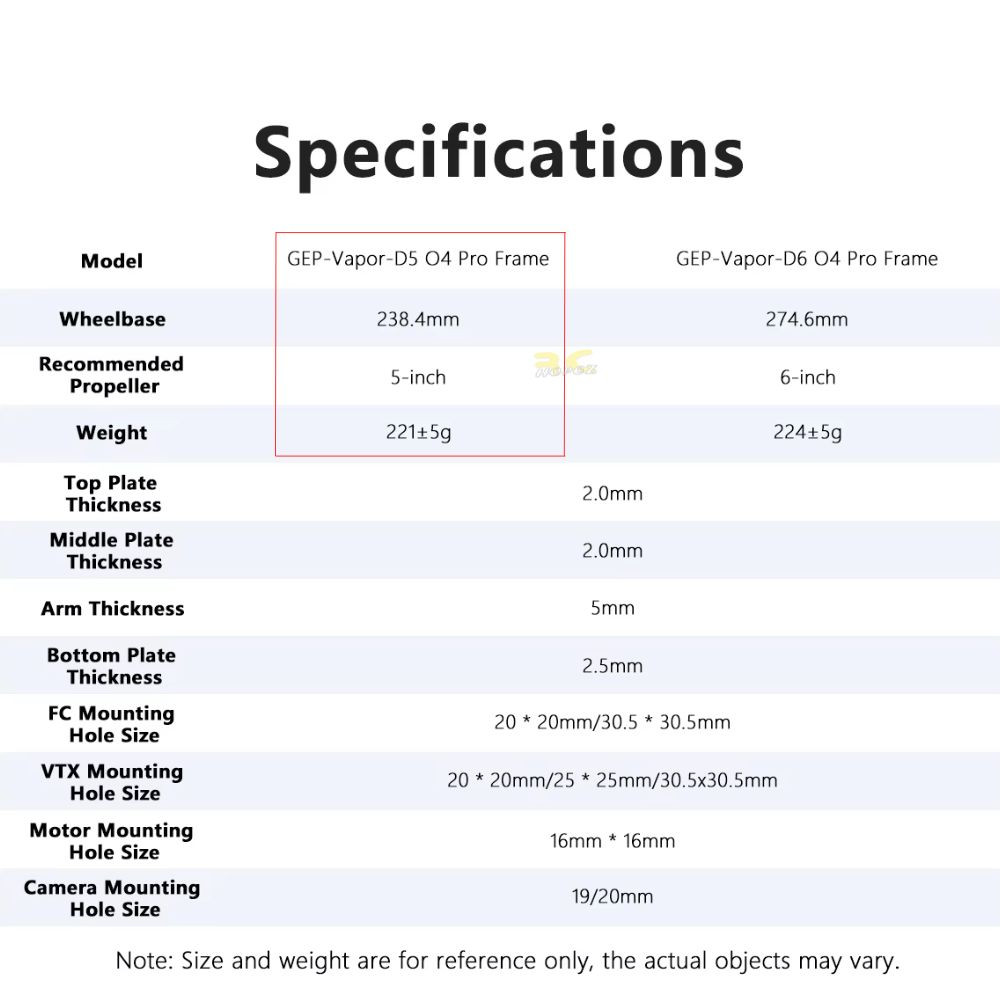

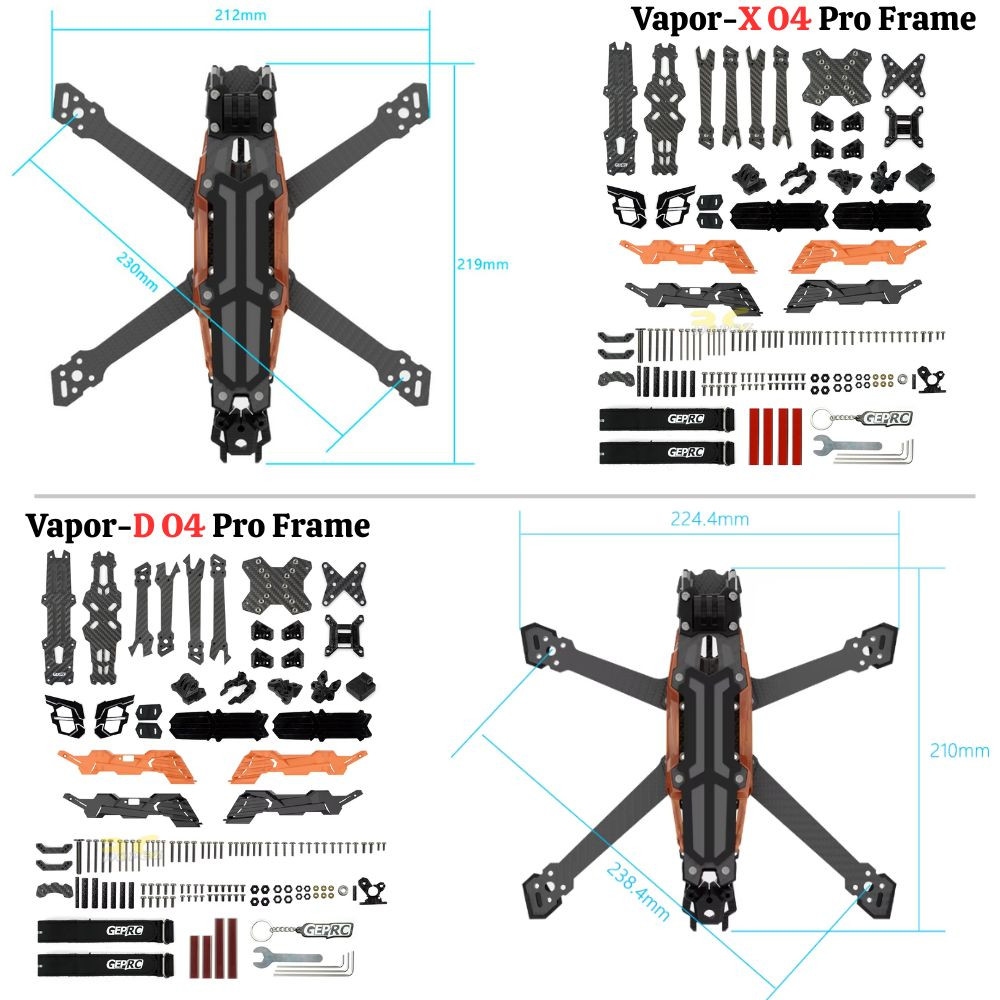

D5 Specifications
Model: GEP-Vapor-D5 O4 Pro Frame
Wheelbase: 238.4mm
Top Plate Thickness: 2.0mm
Middle Plate Thickness: 2.0mm
Arm Thickness: 5.0mm
Bottom Plate Thickness: 2.5mm
FC Mounting Hole Size: 20x20mm / 30.5×30.5mm
VTX Mounting Hole Size: 20x20mm / 25x25mm / 30.5×30.5mm
Motor Mounting Hole Size: 16x16mm
Camera Mounting Hole Size: 19mm / 20mm
Recommended Propeller: 5-inch
Weight: 221±5g

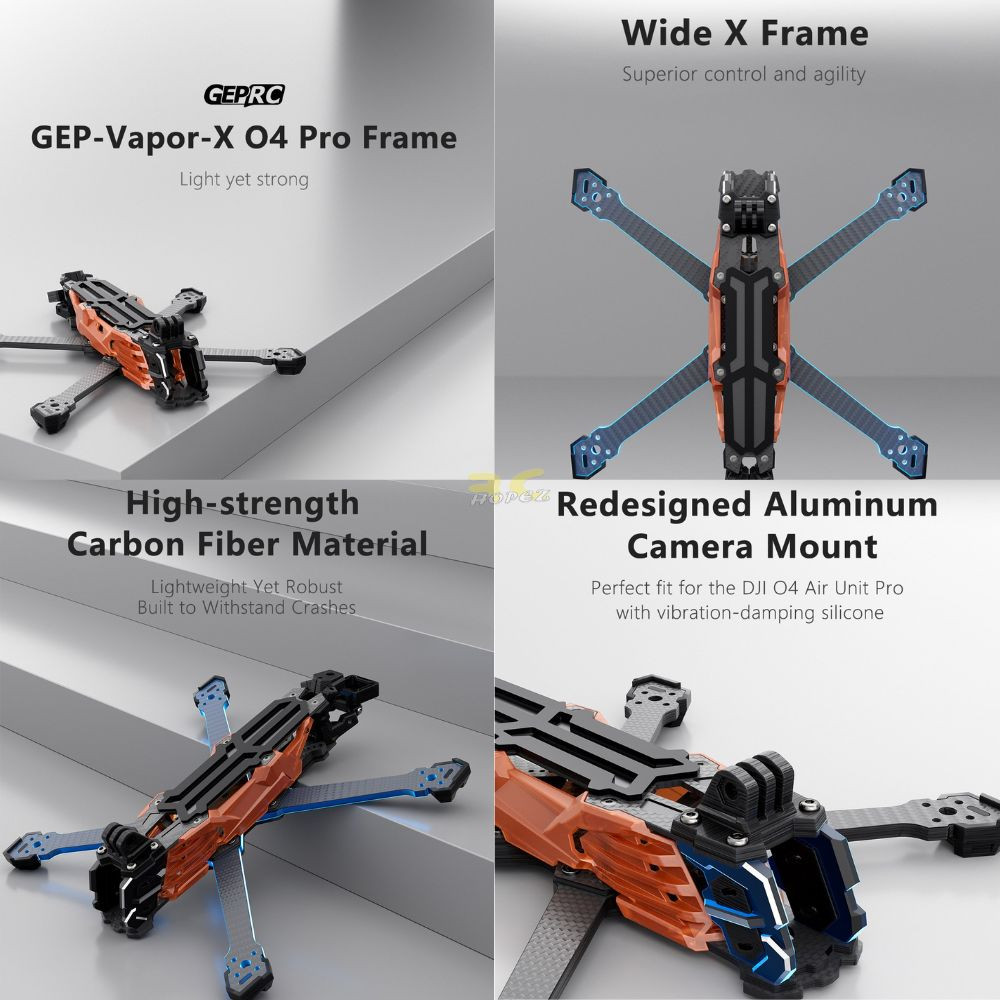

**GEP-Vapor-X

Features
1. 5mm wide carbon fiber arms for better rigidity and durability.
2. Dual protection with camera guard side panels and a front lip design for better impact resistance.
3. Quick-release design for easy repairs and maintenance.
4. Redesigned aluminum camera mount, perfectly matched to the O4 Pro VTX.
5. New mech-inspired side panels with a bold, sharp design.
6. Rear antenna mount supports both the original O4 Pro antenna and SMA adapters.

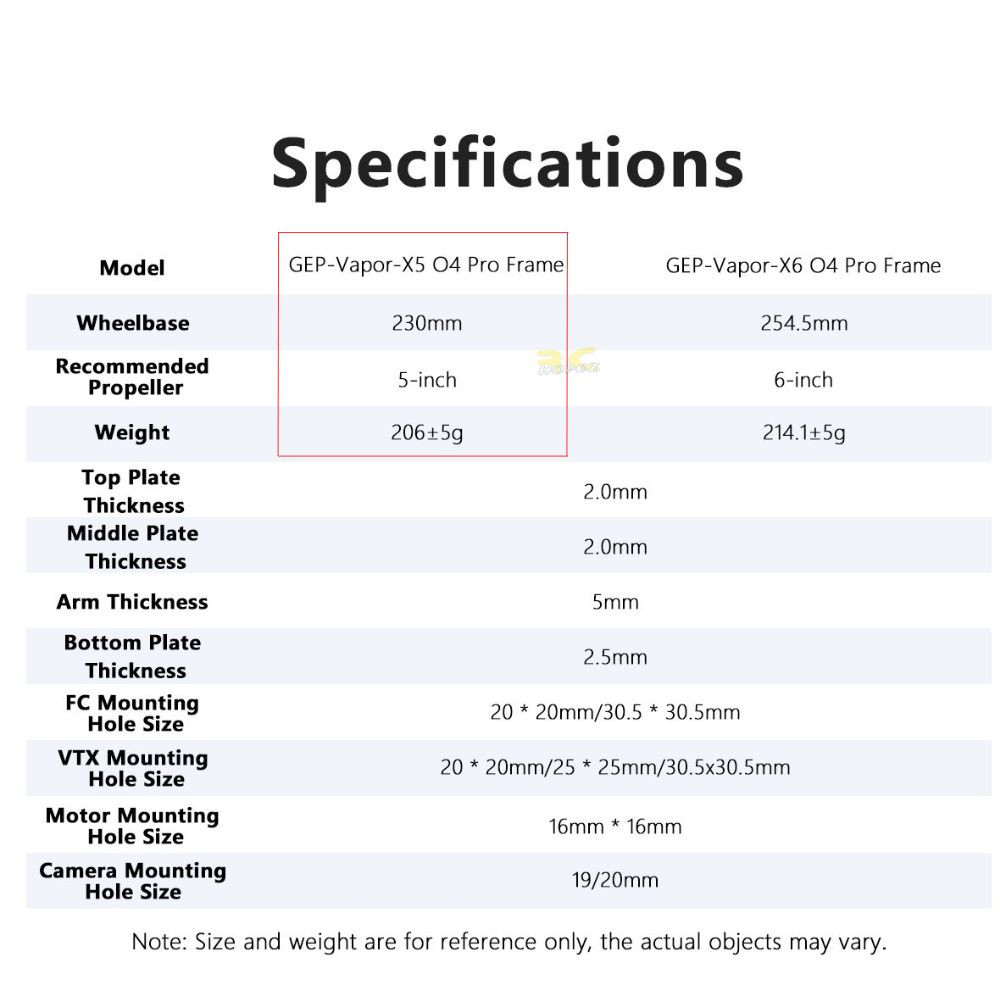

X5 Specifications
Model: GEP-Vapor-X5 O4 Pro Frame
Wheelbase: 230mm
Top Plate Thickness: 2.0mm
Middle Plate Thickness: 2.0mm
Arm Thickness: 5.0mm
Bottom Plate Thickness: 2.5mm
FC Mounting Hole Size: 20x20mm / 30.5×30.5mm
VTX Mounting Hole Size: 20x20mm / 25x25mm / 30.5×30.5mm
Motor Mounting Hole Size: 16x16mm
Camera Mounting Hole Size: 19mm / 20mm
Recommended Propeller: 5-inch
Weight: 206±5g
