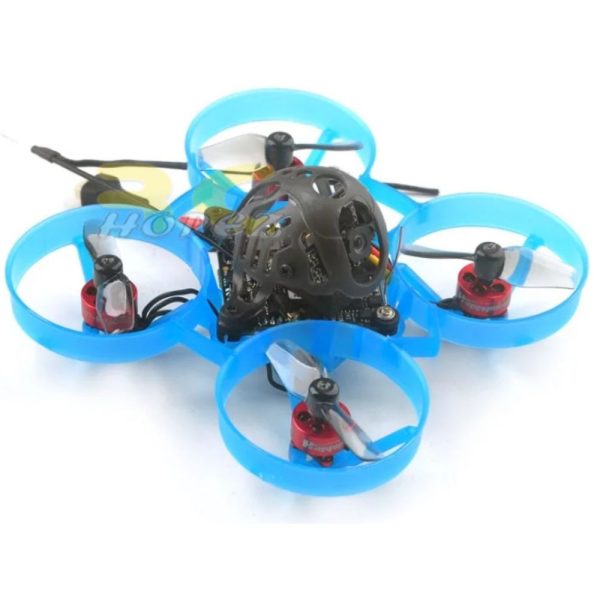

Happymodel Mobula6 ELRS 915MHz 1S 65mm CrazyF4 ELRS AIO BNF w/Runcam Nano 3 Brushless Whoop HP6-ELRS915(B)

ExpressLRS is currently the most popular remote control link system. It has the characteristics of low latency and high packet rate, and its link quality is very reliable. Now we are about to release Mobula6 equipped with ExpressLRS RC link system, the new Mobula6 elrs would coming out with a new 0702 brushless motor, that would be the lightest brushless motors all over the world. We're sure this would be a good option for you in the Tiny Whoop Season.

Item Name: Mobula6 ELRS 1S 65mm Brushless whoop BNF version
Frame Color: ELRS 915MHz – Blue
Size: 80x80mx37mm
Brand: Happymodel
Wheelbase: 65mm

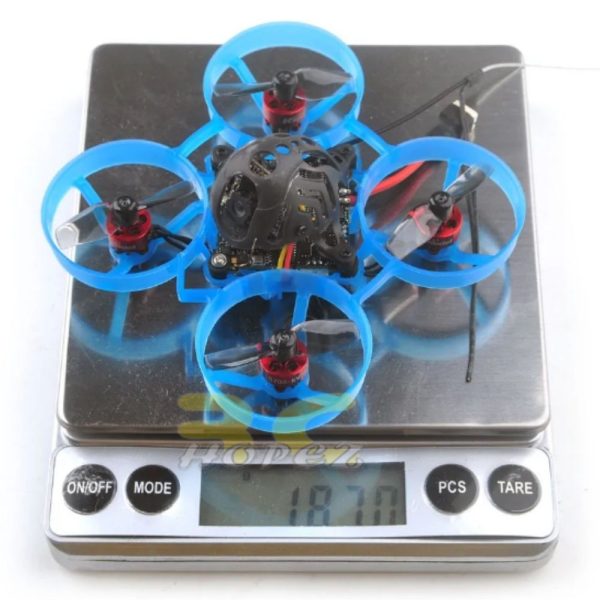

Weight: 18.7g

Mode: SE0702 KV26000
Stator Diamter:7mm
Stator Length:2mm
Shaft Diameter:Φ1mm
Motor Dimension(Dia.*Len):Φ9.5mm*14mm
No.of Cells(Lipo):1S only

Center Thickness:5mm
Prop Disk Diameter:31mm
Center Hole Inner diameter:1.0mm

Flight Controller:
CrazyF4 ELRS flight controller built-in 915MHz expresslrs receiver
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000(SPI connection)
Board size: 28.5 * 28.5MM
Power supply: 1S battery input (DC 2.9V-4.35V)
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G VTX
Built-in ExpressLRS 915MHz receiver
Built-in 5V 1A BEC
Built-in voltage detection

Onboard 4in1 ESC
MCU upgraded to EFM8BB21
Power supply: 1S LiPo/LiPo HV
Current: 5A continuous peak 6A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: O_H_5_REV16_7.HEX
Default protocol: DSHOT600

Onboard Serial-based ELRS Receiver
Operation current: ~100Ma
Rx To FC protocol: CSRF
RF Frequency optional: 915mhz
Antenna connector:  IPEX4
Telemetry output Power: <17dBm
Firmware target: Happymodel_RX_ES915RX
Receiver protocol: CRSF
Could bind with Happymodel ES915TX , Frsky R9M and DIY ELRS TX module(need to flash the same version ELRS firmware)
Firmware flash via Betaflight pass-through

Onboard 5.8g VTX
Output power: 25mw~200mw
Frequency: 40CH
Input voltage: 3.3V 5.5V
Current consumption: 300mA(type)
Frequency: 5.8GHz 5bands 40 channels
With Race band
Smartaudio ready

Runcam Nano3
Model: RunCam Nano 3
Image Sensor: 1/3" CMOS
Horizontal Resolution: 800TVL
Lens: 2.1mm(M8) FOV 160°
Signal System: PAL/NTSC Non Switchable
S/N Ratio: >50dB
Electronic Shutter Speed: Auto
Auto Gain Control (AGC): Auto
Min. Illumination: 0.01Lux@1.2F
D-WDR: Auto
Day/Night: Color
Power:DC 3-5.5V
Current: 110mA@5V 120mA@3.3V
Housing Material: ABS
Net Weight: 1.2g
Dimensions: L14mm*W14mm*H9mm

Lipo Battery
Continuous Discharge Rate: 30C
Size: 57mmx12mmx7mm
Weight: 8g
Connector: PH2.0

1x Happymodel Mobula6 1S 65mm Brushless Whoop – ELRS 915MHz
1x  HQProp 31mm Bi-Blade Propeller (Set of 4)
4x 1S 300mAh 30C LiHV Battery
1x 1S Lipo/LIHV USB Charger
1x Screwdriver
1x Prop Tool


Weight 0.10 kg
Dimensions 5.00 × 5.00 × 5.00 cm
