Happymodel Mobula8 85mm 1-2S X12 V2.0 5-IN-1 AIO Whoop +RadioMaster Pocket/Jumper T Lite V2/T-Pro V2 BNF ELRS/Frsky/TBS

RM455.00RM1,373.00

Happymodel Mobula8 85mm 1-2S X12 V2.0 5-IN-1 AIO Whoop +RadioMaster Pocket/Jumper T Lite V2/T-Pro V2 BNF ELRS/Frsky/TBS

NOTE : For Jumper T Lite V2 / T-Pro V2 / RadioMaster Pocket , please notify and remarks for us if you need in Mode 1 (Throttle Right)

Specifications:
Brand Name: Happymodel

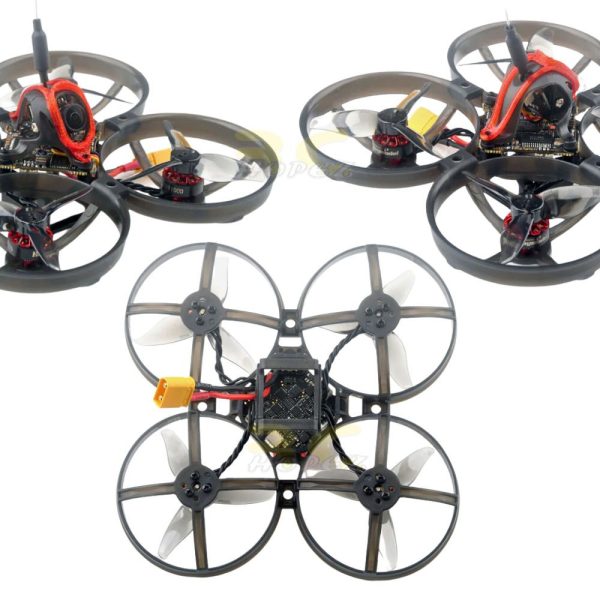

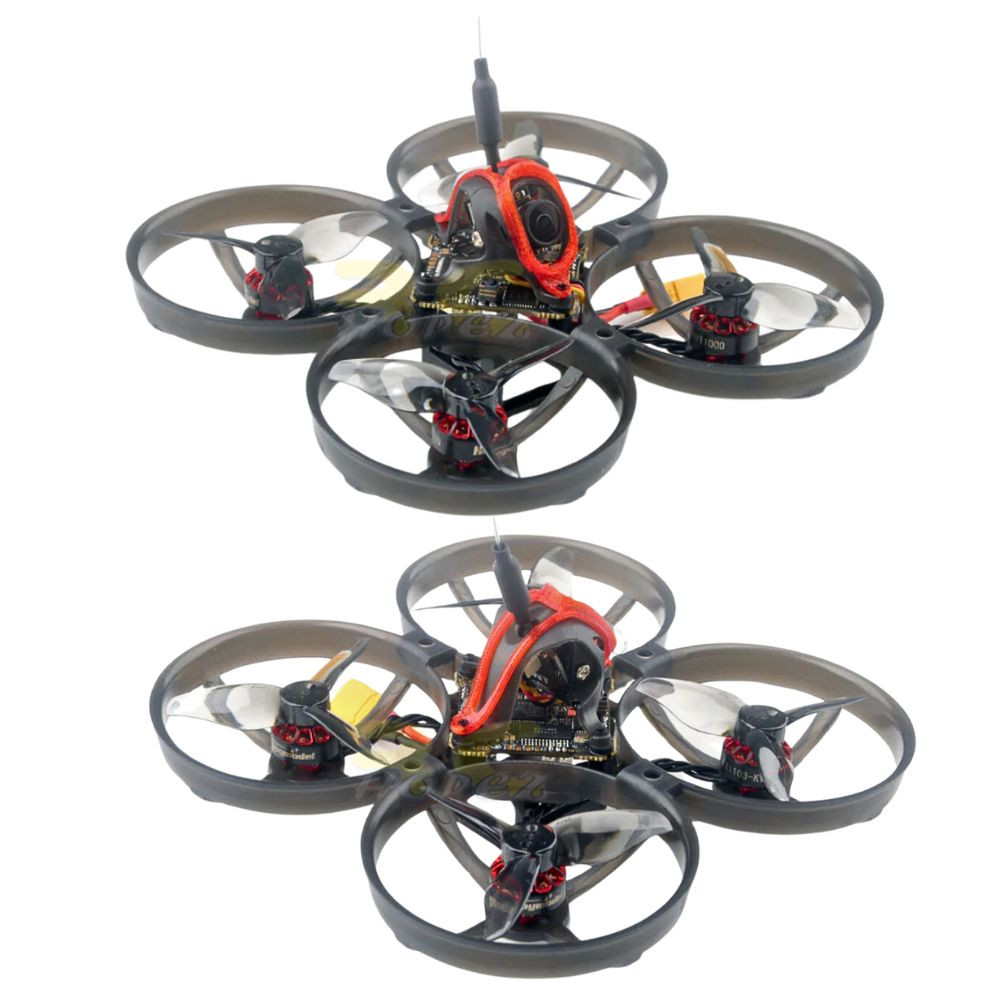

Item Name: Mobula8 1-2S 85mm Micro FPV whoop drone
Wheelbase: 85mm
Size: 120mm*120mm*50mm

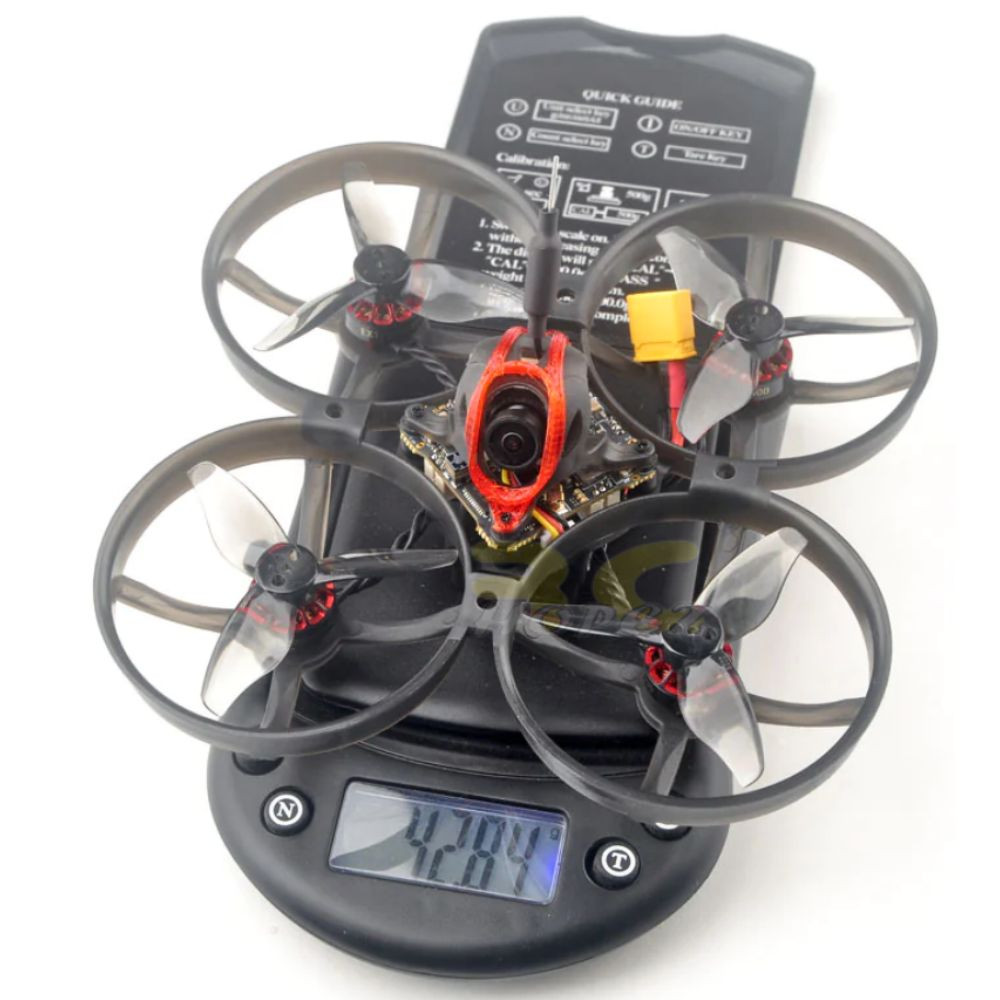

Weight: 43g

Receiver option:
2.4G ELRS SPI(Support ELRS v2.0, provide firmware could compatible with elrs v3.0)
SPI Frsky D8/D16  not compatible with EMAX E6 radio
SPI Flysky AFHDS2A
PNP (without onboard receiver)
TBS version(with external TBS CRSF NANO RX)

Motor
Mode: EX1103 KV11000
Configu-ration:9N12P
Stator Diamter:11mm
Stator Length:3mm
Shaft Diameter:Φ1.5mm
Motor Dimension(Dia.*Len):Φ13.5mm*15.5mm
Weight(g):3.8g
No.of Cells(Lipo):1-2S

Propellers
Weight:0.88g
Material: PC
Pitch:2.3inch
Props Dia:52.17mm
Center Thickness:5mm
Center Hole Dia:1.5mm

Flight controller
X12 ELRS V2.1 flight controller built-in ELRS 2.4G receiver Target: CRAZYBEEF4SX1280
X12 Frsky V2.1 flight controller built-in SPI Frsky 2.4G receiver Target: CRAZYBEEF4FR
X12 PNP V1.1 flight controller without onboard receiver Target: CRAZYBEEF4DX
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: ICM20689 or ICM42688P(SPI connection)
Mount hole size: 25.5mm*25.5mm
Power supply: 1-2S battery input (DC 2.9V-8.7V)
Built-in 12A(each) Blheli_S 4in1 ESC
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G OpenVTX 0mw~400mw
Built-in ExpressLRS 2.4G,Frsky D8/D16
Built-in voltage detection
Built-in current sensor

Onboard 4in1 ESC
Power supply: 1-2S LiPo/LiPo HV
Current: 12A continuous peak 15A (3 seconds)
Support BLHeliSuite programmable
Firmware target: Z_H_30
Default protocol: DSHOT300
Support Bluejay firmware

Onboard SPI ExpressLRS 2.4GHz Receiver
Packet Rate option: 50Hz/150Hz/250Hz/500Hz
ExpressLRS Firmware version: V2.0
RF Frequency: 2.4GHz
Antenna : SMD antenna
Telemetry output Power: <12dBm
Receiver protocol:  SPI ExpressLRS
Compatible with ExpressLRS V2.0 TX Module
Couldn’t flash separately ExpressLRS firmware
Could flash FC firmware to support ExpressLRS v3.0 TX module

Onboard SPI Frsky D8/D16 receiver Version
SPI BUS receiver Frsky D8/D16 compatible
Compatible Non EU transmitter D8/D16 modelChannels: 8ch/16ch
No ground interference ( Transmitter and receiver 1 m from the ground): 200meterFailsafe support

PNP Version
(without onboard receiver)    Full UART1 for external Receiver
Support CRSF/GHOST/SBUS/IBUS/DSMX protocol
IR1 pad(invert RX1) used for SBUS input

External TBS CRSF Nano receiver version
Original TBS CROSSFIRE Receiver  ,CRSF Protocol , Official TBS transmitter compatible

Onboard 5.8g OPENVTX
Firmware version: OPENVTX
Smartaudio v2.1
PIT Mode support
RCE Mode support
Channels:48ch
Transmitting Power: 0/RCE/25mw/100mw/400mw
Power supply: DC 5V
Current (5v): <650ma (400mw)

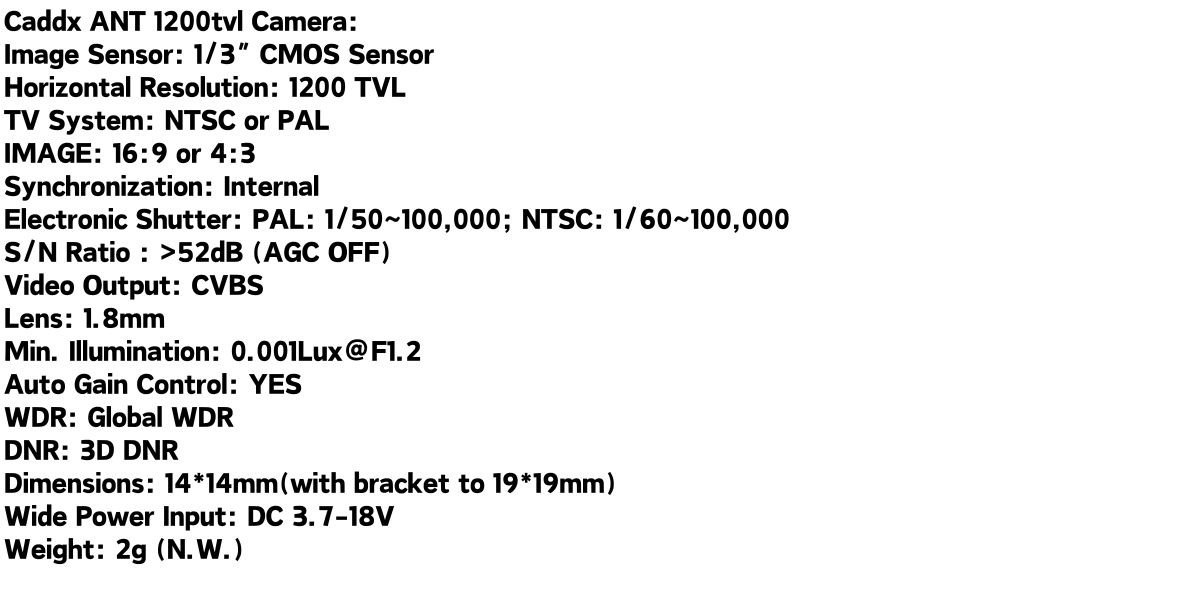

my-11134208-7r98w-lr2n0yq8mr5j01
my-11134208-7r990-lr2n0yq8o5pzf2

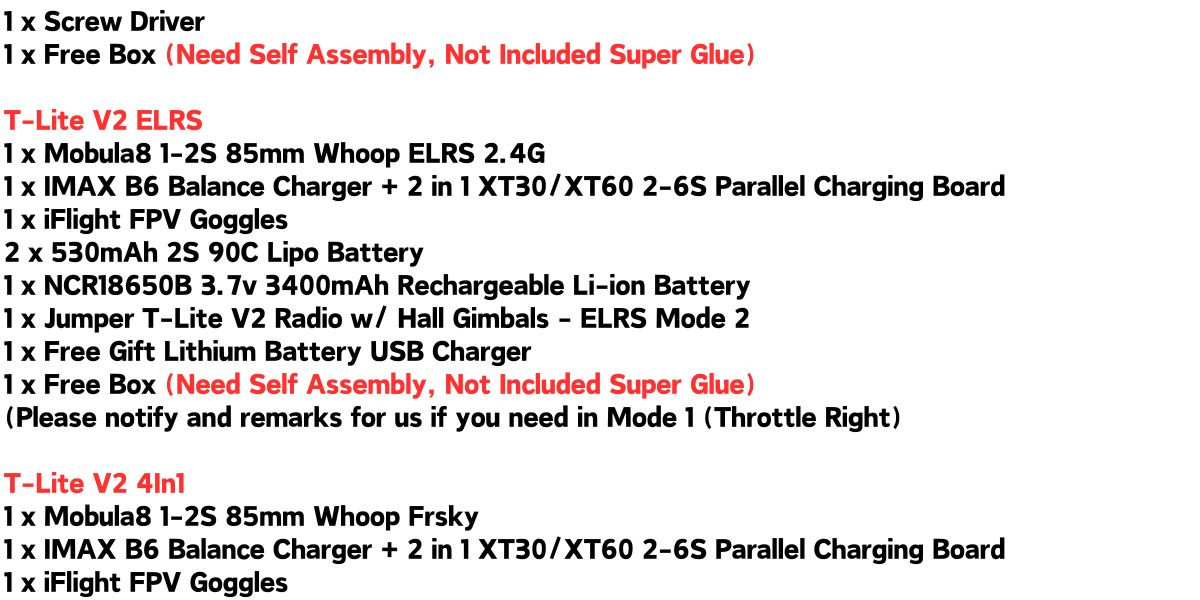

my-11134208-7r98q-lr2n0yq8pkaf1d

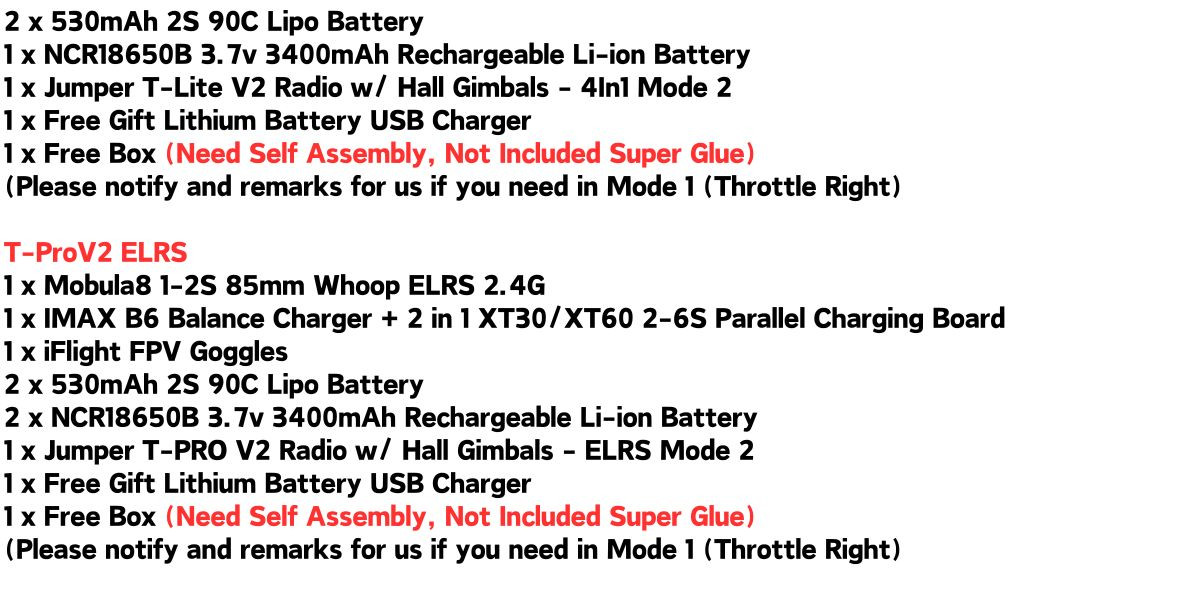

my-11134208-7r98s-lr2n0yq8qyuv74

Weight 0.40 kg
Dimensions 8.00 × 8.00 × 5.00 cm
Option

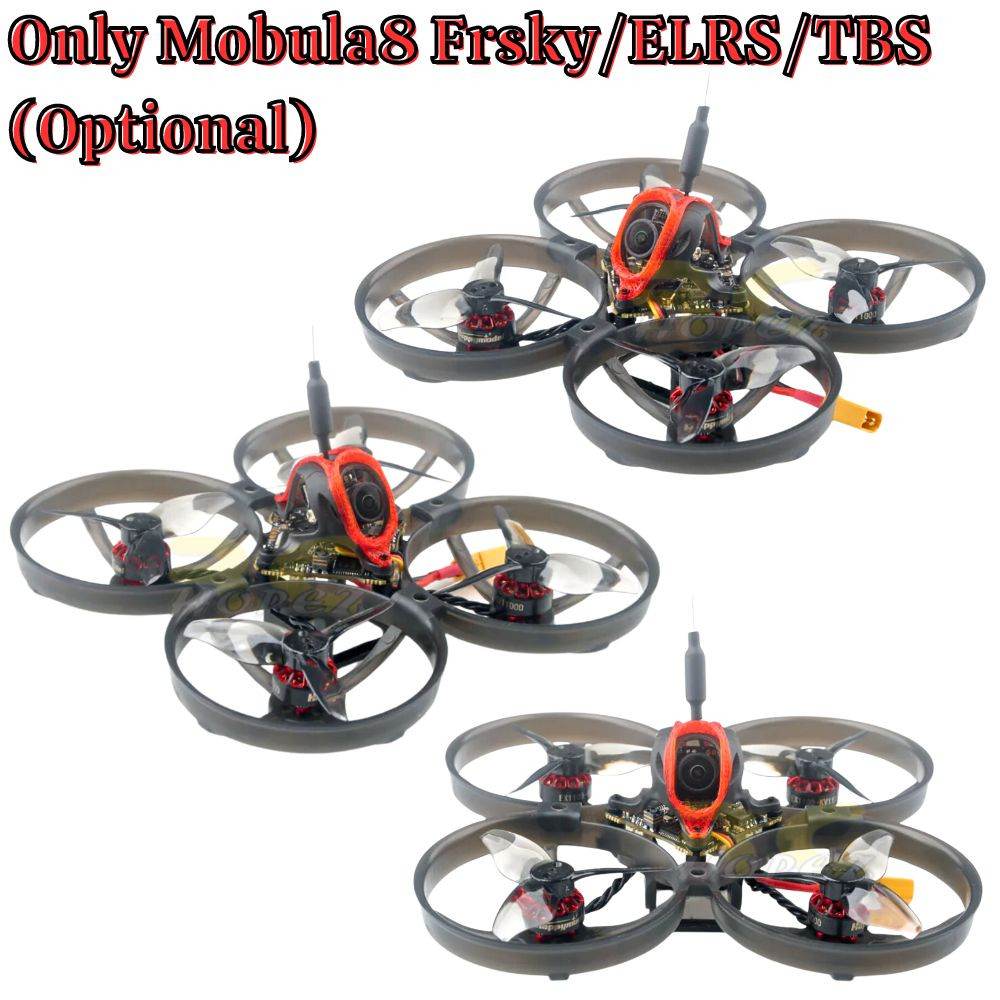

Only Mobula8 Frsky, Only Mobula8 ELRS, Only Mobula8 TBS, T-LiteV2 ELRS, T-LiteV2 4IN1, T-ProV2 ELRS, T-ProV2 4IN1, Pocket Charco ELRS, Pocket Charco CC2500, Pocket TR ELRS, Pocket TR CC2500
