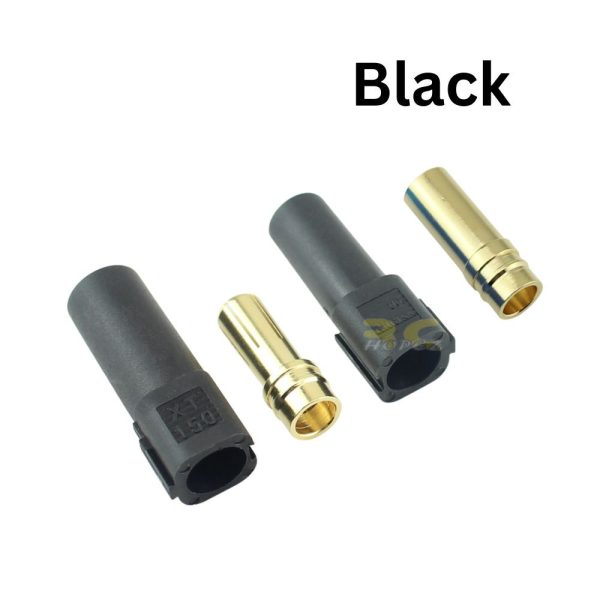

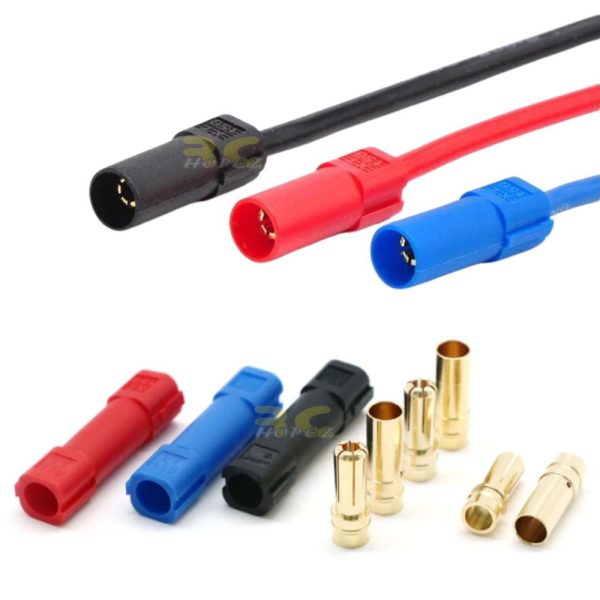

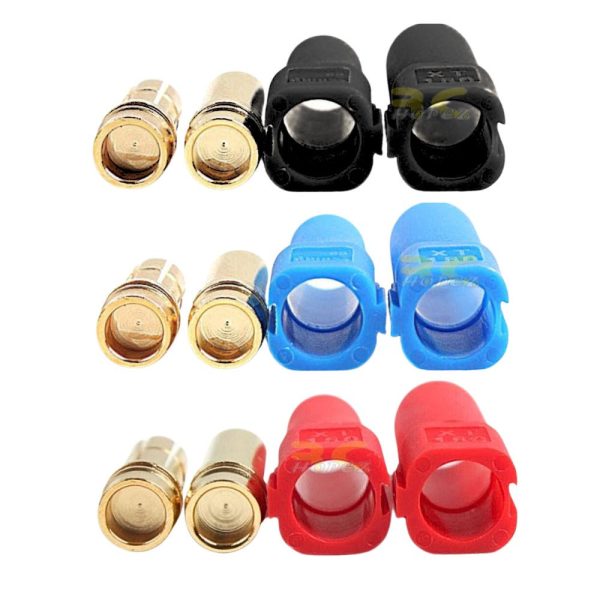

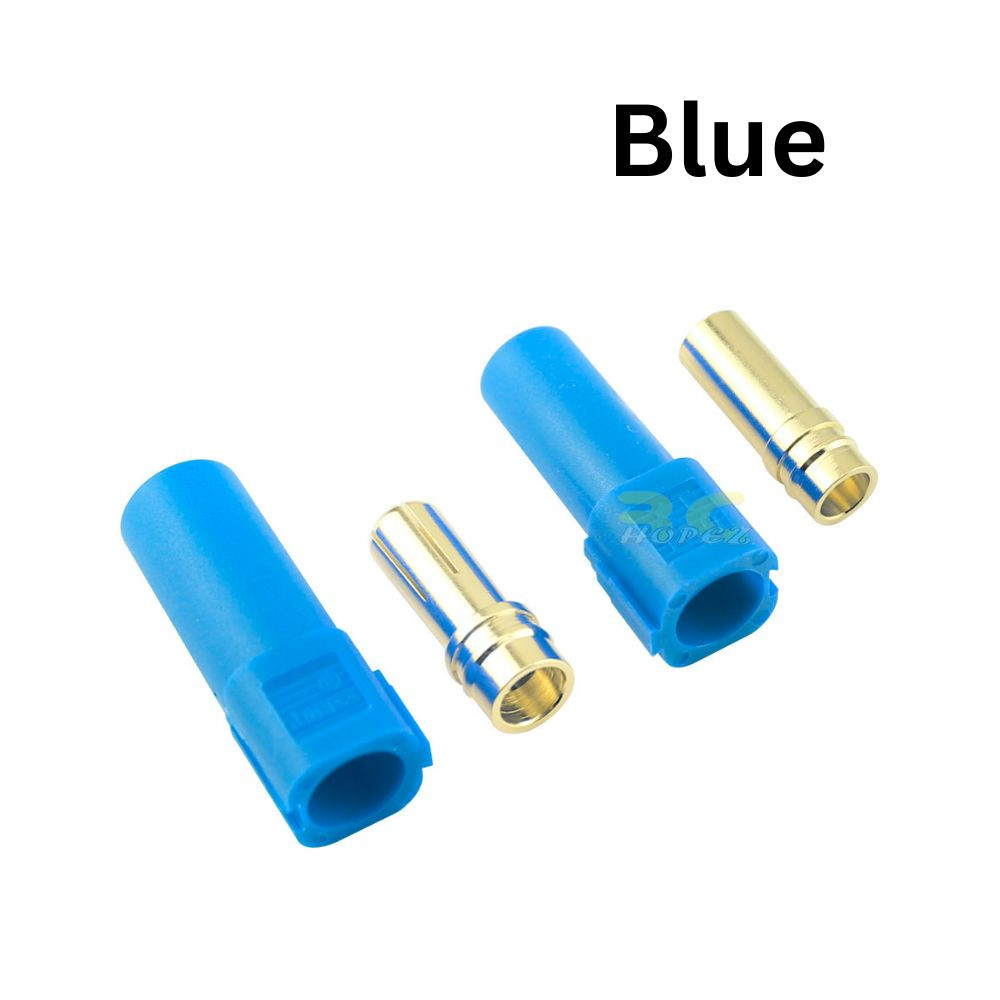

1Pair Amass XT150 Connector With 6mm Gold Connector A-XT150

Description

1Pair Amass XT150 Connector With 6mm Gold Connector A-XT150

Features:
Tail hole diameter is 8mmconvenient welding large wires,
Φ 6.0 mm gold-plated banana head plugs
Cover is made from flame retardant sheath material, safer
Cover is made into three color can be arbitrary combination, is convenient to connect motor to ESC

Specifications：
Brand: Amass
Item: XT150 Connector

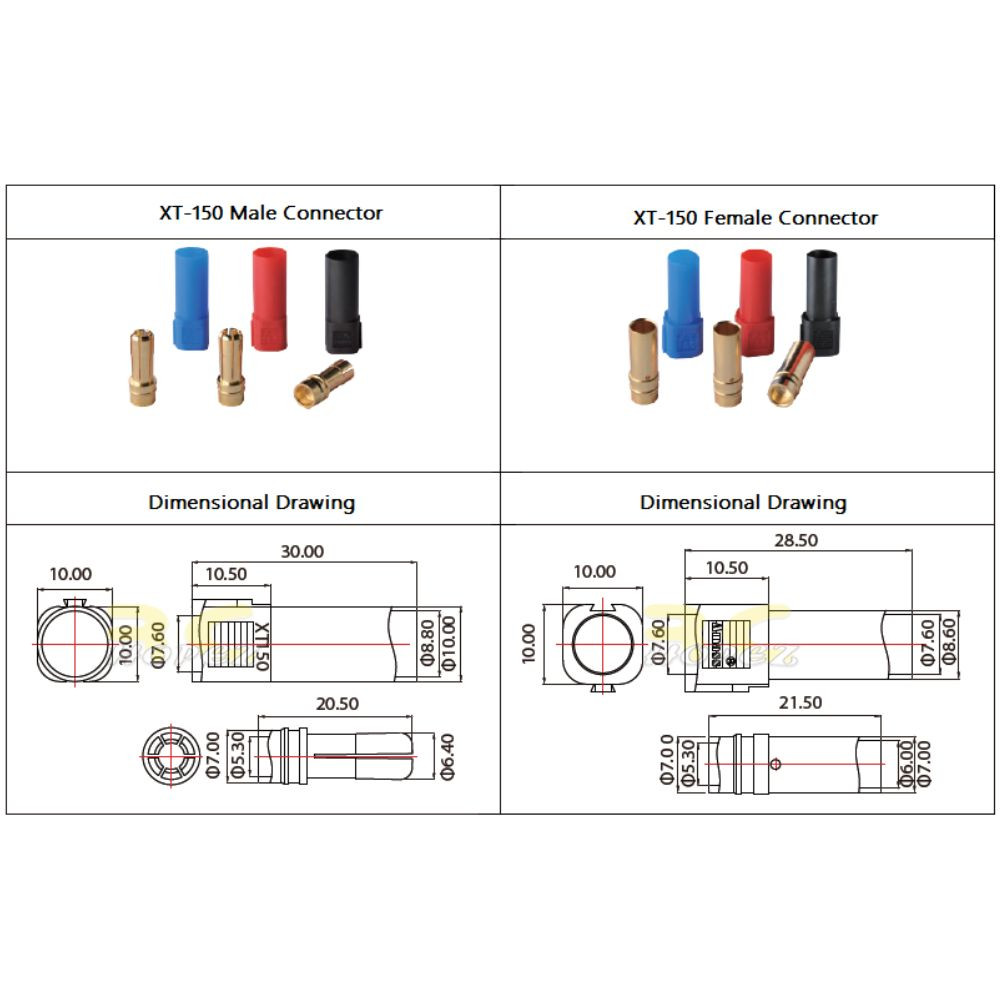

Length: 23mm
Cathode Plug Length: 20mm
Net weight: 25g
Color: Blue / Red / Black (Optional)
Recommend Usage: XT150-F(Battery) / XT150-M(ESC)
Quantity: 1 Pair
Working Current: large current for 100 A, peak 150 AAnode Plug
Size: 6.0mm Bullet Connector
Metal Material: Gold Plated, Brass Gold, Plated Brass
Plastic Material: PA
Flame Class: UL94 V0
Contact resistance: 0.2mohm
Connector size: 6.0mm
Rated Voltage: DC500V
Rated Current: 100A
Burst Current: 120A
Recommend Use Times: 1000 times
Recommend Cable: 8AWG
Working Temperature: -200C to 1200C

Packing Including :
1Pair x Amass XT150 Connector With 6mm Gold Connector
