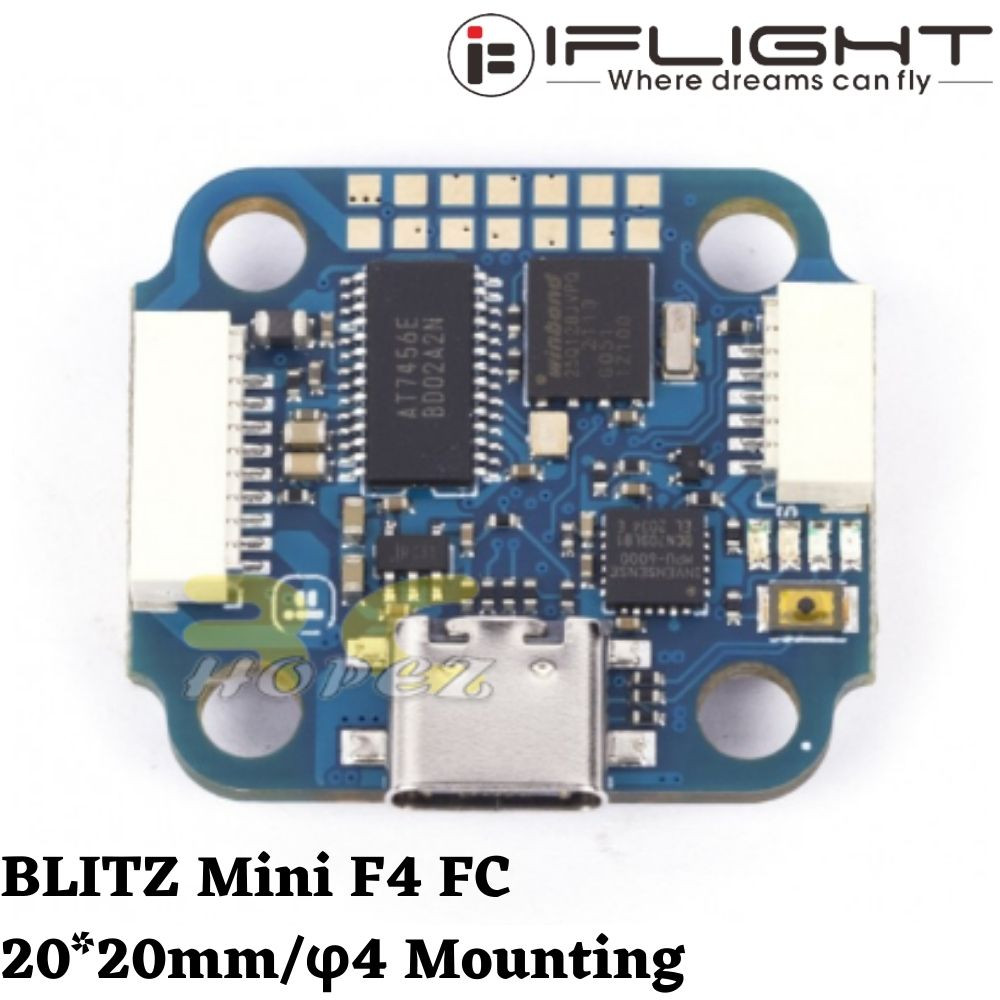

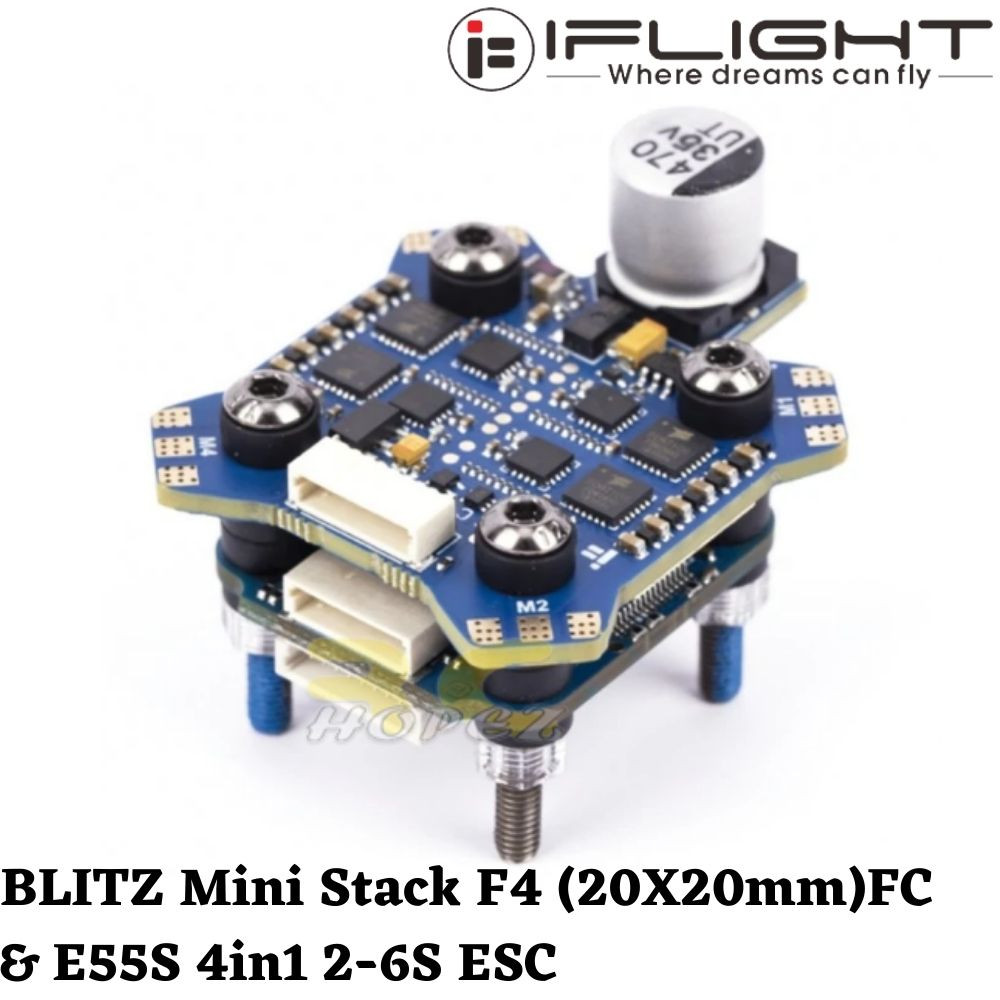

FC // BLITZ Mini F4 Flight Controller

Top Features:
– Improved circuit design, better components and lower electrical noise!
– DJI HD VTX Connector (Plug-and-Play / No soldering required)
– FC indicator LEDs for visual debugging

Specs:
– MCU：STM32F405
– Gyro：MPU6000
– Baro: NO
– Betaflight OSD: IFLIGHT OSD （AT7456E)
– Blackbox: 16MB
– UARTS: 6
– I2C serial: SDA / SLA pads
– Smartaudio / IRC Tramp VTX protocol supported
– LED controller: Yes
– Beeper pad: Yes
– Firmware target : IFRC-IFLIGHT_BLITZ_F405

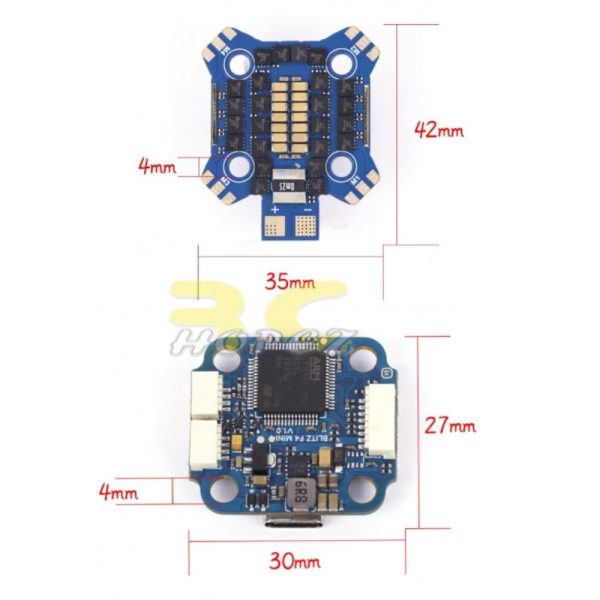

– Mounting：20*20mm/φ4
– Dimensions：30.5*27mm
– Weight：5.0g

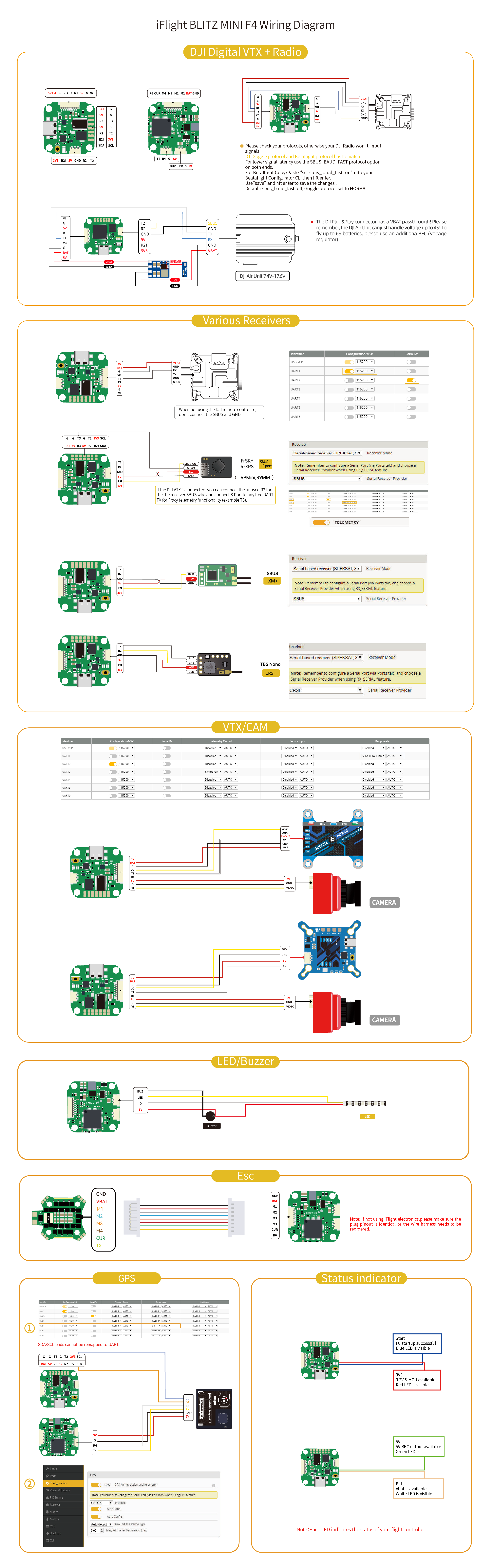

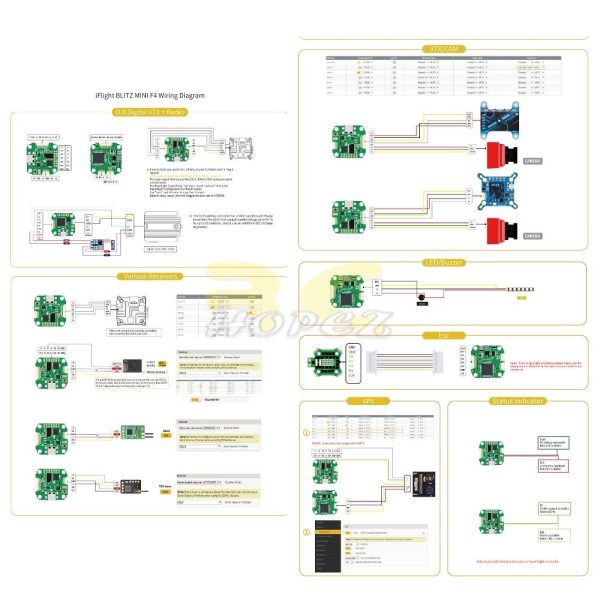

Wiring suggestion:
– UART 1 for VTX HD / Analog
– UART 2 for a Receiver
– UART 3/4 for GPS or other sensors that require a serial port
– UART 6 for ESC Telemetry

Tips
1. F405 MCU has not inner inverter
2. SBUS、CRSF、ELRS、IBUS、DSM ETC… can be connected to any unused UART_RX, we suggest you connect to Uart_RX2
3. Frsky SmartPort, Tramp & Smartaudio can be connected to any unused UART_TX, we suggest you connect to Uart_TX1
4. F.port can be used, need to be connected to UART_TX2 and setup the inner inverter

Included Connectors (Plug-and-Play wire harness):
1xSH1.0 9pin connector for HD VTX/Analog VTX&CAM （5V/BAT/G/VO/T1/R1 /5V/G/VI）
1xSH1.0 8pin connector for ESC（R6/CUR/M4/M3/M2/M1/BAT/G)
1xSH1.0 6pin connector for Any Receiver or DJI（3V3/R2i/5V /G/R2/T2）
1xSH1.0 4Pin  connector GPS (T4/R4/G/5V)
1xSH1.0 4Pin connector LED&Beeper (BUZ/LED/G/5V)
4×0402 LEDs for FC STATUS (3.3V Red) / (Start Blue) / (5V Green)/（BAT Orange）

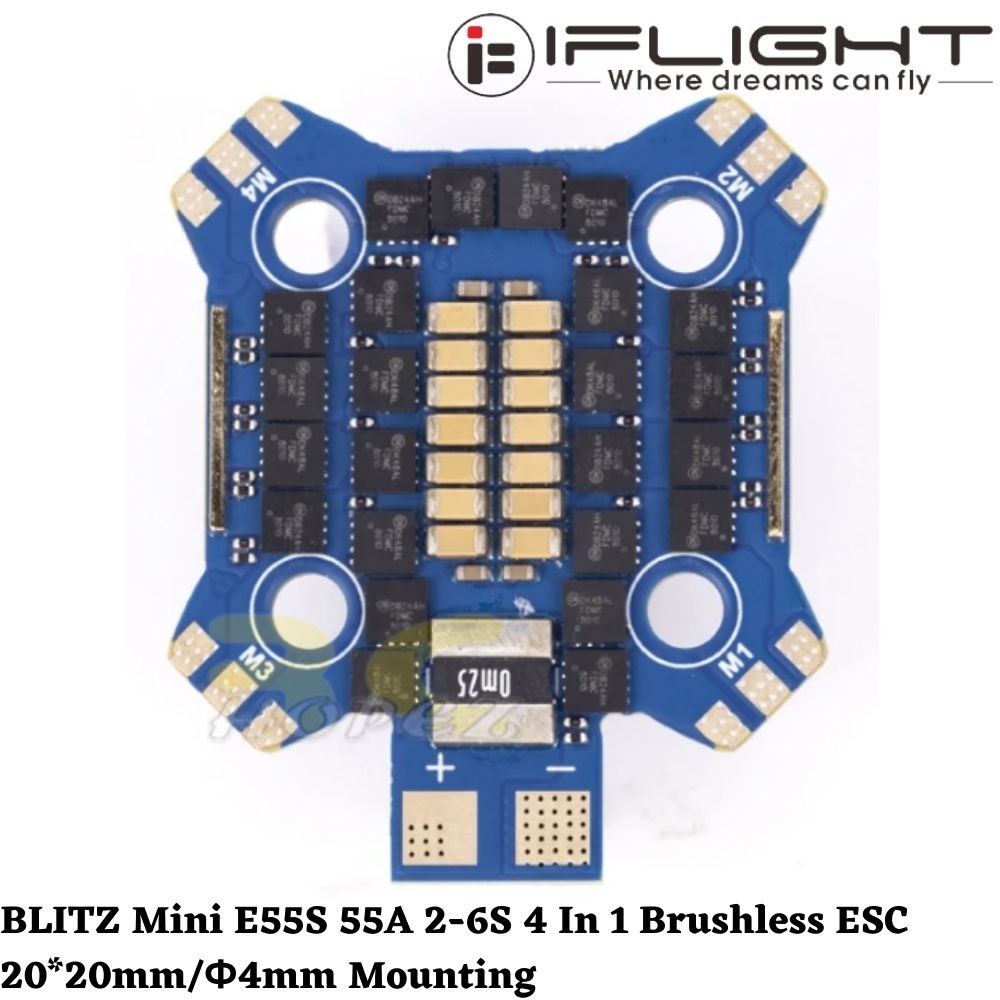

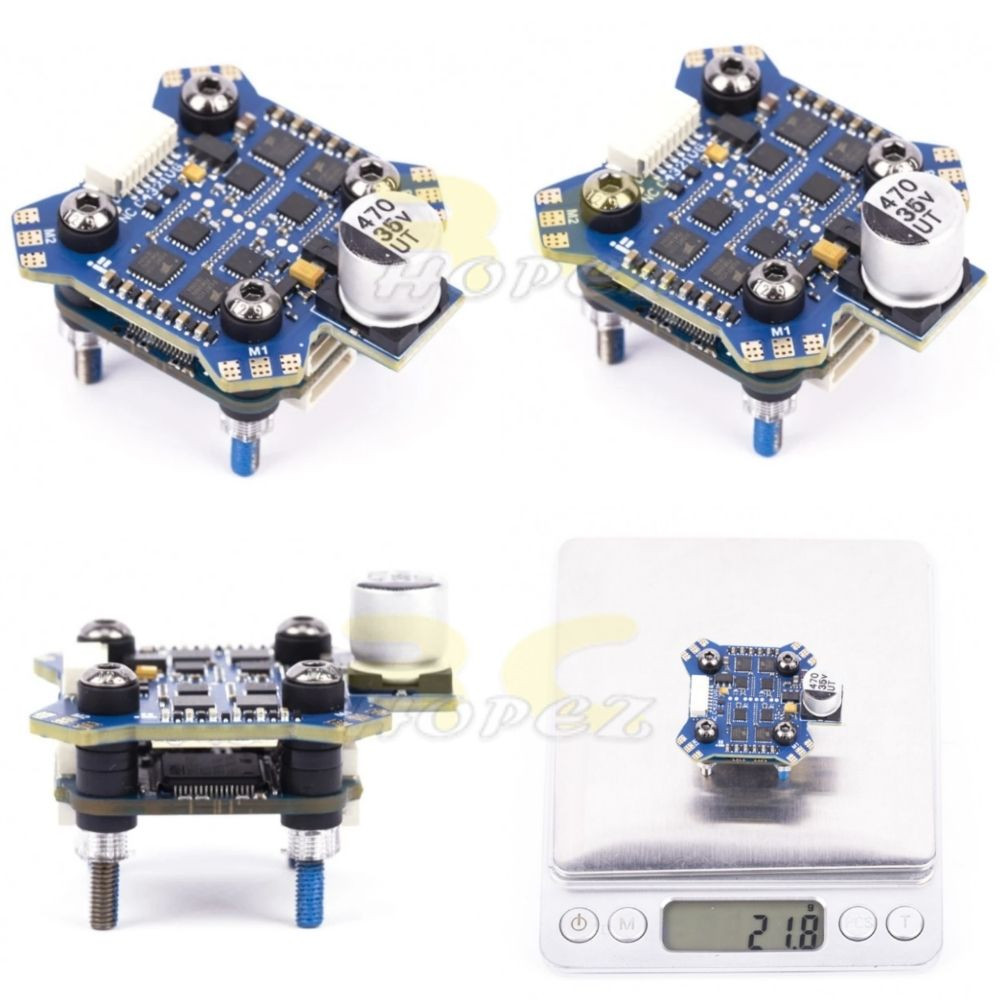

ESC // BLITZ MINI E55S 4-IN-1 2-6S ESC

Specification:

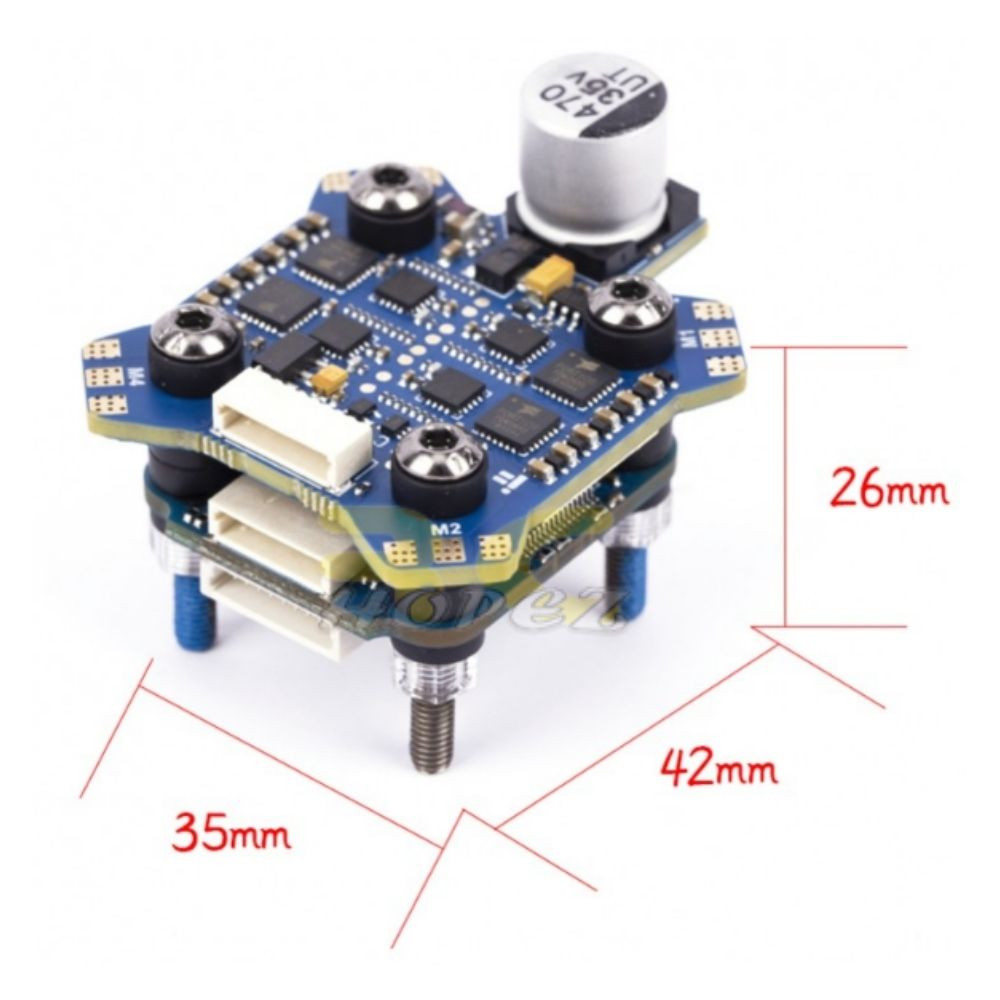

– Dimension: 35*42mm
– Mounting Holes: 20*20mm/Φ4mm
– Weight: 11.3g
– Supports 2-6S lipo input
– MCU：BB21
– Constant: 55 Amps
– Burst: 60 Amps
– Current sensor: Yes
– BEC: No
– Current rate: 100
– Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
– Target:   QH-50 16.7

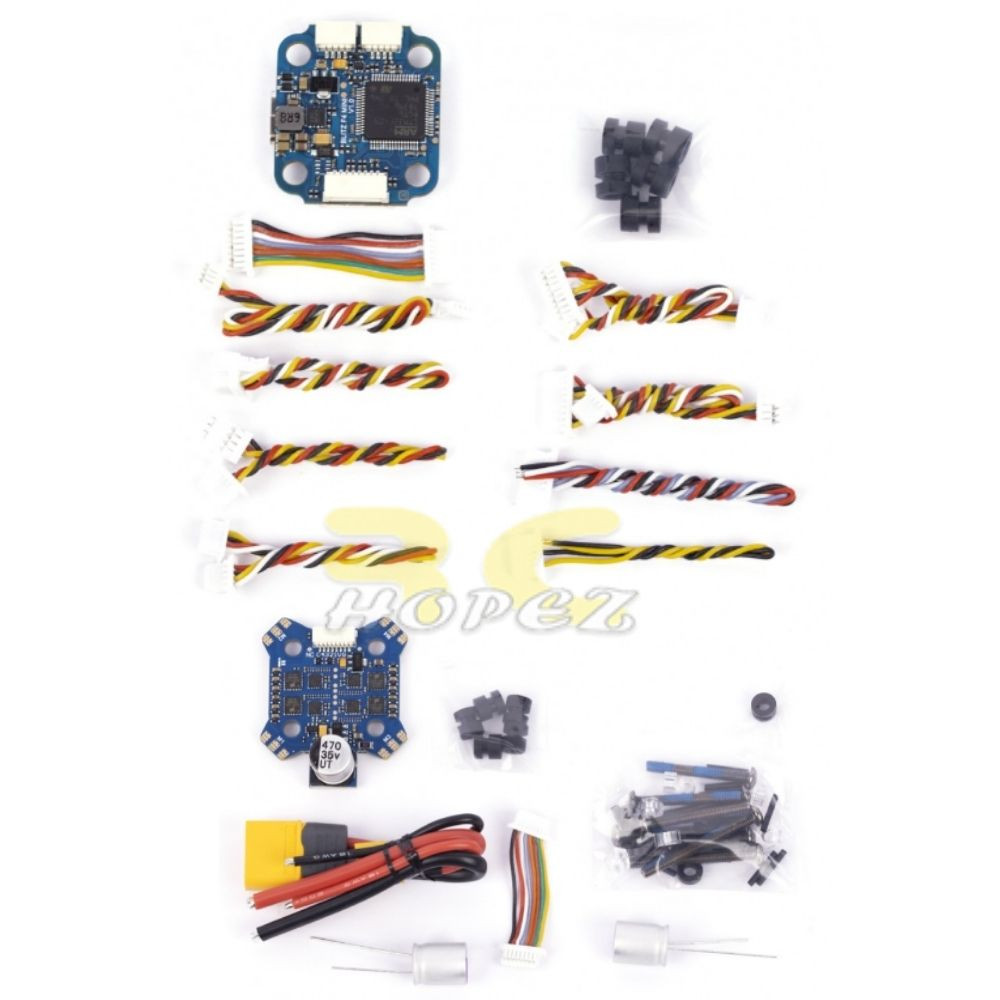

Package Included (Optional) :
FC
1 x BLITZ Mini F4 Flight Controller
1 set of FC connectors (as above)
1 set silicon grommets

OR

ESC
1 X BLITZ Mini E55S 4-IN-1 2-6S ESC
1 set Power cables & ESC signal wires

OR

FC + ESC
1 x BLITZ Mini F4 Flight Controller
1 set of FC connectors (as above)
1 set silicon grommets
1 X BLITZ Mini E55S 4-IN-1 2-6S ESC
1 set Power cables & ESC signal wires
