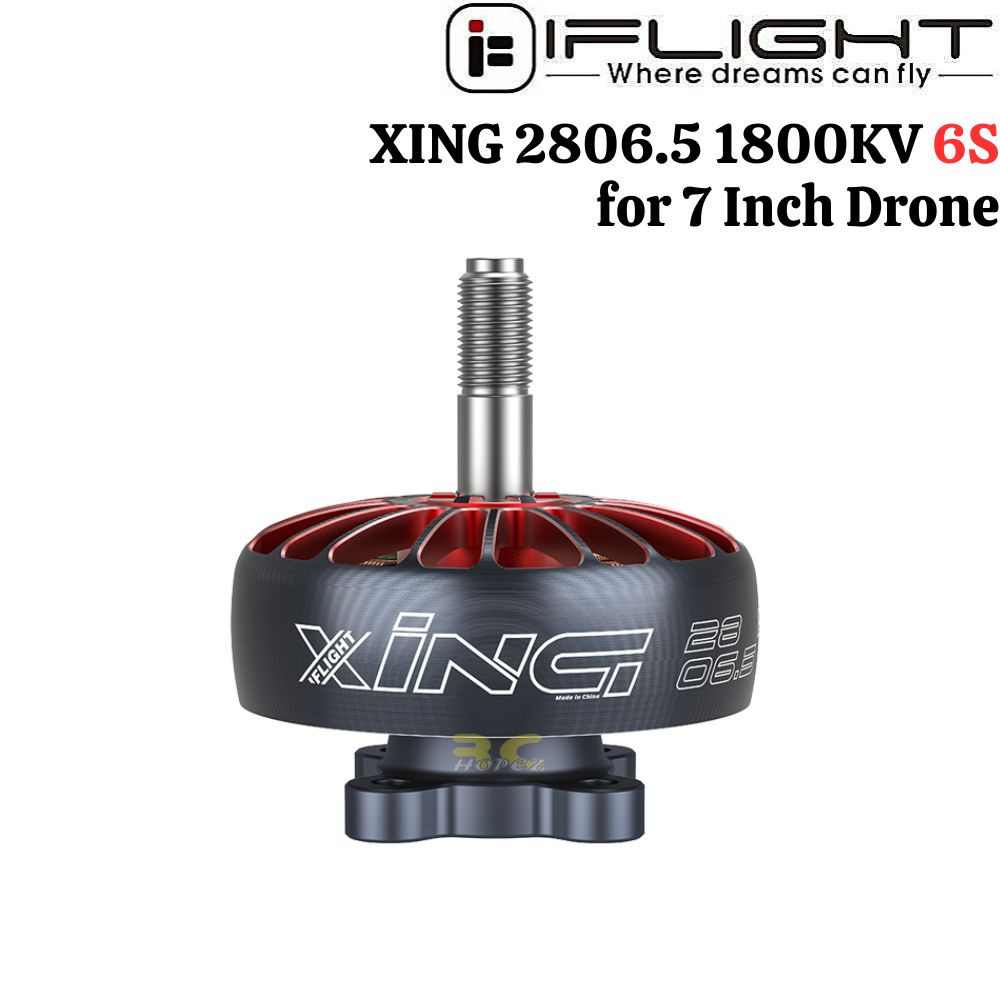

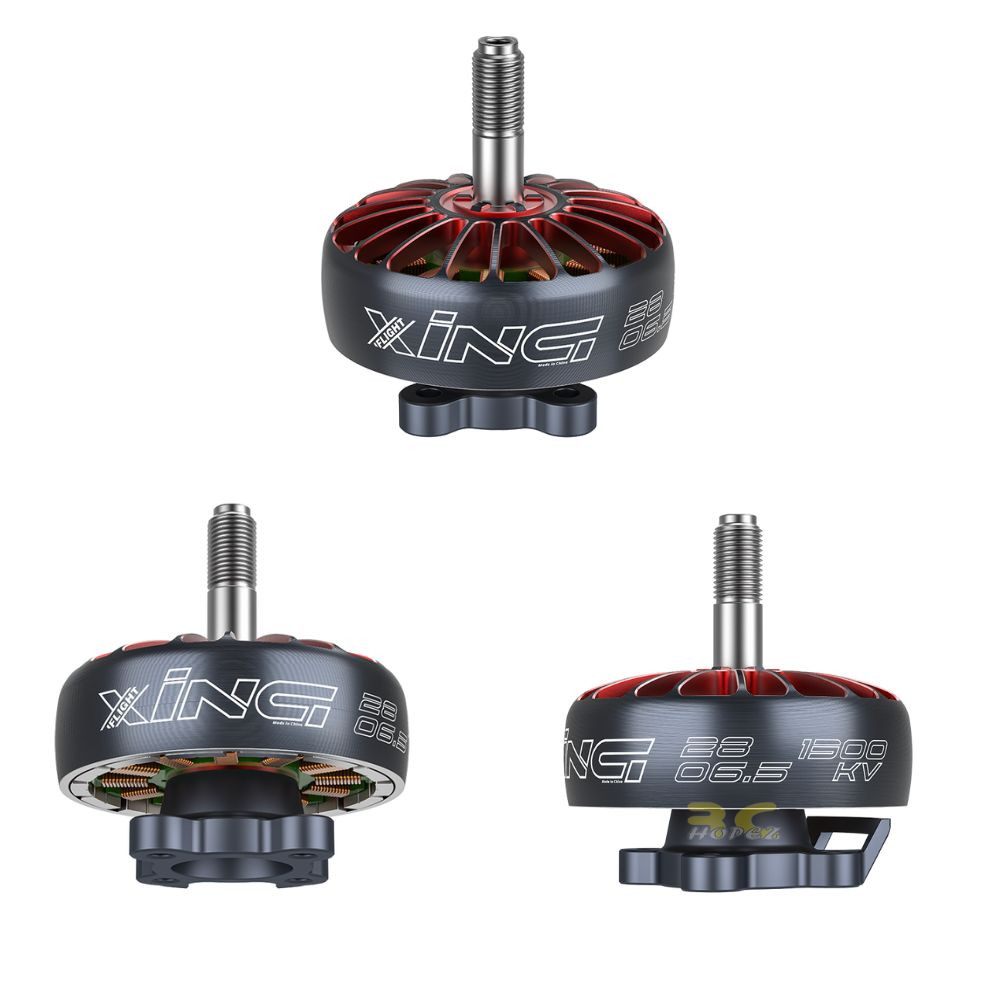

2806.5 1800KV 6S iFlight XING 5mm Shaft Brushless Motor for 7 Inch RC Racing Drone X2806.5

2806.5 1800KV 6S iFlight XING 5mm Shaft Brushless Motor for 7 Inch RC Racing Drone X2806.5

Summary

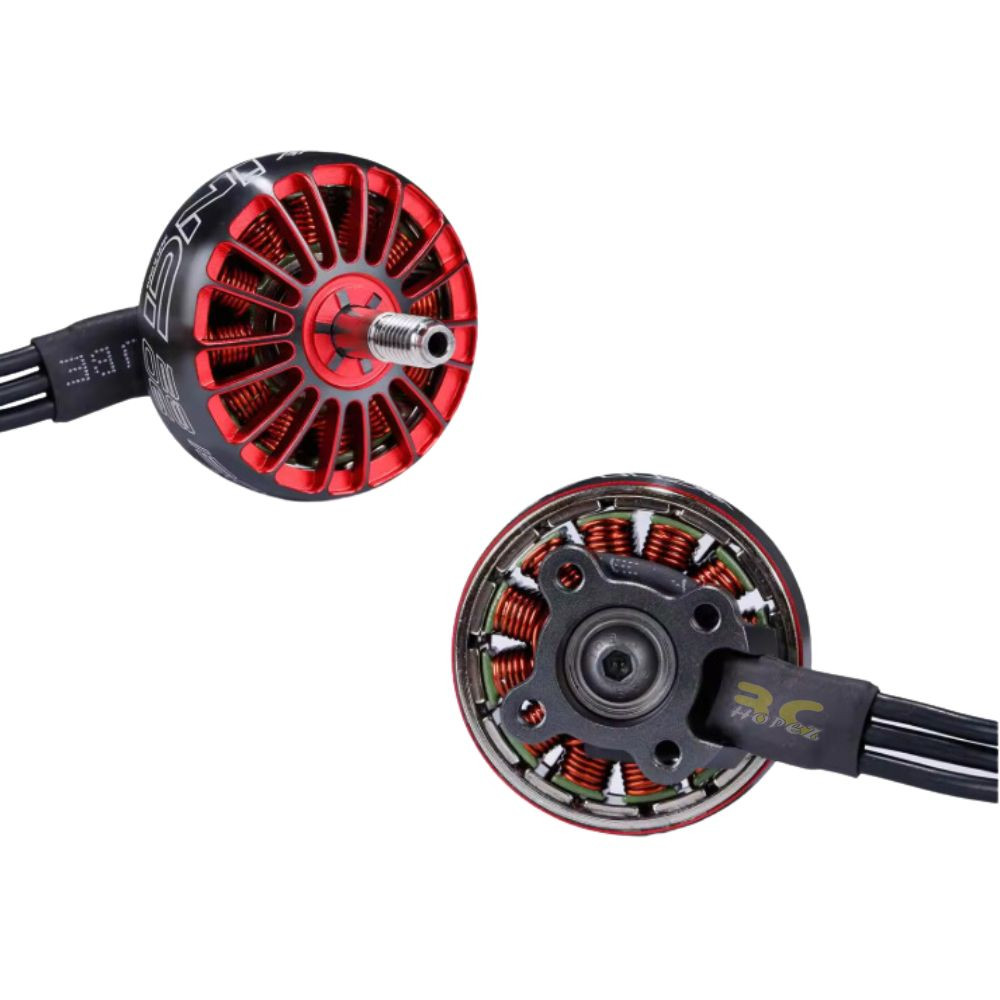

The Motor XING 2806.5 is designed for larger quads such as 7-8 inch quad frames, which offers better efficiency in this range frames. The XING 2806.5 has a unique bell design and uses Japan NSK bearings, N52H arc magnets. It offers incredible thrust number, highly responsive and extremely smooth flying characteristics. Thanks to the larger stator size, 2806.5 can output power instantly to save you from crazy mountain dives in the last minute. It is a great motor if you are building larger drones such as 7 inch or 8 inch.

Feature
-Very strong 4mm titanium alloy axle
-Unibell design
-Bell and base made of 7075 aluminum
-Electromagnetically matched magnets and stator
-Japanese NSK 11*5*5 bearings
-N52H Arc Curve Magnets
-Motor wires protected
-Set screw with hexagon bolt shaft
-Dynamically balanced

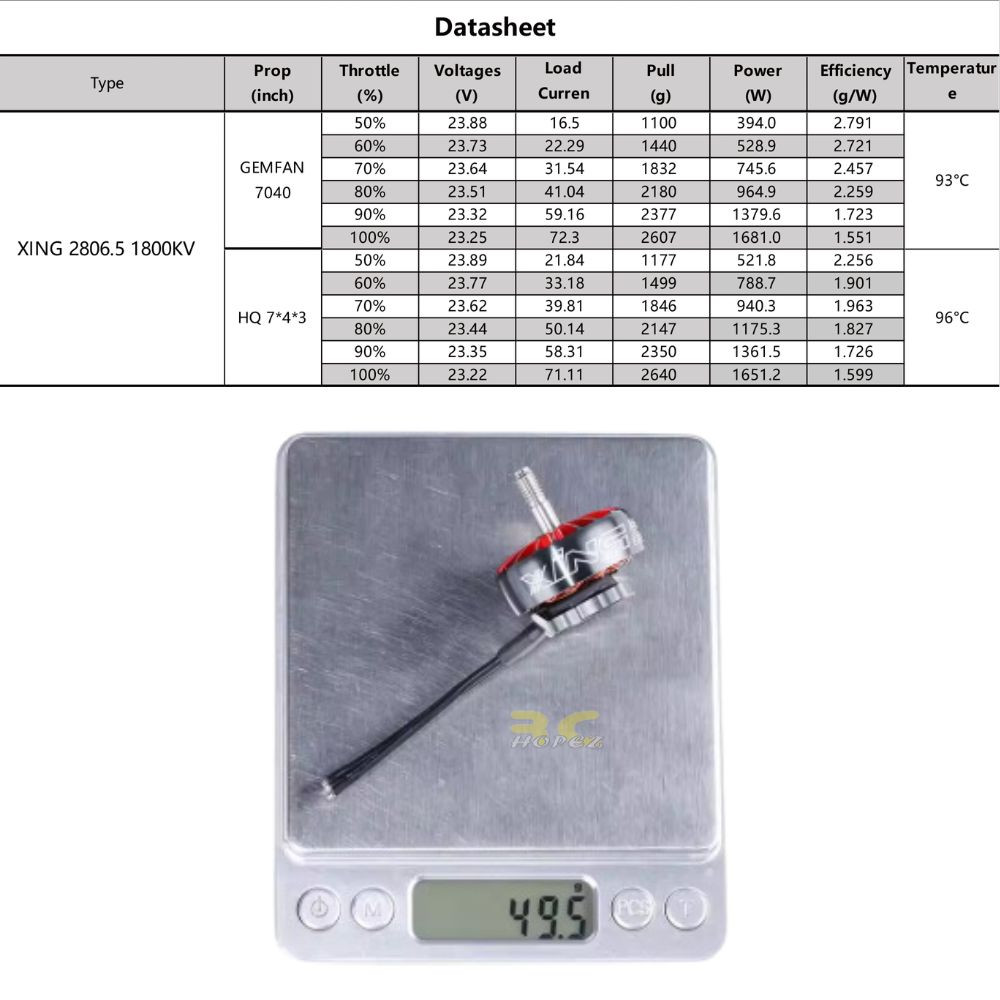

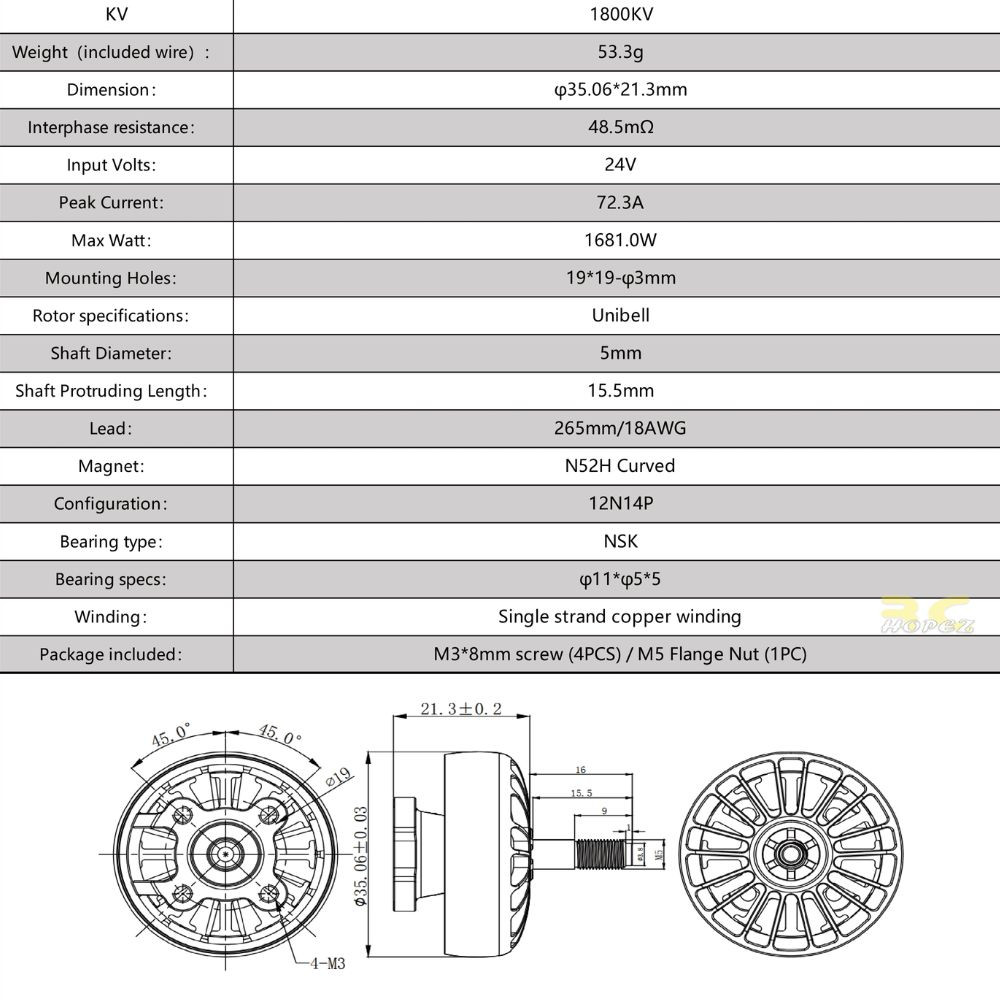

Specifications
Model: XING 2806.5 Motor
KV: 1800
Max Watt: 1681.0W
Peak Current: 72.3A
Interphase Resistance: 48.5mΩ
Propeller: Gemfan 7040 or HQ Prop 7*4*3
Magnet: N52H Curved
Bearing Typ : NSK
Dimension: φ35.06*21.3mm
Shaft Diameter: 5mm
Shaft Protruding Length: 14.5mm
Mounting Hole Size:  19*19 φ3mm
Wire Specification: 18AWG/265mm
Input Voltage: 24V
Winding: Single strand copper winding
Color: Black
Weight: 47g (including wire)  (+/-3g)

Compatible Models:
AOS 7 EVO
Suitable for 7inch-8inch racing FPV quads

Includes
1 x XING 2806.5 1800KV 6S Motor
1 x M5 screw nut
4 pcs x m3*8 screws
