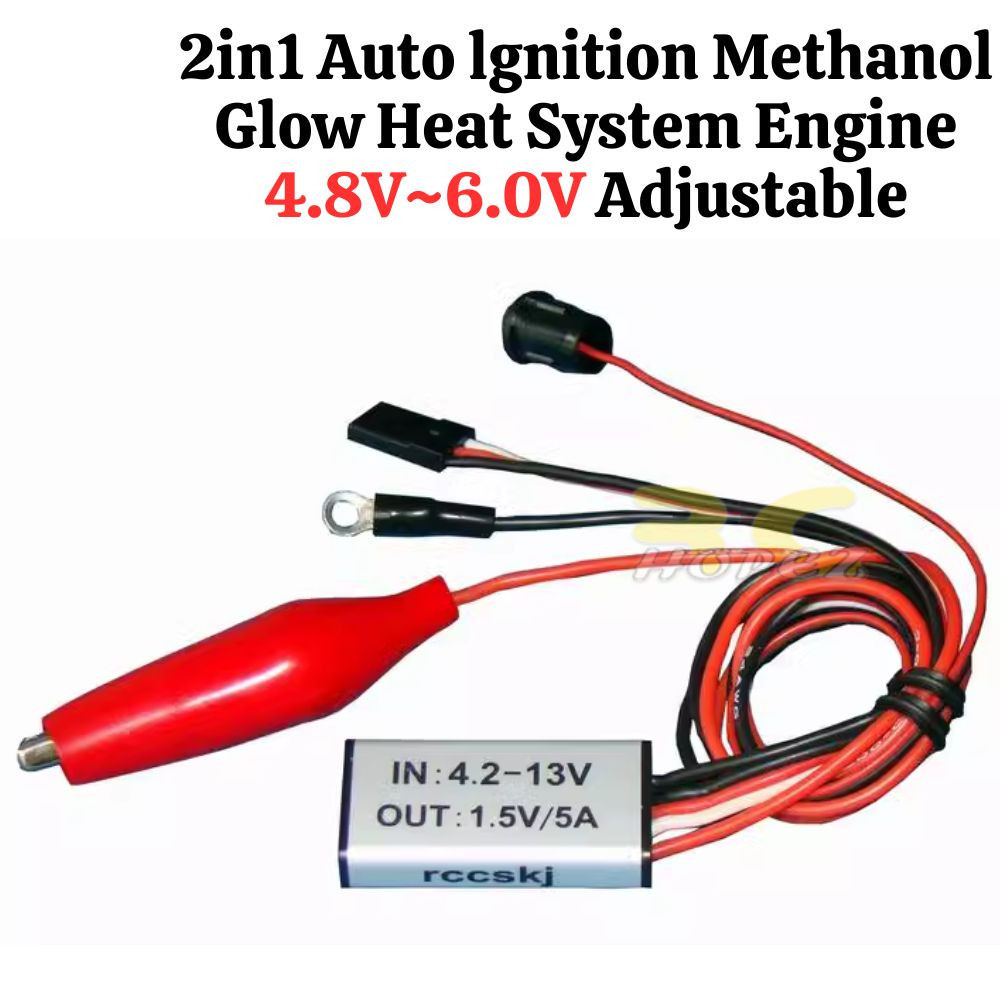

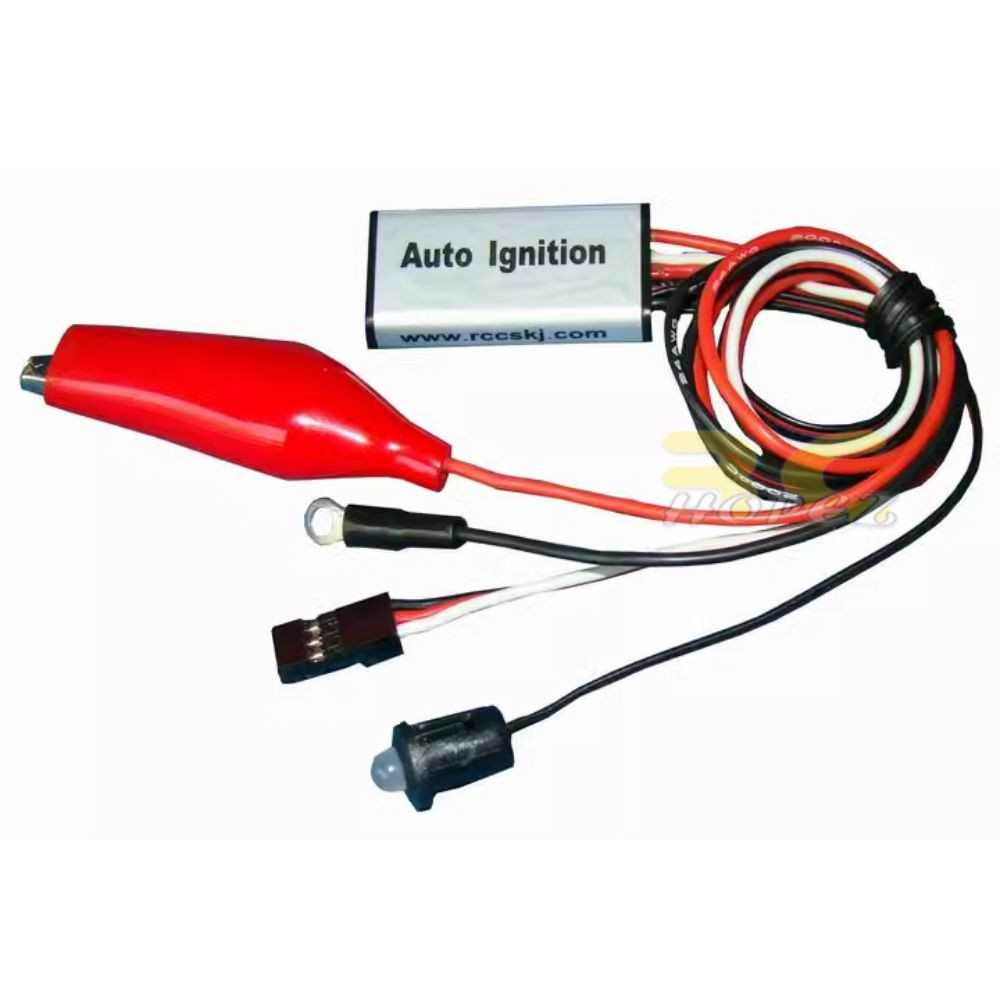

2in1 Auto lgnition Methanol Glow Heat System Engine 4.8V~6.0V Adjustable EG-Augoig

Description

2in1 Auto lgnition Methanol Glow Heat System Engine 4.8V~6.0V Adjustable EG-Augoig

Product features:
Buzzer prompts ignition status ( buzzer sound is loud or quiet depending on different types of fire)
Using switch channel of the remote control (usually use the fifth channel)

The engine starts, turn off the ignition to avoid attempting a long time power and shorten the life of even burned
Pair of brown led display the receiver’s supply voltage, (4.8V~6.0V Adjustable) it can effectilly to avoid receiving power shortage in the control.

The unique low voltage police maintain order, when the working electricity is large, and the voltage is for less than 4. 2V or 5V (being survey in 6V) with 3 seconds, the red led light will sharp all the times until the user changes the battery or the battery in charge.

Technical parameters:
Input Voltage: 4.2V~13V
Operating Current Of The Igniter:0-5A
Output Voltage Of The Igniter:1.5V
Weight: 20g
Dimensions: 35mm x 17mm x 8mm ( L x W x H )

How to set the voltage in 4.8V or 6V
The default detect voltage is 4.8V while leave the factory. If the receiver uses 4 ni-mh batteries, please choose 4.8V voltage for detecting. If the receiver uses 5 ni-mh batteries, please choose 6V voltage for detecting.

Connect the sign wire to the receiver:
1. Turn on the receiver’s power.
2. The red led light flashes rapidly (means on 4.8V voltage detecting), the green led light flashes rapidly (means on 6V voltage detecting).

If you want to change the voltage detect value, please do as follows:
1. Turn off the receiver’s power.
2. Use tweezers or electricity metal to short circuit the red led line and the green led line.
3. Turn on the receiver’s power.
4. Wait for 2 seconds.
5. Set free the tweezers or electricity metal.

(When you do all this, the voltage is set. You can turn on the power after turn off the power to test if it is ok. If not, please redo the steps above.)

Attentions:
Not allowed to counter-battery polarity.

Do not come into contact with installation of grease or water, or near a corrosive substance.

Please use the low resistance, large capacity battery, because starting ignition requires relatively large current.

Packing Included :
1 x 2in1 Auto lgnition Methanol Glow Heat System Engine 4.8V~6.0V Adjustable
