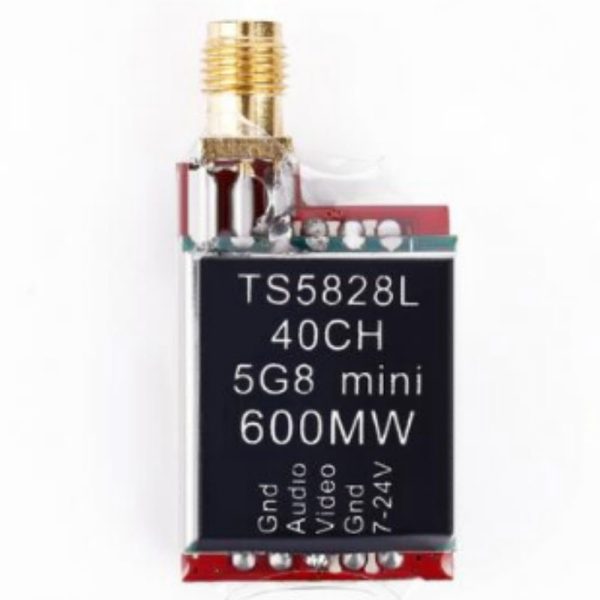

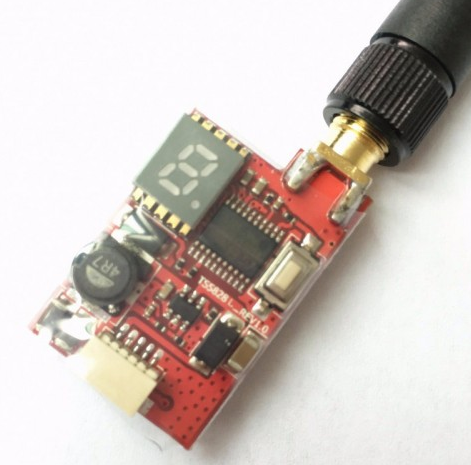

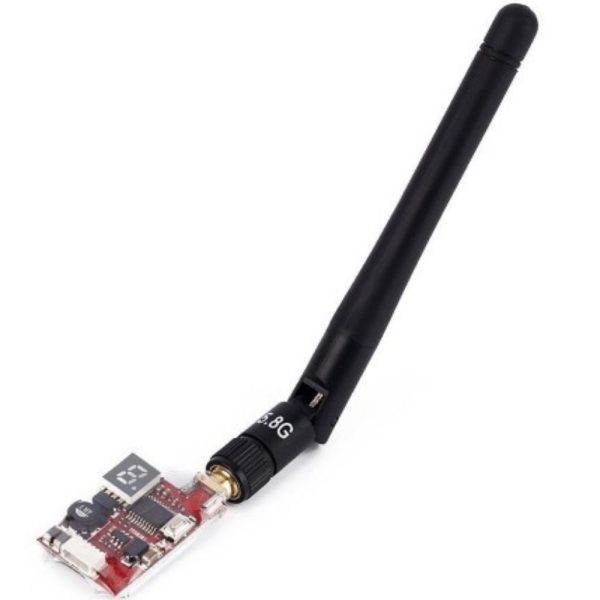

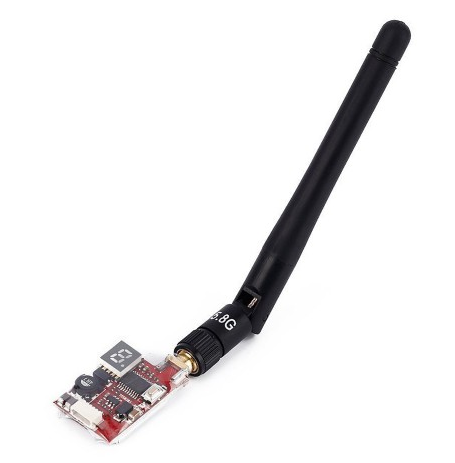

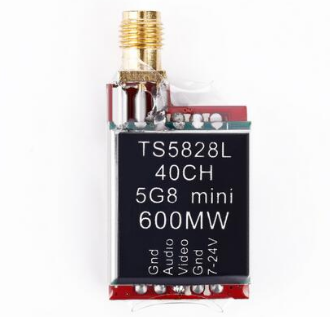

5.8g 600mW 40ch Mini Wireless A/V Transmitter for Receiver TS5828L Specification:
Super mini size and light weight form, especially for today’s small and lightweight multi-rotor aircraft, more suitable for large series aircraft.
Each mini player is the ultimate image transmission choice.
Manufacturers ID: TS5828L
Channel: 40
Transmission frequency: 5.6-5.9Ghz
Input voltage: 7-24V
Transmitting power: 600mw
Working Current: 190mA / 12V
Working temperature: -10- + 85
Video bandwidth: 8M
Audio Coding: 6.5M
Antenna Type:

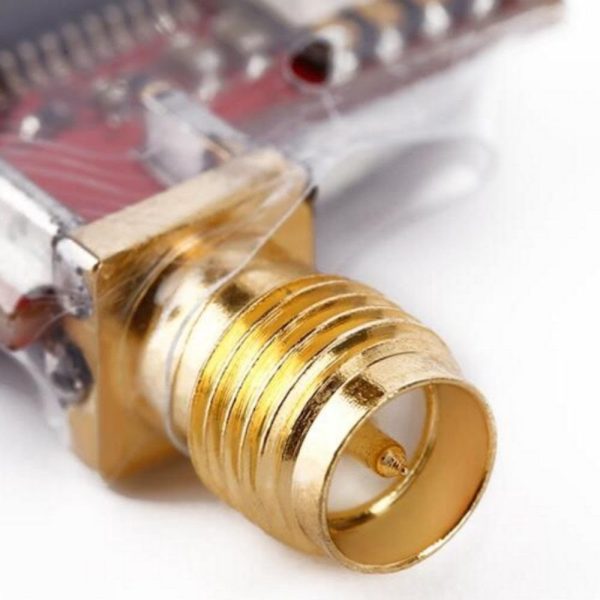

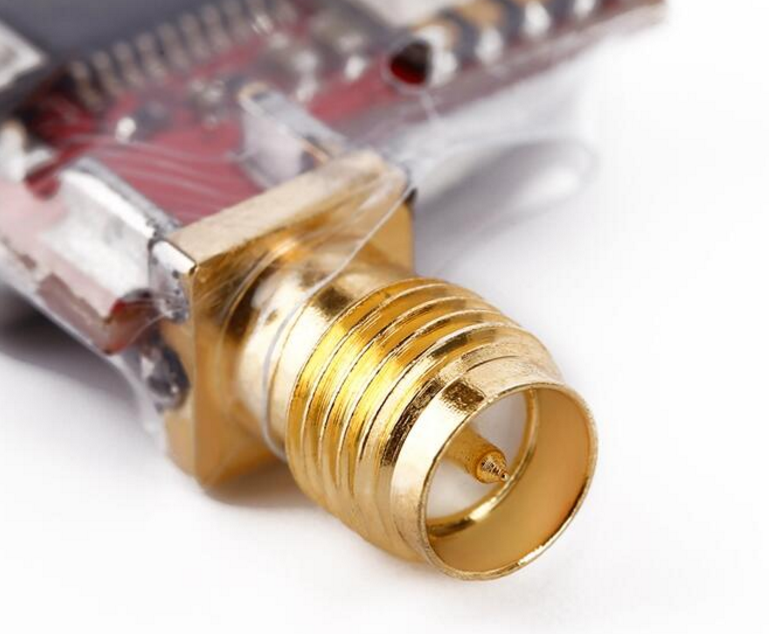

The transmitting end: RP-SMA Jack
Antenna terminal: RP-SMA plug

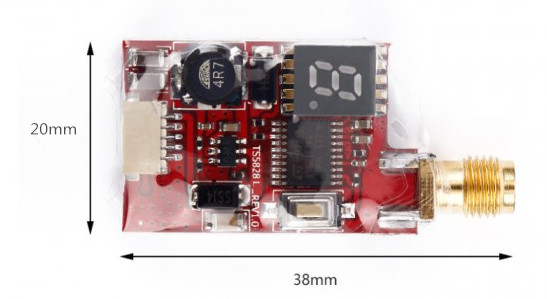

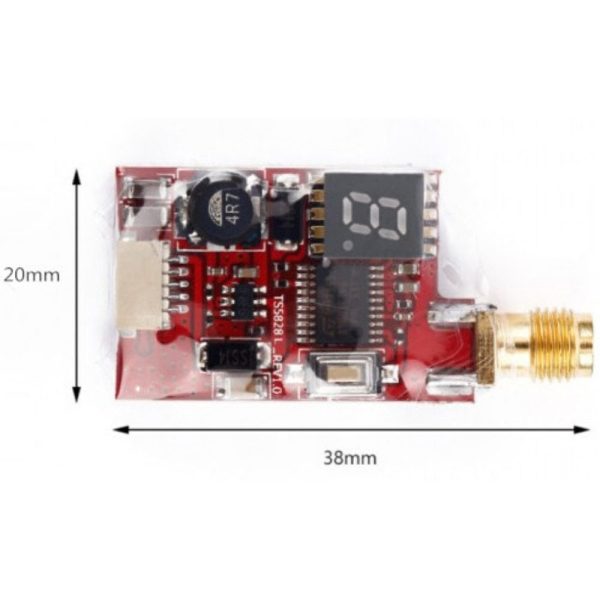

Board Dimensions: 38x18x8mm
Net Weight: 16g
Red: positive
Black: negative
Yellow: AV cable
Green: audio cable
Blue: Ground
Package included :
0
1 x 600mW 40ch Channels Mini Wireless A/V Transmitting for 5.8g receiver TS5828L
