Analog Fat Shark Receiver Module Adapter V3.0 PLUS 5.8G RX PORT  Low Voltage Alarm for DJI FPV Goggles XJ368N

Descriptions
The digital image transmission system and visual perception of FPV goggles are the development of the FPV industry. At the same time, the analog FPV system represented by the fat shark also has a very large market base and holding capacity. 5.8G RX PORT 3.0 design is fixed with the goggles headband screw, and can be fully mounted on the side of the goggles, so that it can use a fatshark or a variety of third-party fat shark interface 5.8G receiving system, to transfer video and audio signals to the screen of the high-quality FPV goggles to view or record. The compact and lightweight PORT RX 5.8G 3.0 is versatile and will be enjoyed by those with analog and digital FPV aviation equipment.

This analog module can be enjoyed by people who owe analog and digital FPV equipment! This item can be used with the aluminum analog cover.

Specifications
Model: 5.8G RX Port3.0 PLUS
Dimension: 55 * 28 * 12mm
Weight: 13g (without extension cable)

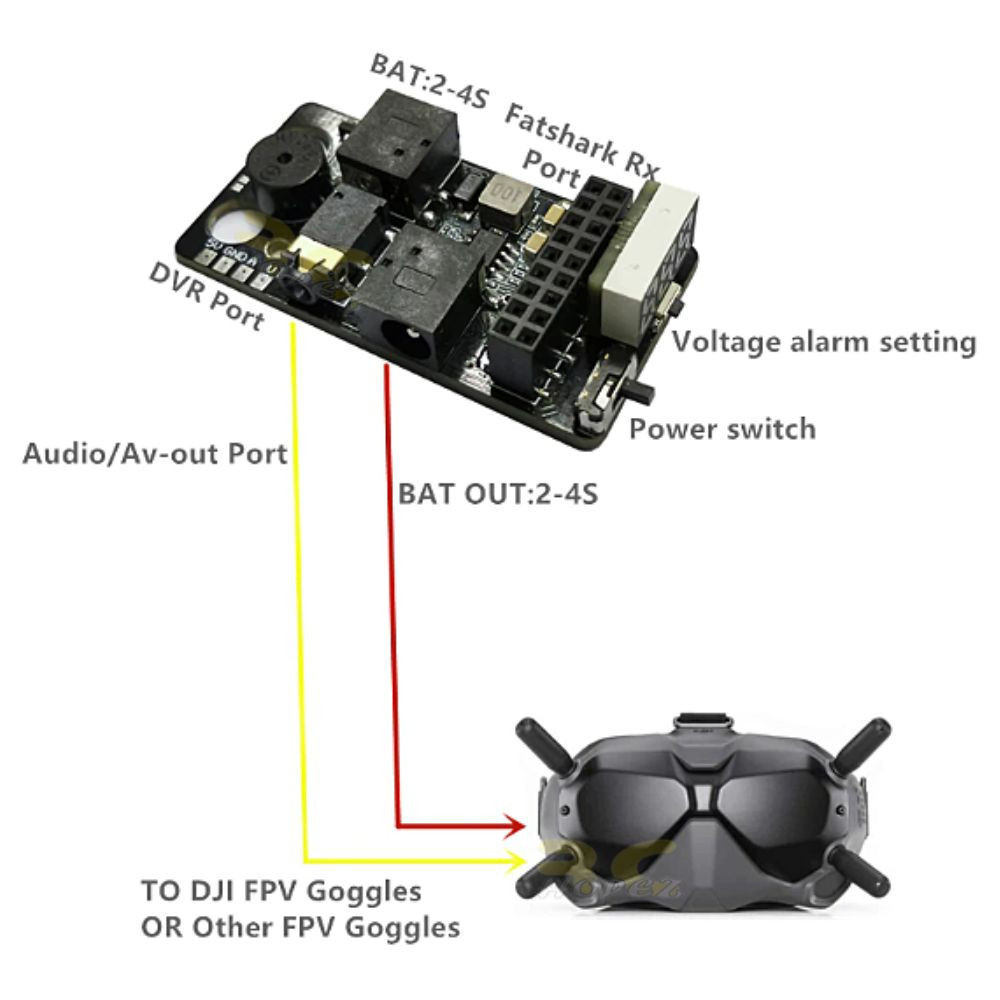

Power input: 2S-4S (DC5.5 * 2.1)
Internal voltage: 5V 3A (with pad output)
Power output: 2S-4S (DC5.5 * 2.1)

Signal Input: Standard Fat Shark Receiver Port
Including third-party receivers: Reaxacc Furious, Rapid Fire etc.
Signal output: standard audio / video
Support DVR Port
With voltage display, voltage alarm

Updates*
* Added a power switch and added a standard DVR interface (Recording module interface). Version 2.0 can now record DVR but not sound. We've reserved a standard DVR interface for recording images and sound.

* Supports AV in analog video transmitter recording. Users need to restore factory settings to ensure the normal use of AV in interface functions.

* Fixed AV limit display issue in analog video transmitters.

* Optimize AV in analog video transmitter to improve real-time transmission performance.

* Support user-defined selection of FPV goggles OSD display content, support 24 OSD information definition display of Betaflight.

* When the video transmission distance is greater than 1km, the video transmitter can adapt the frame rate and code rate according to the distance and channel bandwidth.

* Support remote controller to connect to PC via USD cable and control the simulator.

* 5.8G RX PORT3.0-PLUS has added digital tube, which can display battery voltage in real time, and can set low voltage alarm

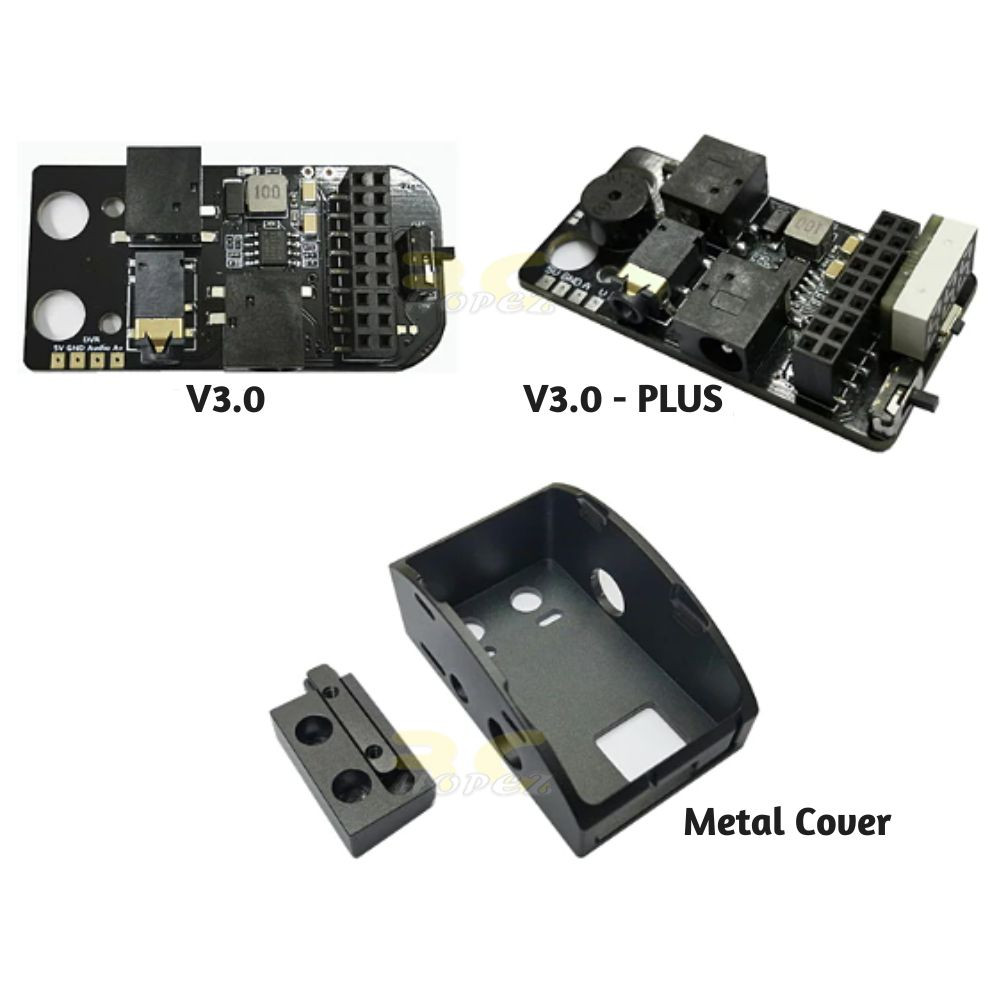

Package includes(Optional) :
1 x Adapter mounting block and screws
1 x Audio and video cable
1 x Power Cable
1 x 5.8G RX PORT 3.0 PLUS Receiver Board

OR

1 x Adapter mounting block and screws
1 x Audio and video cable
1 x Power Cable
1 x 5.8G RX PORT 3.0 PLUS Receiver Board
1 * Metal Cover

Weight 0.05 kg
Dimensions 5.00 × 5.00 × 5.00 cm
Option

3.0 PLUS Only, 3.0 PLUS+Metal Cover
