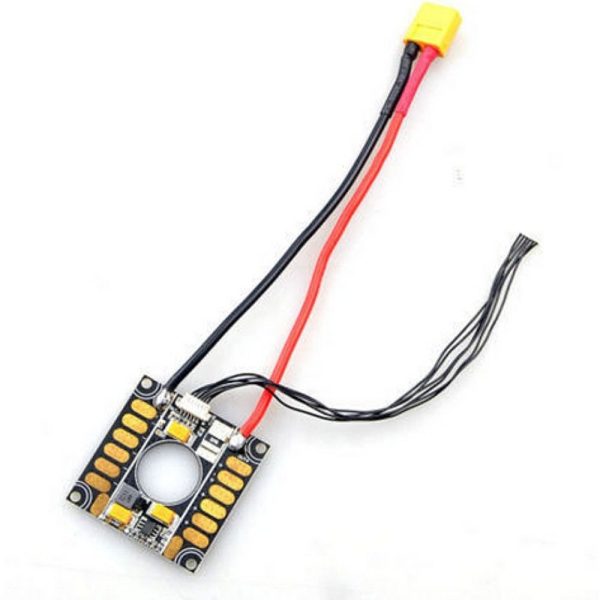

APM Current&Voltage Sensors For APM2.5/2.6/2.8 PX4 Flight Control 3 In 1 W502
Description:
Item Name:APM Current&Voltage Sensors

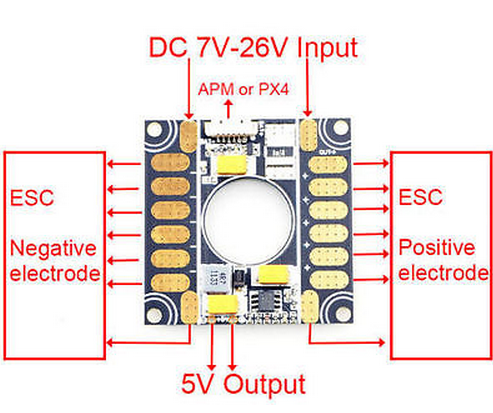

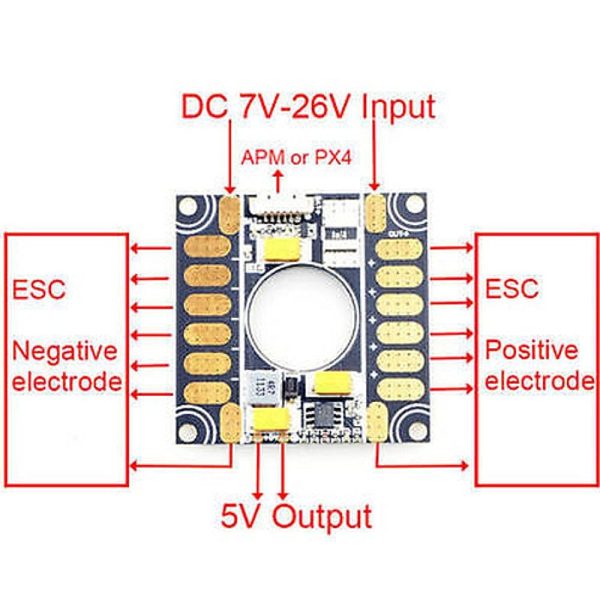

Voltage Input:2S-6S
Voltage Sampling: 10/1
Output sub-line: 6-way
BEC Output: 5.3V / 3A (PWM switching)
Installation pitch: 45mm x 45mm
External dimensions: 50mm x 50mm

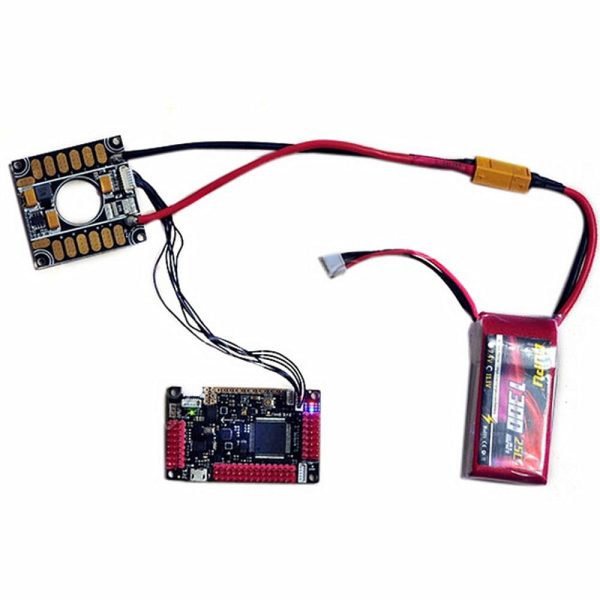

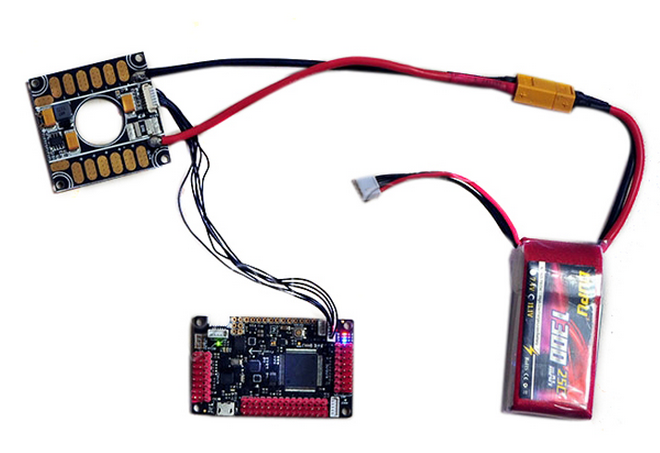

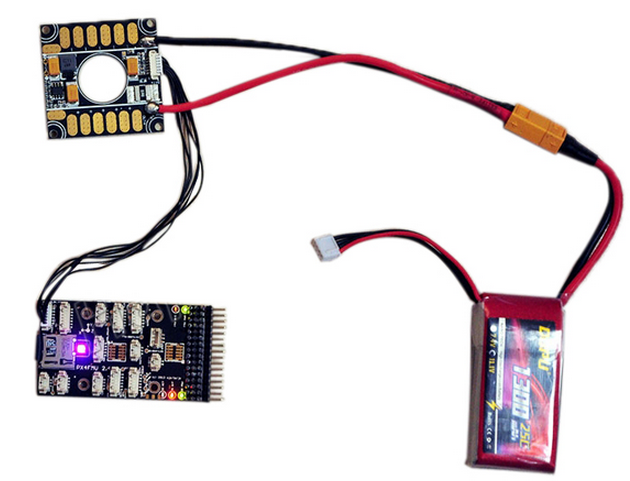

Usage:for APM2.5/APM2.6/APM2.8/PX4 Flight Control
Features:
Integration of galvanometer,UBEC,sub panels as a function of APM current&voltage sensors
Compatible with APM2.5/APM2.6/APM2.8/PX4 Flight Control
PCB using double-sided 3 times copper immersion gold process,excessive current is stable and reliable
The onboard 5.3V / 3A switching power supply UBEC
Current and voltage sampling circuit compatible 3DR galvanometer, without calibration, you can connect flight control and simple settings then it can be used
Item Name:APM Current&Voltage Sensors
Voltage Input:2S-6S
Voltage Sampling: 10/1
Output sub-line: 6-way
BEC Output: 5.3V / 3A (PWM switching)
Installation pitch: 45mm x 45mm
External dimensions: 50mm x 50mm
Usage:for APM2.5/APM2.6/APM2.8/PX4 Flight Control
Features:
Integration of galvanometer,UBEC,sub panels as a function of APM current&voltage sensors
Compatible with APM2.5/APM2.6/APM2.8/PX4 Flight Control
PCB using double-sided 3 times copper immersion gold process,excessive current is stable and reliable
The onboard 5.3V / 3A switching power supply UBEC
Current and voltage sampling circuit compatible 3DR galvanometer, without calibration, you can connect flight control and simple settings then it can be used

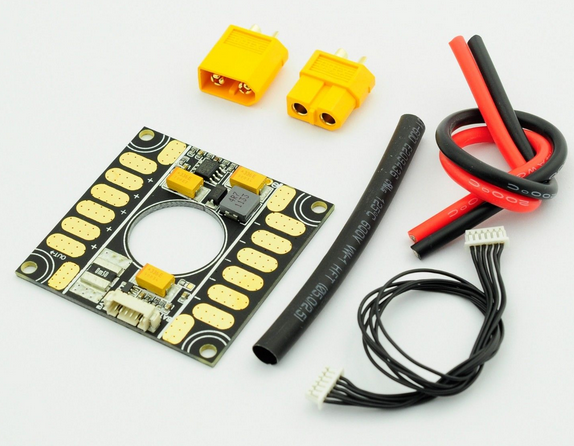

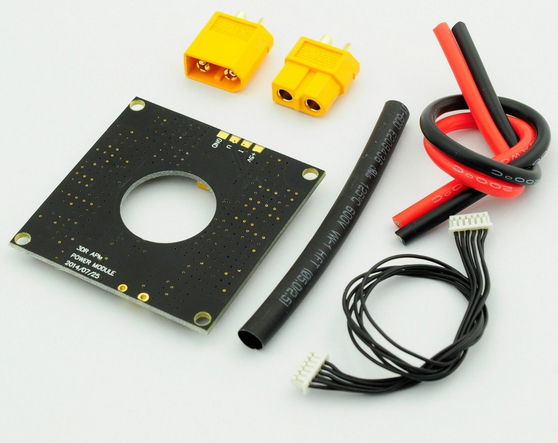

Packing Content:
3 in 1 Board x 1
Amass xt60 plug(male female) x 1
14AWG Silicone wire x 1
6Pin Connection cable for APM and Pixhawk x1
Heat shrink tubing x 1
