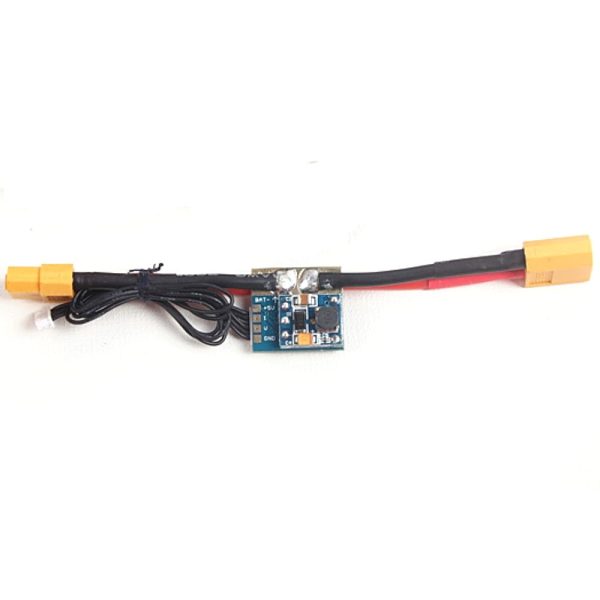

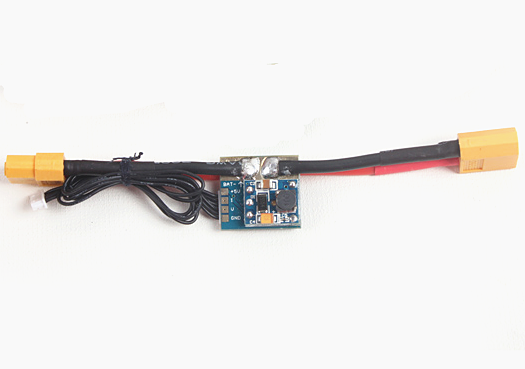

APM2.6/2.5/2.52 power module/current module with 5.3VDC BEC With XT60

APM2.6/2.5/2.52 power module/current module with 5.3VDC BEC With XT60

Specifications:

Max input voltage: 50V

Max current sensing: 90A

Voltage and current measurement configured for 5V ADC

Switching regulator outputs 5.3V and 2.25A max

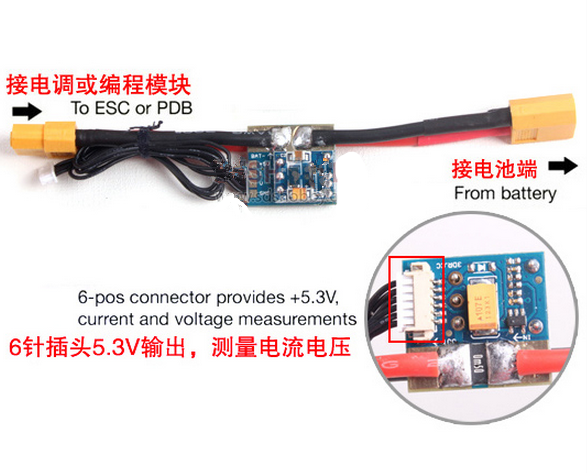

6-pos DF13 cable plugs directly to APM’s ‘PM’ connector

Product Description:

1. The APM Power Module is a simple way of providing your APM with clean power from a LiPo battery as well as current consumption and battery voltage measurements, all through a 6-pos cable.

2. The on-board switching regulator outputs 5.3V and a maximum of 2.25A from up to a 4S LiPo battery. The Power Module comes completely assembled with Deans connectors, and wrapped in shrink tubing for protection.

3. Maximum input voltage 50V, mensurability maximum current is 90A; achieve control board for battery electric quantity and voltage monitoring.

4. Voltage current detection design parameters are fit with 3DR official design parameter, ground-station (mission planer) the settings can directly refer to the official wiki settings.

5. Function: used to detect battery voltage and battery current; flight control board receive this two signal, then calculate battery remaining capacity and estimate flying time.

6. Compared with no welding wire current modules on the market, our current welding the wires plug module before they leave the factory, and factory calibration, test results more accurate,and the module on the sets with heat shrink tubing, effectively prevent the short-circuited happen.

Note: The Power Module is only designed to power APM, a RC receiver and APM accessories (GPS, 3DR radio). It is not designed to power servos. Use your aircraft’s own ESC/BEC for that.
