Beitian BE-180 BE-220 BE-880 M10050 GNSS GPS Module For Fixed Wing FPV RC Drone Airplane XJ537

Beitian BE-180 BE-220 BE-880 M10050 GNSS GPS Module For Fixed Wing FPV RC Drone Airplane XJ537

Description:

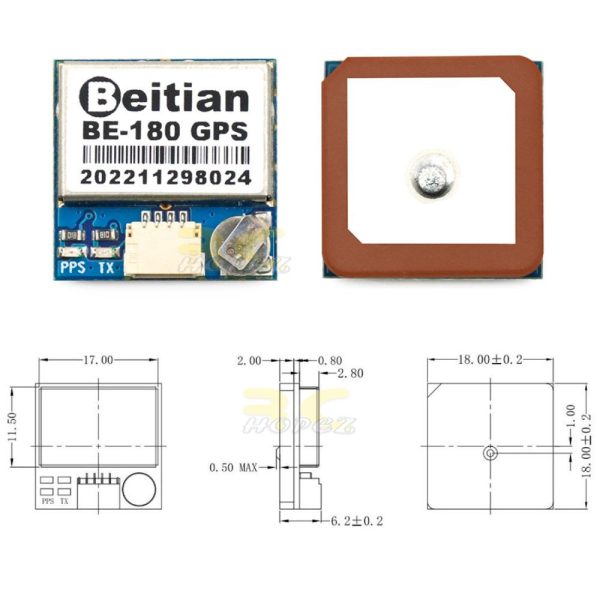

Name:Beitian
Model:BE-180
Size:18mmx18mmx6.2mm
Weight:4.9g

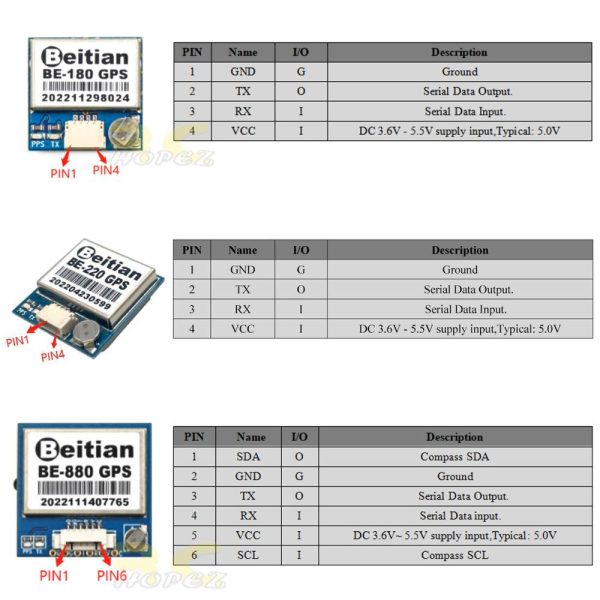

Package:1.00mm 4pins connector

Description:

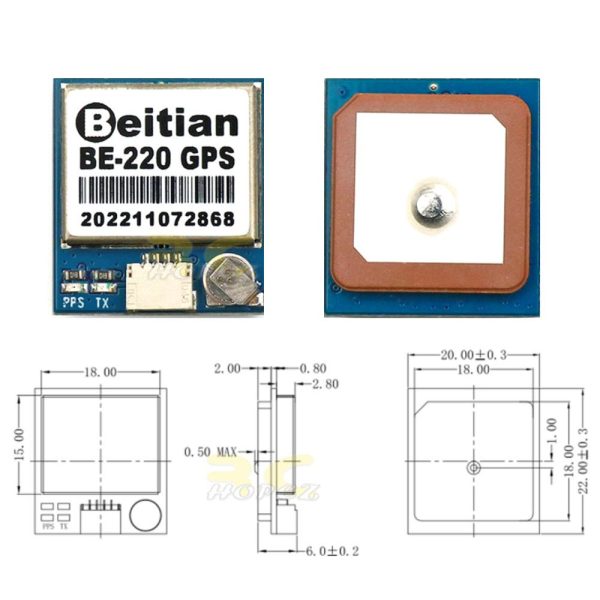

Name:Beitian
Model:BE-220
Size:22mmx20mmx6mm
Weight:5.3g
Package:1.00mm 4pins connector

Description:

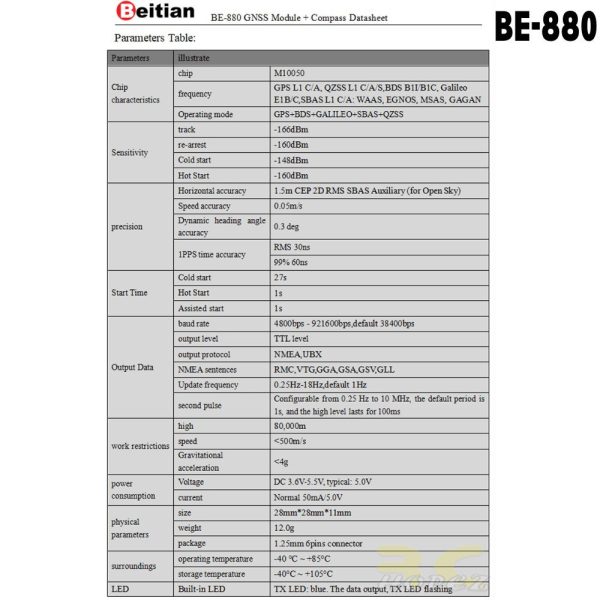

Name:Beitian
Model:BE-880
Size:28mmx28mmx4.1mm/
Weight:12g
Package:1.25mm 6pins connector

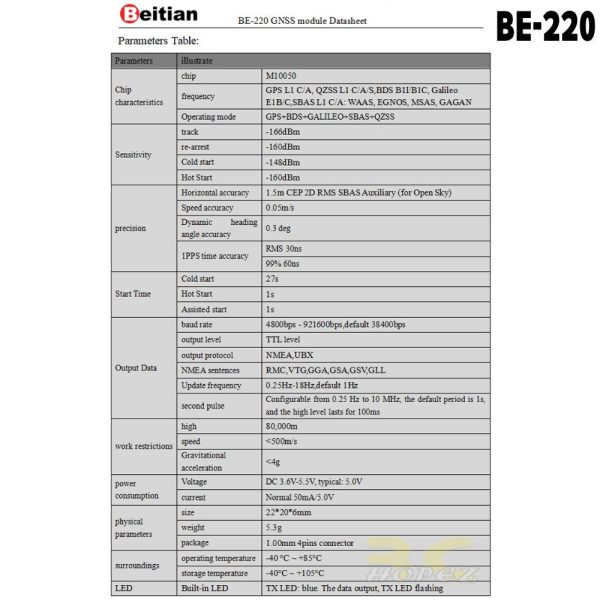

Specification:
Electrical Characteristics
Chipset : M10050
Operating Mode: GPS+BDS+GALILEO+SBAS+QZSS
Frequency Range: GPS L1C/A,QZSS L1C/A/S,.BDS B1I/B1C,GALILEO E1B/C,SBAS L1 C/A:WAAS,EGNOS,MSAS,GAGAN

Sensitivity:
Tracking : -166dBm
Reacquisition : -160dBm
Cold start : -148dBm
Hot start : -160dBm

Precision:
Position Horizontal : 1.5m CEP 2D RMS SBAS Auxiliary(for Open Sky)
Speed accuracy:0.05m/s
Dynamic heading angle accuracy:0.3deg
1PPS time accuracy:RMS 30ns/99% 60ns

Start Time:
Cold Start:27s
Hot Start:1s
Assisted Start:1s

Output Data:
Baud Rate:4800bps-921600bps,default 38400bps
Output level:TTL level
Output Protocol:NMEA,UBX
NMEA Sentences:RMC,VTG,GGA,GSA,GSV,GLL
Updata Frequency:0.25Hz-18Hz,default 1Hz
Second Pulse:Configurable from 0.25 Hz to 10MHz,the default period is 1s,and the high level lasts for 100ms

Work Restrictions:
High:80000m
Speed:<500m/s
Gravitational Acceleration:<4g

Power Consumption:
Voltage:DC 3.6V-5.5V,typical:5.0V
Current:Normal 50mA/5.0V

Surroundings:
Operating Temperature:-40℃～+85℃
Storage Temperature:-40℃～+105℃

LED:
Built-in LED:TX LED:blue.The data output,TX LED flashing

Package Included (Option)
1 x BE-180 GPS Module
2 x 15cm Cable

OR

1 x BE-220 GPS Module
2 x 15cm Cable

OR

1x BE-880 GPS Module
1x 15cm Cable
