Description

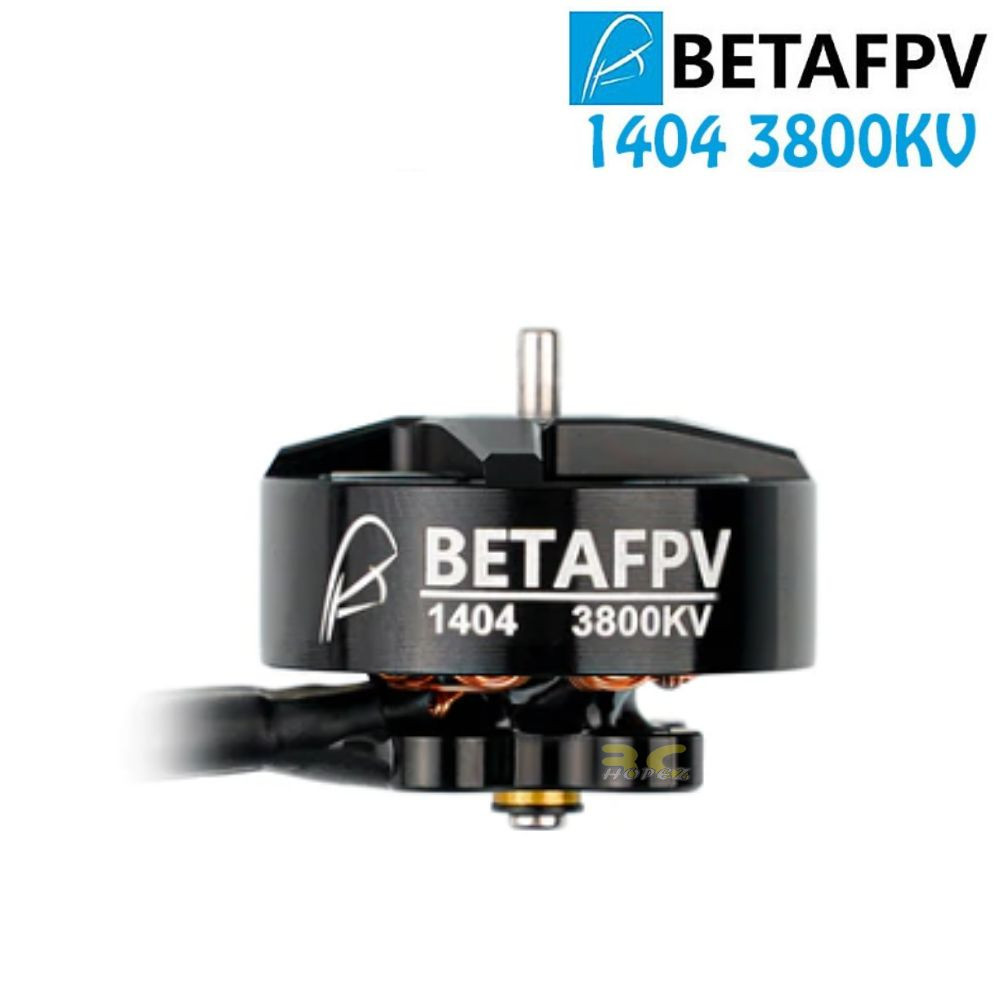

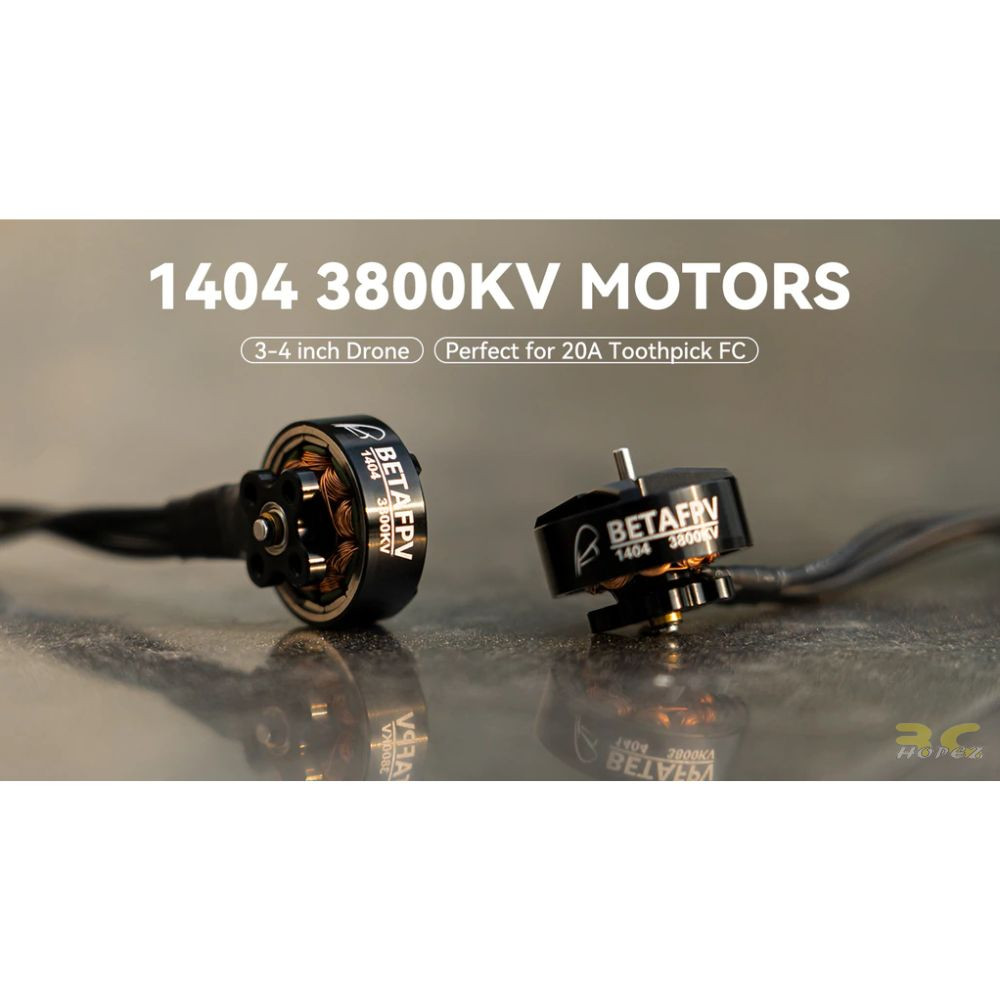

BetaFPV 1404 3800KV 3-4S Brushless Motor for 3-4inch Toothpick Whoop BT1404-38(1pc)
1404 motor is a perfect candidate for a lightweight 3S and 4S setup. It can be built with a regular carbon fiber frame to run 3-inch props on. This motor is great if you're building 3-4'' toothpick-style ultralight micro drones with 20A Toothpick F4 AIO FC.
Note: There are something changes in the new version of 1404 3800KV brushless motors. First, its appearance color is changed to black. The motor mounting hole size was modified from φ12 to φ9. The performance is still great as before. Please rest assured to purchase. Thank you!
BULLET POINTS:
Perfectly match with 20A Toothpick F4 AIO FC, it will bring you powerful flight experience
With black color and distinctive dart bell design, these motors will look slick on any quad
For offering pilots better cutting and soldering experience, it comes with 80mm long, 24AWG cable while no pre-solder plug
Compatible 4'' Propellers
1404 Motors retains φ1.5mm shaft design instead of thread shaft for saving weight, which means it needs M2 screws to lock props, while most of 4inch props are locked with nuts in the market. These motors are best paired with 1.5mm shaft 4" props-4025 props.
RECOMMENDED PARTS: (Not Including)
Flight Controller: Toothpick F4 20A AIO FC
Compatible Propellers: HQ 3020 2-Blade Prop / HQ 3030 3-Blade Prop / HQ 4025 2-Blade Prop
Battery: 450mAh 3S 75C Lipo Battery / 450mAh 4S 75C Lipo Battery
Frame: TWIG Frame
Motor: 1204 5000KV Motors / 1404 3800KV Motors
SPECIFICATION:

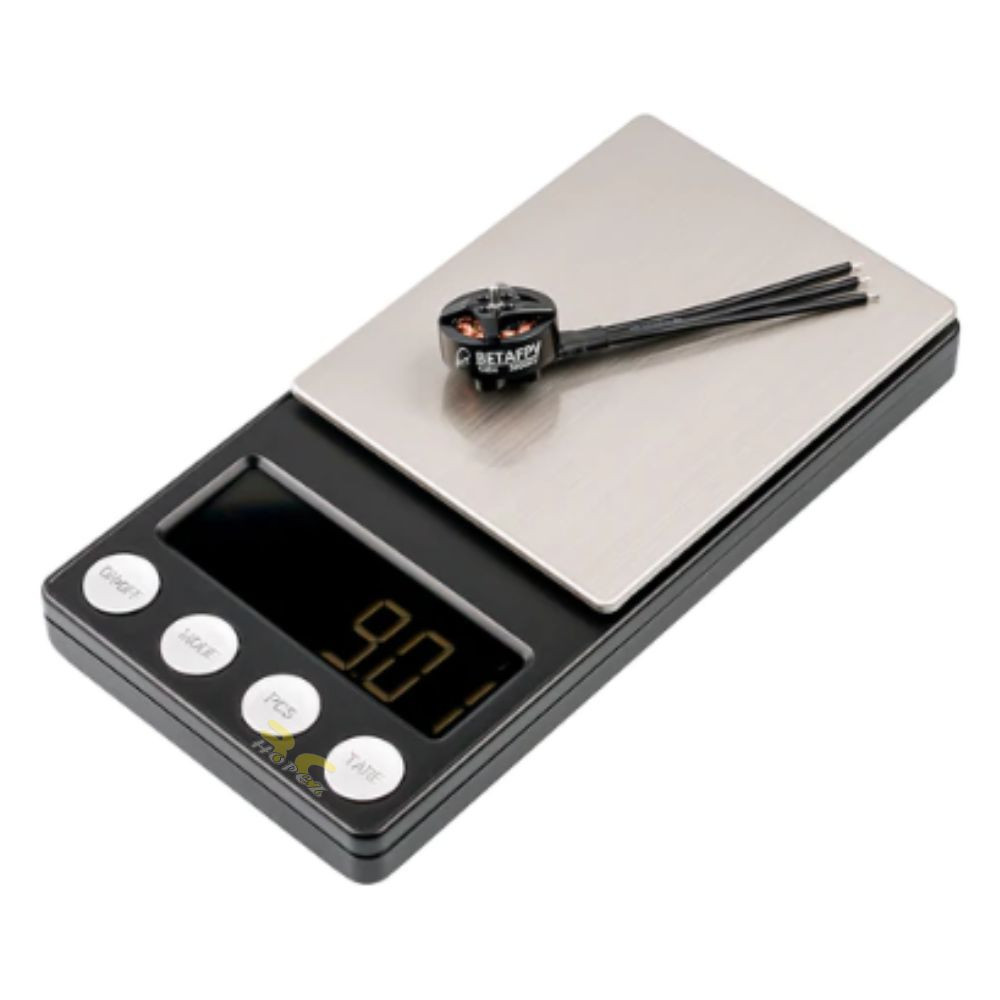

Weight: 9.66g (1 pcs)
Shaft: φ1.5mm
Motor Mount Holes: M2
KV (rpm/V): 3800KV
Input Voltage: 3-4S LIPO
Cables: 80mm long, 24AWG cables
PACKAGE INCLUDED:
1 x BETAFPV 1404 3800KV Brushless Motors
1 x Pack of M2 Screws
