BetaFPV Air VTX 5.8G 25mW 48CH Ultralight 0.6g 14×10.5mm Compatible With Matrix 1S 4IN1 FC Micro Drone Part BT-Air VTX

BetaFPV Air VTX 5.8G 25mW 48CH Ultralight 0.6g 14×10.5mm Compatible With Matrix 1S 4IN1 FC Micro Drone Part BT-Air VTX

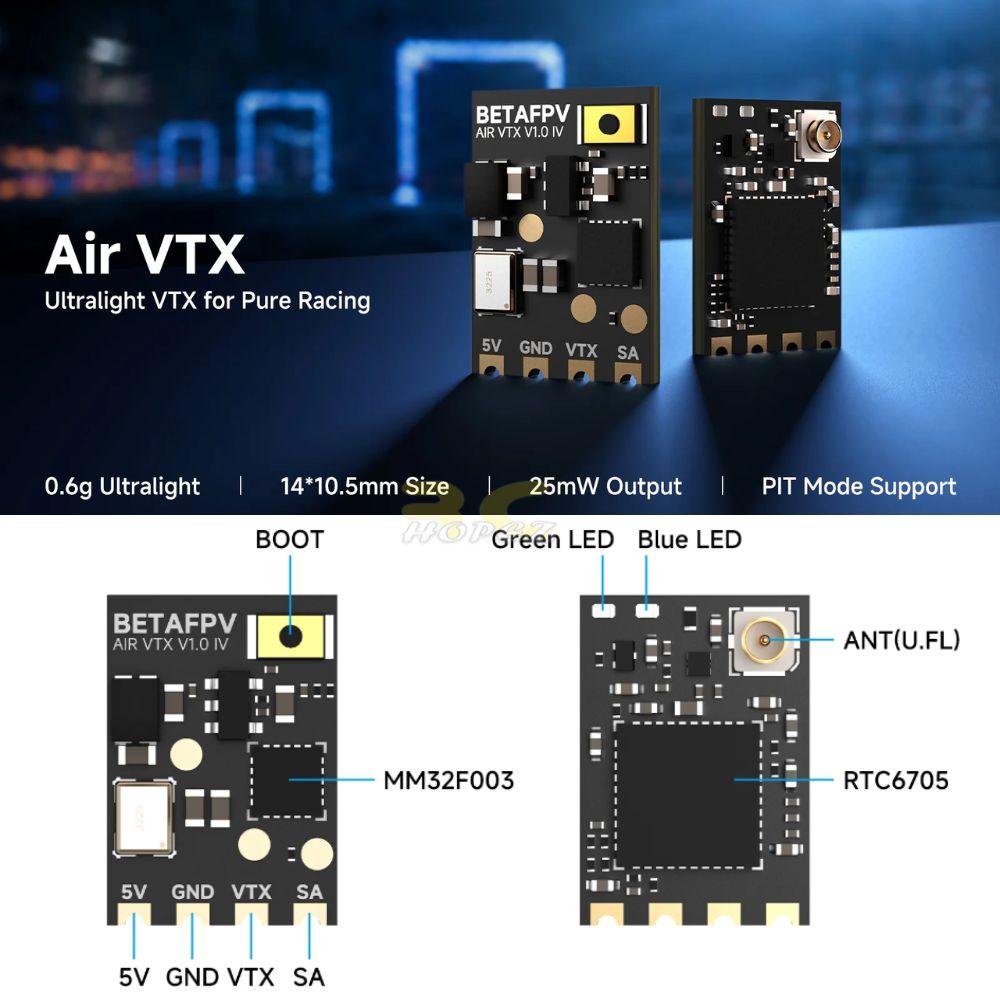

The Air VTX is an analog video transmitter built for pilots who demand simplicity, weight savings, and race-ready performance. Weighing just 0.6g and measuring only 14×10.5mm, it delivers clean 25mW output with PIT mode support—everything you need for competitive flying. Pair it with the Matrix 1S 4IN1 FC for greater flexibility and a cleaner custom build.

Bullet Points
-Ultra‑Lightweight & Compact: At just 0.6g and a compact 14×10.5mm, ideal for weight‑conscious racing builds.
-Race‑Ready 25mW Output: Provides clean, reliable video transmission for short‑range racing.
-PIT Mode Support: Low‑power mode, allowing you to power up without interfering with other pilots.

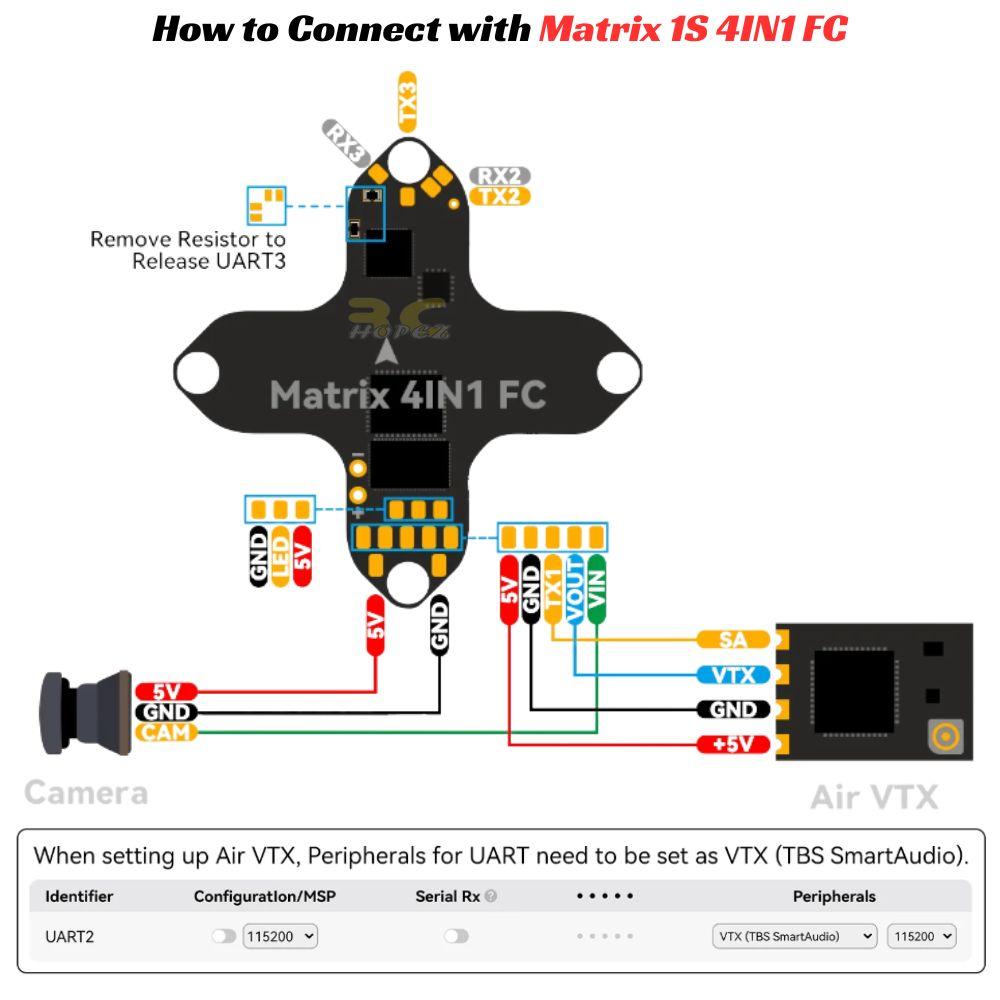

-FC Pairing: Use with the Matrix 1S 4IN1 FC, offering greater flexibility and clean integration for custom builds.

Specifications
Operating voltage: 5V
Operating current: 150 mA (25mW)

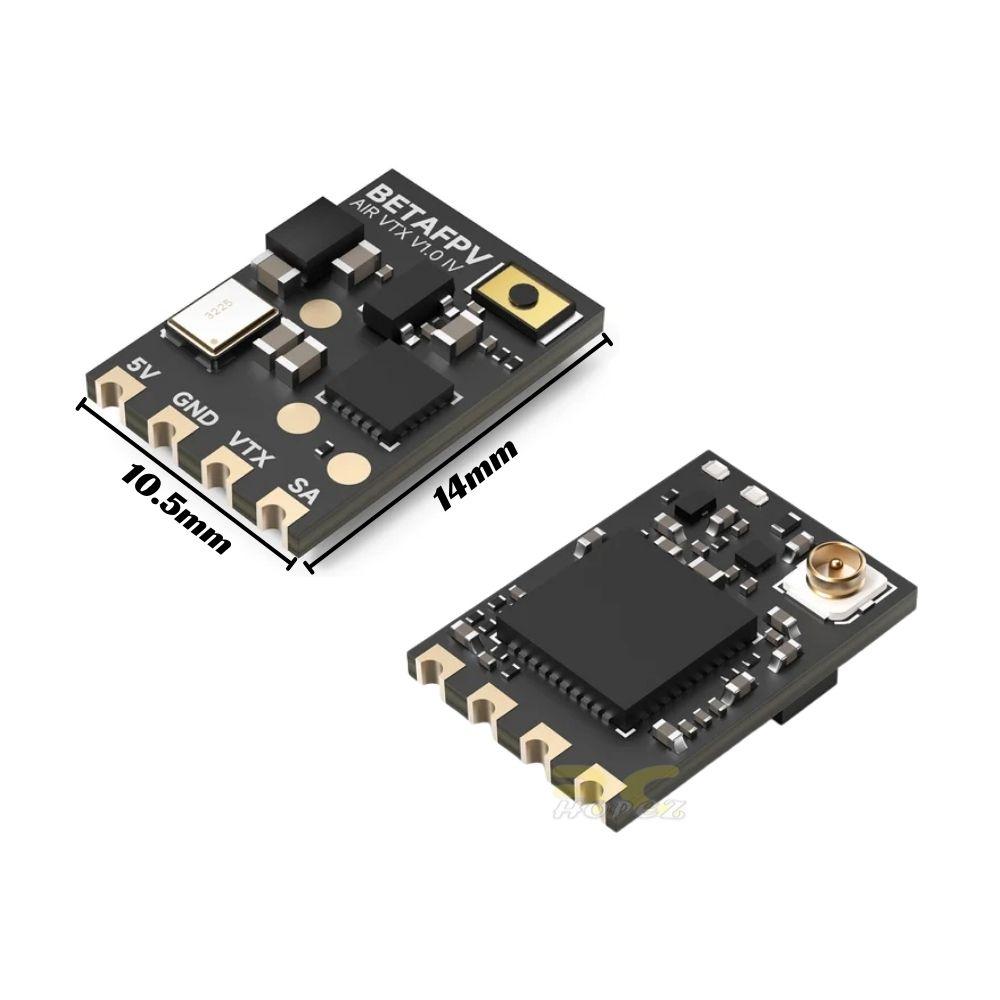

VTX internal size: 14*10.5mm
Antenna connector: IPEX
Output power: 25/PIT

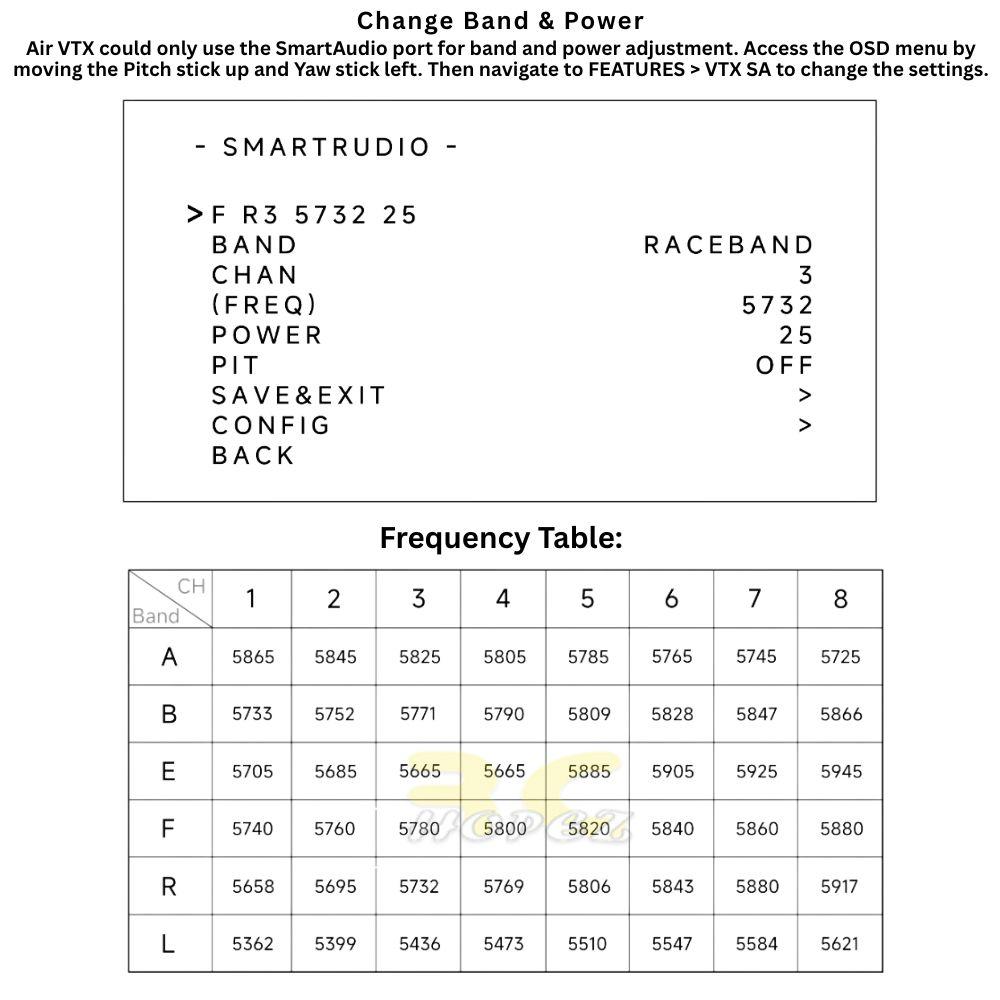

Frequency: 5.8GHz 48 channels, with Raceband: 5658-5917MHz
Channel SEL: SmartAudio 2.0
Video format: PAL/NTSC
Modulation type: FM
Frequency control: PLL
All harmonic: Max -50dBm
Frequency stability: ±100KHz (Typ.)
Frequency precision: ±200KHz (Typ.)
Channel carrier error: ±1.5dB
Antenna port: 50 Ω
Operating temperature: -10℃~+80℃

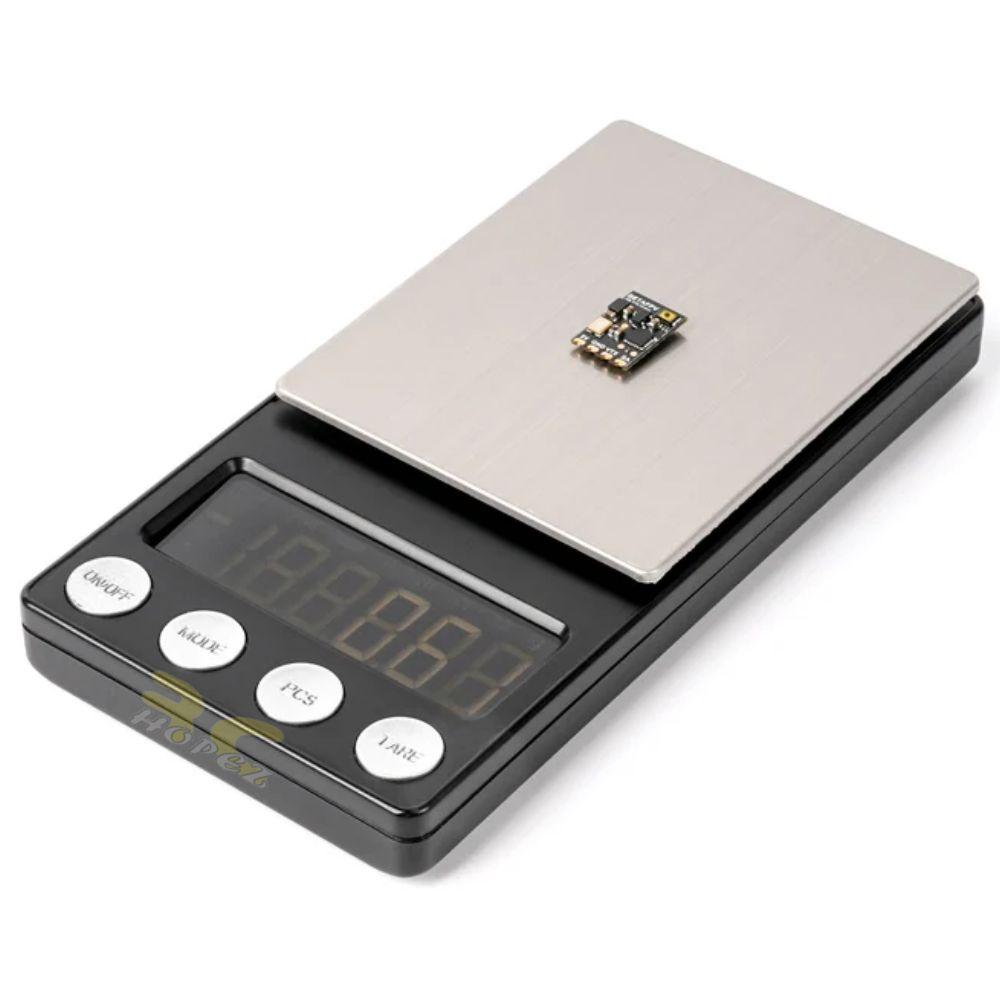

Weight: 0.6g (antenna excluded)

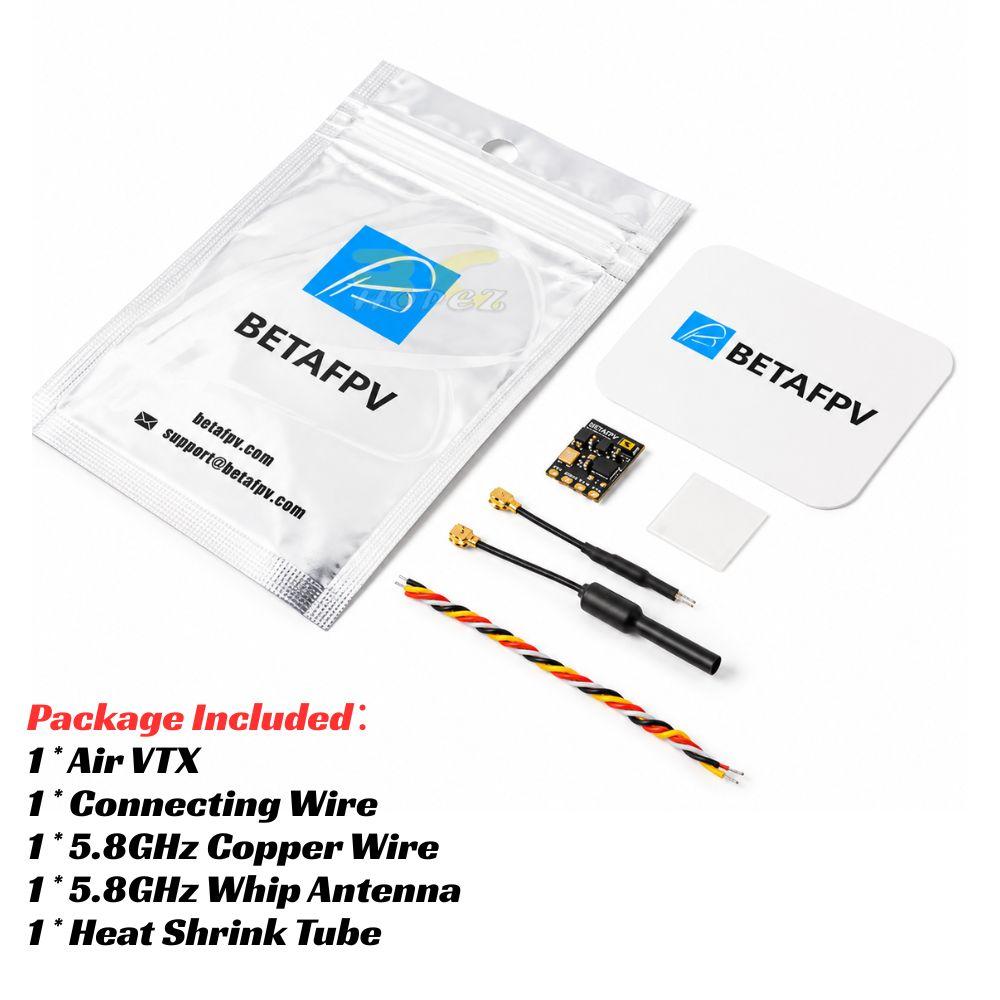

Package Included:
1 x Air VTX
1 x Connecting Wire
1 x 5.8GHz Copper Wire

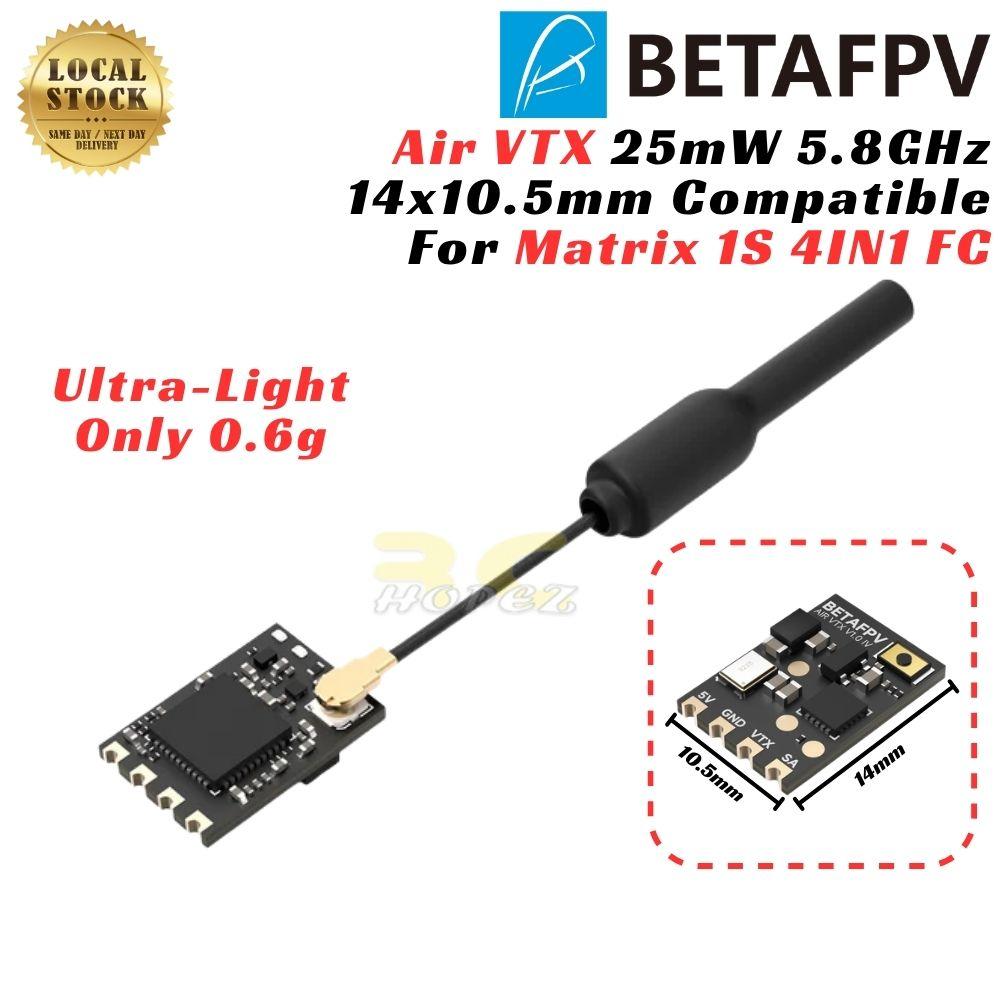

1 x 5.8GHz Whip Antenna
1 x Heat Shrink Tube
