BetaFPV G473 5A AIO (26x26mm) 1S Air Brushless Flight Controller 25~400mw Onboard VTX For Air65/Air75 BT-Air AIO

BetaFPV G473 5A AIO (26x26mm) 1S Air Brushless Flight Controller 25~400mw Onboard VTX For Air65/75 BT-Air AIO

Bullet Point

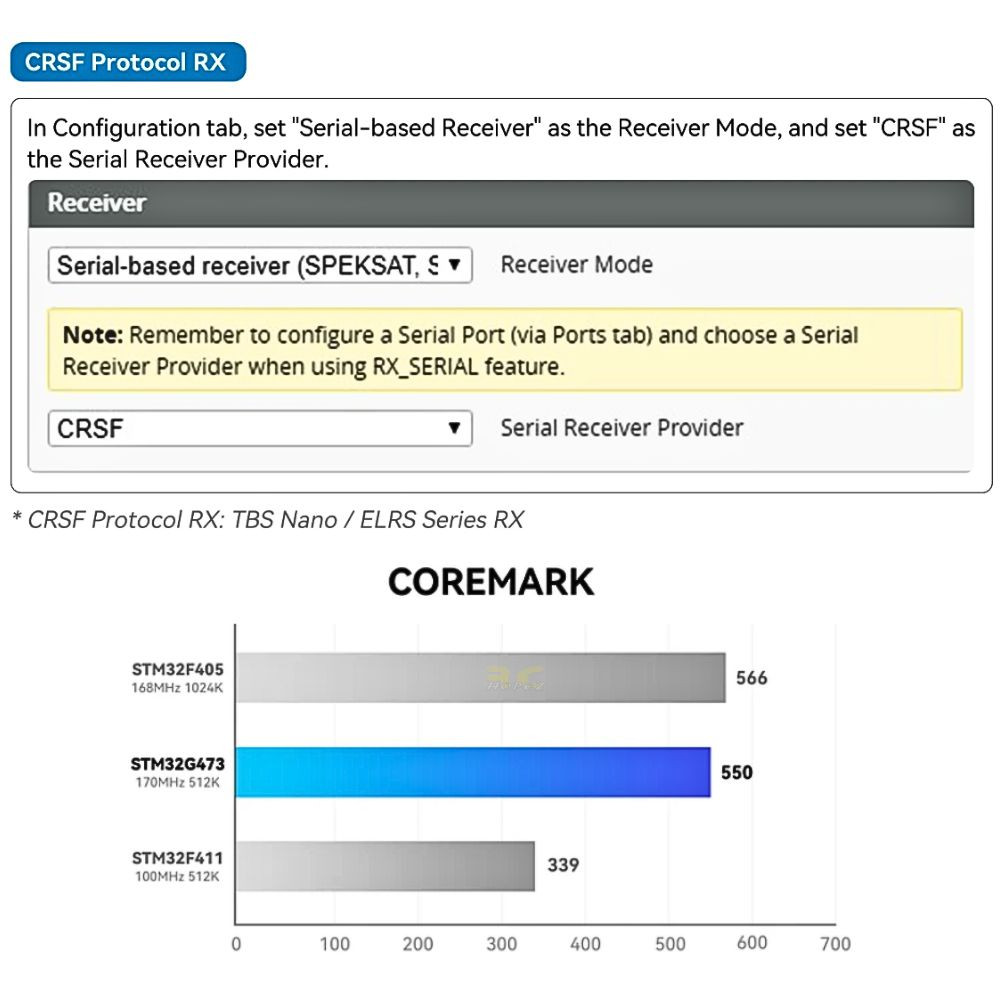

-Air Brushless Flight Controller, the first 1S FC that utilizes the G473 processor, experienced a remarkable 55% increase in computing speed and lightning-fast response times for precise racing and complex freestyle maneuvers, surpassing the F411.

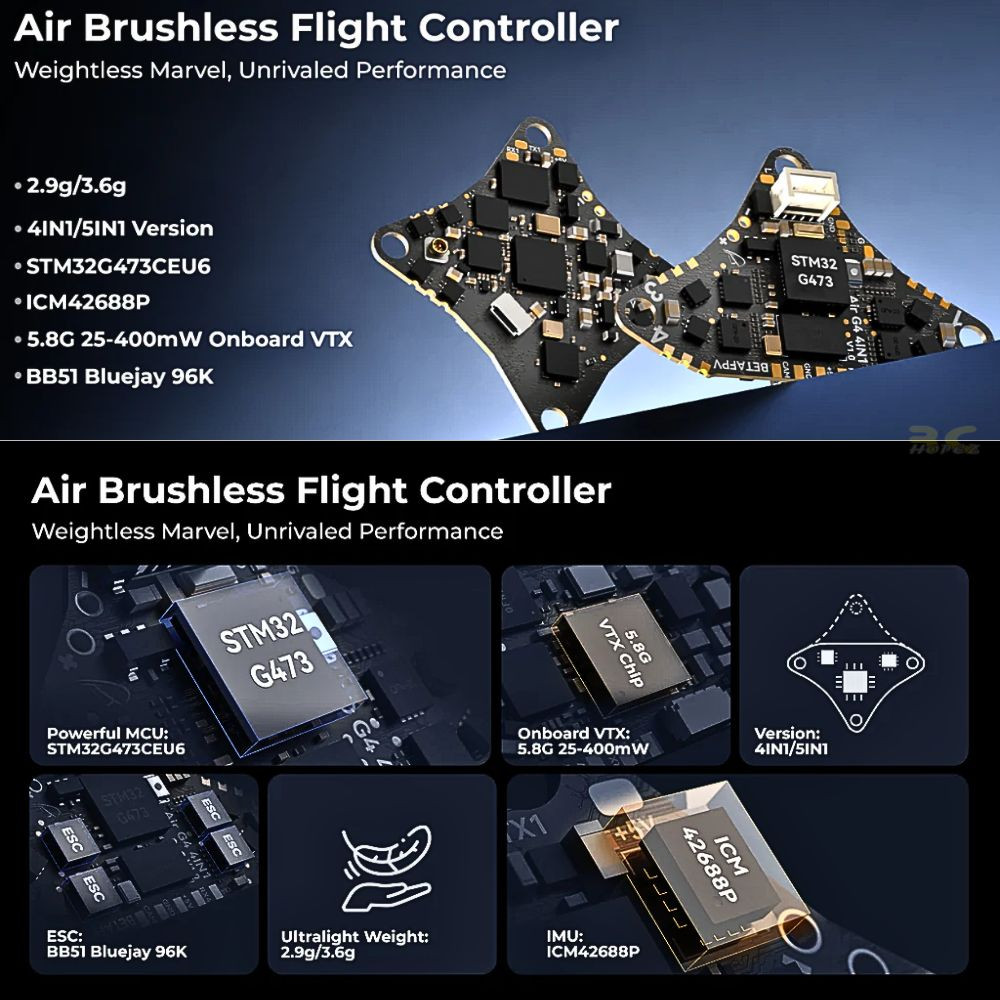

-Higher integration yet lightweighter design, featuring a custom miniature OSD chip. Weighing only 2.9g (4IN1 Version) or 3.6g (5IN1 Version), it offers extra UART port options for effortless function expansions, adapting flawlessly to any flight scenario.
-Default integrated onboard 25-400mW VTX. Streamlines installation saves space, reduces weight, and boosts convenience for VTX and FC adjustments. The 5IN1 Version even integrates the Serial ELRS 2.4G RX.
-Elevate your drone's precision with the industry-leading ICM42688P gyro, integrated accelerometer, cutting-edge sensor calibration, and filtering algorithms, and a sample rate of up to 8K, which takes the drone's posture and movement accurate and precise drone to the next level.
-Unlock extensive flight data recording and analysis with an impressive up to 16MB capacity black box. Maximize performance and diagnose faults effectively, leveraging the full potential of your drone.

Specification of FC

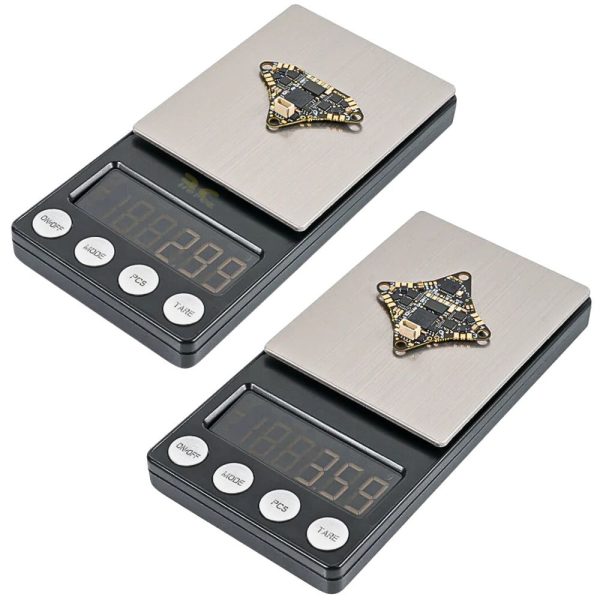

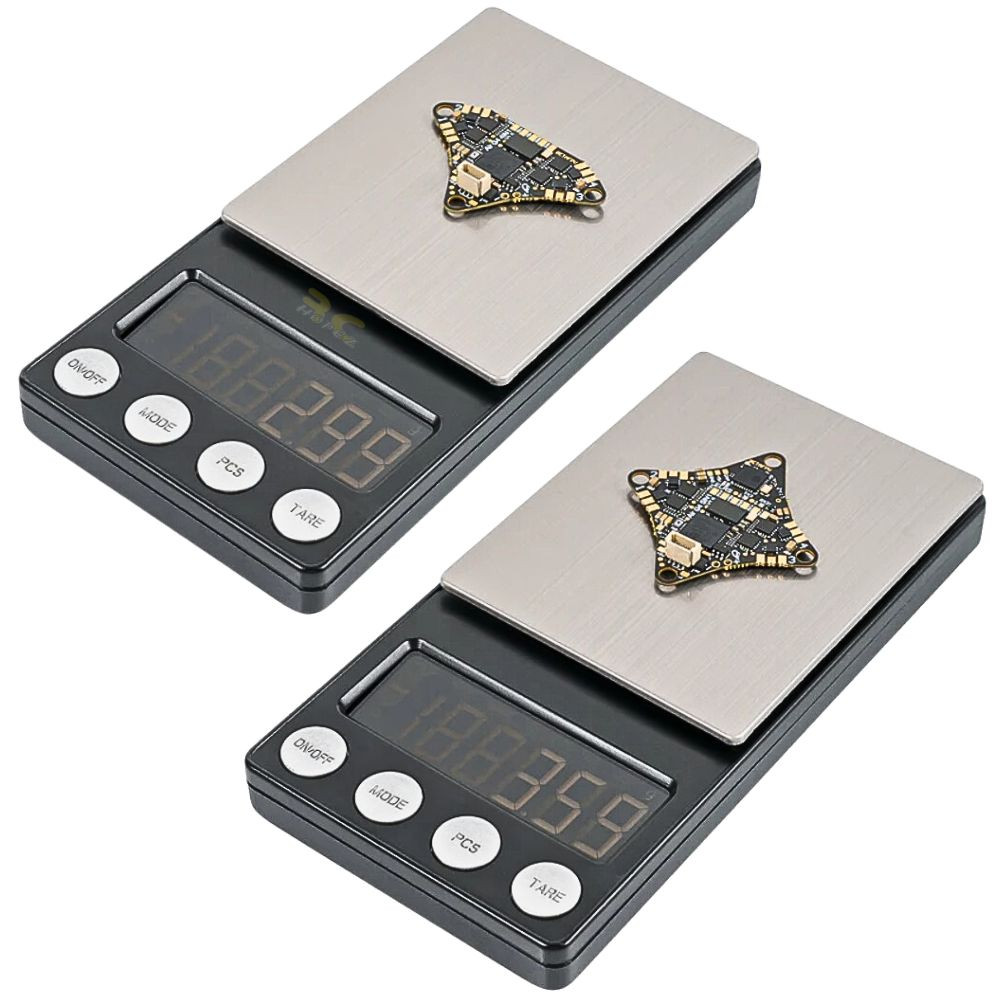

Weight: 2.9g (4IN1 Version) / 3.6g (5IN1 Version) (Optional)
Mounting Hole Size: 26mm x 26mm
CPU*: STM32G473CEU6 (168MHz)
Six-Axis: ICM42688P (SPI connection)
Blackbox Memory: 16MB
Sensor:  Voltage&Current
5V BEC*: 5V 3A
USB Port: SH1.0 4-Pin
Built-in ESC with 5A continuous
RX: Serial ELRS 2.4G (V3.4.2) (Only 5IN1 Version)

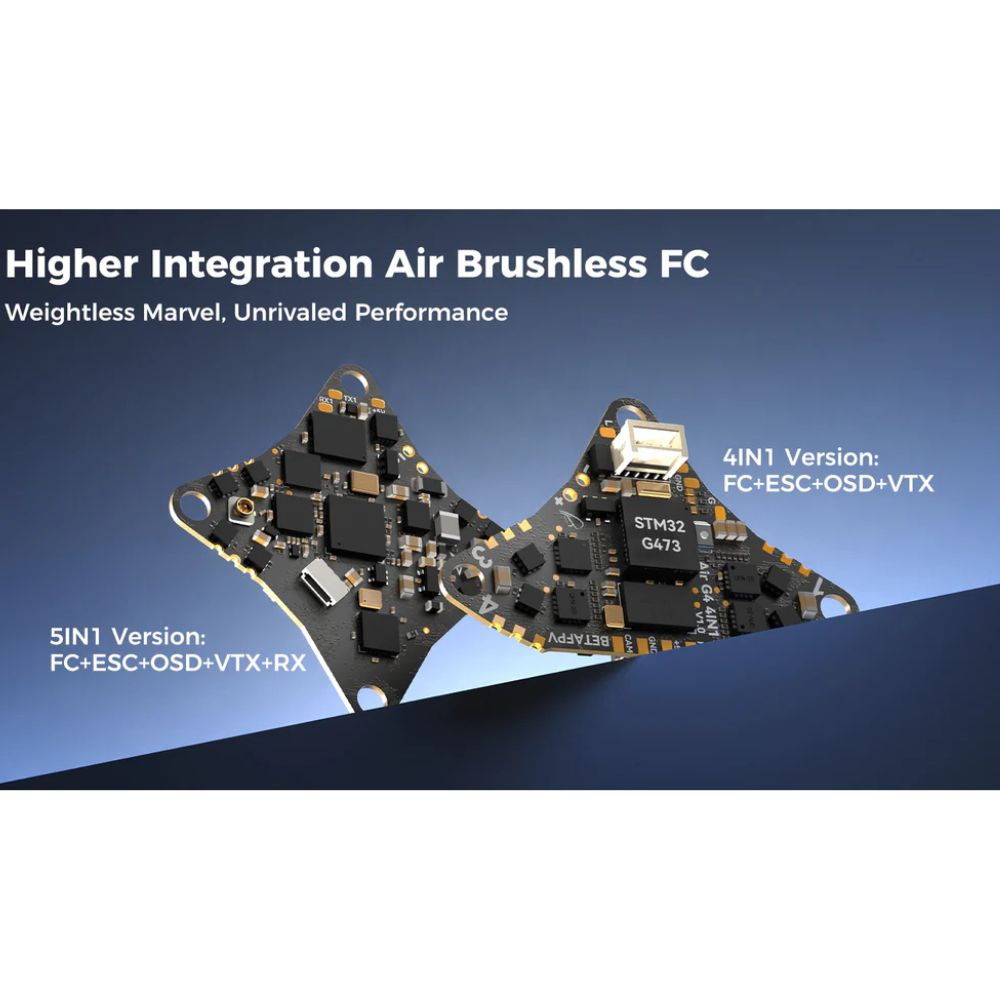

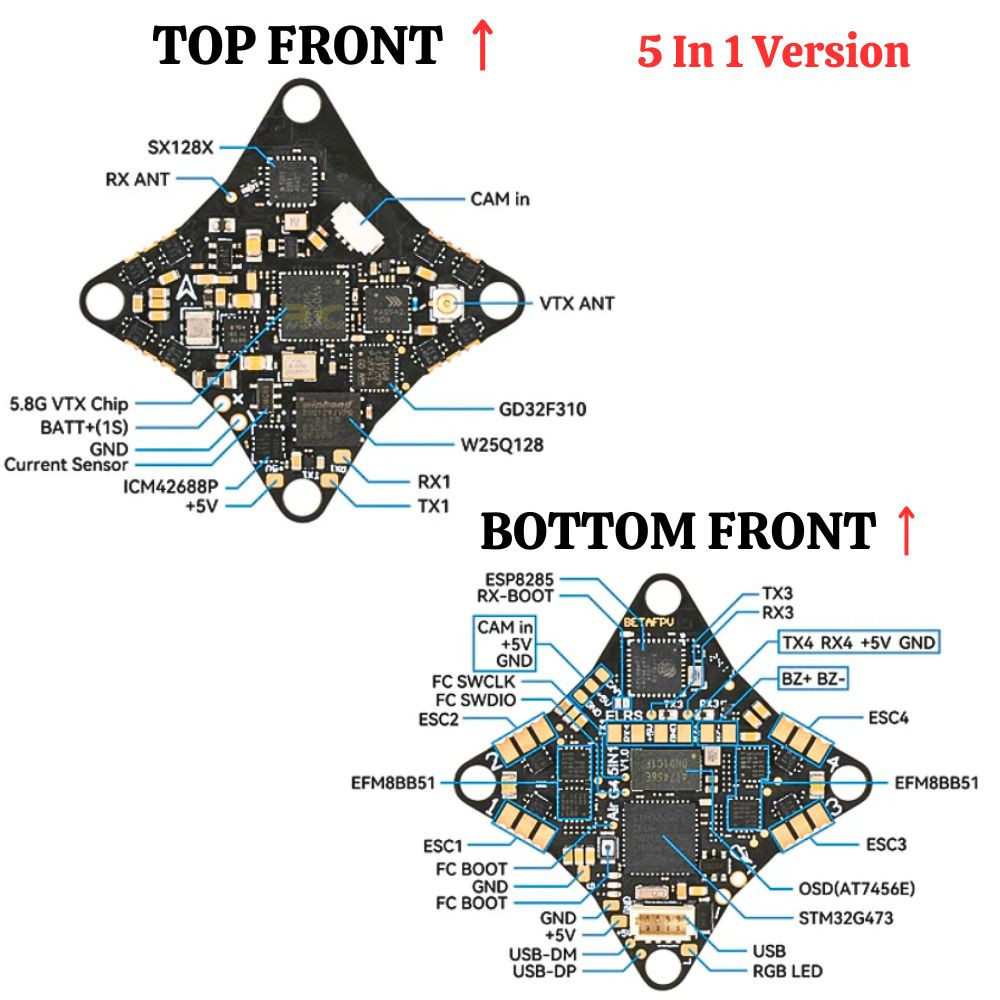

4IN1 Version: FC+ESC+OSD+VTX
5IN1 Version: FC+ESC+OSD+VTX+RX

Specification of ESC
Input Voltage: 1S
FC Firmware Version: Betaflight_4.5.0_BETAFPVG473
ESC Firmware: A_X_5_96KHz_V0.19.hex for BB51 Bluejay hardware
Signal Support: D-shot300, D-shot600

Specification of VTX
Output Power: 25/100/200/400/PIT
Frequency: 5.8GHz 48 channels, with Raceband: 5658~5917MHz
Channel SEL: SmartAudio2.0
Modulation Type: FM
Frequency Control: PLL
All Harmonic: Max -50dBm
Frequency Stability: ±100KHz (Typ.)
Frequency Precision: ±200KHz (Typ.)
Channel Carrier Error: ±1.5dB
Antenna Port: 50 Ω
Operating Temperature: -10℃~+80℃

Package Included:

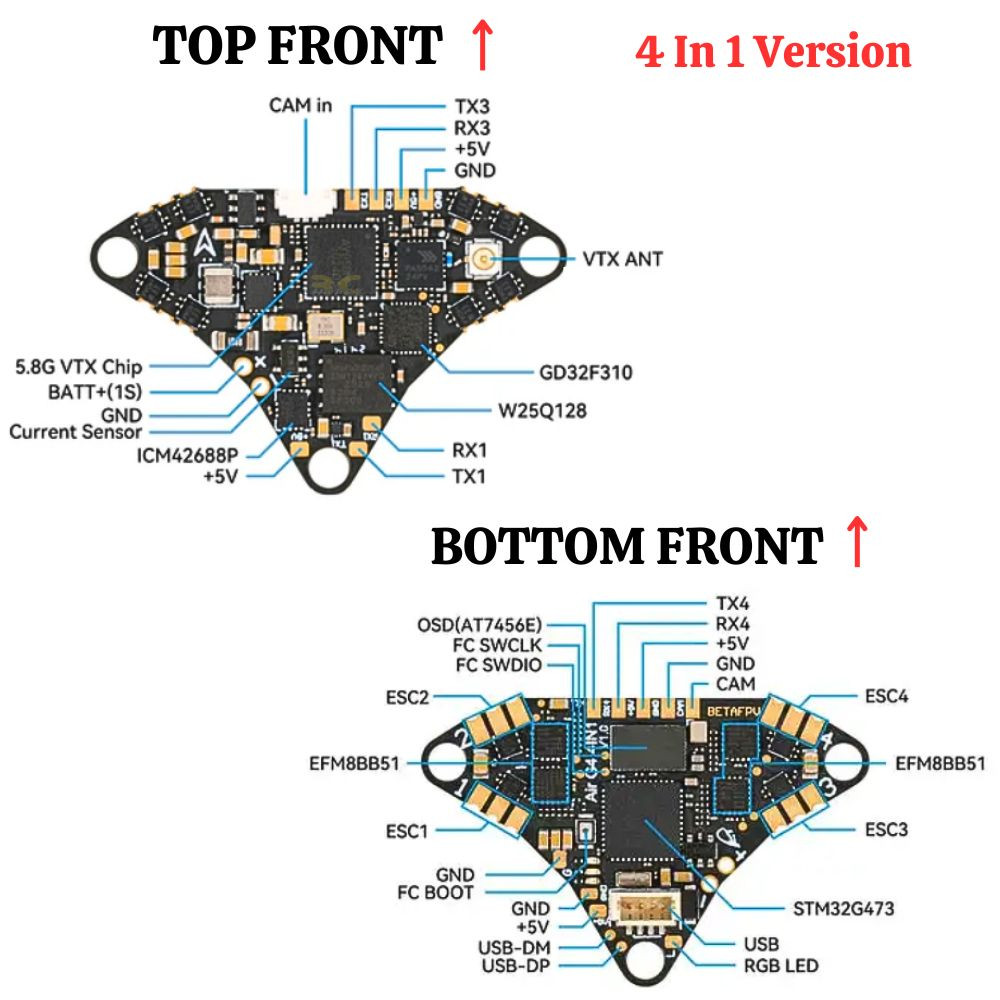

4 In 1 Version
1 x Air Brushless Flight Controller
1 xType-C to SH1.0 Adapter
1 x SH1.0 4Pin Adapter Cable
1 x 5.8g VTX Antenna
1 x BT2.0 U Whoop Cable Pigtail (40mm)
4 x M1.4*4 Self-tapping Screws
4 x Shock Absorbing Ball

OR

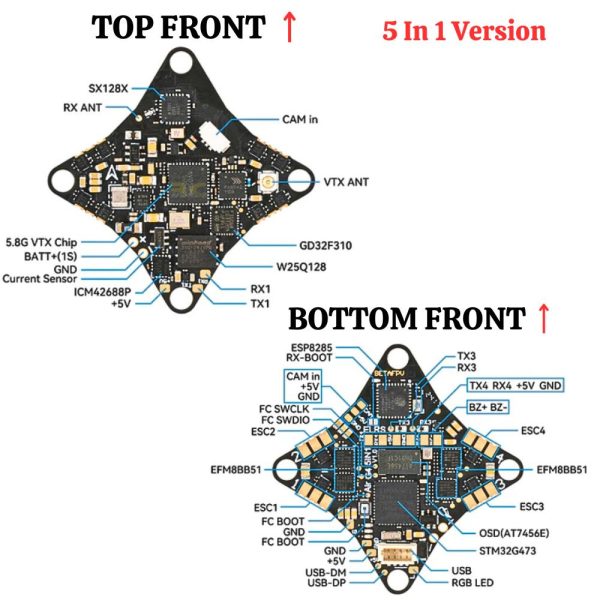

5 In 1 Version
1 x Air Brushless Flight Controller
1 x2.4g Antenna
1 xType-C to SH1.0 Adapter
1 x SH1.0 4Pin Adapter Cable
1 x 5.8g VTX Antenna
1 x BT2.0 U Whoop Cable Pigtail (40mm)
4 x M1.4*4 Self-tapping Screws
4 x Shock Absorbing Ball
