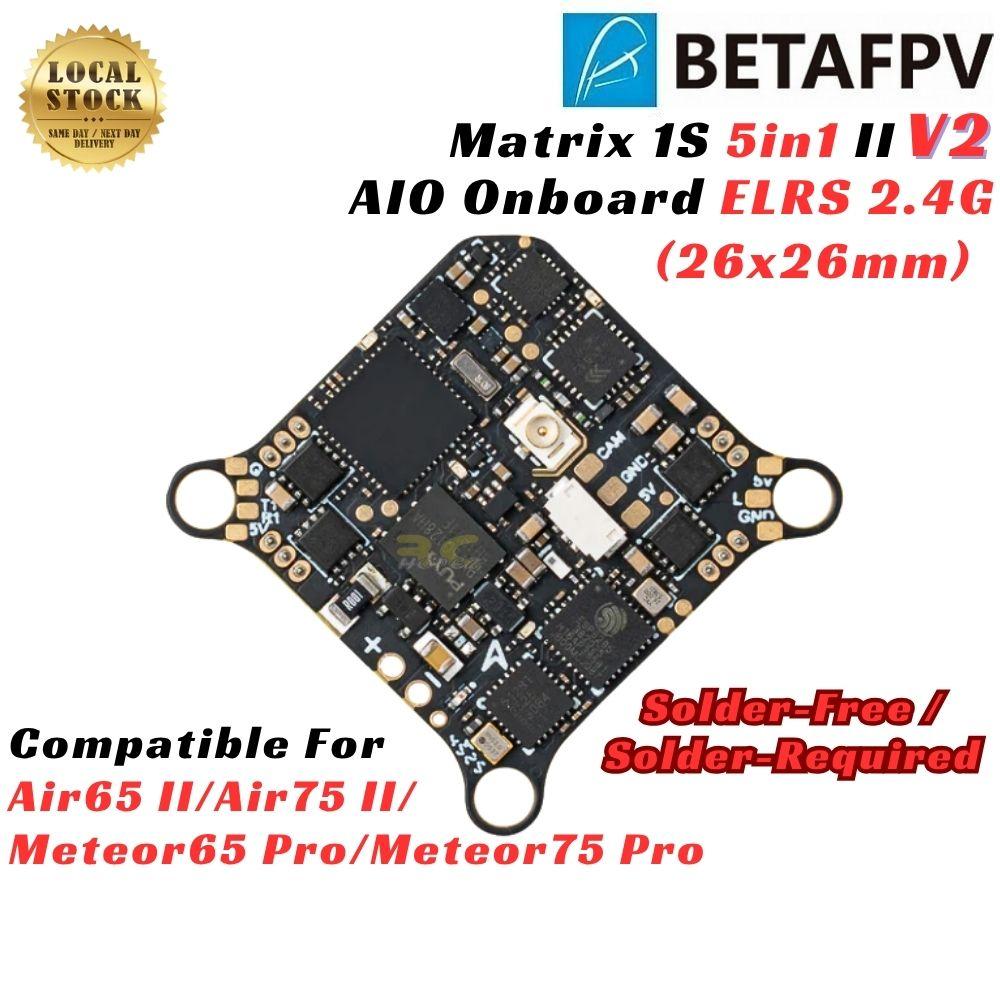

BetaFPV Matrix II 1S 5in1 26×26mm AIO Flight Controller 12A ESC ELRS 2.4G For Air65II 75II Meteor65/75 Pro BT-Matrix V2

BetaFPV Matrix II 1S 5in1 26×26mm AIO Flight Controller 12A ESC ELRS 2.4G For Air65II 75II Meteor65/75 Pro BT-Matrix V2

Note: Due to the shortage of IMU chip ICM42688, BETAFPV team has found new IMU chips including ICM42622, LSM6DSV16X and LSM6DSK320X, and built compatible firmwares. Extensive testing confirms they all meet our strict quality standards.
Betaflight has not yet released official firmwares compatible with some of the IMU chips, so please do not flash the official Betaflight firmware and pay attention to future support updates.

The Matrix 1S 5IN1 II Brushless Flight Controller is the next-generation flight controller engineered for pilots who refuse to compromise. Building on the proven all-in-one design, it delivers a substantial leap in both performance and durability. Experience the raw power of a 12A continuous ESC, the crash-proof confidence of 3-point mounting, and the build flexibility of Plug & Play or DIY versions. This is the durable, high-output core for your most demanding 1S whoop builds.

Attention
Flight controllers are covered for manufacturer defects. Issues arising from user errors, physical crash damage, damage during installation or dismantling, modifications, power surges, electrical fires, or water exposure are not covered.
VTX Power: Higher VTX power consumes more energy and generates more heat, reducing flight time. For better flight time in indoor scenarios, use 25~100mW power.
VTX Antenna: Connect and install the image transmission antenna before powering on the flight control. Alternatively, set transmission power to 0 to avoid burnout.

Bullet Points
All-in-One Integration: Combines the FC, ESC, OSD, Serial ELRS 2.4GHz RX, and a 5.8GHz 400mW VTX into a single, compact unit.

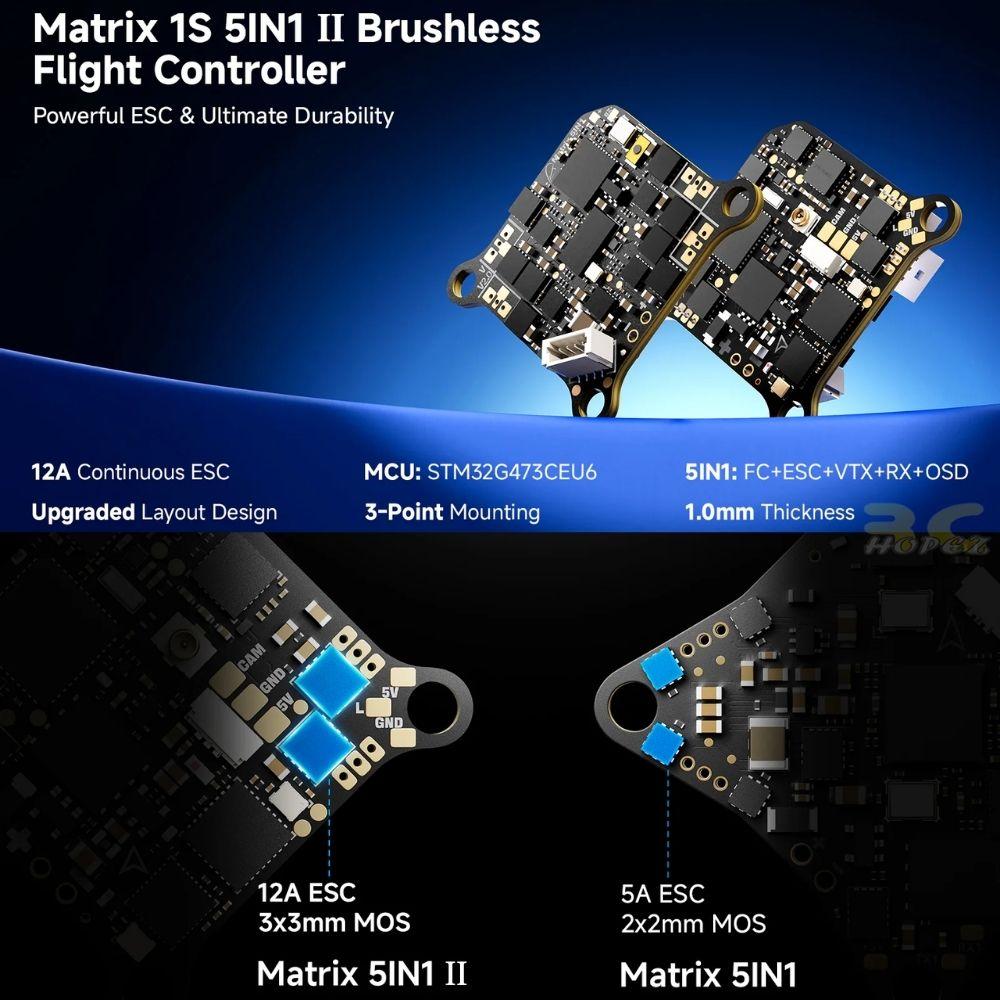

Upgraded 12A Continuous ESC: Delivers 12A continuous current (18A peak) for powerful propulsion.

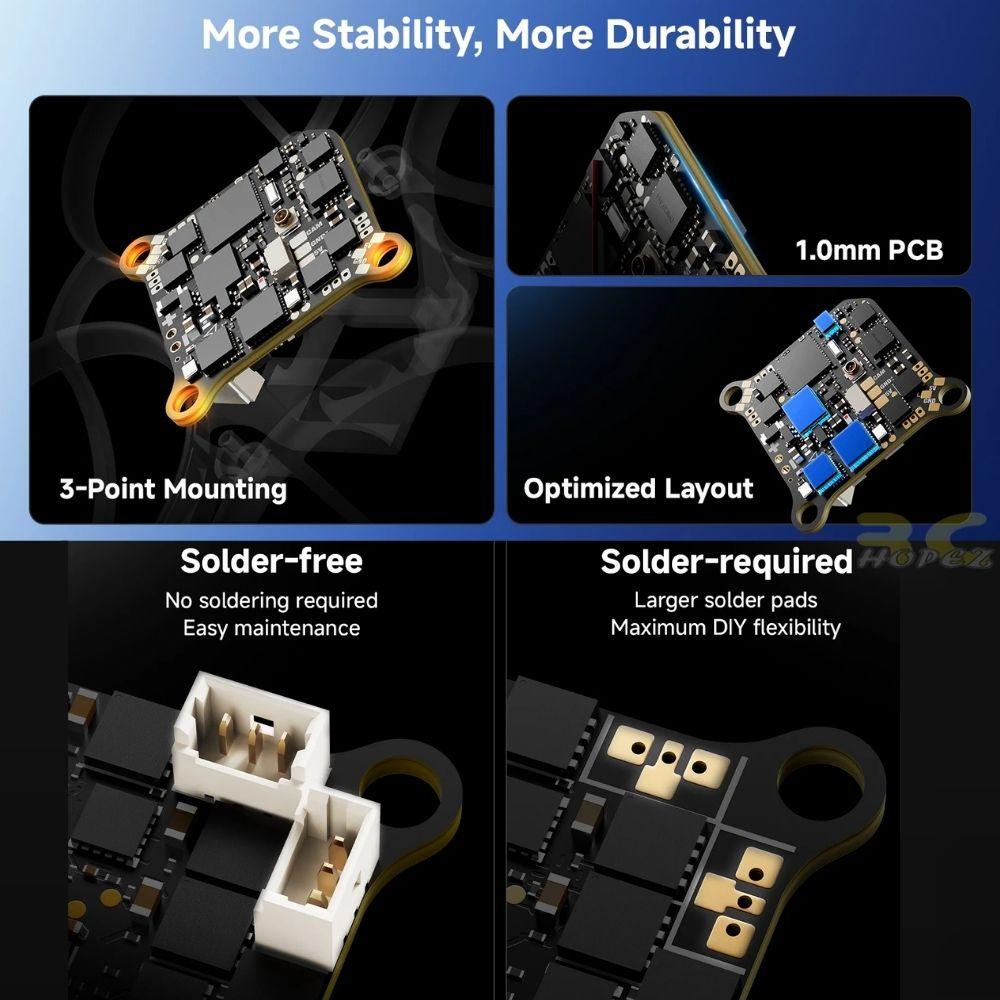

Enhanced Durability: Features a robust 3-point mounting system and a 1.0mm thick PCB to absorb crash impacts and protect core components.
Flexible Build Options: Available in both Solder-free and Solder-required versions to suit any skill level or weight preference. Features larger solder pads for easier, more reliable custom wiring.
Advanced Core Components: Built around a powerful G473 processor for precise racing and complex freestyle maneuvers.
Optimized Layout: A refined component arrangement improves durability and overall reliability.

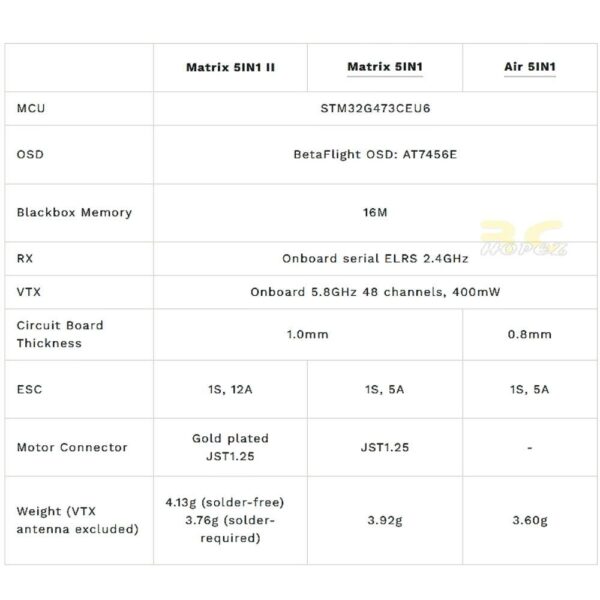

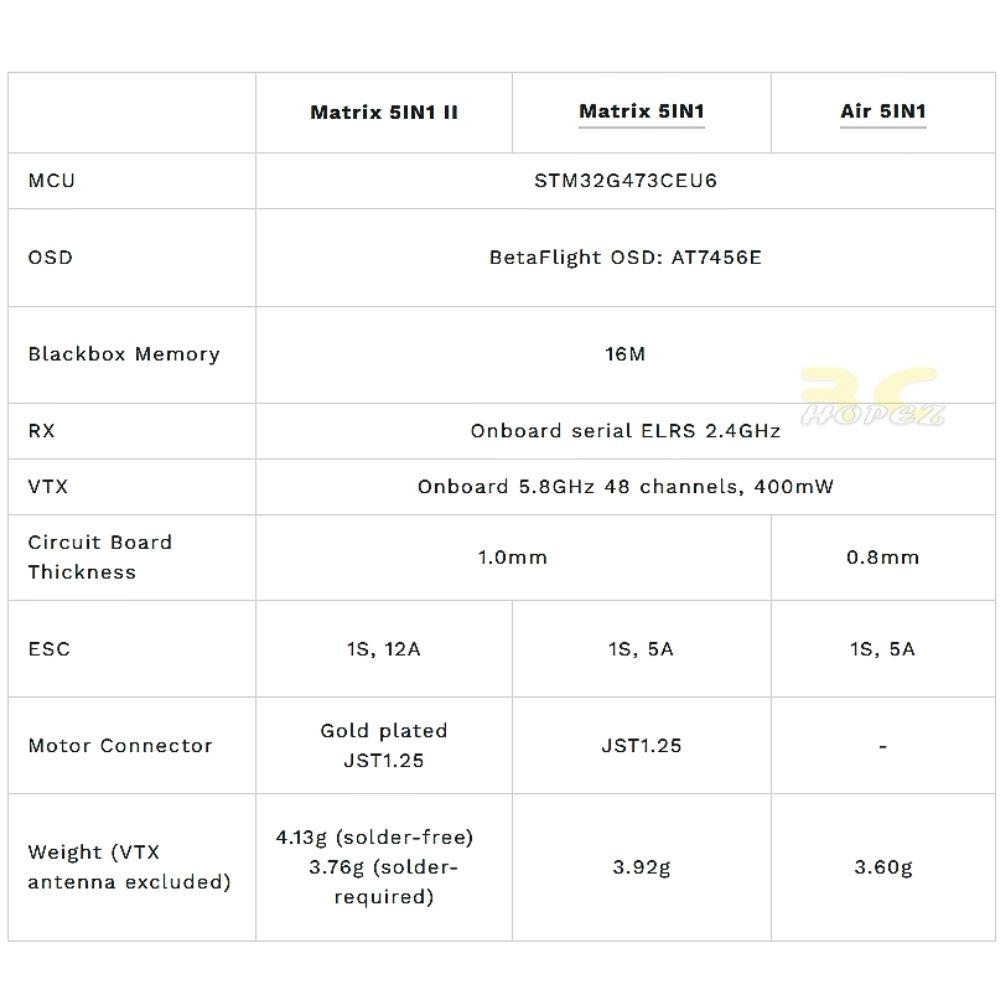

Specifications

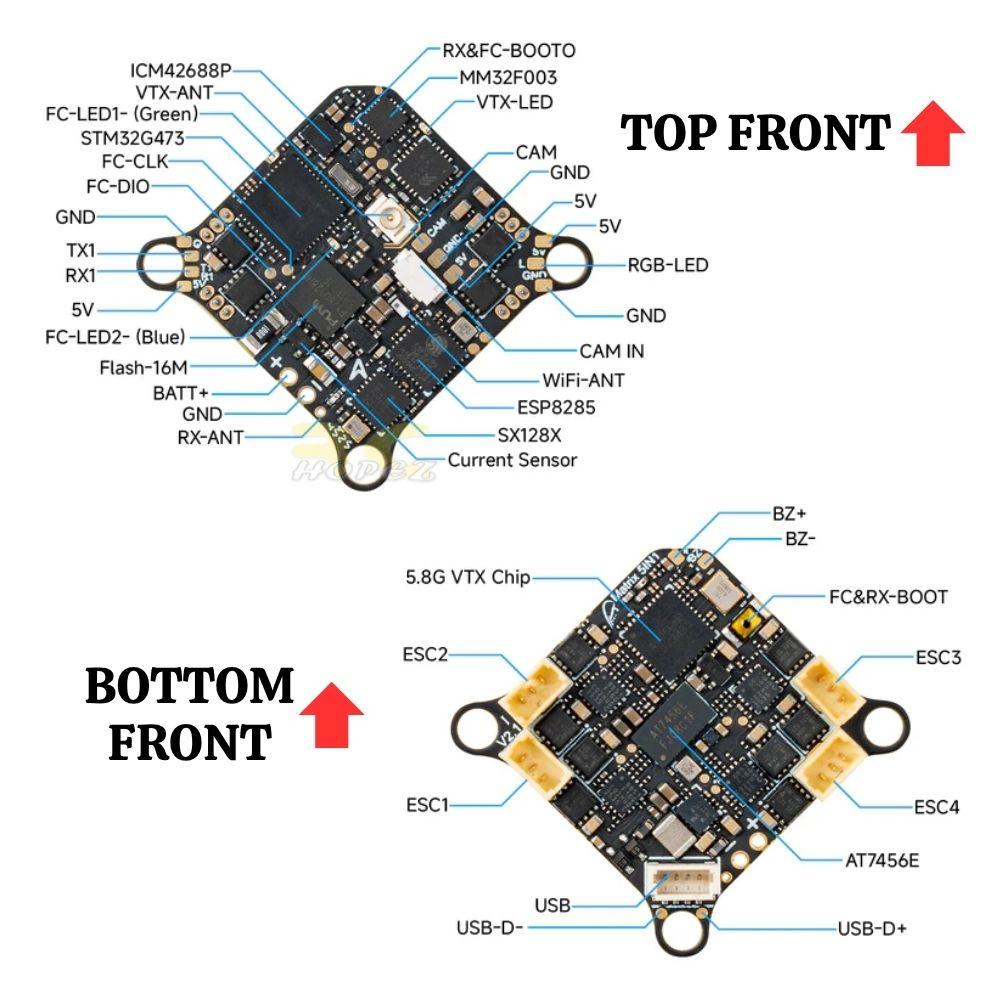

FC
MCU: STM32G473CEU6
Gyro: ICM42688P
Blackbox memory: 16MB
Sensor: Voltage & Current
BEC: 5V, Max 3A

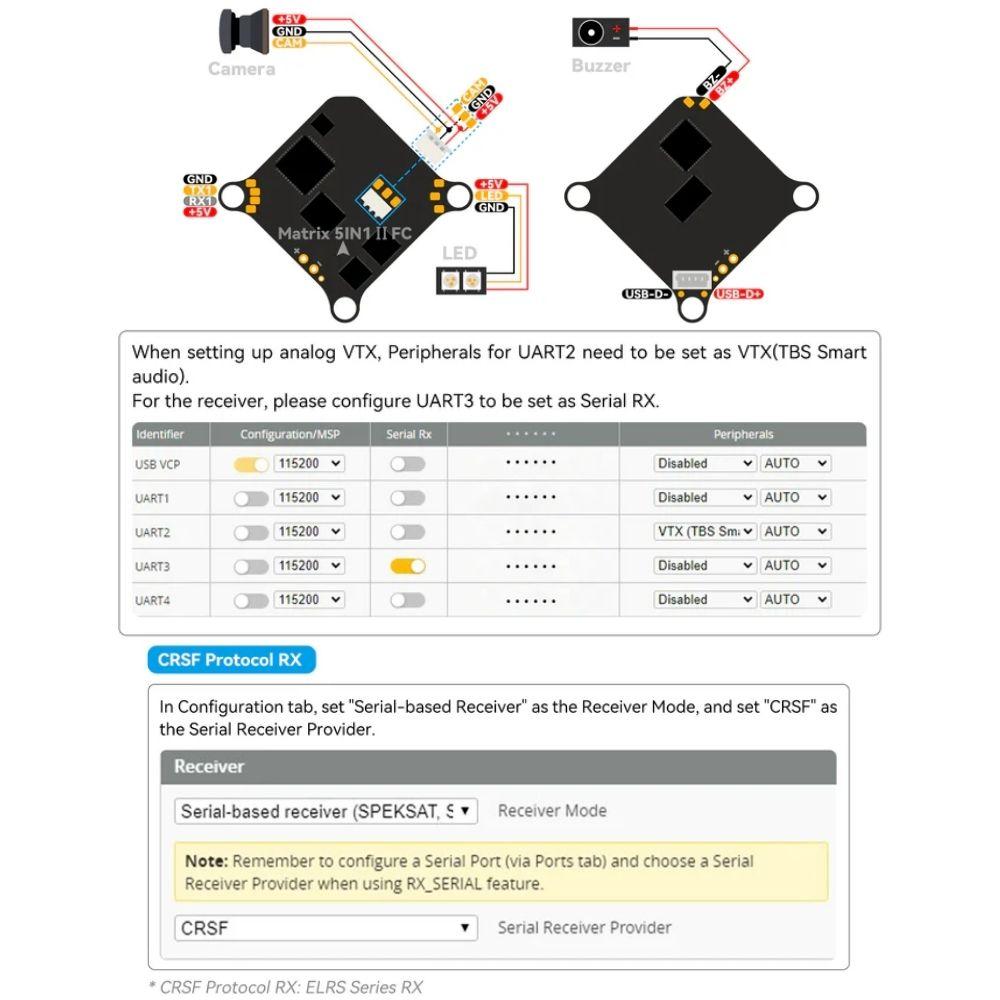

UART: UART 1, UART 2 (For VTX), UART 3 (For RX), UART 4
BetaFlight OSD: AT7456E

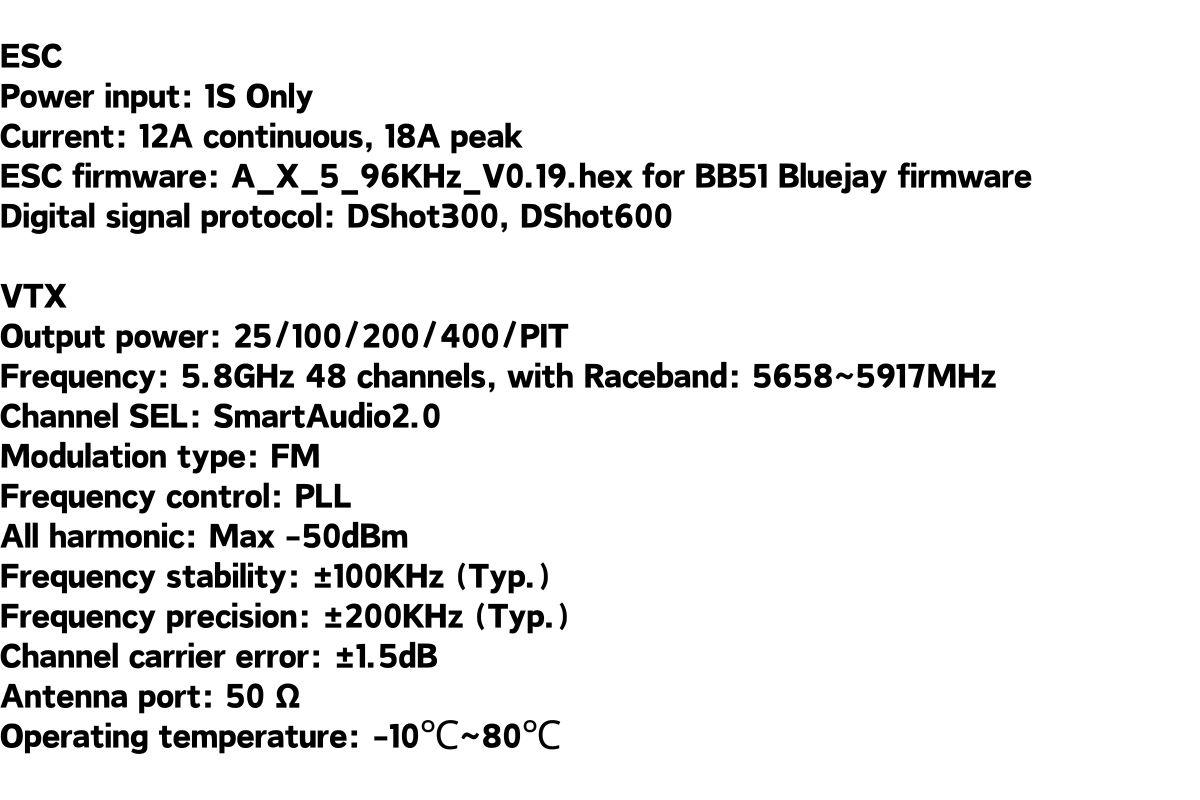

ESC: 12A continuous
RX:Serial ELRS 2.4GHz (V3.4.3)
VTX: 5.8GHz 48 channels, Max 400mW
FC firmware: Betaflight_4.5.3_BETAFPVG473_V2
USB port: SH1.0-4Pin
Motor connector: JST1.25
Battery connector: BT2.0
Mounting hole size: 26mm x 26mm

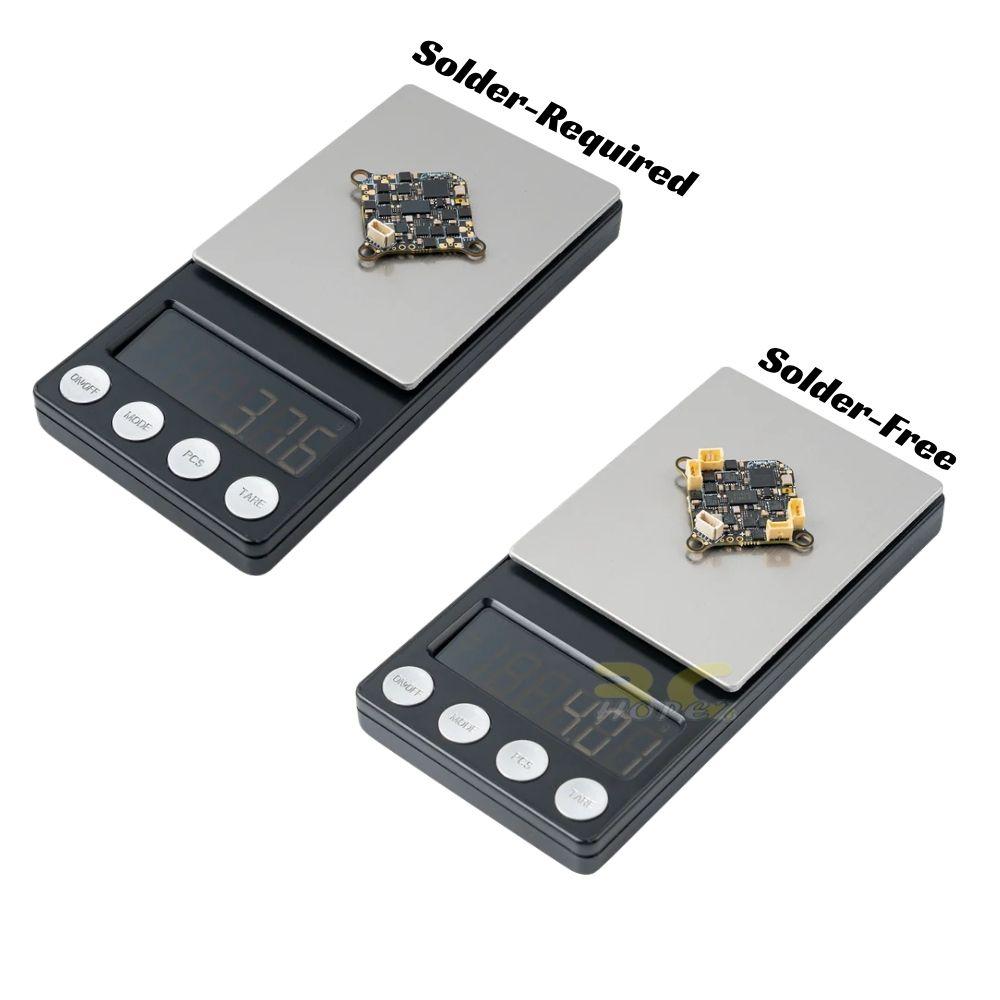

Weight: 4.1±0.1g (solder-free), 3.76g (soldered-required) (Optional)
