BetaFPV Pavo Femto O4 Air Unit Frame Duct Bracket 75mm Brushless Whoop Frame Kit BT-Femto Frame

BetaFPV Pavo Femto O4 Air Unit Frame Duct Bracket 75mm Brushless Whoop Frame Kit BT-Femto Frame

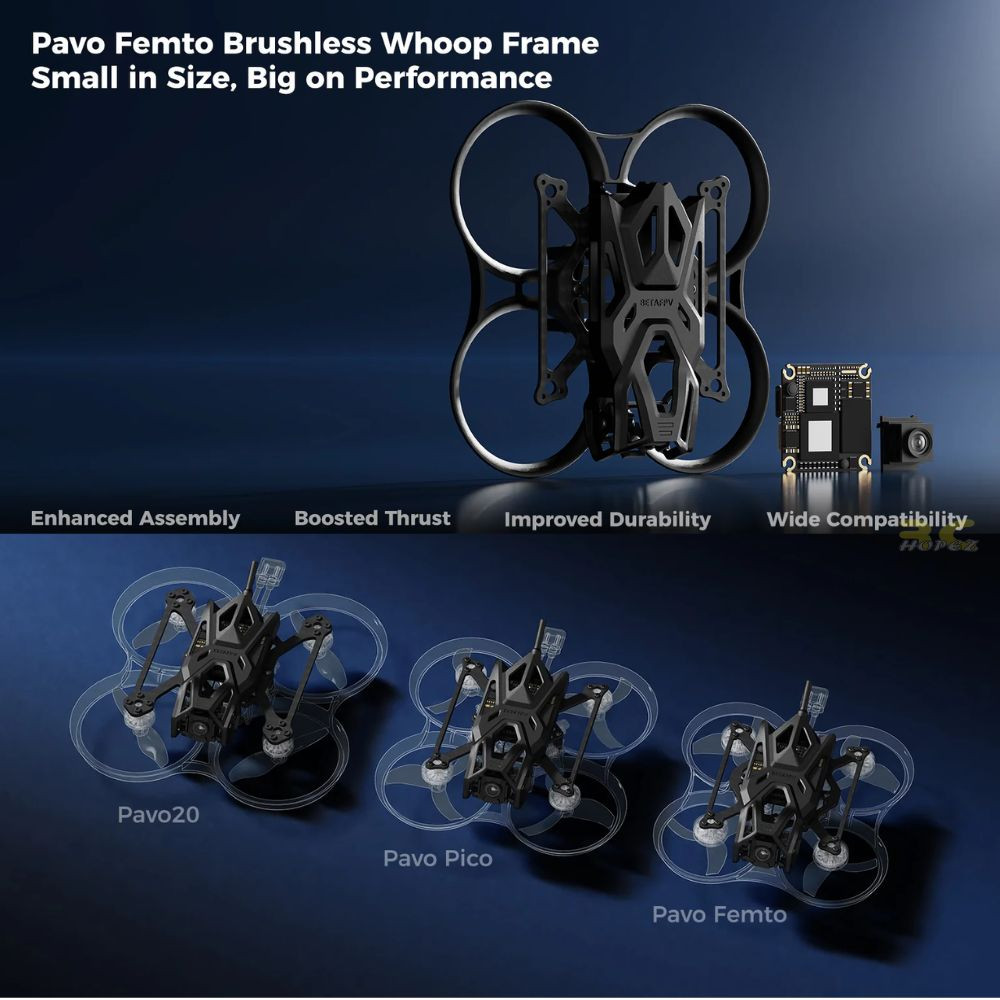

The Pavo Femto Brushless Whoop Frame is designed for performance and durability, offering a 4% thrust increase in a compact structure. It features improved connections between the whoop duct and carbon fiber plate with added supports and limits for secure assembly. Optimized for the DJI O4 Air Unit, it includes a reinforced protective structure for the circuit board. Additionally, the O4 Air Unit Bracket is compatible with Pavo Femto, Pavo Pico and Pavo20, catering to various FPV builds.

Bullet Points
Enhanced Assembly: Improved connection between the whoop duct and carbon fiber plate with added supports for secure, hassle-free assembly.

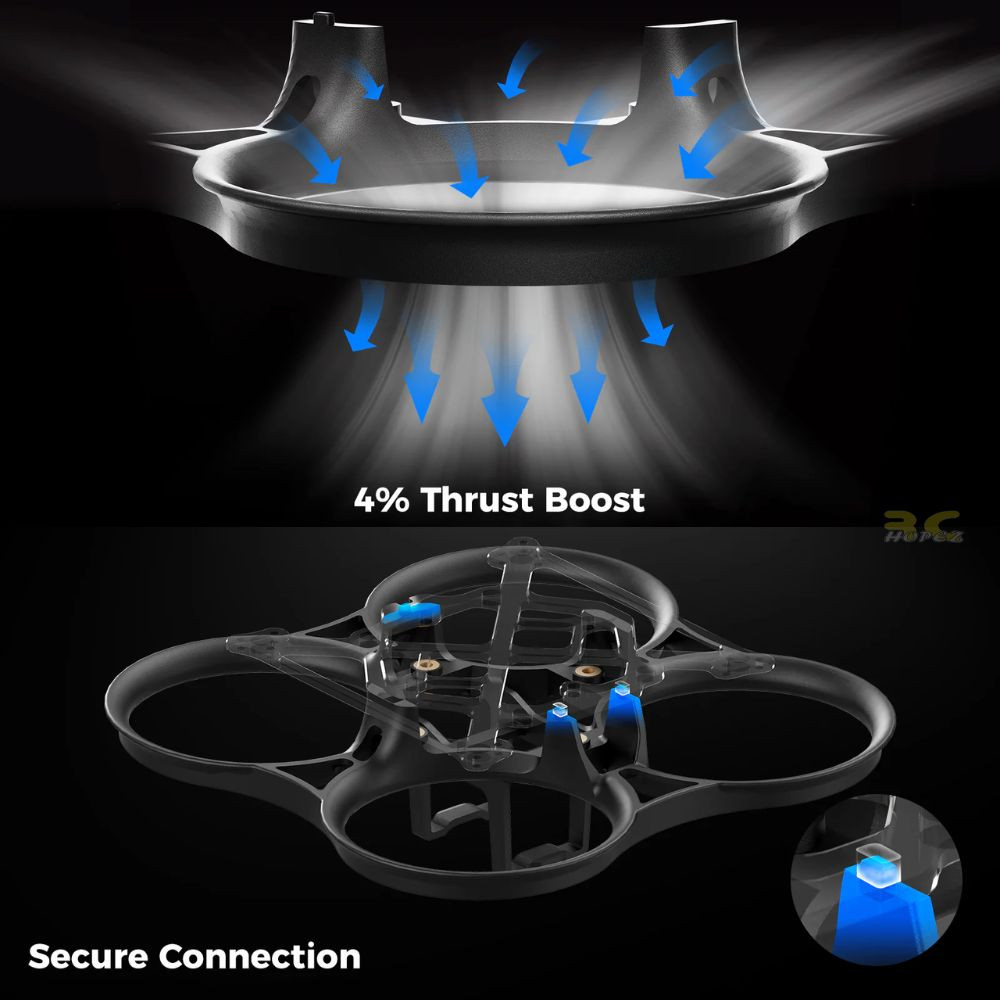

Boosted Thrust: Smaller duct design increases thrust by approximately 4%.

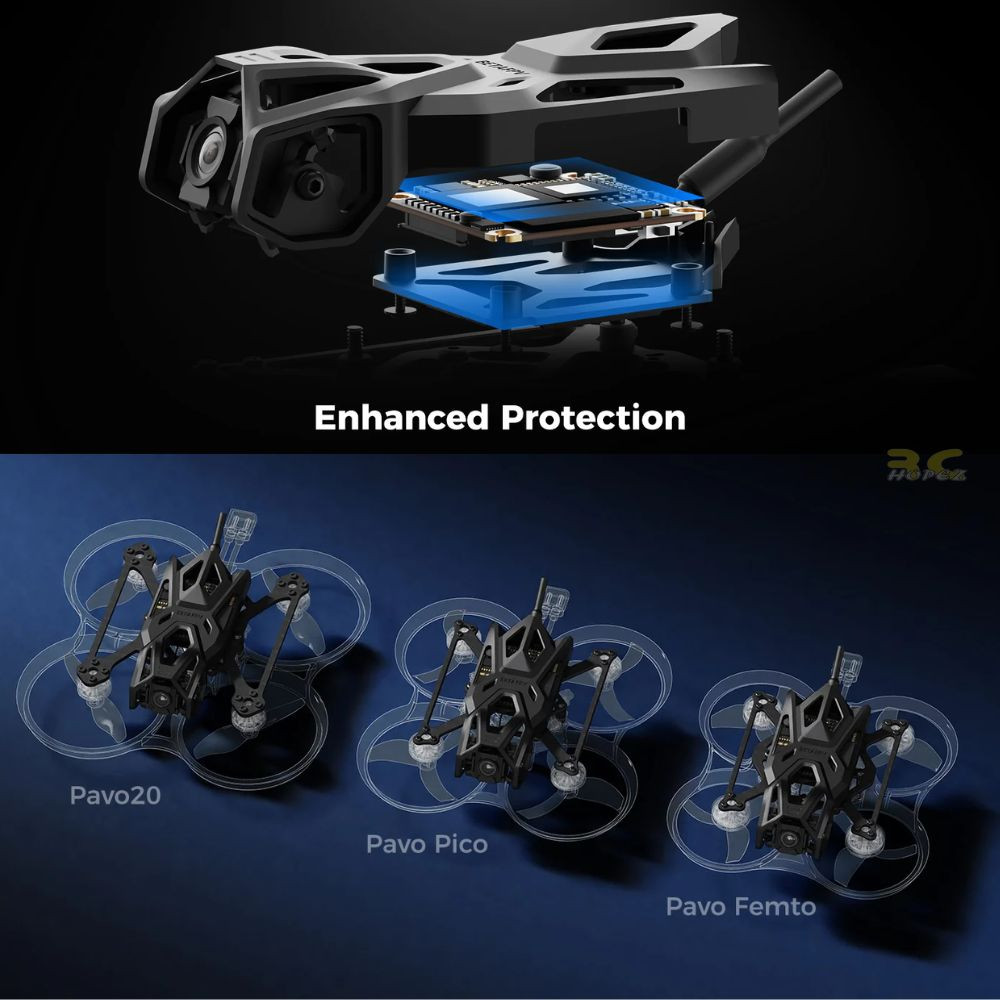

Improved Durability: Strengthened protection for DJI O4 Air Unit's circuit board.
Wide Compatibility: O4 Air Unit Bracket works seamlessly with Pavo Femto, Pavo Pico and Pavo20.

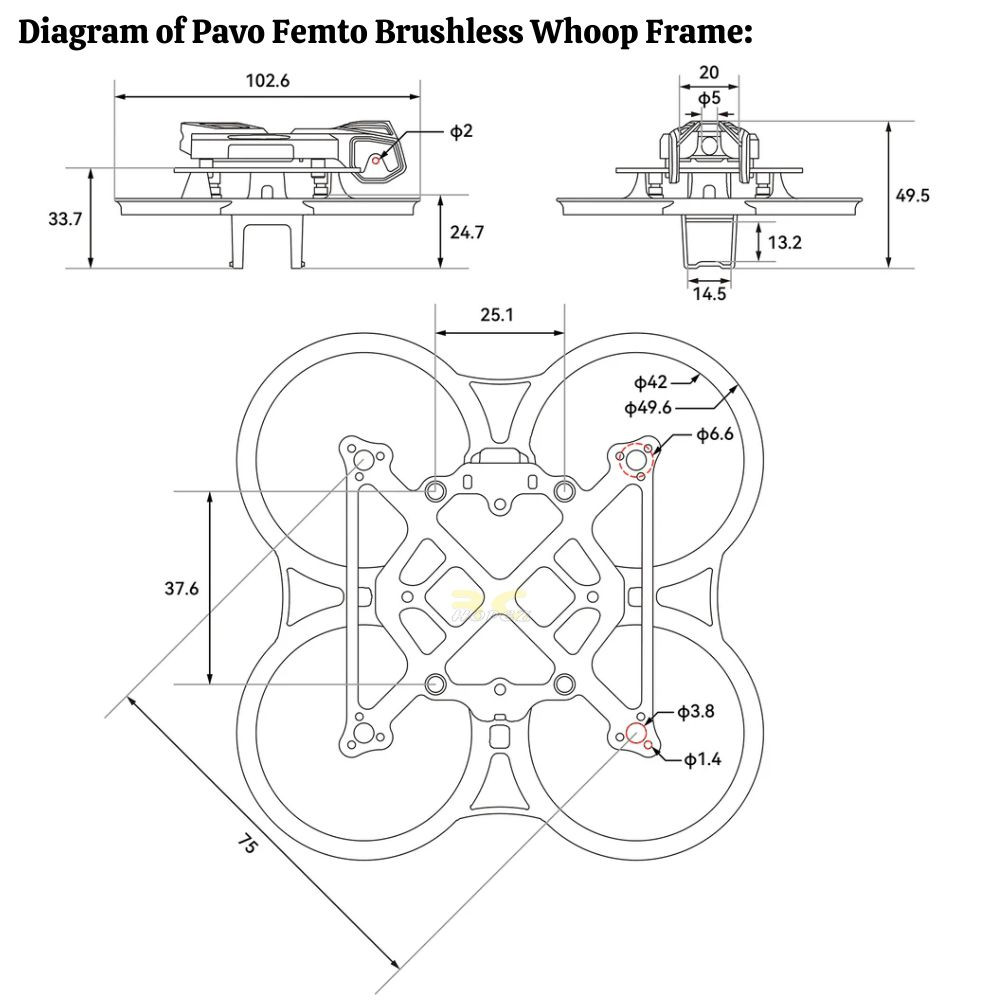

Specifications
Item: Pavo Femto Brushless Whoop Frame
Wheelbase: 75mm
Carbon fiber plate thickness: 2mm
Whoop duct material: PA12
Whoop duct weight: 8.64g
Frame weight: 22.16g
Flight controller mounting hole size: 25.5mm * 25.5mm
Motor mounting hole size: 3*M1.4 EQS ø6.6

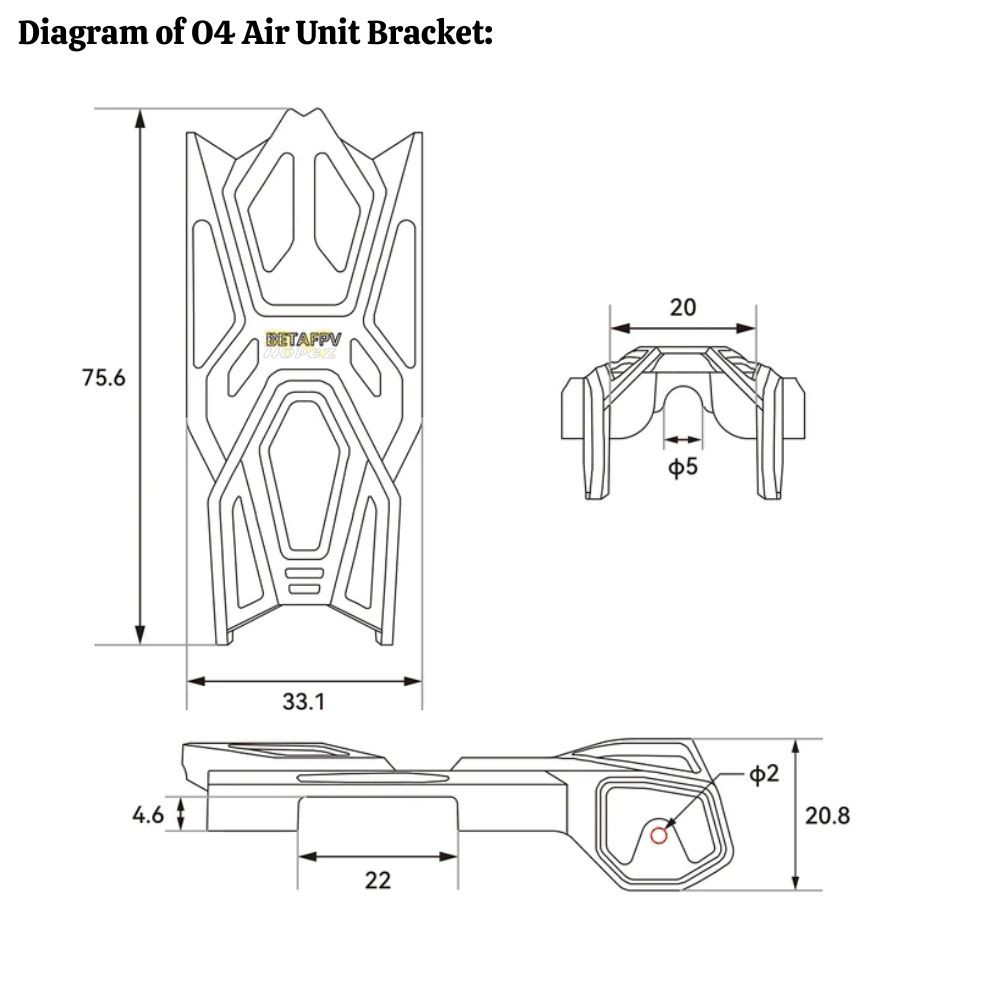

O4 Air Unit Bracket material: PA
O4 Air Unit Bracket weight: 6.05g
Camera mounting spacing: 20mm

Recommended Parts (Not Included)
FC: F4 2-3S 20A AIO FC
Motor: LAVA Series 1102 14000KV Brushless Moters
Propellers: Gemfan 1611 3-Blade Propellers
Battery: LAVA Series 2S 450mAh Battery
VTX: DJI O4 Air Unit
Compatible whoops of O4 Air Unit Bracket: Pavo Femto, Pavo Pico, Pavo20
Accessory: Shock-absorbing Components for O4 Air Unit

Package Included (Optional)

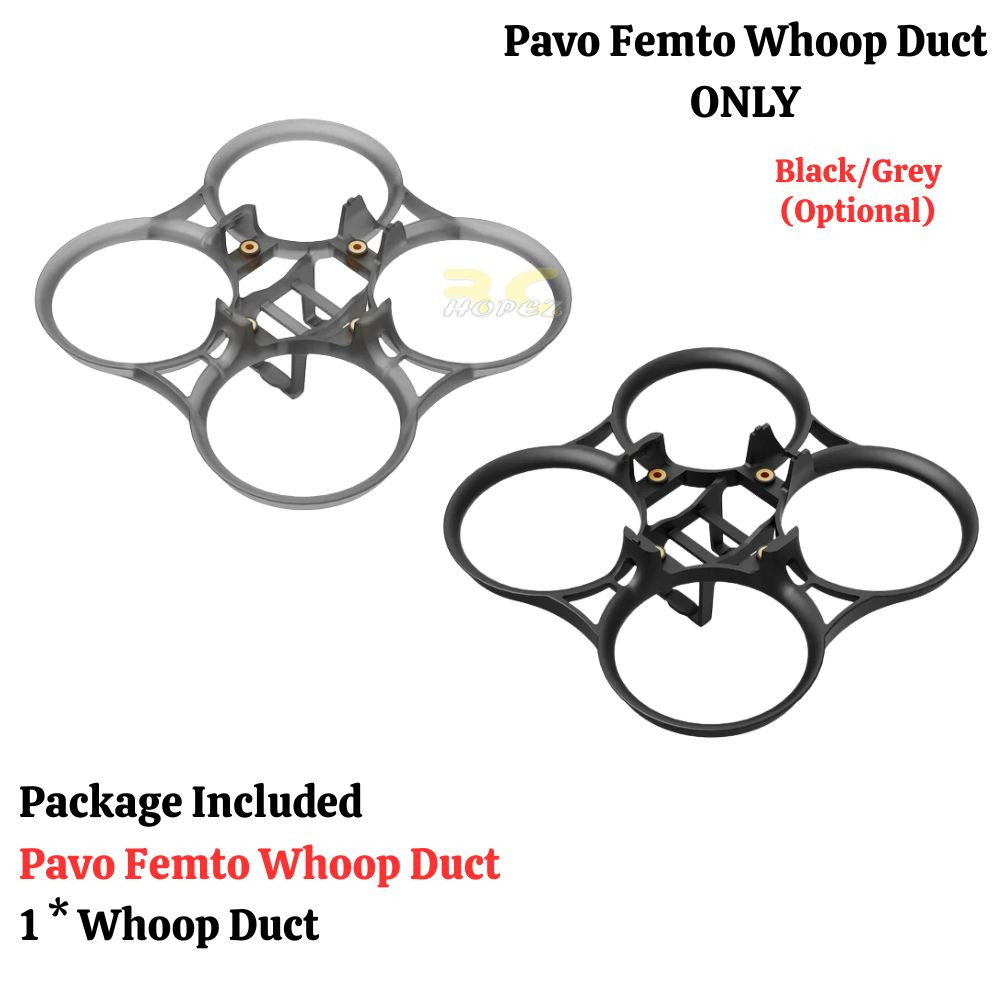

Pavo Femto Whoop Duct (Black/Grey) Optional
1 * Whoop Duct

OR

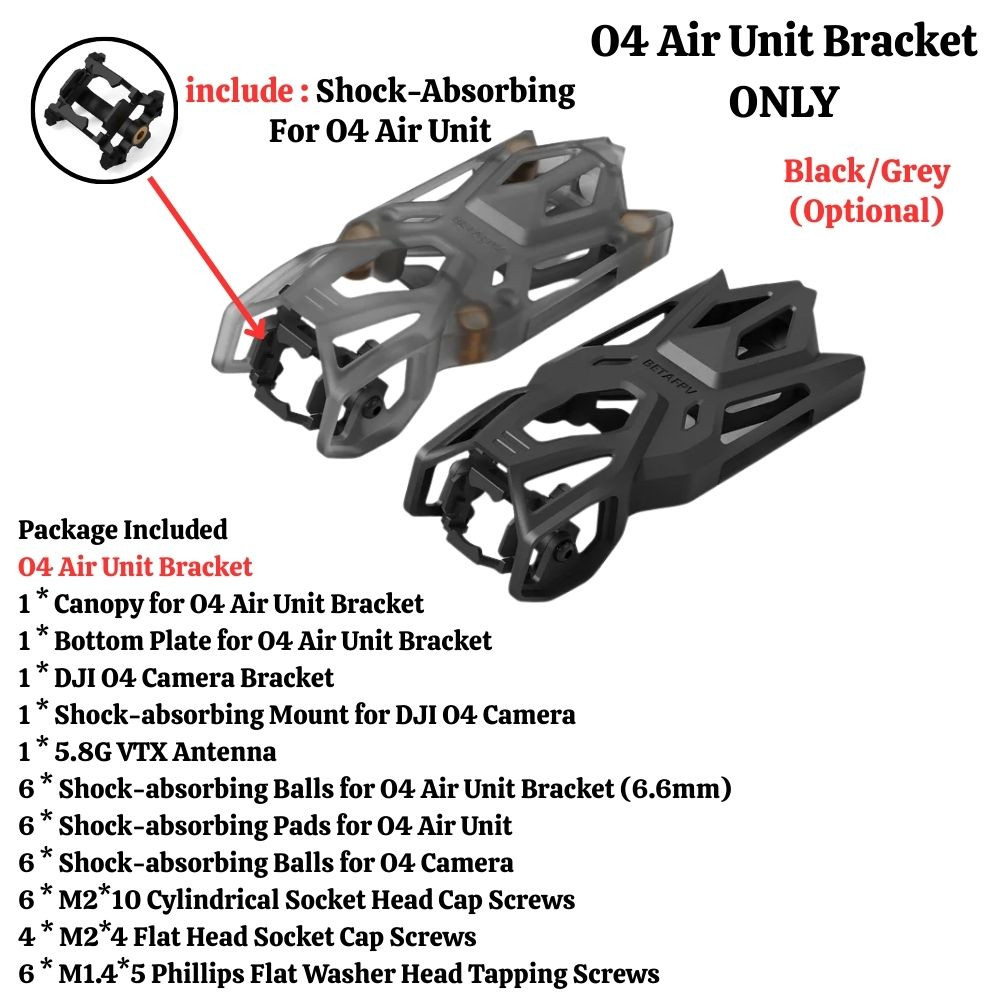

O4 Air Unit Bracket (Black/Grey) Optional
1 * Canopy for O4 Air Unit Bracket
1 * Bottom Plate for O4 Air Unit Bracket
1 * DJI O4 Camera Bracket
1 * Shock-absorbing Mount for DJI O4 Camera
1 * 5.8G VTX Antenna
6 * Shock-absorbing Balls for O4 Air Unit Bracket (6.6mm)
6 * Shock-absorbing Pads for O4 Air Unit
6 * Shock-absorbing Balls for O4 Camera
6 * M2*10 Cylindrical Socket Head Cap Screws
4 * M2*4 Flat Head Socket Cap Screws
6 * M1.4*5 Phillips Flat Washer Head Tapping Screws

OR

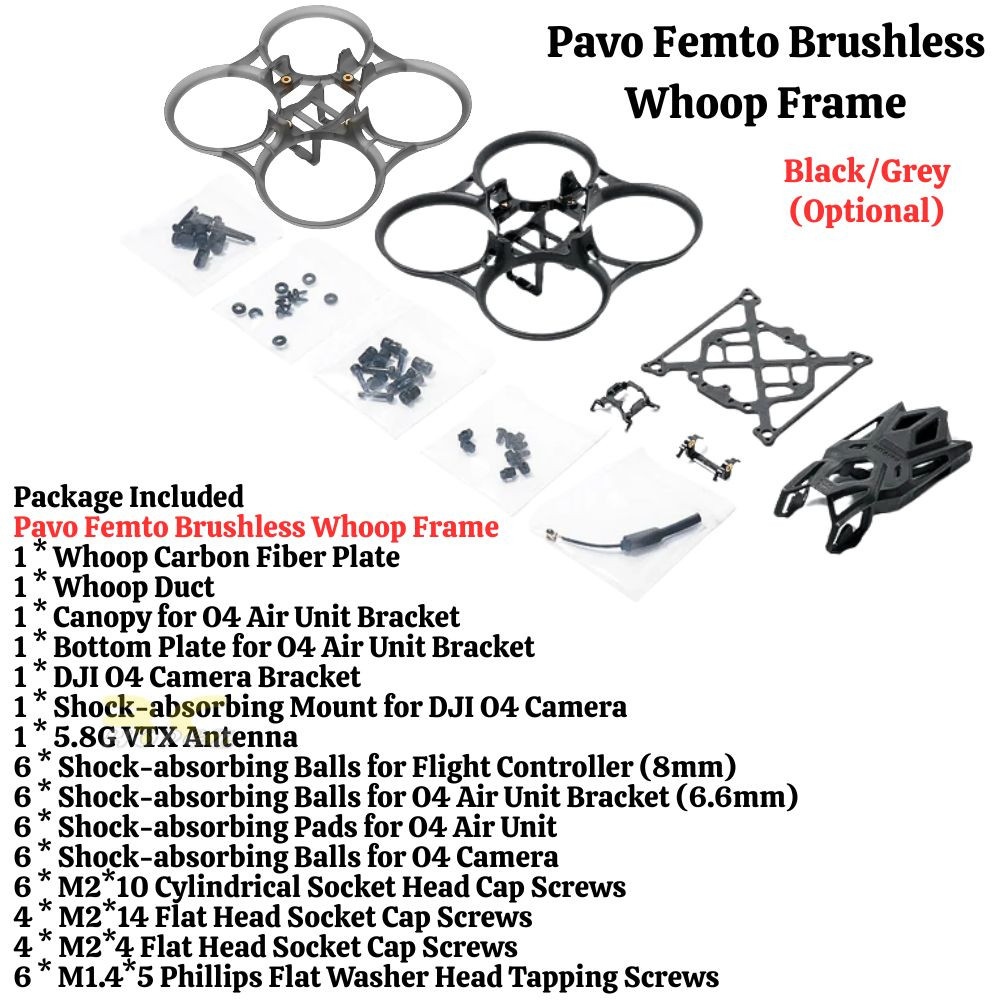

Pavo Femto Brushless Whoop Frame (Black/Grey) Optional
1 * Whoop Carbon Fiber Plate
1 * Whoop Duct
1 * Canopy for O4 Air Unit Bracket
1 * Bottom Plate for O4 Air Unit Bracket
1 * DJI O4 Camera Bracket
1 * Shock-absorbing Mount for DJI O4 Camera
1 * 5.8G VTX Antenna
6 * Shock-absorbing Balls for Flight Controller (8mm)
6 * Shock-absorbing Balls for O4 Air Unit Bracket (6.6mm)
6 * Shock-absorbing Pads for O4 Air Unit
6 * Shock-absorbing Balls for O4 Camera
6 * M2*10 Cylindrical Socket Head Cap Screws
4 * M2*14 Flat Head Socket Cap Screws
4 * M2*4 Flat Head Socket Cap Screws
6 * M1.4*5 Phillips Flat Washer Head Tapping Screws
