BetaFPV Pavo20 Pro II V2 Brushless Whoop Frame Whoop Duct Compatible For O4/O4 Pro/O4 Wide Air Unit FPV Drone BT-PV20 II

BetaFPV Pavo20 Pro II V2 Brushless Whoop Frame Whoop Duct Compatible For O4/O4 Pro/O4 Wide Air Unit FPV Drone BT-PV20 II

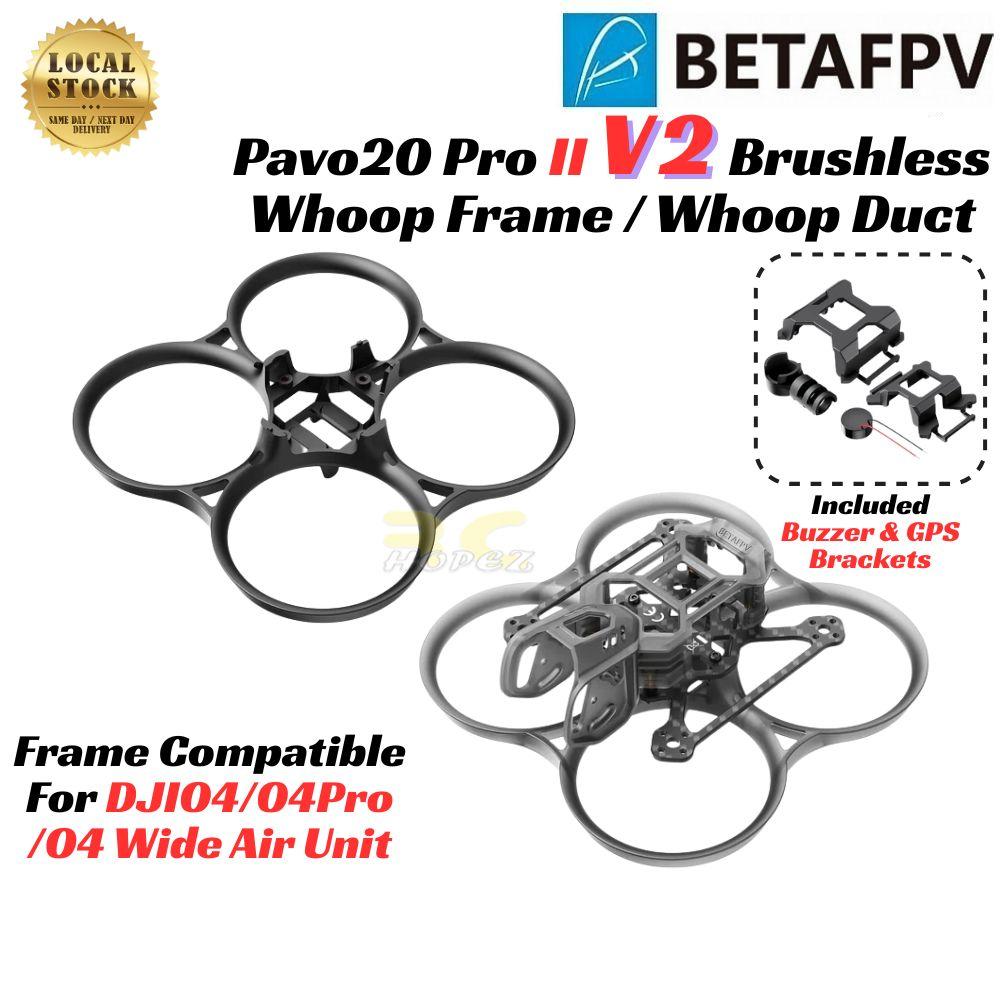

The Pavo20 Pro II Brushless Whoop Frame is designed for the 2.2 Pavo20 Pro II cinewhoop and supports DJI O4, O4 Wide, and O4 Air Unit Pro with its new carbon plate. Its upgraded 4-screw assembly with embedded nuts and reinforced support structure enables faster, more secure builds with excellent rigidity. Featuring a 93.9mm wheelbase and durable PA12 thickened whoop ducts, it improves aerodynamics and delivers an 8–11% thrust boost. Compatible with 3S and 4S propulsion systems, it provides powerful performance for freestyle and cinematic flights. The frame also includes a buzzer and GPS brackets for most 12x and 18x GPS modules.

Bullet Points

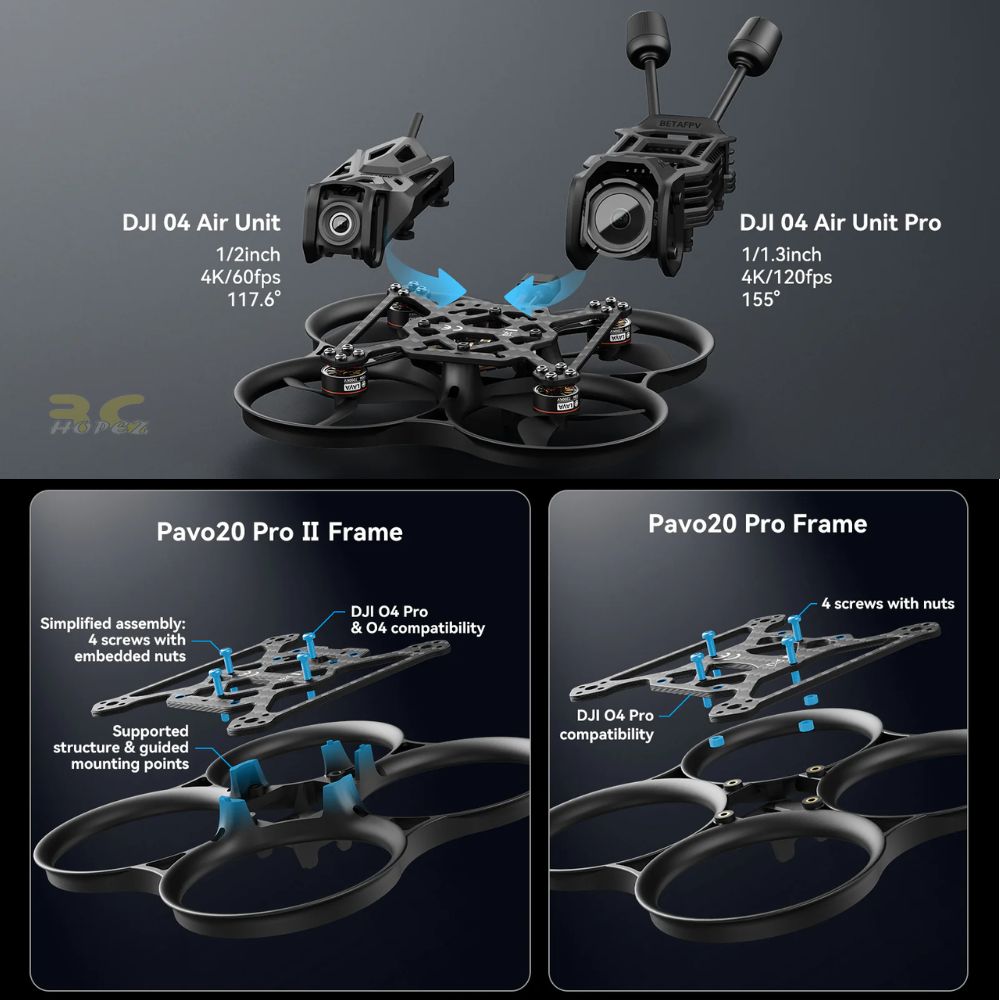

-Hassle-Free Assembly: An integrated injection-molded bracket and supported structure enable a quick, tool-light build secured with just 4 screws—eliminating tedious adjustments.
-Durable PA12 Whoop Duct: Featuring a crash-proof construction with a reinforced cross-section design for superior impact resistance and longevity.

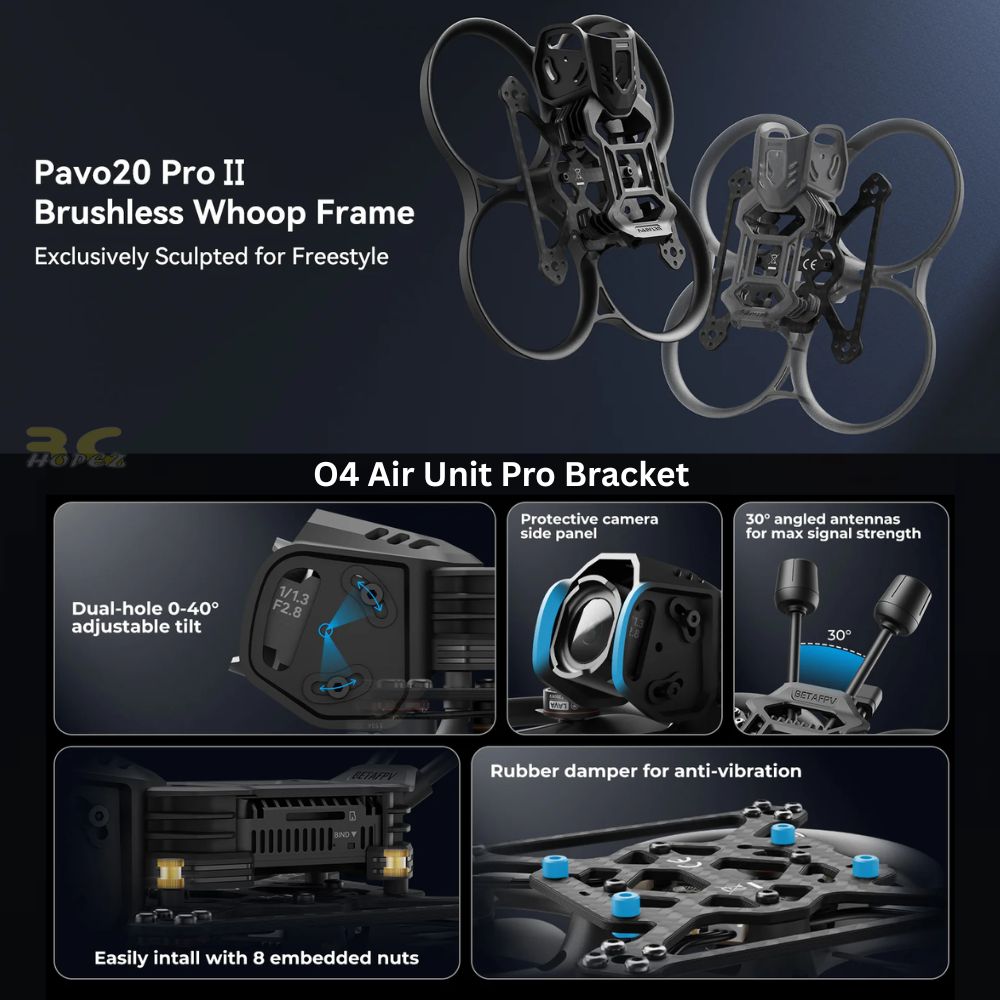

O4 Air Unit Pro Bracket: Camera protection panel, dual fixing holes and 30° angled antenna mounts gurantee smooth cinematic shooting.
-Pavo Series Rubber Damper Design: Proprietary vibration-damping system guarantees buttery-smooth, jitter-free HD footage in all flight modes.
-Versatile Battery Mounting System: Open-ended strap + side-limitation slot ensures a rock-solid battery grip, accommodating a wide range of battery sizes while preventing shifts during hard maneuvers.

Specifications
Item: Pavo20 Pro II Brushless Whoop Frame

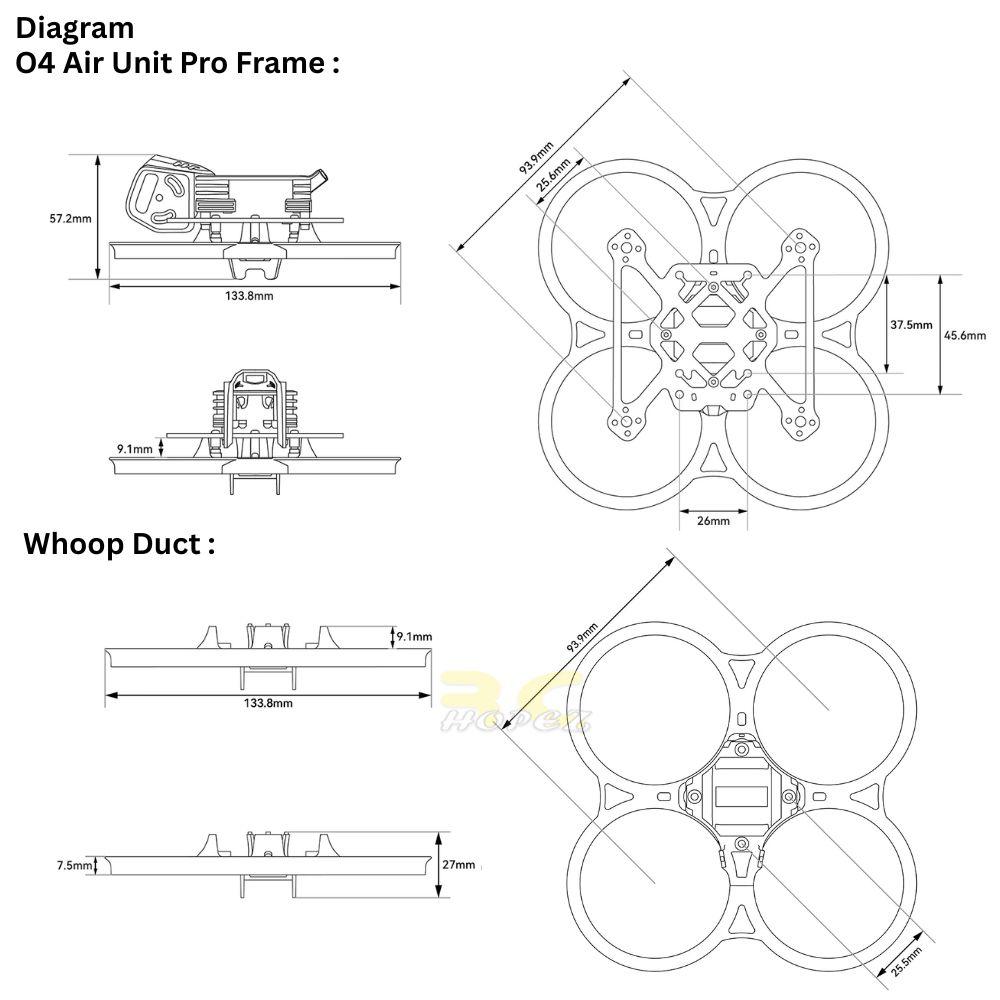

Wheelbase: 93.9mm
Material: PA12/PP
Top Plate Thickness: 2mm

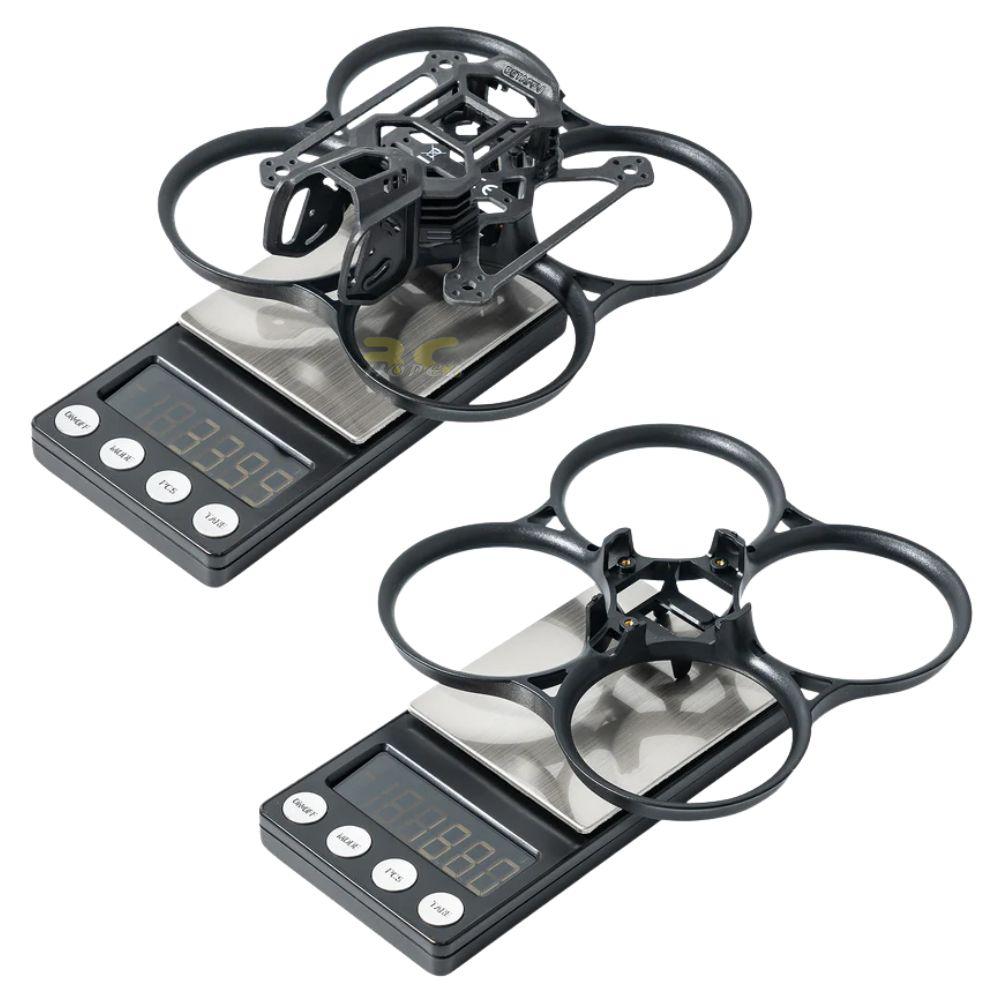

Frame Weight: 35.7g (With O4 Air Unit Pro Bracket)
Whoop Duct Weight: 17.8g
Color: Black/Transparent Gray
Camera Mounting Spacing: 20mm
FC Mounting Hole Size: 26×26mm
Motor Mounting Hole Size: 4-M2-φ9mm
Battery Slot Width: 20mm
Camera Filter: Supported

Recommended Parts (Not Included)
Quadcopter: Pavo20 Pro II Brushless Whoop Quadcopter
FC: Cube FC, F4 2-3S 20A AIO FC
Motor: LAVA Series 1104 Brushless Motors
Propellers: Gemfan D2.2 3-Blade , Gemfan 2218 3-Blade Propellers (1.5mm Shaft)
Battery: LAVA 3S 450mAh 75C / 550mAh 75C Battery

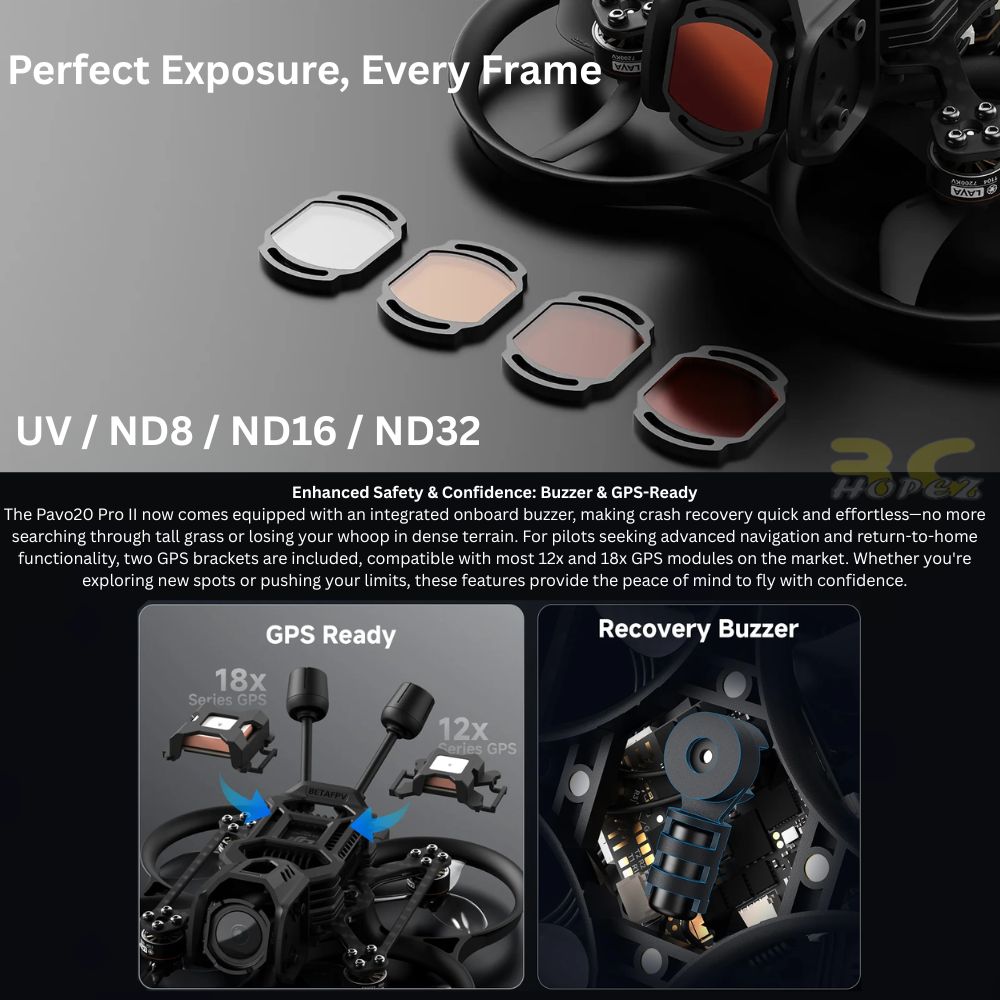

Filter: ND Filter for DJI O4 Pro Camera
VTX Bracket: O4 Pro/O4 Air Unit Bracket
VTX: DJI O4 Pro/O4 Wide/O4 Air Unit

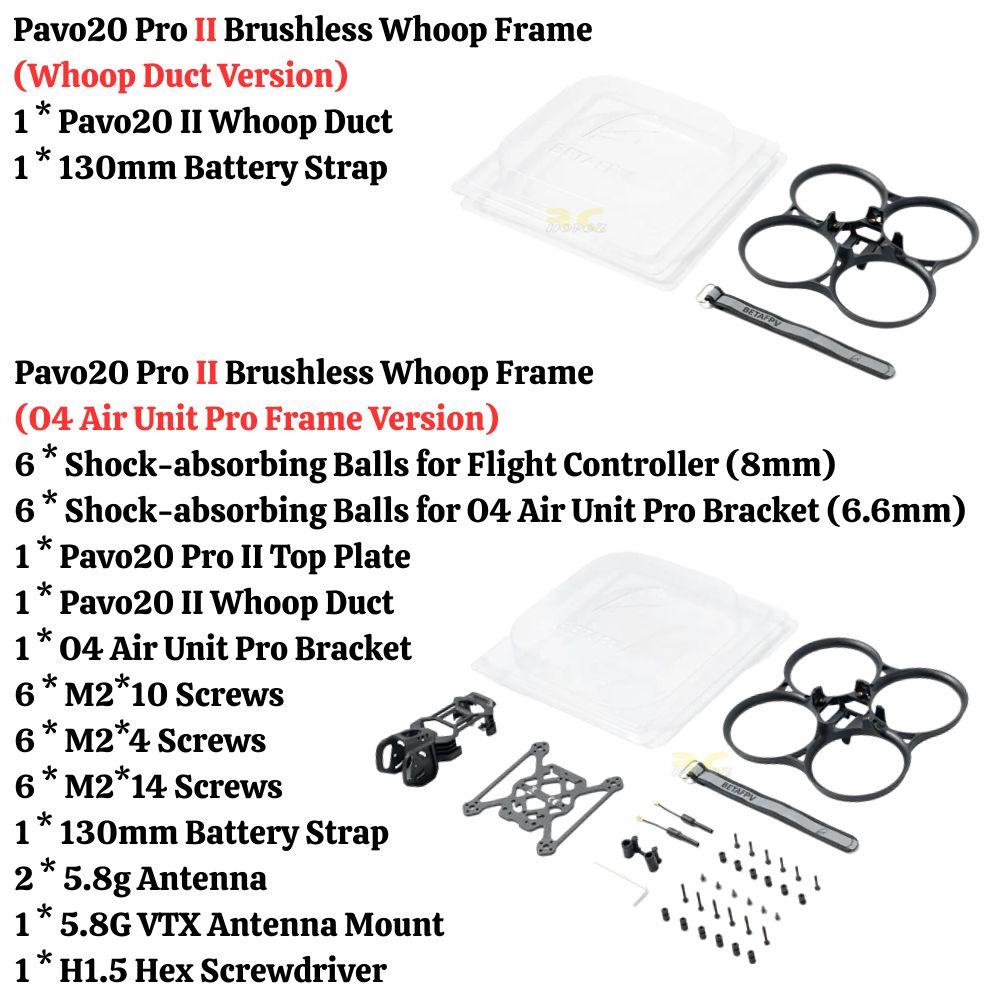

Package Included:
Pavo20 Pro II Brushless Whoop Duct (Whoop Duct Version)
1 x Pavo20 II Whoop Duct
1 x 130mm Battery Strap

OR

Pavo20 Pro II Brushless Whoop Frame (O4 Air Unit Pro Frame Version)
1 x Pavo20 Pro II Top Plate
1 x Pavo20 II Whoop Duct
1 x O4 Air Unit Pro Bracket
6 x Shock-absorbing Balls for Flight Controller (8mm)
6 x Shock-absorbing Balls for O4 Air Unit Pro Bracket (6.6mm)
6 x M2*10 Screws
6 x M2*4 Screws
6 x M2*14 Screws
1 x 130mm Battery Strap
2 x 5.8g Antenna
1 x 5.8G VTX Antenna Mount
1 x 22*22mm GPS Bracket
1 x 14*17mm GPS Bracket
1 x Buzzer Bracket
2 x GPS Sponge Mat
1 x H1.5 Hex Screwdriver
