BETAFPV SuperX ELRS Mono Nano Gemini Xross Receiver Dual-band ELRS 2.4G/915M For FPV Racing Freestyle Drone BT-SuperX

BETAFPV SuperX ELRS Mono Nano Gemini Xross Receiver Dual-band ELRS 2.4G/915M For FPV Racing Freestyle Drone BT-SuperX

Powered by Semtech’s LR1121 RF chips and Espressif’s ESP32-C3, the SuperX pioneers BETAFPV’s first Gemini Xrossband receiver – mastering 900M (868/915MHz) and 2.4G bands via LoRa and blistering 1000Hz FSK modes. Conquer race gates and long-range horizons with unshakeable signal reliability, where lesser links fail. Choose the dual-band mastery of SuperX Nano or the band-switching agility of SuperX Mono for precision-tuned performance in any flying scenario

Bullet Points
Semtech LR1121 RF chips + Espressif ESP32-C3
LoRa and blistering 1000Hz FSK modes
Supports 900M Gemini, 2.4G Gemini, 900M+2.4G GemX
SuperX Nano: Dual-band mastery for RF-challenged environments
SuperX Mono: Band-switching for micro builds

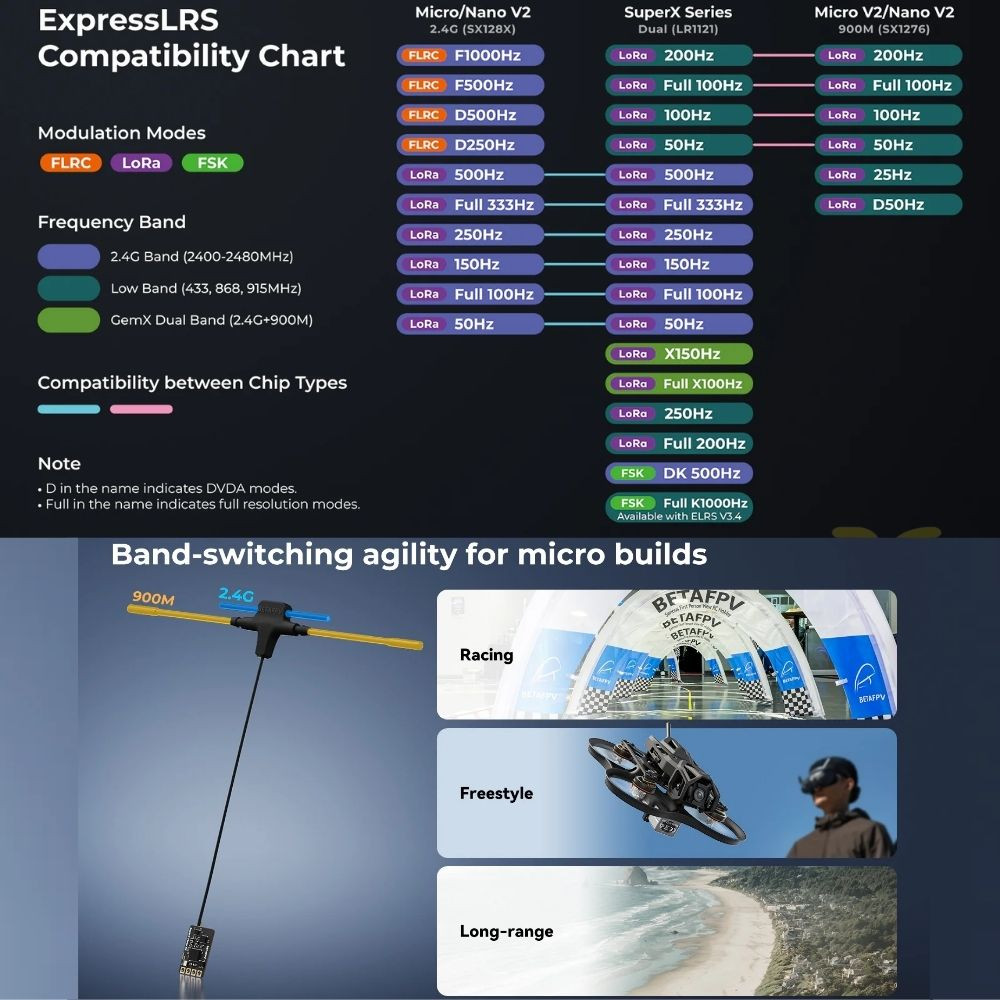

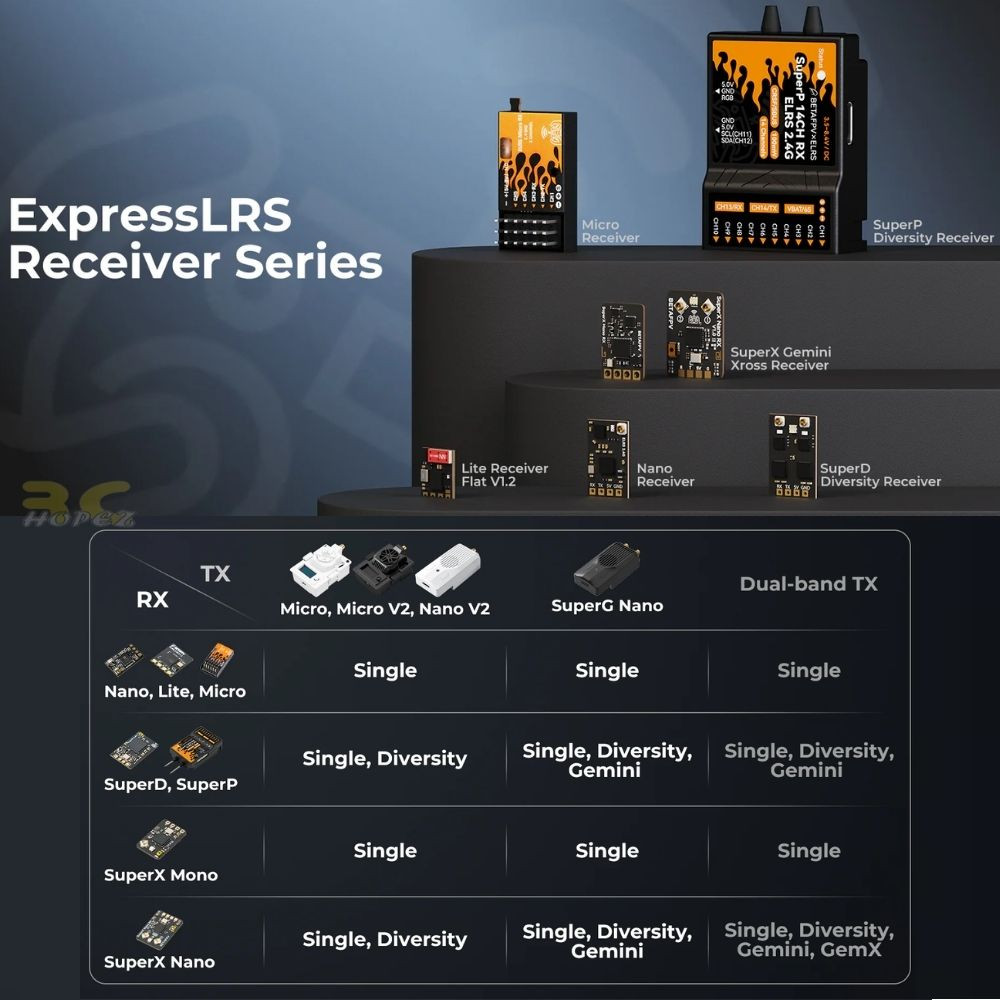

Works with Micro/Micro V2/Nano V2/SuperG TX modules
Compact and lightweight

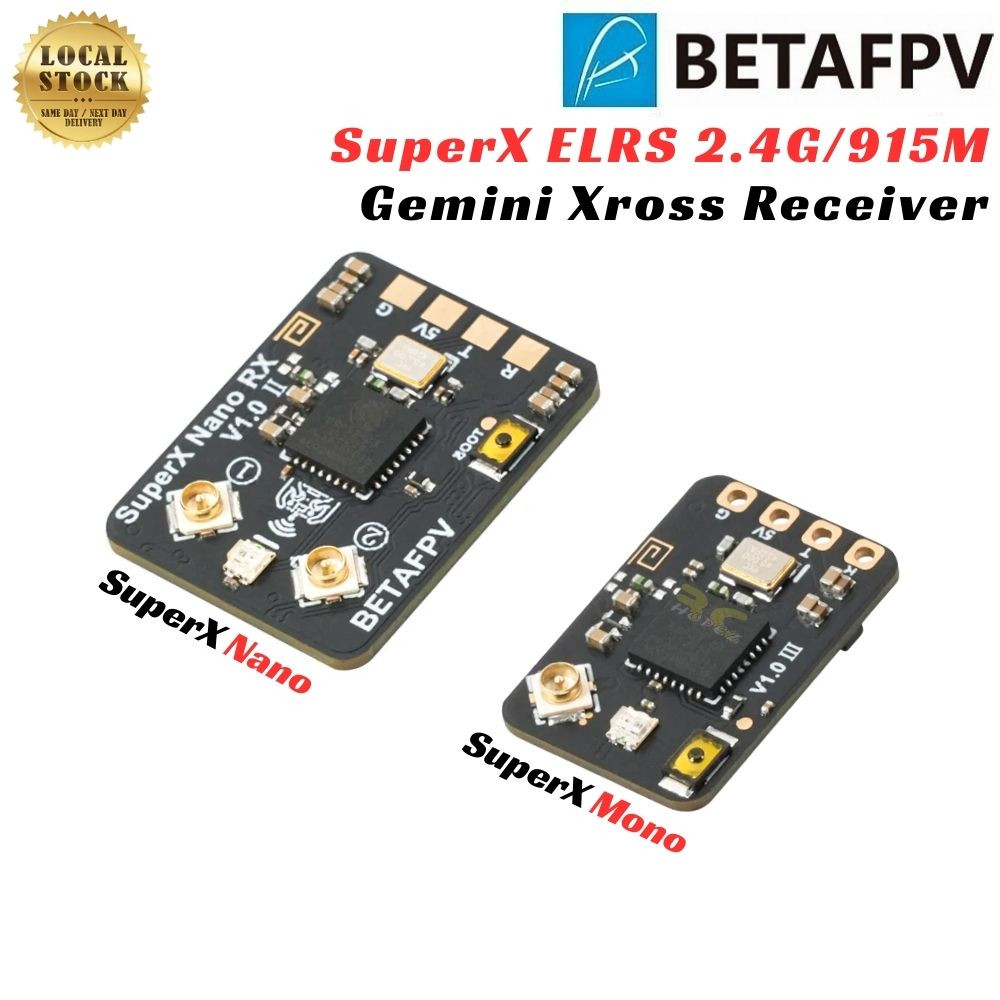

SuperX Nano: 900M+2.4G Dual Band

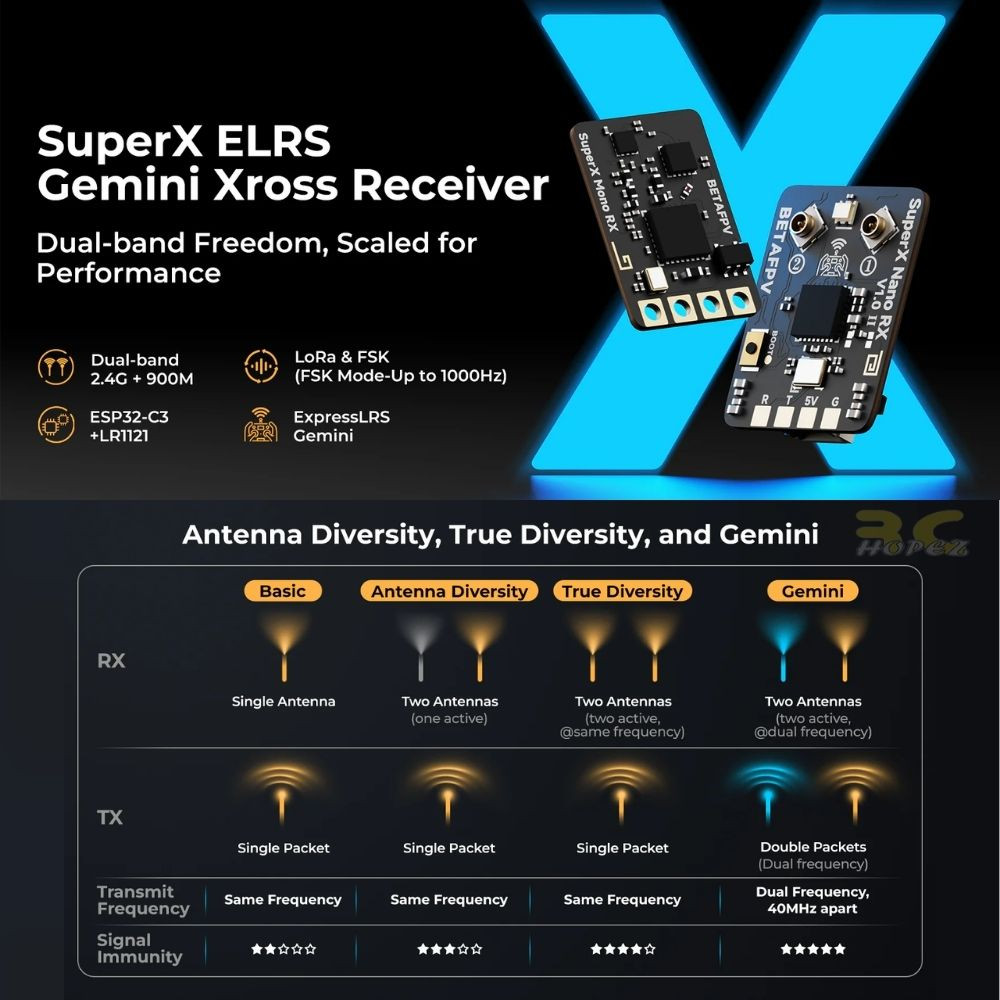

Powered by dual LR1121 chips from Semtech, the SuperX Nano Receiver delivers uncompromising signal reliability with three modes: 900M Gemini (long-range penetration), 2.4G Gemini (ultra-low latency), and 900M+2.4G GemX (simultaneous operation). The included dual-band T antennas eliminate frequency-switching hassles, while advanced diversity processing ensures rock-solid stability in RF-challenged environments. Built for mission-critical applications, it's the ultimate solution for competitive racers, long-range explorers, and professional aerial photographers who demand zero-compromise performance.

SuperX Mono: Band-switching Agility
The compact and lightweight SuperX Mono Receiver harnesses a single LR1121 chip with a dual-band antenna, enabling seamless switching between 900M and 2.4G. This cost-effective solution maintains impressive 1000Hz packet rates (in FSK mode) while offering exceptional value, making it ideal for micro builds and budget-conscious pilots who need versatile performance in both close-range freestyle and long-distance applications.

Bind
The SuperX Receiver uses ExpressLRS V3.x official protocol as its default firmware without a pre-set binding phrase. For successful operation, ensure the transmitter module also uses ExpressLRS V3.x or later firmware with no pre-set binding phrase.
– Power-cycle the receiver 3 times with a 1-second interval or press and hold the BOOT button for 2 seconds to enter binding mode.
– The RGB indicator flashes orange twice, which indicates the receiver is in bind mode.
– Configure remote control or transmitter module to bind with the receiver. If the RGB indicator is a solid light, it's bound!

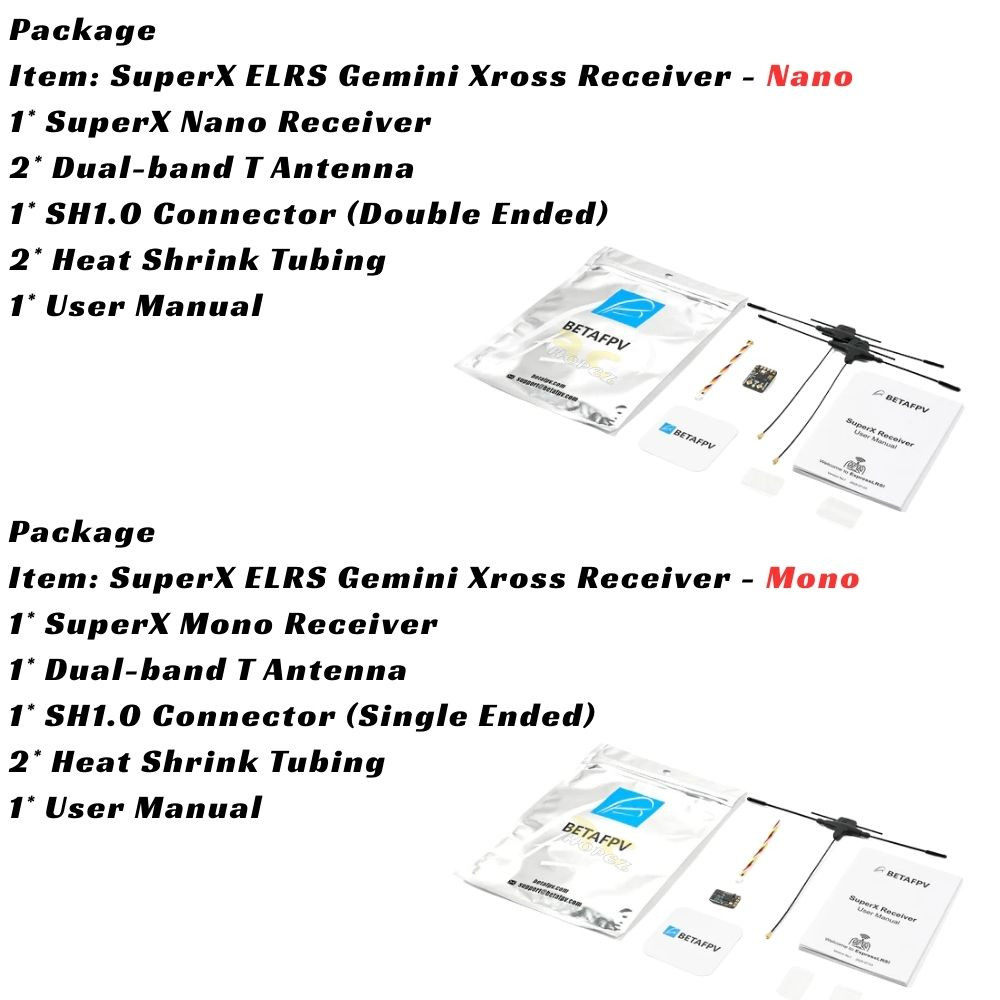

Package Included (Optional) :

1 x SuperX Nano Receiver

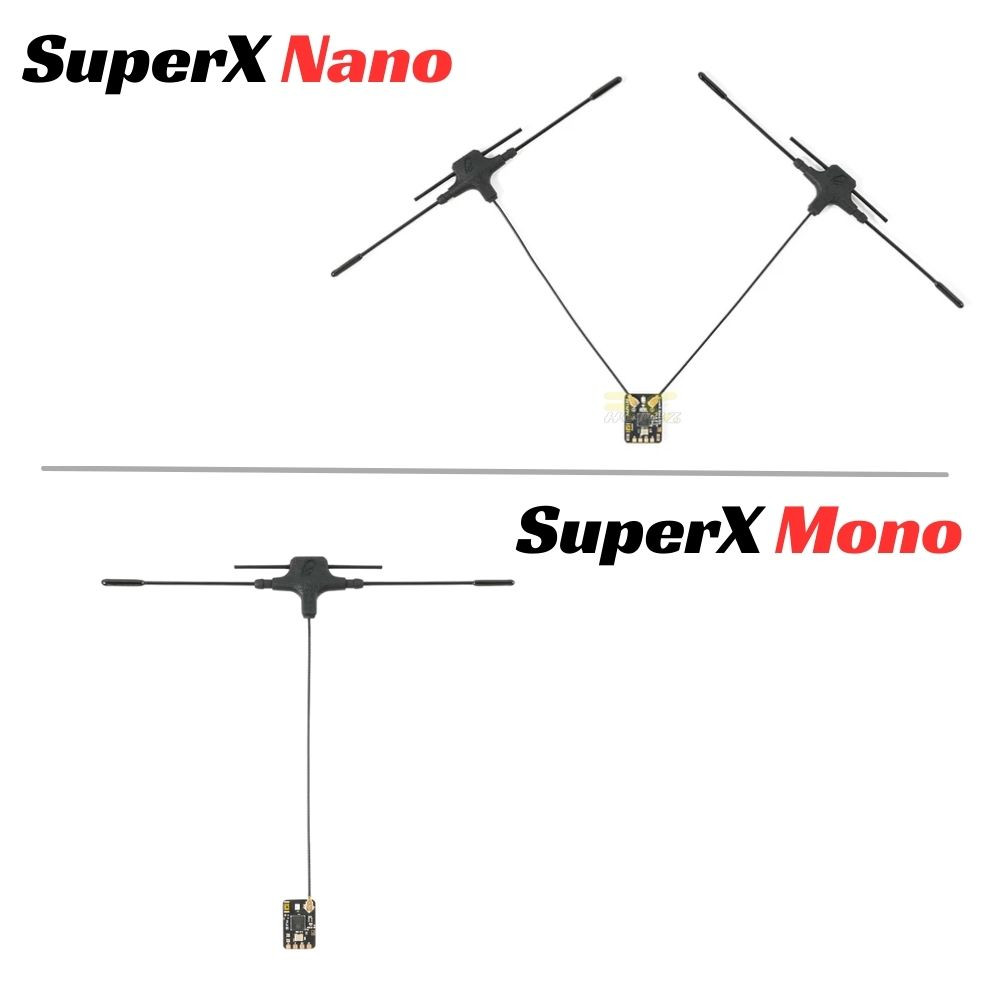

2 x Dual-band T Antenna
1 x SH1.0 Connector (Double Ended)
2 x Heat Shrink Tubing
1 x User Manual

OR

1 x SuperX Mono Receiver
1 x Dual-band T Antenna
1 x SH1.0 Connector (Single Ended)
2 x Heat Shrink Tubing
1 x User Manual
