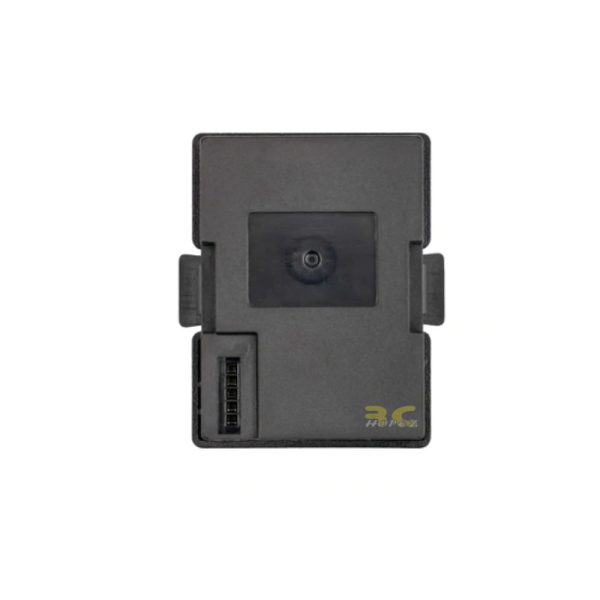

BetaFPV Micro to Nano Module Adapter for BETAFPV Nano TX,TBS Nano TX,Frsky XJT Lite/R9M Lite/Lite Pro Module BT-Adapter

BetaFPV Micro to Nano Module Adapter for BETAFPV Nano TX,TBS Nano TX,Frsky XJT Lite/R9M Lite/Lite Pro Module BT-Adapter

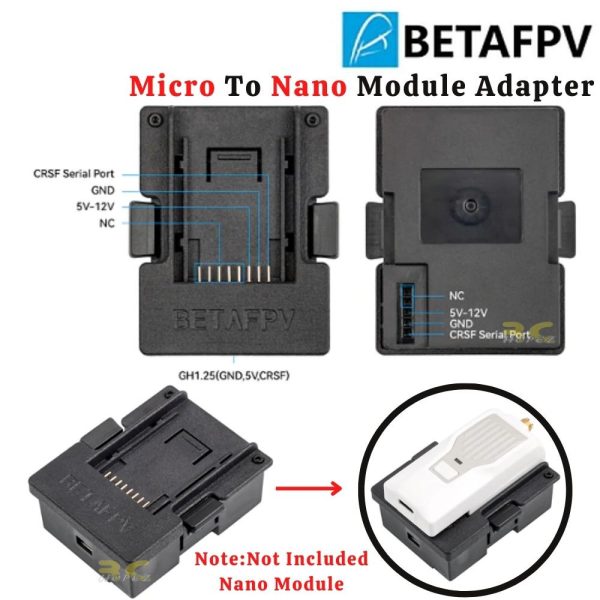

New adapter with upgrades is released now and is very easy to install. A 3PIN GH1.25 terminal socket, which can be used for Futaba, or other no-OpenTX radio controllers, is added to the bottom of the module adapter.

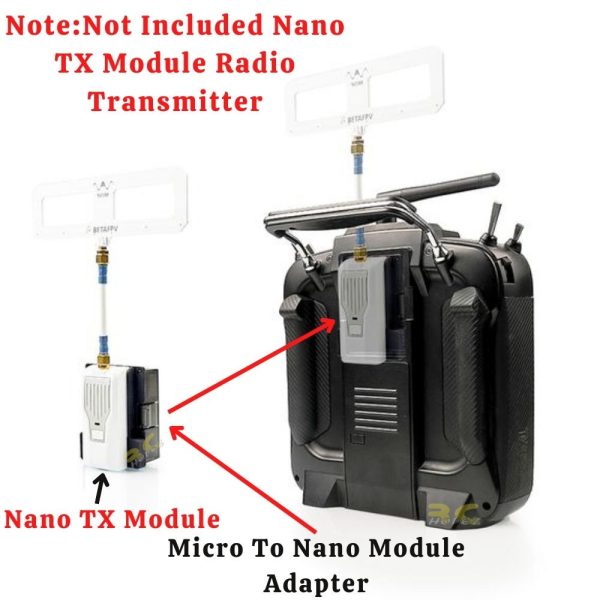

With the use of micro-nano module adapter, nano tx module can work on transmitters with a Micro port (or JR port) easily. Especially, it supports BETAFPV ELRS Nano TX Module.

Specification
Item:  Micro-Nano Module Adapter / Micro-Nano Module PCBA
Size: 65*48*28mm (JR module size）

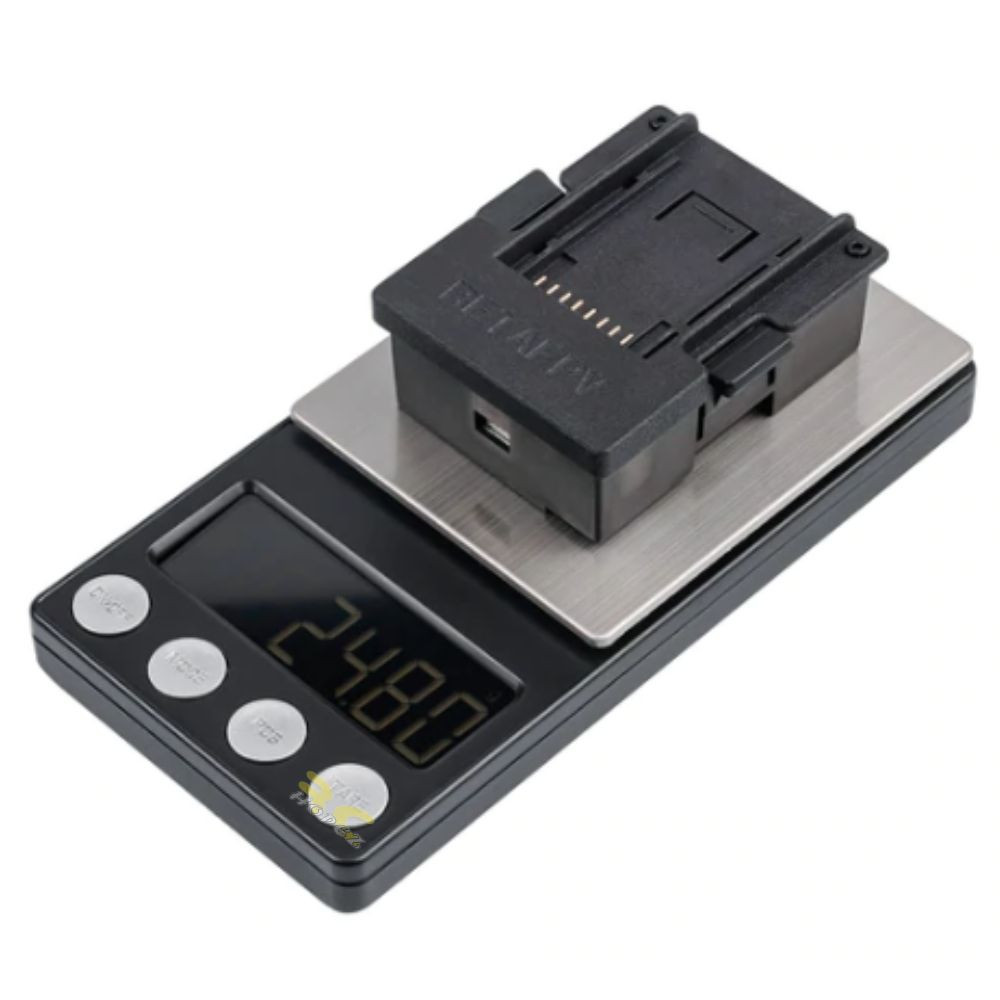

Weight: 24.80g
Input: JR module bay (Micro module bay)
Output: Nano module bay (Lite module bay)

Supported radio transmitter:
Frsky X9D/X9D Plus/X12S/X10/X10S/X7/X7S
Flysky TH9X
Turnigy 9XR/9XR PRO, FUTABA 16IZ
Jumper T16/T18/T18 Pro
Radiomaster TX16S/TX18S, TBS Mambo

Supported TX Module: BETAFPV Nano TX Module, TBS Crossfire Nano TX、Frsky XJT Lite/R9M Lite/R9M Lite Pro.
BETAFPV Nano TX Module

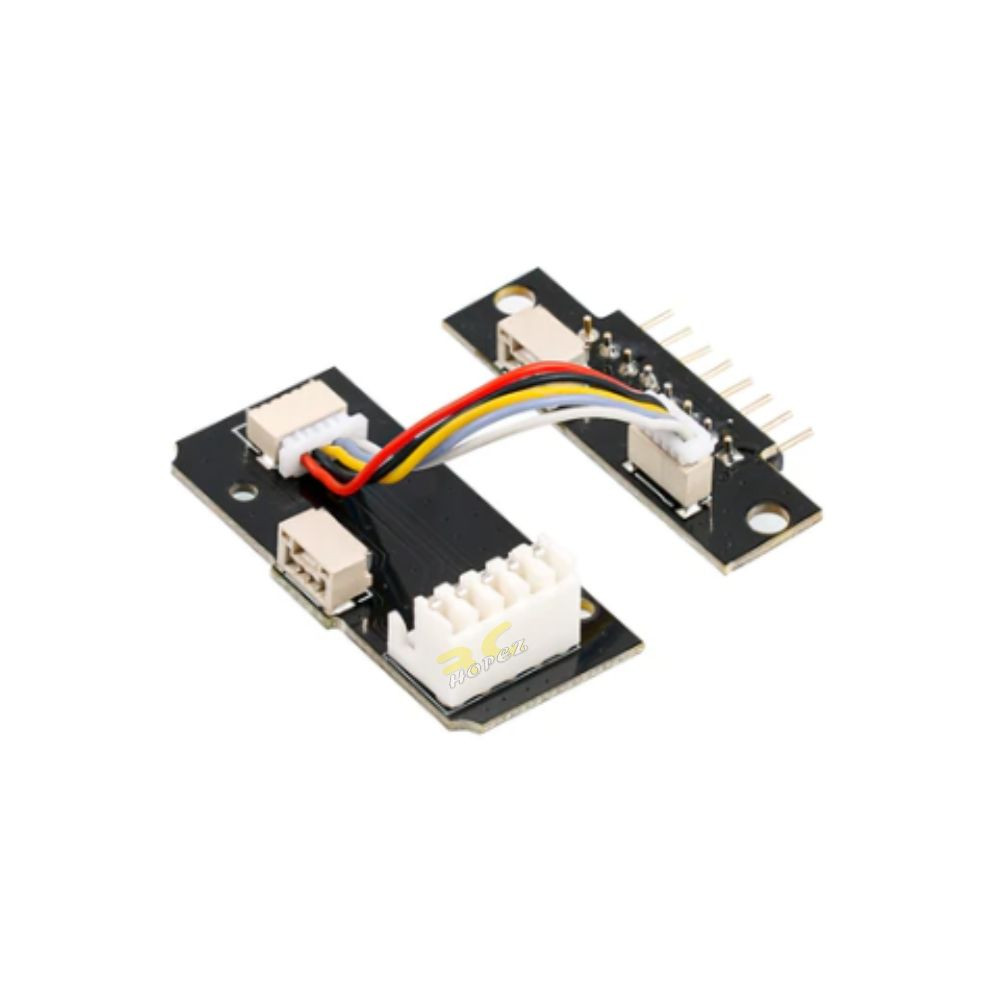

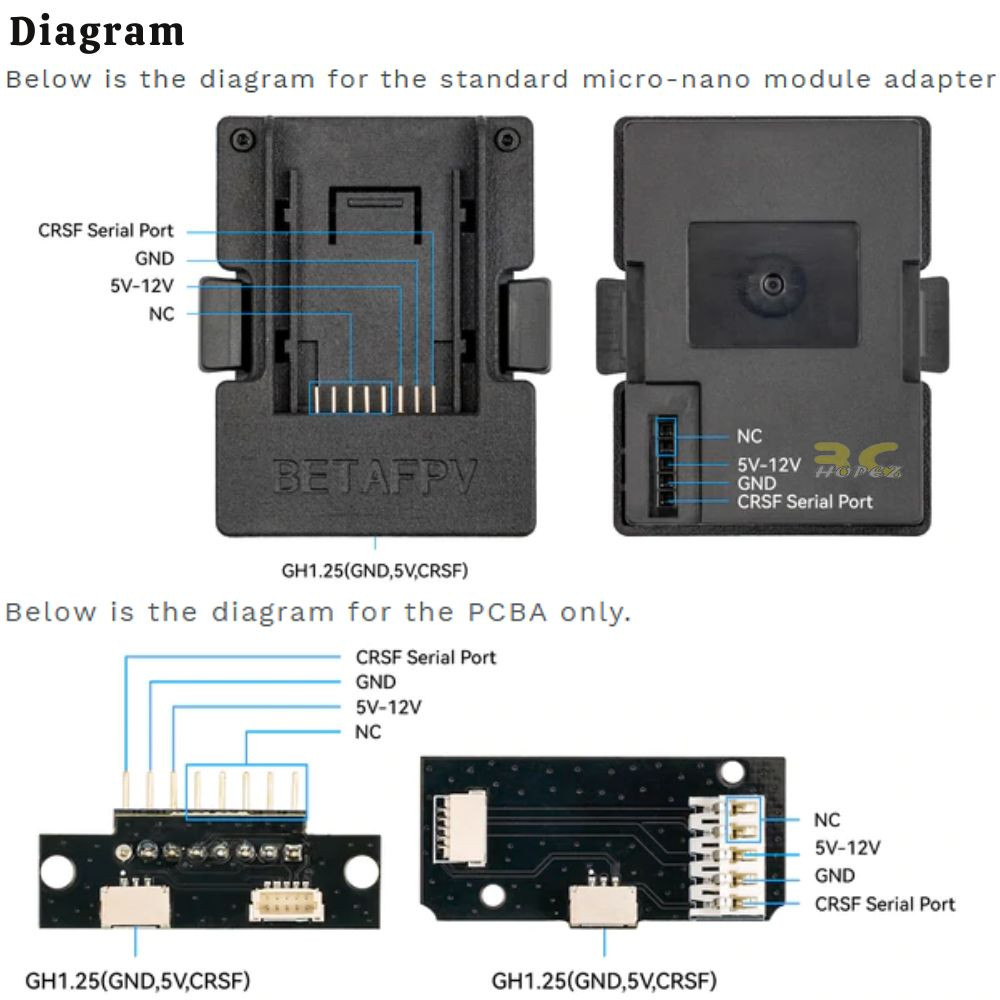

Compared with the previous version, the appearance of PCBA is modified. 3PIN GH1.25 terminal socket is also added to the boards, which is suitable for other no-OpenTX radio controllers. Besides, the PCBA can be used directly without a case or used with a printed case.

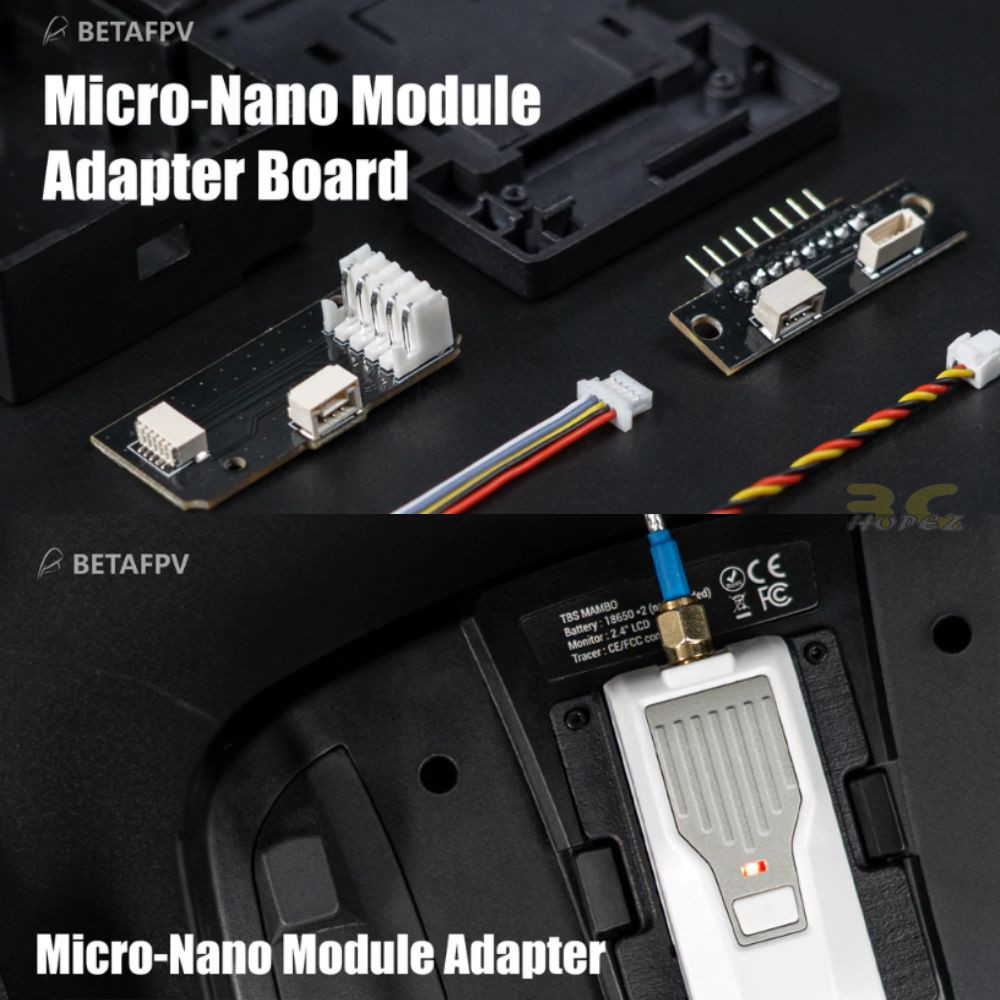

Micro-Nano Module Adapter (PCBA) is available for those who can print the case for themselves. You can download theadapter case STL file on our technical support page.Note: Please make sure the wiring is correct if the PCBA is used without case.

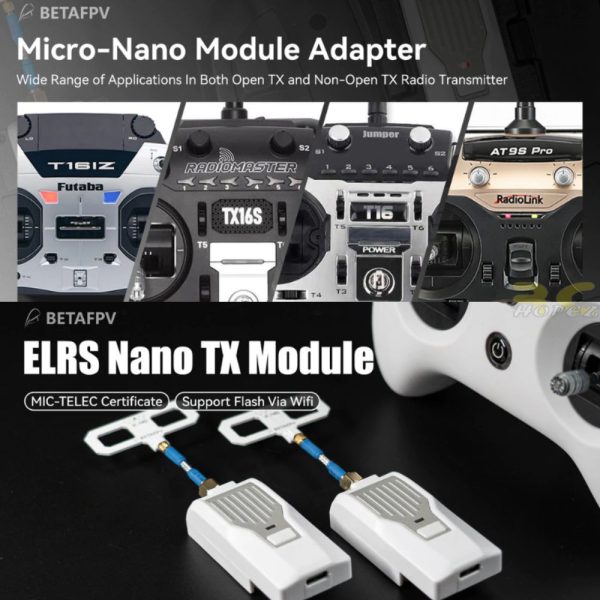

Supported Radio TX
The module adapter is suitable for transmitters with a Micro port (or JR port). For example, Frsky X9D, FUTABA 16IZ, TBS Mambo, Turnigy 9XR, Jumper T18, etc.

Recommended Part
-TBS Crossfire Nano TX Module
-Jumper 2.4G ELRS TX ExpressLRS Module AION Nano 500mW

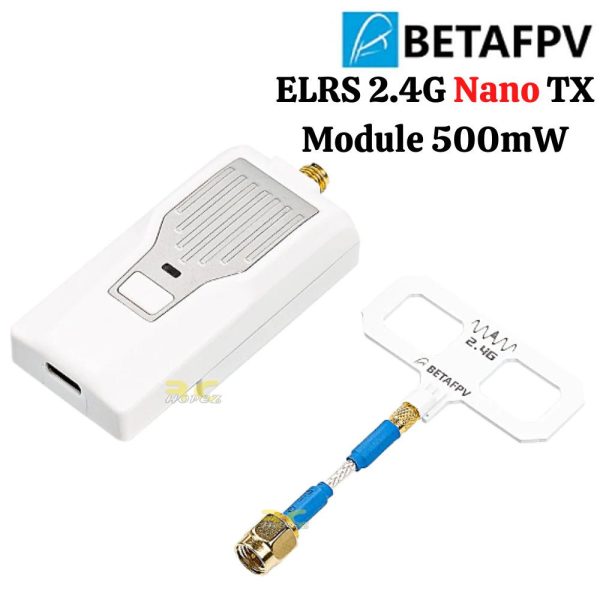

-ELRS Nano TX Module is the first BETAFPV module, which is based on the ExpressLRS project. The ExpressLRS is one of the fastest RC links available while still offering long-range performance.

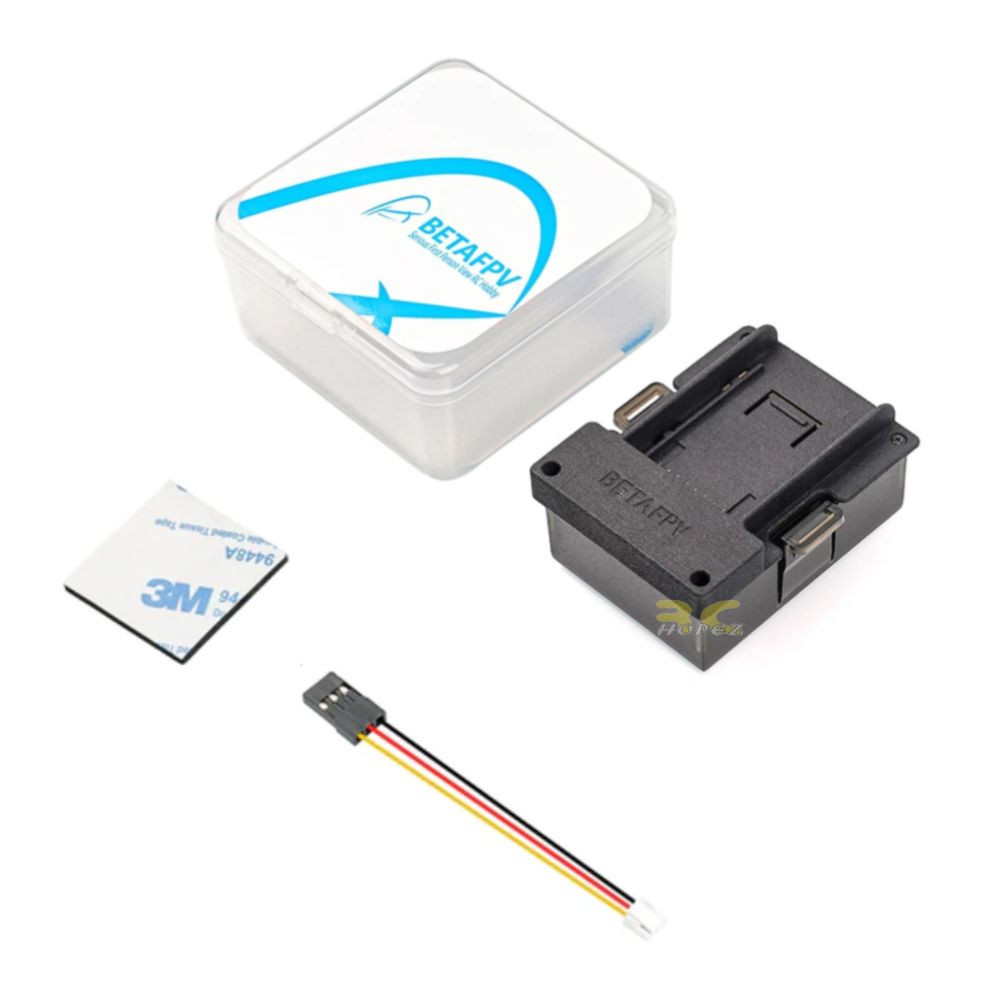

Package includes:
1 x BetaFPV Micro-Nano Module Adapter
1 x Converter cable
1 x Double-sided tape
