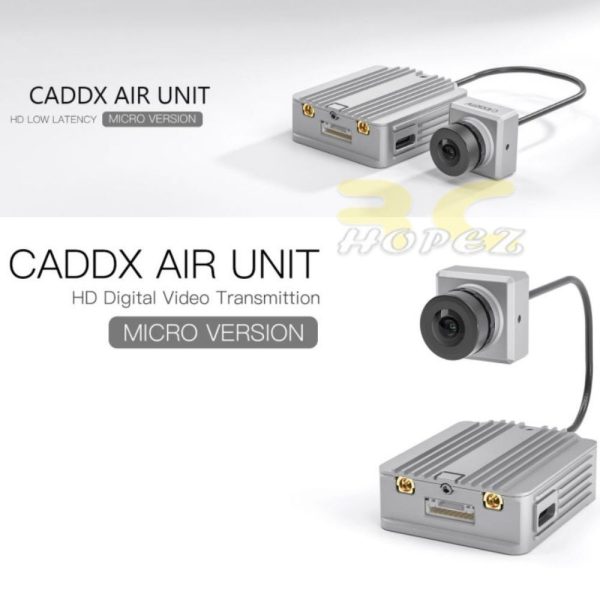

Caddx Air Unit Micro Version for DJI Digital HD FPV System WN-Air Unit

Caddx Air Unit Micro Version for DJI Digital HD FPV System WN-AirMicro

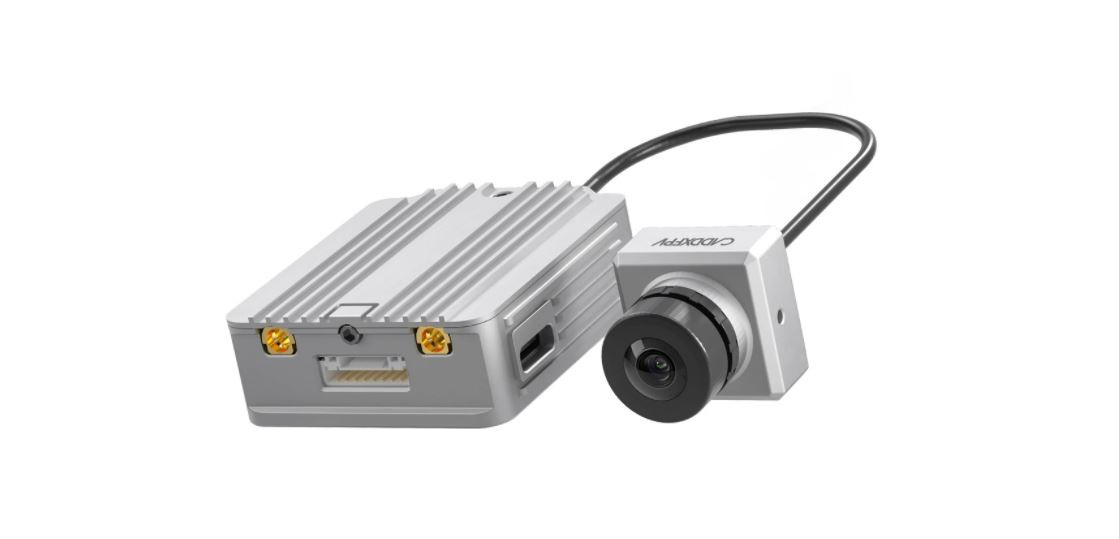

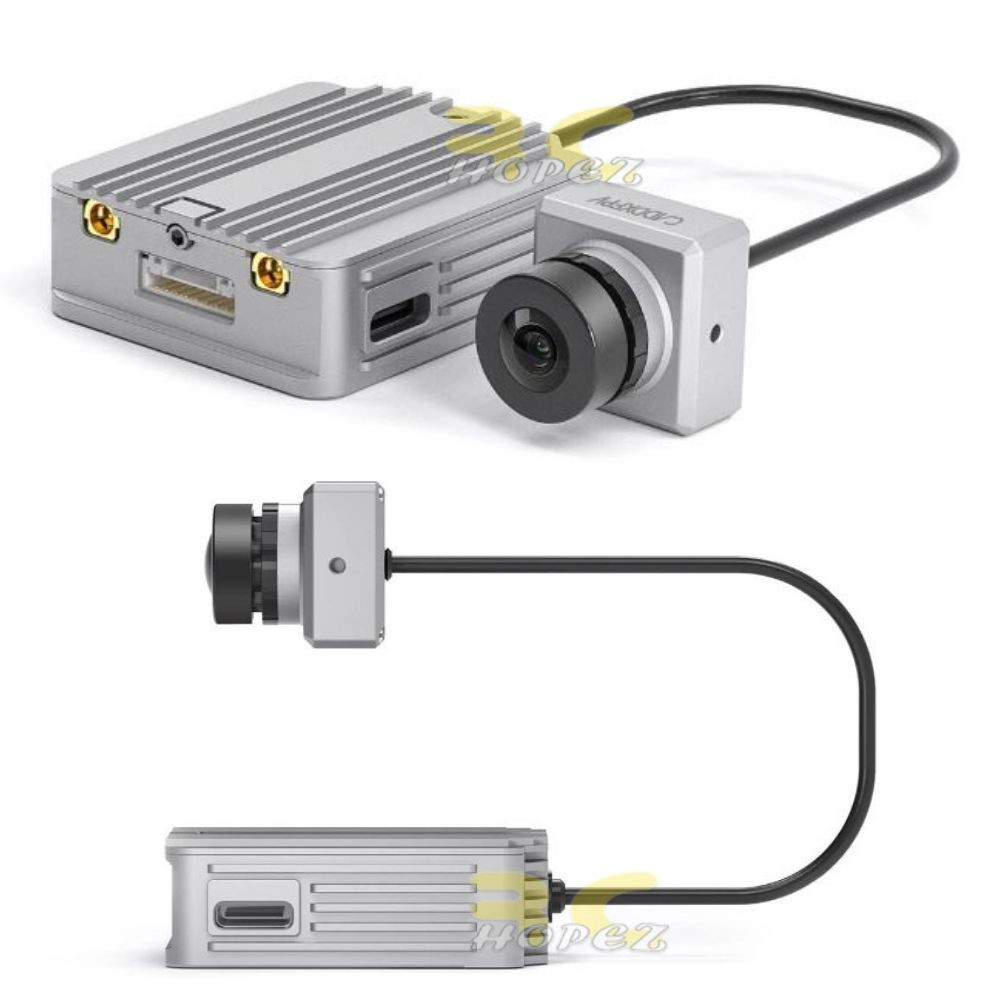

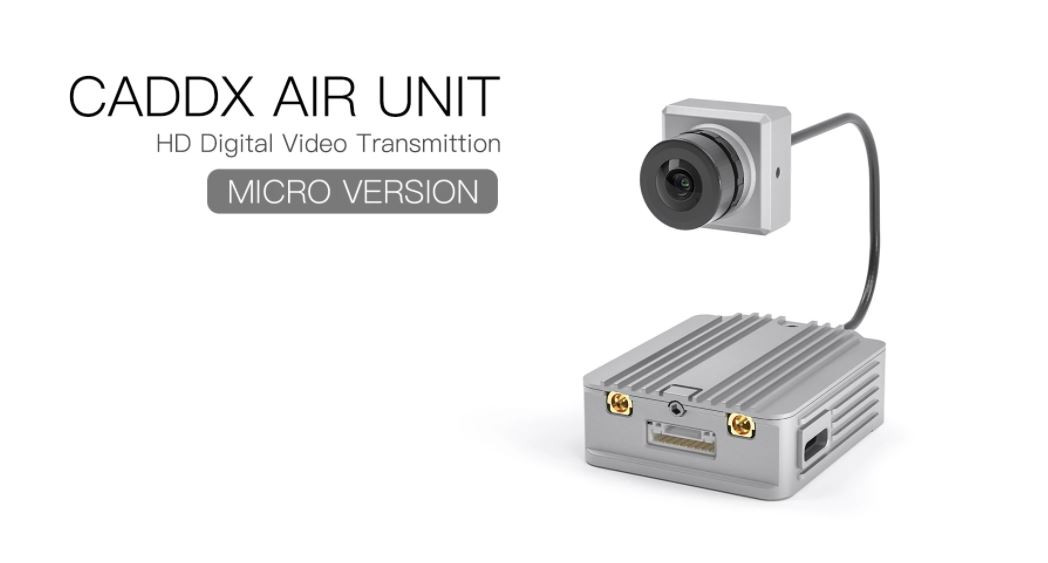

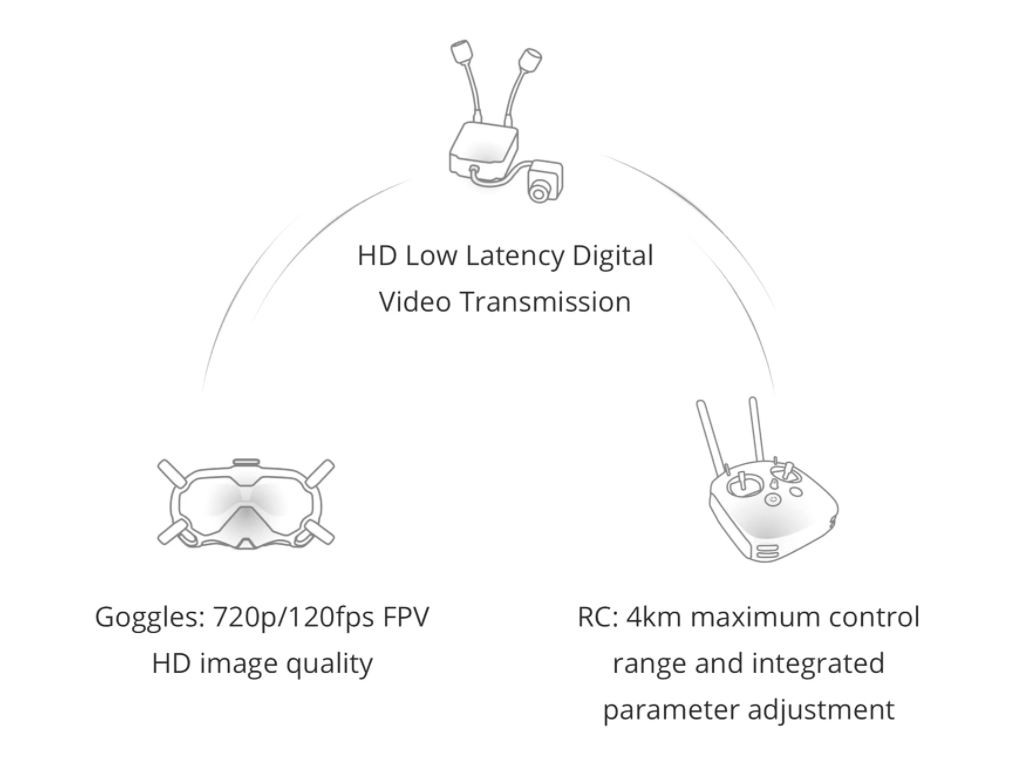

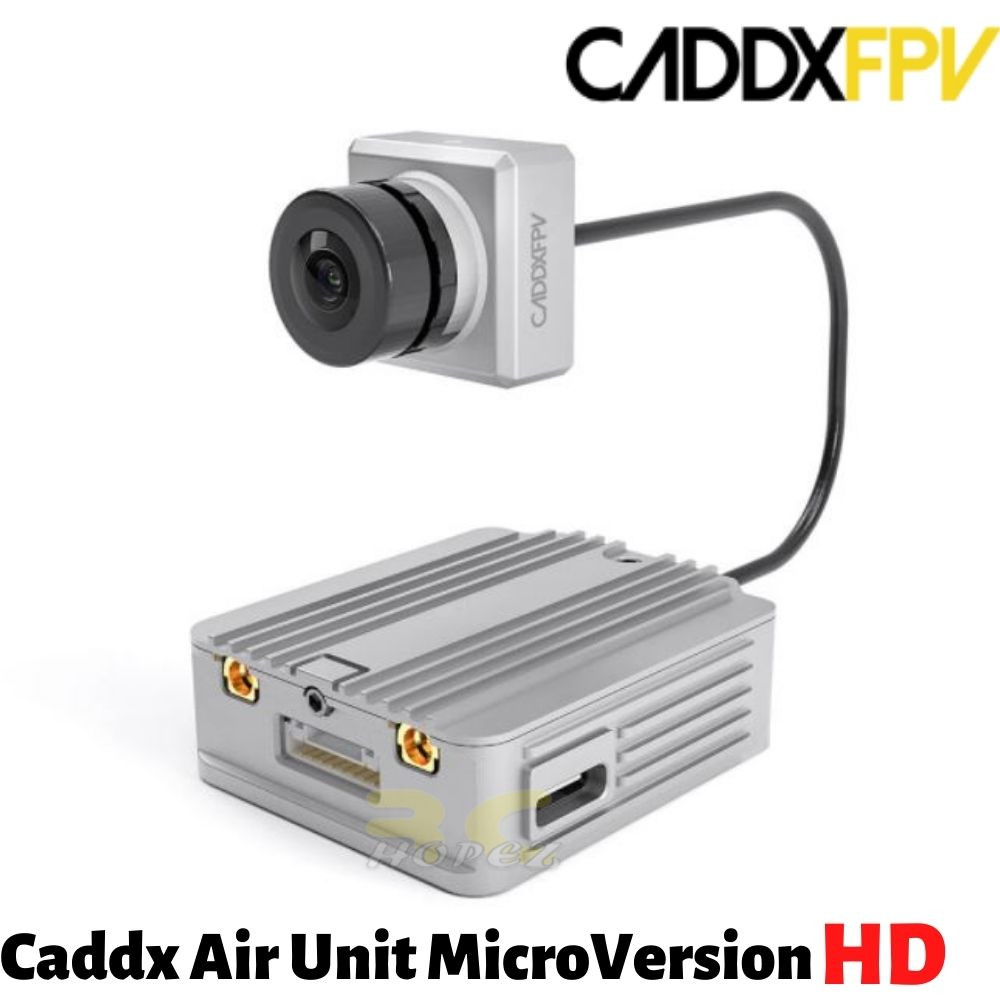

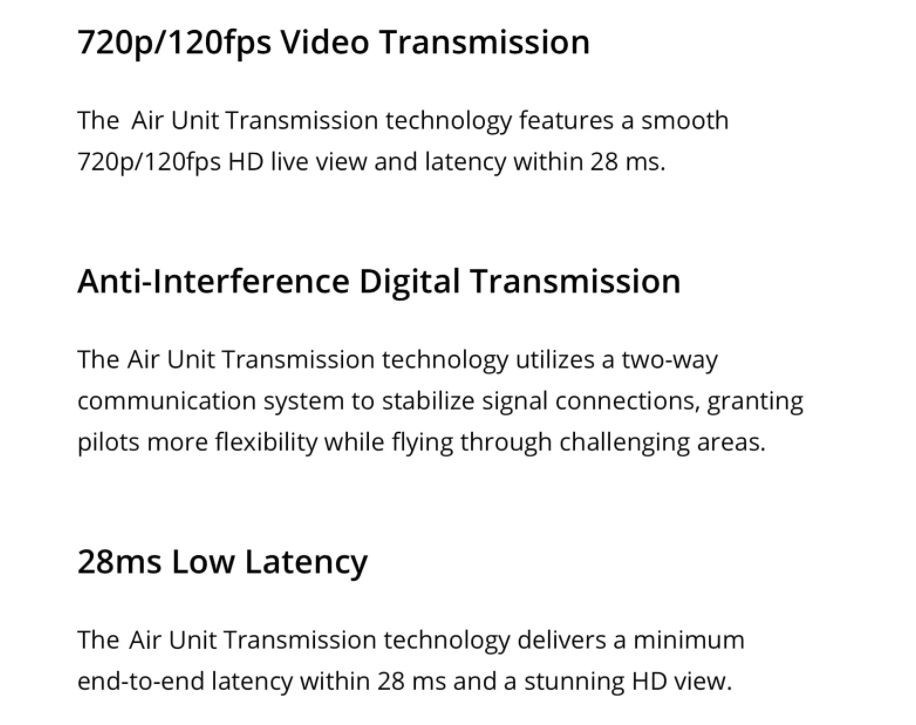

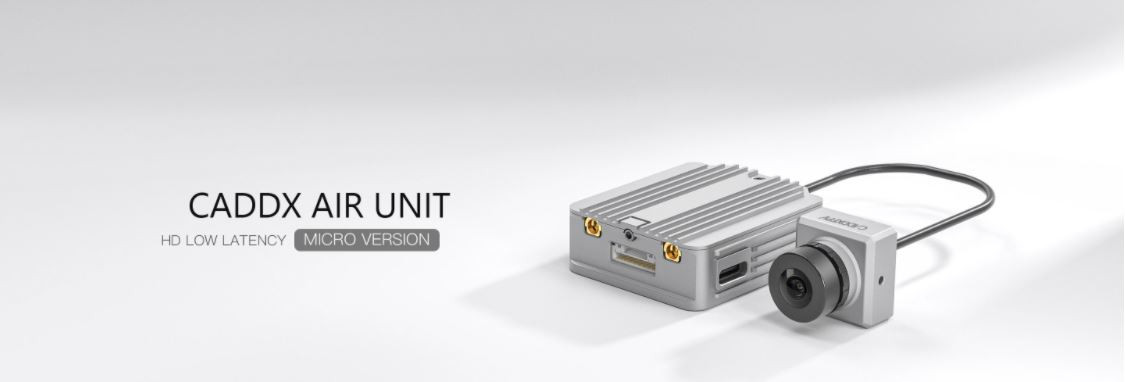

The CaddxFPV Air Unit Micro Version is a 19×19 micro-sized camera with low-latency digital video transmission. The Air Unit Transmission technology utilizes a two-way communication system to stabilize signal connections, granting pilots more flexibility when flying through challenging areas. Modern innovations, like a strong transmission system embedded remote controller receiver, and multi-antenna technology, is why the Air Unit can perform remarkably.

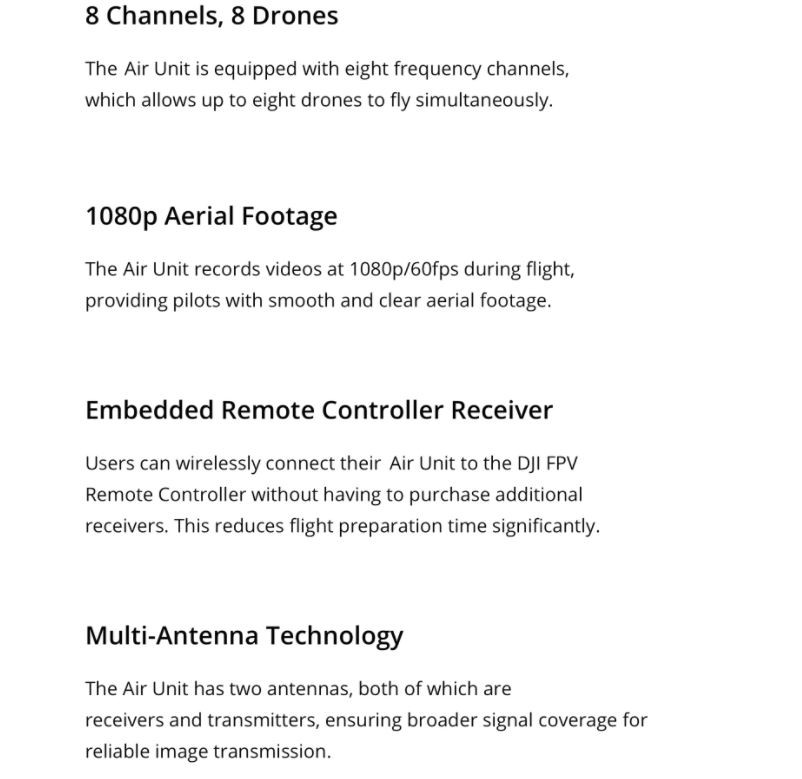

Features
4-in1 Closed Loop control for the DJI FPV RC
Embedded remote controller receiver
8 Channels for up to 8 Drones
Multi-antenna technology
1080p Aerial Footage

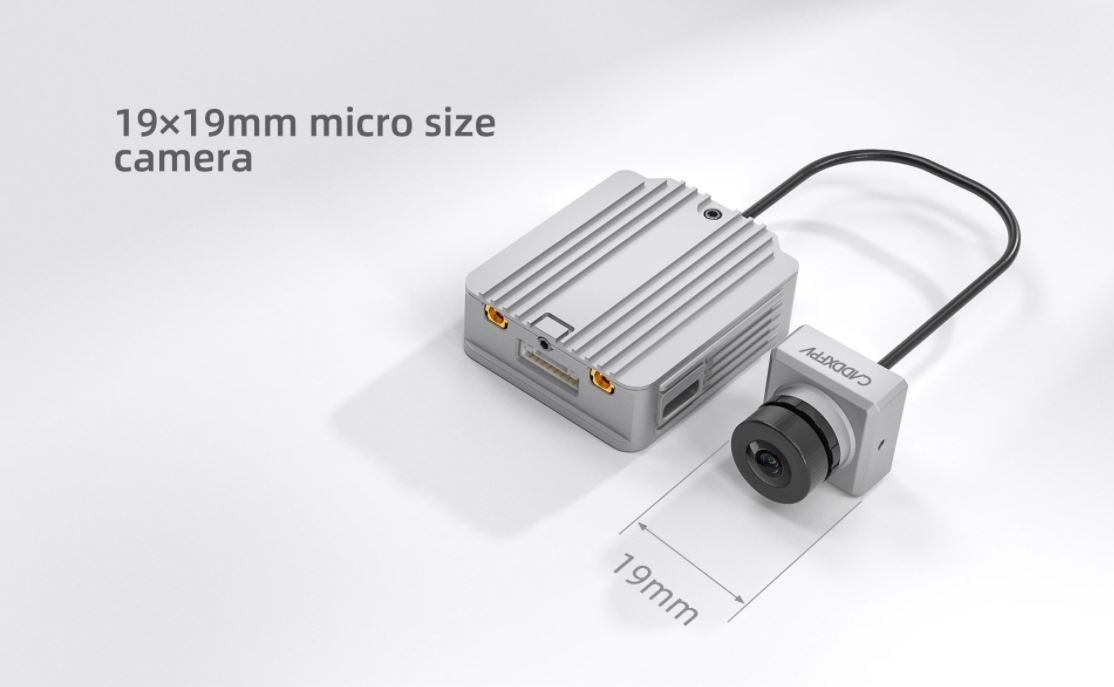

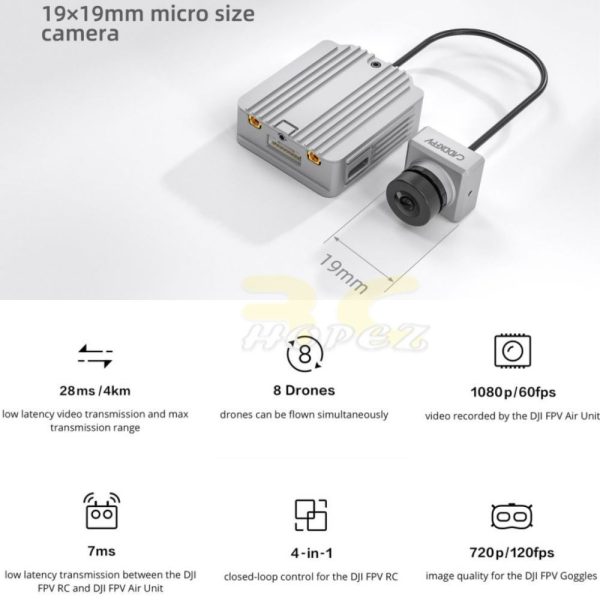

Micro-Sized Camera (19x19mm)

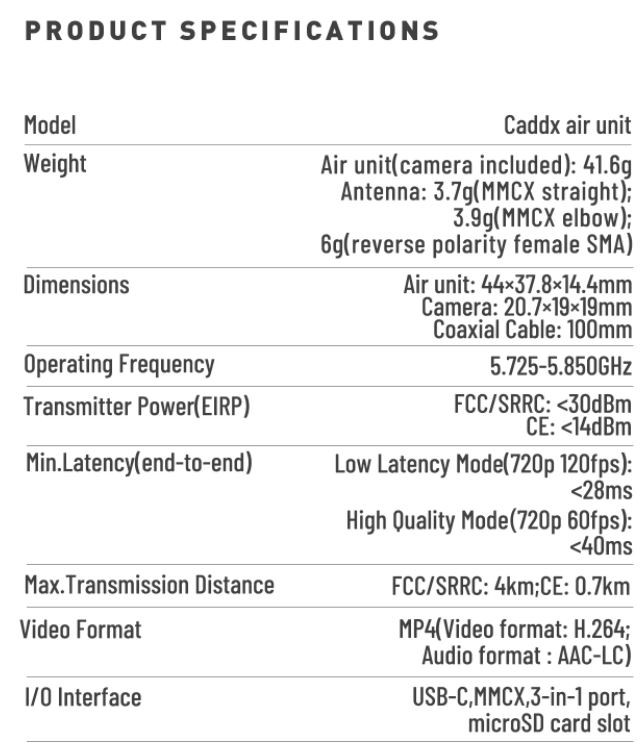

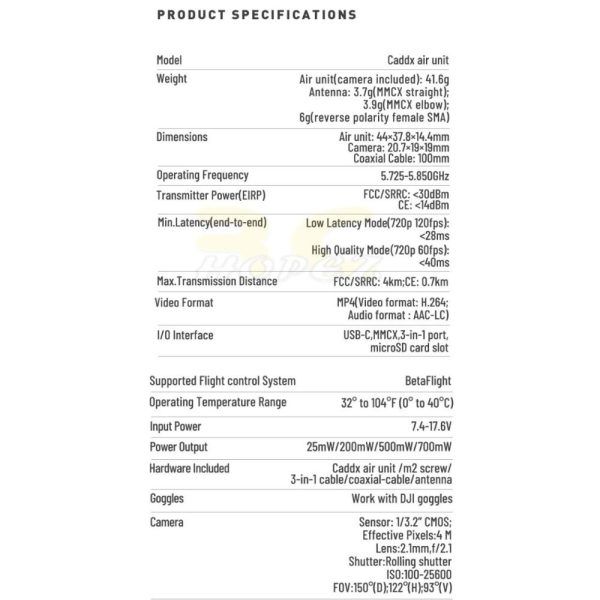

Specification：

Weight:

Air Unit (camera included): 41.6g
Antenna: 3.74g (MMCX straight);3.9g(MMCX elbow);6g( reverse polarity Female SMA)

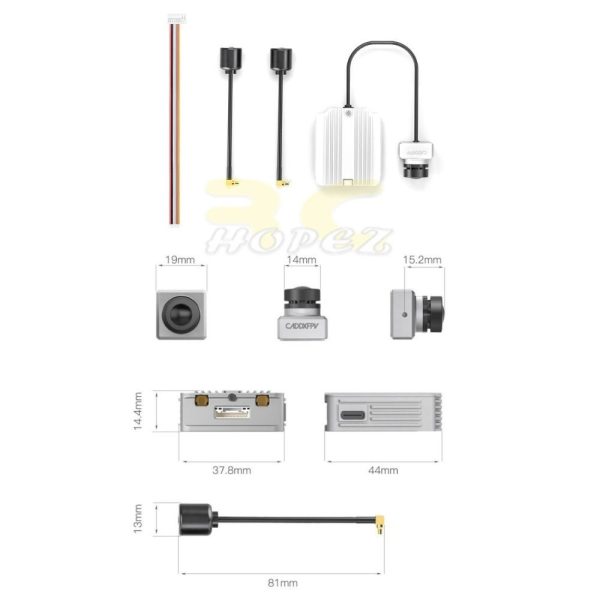

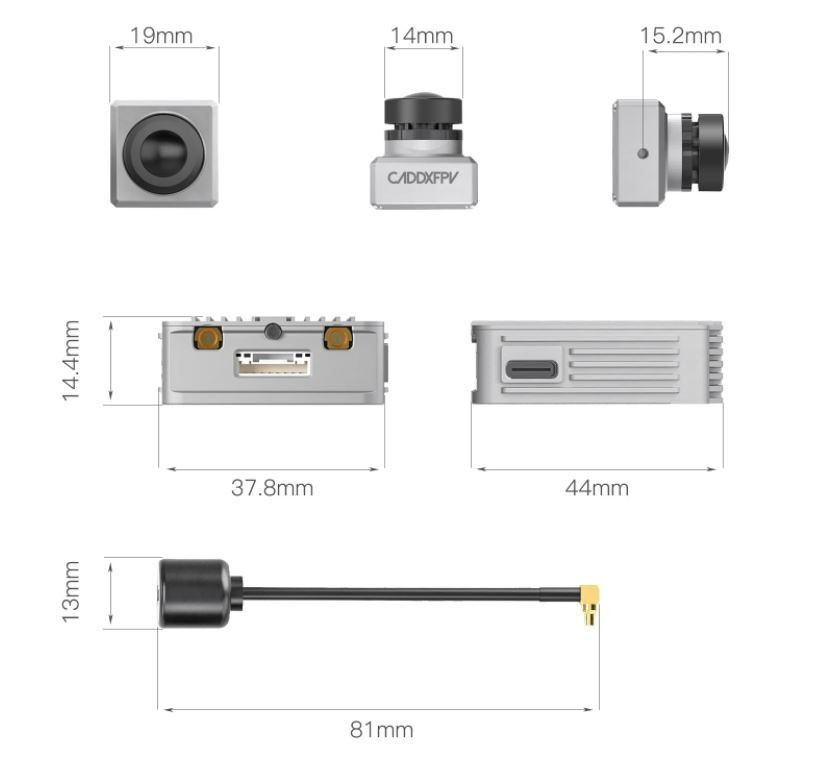

Dimensions:

AirUnit: 44×37.8×14.4mm
Camera: 20.7×19×19mm
Coaxial Cable:100mm
Operating Frequency 5.725-5.850GHz
Transmitter Power (EIRP): FCC/SRRC: <30dBm; CE: <14dBm
Min.Latency(end-to-end): Low Latency Mode(720p120fps):<28ms; High Quality Mode(720p60fps): <40ms
Max. Transmission Distance: FCC/SRRC:4km;CE:0.7km；
Video Format: MP4(Video format: H.264；Audio format: AAC-LC)
I/O Interface: USB-C,MMCX,3-in-1port, microSD cards lot

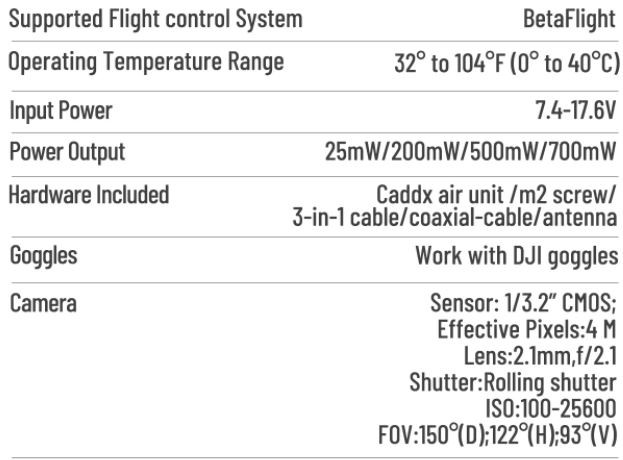

Supported Flight:Beta Flight Control System
Operating Temperature Range: 0° to 40°C(32° to 104°F)
Input Power:7.4-17.6V

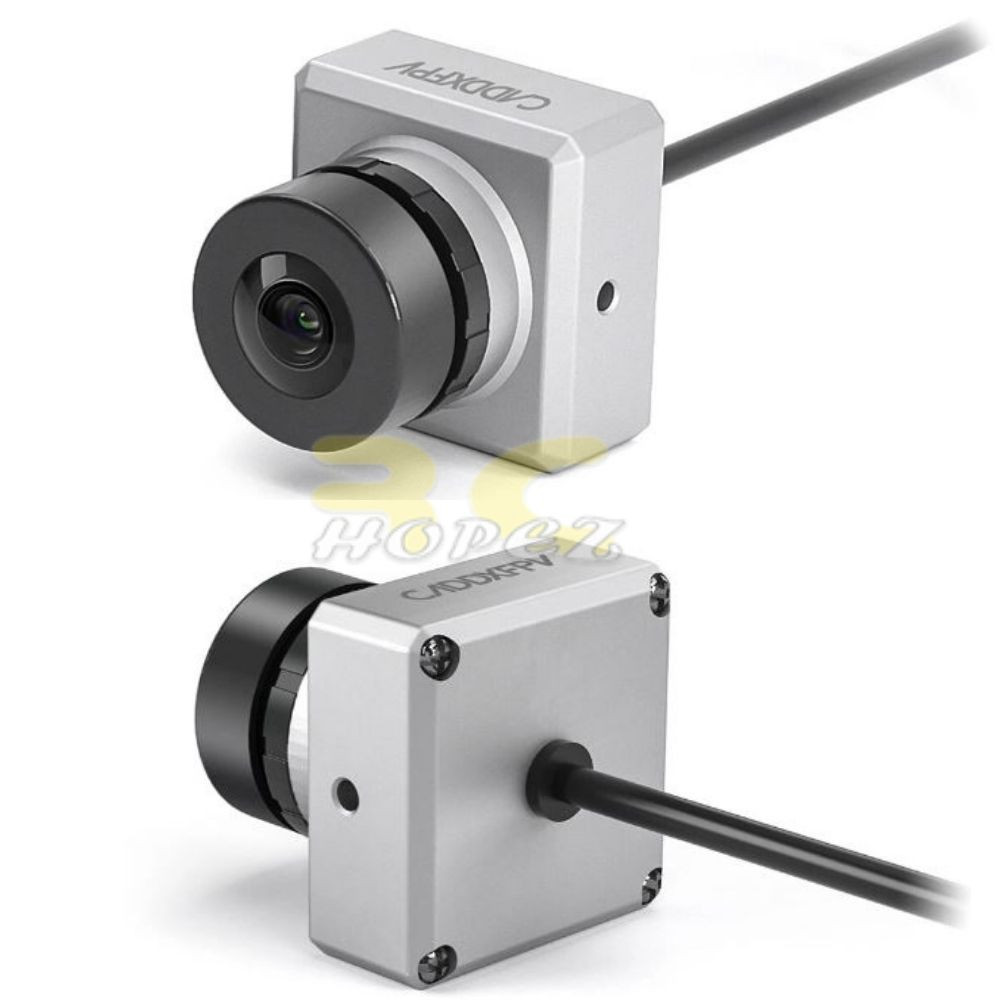

Camera:

Sensor:1/3.2”CMOS；
Effective Pixels:4M
Lens: 2.1mm,f/2.1
Shutter:Rolling shutter
ISO:100-25600
FOV: 150°(D);122°(H);93°(V)

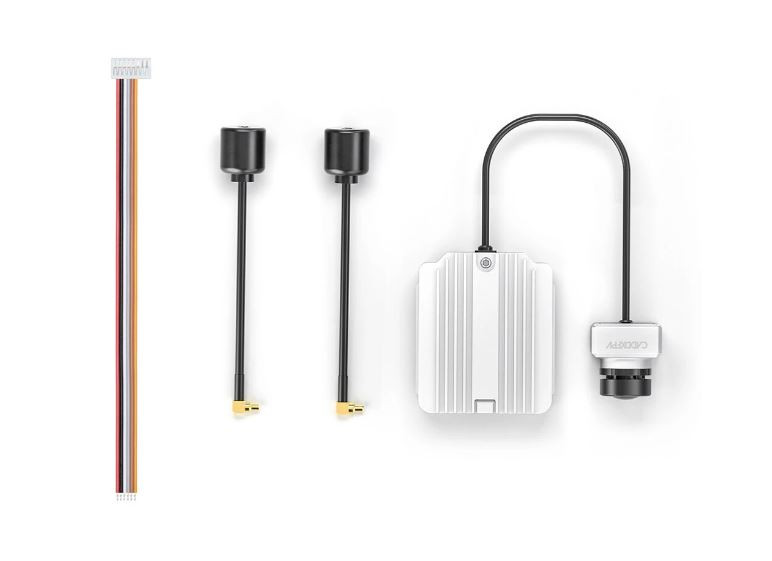

Includes:
1x Caddx Air Unit Module
1x Caddx Camera (19×19 mm)
4x M2 Screws
2x Antennas w/ Angled MMCX
1x Coaxial Cable
