Description

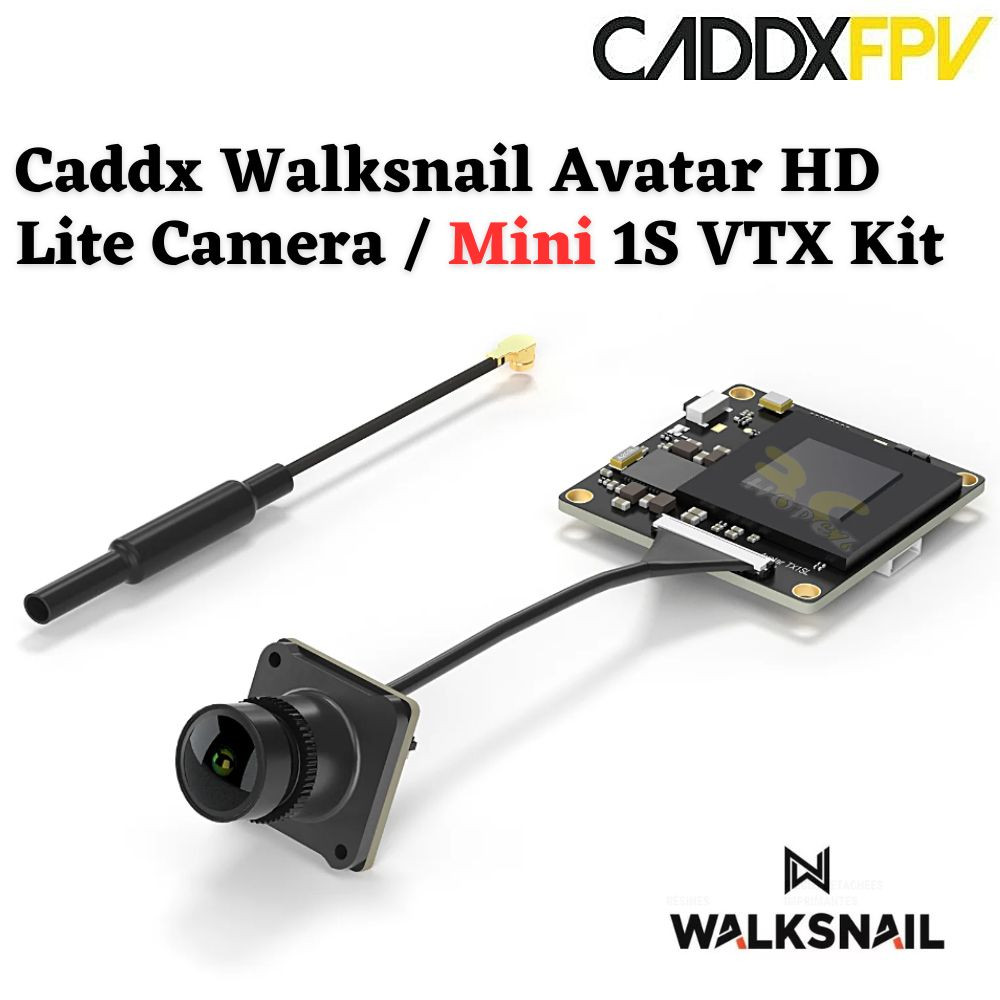

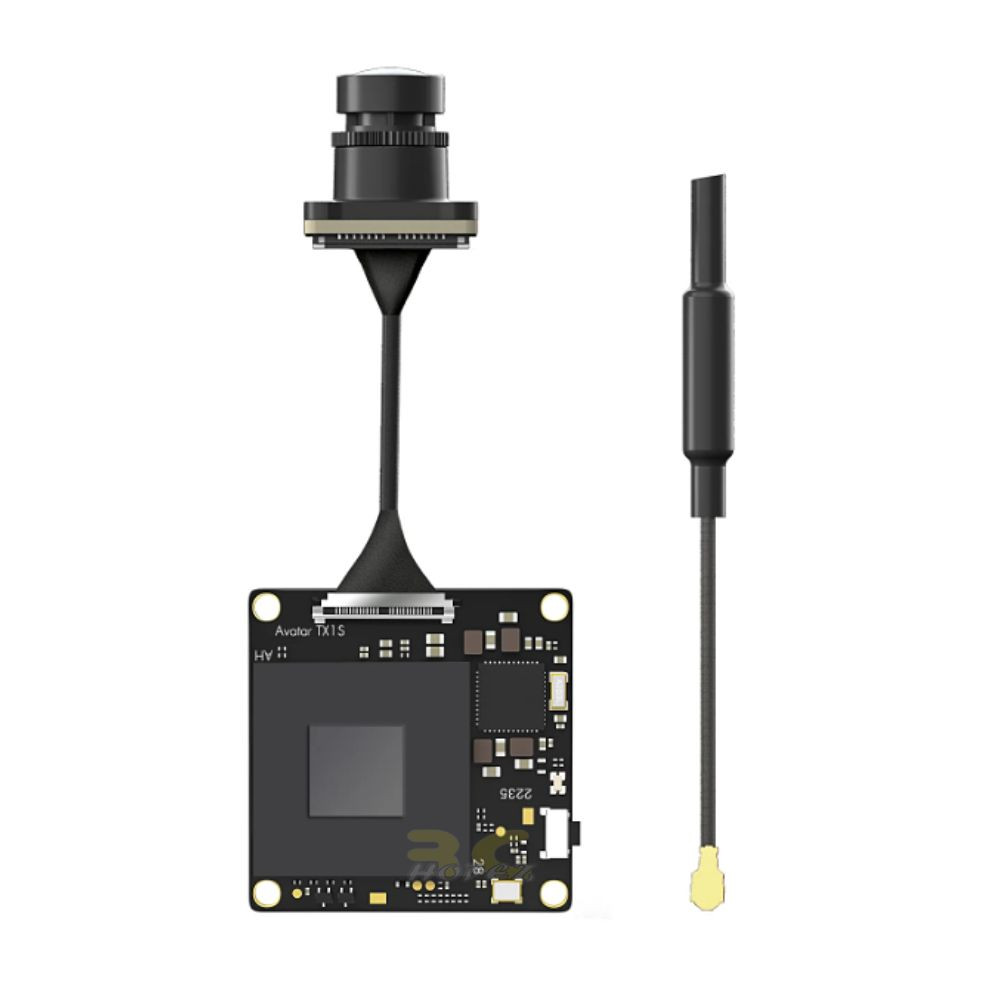

Caddx Walksnail Avatar HD Lite Camera / Mini 1S VTX Kit WN-Avatar Lite
Specification
camera
Model : Avatar Lite Camera
Image Sensor : 1/2.7”1inch
Resolution : 1080P/60fps, 720P/120fps, 720P/60fps
Ratio: 16/9 4/3
Lens : 2.1mm
FOV: 170°
Aperture : F2.0
Shutter Rolling : Rolling shutter
Min.Illumination : 0.001Lux
Weight : 1.8g
Dimensions : 14*14*16mm
VTX
Model : Vatar Mini 1S Module
Communication Frequency : 5.725-5.850GHz
Transmitter Power (EIRP) : FCC:<25.5dBm;CE:<14dBm;SRRC:<20dBm; MIC:<25dBm
I/O Interface : JST1.0*6(Power in)JST0.8*4(USB)
Mounting Holes : 25.5*25.5mm
Dimensions : 30*30*6.5mm
Storage : 8G
Recording : 1080p/720p
Weight : 5.1g
Operating Temperature : -20-40℃
Channels : 8
Wide Power Input : 3.1V-5V
Supported FC System : Betaflight
OSD : Canvas mode
Bitrate : 25mbps 50mbps
Latency : Average delay 22ms
Antenna : IPEX
1S Lite Antenna
Polarization : Linear
Frequency range : 5600-5900MHz
Gain : 1.6 dbi
VSWR : ≤1.5
Input Impedance : 50Ω
Interface : IPEX-1
Size : R 5mm,L 70mm
Weight : 0.5g

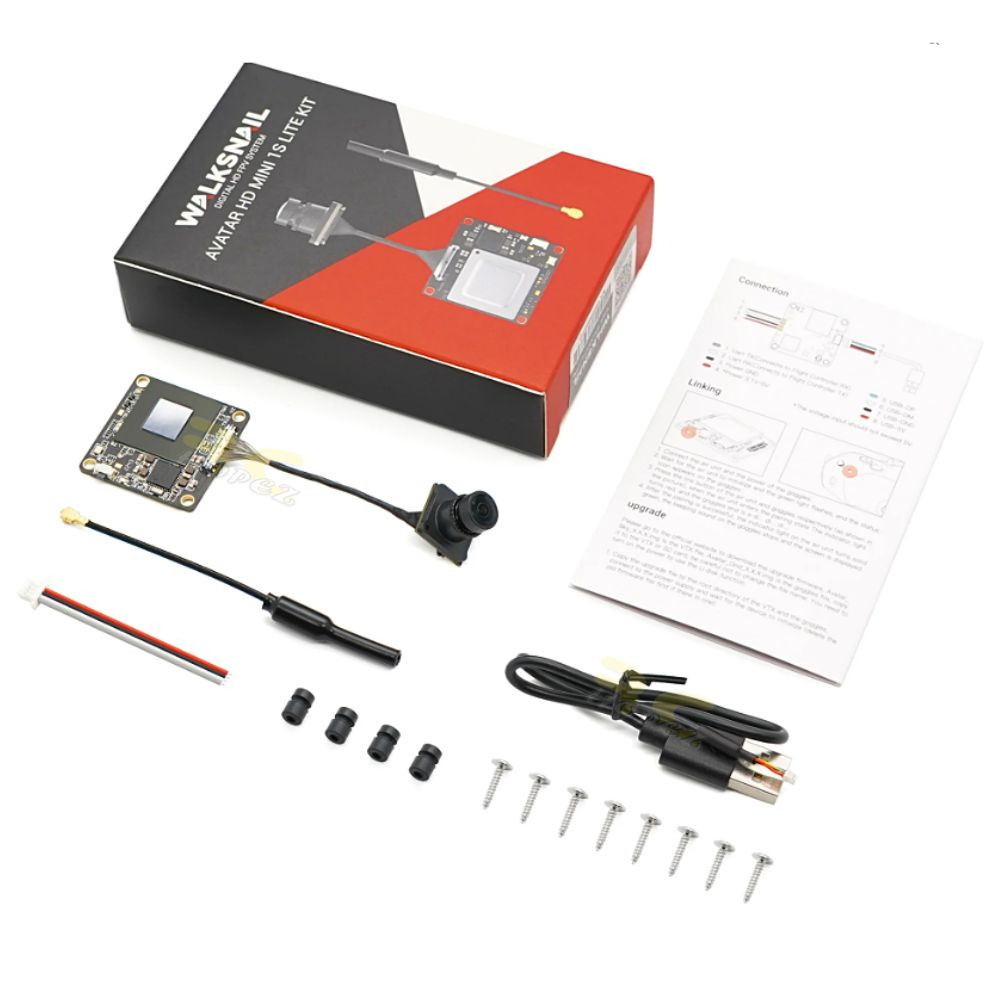

Includes
1 x Caddx Walksnail Avatar HD Lite Camera / Mini 1S VTX Kit
1 x 4 Pin USB Cable
1 x 4 Pin Power Cable
4 x 1.4×8mm Screws
2 x 1.4×10mm Screws
4 x M2 Anti-vibration Rubber Dampers *6mm
