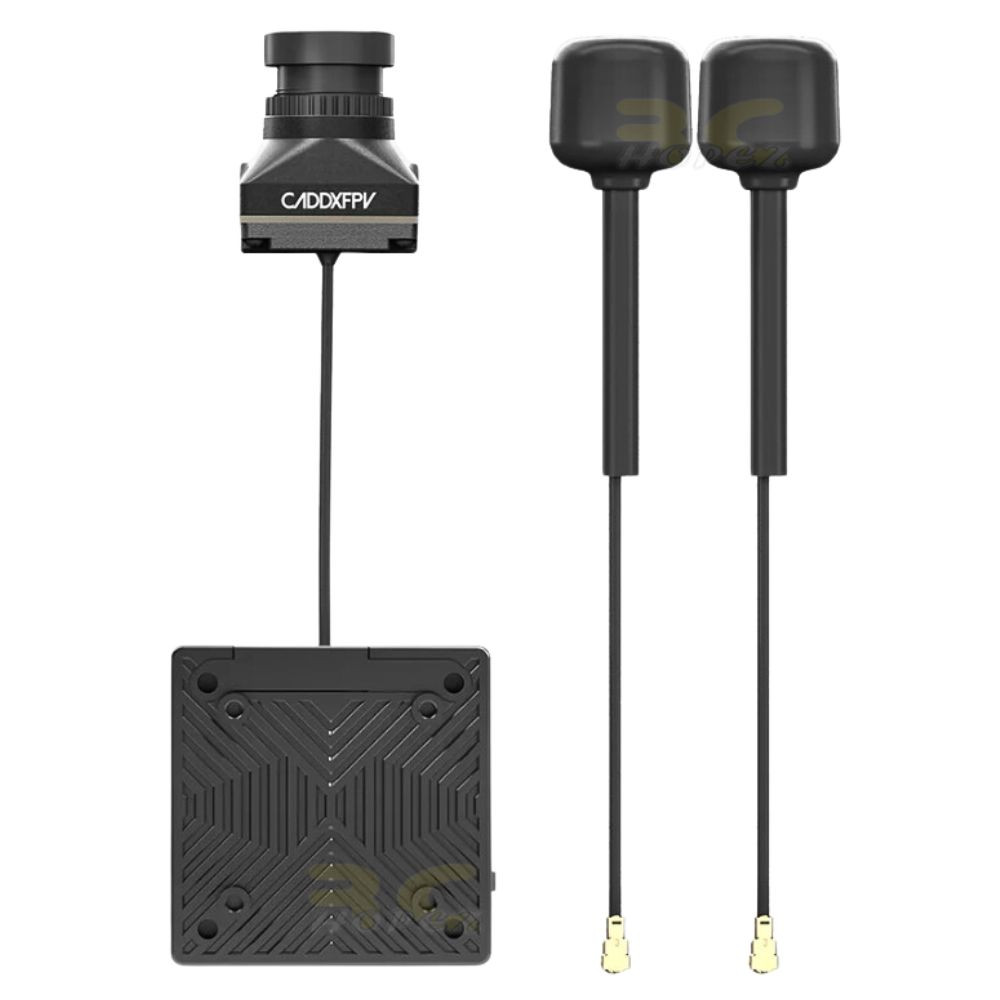

Caddx Walksnail Avatar HD Pro Camera / VTX V2 (Dual Antennas Version) Kit 32G with Gyroflow WN-Avatar Pro-DUAL

RM699.00

2 in stock

SKU: WN-Avatar Pro-DUAL Category:

Caddx Walksnail Avatar HD Pro Camera / VTX V2 (Dual Antennas Version) Kit 32G with Gyroflow WN-Avatar Pro-DUAL

Features:
Dual Antennas
Compatible 4K
FOV160°
6V-25.2V
4km range
22ms low latency
Built-in 32G storage
High frame starlight
1080P 120fps compatibility
Sony Starvis Ⅱ Technology

Specification

AVATAR HD PRO CAMERA
Model : Avatar HD Pro Camera
Image Sensor : 1/1.8-Inch Sony Starvis Ⅱ Sensor
Resolution : 1080P/60fps;720P/120fps,720P/60fps;1080P/120fps compatibility;
Ratio : 16/9; 4/3
Lens : 8Mp
FOV : 160°
Aperture : F1.6
Shutter : Rolling shutter
Min.Illumination : 0.00001Lux
Weight : 9.5g
Dimensions : 19*19*24mm
Coaxial Cable : 140mm

AVATAR V2 (Dual Antenna) VTX
Model : Avatar V2 Pro Module(Dual Antenna)
Communication Frequency : 5.725-5.850GHz
Transmitter Power (EIRP) : FCC:<30dBm; CE:<14dBm; SRRC:<20dBm; MIC:<25dBm

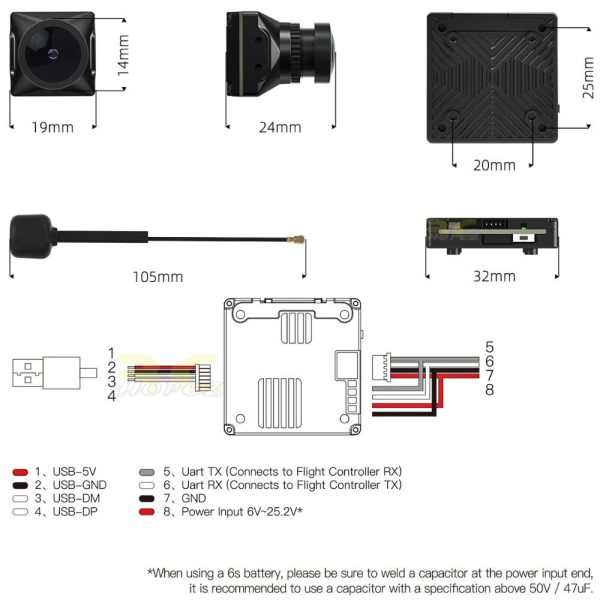

1/O Interface : JST1.0*4(Power in)JST0.8*6(USB)
Mounting Holes : 25.5*25.5mm; 20*20mm
Dimensions : 33.5*33.5*10.5mm
Storage : 32G
Recording : 1080p/720p
Weight : 15.4g
Operating Temperature : -20-40℃
Channels : 8
Wide Power Input : 6V-25.2V
Supported FC System : Betaflight; Inav; Fettec; ArduPilot;Kiss
OSD : Canvas mode
Latency : Average delay 22ms
Antenna : 2(IPEX)

AVATAR V2 ANTENNA
Polarization : LHCP
Frequency range : 5600MHz-6000MHz
Gain : 1.9dBi
VSWR : ≤1.5
Input Impedance : 50Ω
Interface : IPEX-1
Size : R15 X 45mm(without cable)
Weight : 2g

Includes
1 x Walksnail Avatar HD Pro VTX V2 (Dual Antenna) – 32GB w/ Gyro
1 x USB transfer extension cable
1 x 4 Pin silicone cable
8 x M2*4mm screws
4 x M2*5mm screws
4 x M2*6mm screws
4 x M2*14mm screws
4 x M2*5*0.5mm gasket

Weight 0.10 kg
Dimensions 6.00 × 3.00 × 3.00 cm
