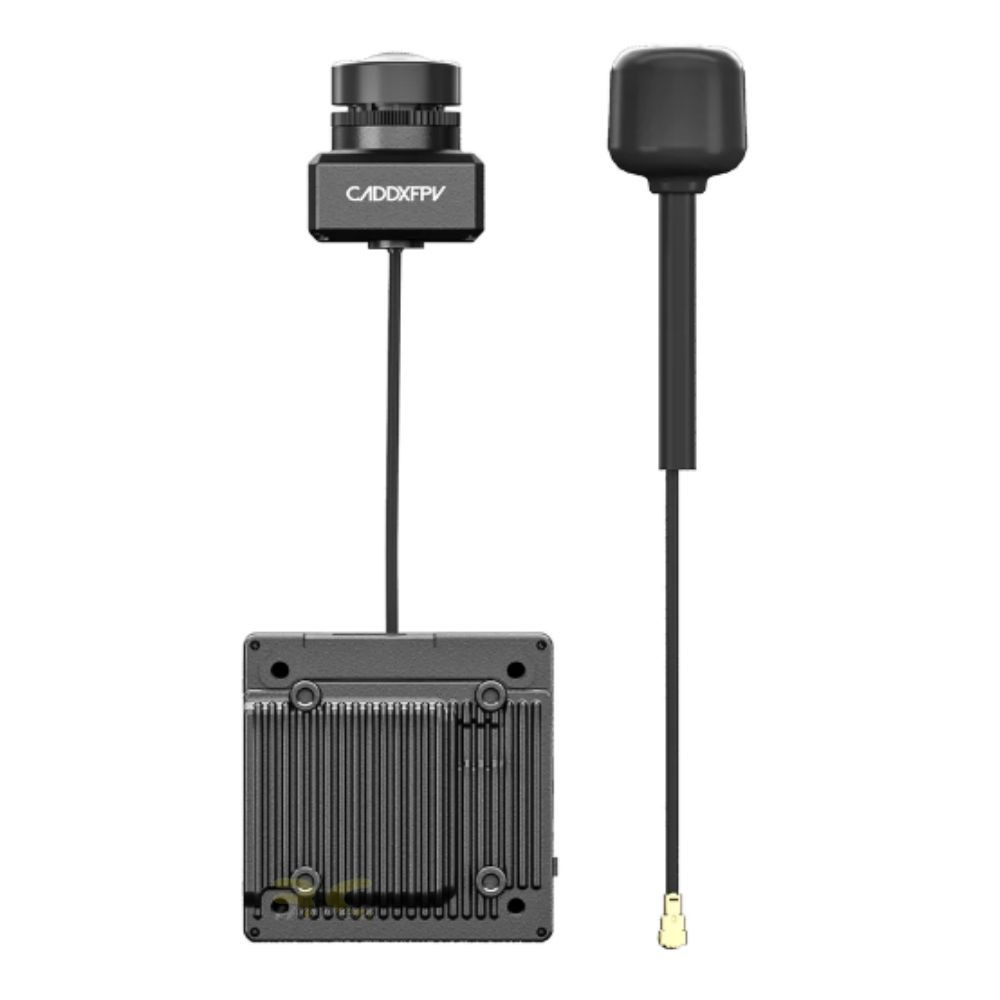

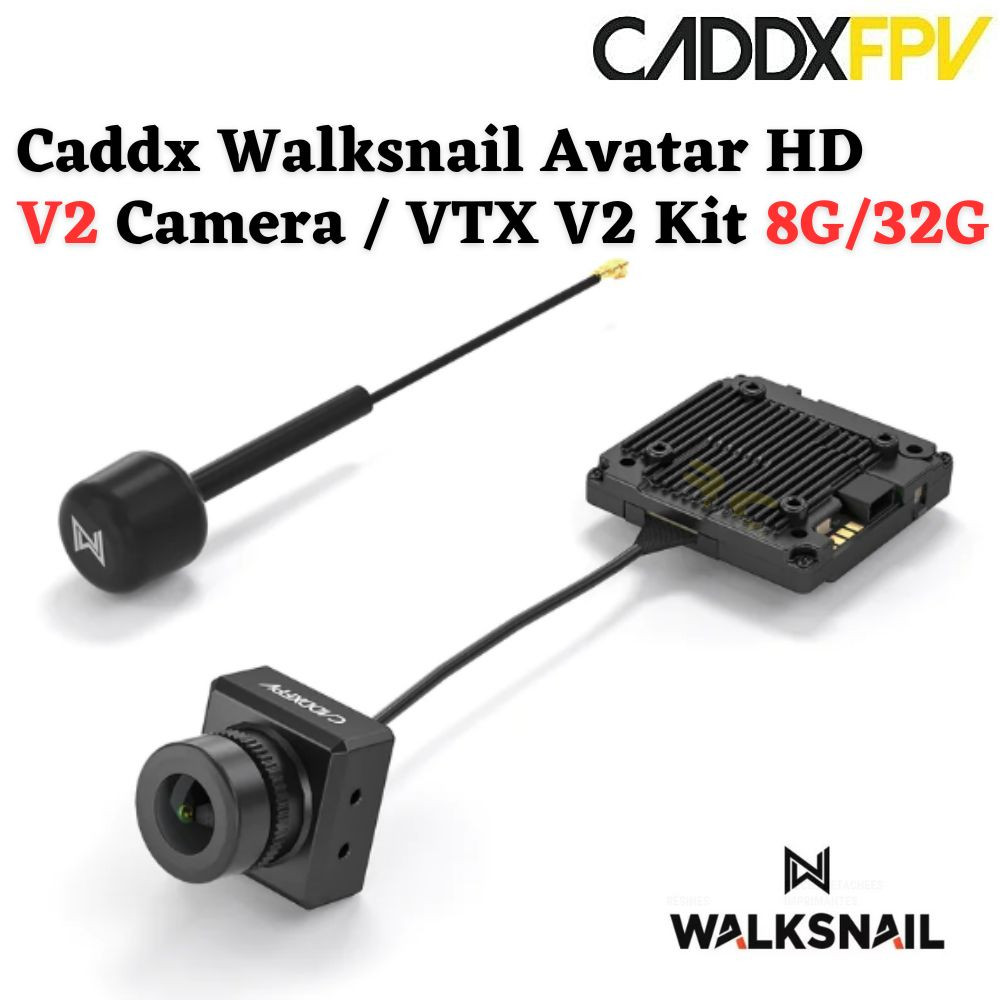

Caddx Walksnail Avatar HD V2 Camera / VTX V2 Kit 8G/32G WN-Avatar V2

RM589.00RM619.00

SKU: WN-Avatar V2 Category:

Caddx Walksnail Avatar HD V2 Camera / VTX V2 Kit 8G/32G WN-Avatar V2

Product Decription

32GB
This Walksnail Avatar HD Kit V2 features built-in 32GB storage and Gyroflow support.

8GB
This Walksnail Avatar HD Kit V2 features built-in 8GB storage without Gyroflow support .

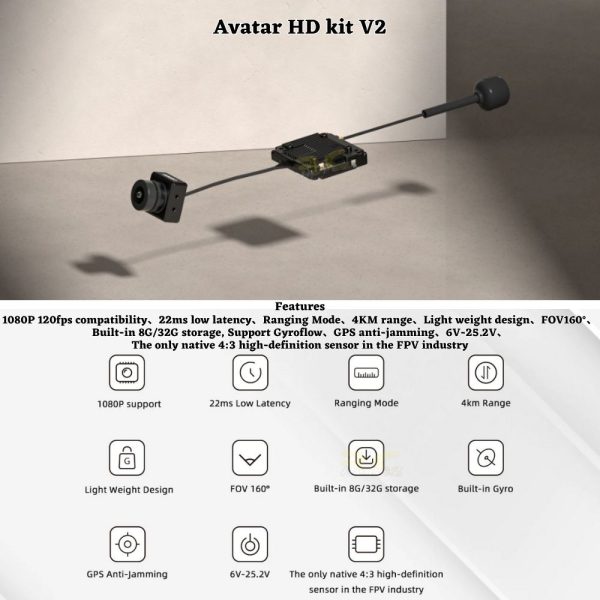

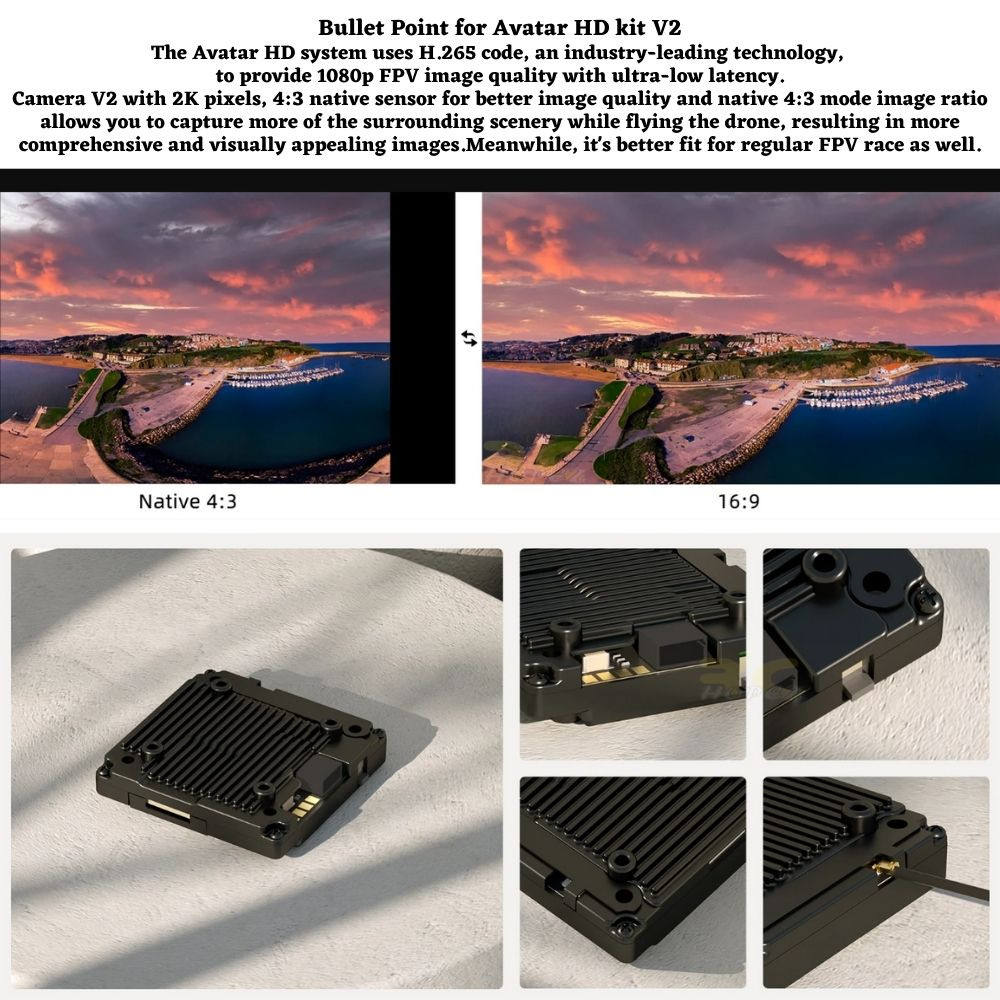

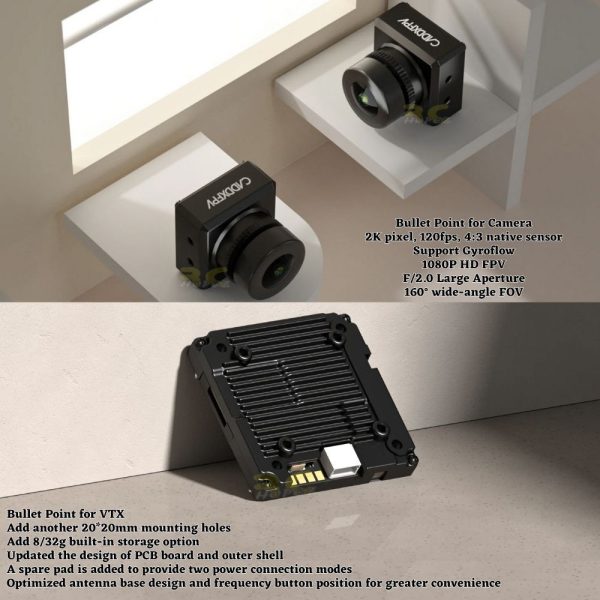

The 2K/120fps/4:3 native sensor camera allows you to capture more of the surrounding scenery while flying the drone, resulting in more comprehensive and visually appealing images. The Avatar HD system uses H.265 code, an industry-leading technology, to provide 1080p FPV image quality with ultra-low latency. Other features include an updated PCB board, an updated outer shell, low latency of 22ms, and a 4Km range.

Specification

AVATAR HD V2 CAMERA
Model : Avatar V2 camera
Image Sensor : 1/3.2-Inch 4Mp 4:3sensor
Resolution : 1080P/60fps; 720P/100fps; 720P/60fps;1080P/120fps compatibility; 1080P/100fps compatibility;
Ratio : 4:3 native /16:9
Lens : 2.1mm
FOV :160°
Aperture : F2.0
Shutter : Rolling shutter
Min.Illumination : 0.001Lux
Weight : 7.2g
Dimensions : 19*19*22mm
Coaxial Cable : 140mm
Gyroflow : Only 32G VTX Supported

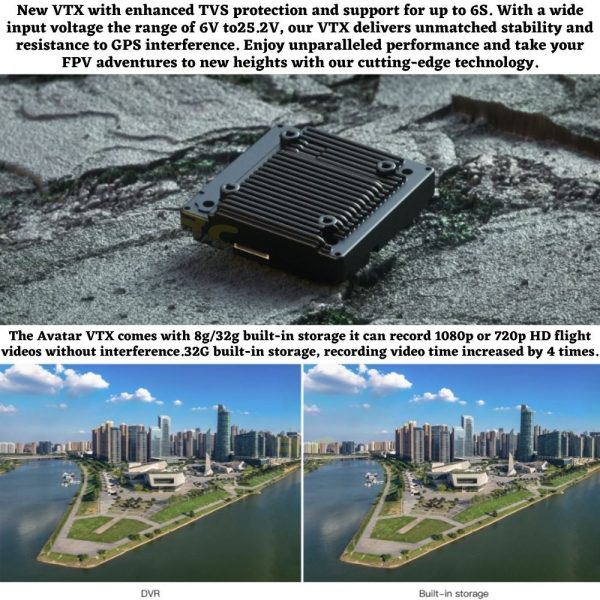

AVATAR V2 VTX
Model : Avatar V2 module
Communication Frequency : 5.725-5.850GHz
Transmitter Power (EIRP) :    FCC:<30dBm;CE:<14dBm;SRRC:<20dBm;
MIC:<25dBm

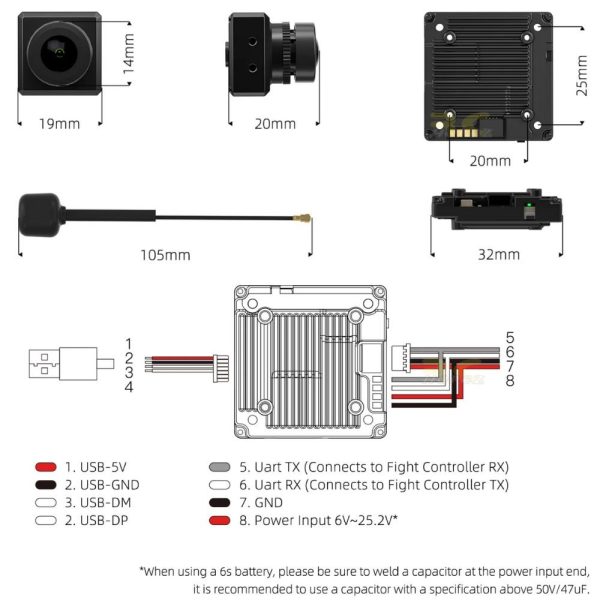

1/O Interface : JST1.0*4(Power in)JST0.8*6(USB)

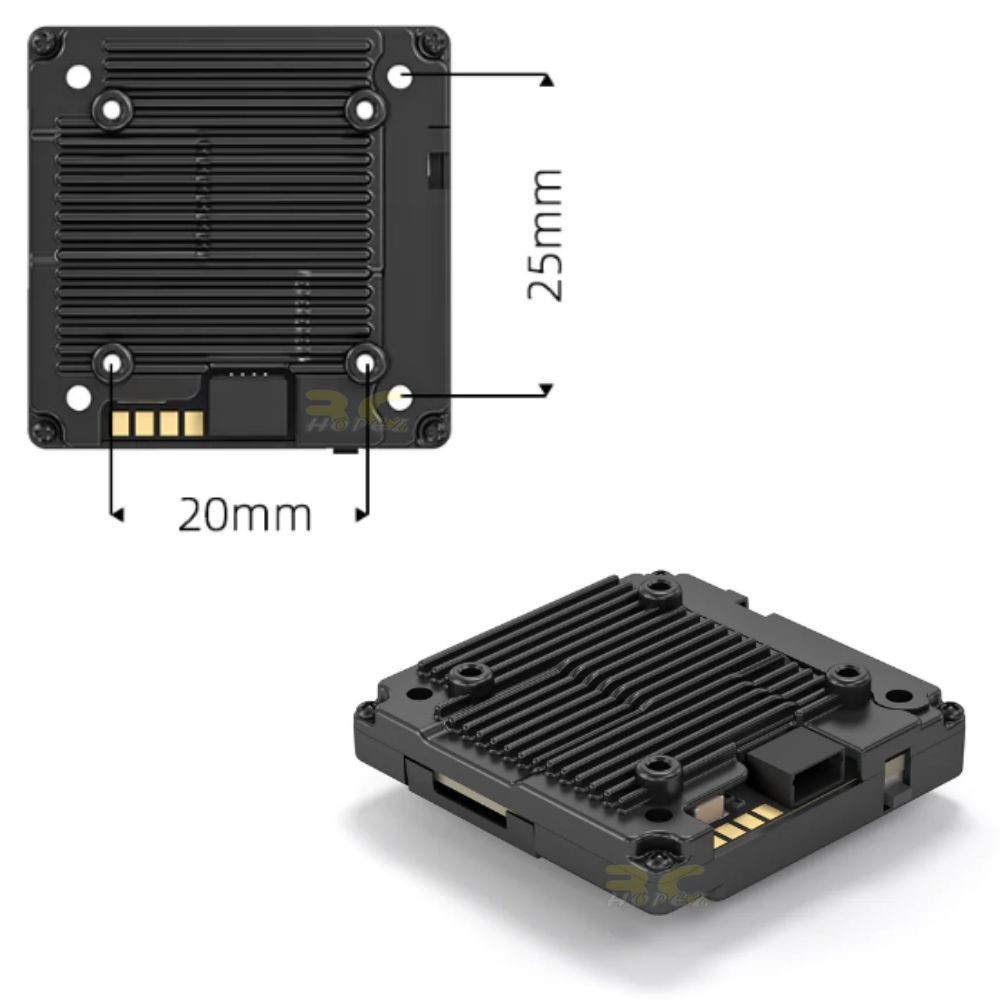

Mounting Holes : 25.5*25.5mm; 20*20mm
Dimensions : 33.5*33.5*10.5mm
Storage : 8G/32G
Recording : 1080p/720p
Weight : 17.6g
Operating Temperature : -20-40℃
Channels : 8
Wide Power Input     : 6V-25.2V
Supported FC System : Betaflight; Inav; Fettec; ArduPilot; Kiss
OSD : Canvas mode

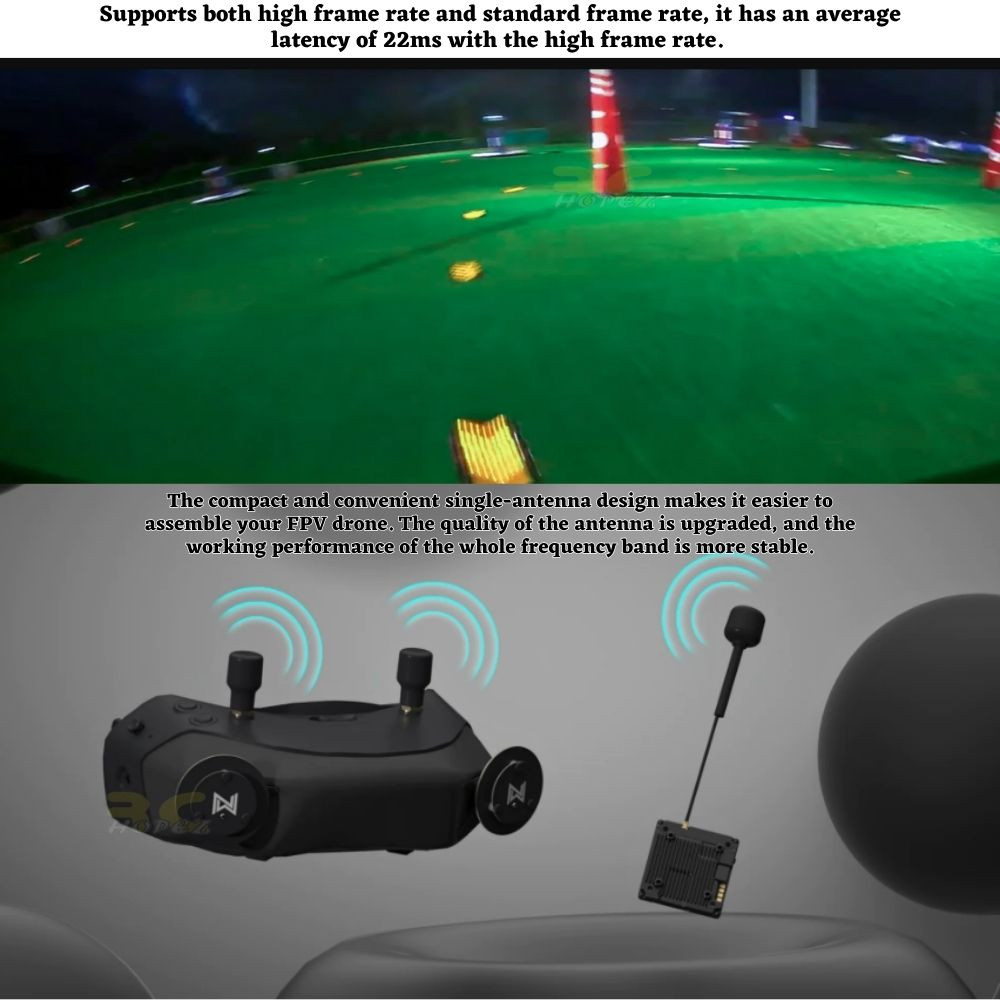

Latency : Average delay 22ms
Antenna    : 1(IPEX)

AVATAR V2 ANTENNA
Polarization : LHCP
Bandwidth : 5600MHz-6000MHz
Gain : 1.9dBi
VSWR : ≤1.5
Input Impedance : 50Ω
Interface : IPEX-1
Size : R15 X 45mm (without cable)
Weight : 2g

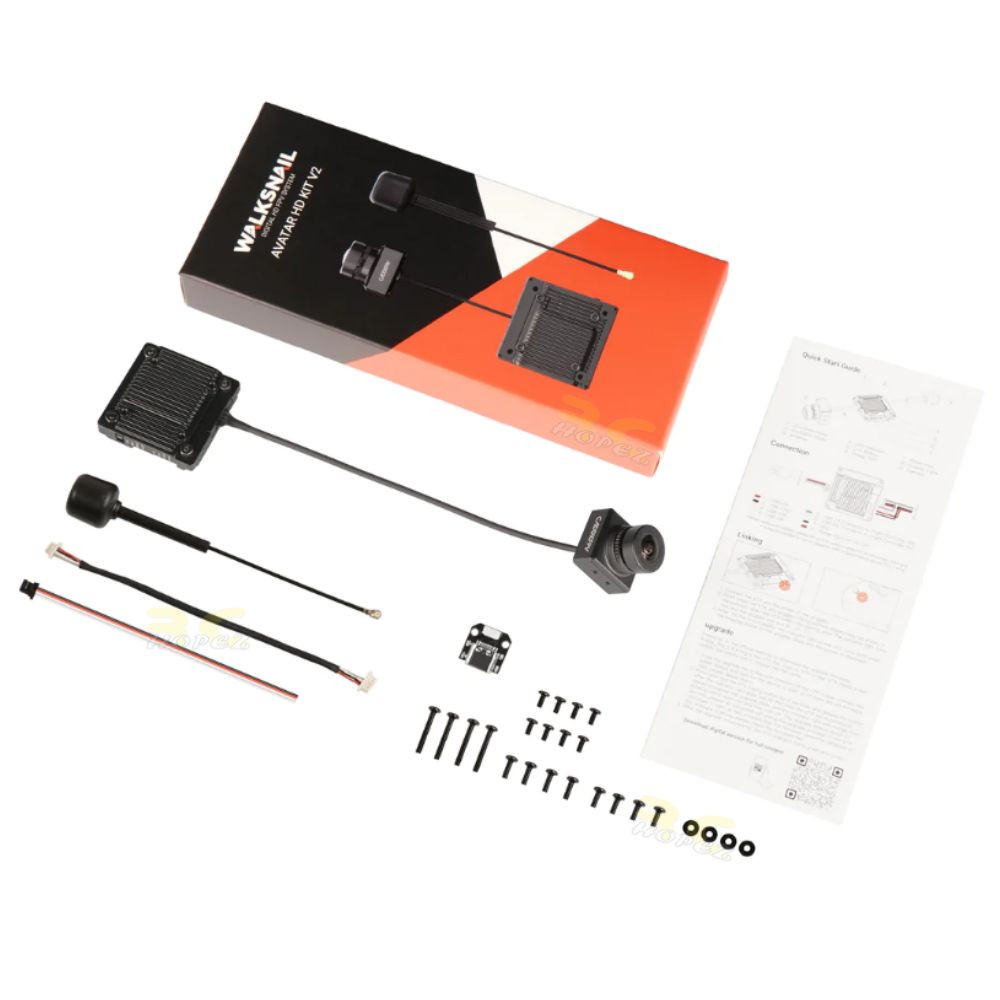

Includes (Optional)
1x Walksnail Avatar HD VTX V2 – 32GB w/ Gyro
1x Walksnail Avatar HD Camera V2
1x Walksnail Avatar Antenna V2
1x USB transfer extension cable
4x M2*5*0.5mm gasket
1x 4 Pin silicone cable
4x M2*14mm screws
8x M2*4mm screws
4x M2*5mm screws
4x M2*6mm screws

Or

1x Walksnail Avatar HD VTX V2 – 8GB – No Gyro
1x Walksnail Avatar HD Camera V2
1x Walksnail Avatar Antenna V2
1x USB transfer extension cable
4x M2*5*0.5mm gasket
1x 4 Pin silicone cable
4x M2*14mm screws
8x M2*4mm screws
4x M2*5mm screws
4x M2*6mm screws

Q: Do we support 1080P 120FPS?
A: Our VTX products all support 1080P/120FPS, and can reach 1080P/120FPS through firmware upgrade is around the corner.





Weight 0.15 kg
Dimensions 6 × 3 × 3 cm
Camera V2

Without Gyroflow+8G, With Gyroflow+32G
