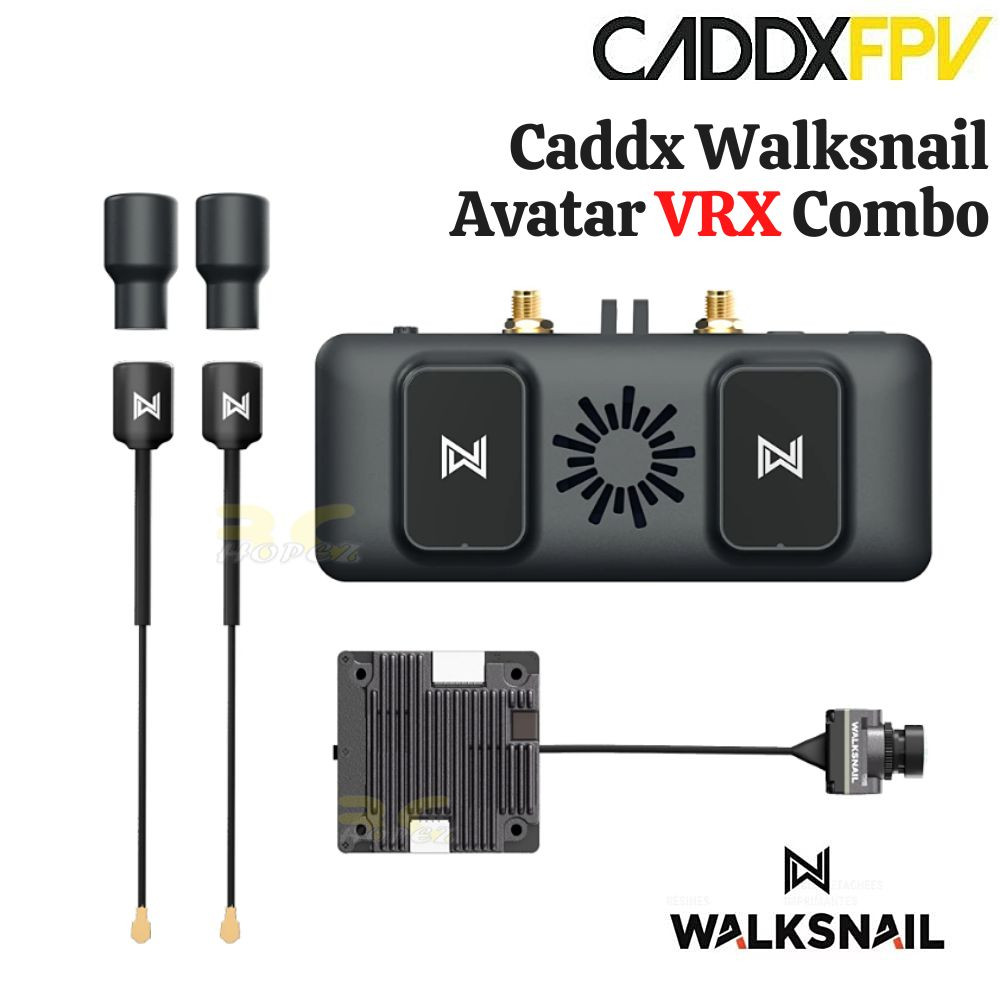

Caddx Walksnail Avatar VRX Combo For FPV Drone Compatible Skyzone Fatshark HDZero Goggles WN-Avatar VRX

RM979.00RM1,250.00

SKU: WN-Avatar VRX Category:

Caddx Walksnail Avatar VRX Combo For FPV Drone Compatible Skyzone Fatshark HDZero Goggles WN-Avatar VRX

Specification :
Camera

Model : Avatar Nano/Avatar Camera
Image Sensor : 1/2.7”1nch
Resolution : 1080P/60fps,720P/120fps,720P/60fps
Ratio : 16/9 4/3
Lens : 2.1mm
FOV : 170°
Aperture : F2.0
Shutter : Rolling Shutter
Min.Illumination : 0.001Lux
Weight : 3.5g/6g
Dimensions : 14*14*17mm/19*19*22mm
Coaxial Cable : 90mm/140mm

VTX
Model : Avatar Module
Communication Frequency : 5.725-5.850GHz
Transmitter Power (EIRP) : FCC:<30dBm;CE:<14dBm;SRRC:<20dBm;
MIC:<25dBm
1/O Interface : JST1.0*6(Power in)JST1.0*4(USB)
Mounting Holes : 25.5*25.5mm
Dimensions : 33*33*9.5mm
Storage : 8G
Recording : 1080p/720p
Weight : 16g
Operating Temperature : -20-40℃
Channels : 8
Wide Power Input     : 6V-25.2V
Supported FC System : Betaflight

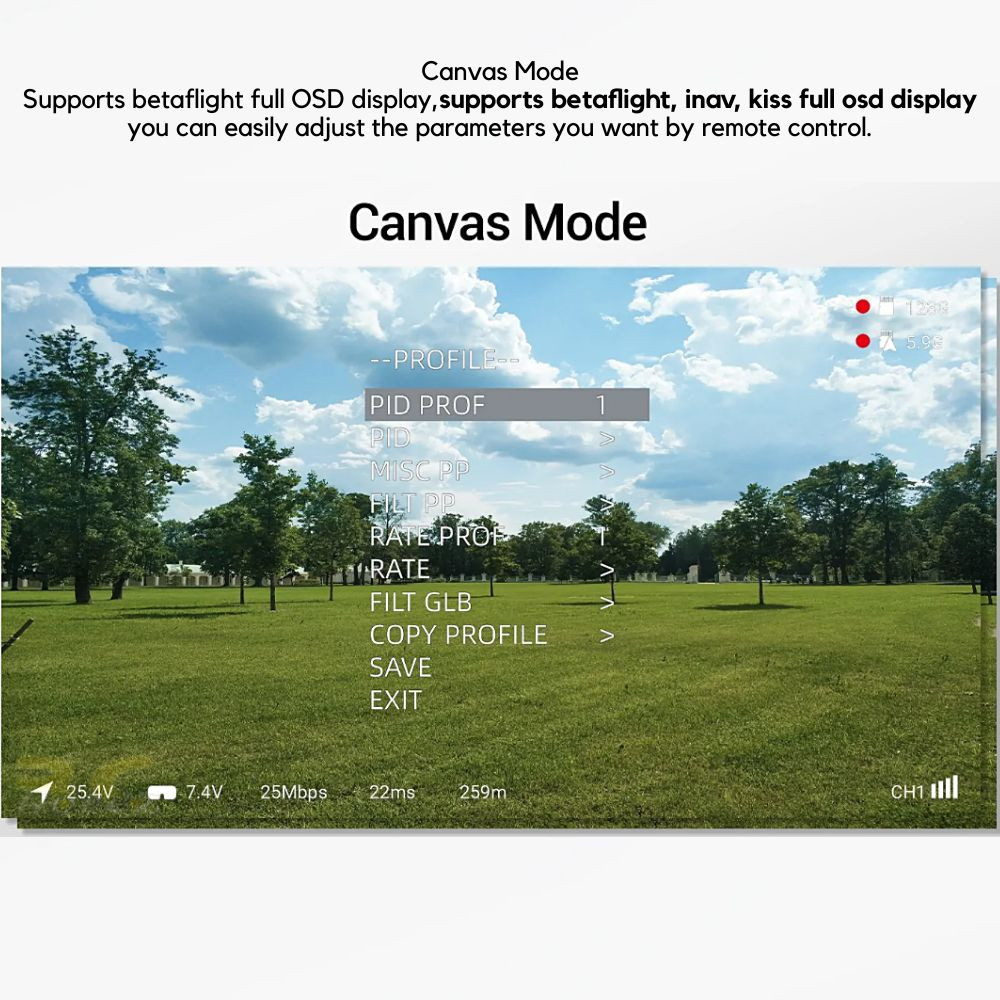

OSD : Canvas Mode
Latency : Average Delay 22ms
Antenna    :  2(IPEX)

Goggles Antenna
Model : Red Bird
Polarization : LHCP
Bandwidth : 5.6GHz-6.0GHZ
Average Gain : 1.9dBi
Radiation Efficiency : ≥97%
VSWR : ≤1.3
Cross-Polar Rejection : -15to-30dB
Connector : RP-SMA
Dimension : H24.8mm*R15.3mm
Weight : 4.2g

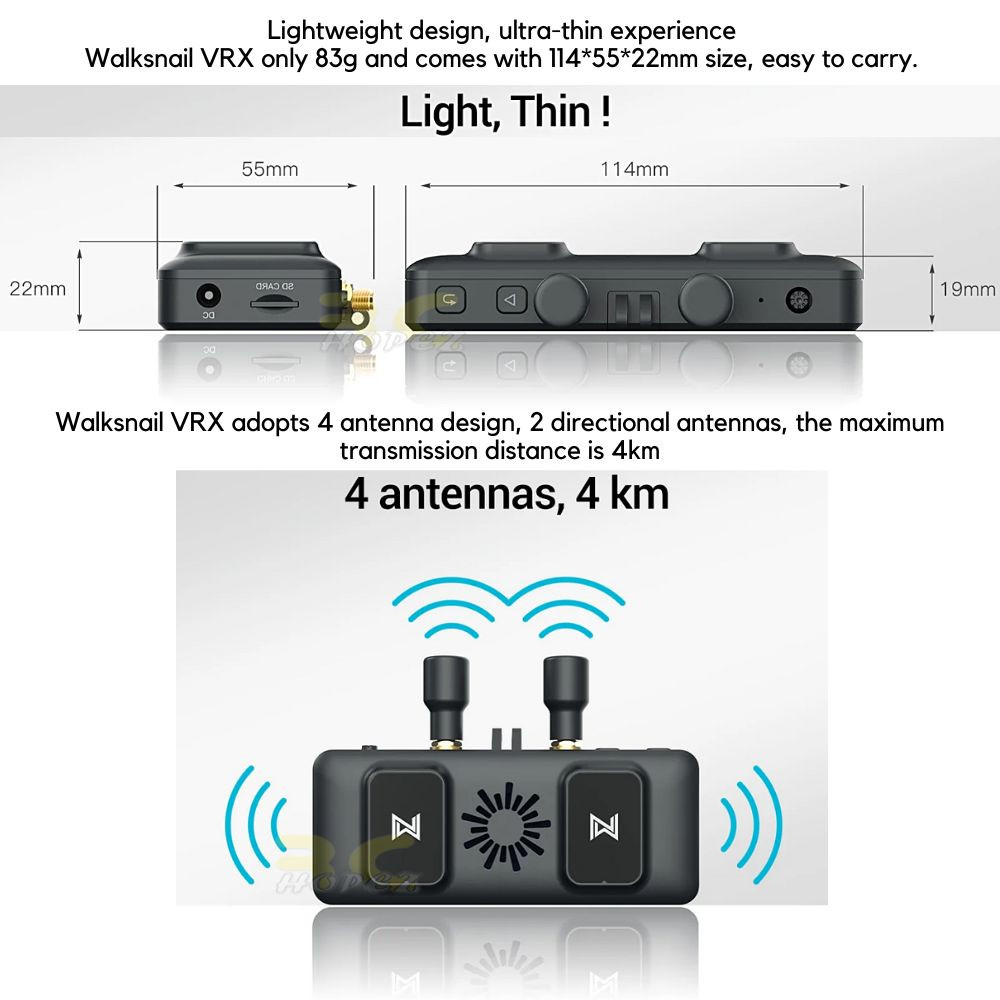

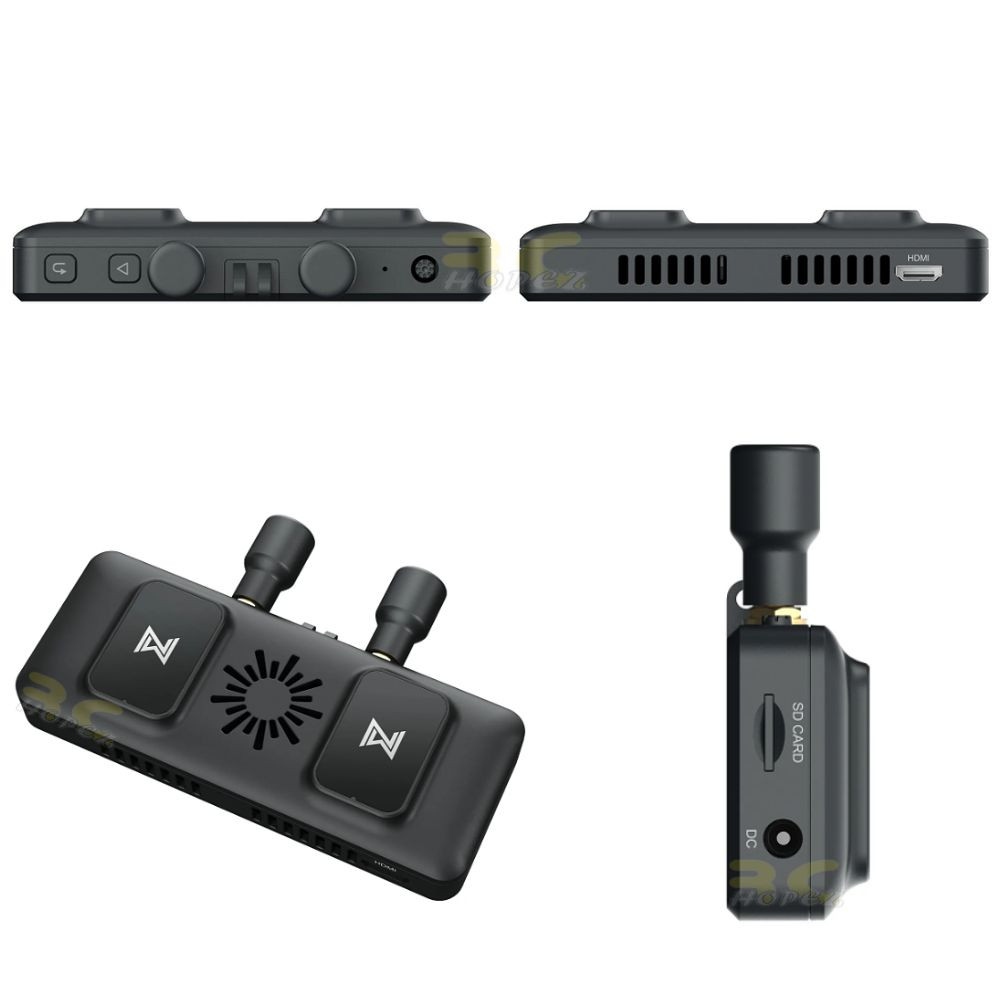

Avatar HD VRX
Model : Avatar HD VRX
CommunicationFrequency : 5.725-5.850GHz
TransmitterPower(EIRP) : FCC:<30dBm;CE:<14dBm;SRRC:<20dBm;MIC:<25dBm
I/OInterface : HDMI,MicroSDcardslot,DC5.5*2.1mm
HDMIOutput : 1080p60fps,720p100fps,720p60fps
PowerInput : 7-21V(2S-5S)
SDCard : Support256G
System : AvatarHDsystem

Package Included:

Avatar VRX
2 x RedBirdAntenna
1 x HDMICable
1 x 2in1DCPowerCable

OR

Avatar HD Micro KIT
1 x 4 Pin USB Cable
1 x 6 Pin Power Cable
4 x M2x3/4/5mm Screws
2 x M1.2×1.5mm Screws

OR

Avatar HD Nano KIT
1 x 4 Pin USB Cable
1 x 6 Pin Power Cable
2 x M2x3/4/5mm Screws
2 x M1.2×1.5mm Screws
1 x 14-19mm Bracket

OR

Avatar Mini 1S KIT
1 x 4 Pin USB Cable
1 x 6 Pin Power Cable
2 x M2x3/4mm Screws
4 x M2x16mm Screws
4 x M2 Screw Nut
5 x 2.1×3.4x1mm Gasket

Q&A

Q:Is VRX compatible with goggles from other products?
A:Compatible With Analog Goggles,HDMI Out(Our VRX module supports HDMI OUT, If you goggles support HDMI IN it will work fine)

Q:Do i need a set of goggles with a 1080p resolution or an 720p is enough?
A:VRX supports 720P1080P

Q:Avatar HD Micro kit come with a 140mm cable between the VTX and camera?
A: yes

Q:does the Pre-sale unit fit 20×20 mount?
A:Our vtx is 25*25

Q:the difference between all 3 of the walksnail kits? What is the Avatar 1s vs avatar hd micro vs avatar HD nano?
A:
mini 1s kit
350mw, Power Input: 3.1V-5V, VTX Weight 6.8g

avatar HD micro/nano kit standard version
1200mw, Power Input: 6V-25.2V, VTX Weight: 16g

Q:Micro/Nano Camera difference?
A:
Weight:3.5g/6g
Dimensions:14*14*17mm/19*19*22mm
Coaxial Cable:90mm/140mm

Q:hdmi type?
A:mini hdmi

Weight 0.20 kg
Dimensions 14.00 × 3.00 × 10.00 cm
Option

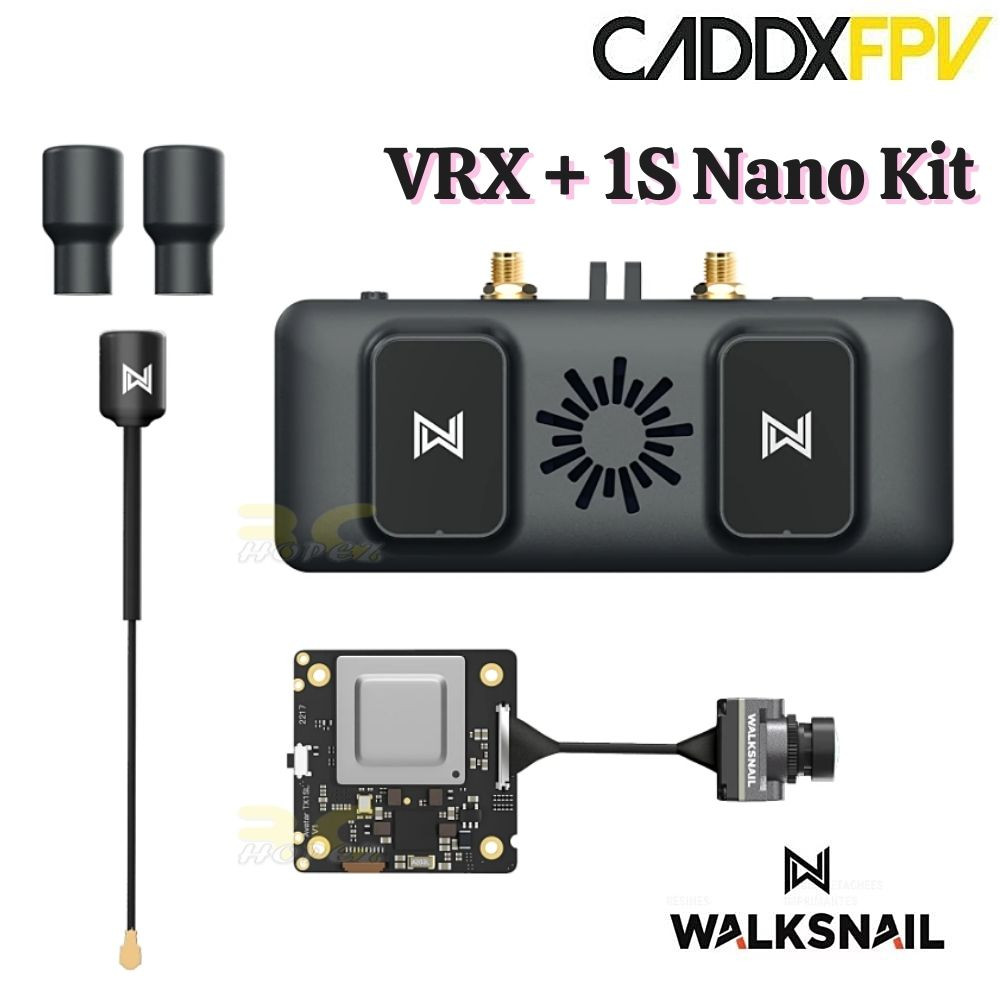

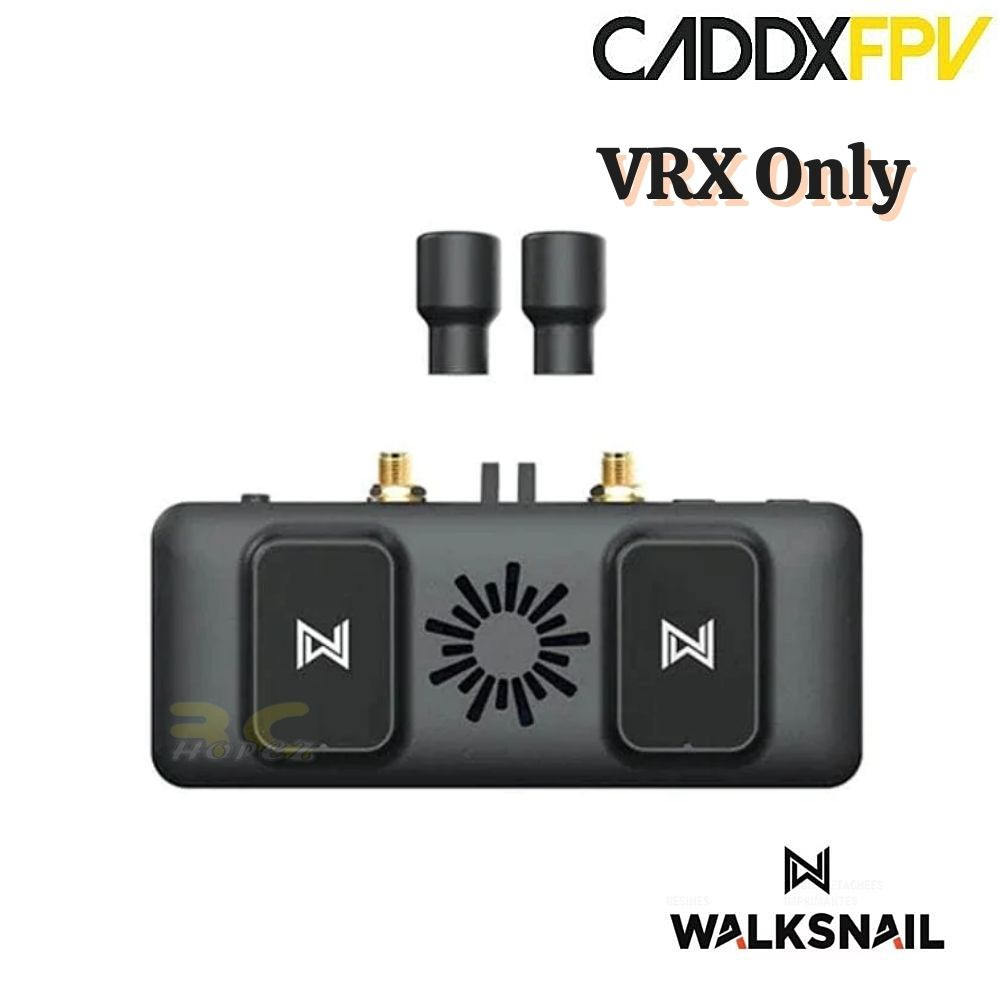

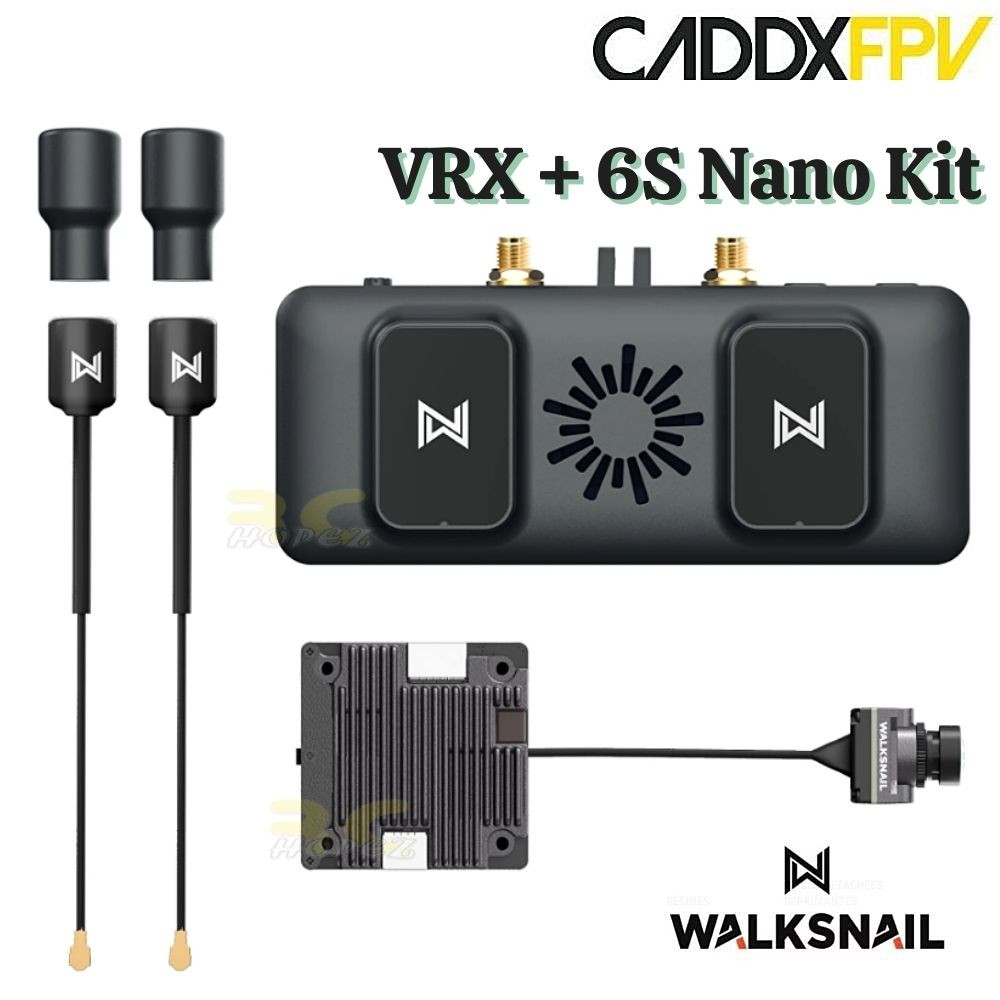

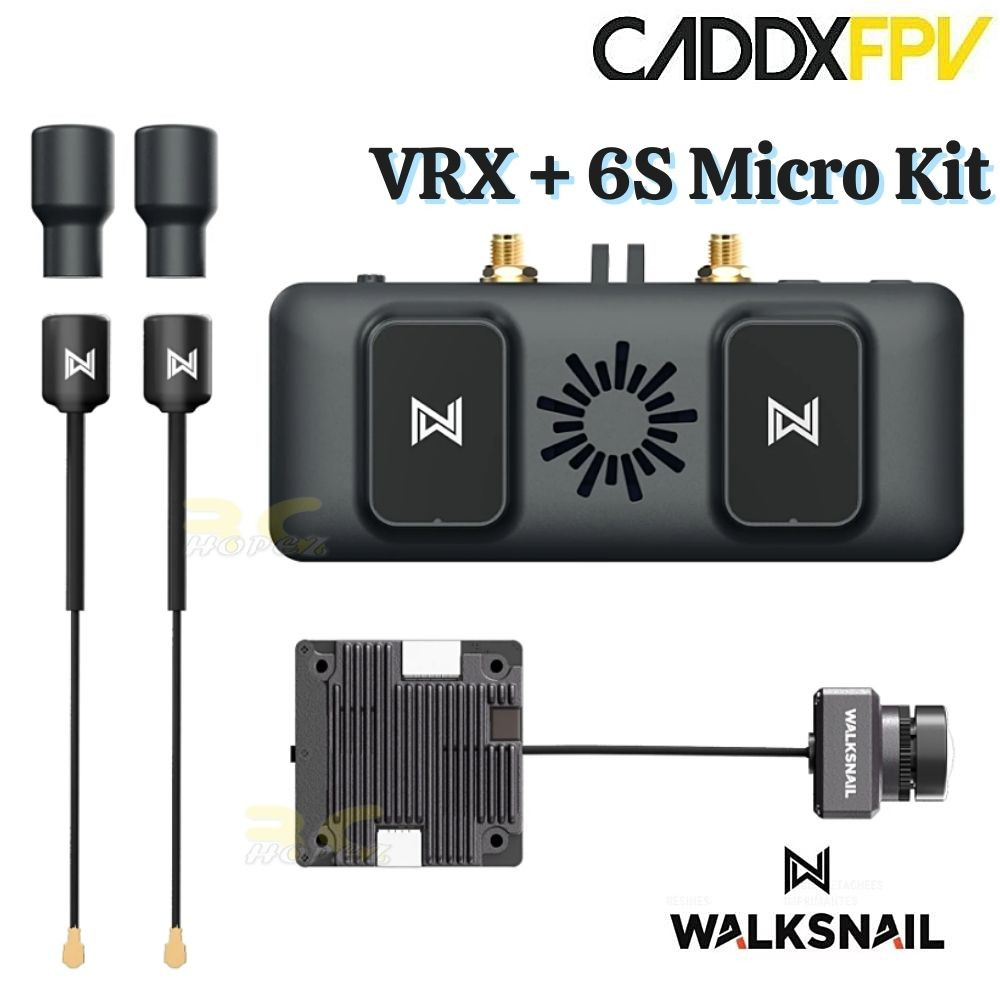

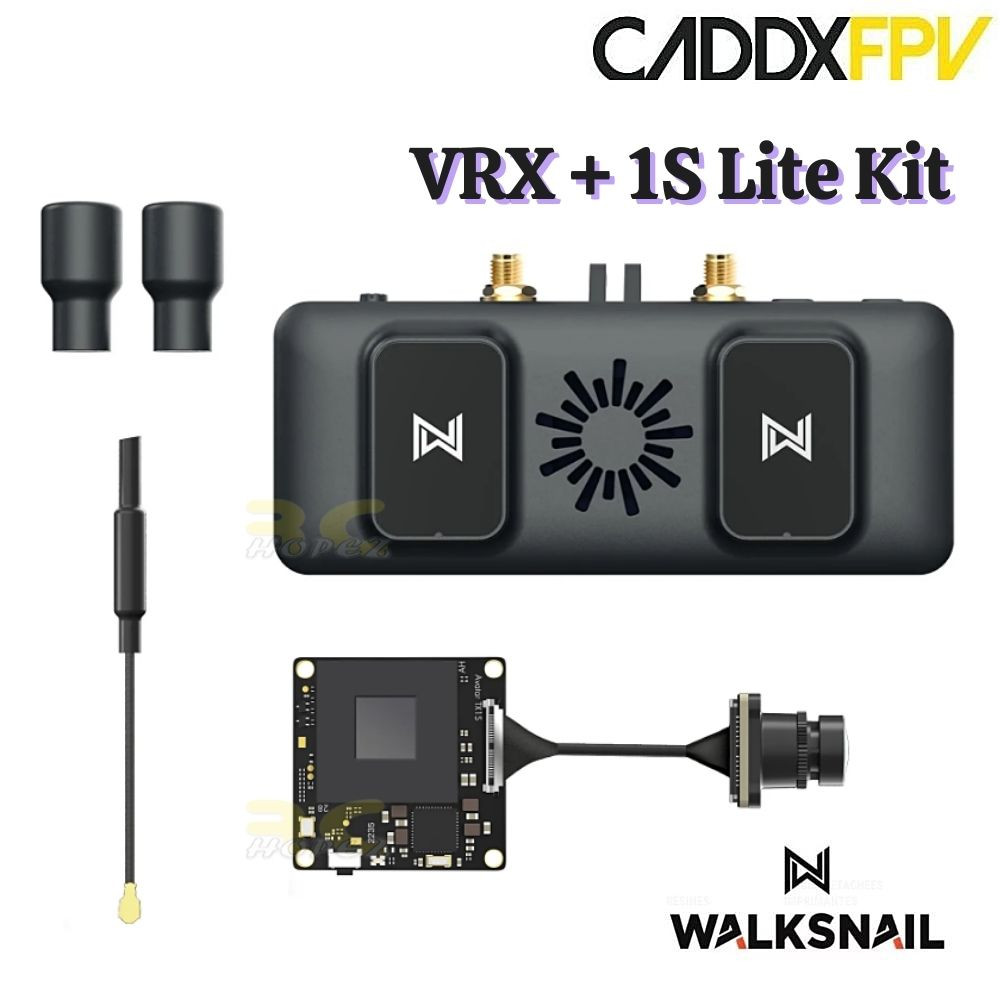

VRX Only, VRX + 1S Lite Kit, VRX + 1S Nano Kit, VRX + 6S Nano Kit, VRX + 6S Micro Kit
