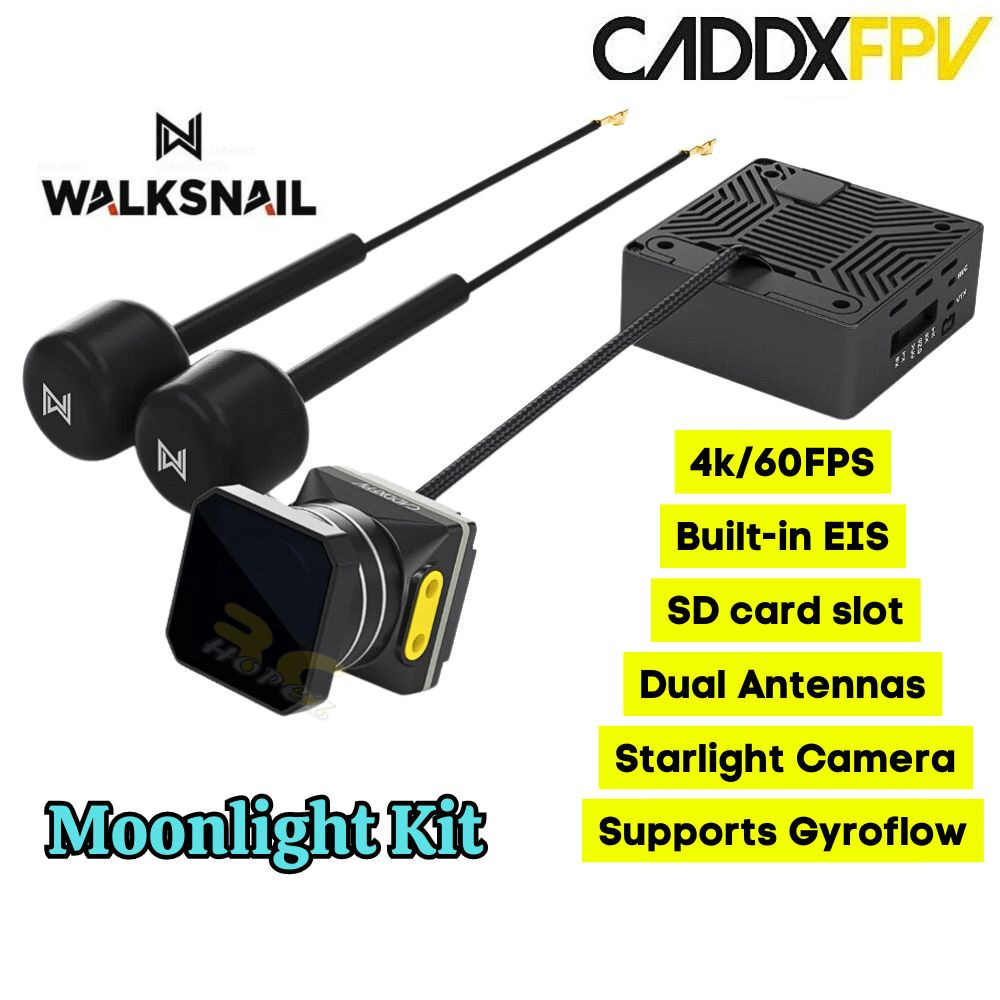

Walksnail Moonlight Kit Supports 4k/60fps & Gyroflow Built-in EIS Dual Antennas 7.4V-25.2V for RC Drone WN-Moonlight Kit

Walksnail Moonlight Kit Supports 4k/60fps & Gyroflow Built-in EIS Dual Antennas 7.4V-25.2V for RC Drone WN-Moonlight Kit

Features
Starlight Camera for low-light
Supports Gyroflow
Dual Antennas
Built-in EIS
7.4V-25.2V
4k/60FPS
Natural 160° FOV
SD card slot

Compatible Goggles/VRX
Walksnail Avatar Goggles X
Walksnail Avatar HD
Fat Shark Dominator Digital HD
Walksnail VRX

Specifications

Moonlight Kit
Model : Moonlight Kit
Firmware Name : AvatarMoonlight_Sky_X.X.X
Communication Frequency : 5.725-5.850GHz
Transmitter Power (EIRP) : FCC:<30dBm; CE:<14dBm; SRRC:<20dBm; MIC:<25dBm
1/O Interface : JST1.0*4(Power in)JST0.8*6(USB)，Micro SD card Slot；IPEX-1
Sensor : Starlight sensor
FOV : Max 160°
Aperture : F2.1
Shutter : Rolling shutter
ISO : 100-25600
Recording resolution : 4K@30/60fps,2.7K@30/60fps,1080p@100/60fps,720p@60fps
Max Mbps : 150Mbps
Video format : MP4 (H.264)
3D DNR : Support
Gyroflow : Support
Built-in EIS : Support
Wide Power Input : 7.4V-25.2V
Power consumption : [email protected], [email protected]
Memory card type : U3 MicroSD, Max 256G

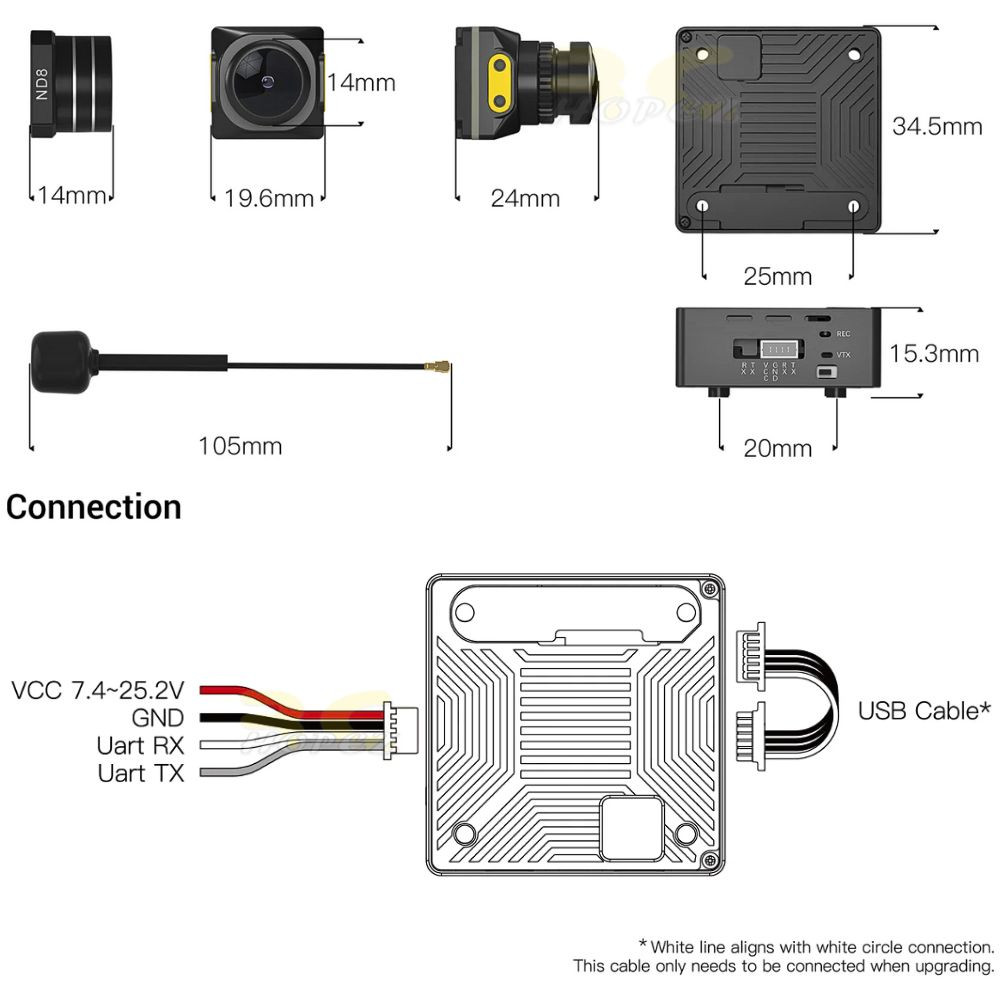

Camera Size : 19.6mm*19mm*24mm
VTX Size : 15.3mm*34.5mm*34.5mm
VTX Installation hole distance : 20*20mm/25*25mm (M2)
Weight : Gross weight: 38.5g(Antenna not included)
OSD : Canvas mode
Latency : Average delay 22ms
Antenna : 2 (IPEX)

Moonlight Camera
Firmware Name : AvatarMoonlight_Sky_X.X.X
Sensor : 1/1.8”Inch
FOV : 160°
Aperture : F2.1
ISO : 100-25600
Recording resolution : 4K@30/60fps; 2.7K@30/60fps;
1080p@100/60fps;720p@60fps
Max Mbps : 150Mbps
Video format : MP4 (H.264)
Shutter : Rolling shutter
3D DNR : Support
Gyro flow : Support
Built-in ElS : Support
Wide Power input : 7.4V-25.2V
Memory card type : Micro SD, Max 256G
Power consumption : [email protected]+0.1A
Dimensions : Camera:19.5mm*19mm*24mm REC Board: 34.5mm* 34.5mm*8.3mm
Weight : Camera(without wire): 8.9g;Recording board: 10g
Filter: ND8

VTX Antenna
Model : Avatar V2 Antenna
Polarization : LHCP
Frequency range : 5600MHz-6000MHz
Average Gain : 1.9dBi
VSWR : ＜1.5
Input Impedance : 50Ω
Interface : IPEX-1
Dimension : R15 X 45mm （without cable）
Weight : 2g

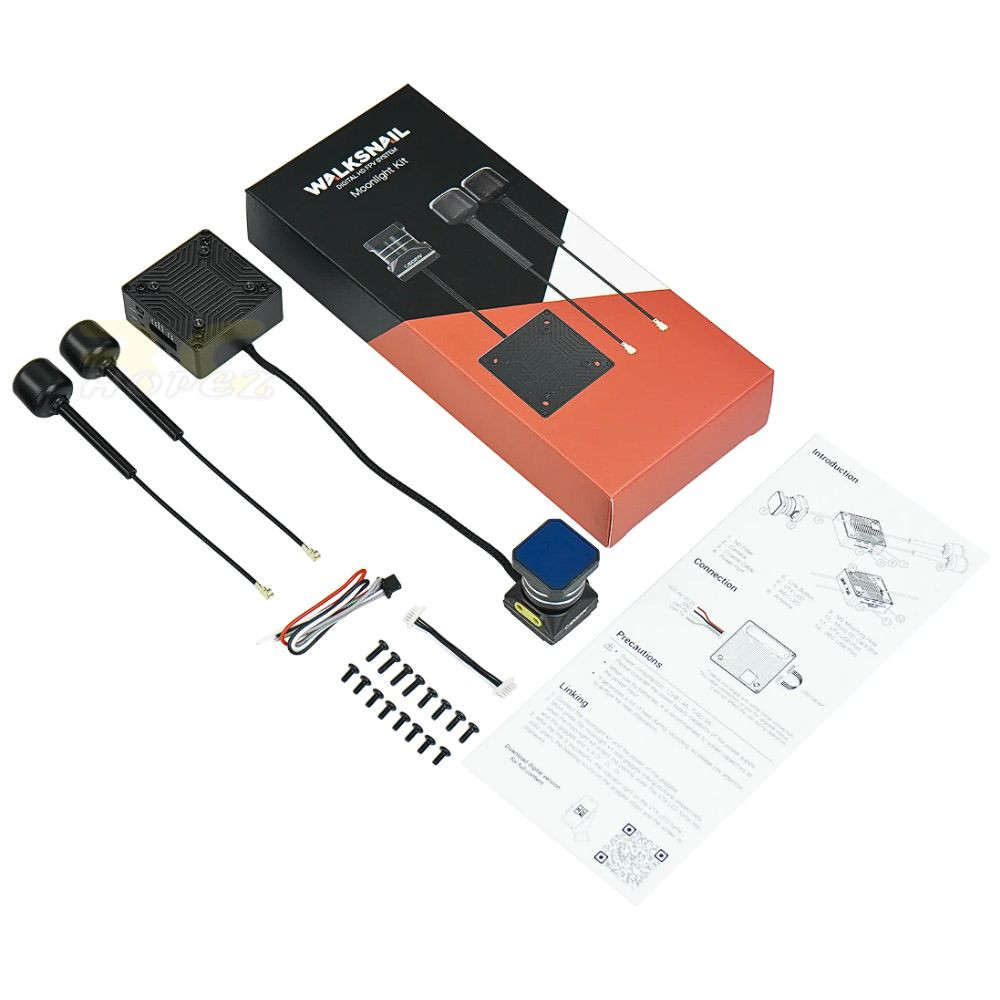

Includes

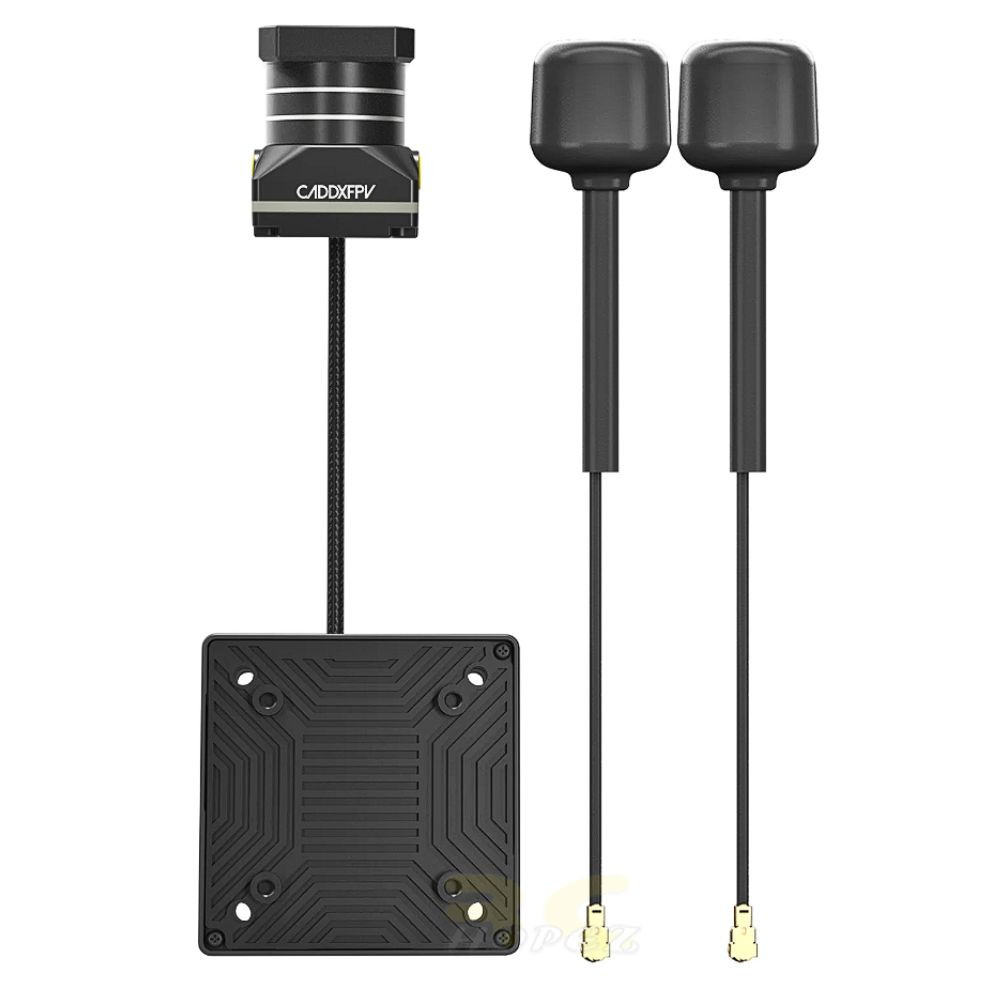

1x Walksnail Moonlight Kit w/ VTX Unit + Camera
1x Mounting Hardware
1x Wire Harness

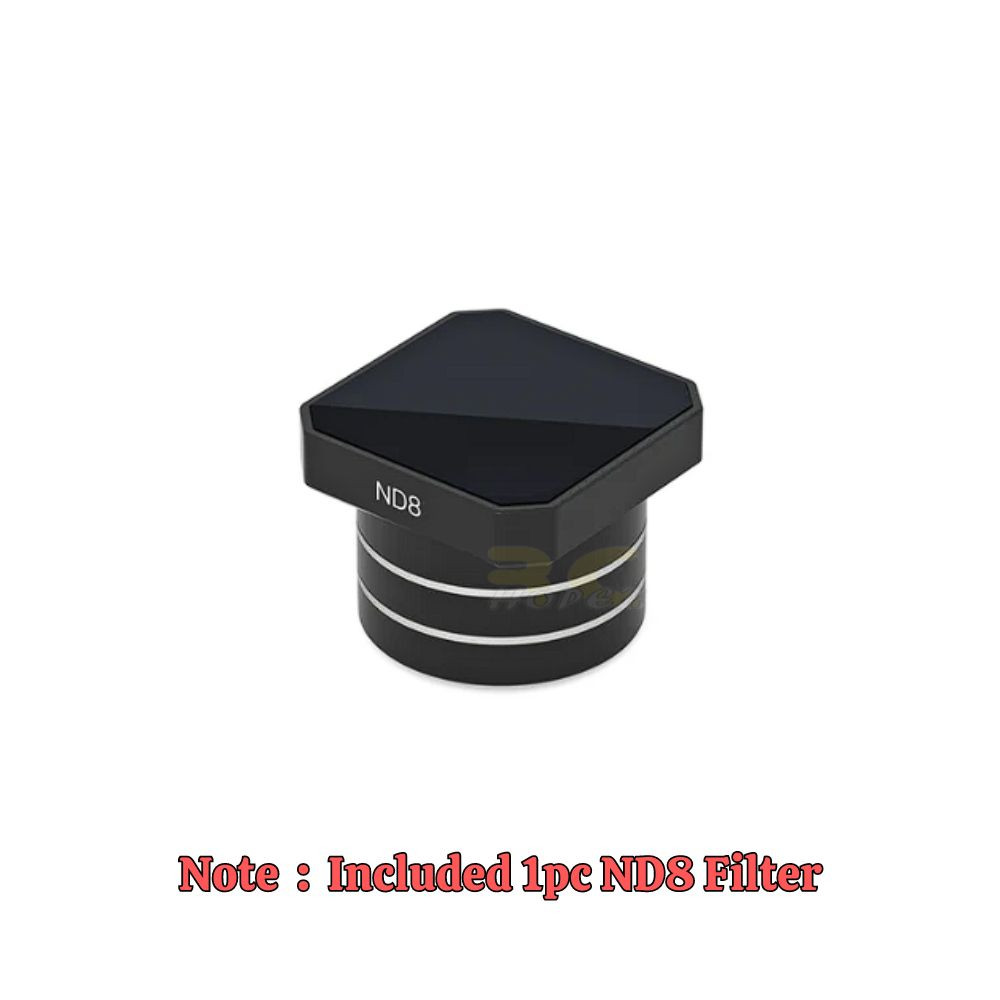

1x ND8 Filter
2x Antenna
1x Manual

Q: Can moonlight vtx use other WS cameras?
A: No, but other vtx can use moonlight camera

Q: Where to download the manual?
A:  You can check it on the Download Center page.

Q: How to install the Moonlight Camera (With video board) on other VTX?
A: View Moonlight Camera Installation Guide,  compatible with VTX V2 Module, Mini VTX V3 Module, Mini 1s And Mini 1s Lite Module.
