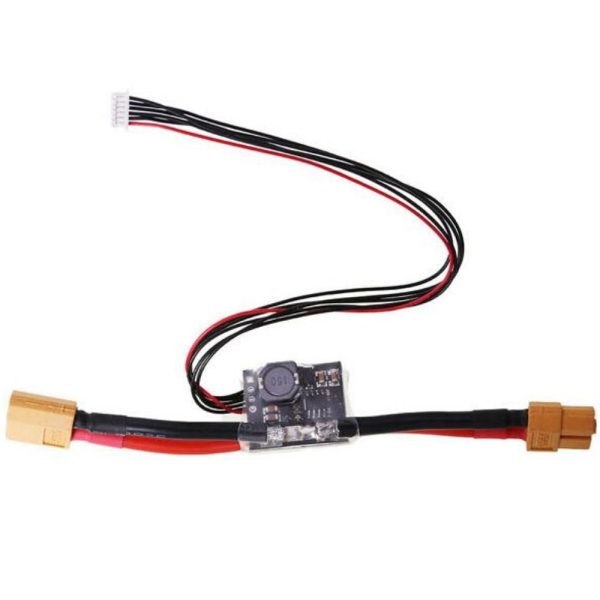

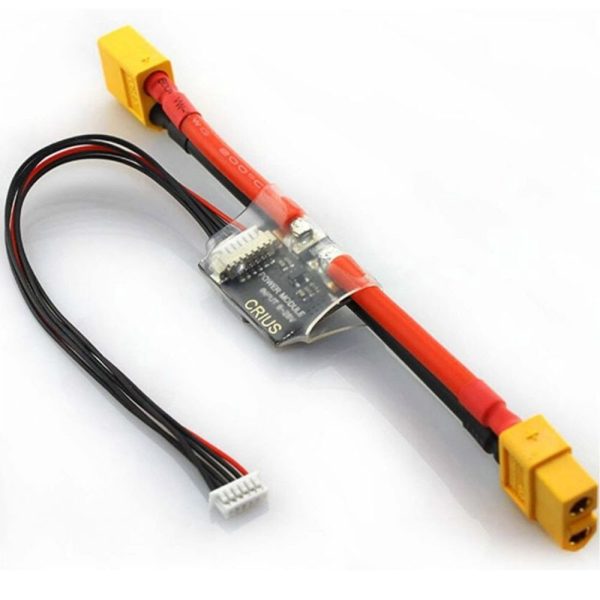

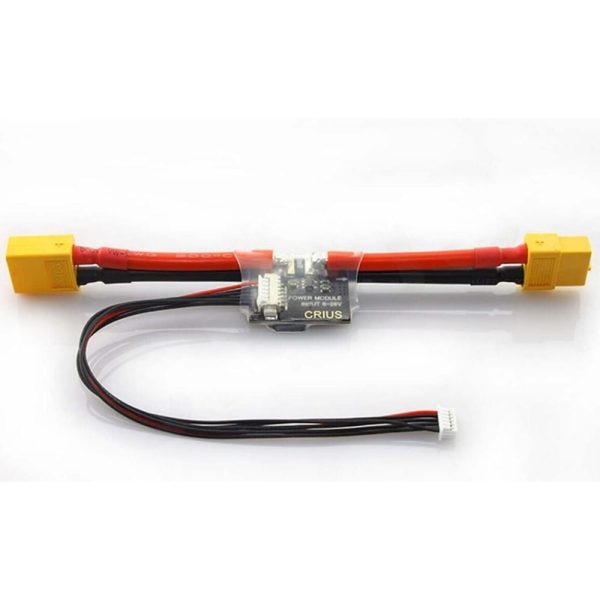

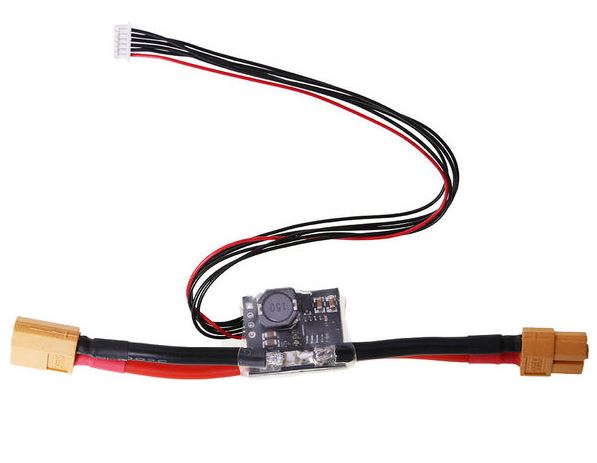

CRIUS Power Module 6-28V for Pixhawk APM2.8 APM2.6 APM Flight Controller With XT60 Connector QA553

CRIUS Power Module 6-28V for Pixhawk APM2.8 APM2.6 APM Flight Controller With XT60 Connector QA553

Features:

Power Module is a simple way of providing your APM/Arduflyer with clean power  from a LiPo battery as well as current consumption and battery voltage  measurements, all through a 6P cable. The on-board switching regulator outputs  5.3V and a maximum of 3A from up to a 7S LiPo battery.

Note: The Power Module is only designed to power APM/Arduflyer, a RC receiver  and accessories (GPS, Radio telemetry). It is not designed to power servos. Use  your aircraft’s own ESC/BEC for that.

Input voltage: 6~28V

• Max current sensing: 90A

• Voltage and current measurement configured for 5V ADC

• Switching regulator outputs 5.3V±0.1V and 3A max

• 6P molex cable plugs directly to APM/Arduflyer 2.5’s ‘PM’ connector

• Dimension(mm): 25 x 21 x 9
• Weight(g): 17(include all wire)


Package included :

1 x CRIUS Power Module 6-28V for Pixhawk APM2.8 APM2.6 APM Flight Controller With XT60 Connector
