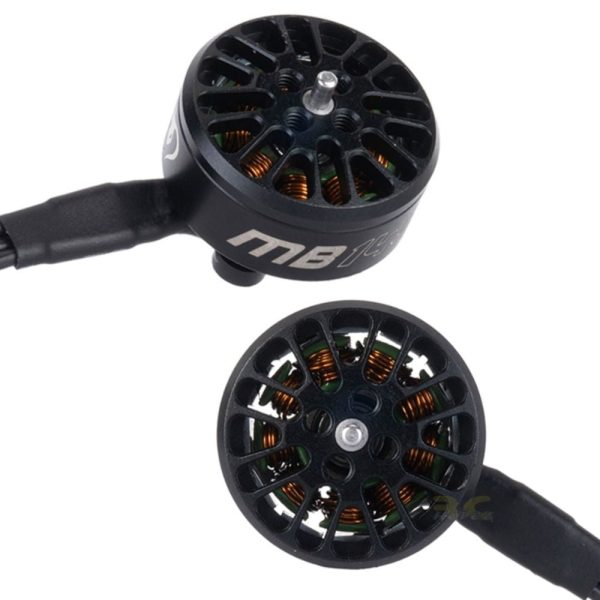

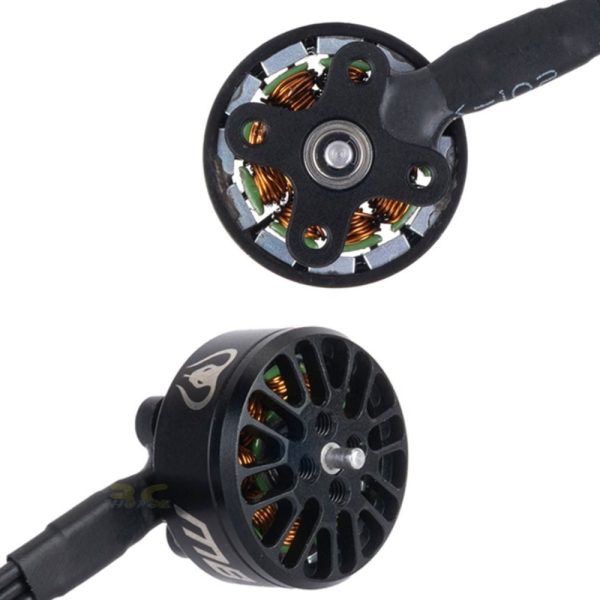

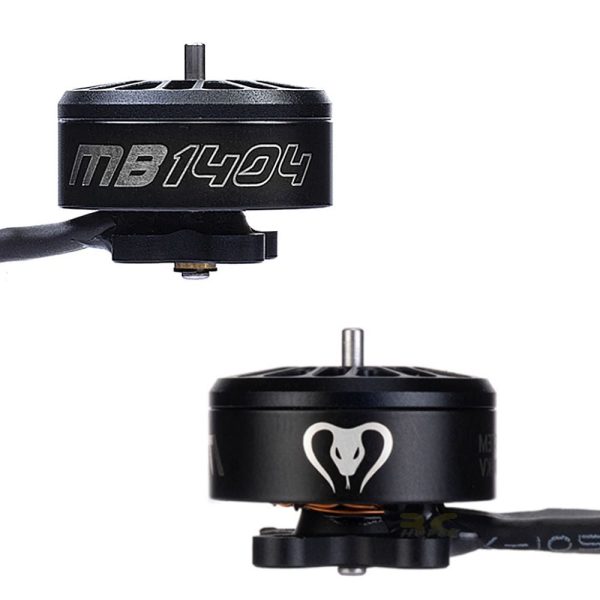

Diatone Mamba 1404 3000KV 3-4S Brushless Motor for LR Long Range Roma F4 FPV Racing X4pcs M1404-30

RM190.00

Out of stock

SKU: M1404-30 Category:

Diatone Mamba 1404 3000KV 3-4S Brushless Motor for LR Long Range Roma F4 FPV Racing X4pcs M1404-30

Specification:

Item Name: MAMBA 1404 3000KV Brushless Motor

Overall Dimension: Φ19×12.5mm
Prop Mounting Shaft Diameter: 1.5mm
Installation Hole Position: 12×12mm,M2
Prop: 2.5Inch~4Inch (Toothpick)
Bearing: 5*2*2.5
Shaft Diameter: 2mm
Lead Wire Size: 24AWG ×150mm
Configuration: 9N12P
Magnet Wire: Class C,220℃ Enameled Wire
Stator Diamter: 14mm
Stator Height: 4mm
Rated Voltage: 3S~6S (12.6V~16.8V)
Peak Current: 12.32A
Maximum Power: 286.8W

Package Included:

4 x DIATONE MAMBA 1404 3000KV 3-6S Brushless Motor

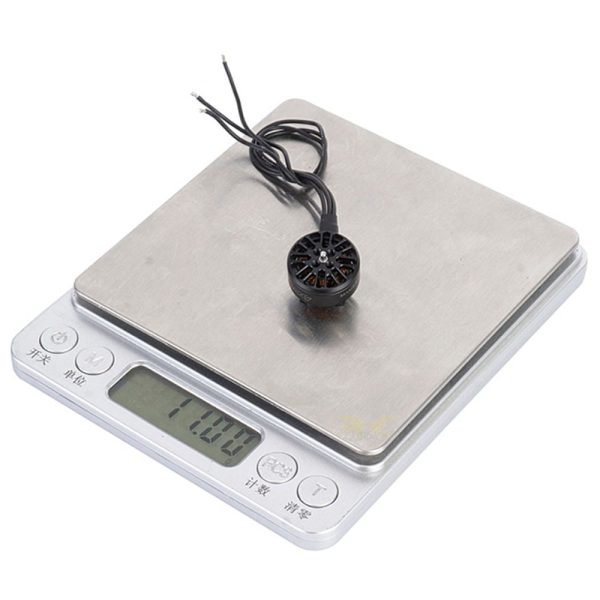

Weight 0.15 kg
Dimensions 8 × 8 × 5 cm
