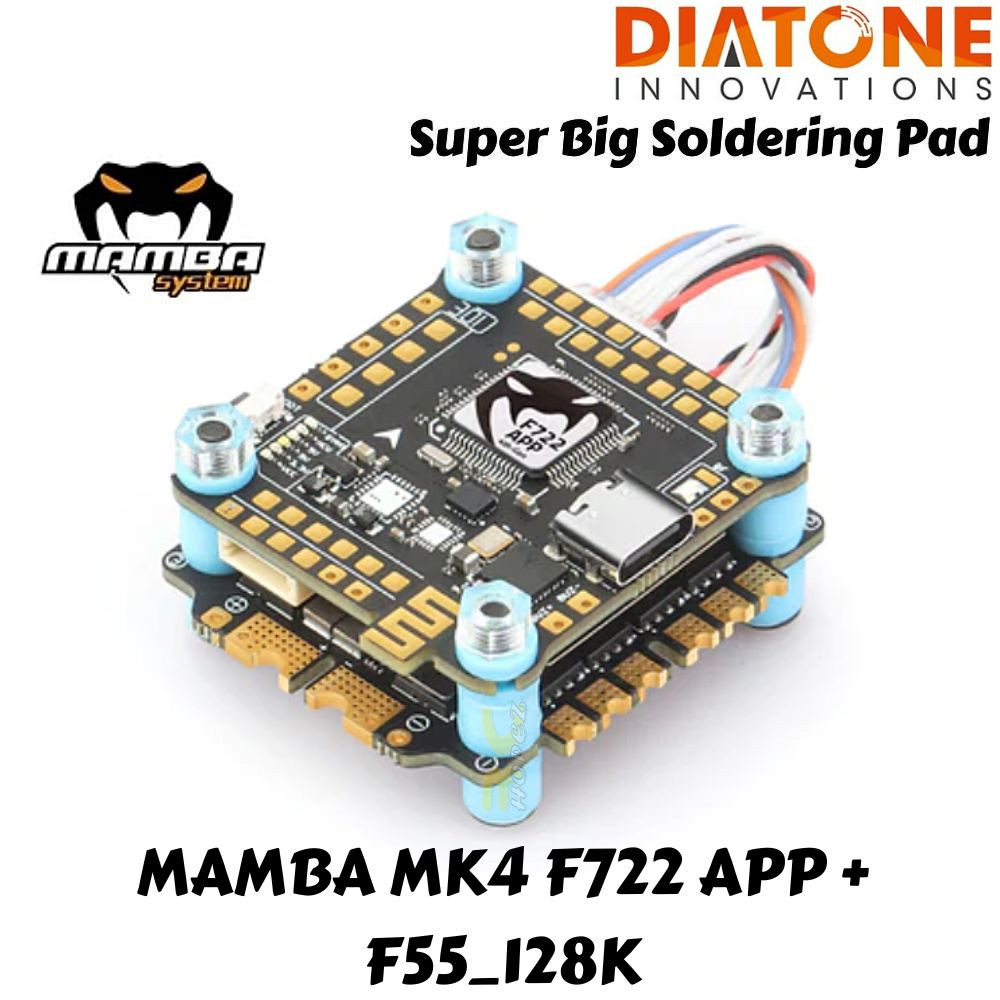

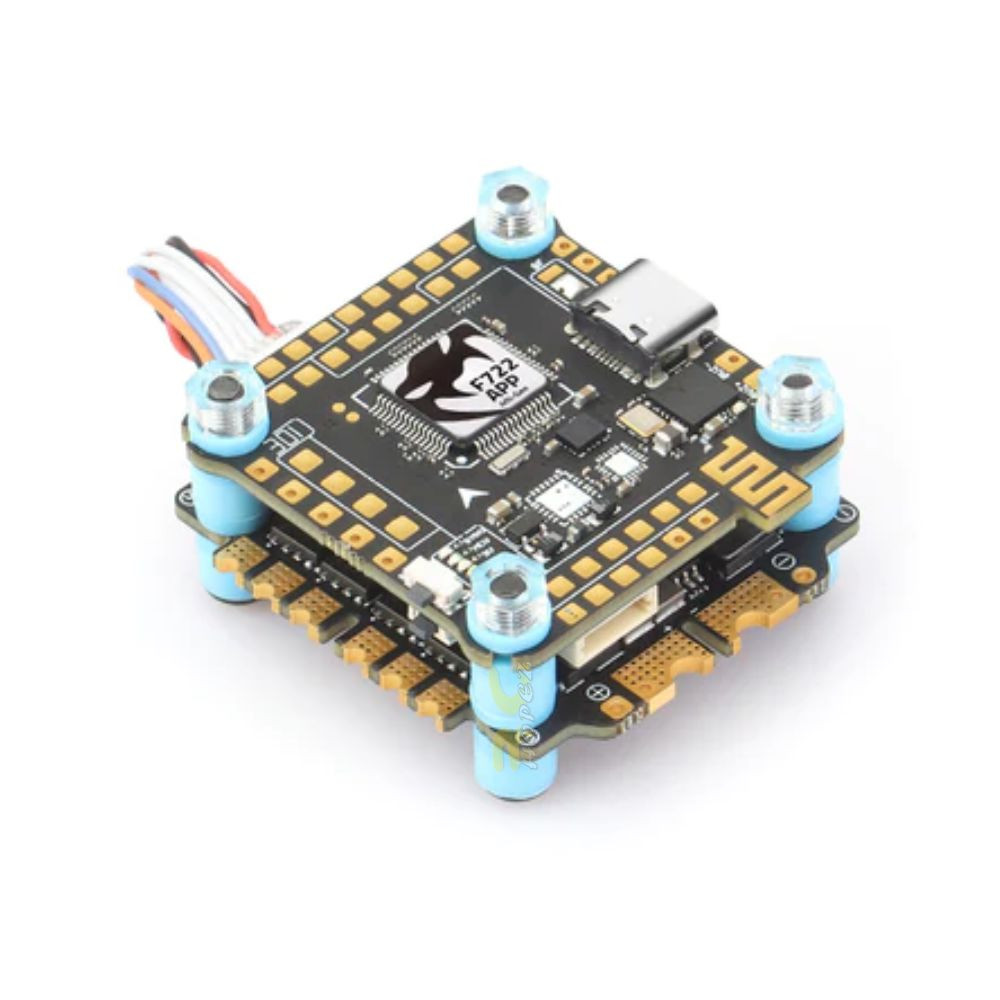

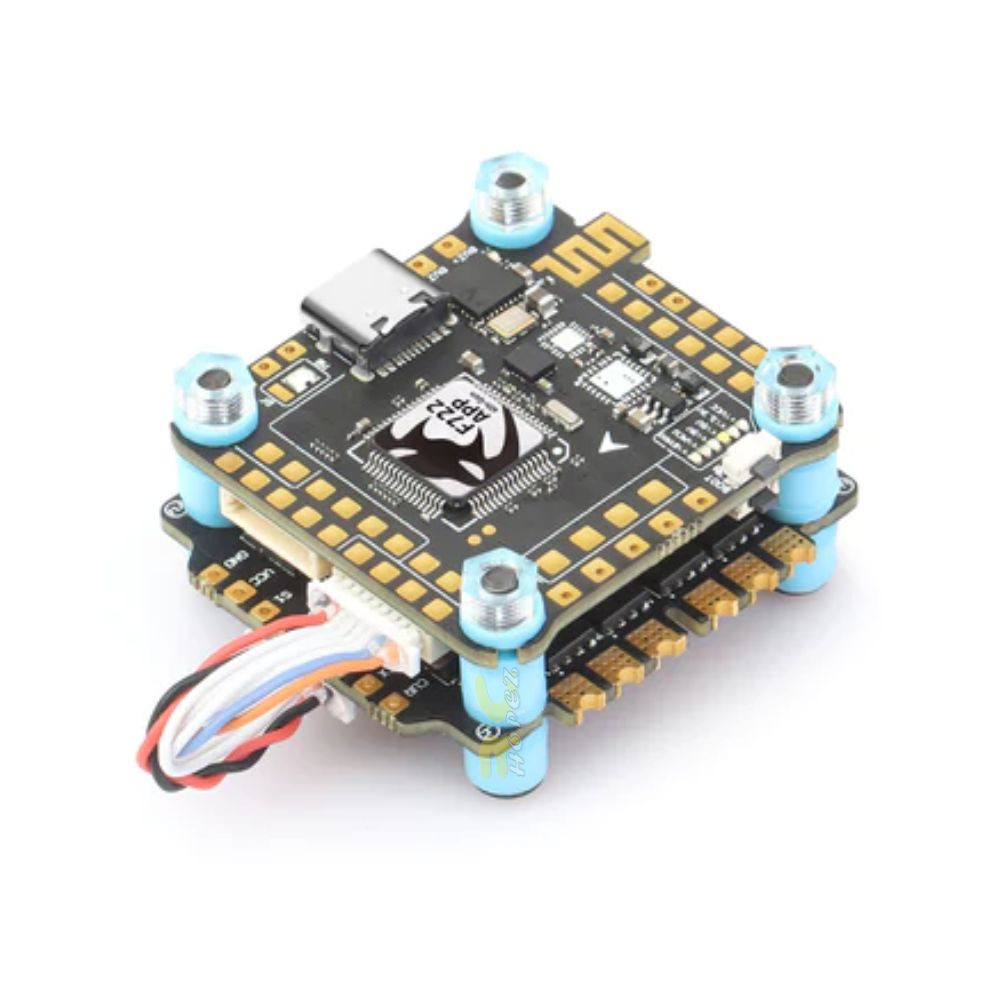

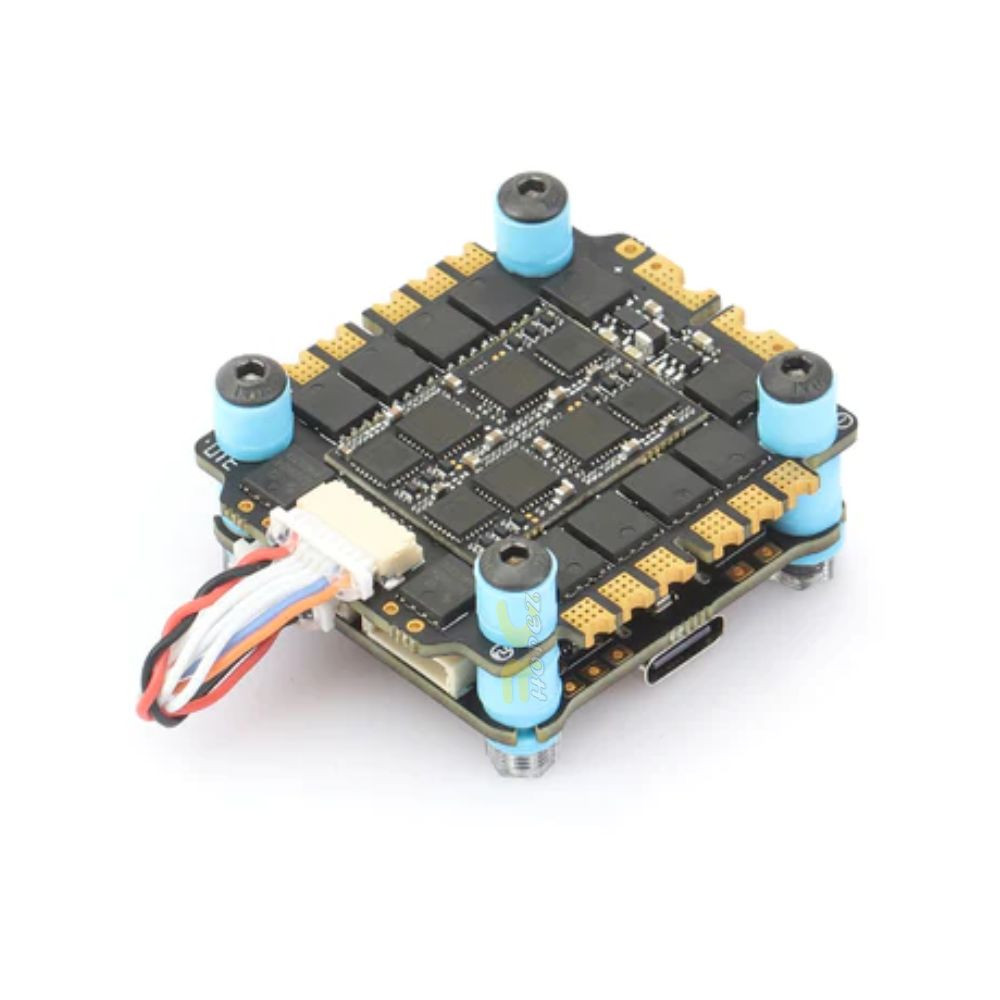

Diatone MAMBA (30.5×30.5) MK4 F722 APP + F55_128K 3-6S Blheli_32 Dshot300/600/1200 Stack M-60875

Diatone MAMBA (30.5×30.5) MK4 F722 APP + F55_128K 3-6S Blheli_32 Dshot300/600/1200 Stack M-60875

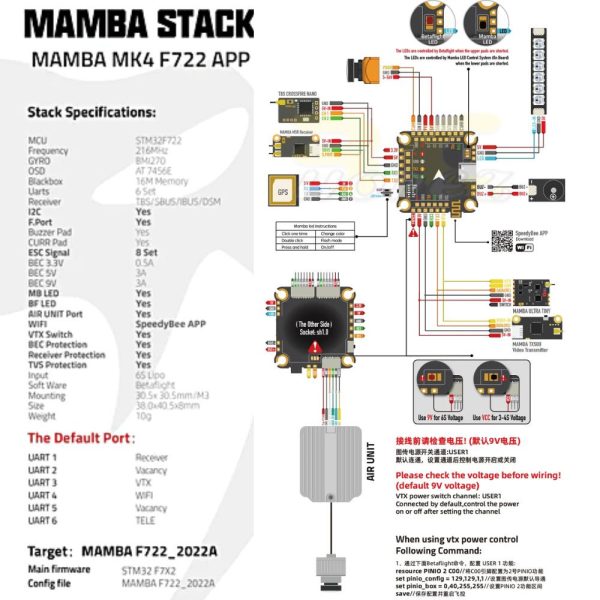

FC Specifications

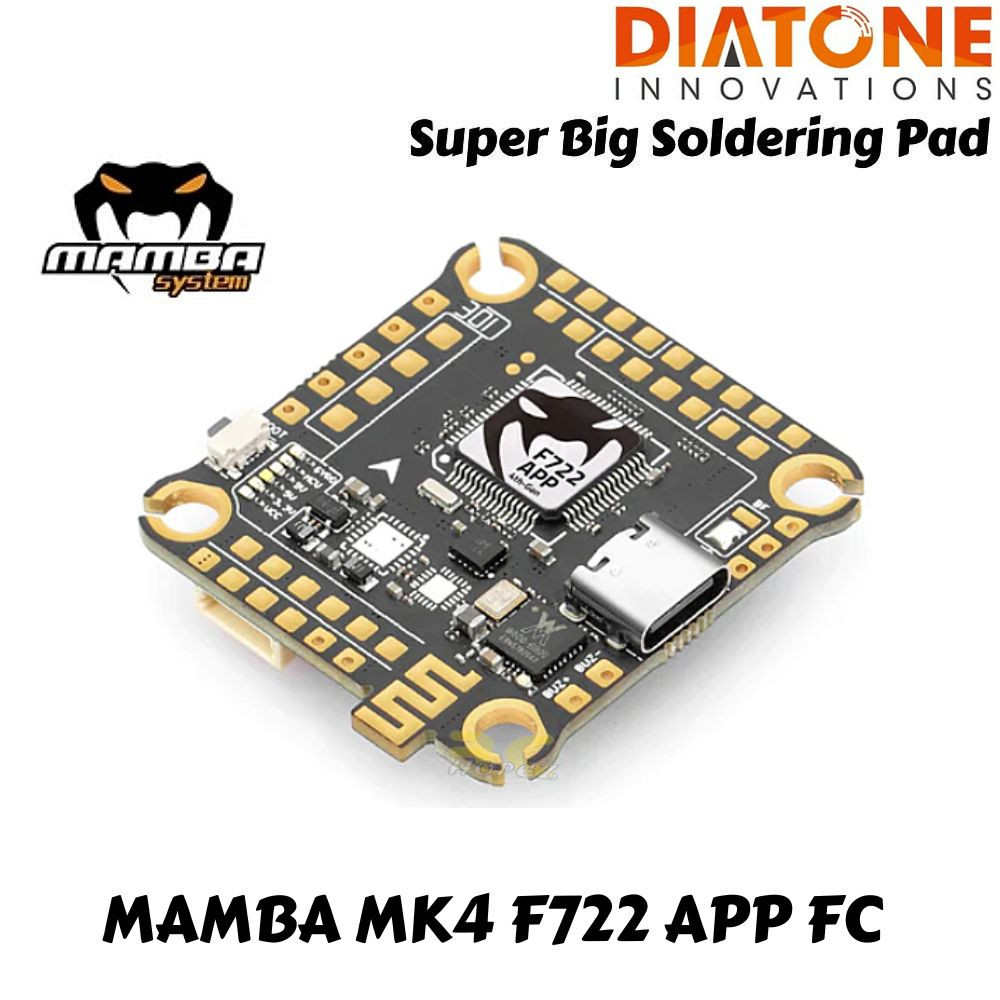

MAMBA MK4 F722 APP
MCU: 216MHz STM32F722
GYRO: BM1270
Barometer: Yes
OSD:AT 7456E
Blacbox: 16M Memory
Uarts: 6Set
ESC Signal:8Set
ESC Soft: Dshot300/600/1200
ESC Telemetry: Yes
Power Led: Yes
LED Controller:BF LED/MB LED（4 Set 2812 LED）
F.Port: Yes
Buzz: Yes
Input: 6S Lipo (25.2V)
TVS Protection: Yes

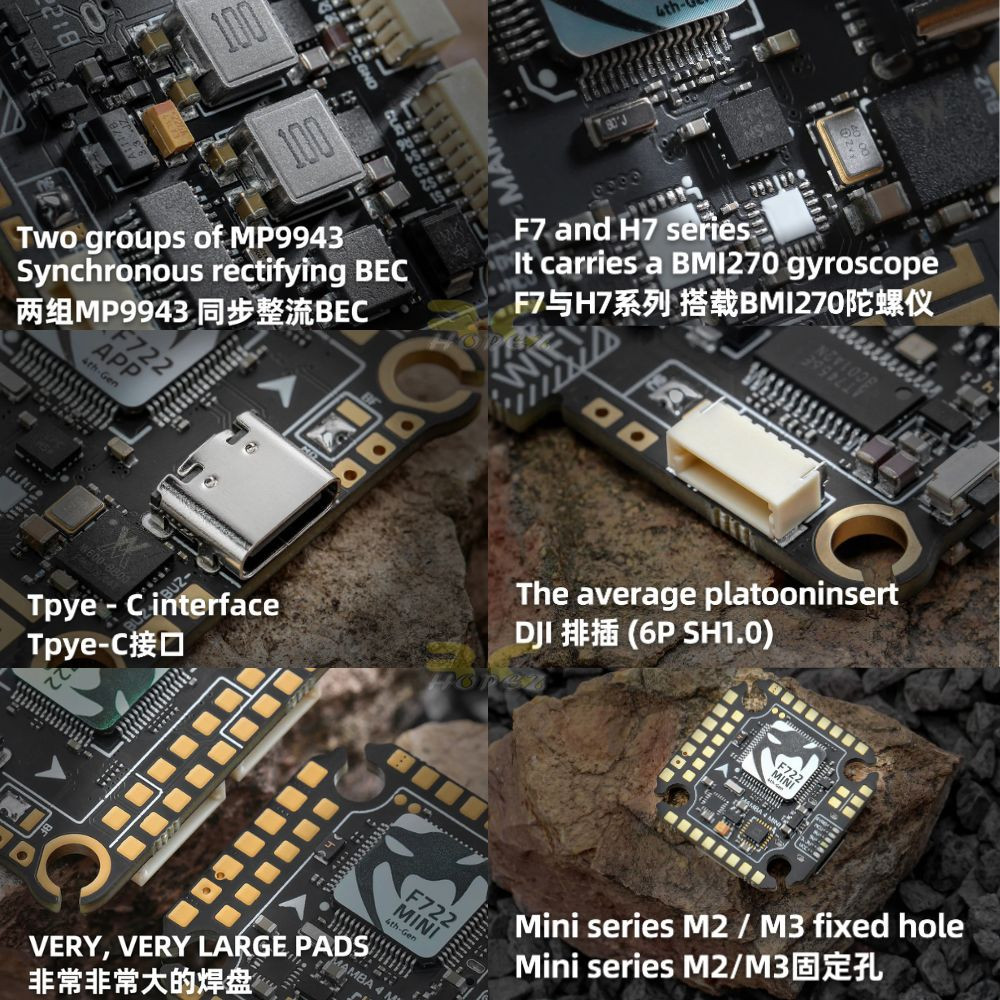

BEC:3.3V 0.5A& 5V 3A & 9V 3A
MOUNTING:30.5X30.5mm,M3

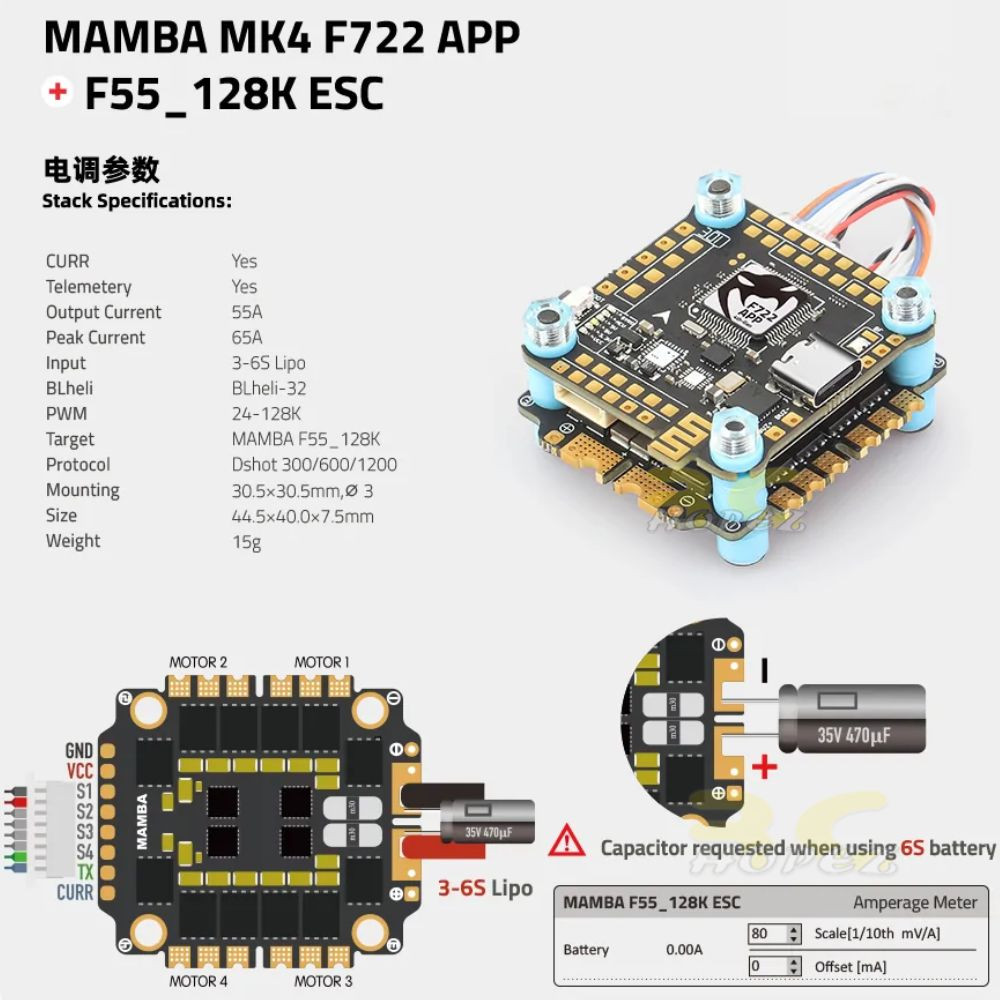

ESC Specifications

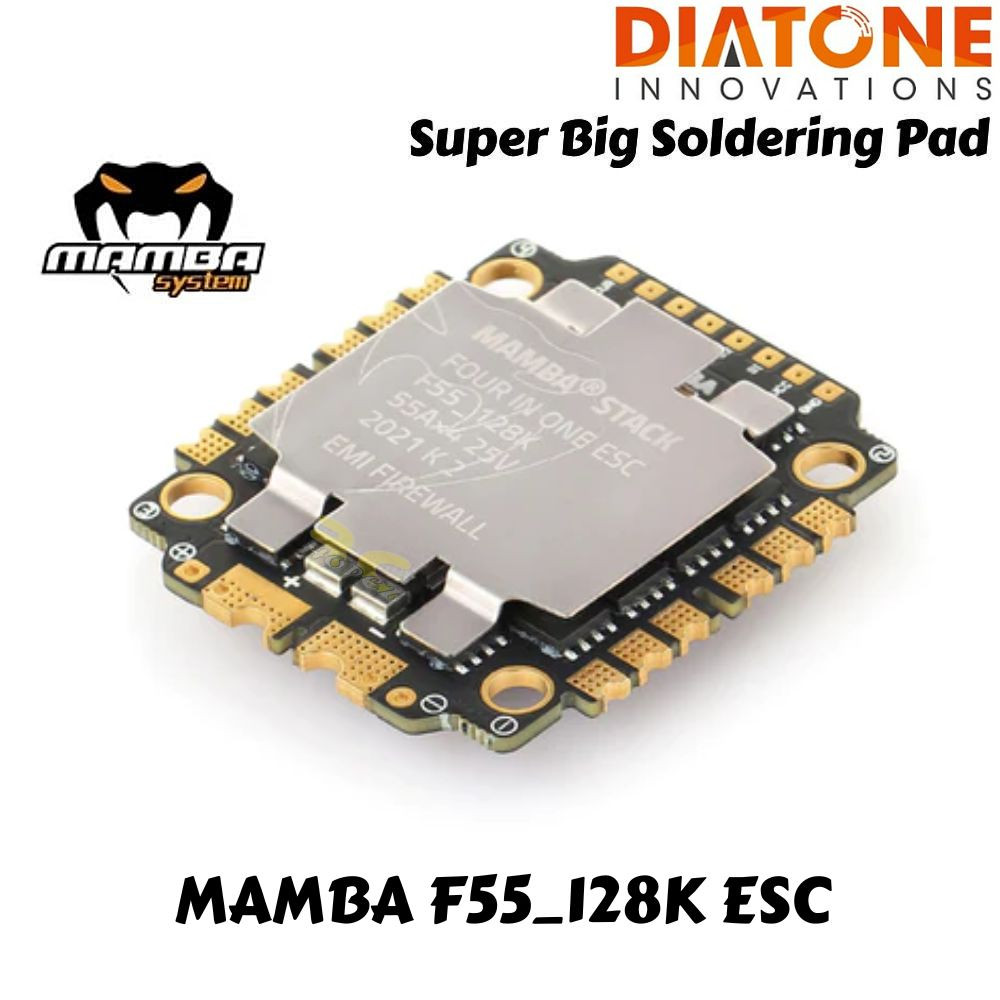

MAMBA F55_128K
INPUT VOLTAGE: 3~6S Lipo (12.6V~25.2V)
CONTINUE CURRENT:55A×4
BURST CURRENT:65A (10S)
BEC: No
Target: MAMBA F55_128K
SOFT: Dshot300/600/1200
PWM: 24~128K
TVS Protection: Yes
MOUNTING: 30.5X30.5mm/M3

Package Included (Option):

FC
1x MAMBA MK4 F722 APP FC
1 x High-Frequency 470uF/35V
1 x M3 Screw Set
2 x 8pin sh1.0
1 x M3 FC Damping Silicone Standoff  Set

OR

ESC
1x MAMBA F55_128K ESC
1 x 8pin sh1.0
1 x 12Awg Set
1 x AMASS XT60 For ESC
1 x M3 FC Damping Silicone Standoff  Set
1 x M3 Screw Set

OR

FC+ESC
1x MAMBA MK4 F722 APP FC
1x MAMBA F55_128K ESC
1 x High-Frequency 470uF/35V
1 x M3 Screw Set
2 x 8pin sh1.0
1 x 12Awg Set
1 x AMASS XT60 For ESC
1 x M3 FC Damping Silicone Standoff  Set
