Diatone MAMBA (20×20) MK4 F722 MINI + F55/F65-128K BL32 MINI ESC 6S 32bit Dshot300/600/1200 Stack M-60897

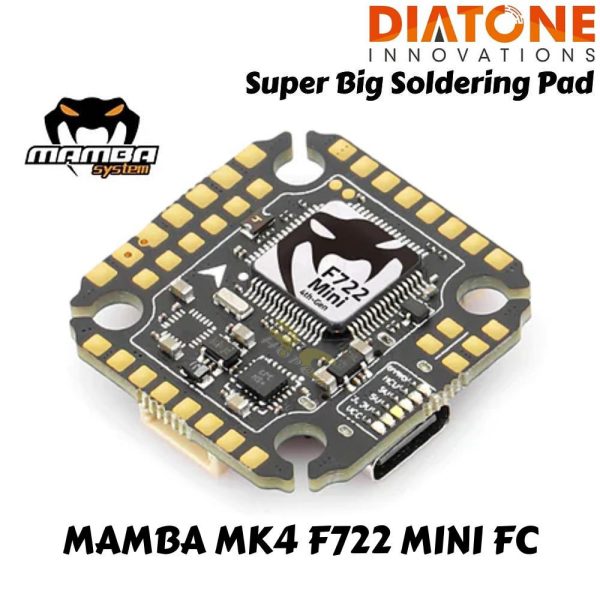

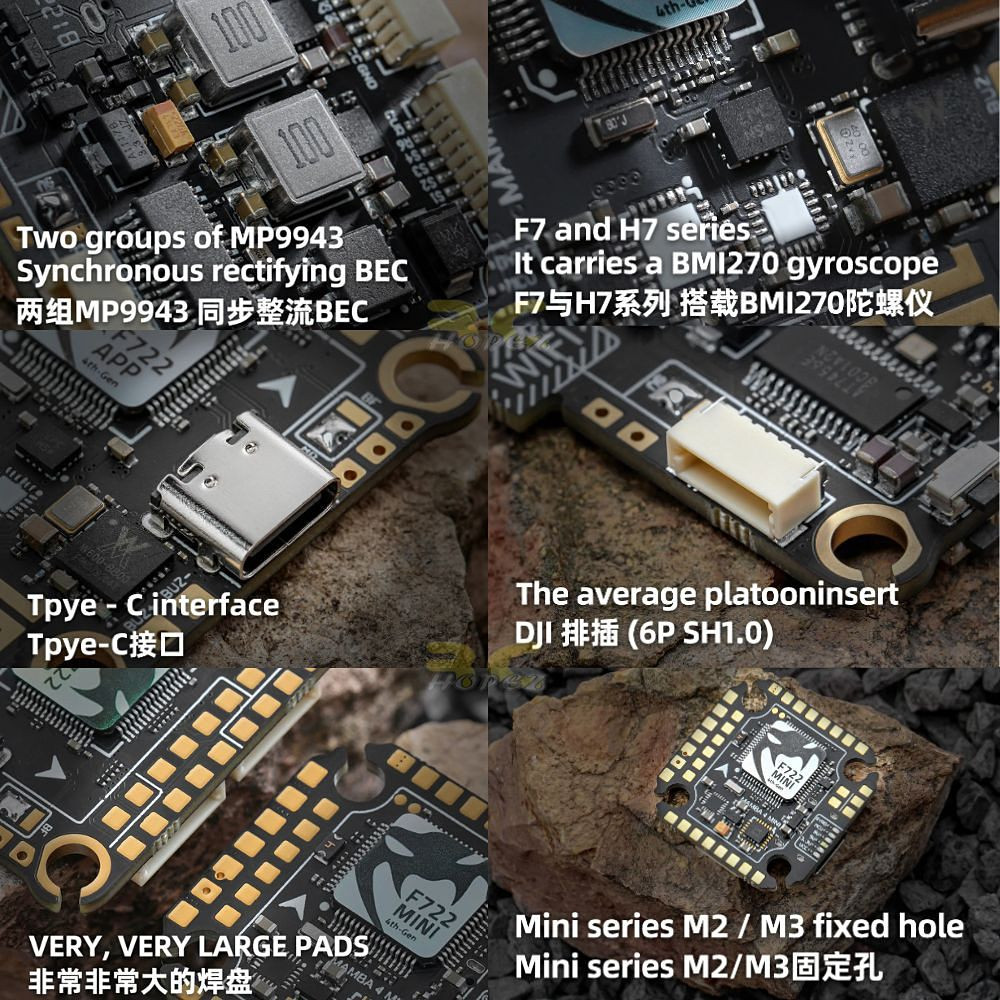

FC Specifications
MAMBA MK4 F722 MINI
MCU: 216MHz STM32F722
GYRO: BM1270
Barometer: Yes
OSD: AT7456E
Blacbox: 16 Memory
Uarts: 6 Set
ESC Soft: Dshot300/600/1200
Power Led: Yes
LED Controller: BF LED
F.Port: Yes
RSSI: No
Buzz: Yes
Input: 6S Lipo (25.2V)
TVS Protection: Yes
BEC:3.3V 0.5A& 5V 2.5A /9V 2A
MOUNTING: 20X20mm,M3/M2

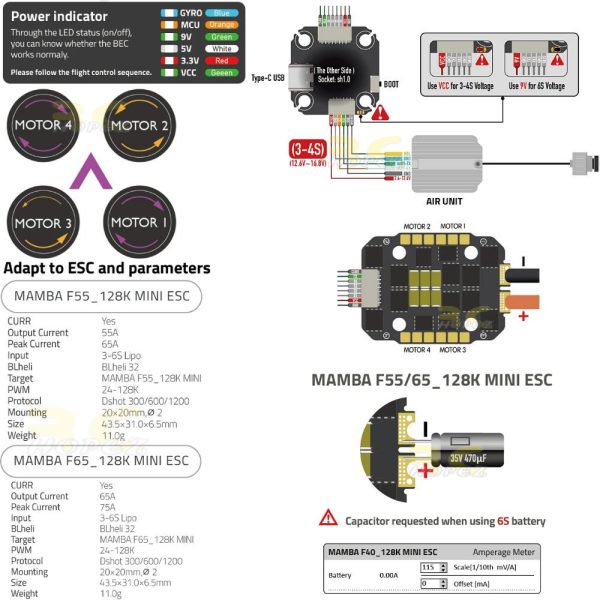

ESC Specifications

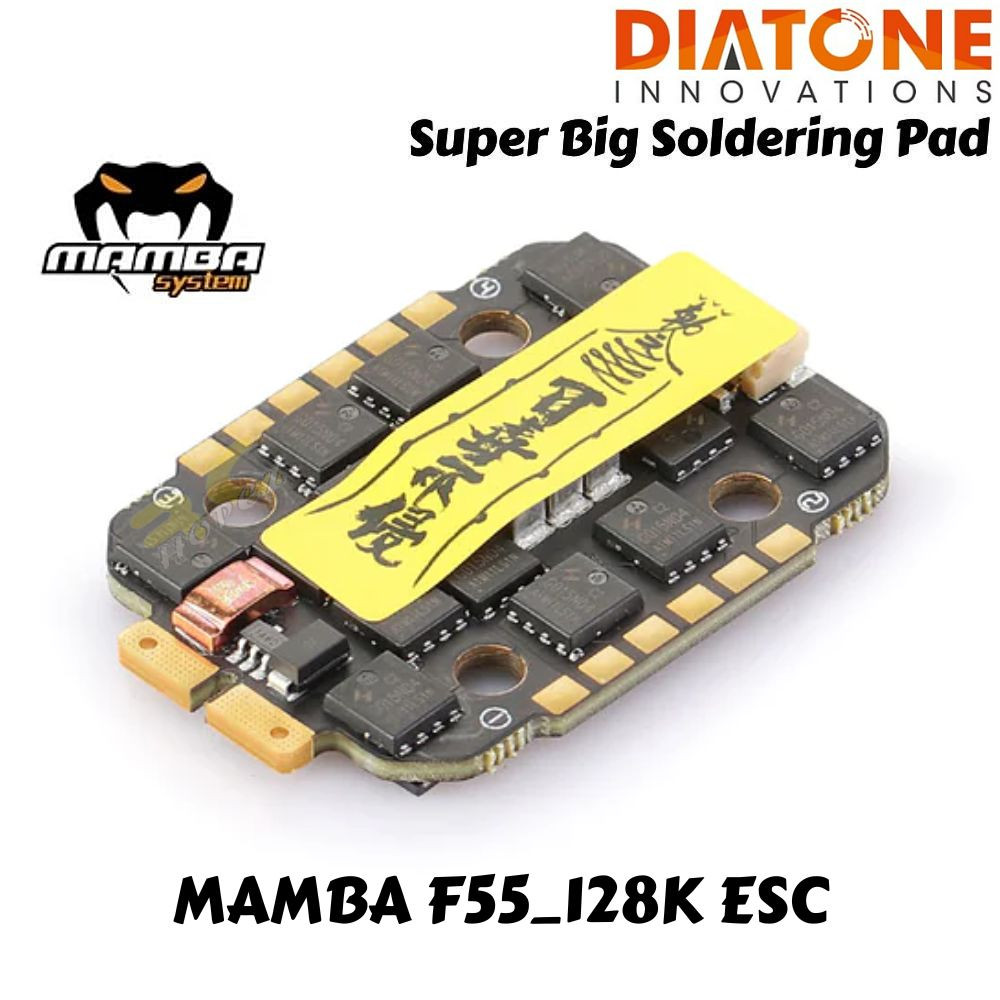

MAMBA F55-128K BL32 MINI
INPUT VOLTAGE: 3-6S Lipo (25.2V)
CONTINUE CURRENT: 55A×4
BURST CURRENT: 65A (10S)
BEC: No
SOFT: Dshot300/600/1200
TVS Protection: Yes
MOUNTING: 20X20mm,M2
Target：BLHeli_32 MAMBA F55_128K MINI
OR

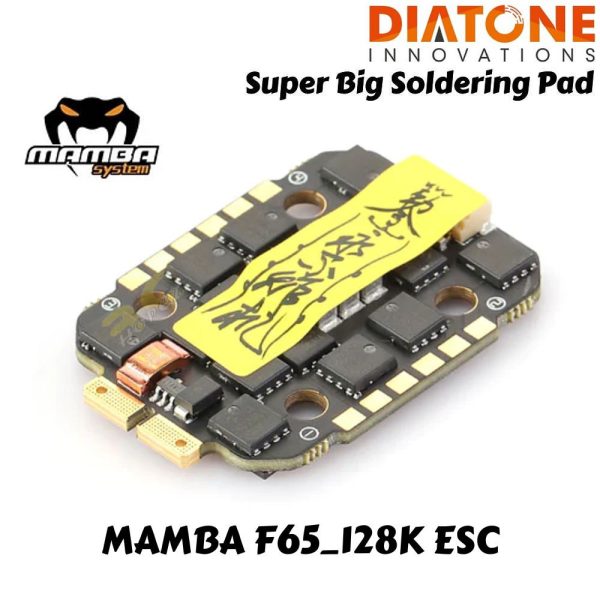

ESC Specifications
MAMBA F65-128K BL32 MINI
INPUT VOLTAGE: 6S Lipo (25.2V)
CONTINUE CURRENT: 65A×4
BURST CURRENT: 75A (10S)
BEC: No
SOFT: Dshot300/600/1200
TVS Protection: Yes
MOUNTING: 20X20mm,M2
Target：BLHeli_32 MAMBA F65_128K MINI
Package Included (Option):
FC
1 x MAMBA MK4 F722 MINI FC
1 x High-Frequency 1000uF/35V
1 x M2 Screw Set
2 x 8pin sh1.0
1 x 6pin AirUnit Cable
1 x M2 FC Damping Silicone Standoff Set
OR
ESC
1 x MAMBA F55/F65_128K MINI ESC (Optional)
1 x 8pin sh1.0
1 x 12Awg Set1 x 12Awg Set
1 x AMASS XT60 For ESC
1 x High-Frequency 1000uF/35V
1 x M3 FC Damping Silicone Standoff Set
1 x M3 Screw Set
OR

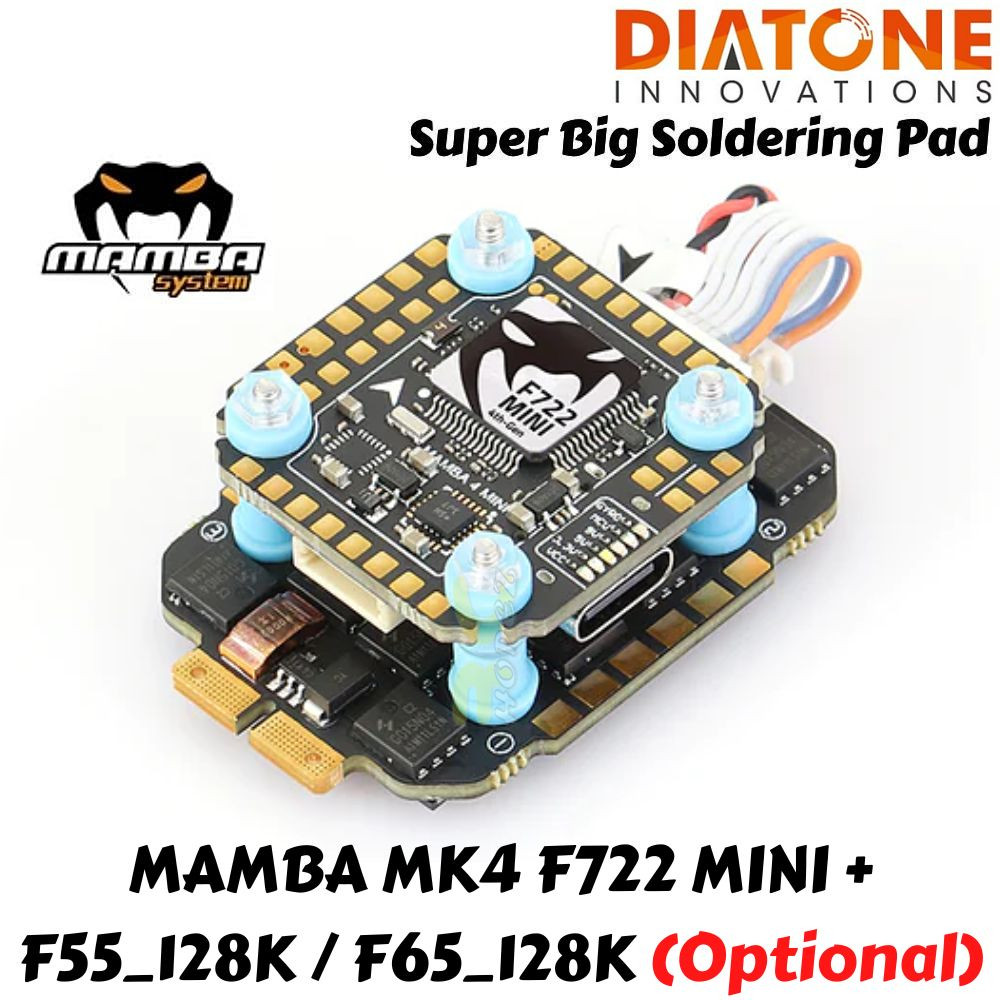

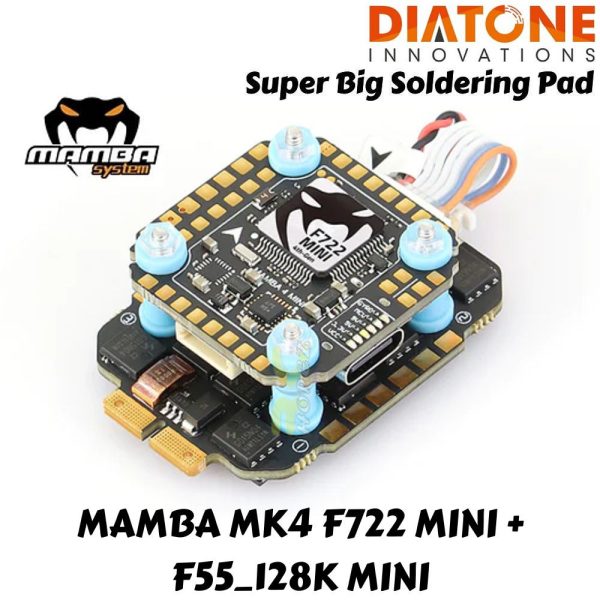

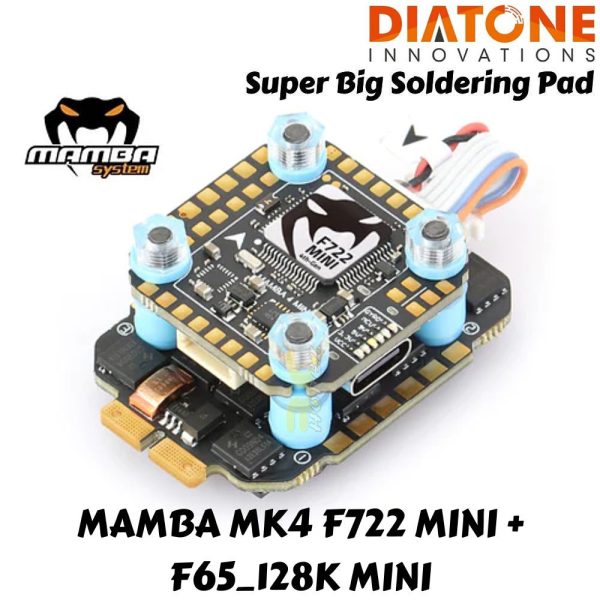

FC+ESC
1 x MAMBA MK4 F722 MINI FC
1 x MAMBA F55/F65_128K MINI ESC (Optional)
1 x High-Frequency 1000uF/35V
1 x M2/M3 Screw Set
2 x 8pin sh1.0
1 x 6pin AirUnit Cable
1 x 12Awg Set
1 x AMASS XT60 For ESC
1 x M2/M3 FC Damping Silicone Standoff Set
