Diatone Mamba TOKA 1404 3000KV 3-6S Brushless Motor for 2.5inch~4inch (Toothpick) FPV Racing (1Pc) TOKA1404-30

Diatone Mamba TOKA 1404 3000KV 3-6S Brushless Motor for 2.5inch~4inch (Toothpick) FPV Racing (1Pc) TOKA1404-30

Specification:

Mamba TOKA 1404 3000KV Brushless Motor

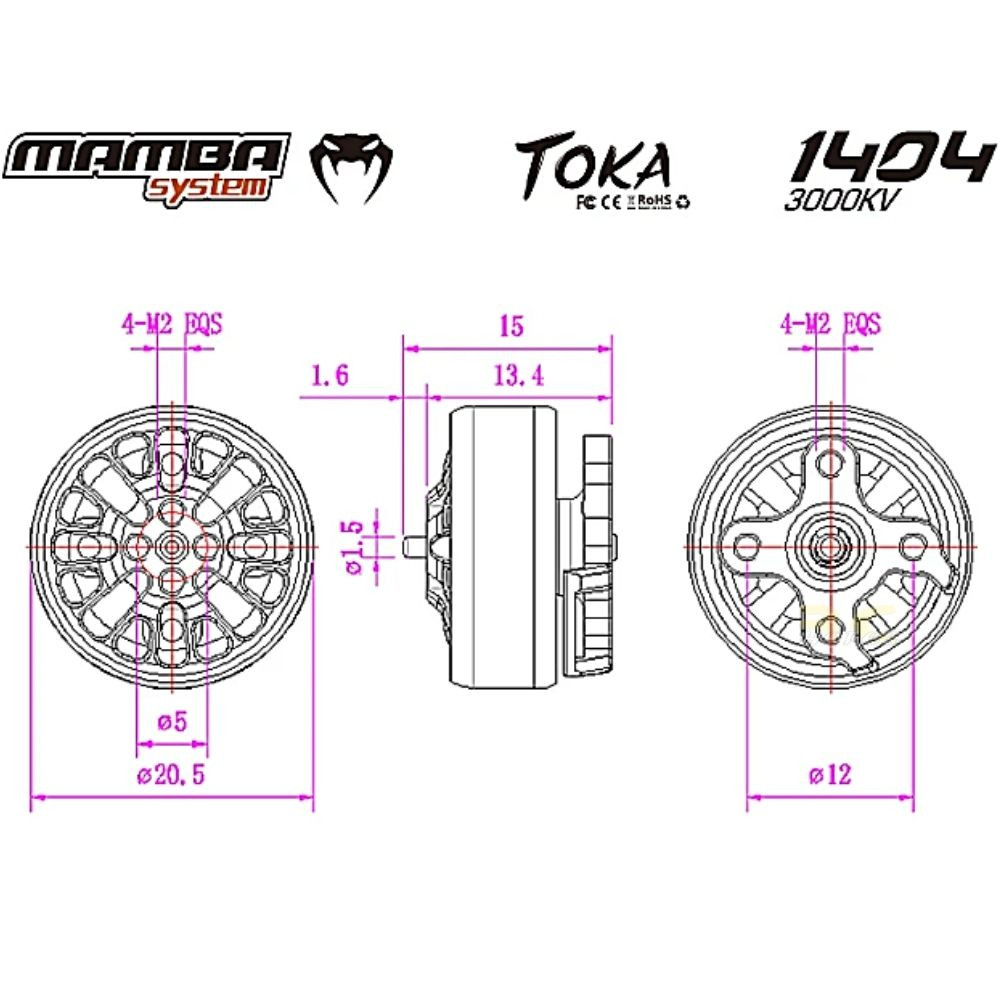

Overall Dimension:Φ20.5×15mm
prop mounting shaft diameter:1.5mm

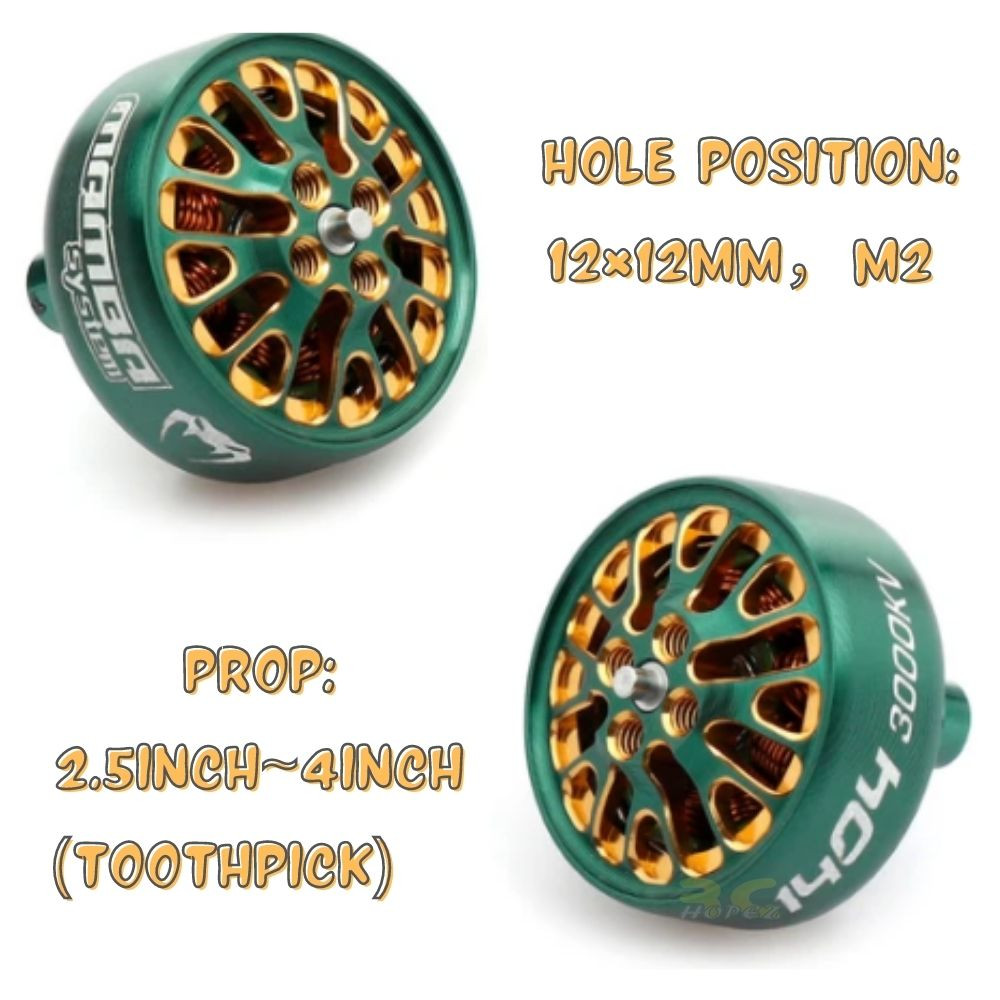

Installation hole position:12×12mm，M2
Prop: 2.5inch~4inch(Toothpick)
Bearing： 5*2*2.5
Shaft Diameter:2mm
Lead Wire Size：24AWG×150mm
slots/poles:9N12P
Magnet Wire: 240℃ Enameled Wire

Stator Diamter：14mm
Stator Height:4mm
Rated Voltage:3S~6S (12.6V~25.2V)
Peak Current: 11.95A
ldle Current：10V/0.3~1.0A
Maximum Power: 286.8W
Internal Resistance：310Ω

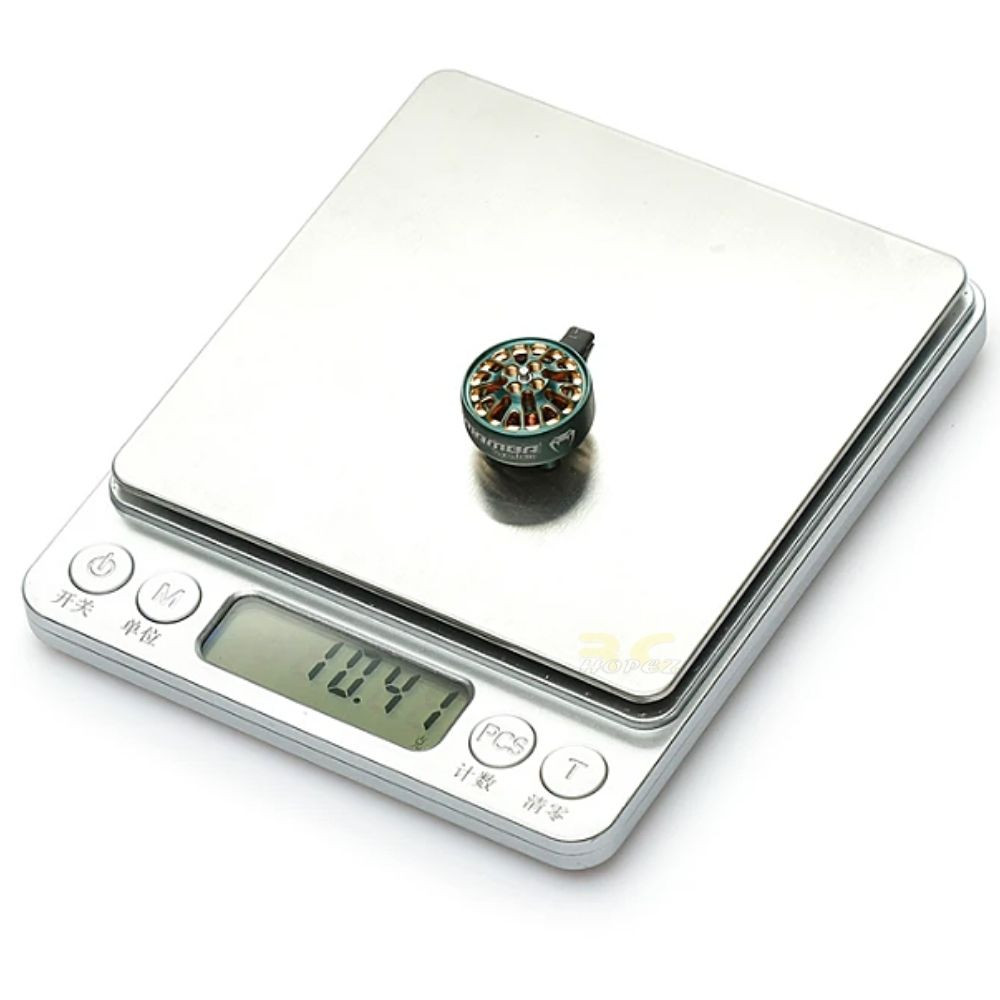

Weight: 10.5g

Package Included:

1 x DIATONE MAMBA TOKA 1404 3000KV 3-6S Brushless Motor
