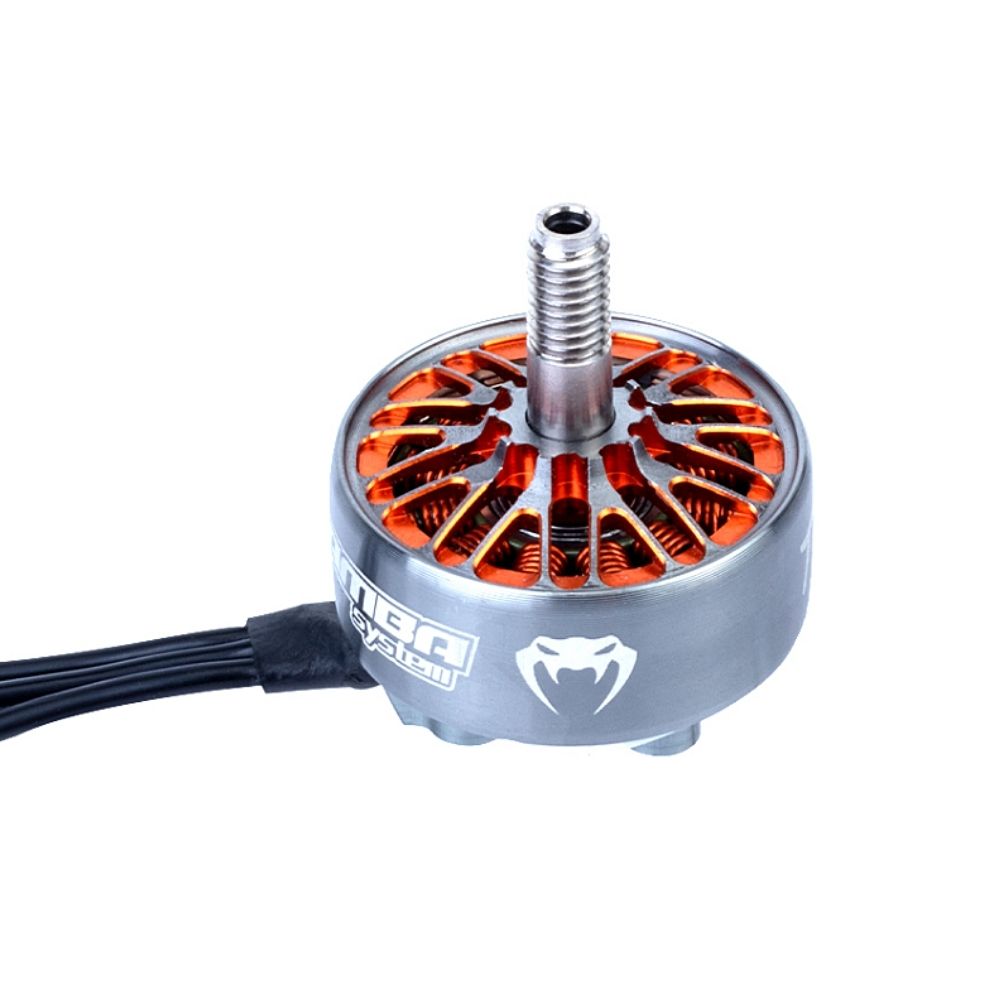

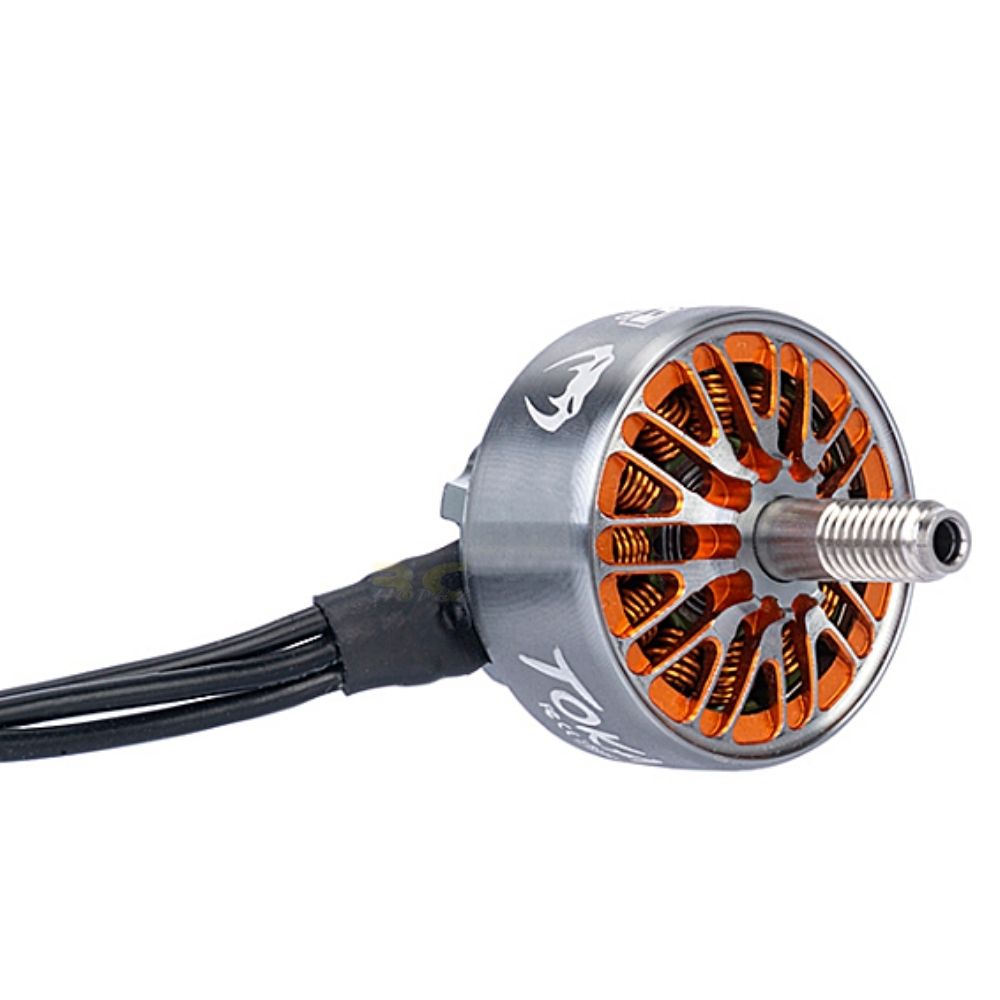

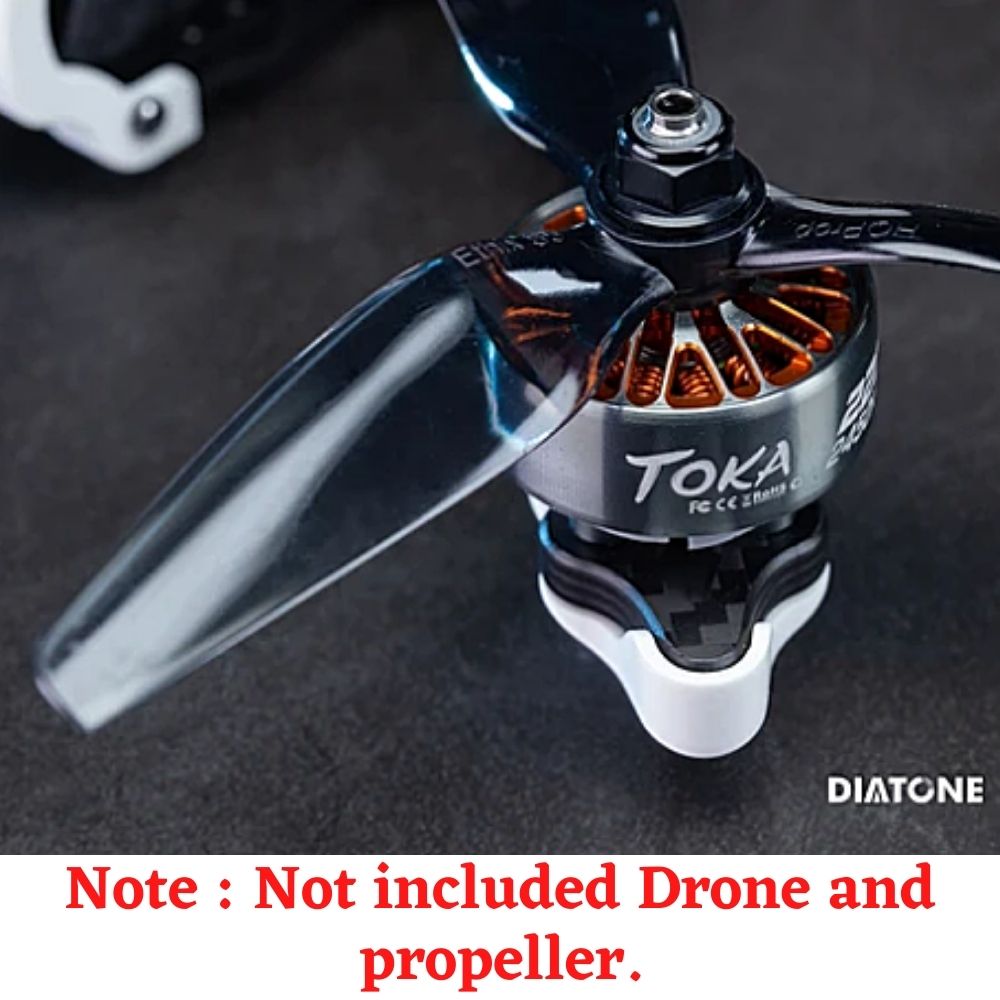

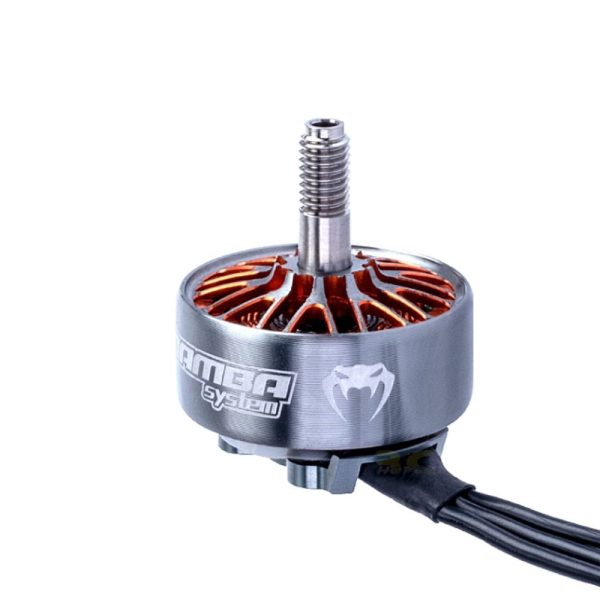

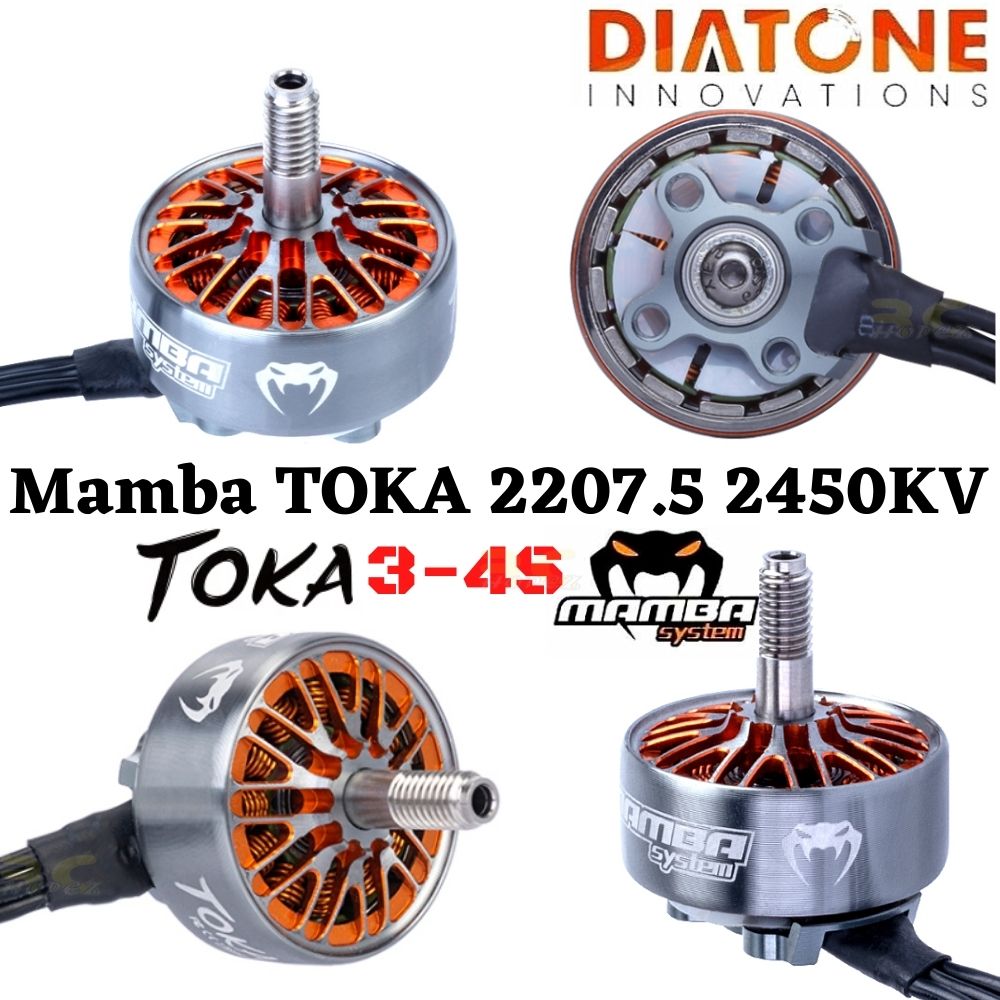

Diatone Mamba TOKA 2207.5 2450KV 3-4S Brushless Motor for Diatone Roma F5 Racing Drone X4pcs TOKA2207-24

RM290.00

Out of stock

SKU: TOKA2207-24 Category:

Diatone Mamba TOKA 2207.5 2450KV 3-4S Brushless Motor for Diatone Roma F5 Racing Drone X4pcs TOKA2207-24

Specification:

KV:2450
Overall Dimension:Φ28.5×32.65mm
Prop mounting shaft diameter :M5
Installation hole position :16×16mm,M3
Prop: 5inch~6inch
Bearing: 4*9*4
Shaft Diameter:4mm
Lead Wire Size:24AWG ×190mm

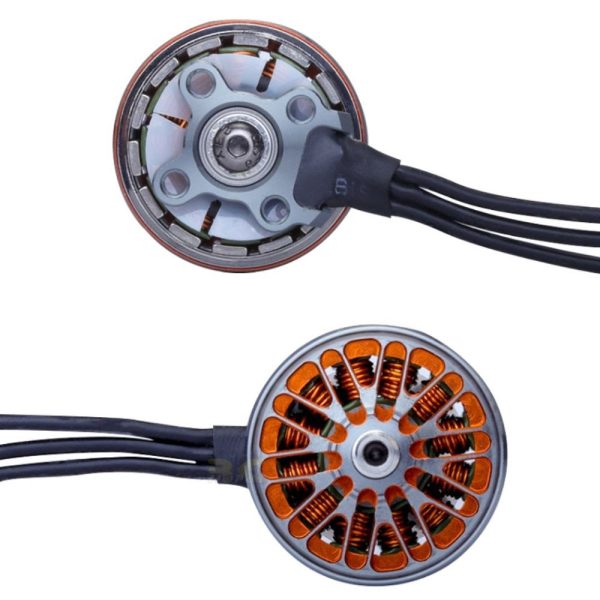

Slots/poles:12N14P
Magnet Wire: Class H,220℃ Enameled Wire
Stator Diamter:22mm
Stator Height:7.5mm
Rated Voltage: 3~4S (12.6V~16.8V)
Peak Current: 44.1A
Maximum Power: 706W

Package Included:
4 x Diatone Mamba TOKA 2207.5 2450KV
4 x Motor Nut
4 x Bag of Screws

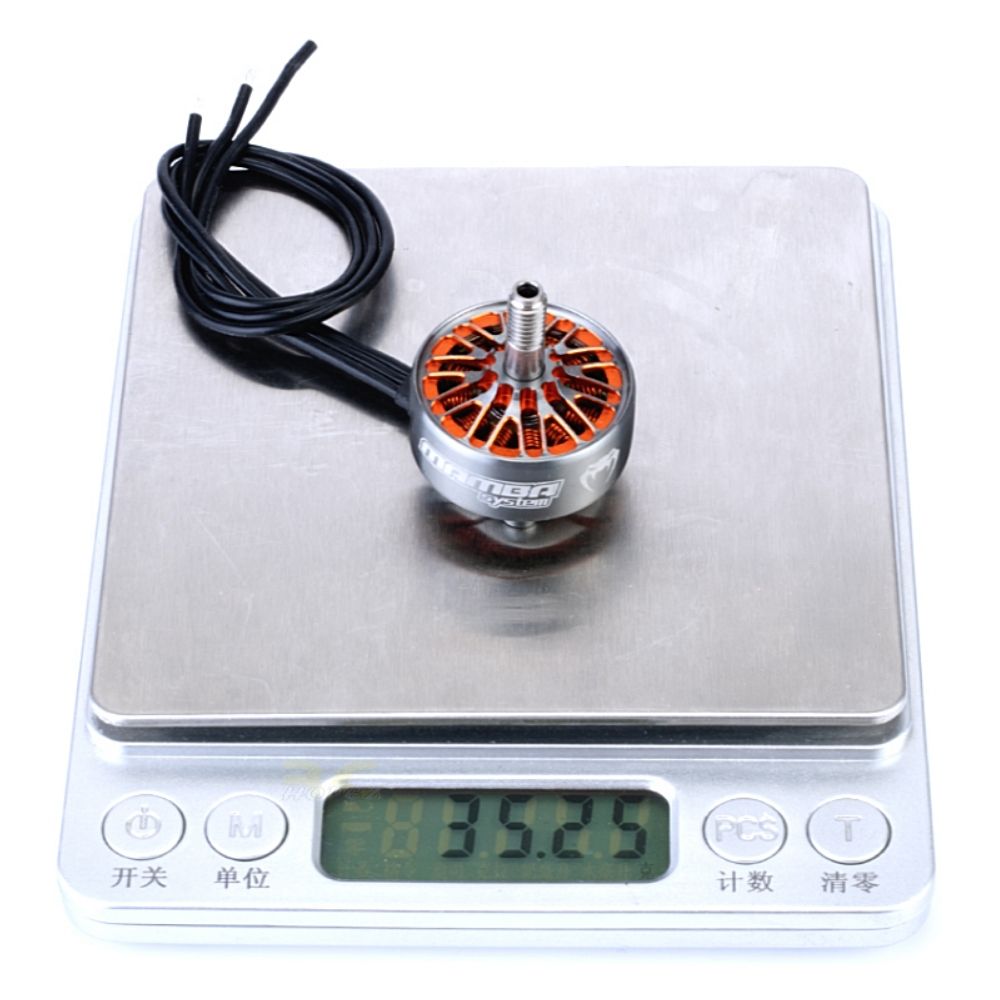

Weight 0.2 kg
Dimensions 8 × 8 × 5 cm
