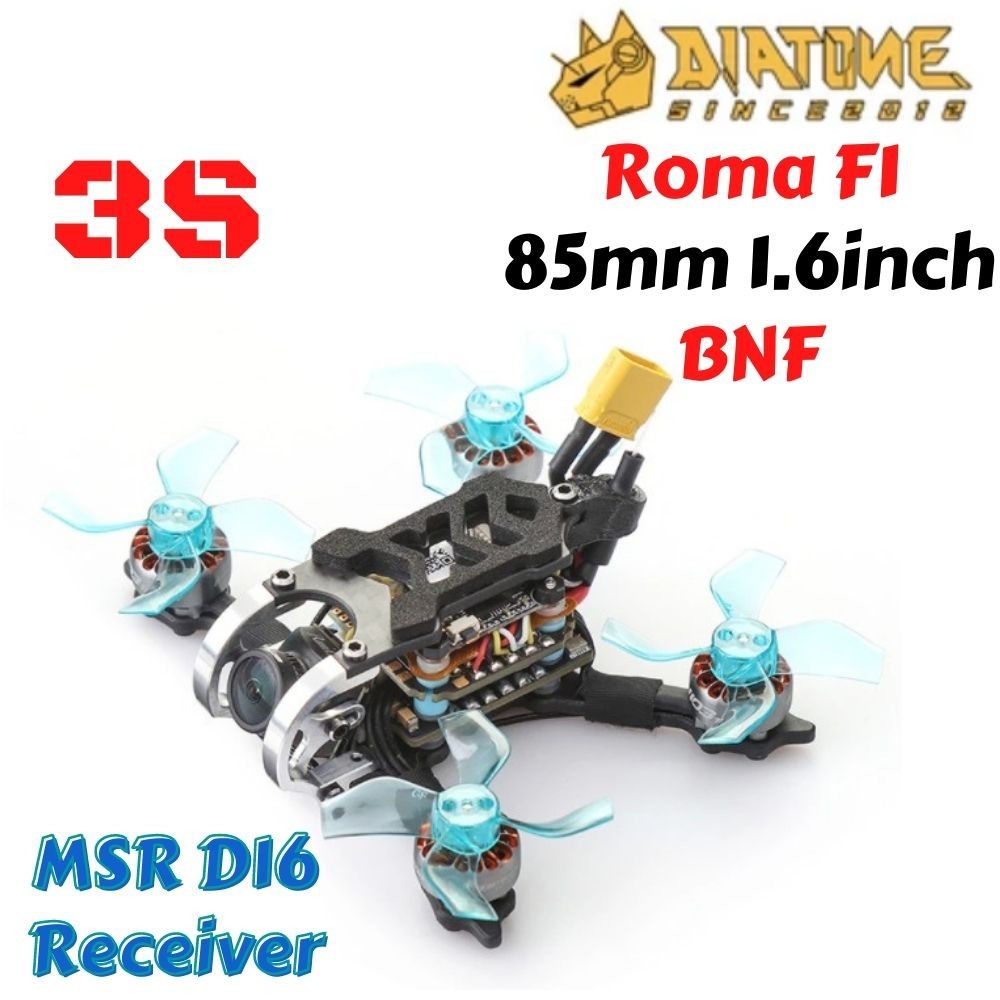

DIATONE Roma F1 85mm 1.6inch 3S FPV Racing Drone BNF MSR D16 Receiver With RUNCAM NANO 2 Camera RomaF1-P3

DIATONE Roma F1 85mm 1.6inch 3S FPV Racing Drone BNF MSR D16 Receiver With RUNCAM NANO 2 Camera RomaF1-P3

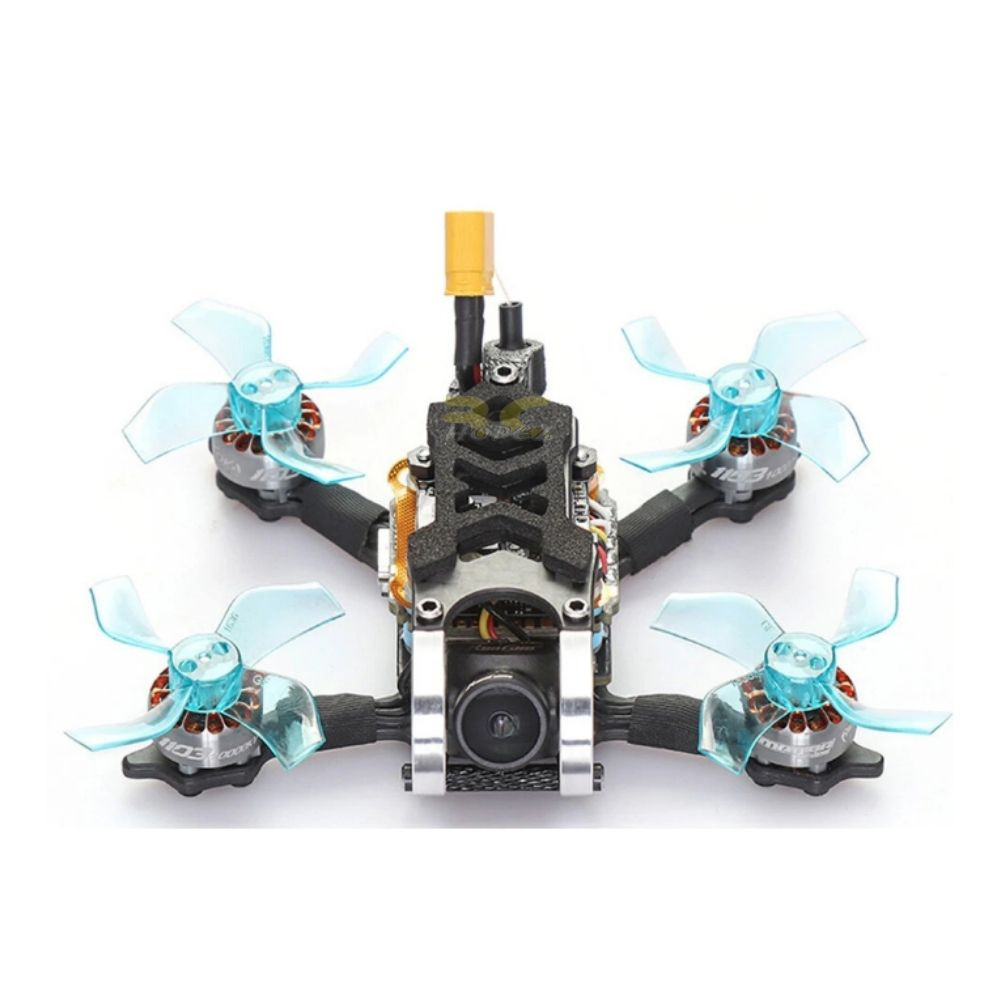

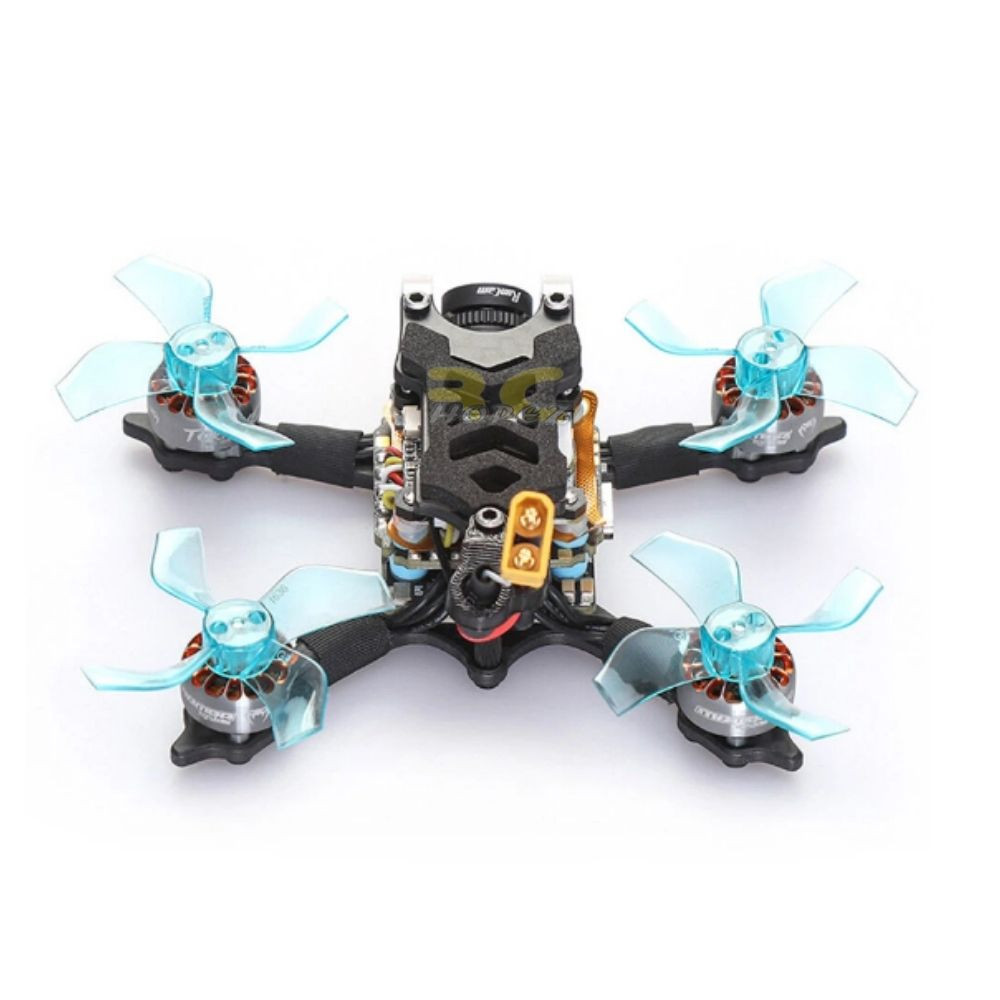

Roma F1 is a 40mm propeller size model with a family-style front face design of the ROMA series, with a magnesium-aluminum alloy head and an integrated bottom plate.

The diagonal wheelbase is 85mm, and it can be equipped with a 20*20mm (M2) three-layer equipment tower. The compact design exudes a small and refined atmosphere from the inside to the outside.

ROMA F1 is a compact model with restrictions on the assembly size of electronic devices. For details, please refer to the official complete machine configuration.

Sepecification：
Camera: RUNCAM NANO 2
Antenna: Sleeve dipole antenna
VTX: MAMBA TX500
FC: MAMBA F405MINI MK3.5
ESC: MAMBA F30MINI 8BIT
Motor: MAMBA TOKA1103 10000KV
Receiver: MAMBA MSR D16

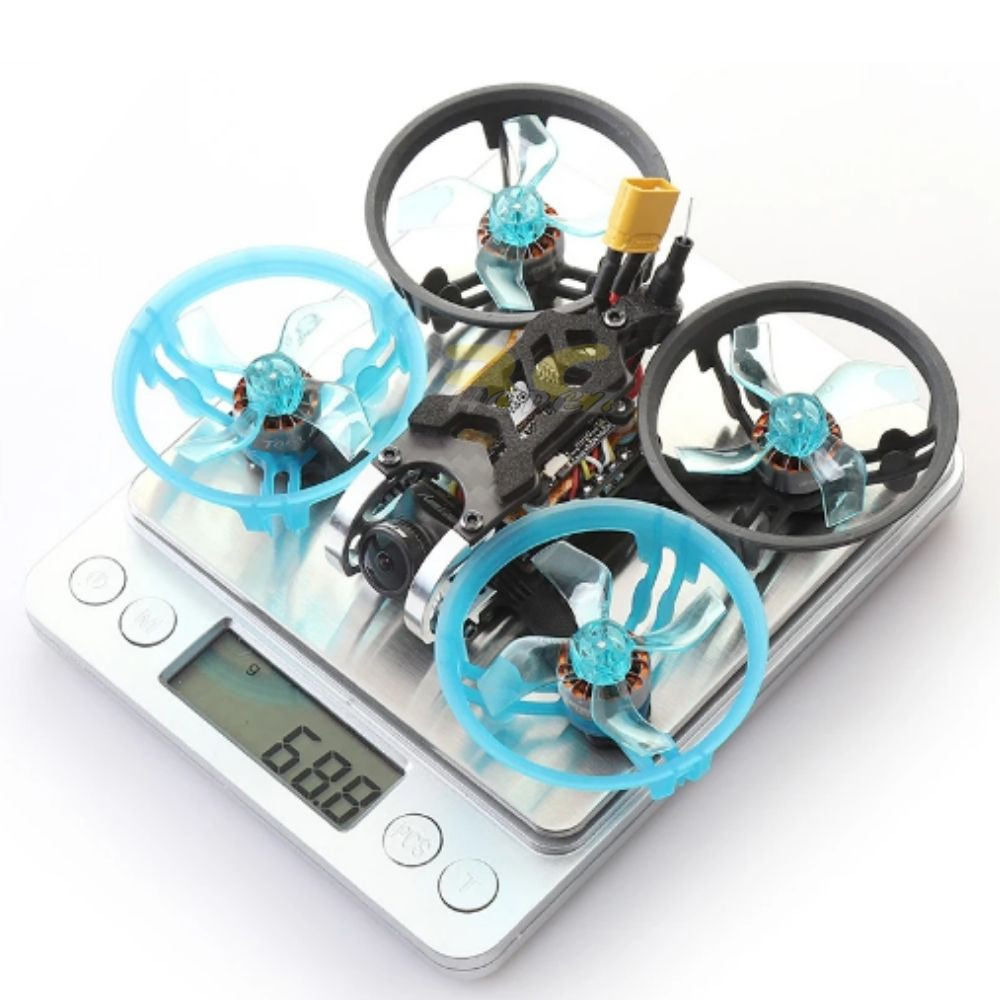

Weight：70g without battery
Recommend battery size：（not included）
3S ：350mAH-450mAh

Runcam Nano 2
Image Sensor: 1/3″ CMOS
Horizontal Resolution: 700TVL
Lens: 2.1mm(M8) FOV 155°
Signal System: PAL
S/N Ratio: >50dB
Electronic Shutter Speed: Auto
Auto Gain Control (AGC): Auto
Min. Illumination: 0.01Lux@1.2F
D-WDR: Auto
Day/Night: Color
Power: DC 3-5.5V
Current : 110mA@5V 120mA@3.3V
Housing Material: ABS
Net Weight: 3.2g
Dimensions: L14mm*W14mm*H16mm

MAMBA TX500
Working Voltage:4.5- 5.5V
Working Current: 380mA (5V/500mw)
Working Temperature: 90 ℃
Video Input Impedance:50Ω
Size: 24×11.7×5.5mm
Antenna Connector: IPEX
Video Format: NTSC / PAL
Protocol：IRC
Output Power: 25/200/500mw
Supply: pigtail antenna
4pin cable×2

Mamba Basic F405MINI MK3.5 FC
MCU: 168MHz STM32F405RGT6
IMU: MPU6000
Barometer: Yes
OSD: Yes
Blackbox: 16M Flash Memory
Uarts: 5 Set
ESC Soft: Dshot300/600/1200
ESC Telemetry: Yes
Power Led: Yes
LED Controller: BF LED
F.Port: No
RSSI: Yes
Buzz: Yes
Input: 2~6S Lipo (8.4~25.2V)
TVS Protection: Yes
BEC:3.3V 0.5A&5V 2.5A
MOUNTING: 20mm,M2

Mamba F30 MINI ESC
Item name: Mamba F25HV ESC
Input voltage: 3~5S
Curr :139A
BEC: NO
Size: 29.0×29.0×5.5mm
Mounting: M2
Weight: 7g

Supply :  Rubycon High Frequency 470uF/35V

MAMBA  TOKA 1103 10000KV
Overall Dimension:Φ14.8×9.8mm
prop mounting shaft diameter:1.5mm
Installation hole position: 9×9mm，M2
Prop: 1.6inch~3inch
Bearing：4*1.5*2
Shaft Diameter:1.5mm
Lead Wire Size：24AWG×100mm
slots/poles:9N12P
Magnet Wire: 240℃ Enameled Wire
Stator Diamter：11mm
Stator Height: 3mm
Rated Voltage: 2S (8.4V)
Peak Current: 8.6A
ldle Current：4V/0.5A
Maximum Power: 70W
Internal Resistance：158

MAMBA MSR D16 ACCST Receiver（FCC）
Working Voltage:3.5- 10V
Working Current: 70mA /5V
Channel:16CH(1~16CH: SBUS,1~8CH:CPPM)
Size: 24×11.7×4.4mm
Antenna Connector: IPEX4
Protocol： ACCST D16/
（ACCESS needs to upgrade
the corresponding protocol）
Product Size:24×11.7×4.4mm M2（20mm×2）
Weight:1.6g

Package Included:
1 x DIATONE RomaF1 85mm 1.6inch 3S FPV Racing Drone
4 x GemFan 1636 Props (2cw/2ccw ) 1.5mm shaft
1 x 5V Buzzer
2 x Battery Strap
1 x M2 Screws Pack
1 x 20mm PC Spacer
1 x Micro USB Data Cable

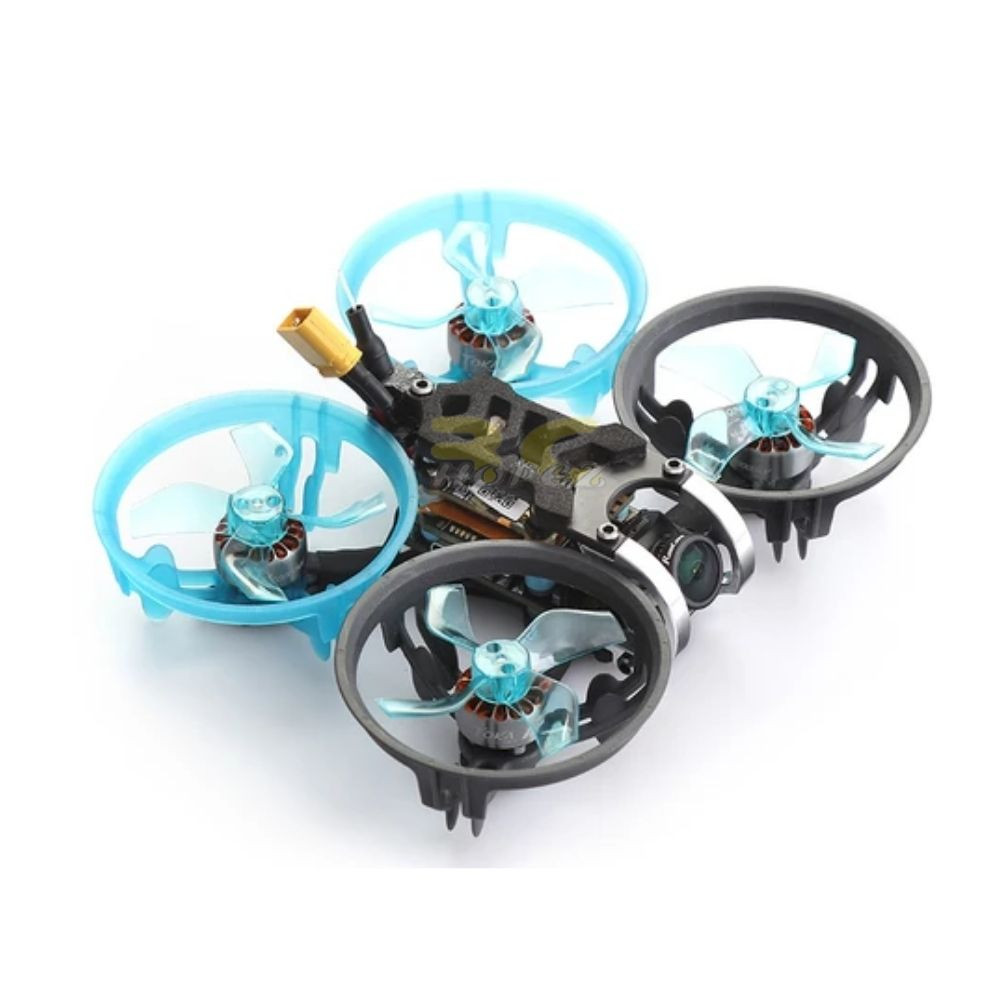

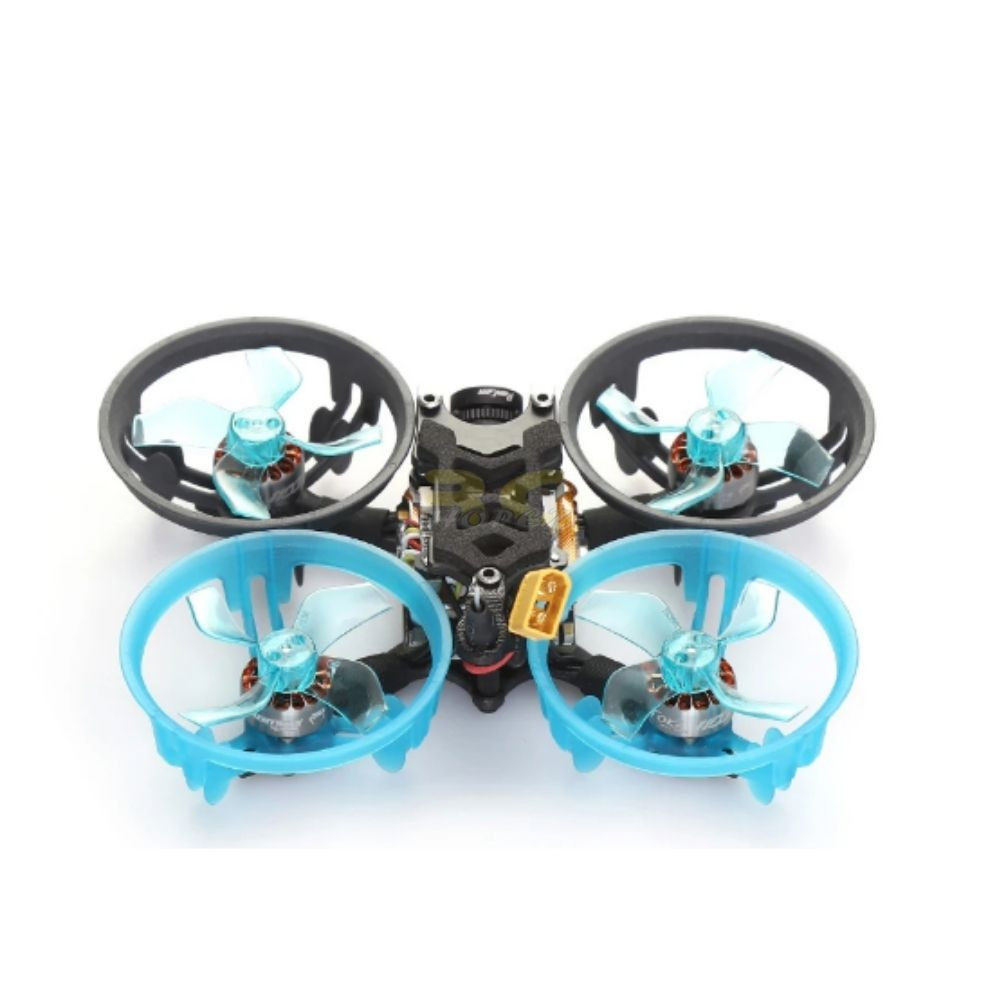

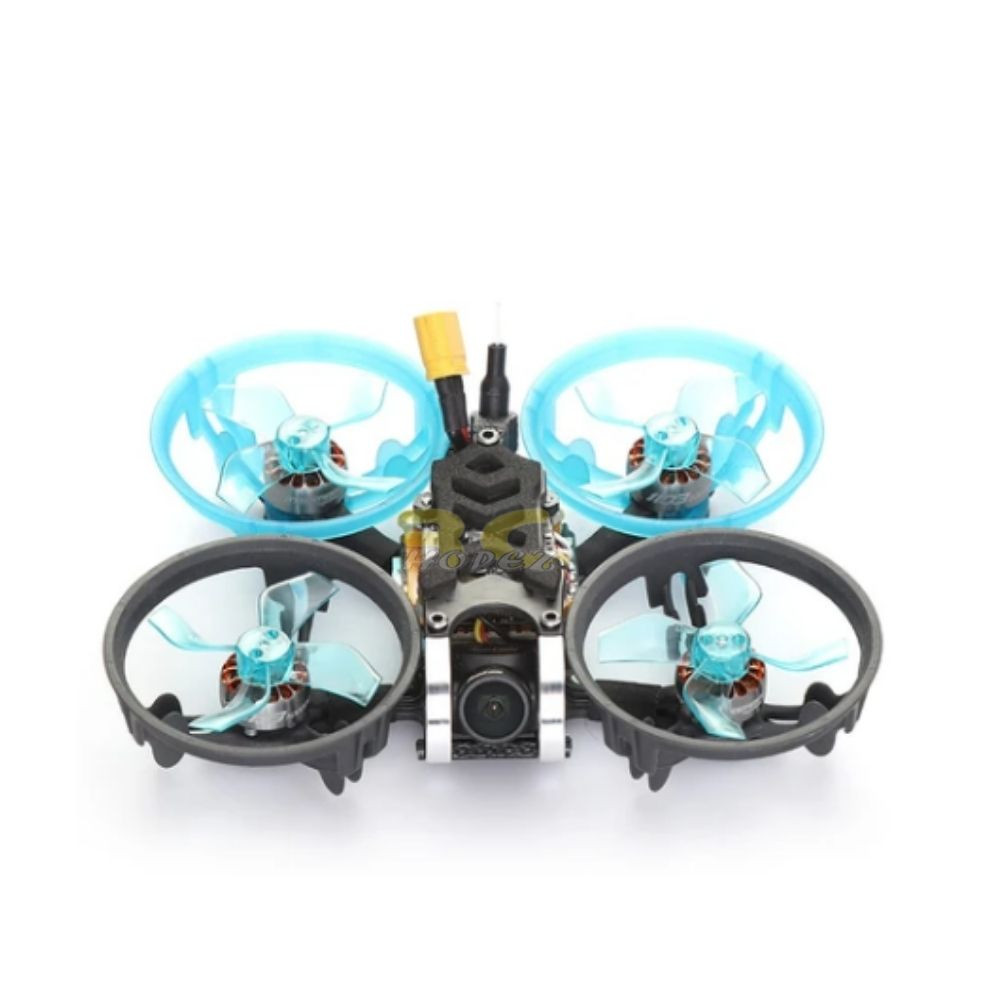

2x Grey Ducts
2x Blue Ducts
1 x Antenna Mount
