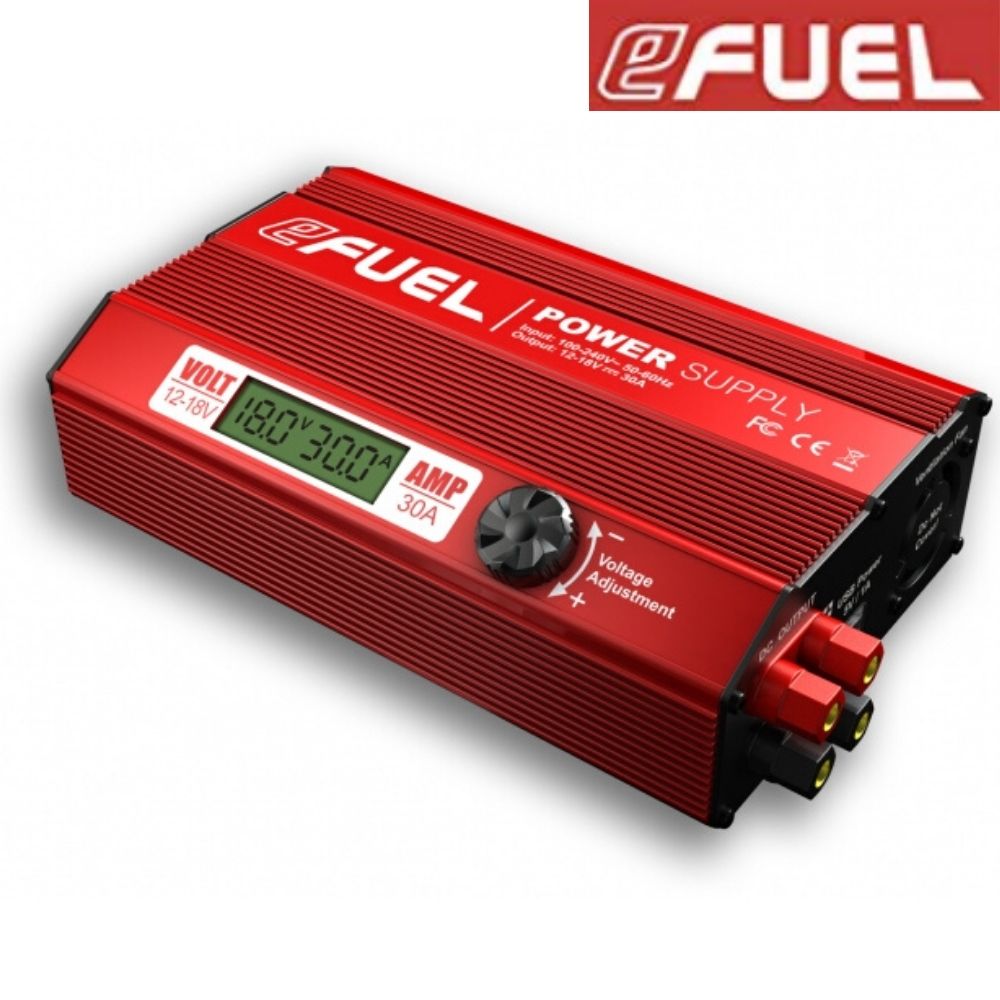

eFuel 100-240V AC to 12-18V DC power 30A 540 Watt Output Switching LC-Imax30A
FEATURES
-Your eFUEL switching DC Power Supply is designed to use household AC power source to power equipments that required DC power. The eFUEL converts standard household power 100-240V AC to 12-18V DC power and can supply up to 30 amperes of continuous power.
FEATURES:
-Two DC power outputs, up to 30 amperes
-Output voltage adjustable 12-18V
-Large LCD indicates voltage and current amperes output
-Two USB ports, 5 volts, 1000mA total for MP3 player, mobile phone and digital cameras
-Smart cooling fan
-Over temperature protection
-Over loading protection
-Short circuit protection
FEATURES:
-Two DC power outputs, up to 30 amperes
-Output voltage adjustable 12-18V
-Large LCD indicates voltage and current amperes output
-Two USB ports, 5 volts, 1000mA total for MP3 player, mobile phone and digital cameras
-Smart cooling fan
-Over temperature protection
-Over loading protection
-Short circuit protection
PRODUCT DETAILS
-Voltage:100-240V AC
-Input AC Frequency:50-60Hz
-Output Voltage:12-18V DC±0.5V
-Output Current:30A±1A
-Current Overload Protection:≤31A 500MS
-Input Fuse:10A Fuse
-LCD Display:Voltage Precision ±0.3V
-Current Precision ±0.3A
-Output Voltage Ripple:< 150mV
-Power Efficiency:89%
-Power Factor:> 0.98
-Over Temperature Protection:<65℃
-Cooling Method:Cooling Fan
-Operating Temperature:0-40℃
-Operating Humidity:0-90%
-Dimensions (L*W*H):218x139x59.5mm
-Net weight:1.62kg
packing included :
1 x eFuel 100-240V AC to 12-18V DC power 30A 540 Watt Output Switching LC-Imax30A
