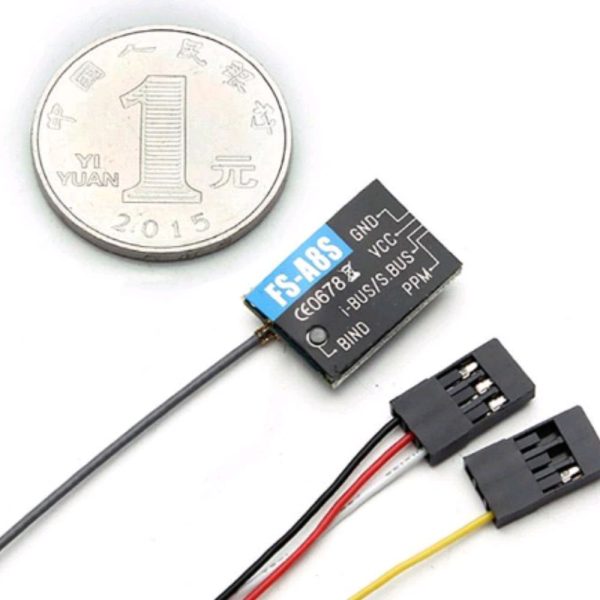

Flysky FS-A8S FS A8S 2.4G 8CH Mini Receiver with PPM i-BUS SBUS Output FS-A8S
Features :
The FS-A8S is a compact 1-way receiver designed for multi-rotor aircraft. It uses the AFHDS 2A(Aotumatic Frequescy Hopping Digital System) protocol, supports standart PPM output and has i-BUS support for up to 18 channels.
0
Product Details :
0
Brand Name:Flysky
0
Item Name:FS-A8S Receiver
0
Channels: PPM 8CH, i-BUS 18CH
0
Model type: Multi-rotor
0
Frequency range: 2.408-2.475GHz
0
Band width: 500KHz
0
Band number: 135
0
RX Sensitivity: -92 dBm
0
2.4GHz system: AFHDS 2A
0
Modulation type: GFSK
DSC port: PPM/i-BUS/S.BUS
0
Transfer method: FHSS
0
Data output: 1.5mm*3 Pin PPM/i-BUS/S.BUS
0
Antenna length: 26mm (Not including brass contacts)
0
Input power supply: 4.0-8.4V
0
Display method: LED
0
No ground interference ( Transmitting and receiving 1 m from the ground): >300m
0
Working current: 40m
0
Each channel data: depend on the transmitter
0
Channel delay: <15mS
0
Size: 20*14*5.3mm
0
Weight: 1.2g
0
Certificate: CE0678, FCCID: N45ZA8S00
0
Compatible Transmitter: Compatible with FS-i4, FS-i6, FS-i6S, FS-i6X, FS-i10, FS-GT2E, FS-GT2G, FS-GT2F
0
Package Included:
0
1 x Flysky FS-A8S 2.4G 8CH Mini Receiver
