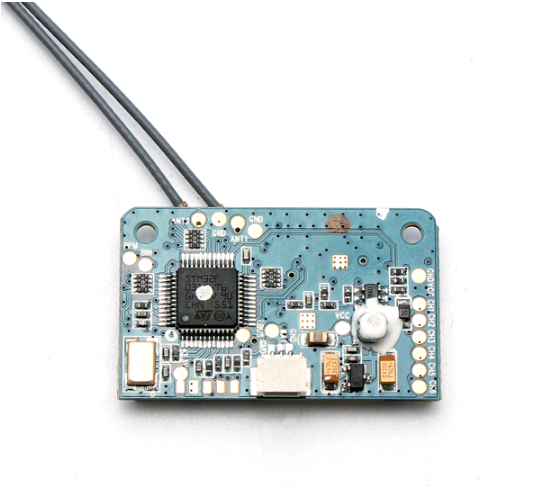

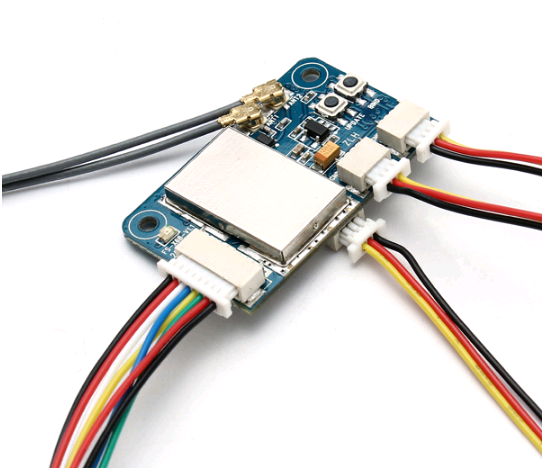

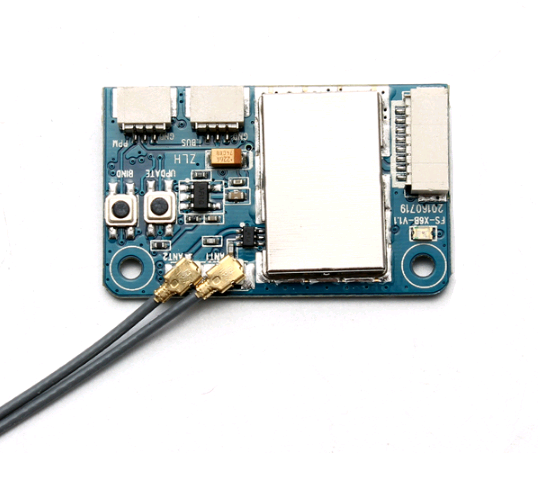

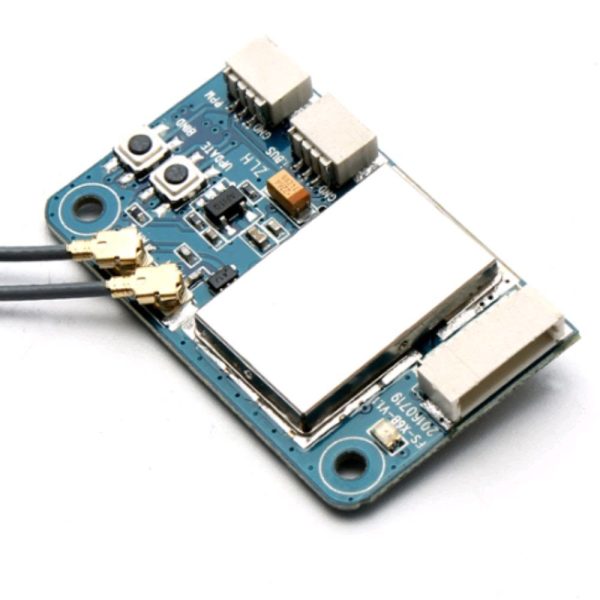

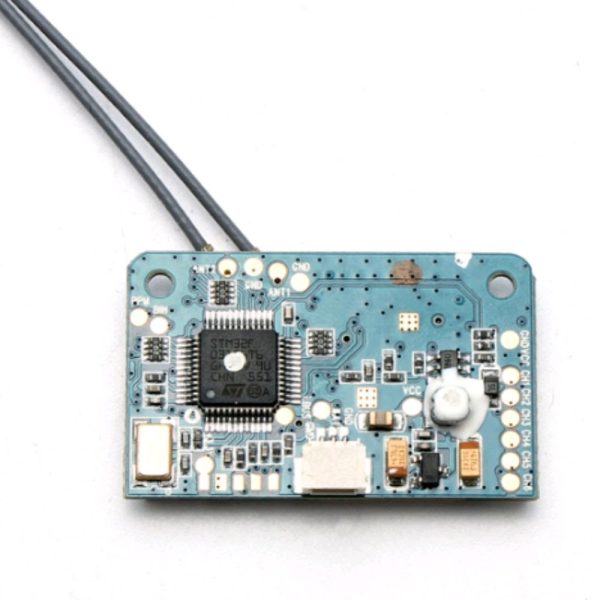

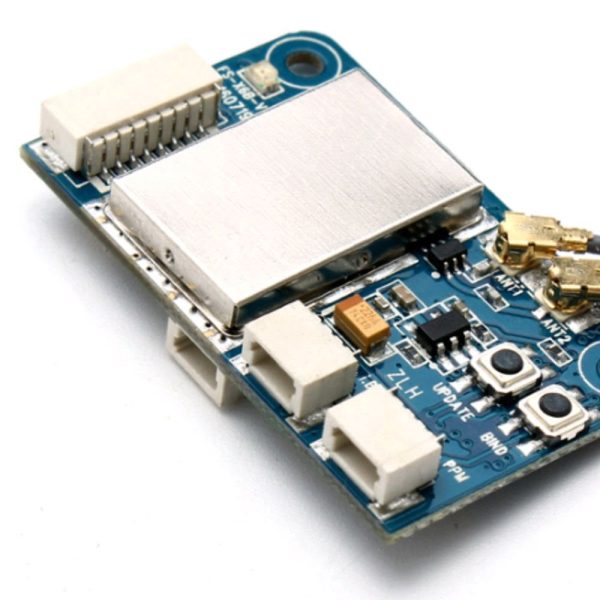

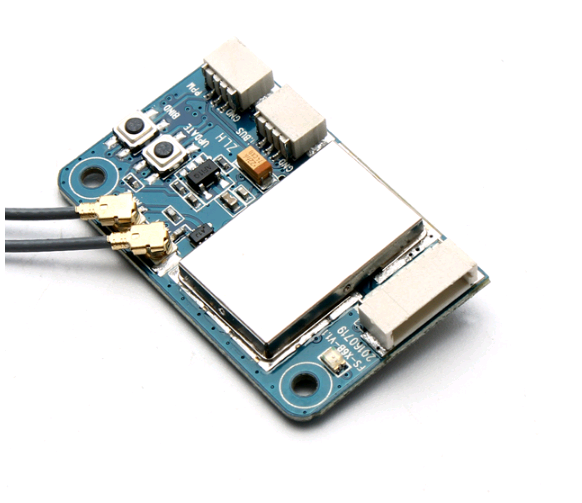

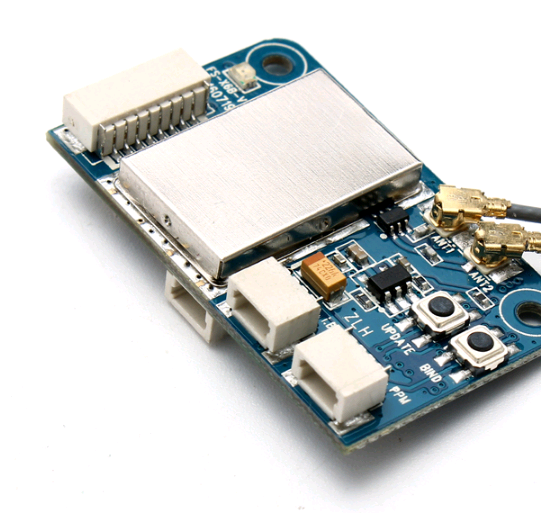

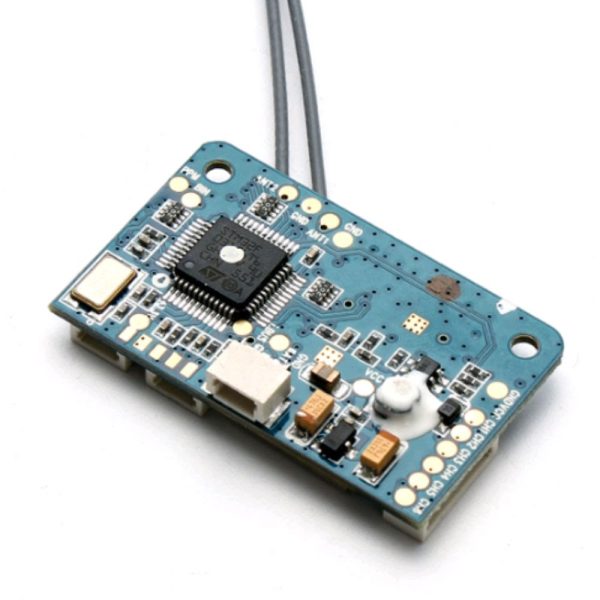

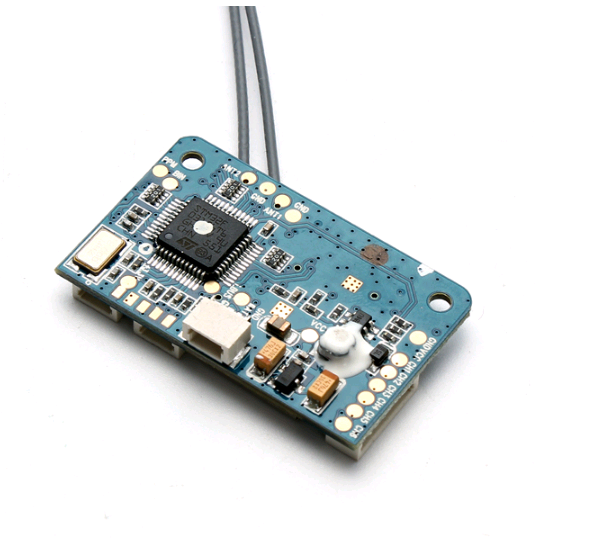

Flysky FS-X6B 6Channel Receiver PWM i-BUS Voltage Sensor for RC Drone Quadcopter FS-X6B
Features :
FS-X6B is a 6 channel two-way receiver designed for multi-rotor aircraft. It uses the AFHDS 2A(Automatic Frequency Hopping Digital System) protocol and dual omnidirectional antenna with superior noise reduction techniques. It’s compact, easy to install and boasts a rich easy to use interface. The FS-X6B support 6 channel PWM output, standard PPM output and i-BUS support for up to 18 channels alongside a reliable voltage sensor interface.
0
Product Details :
0
Brand Name : Flysky
0
Item : X6B i-BUS 2.4GHz 6CH Receiver
0
Channels : 6(PWM), 8(PPM), 18(i-BUS)
0
Model Type : Multi-Totor
0
RF Range : 2.408-2.475 GHz
0
Brand Wigth : 500KHz
0
Number of bands : 135
0
RF Power : No more than 20 dBm
0
RX Sensitivity : -95dBm
0
2.4GHz protocol : AFHDS 2A
0
Modulation Type : GFSK
0
Stick resolution : 1024
0
Low voltage alarm : Yes
0
DSC port : PPM/PWM/i-BUS
0
Antenna Length : 93mm (Dual Antenna)
0
Power input : 4.0-8.4V
0
On-line Update : Yes(Wireless)
0
Range : >300m
0
Weight : 4.5g
0
Size : 36*22*7.5mm
0
i-BUS Port : Yes
0
Certificate: CE0678, FCC ID : N4ZX6B00
0
Compitable Transmitter : All AFHDS 2A Transmitter, for example FS-i10 FS-i6,FS-i6S, FS-i6X, FS-i4, FS-i4X
0

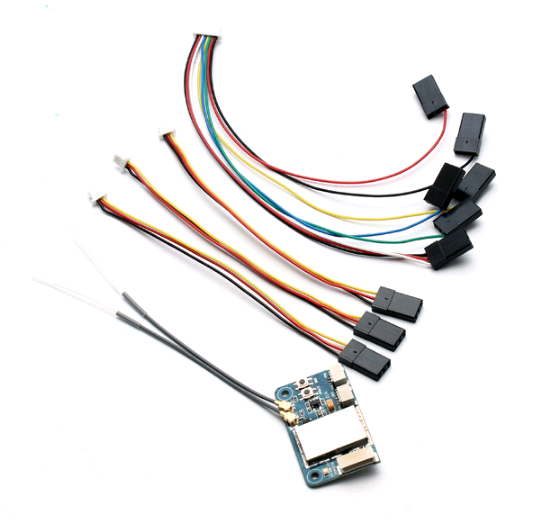

Package Included:
0
1X Flysky X6B 2.4GHz 6CH Receiver
