Flywoo Firefly 20PRO / 25MINI GPS Set GM10 Mini V3 GPS + GPS TPU Mount Color Black/Purple FW-GPS-SET

Flywoo Firefly 20PRO / 25MINI GPS Set GM10 Mini V3 GPS + GPS TPU Mount Color Black/Purple FW-GPS-SET

Note:
The chip of GOKU GM10 V3 GPS is M1005. Only BF4.3x version firmware can use Ublox protocol. BF4.2x and earlier firmware can only use NMEA protocol But there is no difference in performance between the two protocols

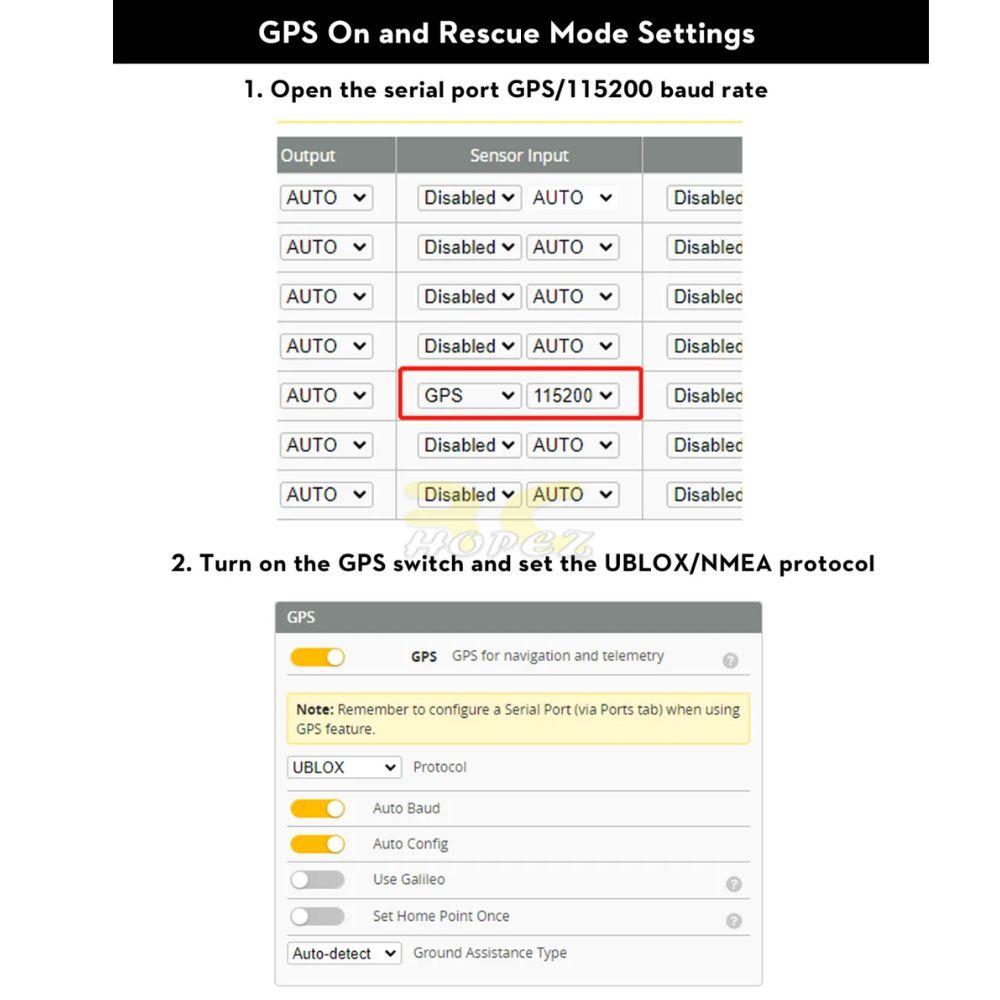

BETAFLIGHT：
Use firmware above 4.3.0
INAV：
Use the latest 6.0.0 configurator, the latest firmware above 5.0.0
Using the latest M10050 GNSS chip. Compared with the previous generation GM8 V2, the positioning is more accurate, and the speed of star search is faster.

Description

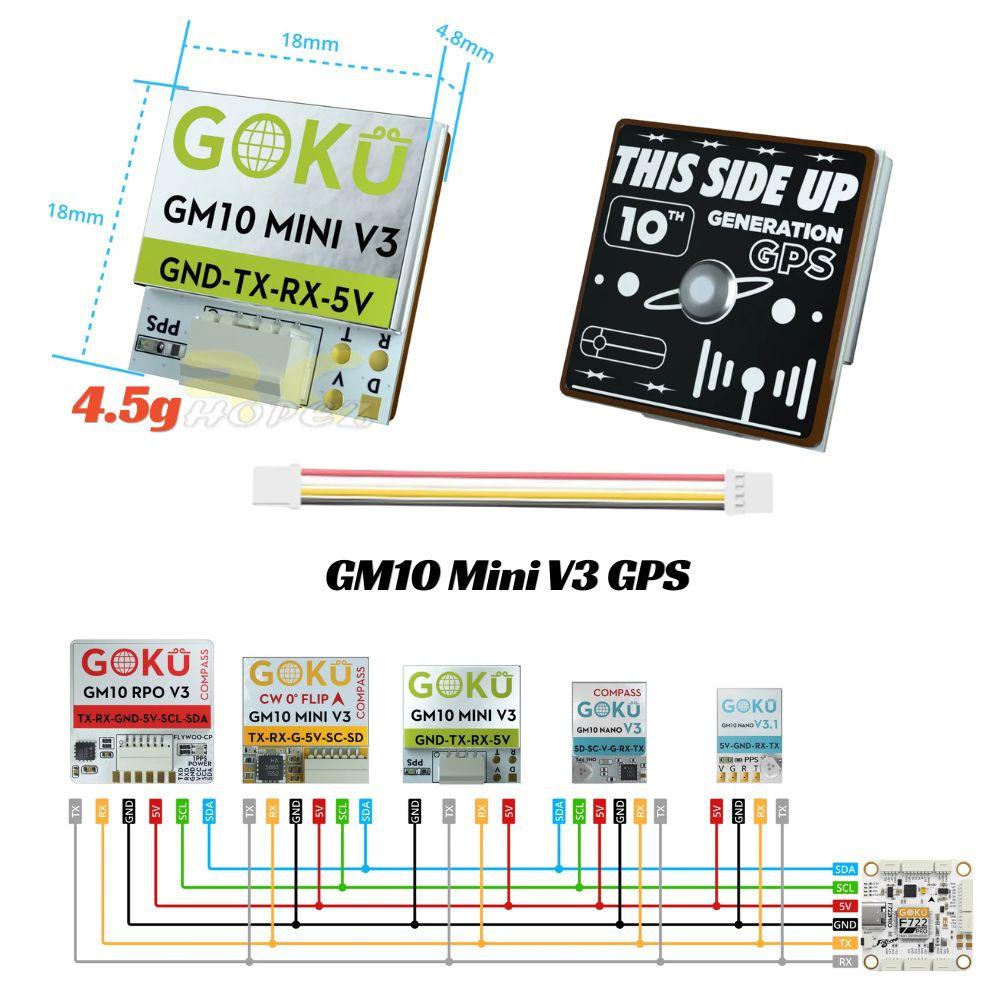

**Model: GM10 MINI V3 GPS
Brand: FLYWOO
Dimension :18mm*18mm*4.8mm

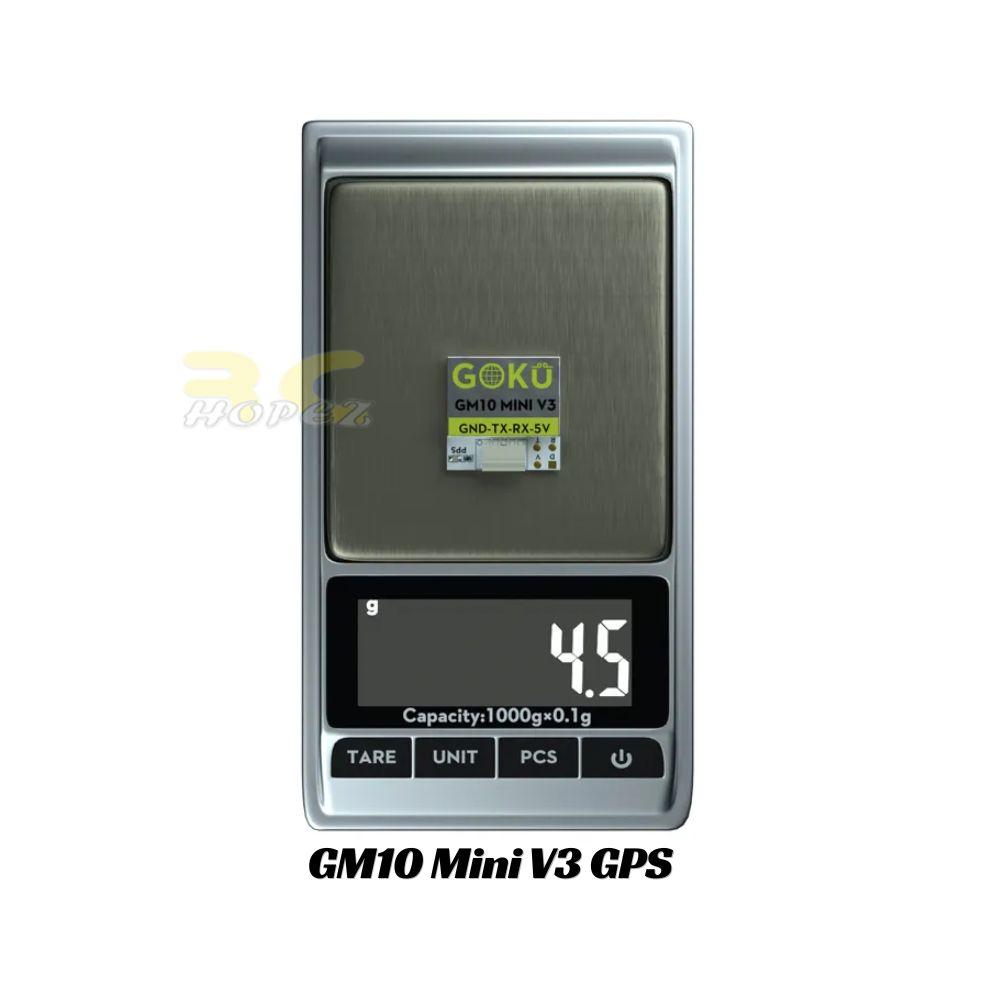

Weight : 4.5g
Connector : 1.00mm spacing between the 4pins patch seat

Features:
GPS Module,Three Module
1.0mm spacing between the 4pins patch seat

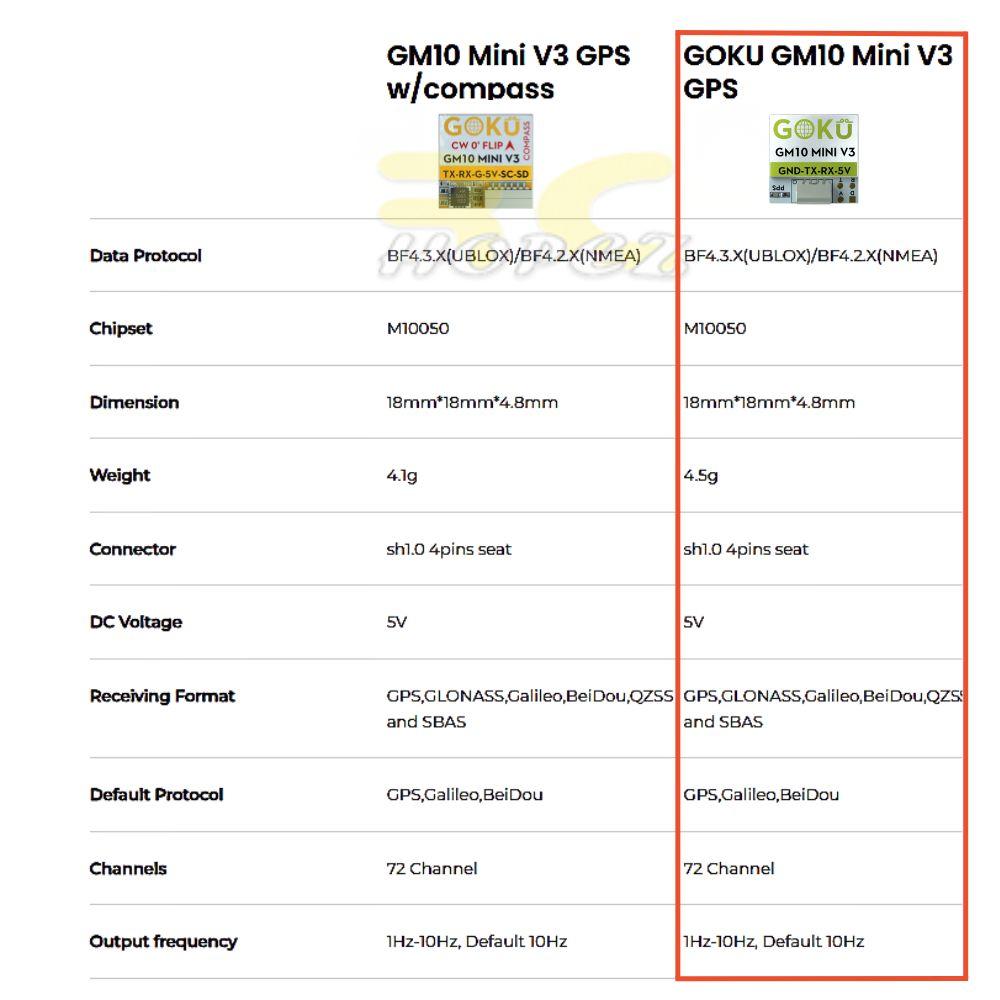

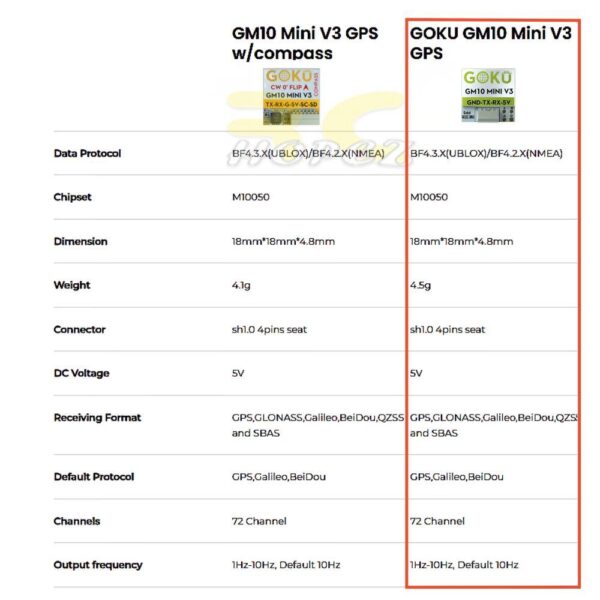

Specification
Electrical Characteristics
Chipset : M10050(Tenth Generation Chip)
Receiving Format : GPS,GLONASS,Galileo,BeiDou,QZSS and SBAS
Default Protocol : GPS,Galileo,BeiDou
Frequency : GPS L1,GLONASS L1,BeiDou B1,SBAS L1,Galileo E1
Channels : 72 Searching Channel

Sensitivity
Tracking : -162dBm
Reacquisition : -160dBm

Data and Update Rate
Support Rate : 4800bps to 921600bps,Default 115200bps
Data Level : TTL or RS-232,Default TTL level
Data Protocol : BF4.3.X(UBLOX)/BF4.2.X(NMEA)
Output frequency : 1Hz-10Hz，Default 10Hz

Operational Limits
Altitude : 50,000m Max
Velocity : 500m/s Max
Acceleration : Less than 4g

Power consumption
VCC : DC Voltage ：5V
Operating temp :　-40 °C ~ +85°C
Storage Temp : -40°C ~ +105°C

Indicator :
PPS LED:yellow .PPS LED not bright when GPS not fixed,flashing when fixed

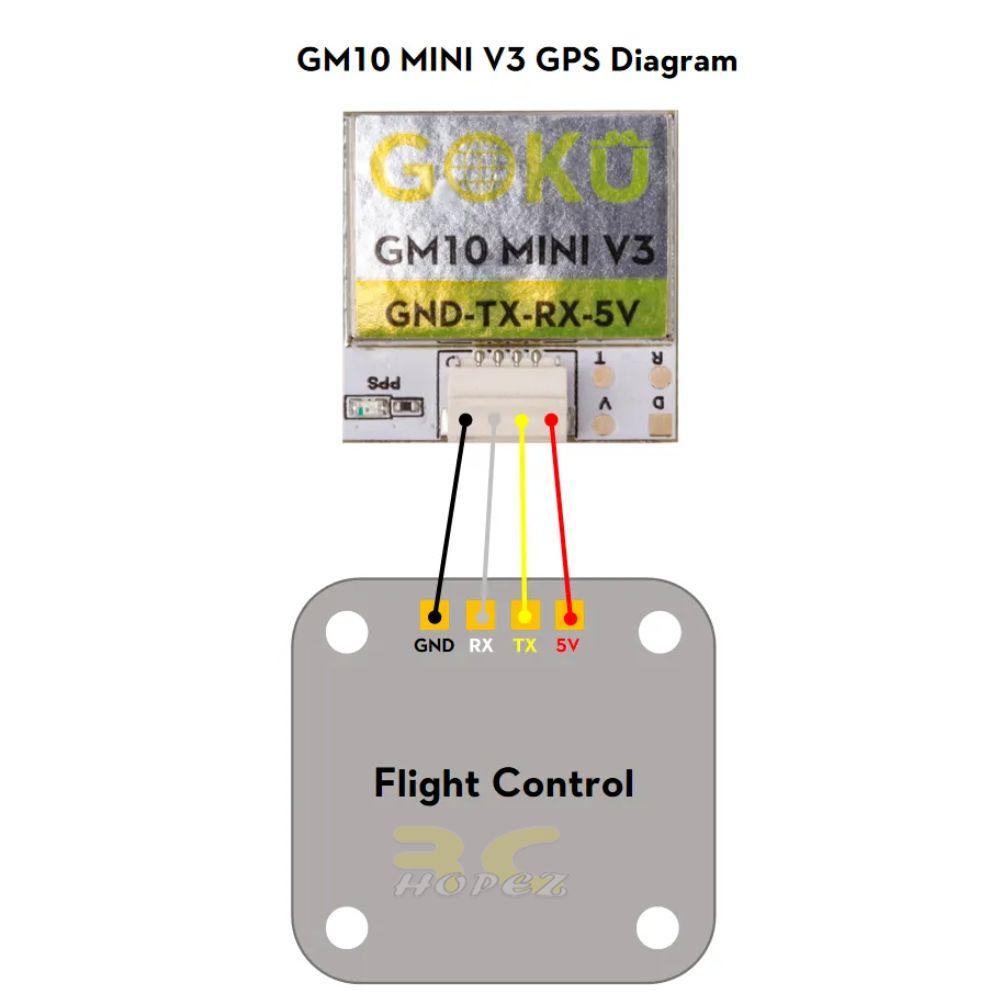

The Module’s Pins: GND TX RX 5V

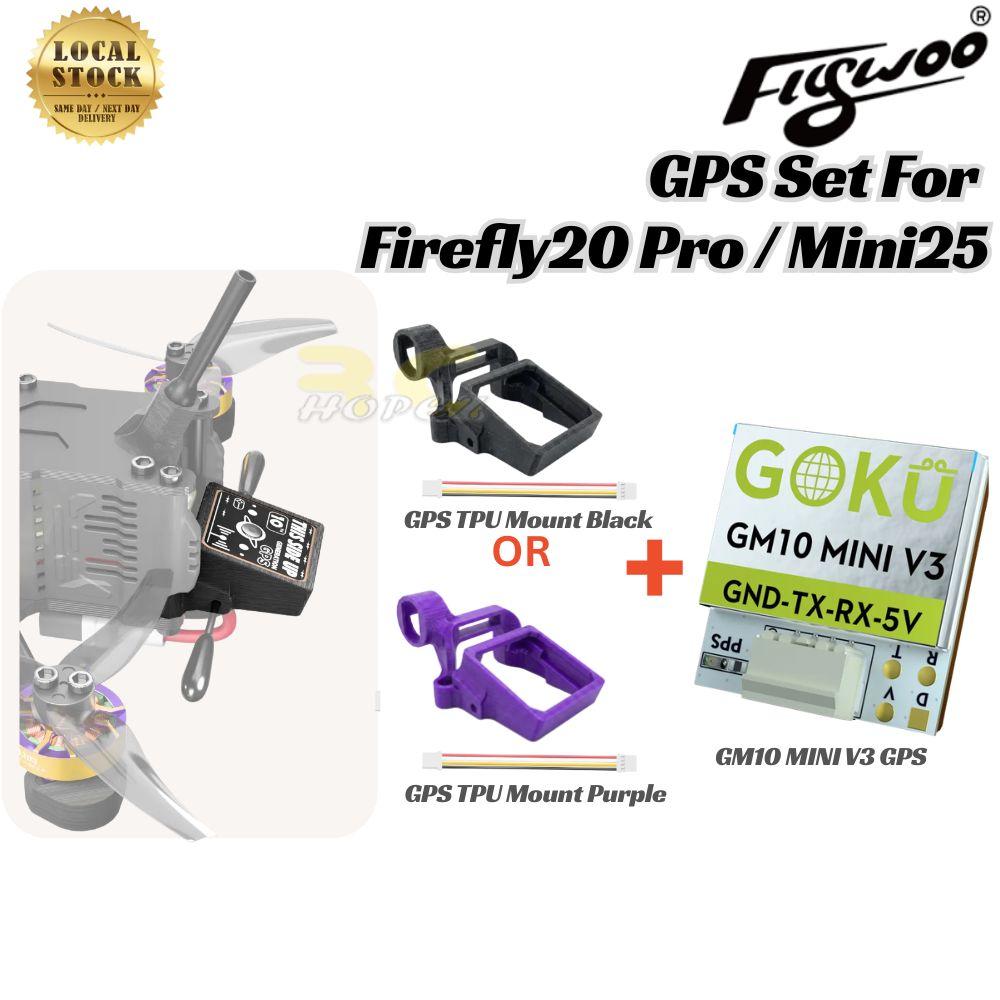

**Model: GPS TPU Mount For GM10 MINI V3 GPS
Colour: Black / Purple (Optional)
Weight: 2g
Quantity: 1Pc
Compatible for Flywoo Firefly 20PRO/25MINI

Includes
1x GM10 MINI V3 GPS
1x 80mm Cable (Length Included connector)
1x GPS TPU Mount Purple/Black (Optional)
