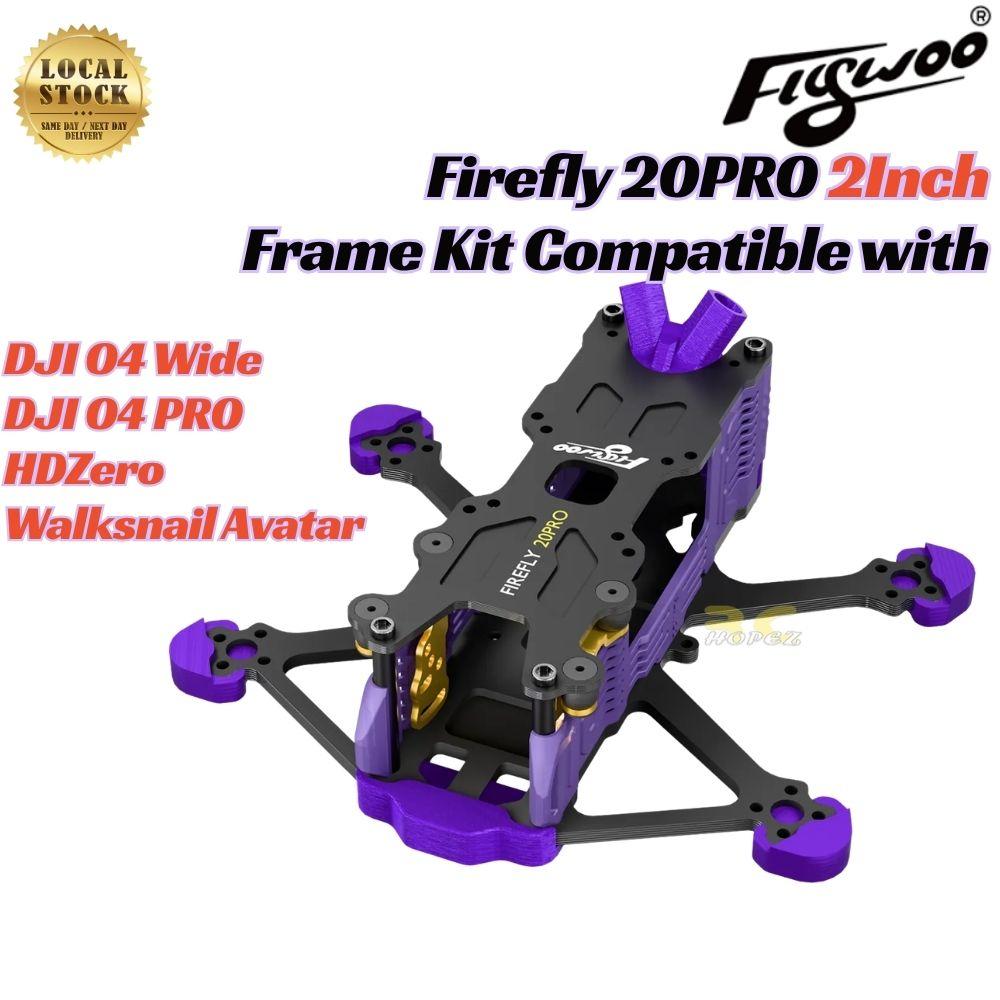

Flywoo Firefly 20Pro 4S Frame Kit Compatible DJI O4/ O4 Pro HDZero Walksnail Digital FPV System FW-Firefly 20Pro Frame

Flywoo Firefly 20Pro 4S Frame Kit Compatible DJI O4/ O4 Pro HDZero Walksnail Digital FPV System FW-Firefly 20Pro Frame

Firefly 20PRO/25MINI Drone Kit Installation Tutorial
Please refer to the link below :
https://www.youtube.com/watch?v=oU8kQVnpIvg&t=3s

Descriptions :

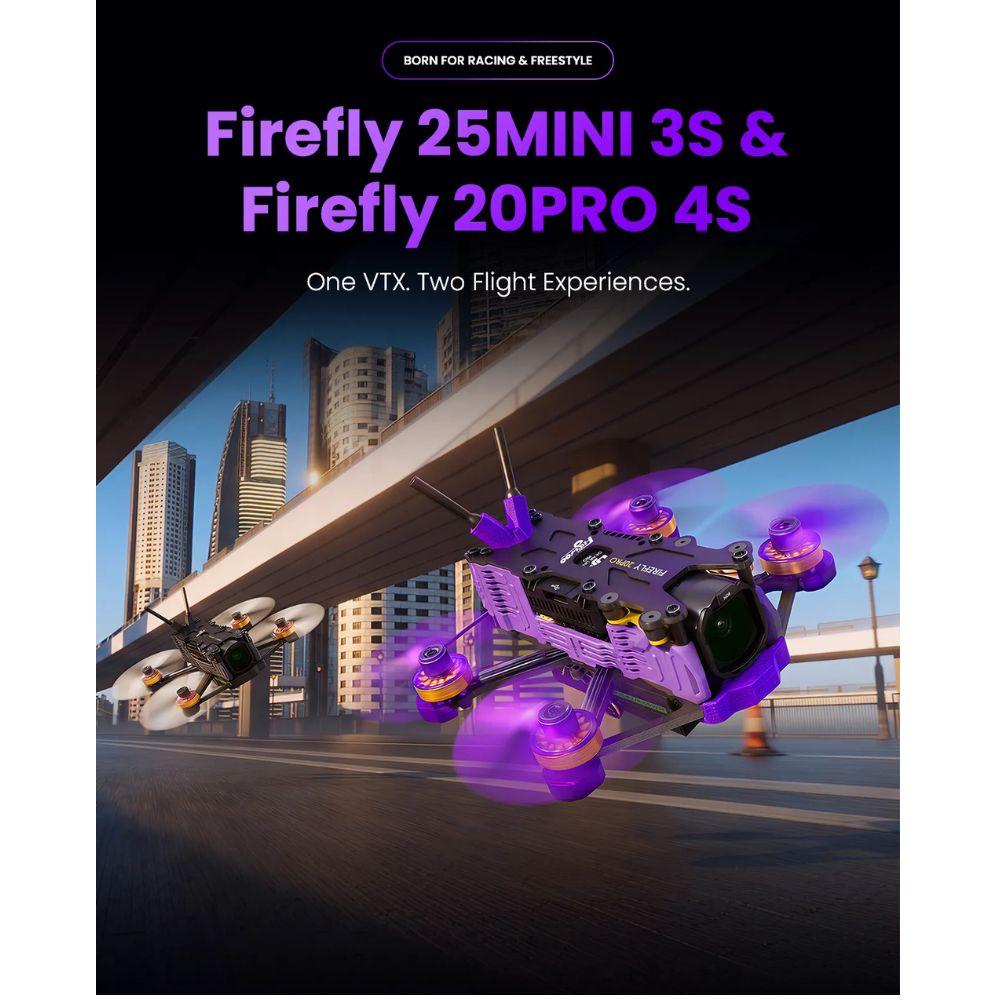

Purpose-built for HD digital FPV. Shared dual-platform design for 2-inch high-speed racing and 2.5-inch long-endurance freestyle, breaking the boundaries between frame types.

The Firefly 20PRO/25MINI is a dual-format micro FPV frame tailored for pilots. Designed with the core philosophy of "lowering the entry barrier, reducing duplicate investments, and improving crash resilience," it perfectly fits DJI O4 / O4 PRO / Walksnail / HDZero digital FPV systems. One HD VTX setup can be seamlessly swapped between the 2-inch racing and 2.5-inch freestyle builds.

Crafted from high-strength carbon fiber, featuring a 2.5mm thickened base plate combined with reinforced front arm structures, ensuring ultra-high rigidity and impact resistance while maintaining extreme lightness. From the tool-free quick-release side guards and clean wiring layout to the adjustable shock-dampening camera mount, it comprehensively covers all flight scenarios from beginner entry-level to high-tier racing, letting every pilot focus purely on the flight.

Product Highlights
Shared dual-frame platform for 2-inch high-speed racing and 2.5-inch long-endurance freestyle

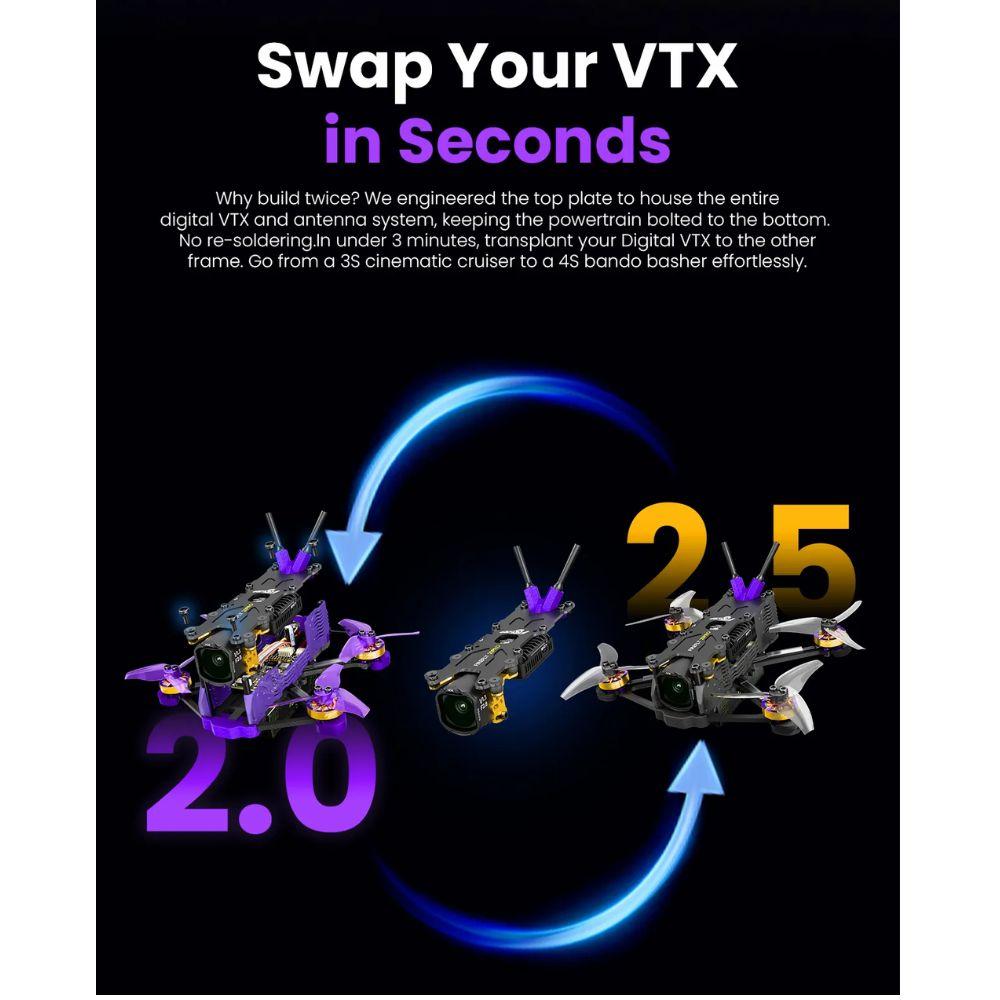

4-screw quick swap for full HD FPV system, no repeated gear investment
Fully compatible with DJI O4/O4 PRO, Walksnail and HDzero digital FPV systems

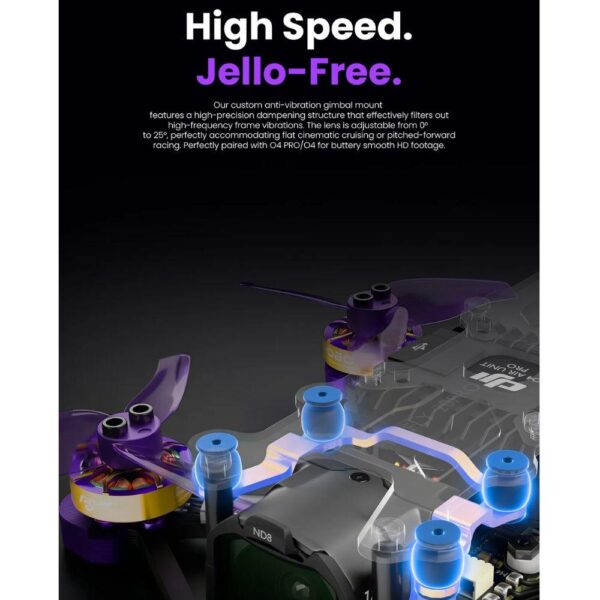

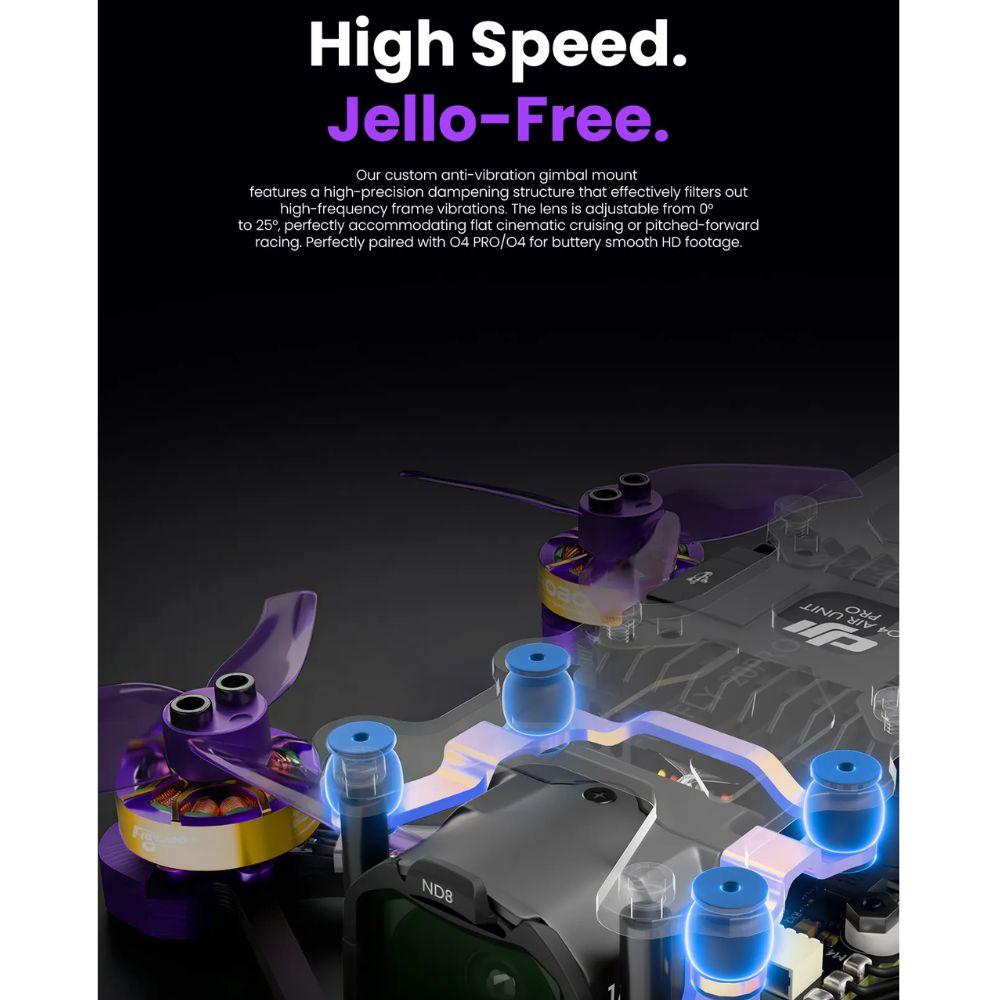

4-point shock-isolating camera mount, eliminates image jello completely
0°-25° adjustable camera tilt, fits all mainstream FPV camera sizes

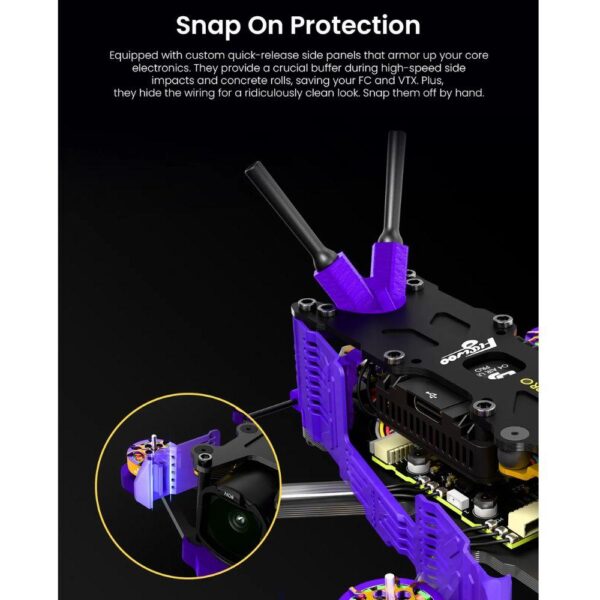

Tool-free quick-release side guards for instant installation and removal
High-strength carbon fiber construction, balances ultra-light weight and extreme rigidity

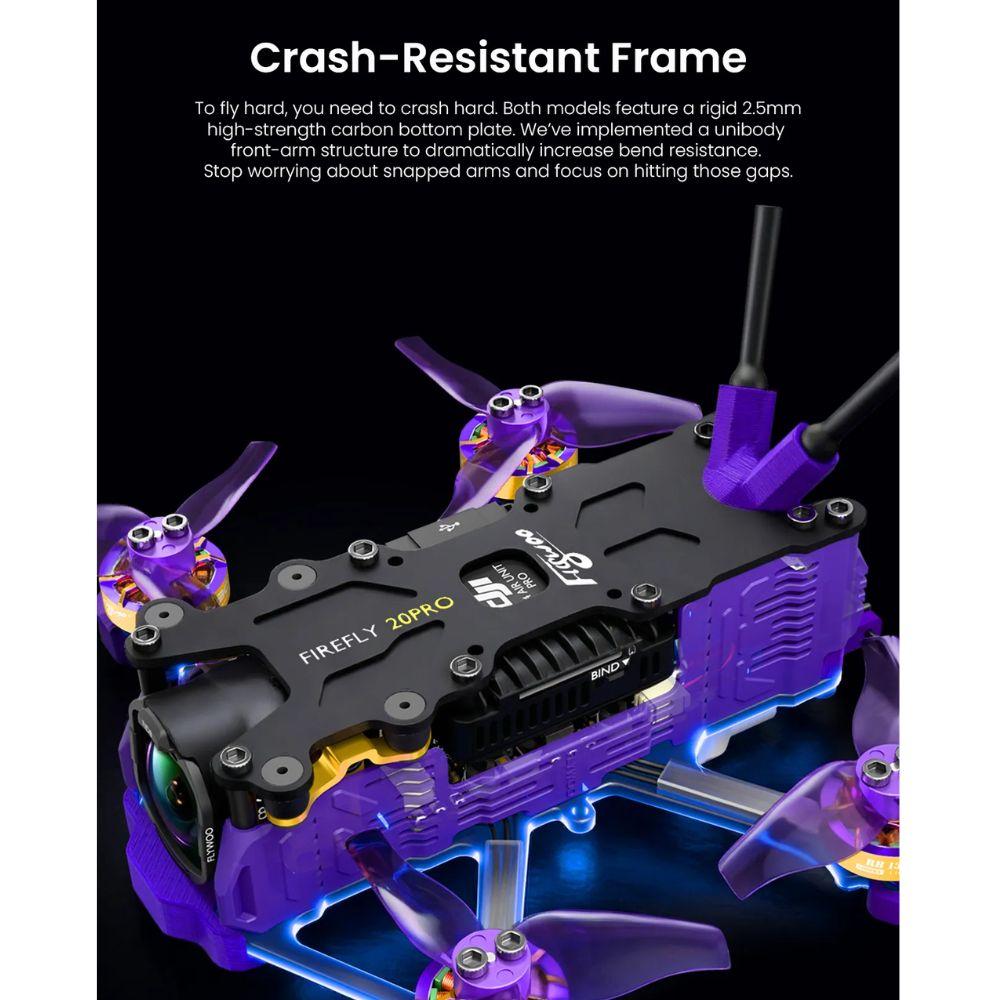

2.5mm thickened base plate + reinforced one-piece arms for maximum crash resistance

Specifications：
Product Name:Firefly 20PRO Frame Kit

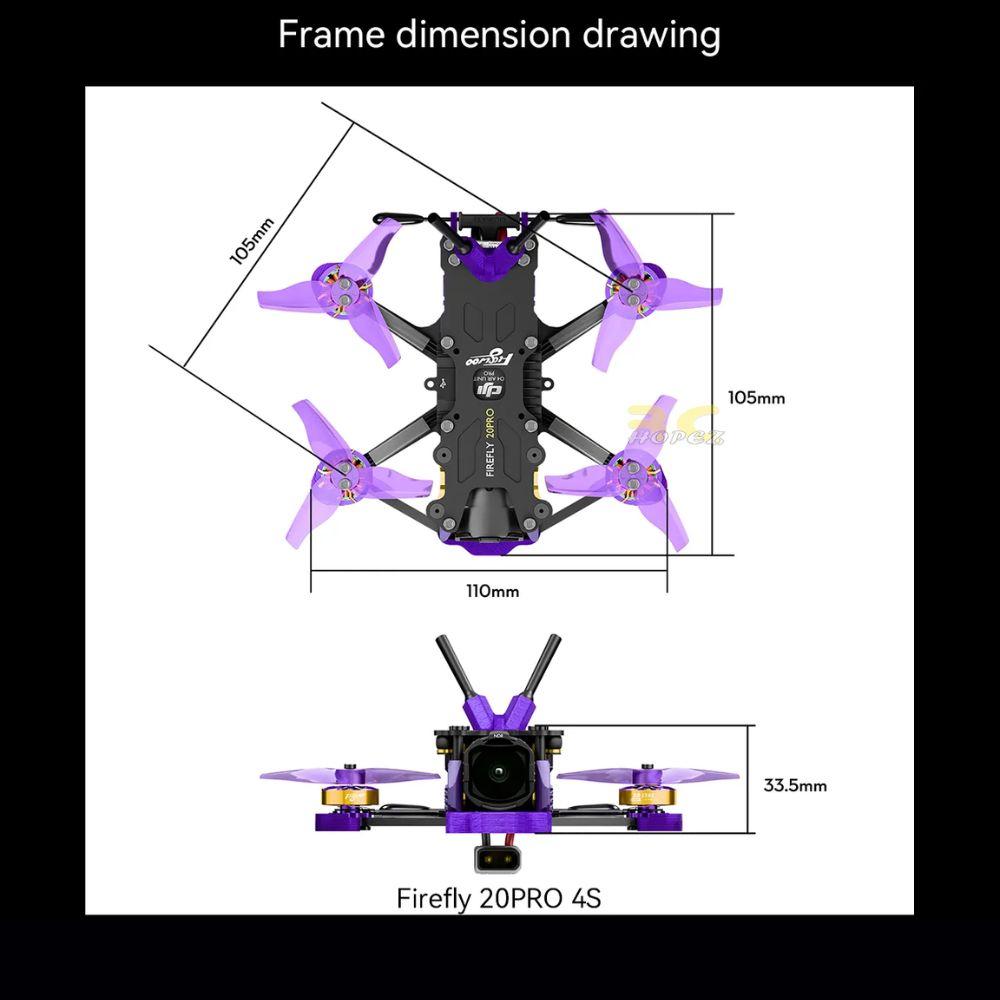

Dimensions:110mm*105mm*33mm
Wheelbase:105mm
FC Mount Hole:20*20mm
VTX Mount Hole    :20*20mm / 25.5*25.5mm
Motor Mount Hole:4-M2-φ9mm
Weight:26g

Recommended (NOT Included) :
Propellers: Gemfan 2023-3 1.5mm Shaft (2 inches)
Flight Controller: GOKU F405 SE 3-4S 20A AIO
Motors: ROBO 1303 6000KV 1.5mm Shaft
HD System:O4 Wide Air Unit / Walksnail Avatar Pro Kit/ O4 PRO Air Unit/ HDZero Whoop Lite W/ Runcam Micro cam
Receiver: Flywoo TCXO 2.4G ELRS EL24P
Recommended Battery: Flywoo 4S 450mAh LiHV/4S 750mAh LiHV

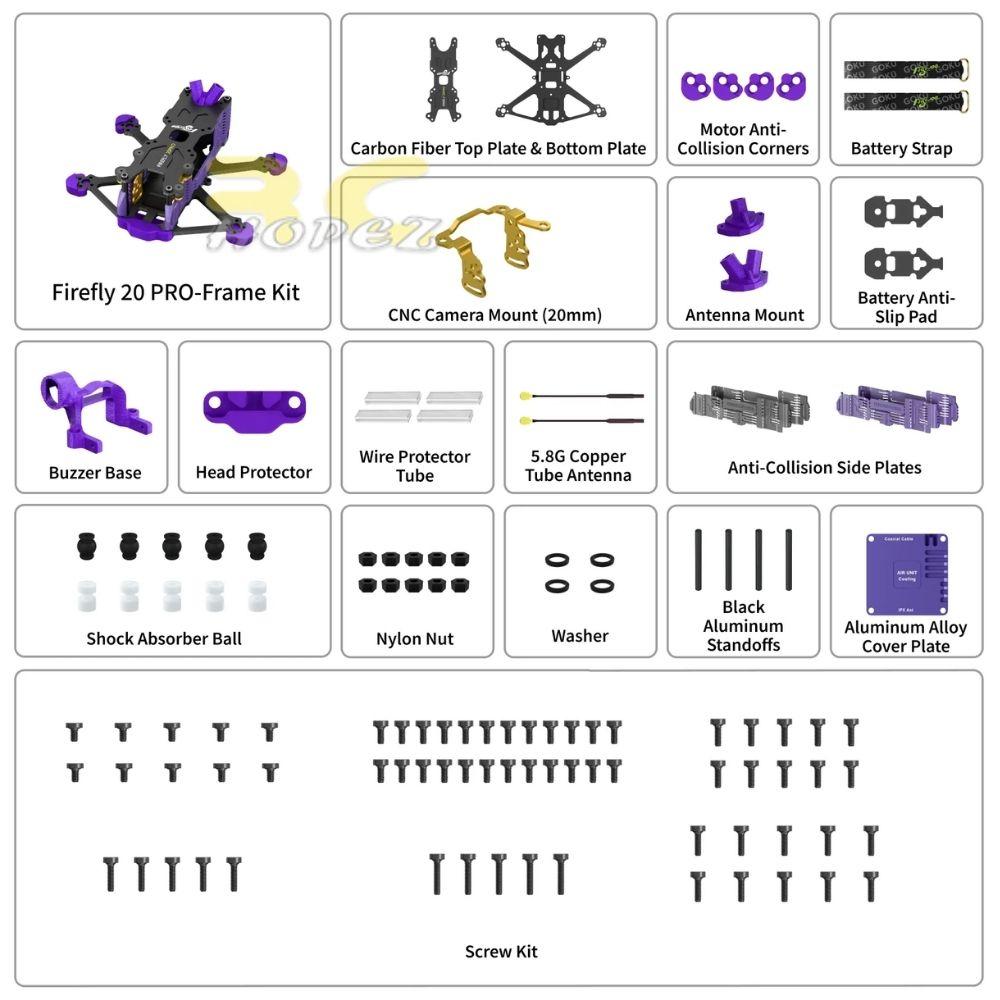

Package Included:
1x Carbon Fiber Top Plate
1x Carbon Fiber Bottom Plate
2x Battery Anti-Slip Pad
1x CNC Camera Mount
1x Antenna Mount
1x Buzzer Base
1x Head Protector

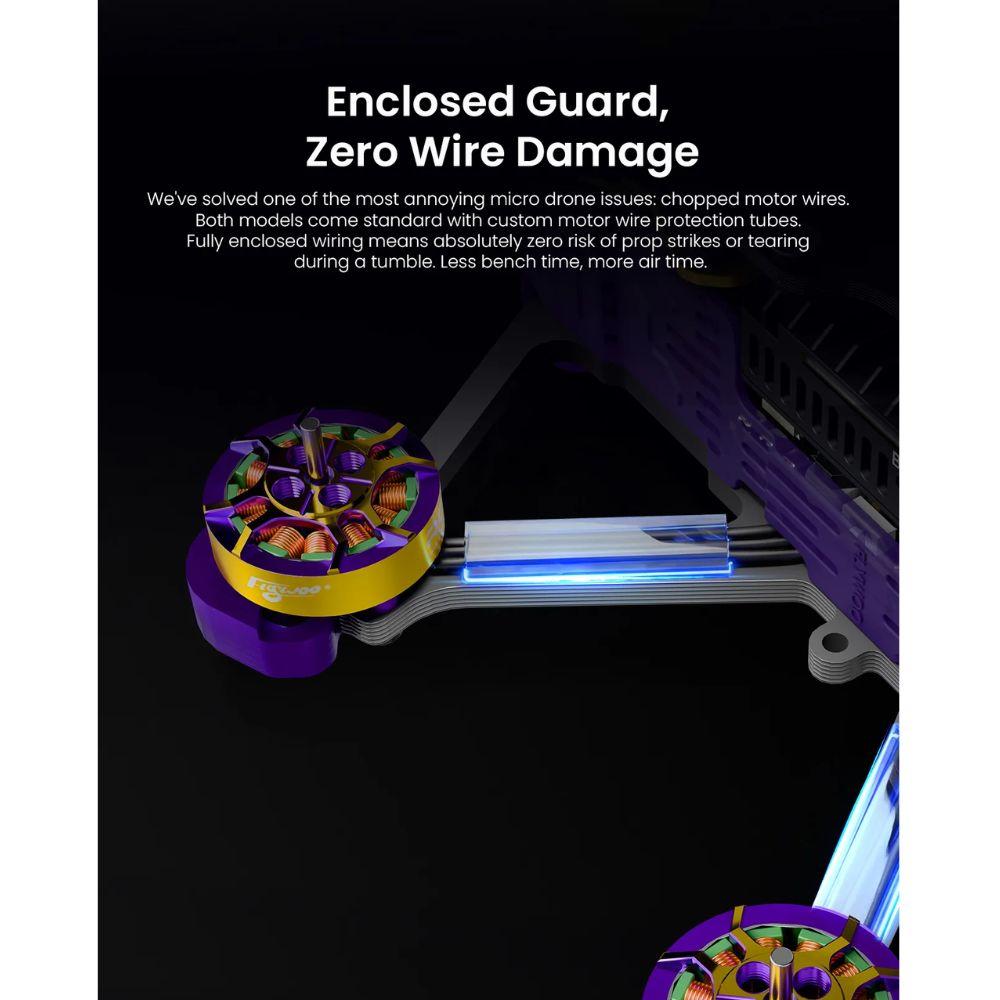

4x Wire Protector Tube
2x 10*130mm Battery Strap
2x 5.8GHz Copper Tube Antenna
2x Anti-Collision Side Plate (Purple)
2x Anti-Collision Side Plate (Black)
10x Shock Absorber Ball
10x M2 Nylon Nuts
4x Washers
4x Black Aluminum Standoffs
1x Aluminum Alloy Cover Plate
1x Screw Kit
