About this product
The Firefly 16/18 1S Nano Baby V3 Frame Kit, developed by FLYWOO, is an ultra-lightweight and compact frame solution designed for micro drones. It offers flexible size options (16 or 18 versions), enabling you to build high-performance Nano Baby-class drones with ease.

Specifications:
Brand: Flywoo
Model: Firefly16 / 18 1S V3

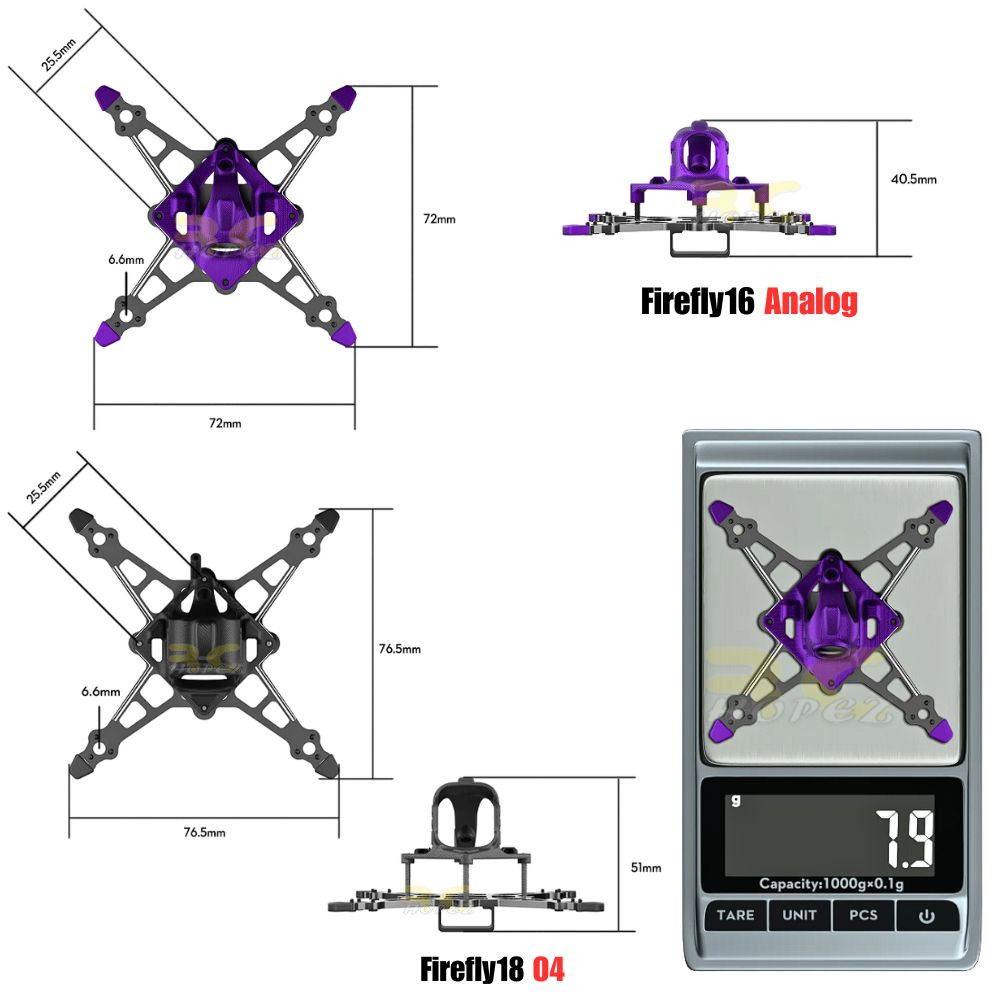

Main Board Thickness: 2mm
Flight Control Hole Position: 25.5×25.5mm
Motor Position:  6.6mm
Propeller Size: 40mm x3 (Firefly16 ) / 45mm x2 (Firefly18)

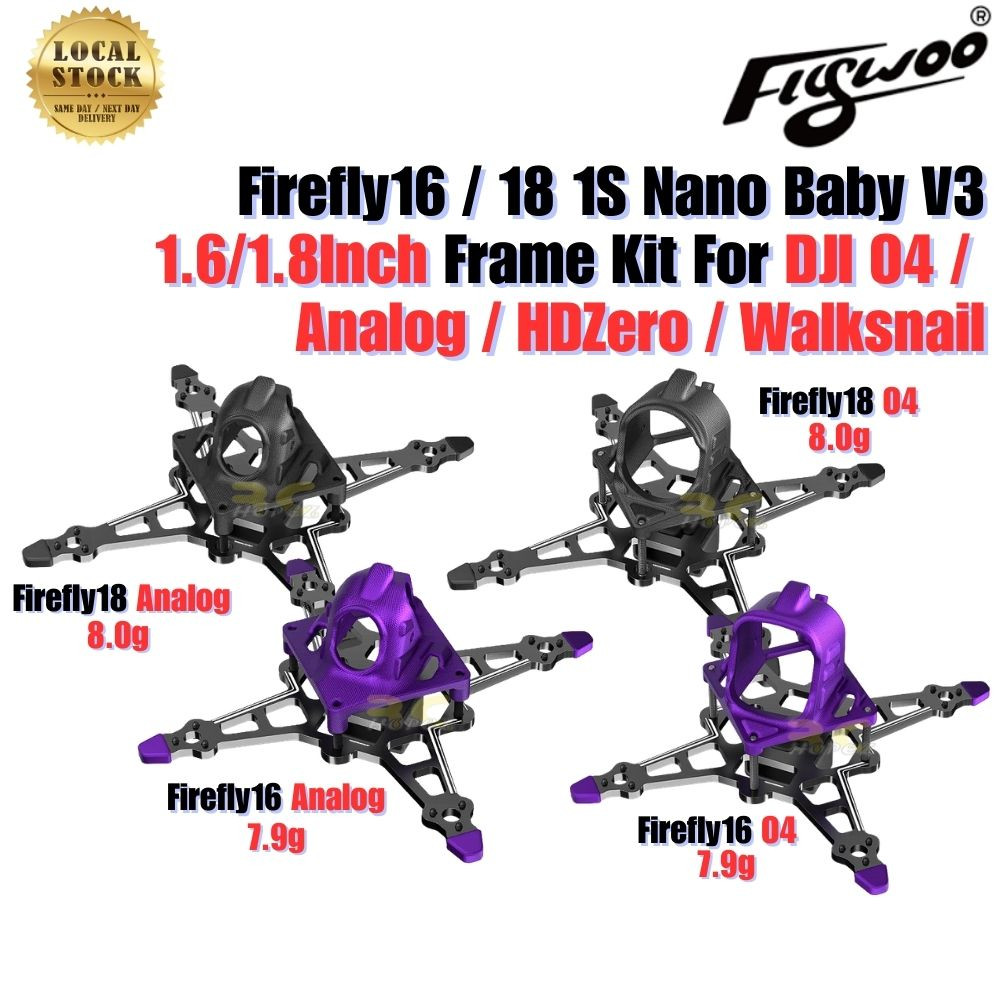

Weight: 7.9g (Firefly16) / 8g (Firefly18)

Recommmend Configuration (NOT Included) :

**Firefly18 1S Nano Baby V3 Analog Tiny Drone
Frame: Firefly18 1S Nano Baby V3 O4 Frame kit
Electronic: GOKU F405 ERVT 1S 5A 5-in-1 400mw ELRS AIO
Transmission: GOKU F405 ERVT 1S 5A 5-in-1 400mw ELRS AIO
Camera: Flywoo 1S Nano Camera V3
Propeller: HQ 45MMX2 (Firefly18)  /  HQ 40MM X3 (Firefly 16)
Motor: ROBO 1002 19800KV（Firefly18）/ ROBO 1002 23500KV (Firefly 16)
Battery Connector: A30

**Firefly16 / 18 1S Nano Baby V3 O4 Tiny Drone
Frame: Firefly16 / 18 1S Nano Baby V3 O4 Frame kit
Electronic: GOKU F405 HD 1S 1S 5A AIO W/TXCO ELRS （BNF-DJI without ELRS RX）
Transmission: DJI O4 Air Unit
Camera: DJI O4 Camera
Propeller: HQ 45MMX2 (Firefly18) / HQ 40MM X3 (Firefly 16)
Motor: ROBO 1002 19800KV（Firefly18）/ ROBO 1002 23500KV (Firefly 16)
Battery Connector: A30

**Firefly 16 / 18 1S Nano Baby V3 HDZero Tiny Drone
Frame: Firefly16 / 18 1S Nano Baby V3 HDZero Frame kit
Electronic: GOKU F405 HD 1S 1S 5A ELRS AIO
Transmission: HDZero Whoop Lite VTX
Camera: HDZero Nano V3 Camera
Propeller: HQ 45MMX2 (Firefly18) / HQ 40MM X3 (Firefly 16)
Motor: ROBO 1002 19800KV（Firefly18）/ ROBO 1002 23500KV (Firefly 16)
Battery Connector: A30

**Firefly 16 / 18 1S Nano Baby V3 Walksnail Tiny Drone
Frame: Firefly16 / 18 1S Nano Baby V3 Walksnail Frame kit
Electronic: GOKU F405 HD 1S 1S 5A ELRS AIO
Transmission: Walksnail Avatar HD Mini 1S VTX
Camera: Walksnail Avatar HD Nano Camera
Propeller: HQ 45MMX2 (Firefly18) / HQ 40MM X3 (Firefly 16)
Motor: ROBO 1002 19800KV（Firefly18）/ ROBO 1002 23500KV (Firefly 16)
Battery Connector: A30

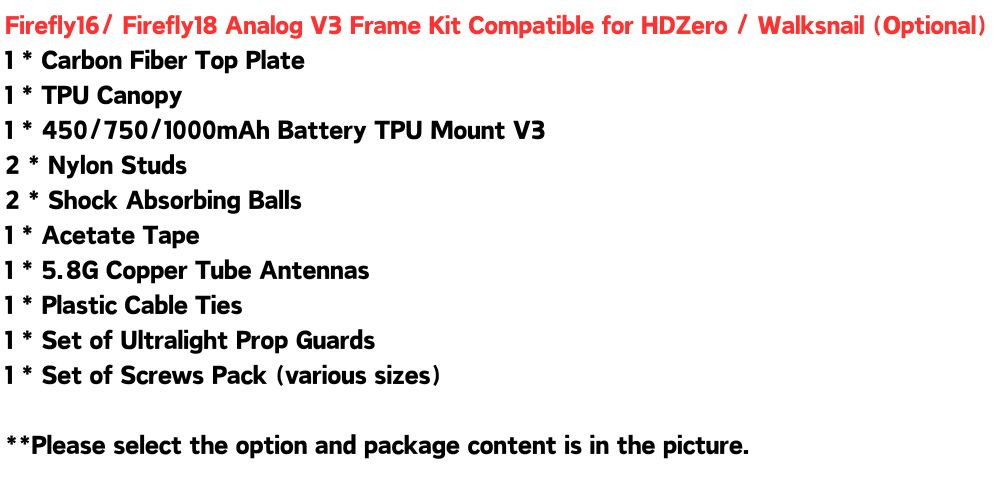

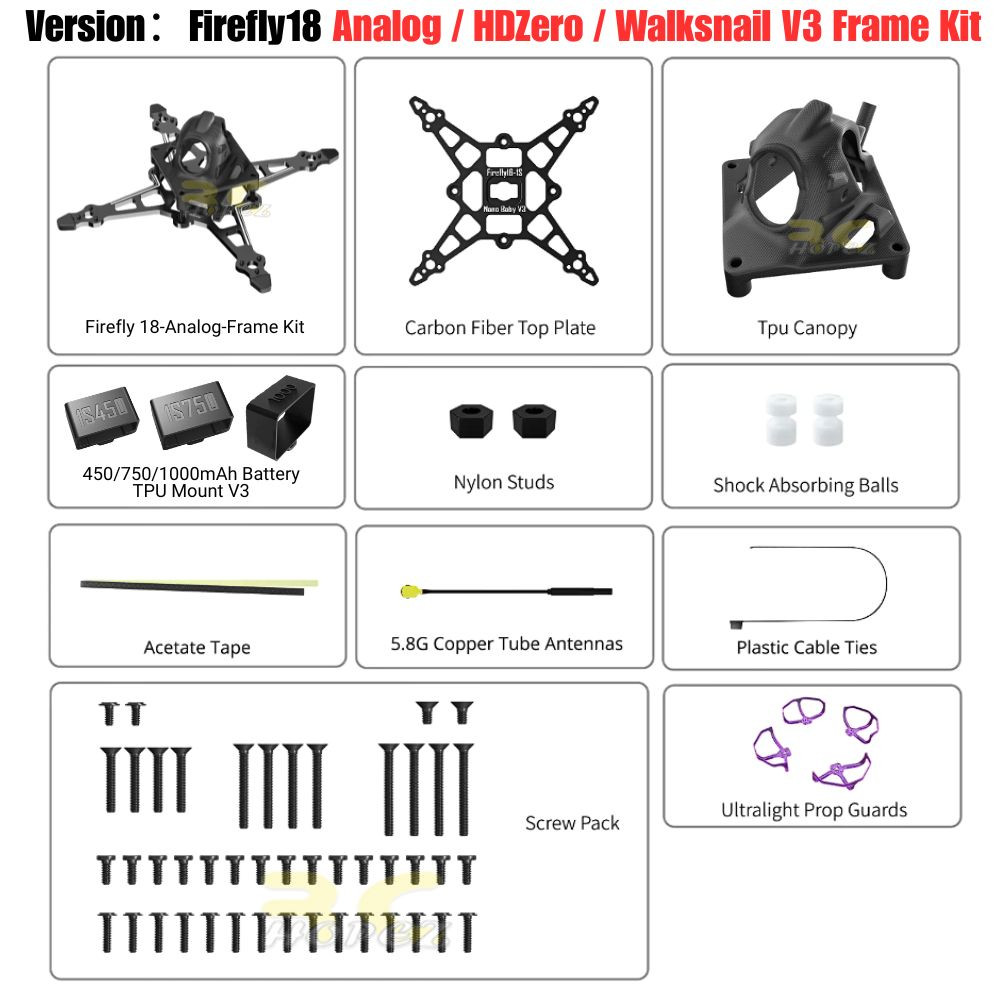

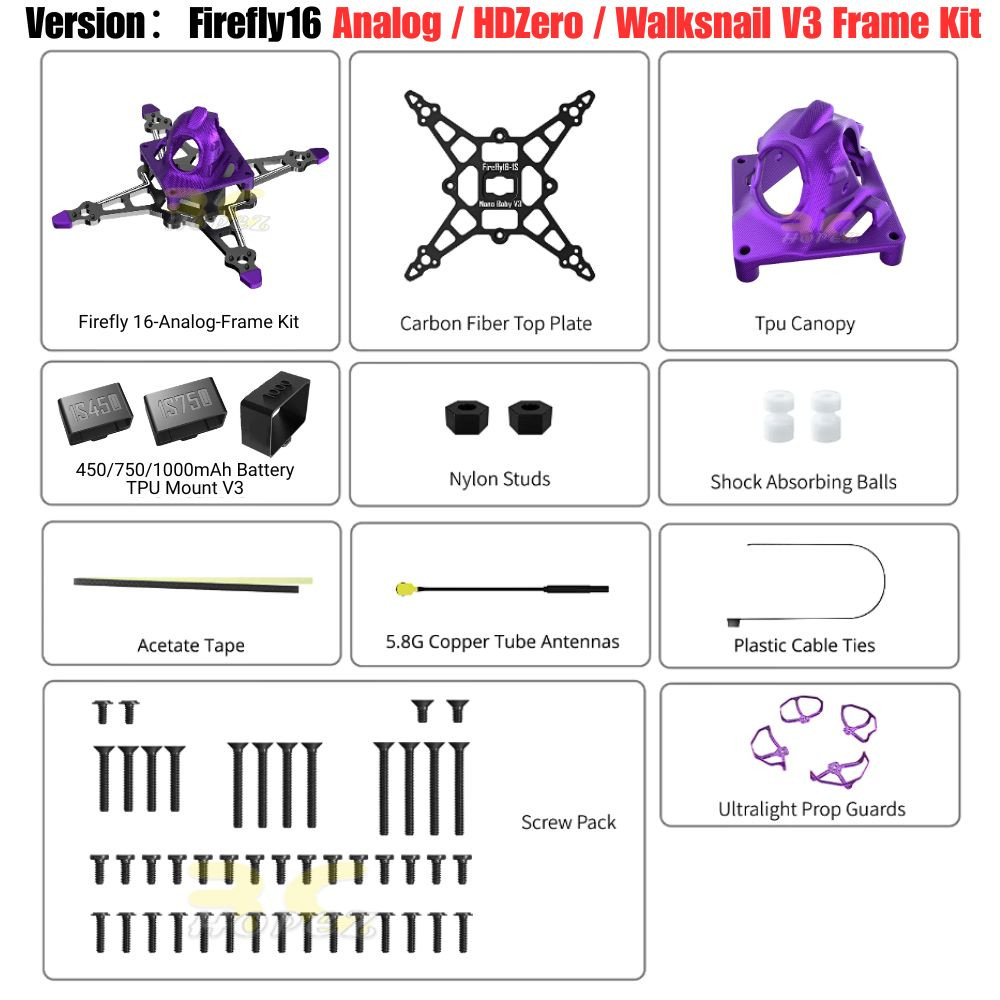

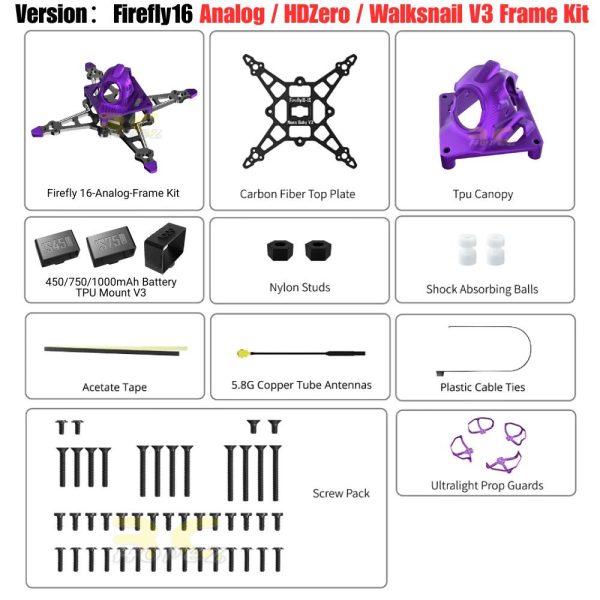

Package Included (Optional) :

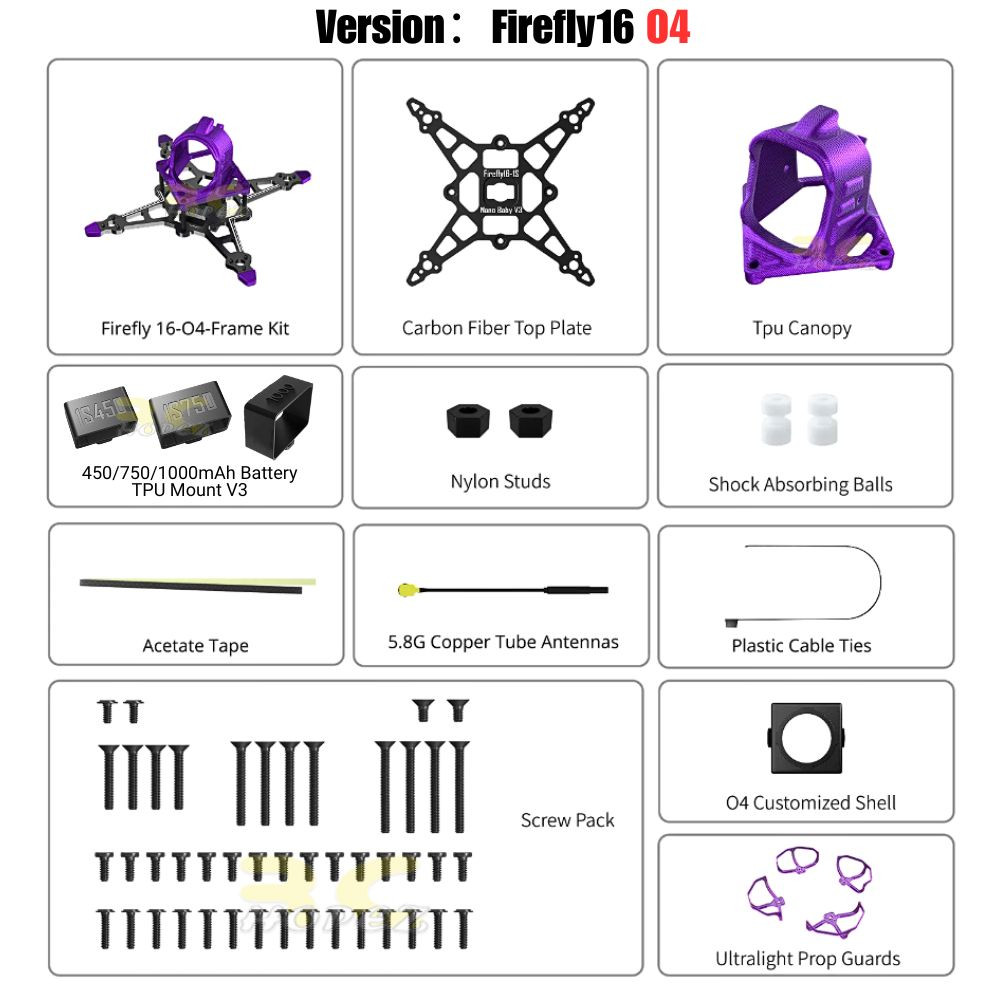

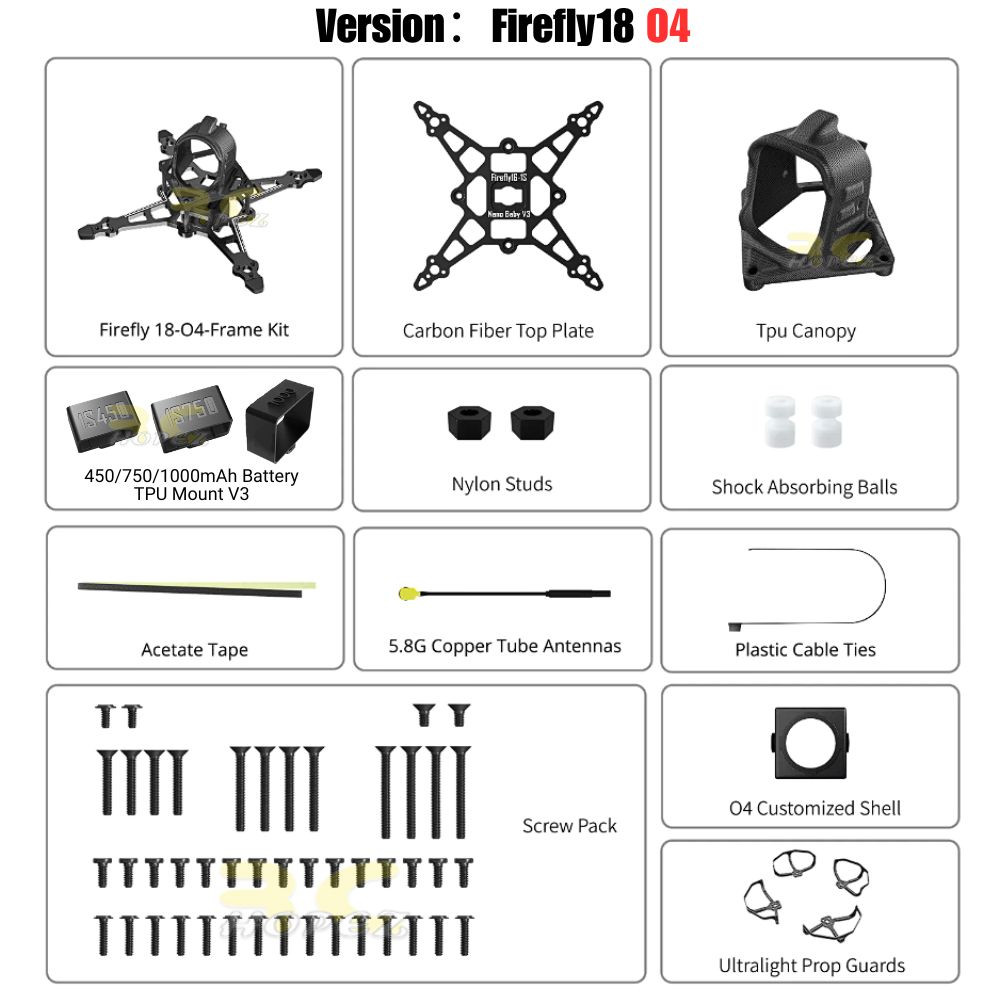

Firefly16/ Firefly18 O4 Frame kit V3
1 * Firefly16/ Firefly 18 O4 V3 Frame Kit (Optional)
1 * Carbon Fiber Top Plate
1 * TPU Canopy
1 * 450/750/1000mAh Battery TPU Mount V3
2 * Nylon Studs

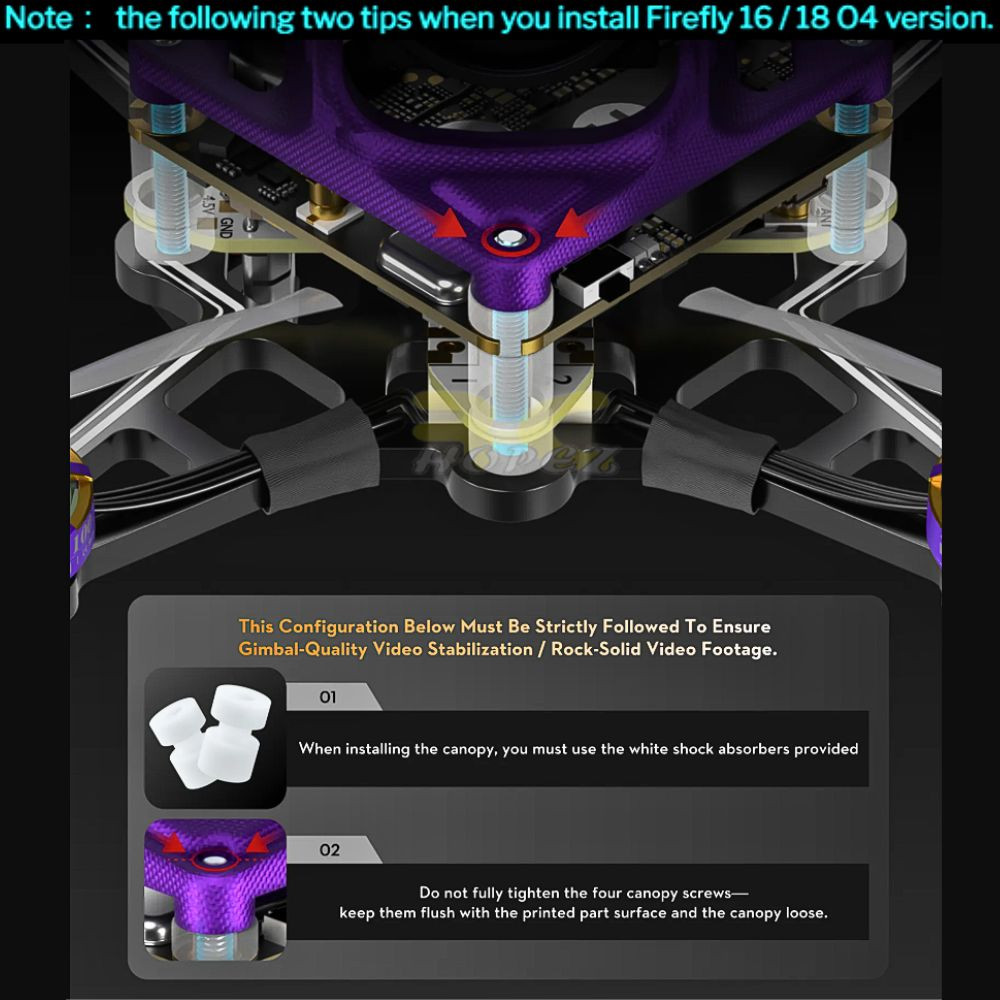

2 * Shock Absorbing Balls
1 * Acetate Tape
1 * 5.8G Copper Tube Antennas
1 * Plastic Cable Ties
1 * O4 Customized Shell
1 * Set of Ultralight Prop Guards
1 * Seet of Screws Pack (various sizes)

OR
