Foxeer Lollipop 4 Plus 5.8G 2.6Dbi RHCP High Gain FPV Omni Antenna – SMA/SMA Angle/RP-SMA/UFL/MMCX/MMCX Angle XJ521N

Foxeer Lollipop 4 Plus 5.8G 2.6Dbi RHCP High Gain FPV Omni Antenna – SMA/SMA Angle/RP-SMA/UFL/MMCX/MMCX Angle XJ521N

Product Description

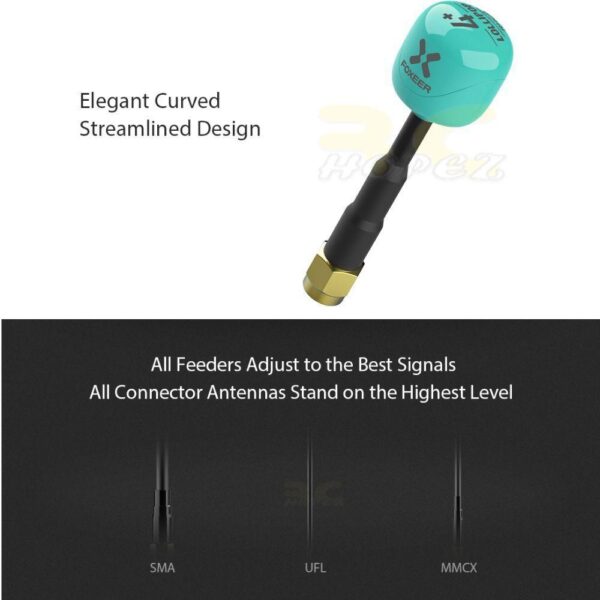

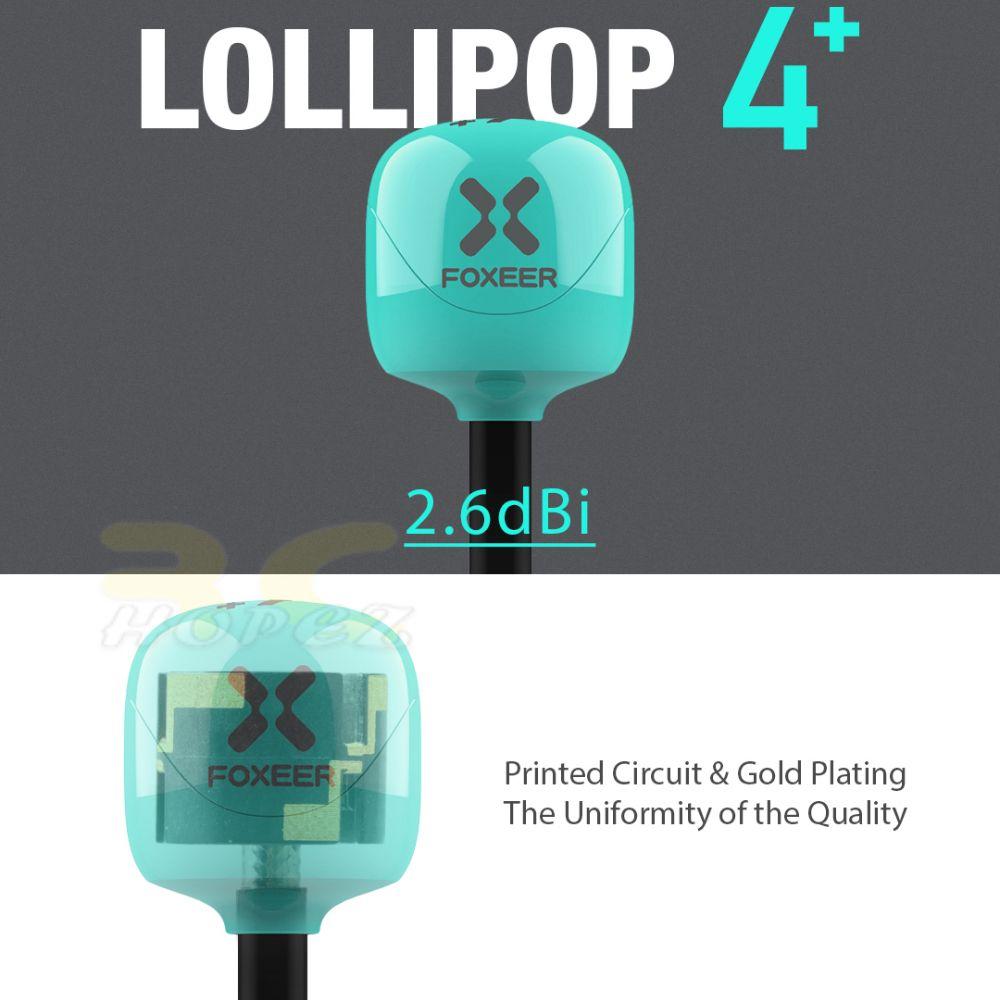

This is the updated and improved 4th generation of your all time favorite Foxeer Lollipop antennas. This latest version is even more durable and consistent thanks to its new stronger printed circuit design that uses gold plating technology which provides better signal. The edges have also been smoothed out giving the antenna a more sleek streamlined design. And each antenna's feed lines have been adjusted to ensure it has as little interference with your signal as possible.

Description:
Brand: FOXEER
Item Name: Lollipop 4 Plus FPV Antenna
Center Frequency: 5.75GHz
Gain: 2.6dBi
Axial Ratio: Close to 1
Band Width: 5.5G~6GHz
Radiation Efficiency: 98%

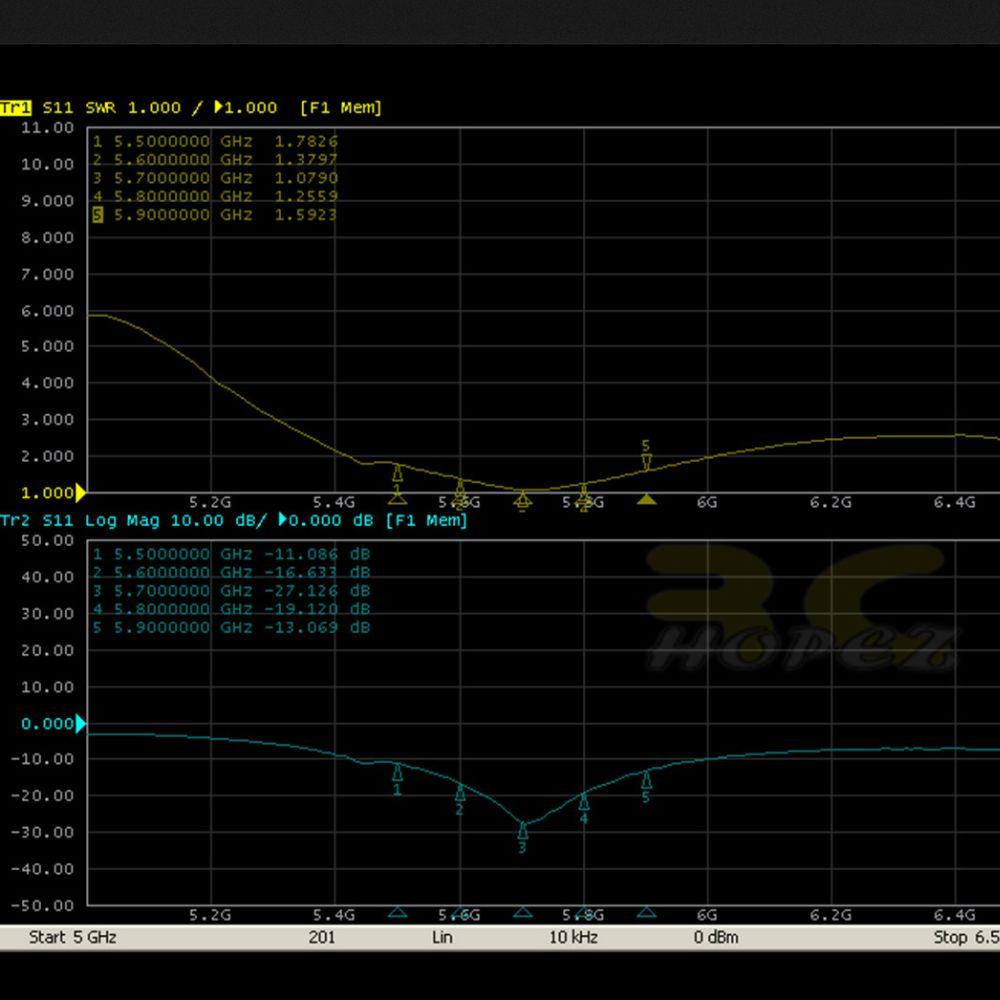

SWR: 1.07 at Center Frequency
Polarization: RHCP

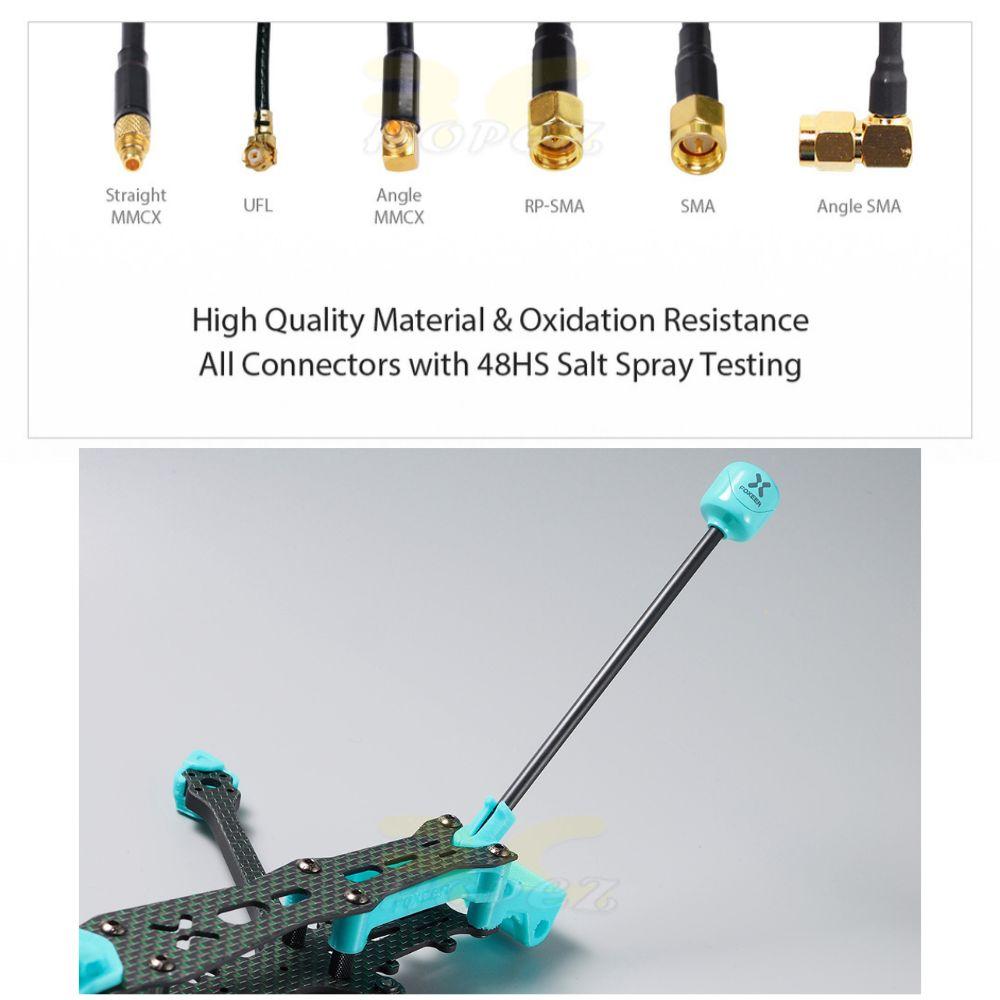

Interface: SMA / RP-SMA / UFL / SMA Angle / Angle MMCX / UFL Tube Short / UFL Tube Long / MMCX Tube Short (Optional)
Case Material: PC+ABS
Color : Green / Teal (Optional)

Weight
65mm RP-SMA – 8g
65mm SMA – 8g
88mm UFL – 2g
95mm UFL -3g
95mm Angel MMCX – 3g
100mm SMA – 9g
150mm SMA Angel – 14g
150mm SMA – 13g
165mm UFL – 4g

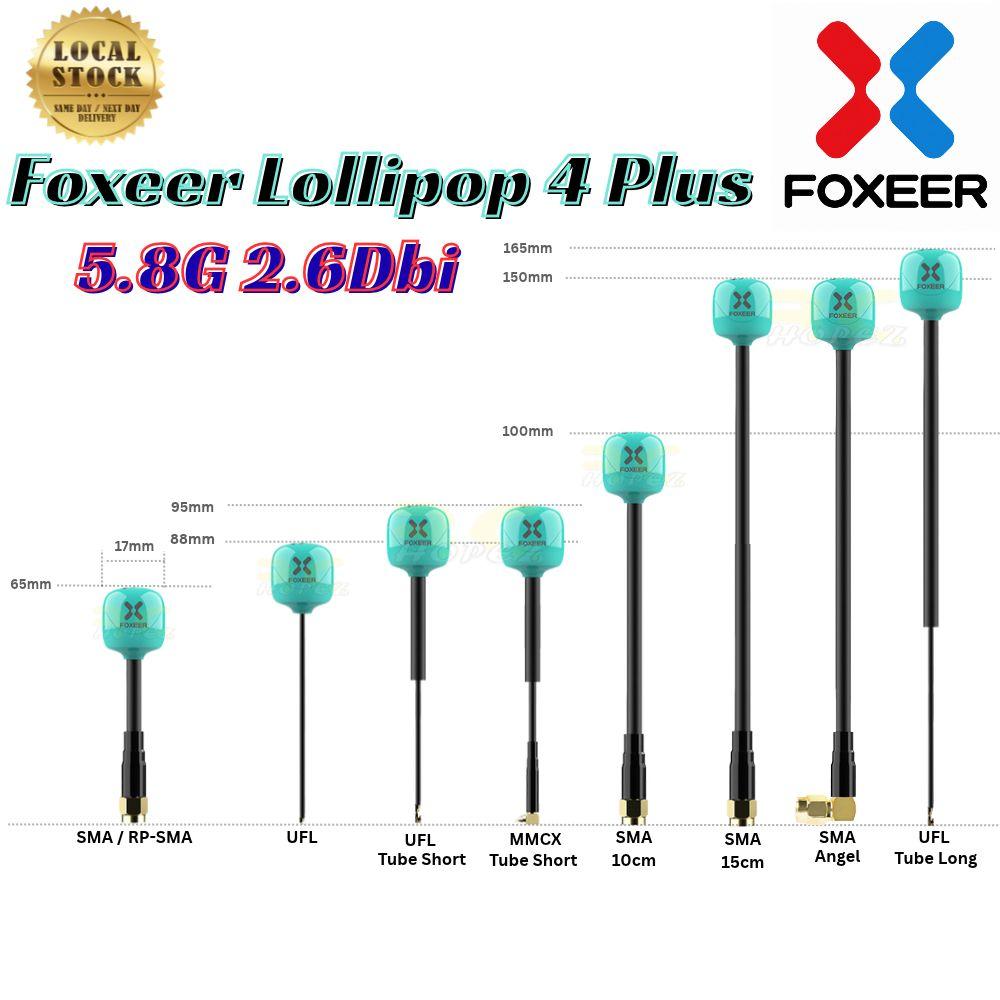

Connector & Length
– SMA/RPSMA/Angle MMCX: Φ11*60mm
– UFL/ UFL Tube Short/ Angle MMCX Tube Short: Φ11*85mm
– SMA-10CM: Φ11*100mm
– SMA 15CM Angle/ UFL Tube Long/ Angle MMCX Tube Long: Φ11*150mm

Package Included (Optional) :
1 x Foxeer Lollipop 4 Plus 2.6Dbi RHCP Omni AntennaReduce Heat Stress
