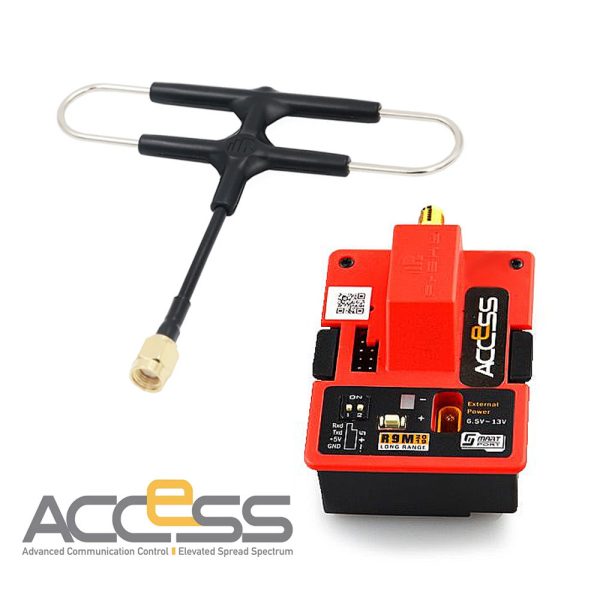

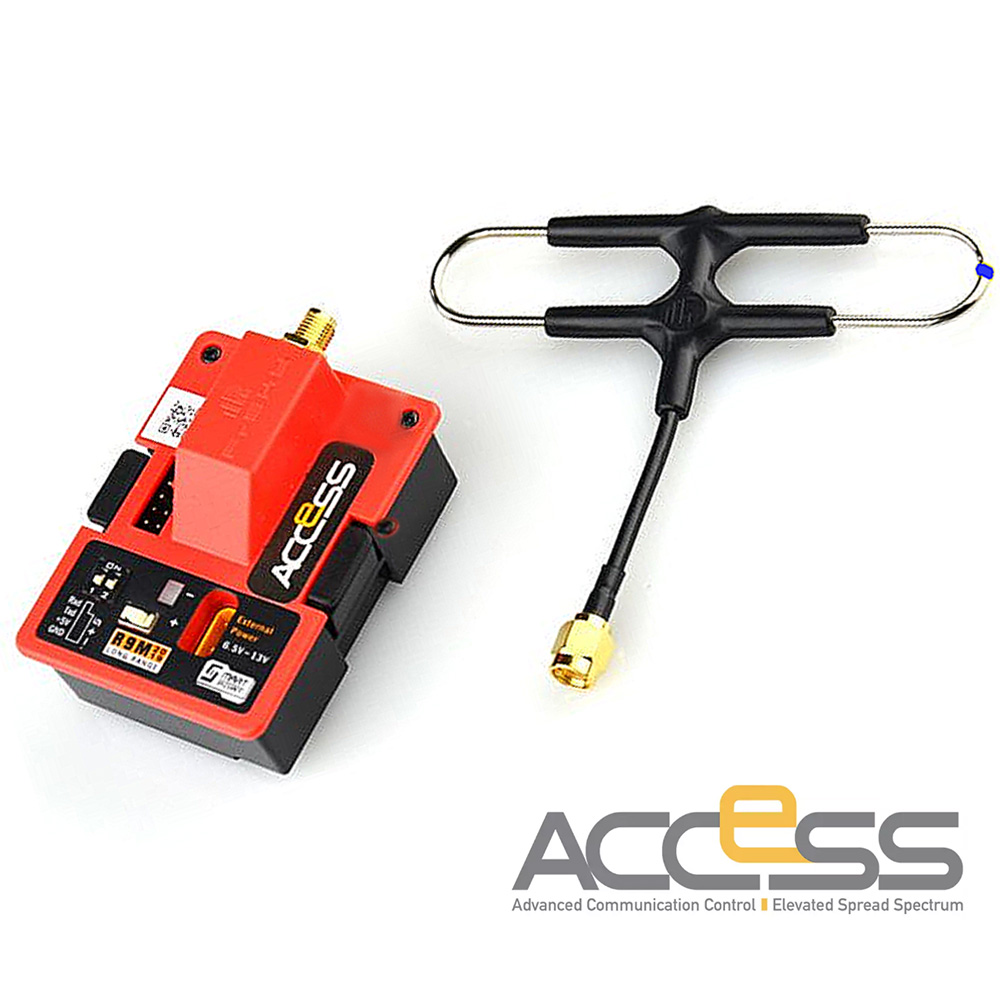

Frsky R9M 2019 ACCESS Module & Super 8 Antenna Combo GZ602

Frsky R9M 2019 ACCESS Module & Super 8 Antenna Combo GZ602

FrSky have now bought out a competing package, the R9. Like the Crossfire system, the R9 setup broadcasts at a much lower frequency than typical RC, operating at around 900MHz as opposed to traditional 2.4GHz. This lower frequency enables better signal penetration and much greater range.

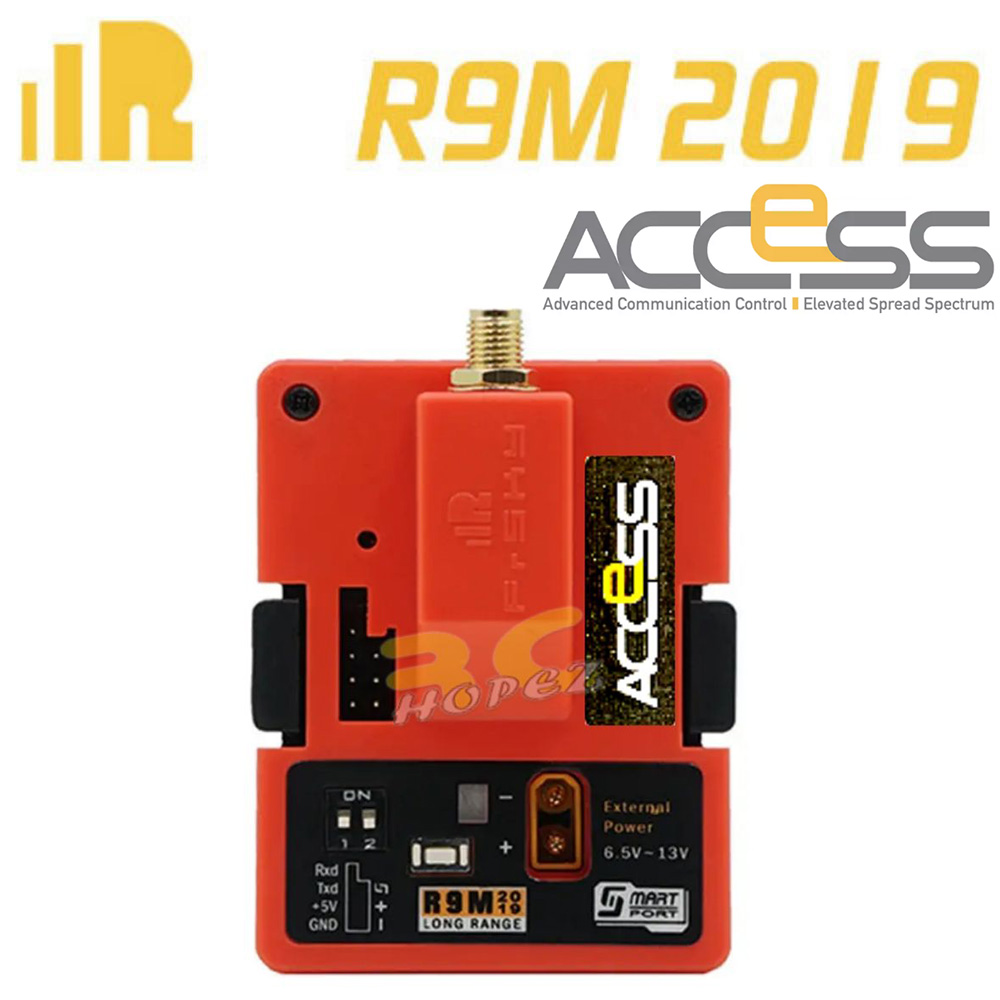

R9M 2019 ACCESS Description

 FrSky R9M 2019 telemetry module. FrSky R9M 2019 radio control system is FrSky long range system
which works in 900MHz.The R9M module offers 4 switchable RF power outputs to so you can choose the appropriate power for different flight situations. Compared to another FrSky 2.4GHz long range receiver like the L9R, the R9 receiver has a longer operating range up to 10KM and above. Moreover, the R9 is also a redundancy receiver which can connect to another receiver to ensure the security of your aircraft.

Features :

• 900MHz Working Mode
• Long range, Low Latency and High Precision RC System
• 4 Optional RF Power (Non-EU Version)
• Telemetry mode（25mW）
• RF Power (Flex): 10mW/ 100mW/ 500mW/ 1W (Telemetry Supported For All Levels)
• Smart Port Enabled and Support Telemetry Data Transmission
• Installed with ACCESS Protocol

Specifications :

• Compatibility : R9 series
• Vin Voltage Range: 6.5V-13V
• External Power Supply: 6.5V~13V
• Telemetry Interface: Smart Port
• Upgrade Interface: Smart Port
• ACCESS Protocol
• RF Operating Frequency : 915MHz

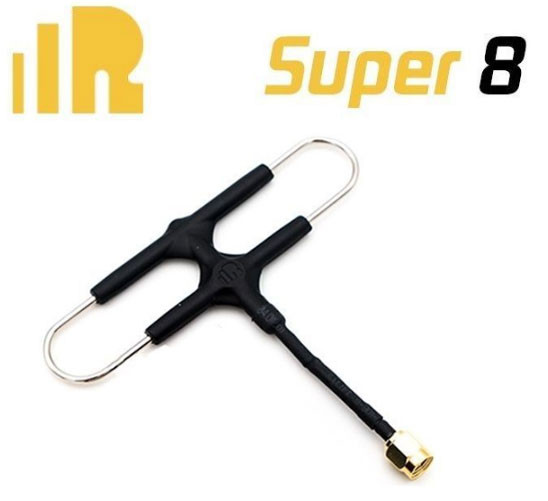

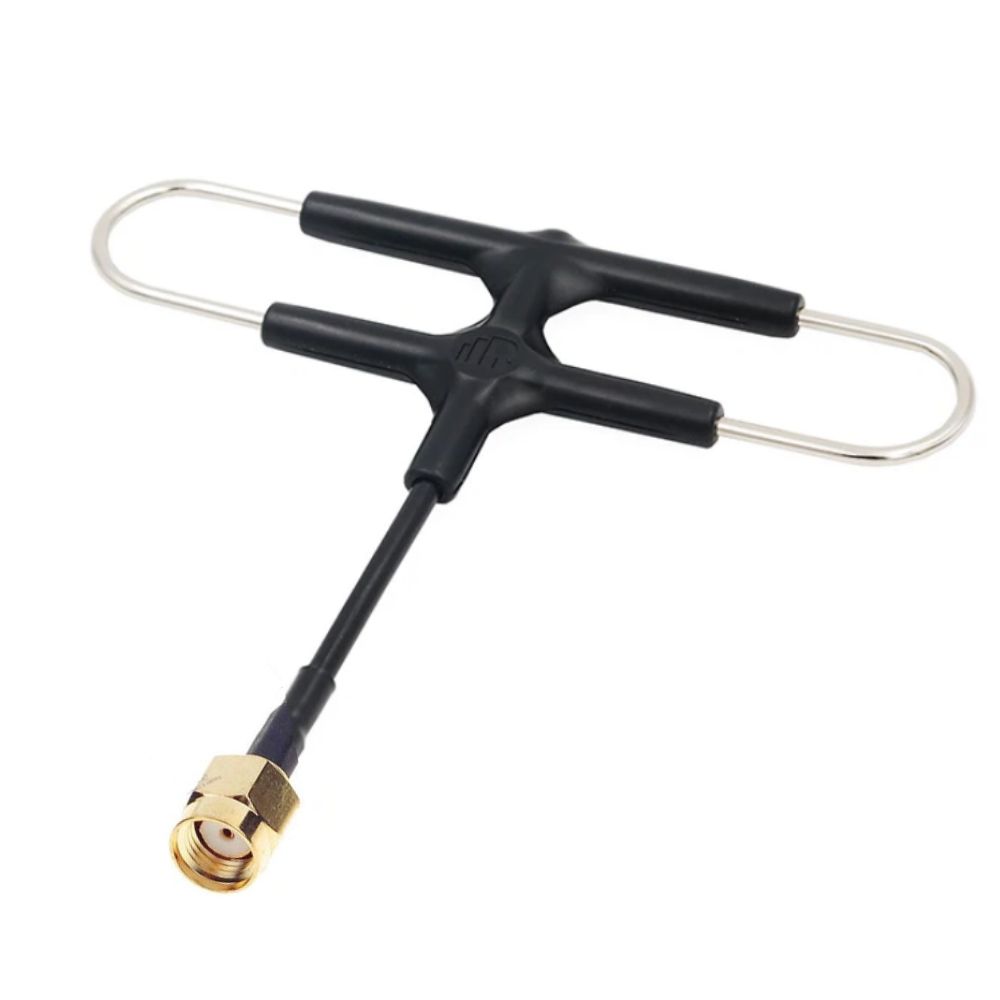

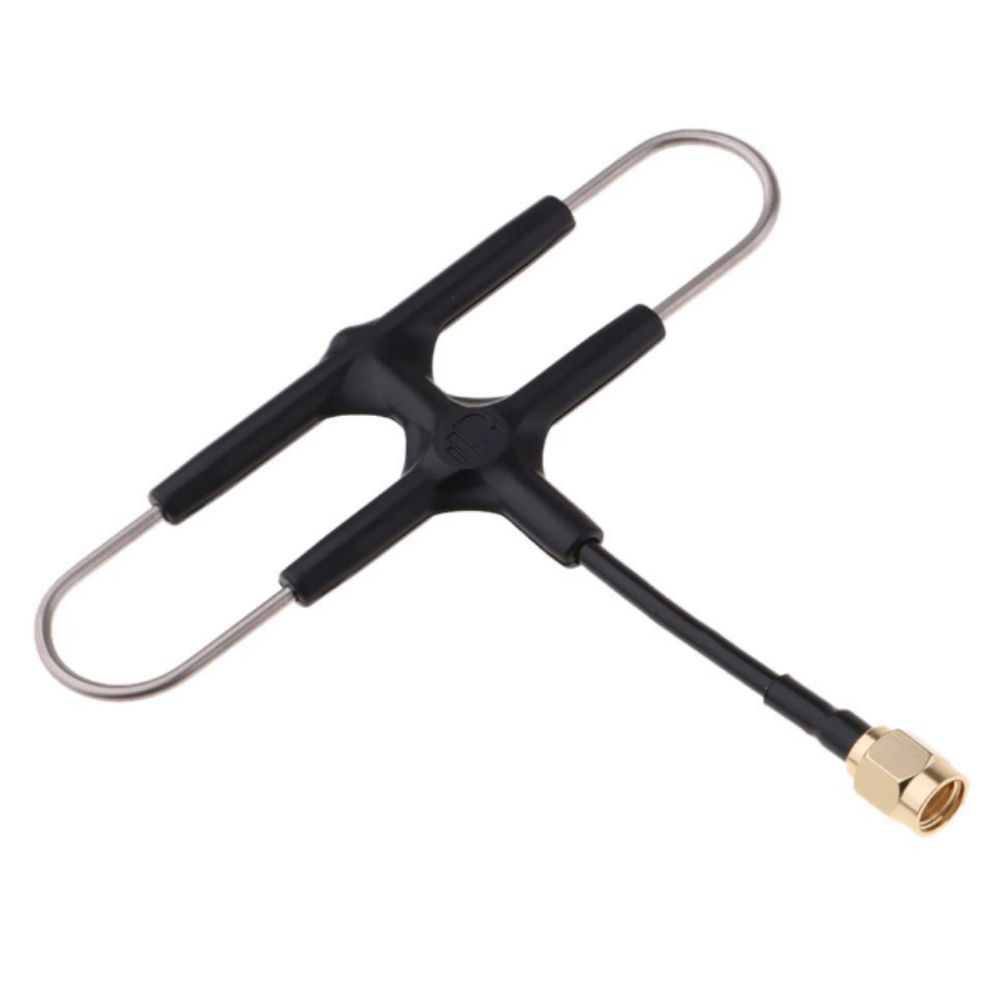

FrSky 900MHz Super 8 Antenna

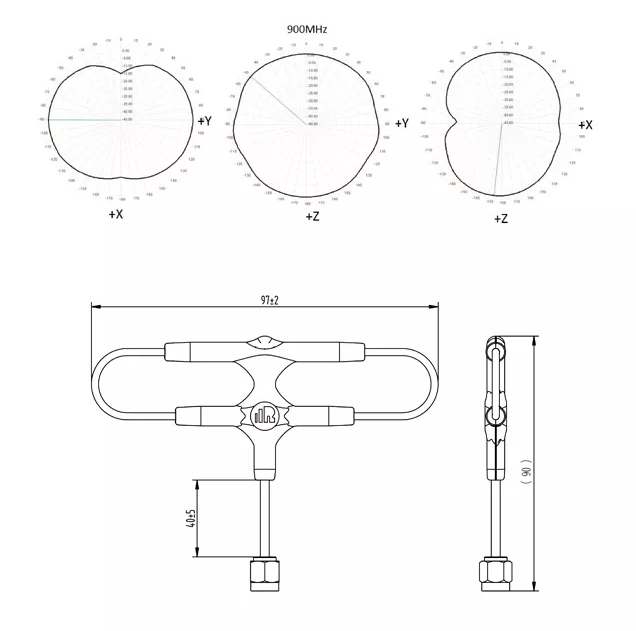

Specification:

• Brand: FrSky
• Item Name: FrSky Super 8 Antenna
• Frequency Range: 860 – 930MHz (FCC)
• Peak Gain: 3dBi@900Mhz
• Feed Impedance: 50 ohm
• RF Cable: RG405 Semi-flexible

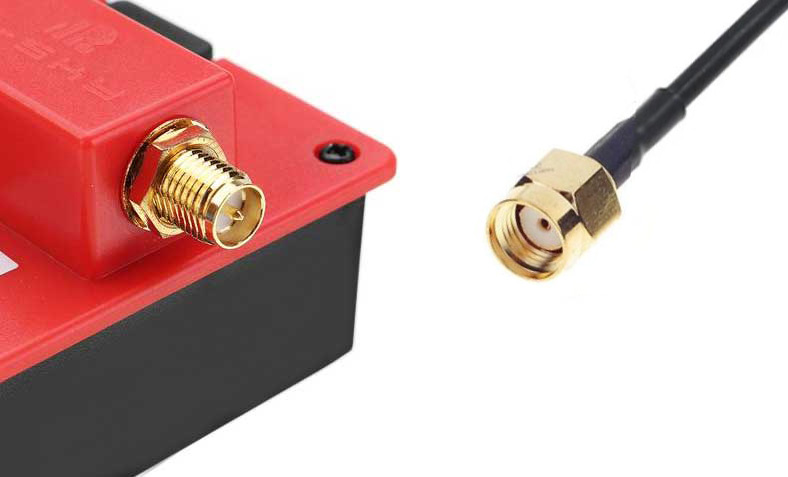

• Connector: SMA internal screw hole
• Compatible with modules: R9M / R9M Lite

Features:

• High efficiency
• Quick integration

Package Including :
1 x R9M 2019 ACCESS Module
1 x Super 8 Antenna
