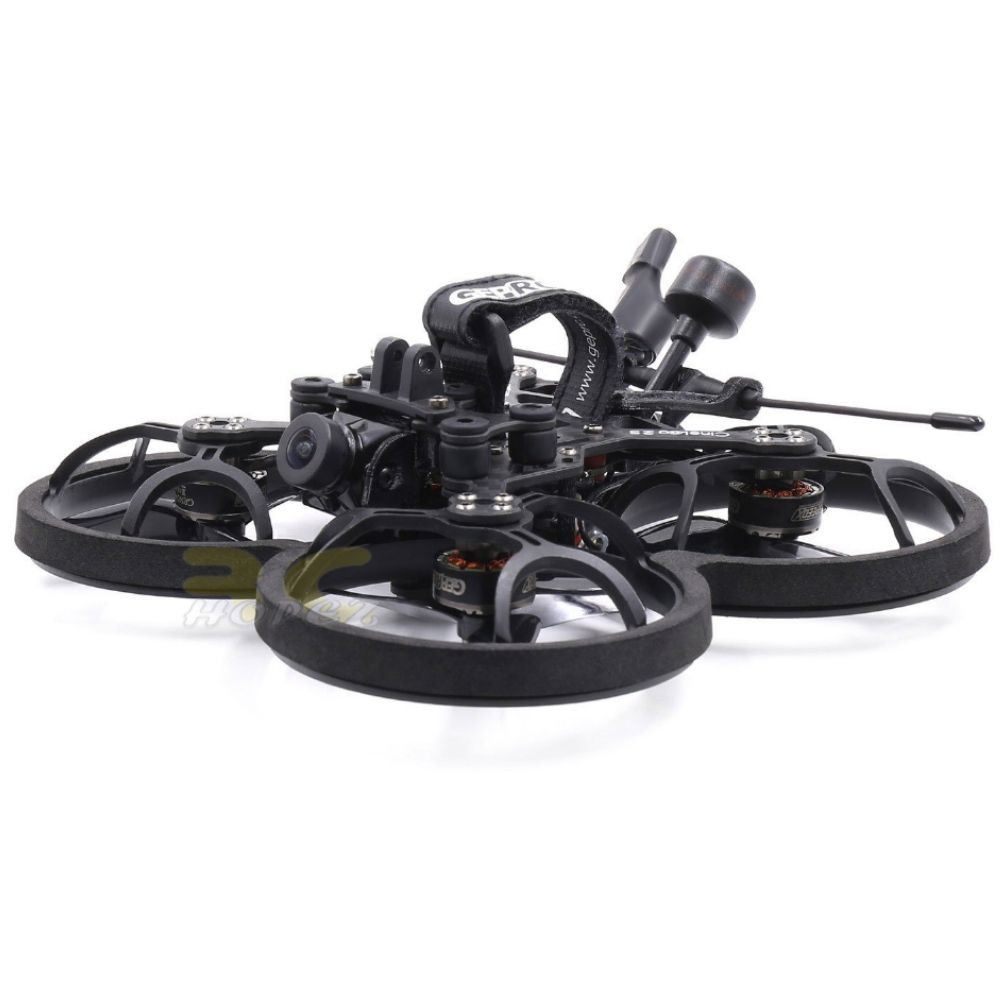

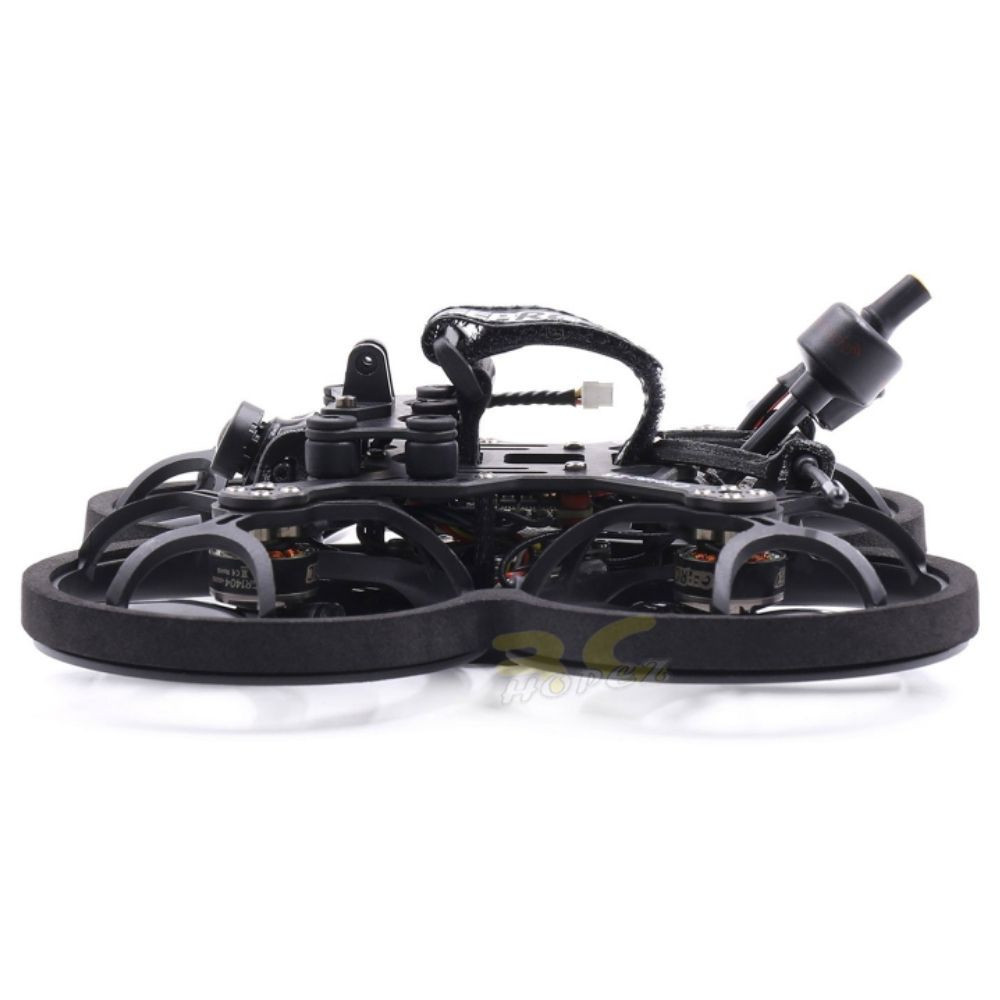

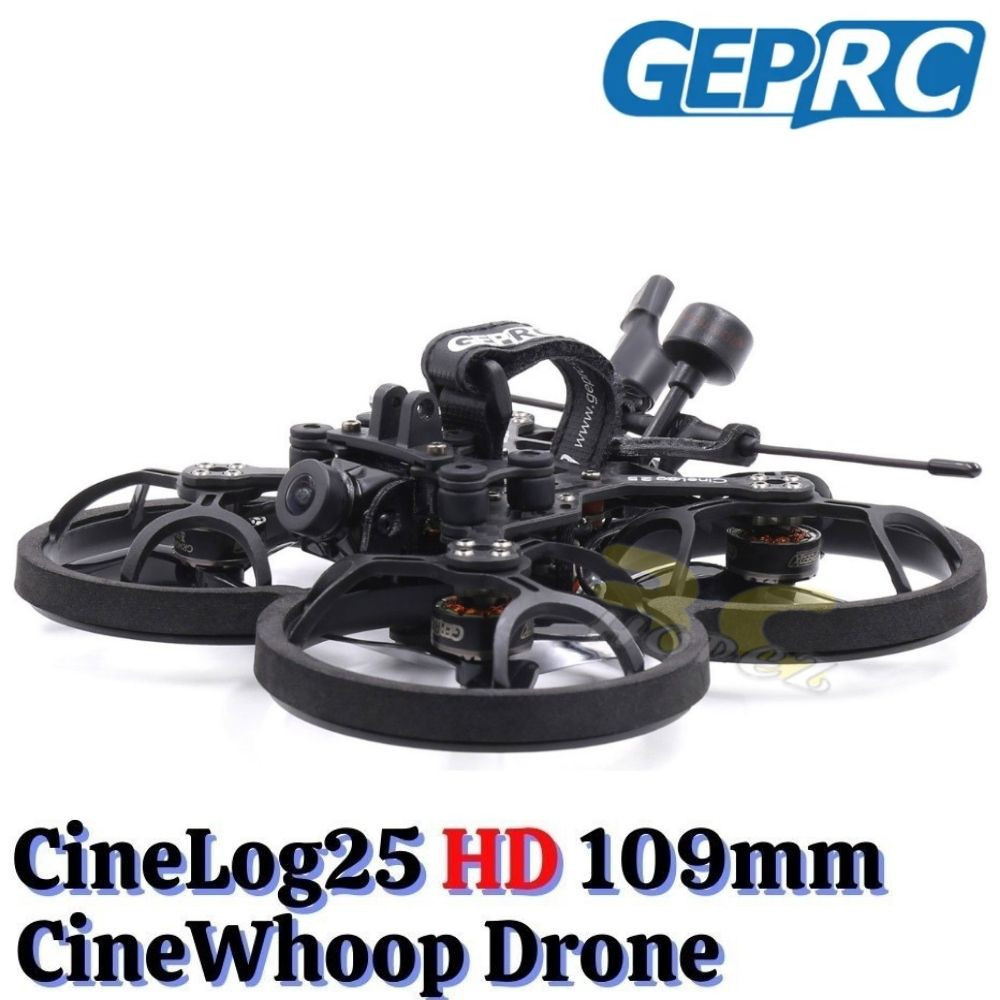

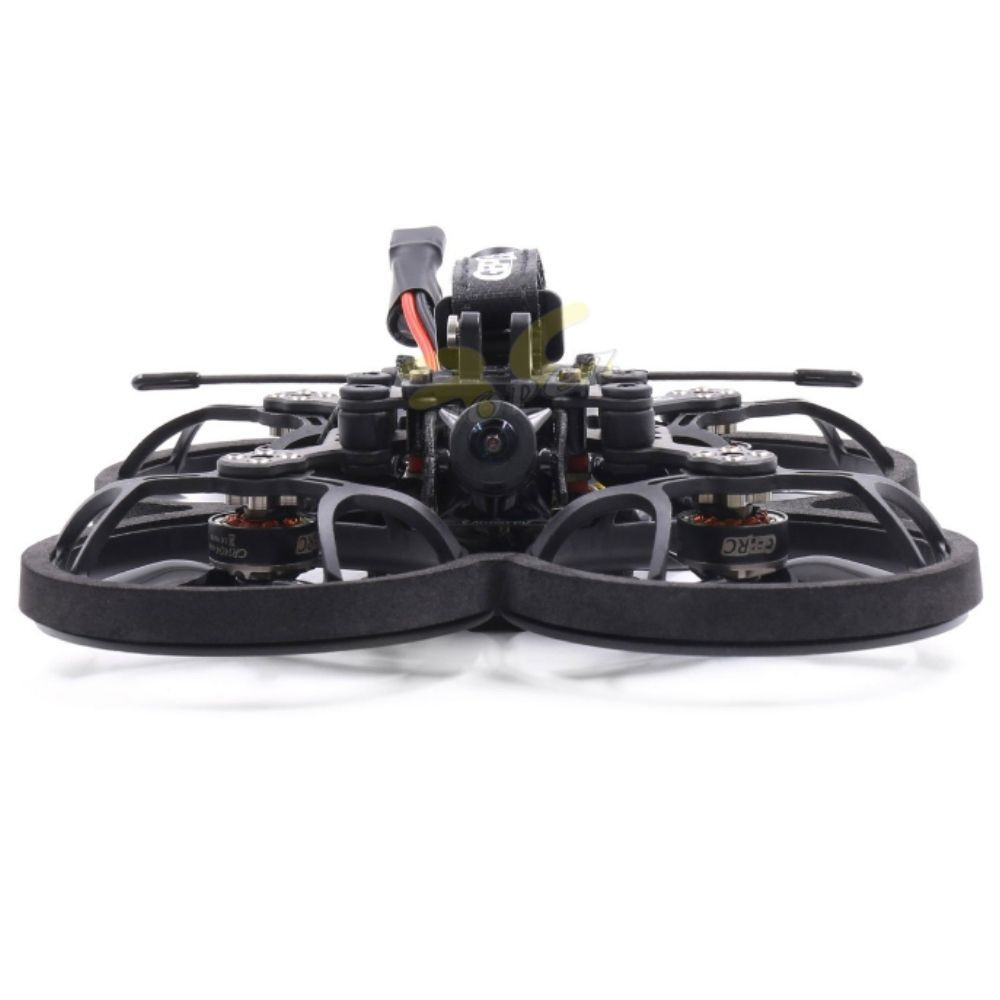

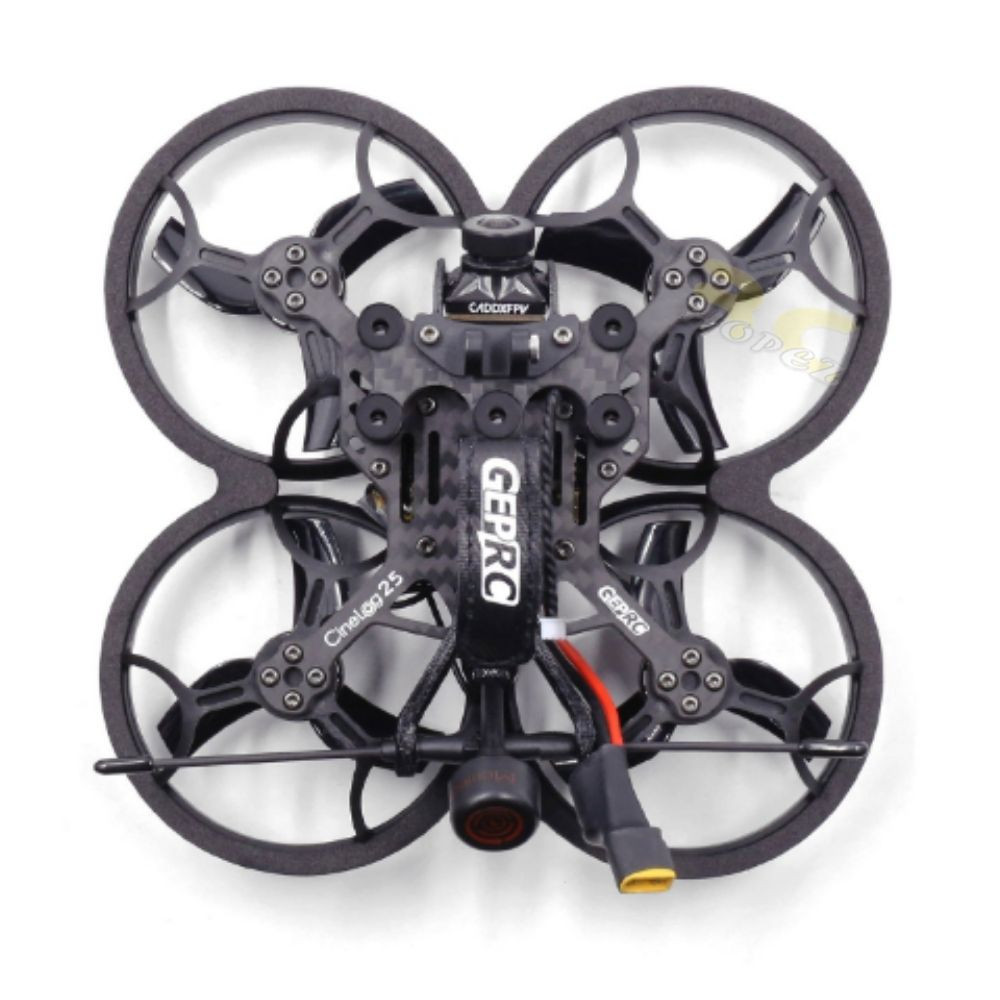

GEPRC CineLog25 HD w/Runcam Link Wasp 109mm 2.5inch 4S CineWhoop GEP25-HD
Changelog:
14-1-23 : Cinelog25 HD version changed from CADDX Vista Polar camera to Runcam Link Wasp camera.
Feature:
1.New camera damping system
The New camera damping system basically eliminates the video’s jelly and FPV camera’s vibration in terms of designing, The damping construction can be adjusted the harder or softer to suit the Flight State. There are Three, Four and Five damping rings can be used to provide sufficient stability in vibration and noise.
2.Brand-new exclusive pusher frame
The CineLog Whoop Quadcopter adopts a brand-new stunning pusher frame design, Including ultra-light carbon plate and new material, strength increases by 20%, efficiency increased by 15%
3.Low noise optimization
Cinelog Whoop Quadcopter Increases the Air Inlet volume and it with the EVA foam cushioning,Reduce the Airflow Resistance in order to create extremely low flight noise and greater reduction of noise from external vibrations
4.Long range flight
High efficiency power matching, The latest GR1404 4500kv(Upgraded Version) motor power output scheme and Brilliant Tune have further Improved the flight time
5.Low center of gravity design
The CADDX VISTA was placed at the bottom, Optimized Design for the Air Inlet Structure. It’s a point of the greatest importance is a low center of gravity “pusher-style” inverted frame, increased efficiency at least 15%
6.Perfectly Compatible with most of mainstream cameras
Compatible with SMO 4K, Gopro6 lite and Gopro8 Lite (coming soon),etc…
7.Using DJI HD Goggles
Using Runcam Link Wasp camera, the overall color will be better
8.Adjustable lens angle
The flight angle of 0-40 degrees can be adjusted according to the flight requirements, The camera’s angle can be adjusted to meet your variety of Shooting needs
9.With EVA foam cushioning
Integrated EVA design, the overall shape look more coordinated, better strength.

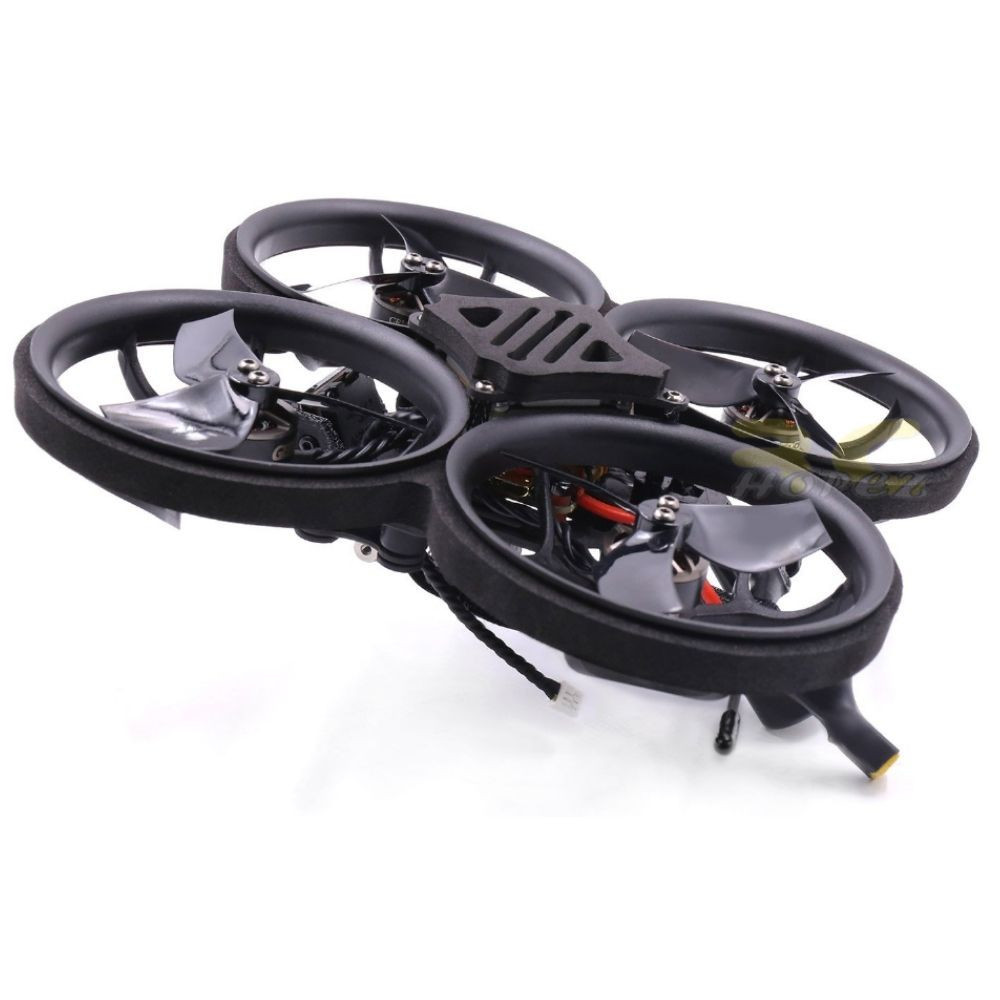

10.Optimized bottom design
The bottom part increases the strength of landing and perfectly protects all electronic equipment
11.Camera power line output
With its own power cable output to the camera (Gopro6 & Gopro8), It has its own Video Recording Wire,The camera can be turned off or on directly Via Remote controller

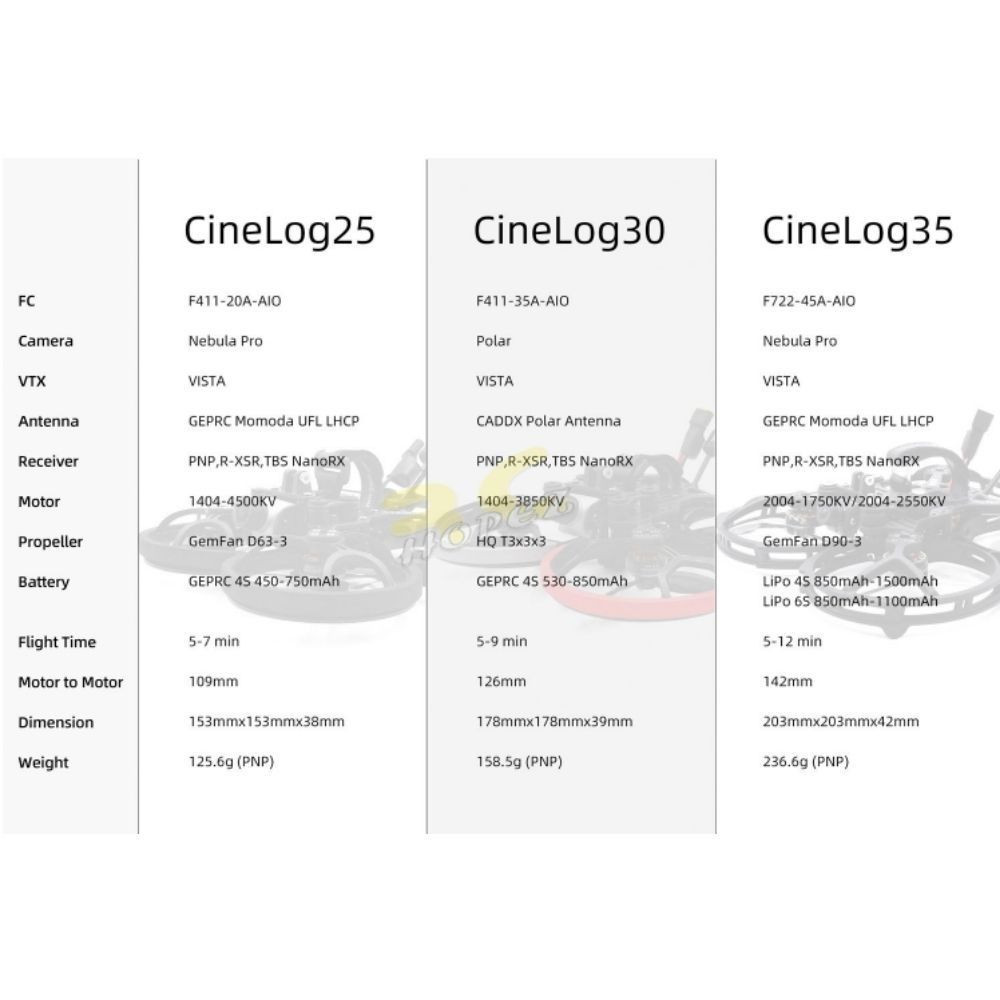

Specifications：
Brand: GEPRC
Frame: GEP-CL25
Wheelbase: 109mm
Flight Controller: F411-35A AIO
MCU: STM32F411
Gyro: 6-Axis
OSD: BetaFlight OSD w/ AT7456E chip
ESC: BLheli_S 20A
VTX: Runcam Link
Camera: Runcam Wasp
Props: GEMFAN D63-3
Motor: GR1404 4500kv(Upgraded Version)
Antenna:GEPRC Momoda 5.8G Antenna Long Version LHCP UFL(85mm)
CineLog25 HD Weight: 145.5g（Without battery）
Battery (NOT Included) :
Recommended 4S 450-750mAh OR
GEPRC 4S 660mAh 90/180C HV 3.8V/4.35V LiPo Battery
Include:
1x CineLog25 HD 4S
4x D63-3 Props(Pairs)
1x GOPRO Lite 3D TPU Seat
2x EVA Pad
2x Battery non-slip mat
2x Battery strap
1x screwdriver

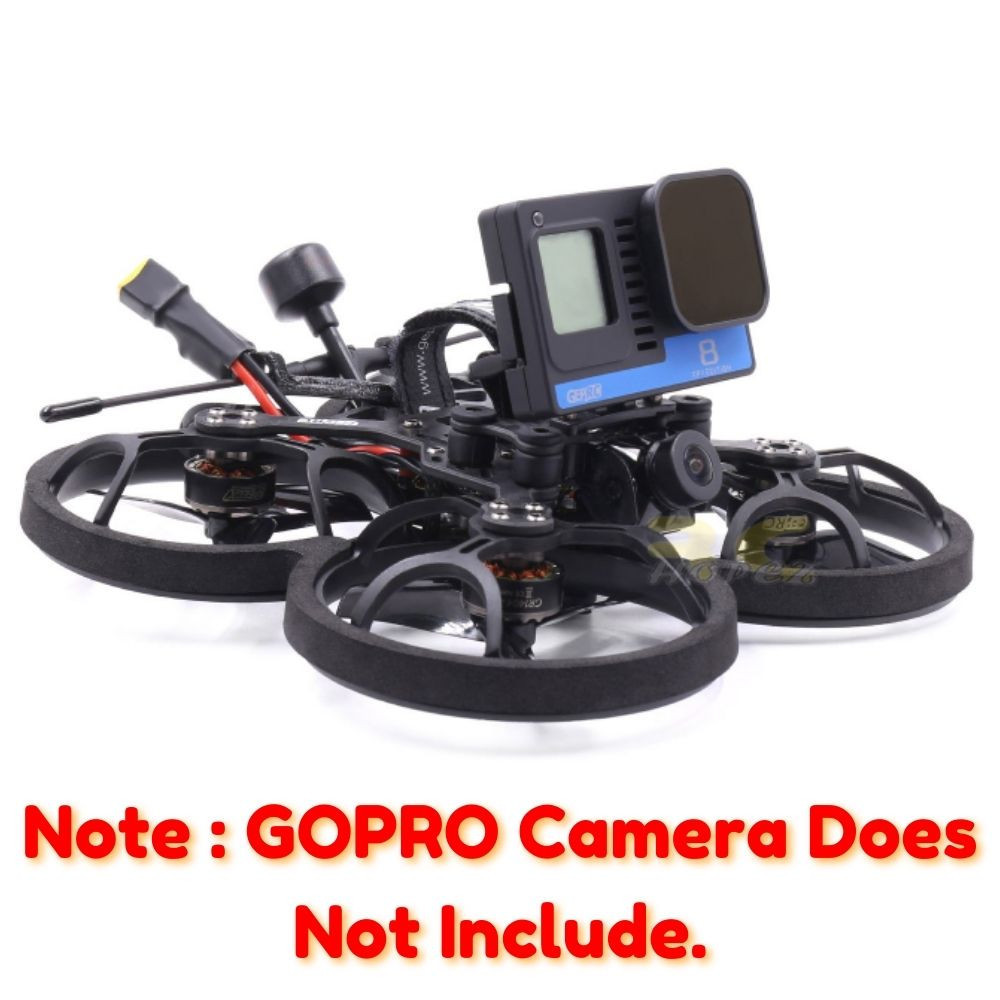

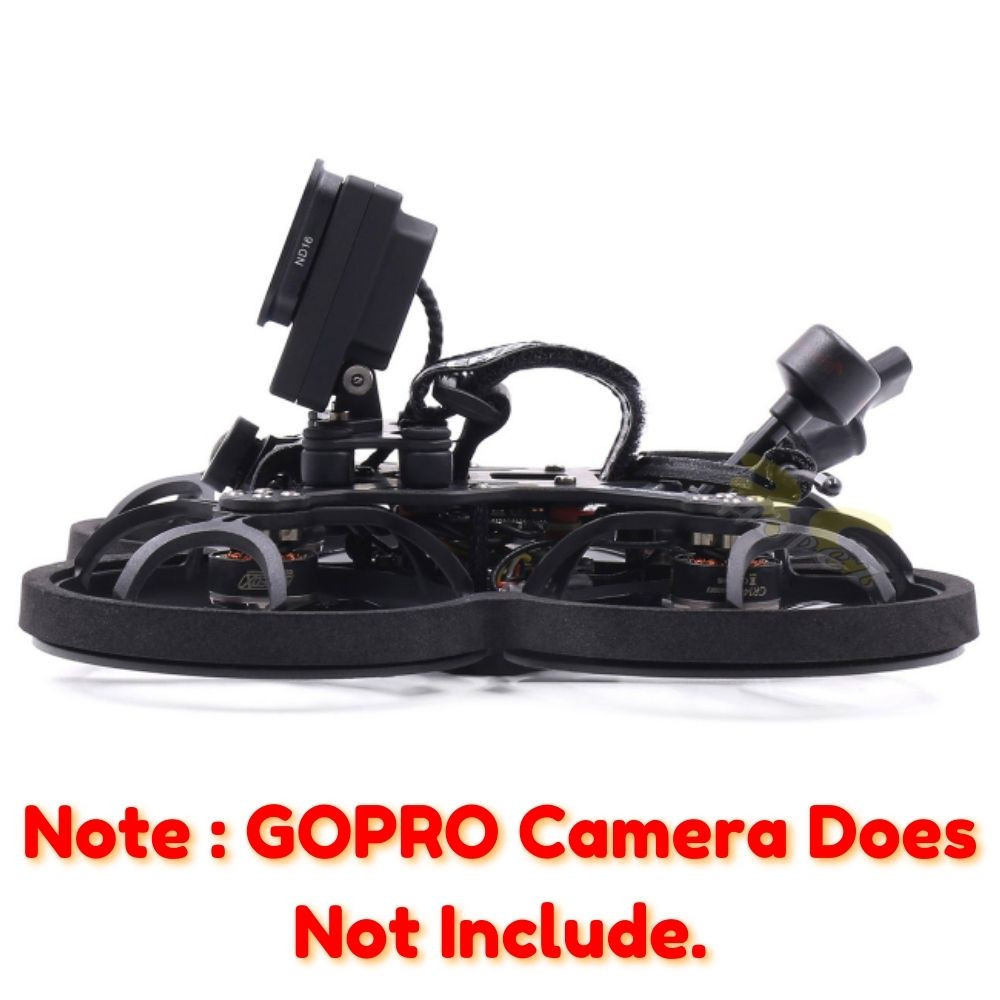

*Gopro Camera NOT included
