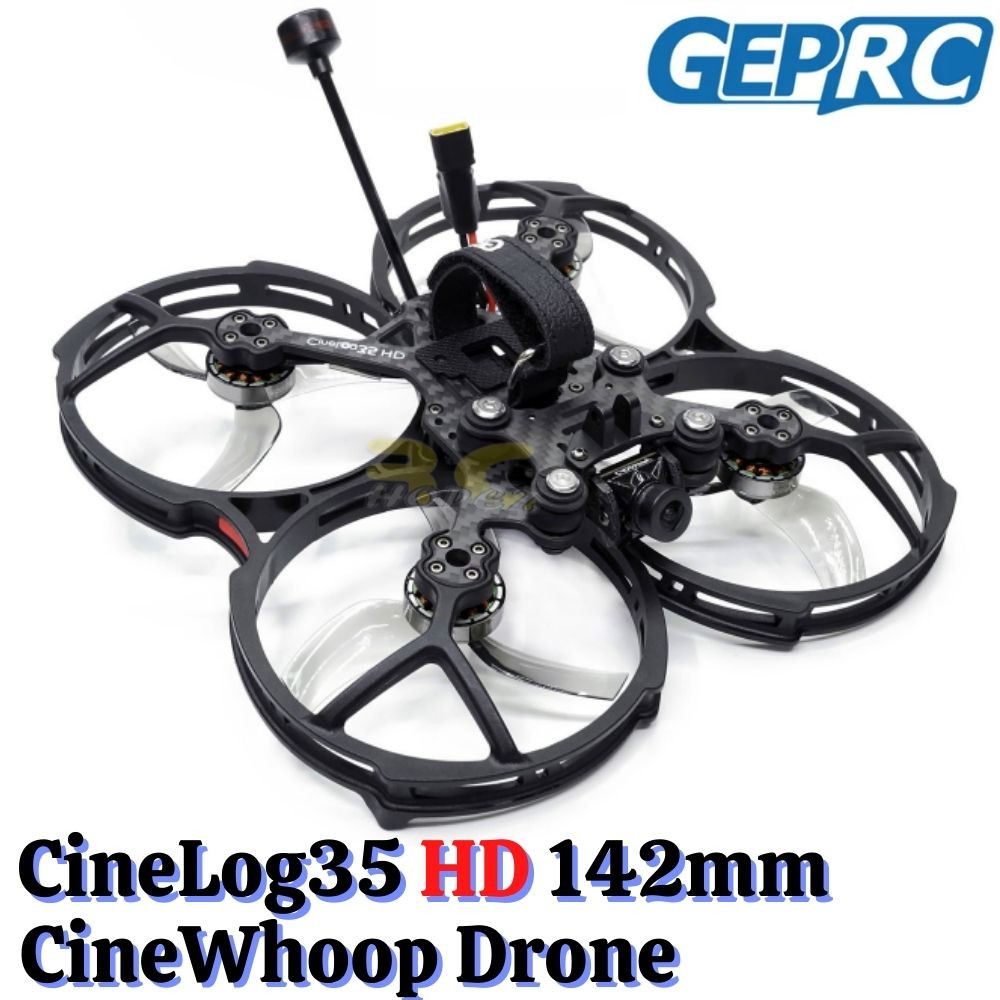

GEPRC CineLog35 HD w/ Vista Nebula Pro Digital System 142mm 3.5inch 4S/6S CineWhoop GEP35HD
Summary:
The CineLog35 HD developed by GEPRC specifically for mounting complete GoPro HD camera is now officially released, There are two versions are currently available: HD VISTA Nebula Pro and Analog.
CineLog35 is improved and developed on the basis of CineLog30. Integrated protection guard design, the overall structure is firmer and durable.We adopts latest FC with higher calculation speed and high efficiency, 4S version uses GEP-F722-35A AIO/6S version uses GEP-F722-45A AIO.The 5 UART Ports bring perfect performance and sufficient extended function. and the electronic system runs more stable.

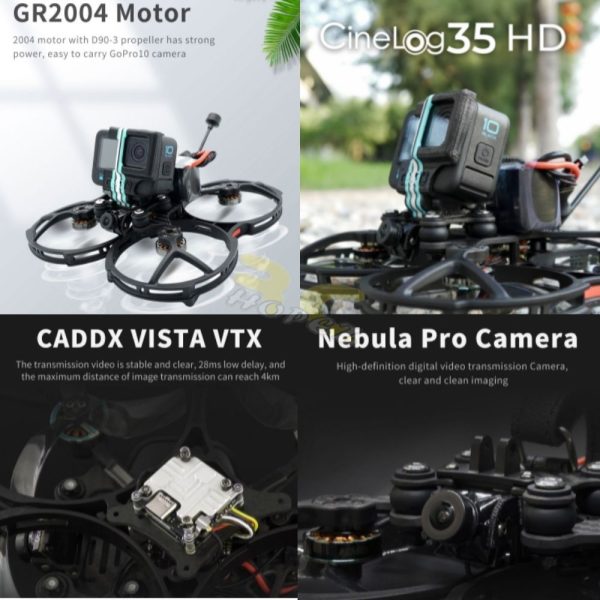

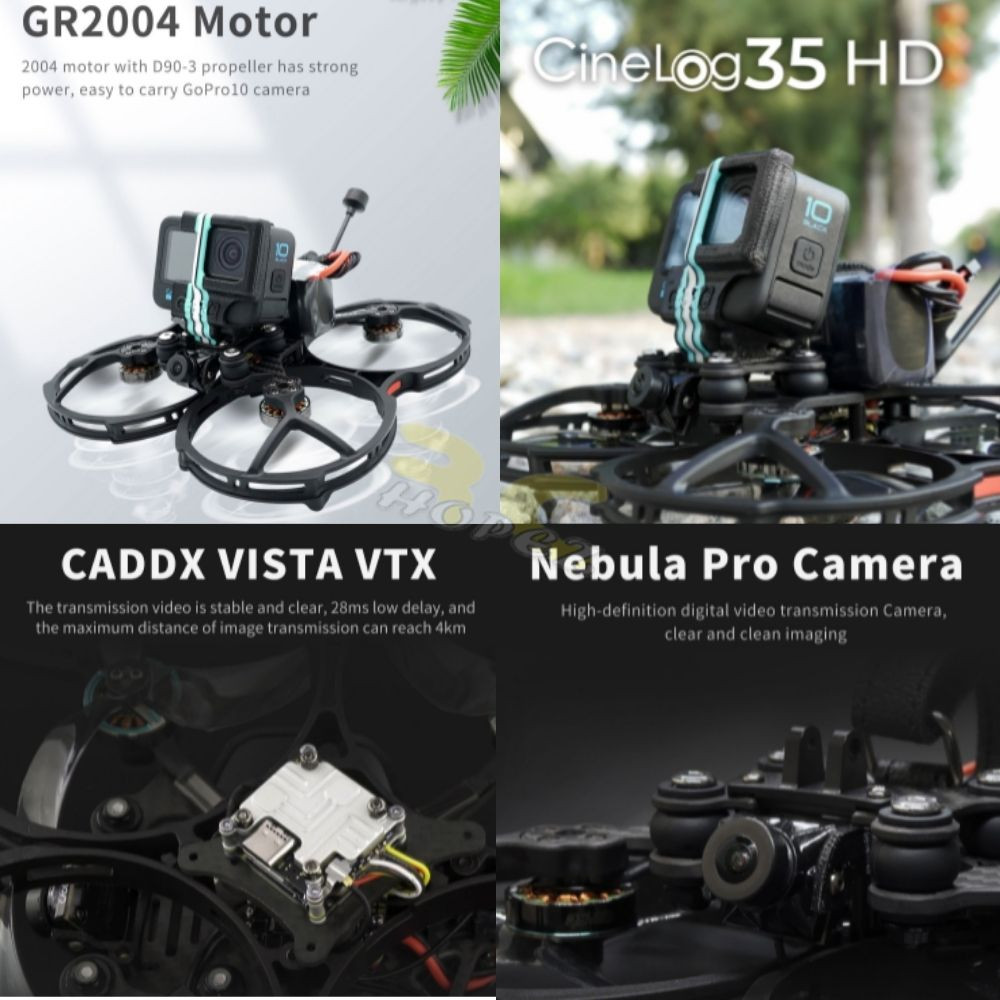

CineLog35 equips with VISTA HD VTX and the Nebula Pro camera, and the picture quality is extreme clear and clean. Upgraded power system, 2004 motor with D90-3 propeller has stronger power output. It comes with a 3D Print mount to install the GoPro 9 & GoPro 10. and the Incidental base can carry Insta360 GO2 camera/ GEP Naked GoPro Hero 8/Caddx Peanut camera.
We are pursuing lighter weight, better flying feel, and more extended functions of Quadcopters.It can bring great visual experience and happiness to every pilot.
Feature:

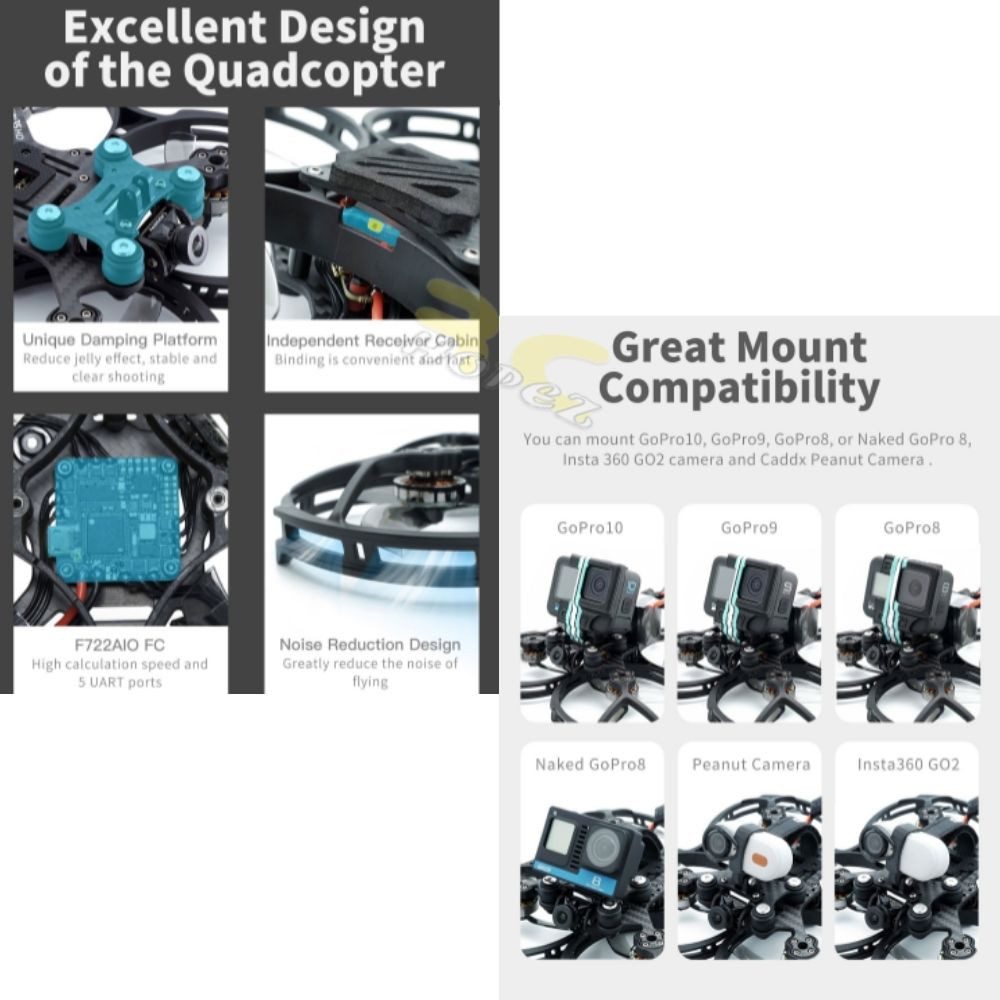

Upgrade 3.5-inch integrated protection guard to ensure flight safety.The new design has significant roles at many aspects such as Low noise, Vibration and noise reduction, durable high-strength structural design.
Equipping with VISTA HD VTX and the Nebula Pro camera.
It comes with a 3D Print mount to install the GoPro 9 & GoPro 10. and the Incidental base can carry Insta360 Go2 camera/Naked GoPro Hero 8/Caddx Peanut camera.
Improving the damping rings, the shooting effect is more stable,clearer and reduce jelly.
2004 motor with D90-3 propeller has stronger power output.
Independent receiver cabin, conveniently and quickly to binding.

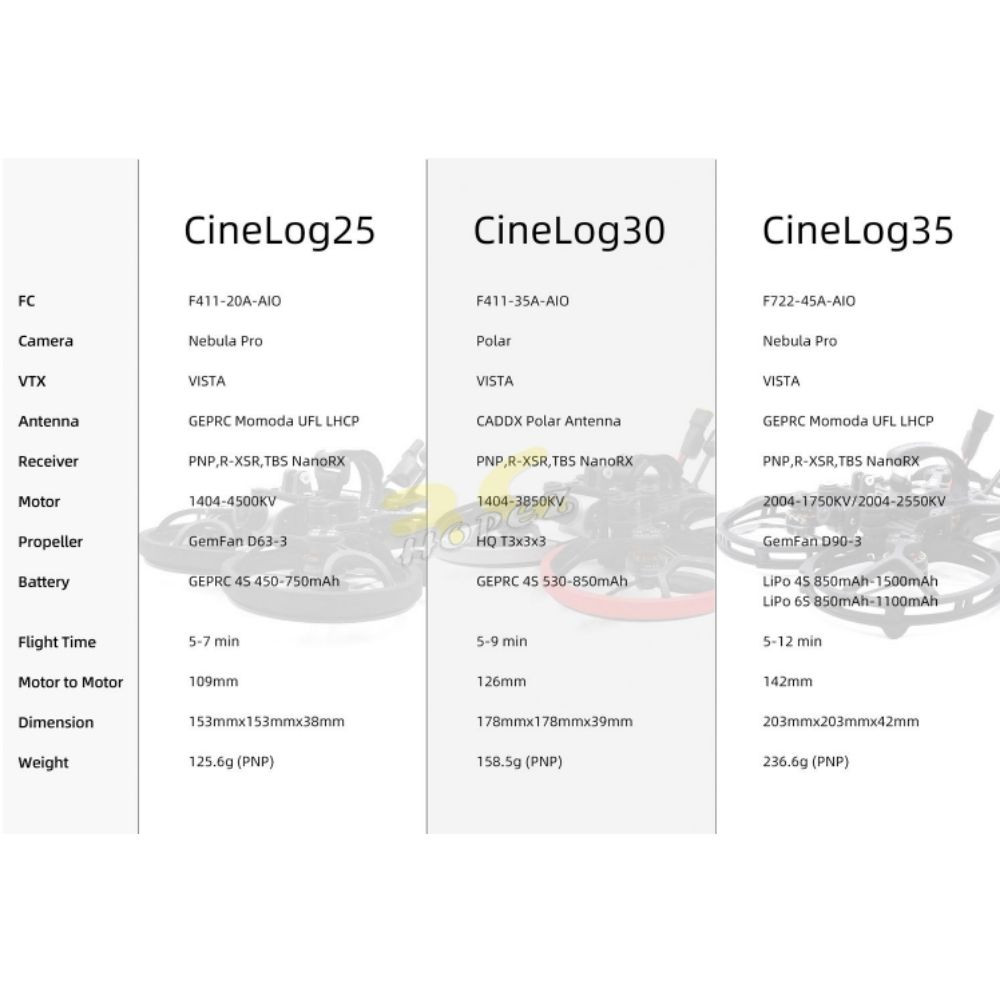

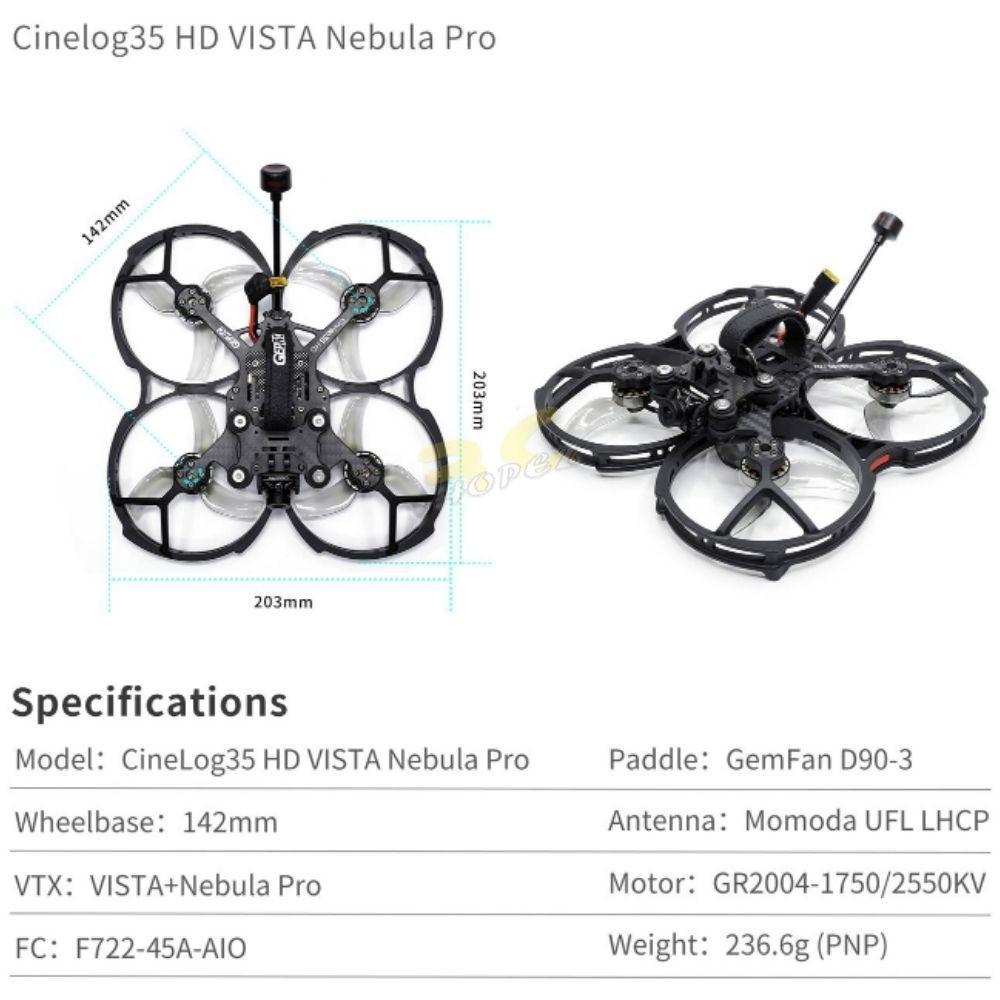

Specifications：
Model: CineLog35 HD Nebula Pro
Brand: GEPRC
Frame: GEP-CL35
Wheelbase: 142mm
Top plate: 2.5mm
bottom plate: 2.0mm
Arm plate3.5mm
FC system:
4S Version:GEP-F722-35A AIO
6S Version:GEP-F722-45A AIO
MCU: STM32F722
IMU: MPU6000(SPI)
OSD: BetaFlight OSD w/AT7456E chip
ESC: BLheli_S 45A
VTX: Vista
Camera: Caddx Nebula Pro
Propeller: D90-3
Antenna: Momoda Long version UFL LHCP 175mm Atenna
Motor: GR2004 1750KV 6S / 2550KV 4S (Optional)

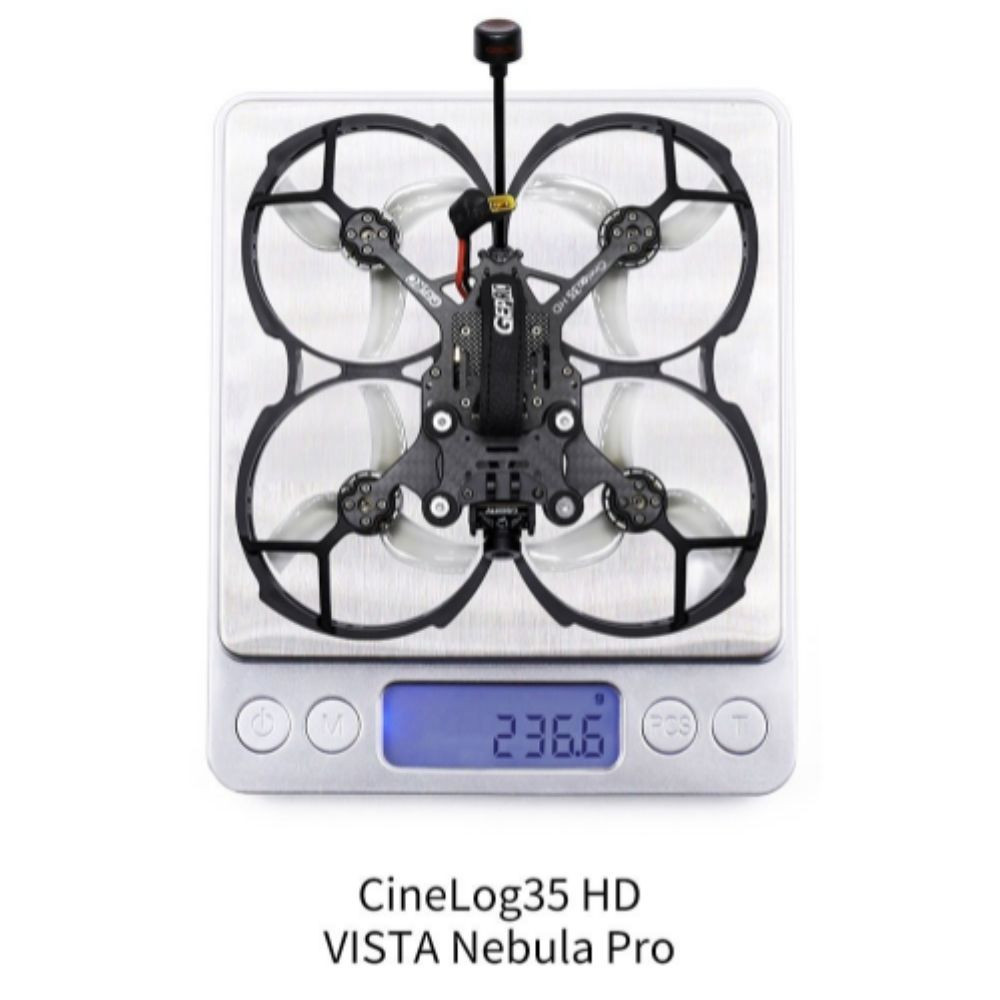

Weight: 236.6g (CineLog35 HD VISTA Nebula Pro 4S PNP)
Receiver: PNP(Vista built-in DJI receiver)/ TBS Nano RX (Optional)

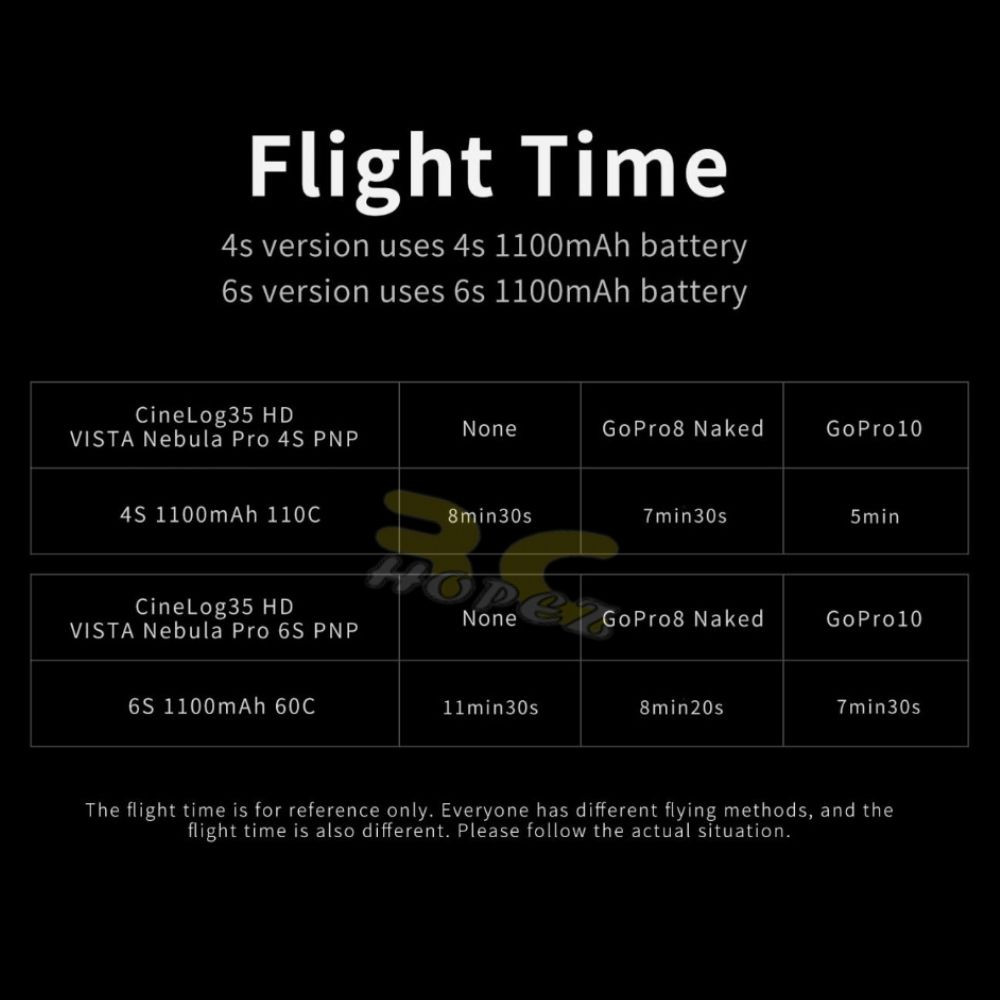

Recommend Lipo Battery ( NOT Included) :
LiPo 4S 850mAh-1500mAh
LiPo 6S 850mAh-1100mAh
*Recommend GEPRC 1100mAh battery for CineLog 35 6S

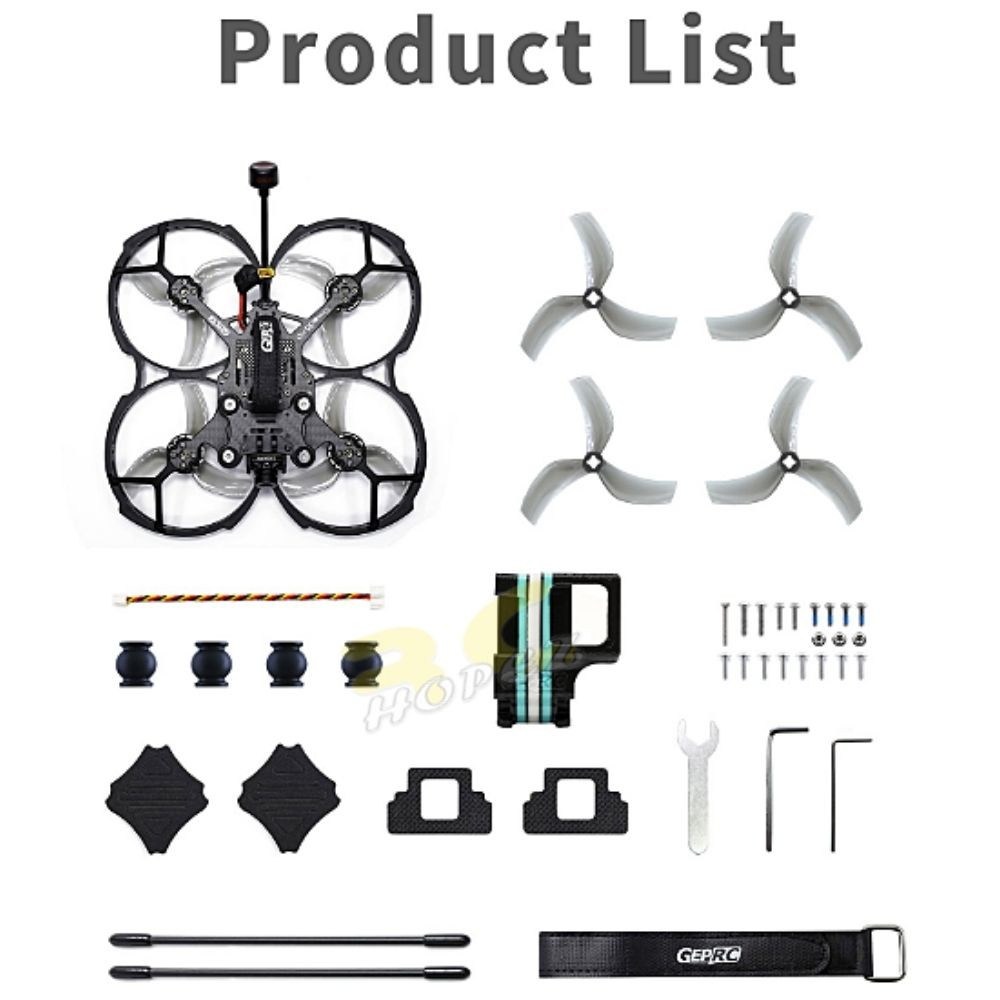

Include:
1 x CineLog35 HD VISTA 4S/6S (Optional)
4 x D90-3 propellers (pair)
1 x Battery strap M15x200mm
2 x Battery Silicone Pads
2 x Landing Pads
4 x 15 degree damping rings
1 x 3D print mountings combination
1 x screw combination
1 x screwdriver combination
1 x Antenna fixed tube

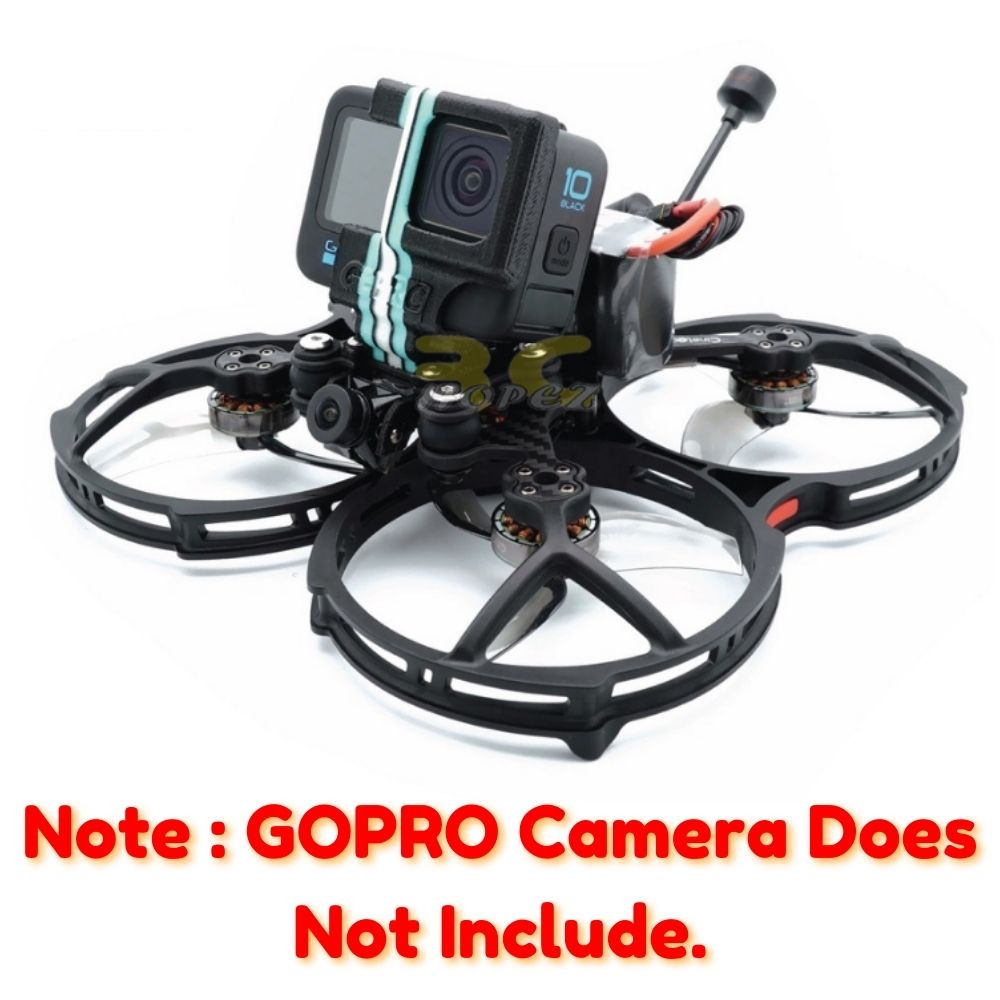

*Gopro Camera NOT included
