GEPRC GEP F722-45A F7 AIO V2 45A BL_S 2-6S 4in1 Brushless ESC (25.5×25.5) for Cinelog35 FPV Racing Drone GEP-F722-45

GEPRC GEP F722-45A F7 AIO V2 45A BL_S 2-6S 4in1 Brushless ESC (25.5×25.5) for Cinelog35 FPV Racing Drone GEP-F722-45

Summary：
I am glad to introduce a new member of GEPRC FC AIO,GEP-F722-45A AIO, it is released now.

GEP-F722-45A AIO adopts MCU STM32F722,which has powerful performance and higher computing speed.It has 5 full UART ports and can connect more external devices.

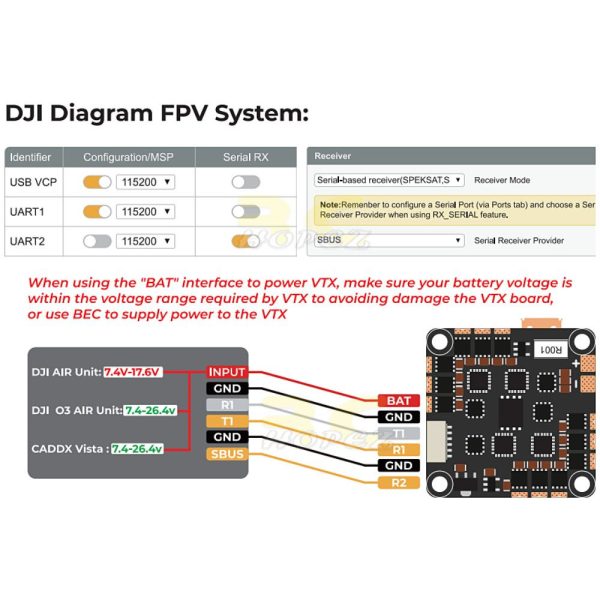

We designed a 6-pin connector for DJI AIR UNIT MODULE,plug and play.

The BLheili_S 45A ESC can handle 45A continuous current(55A burst), totally supports the 2-6S lipo battery, brings the drone a stronger flight performance.It can support OSD parameter adjustment, buzzer, led and other functions. It is 8.8g ultra light weight, and 25.5mm * 25.5mm mounting hole, suitable for most of the frames on the market.

We pursue lighter weight, smaller volume, more functions and better performance Flight controller.

Changelog:
June 5th, 2022: this flight controller has started to use a new MOS tube, the appearance has changed, but the performance is the same as before.

June 14th, 2022: Gyro updated to 42688

June 25th, 2022: Mounting Hole Size changed from 26.5×26.5mm to 25.5×25.5mm.

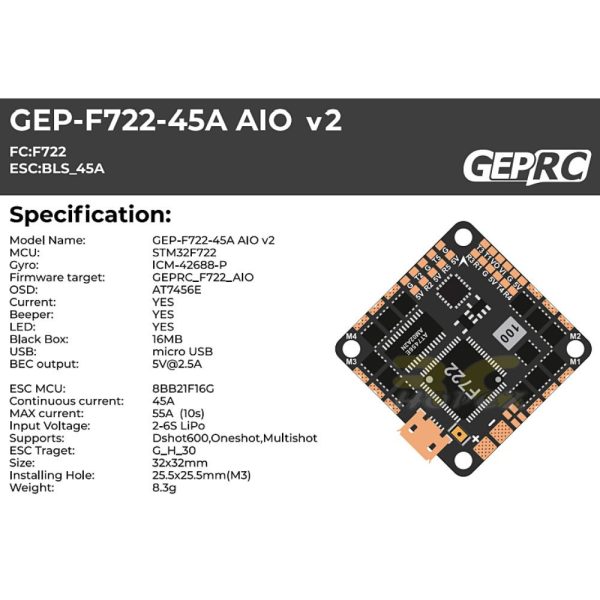

Specification：

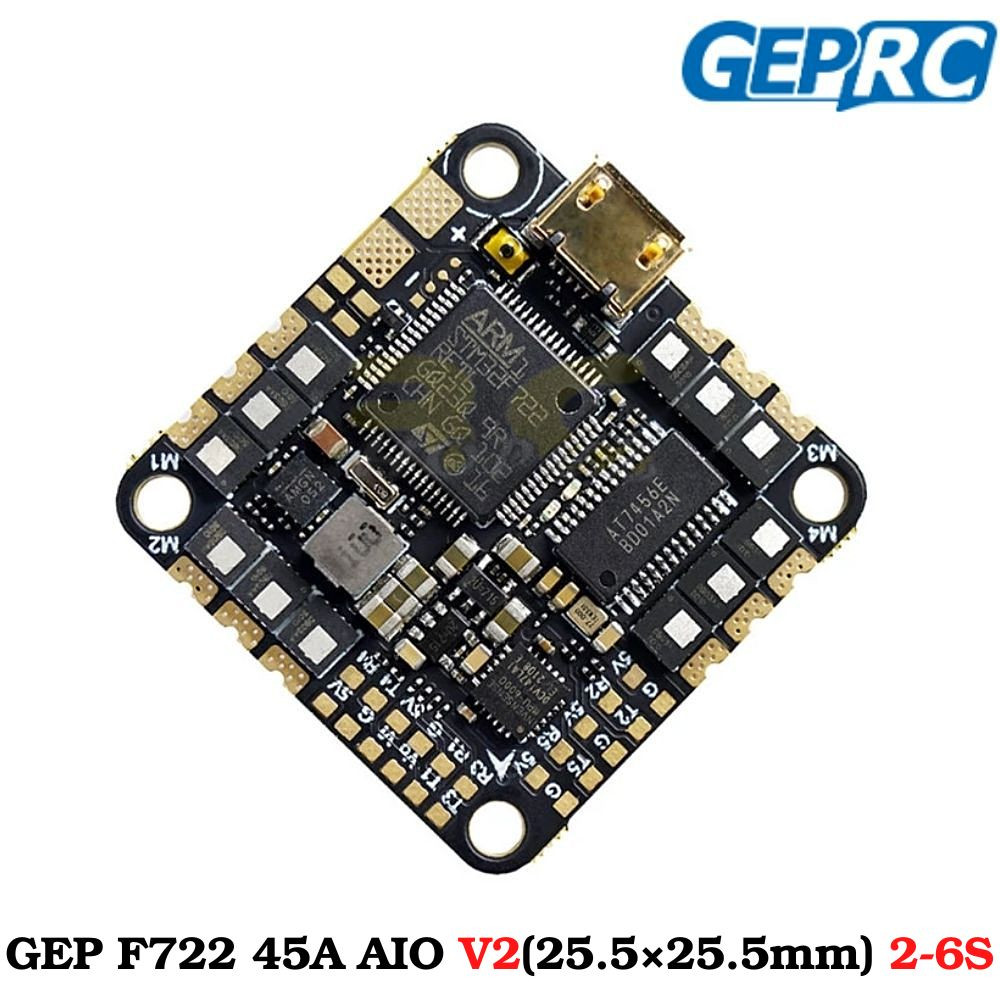

Model Name: GEP-F722-45A AIO V2

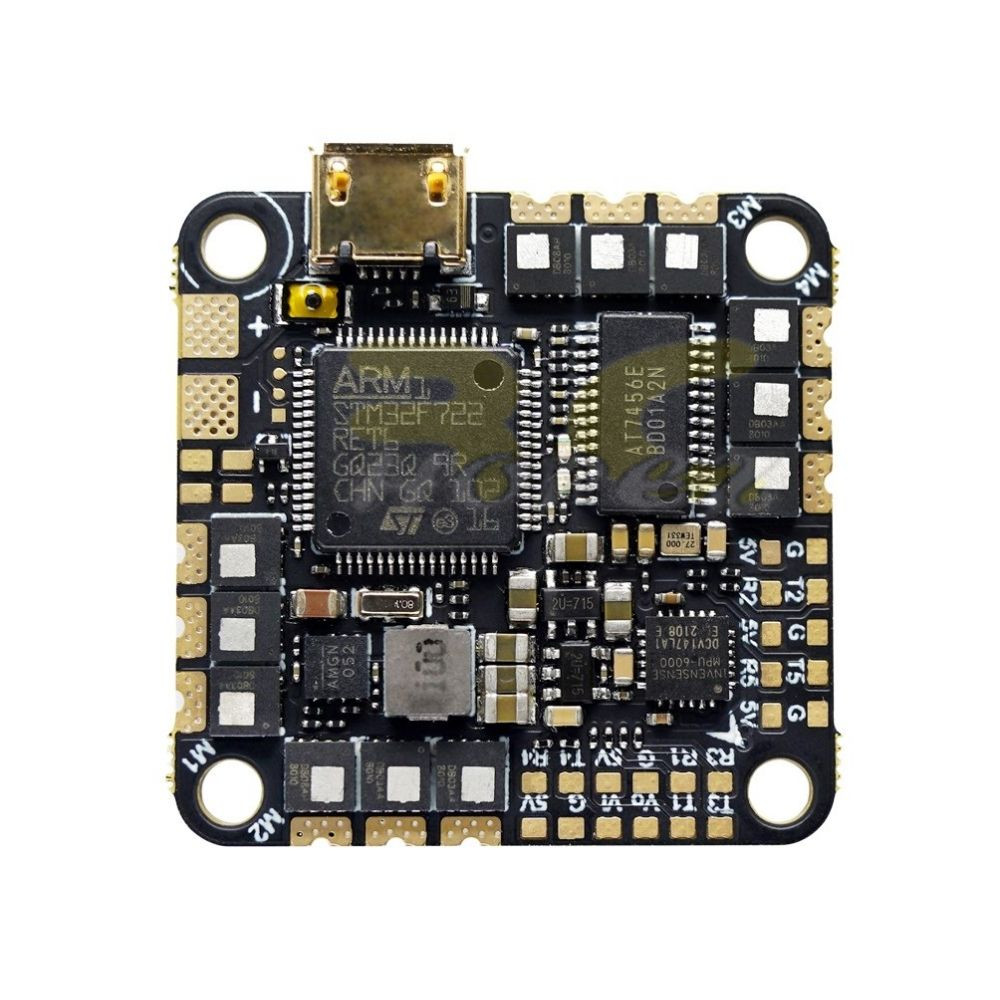

MCU: STM32F722
IMU: 42688 gyro/accelerometer(SPI)
Firmware target: GEPRC_F722_AIO
OSD: Betaflight OSD w/ AT7456Ev

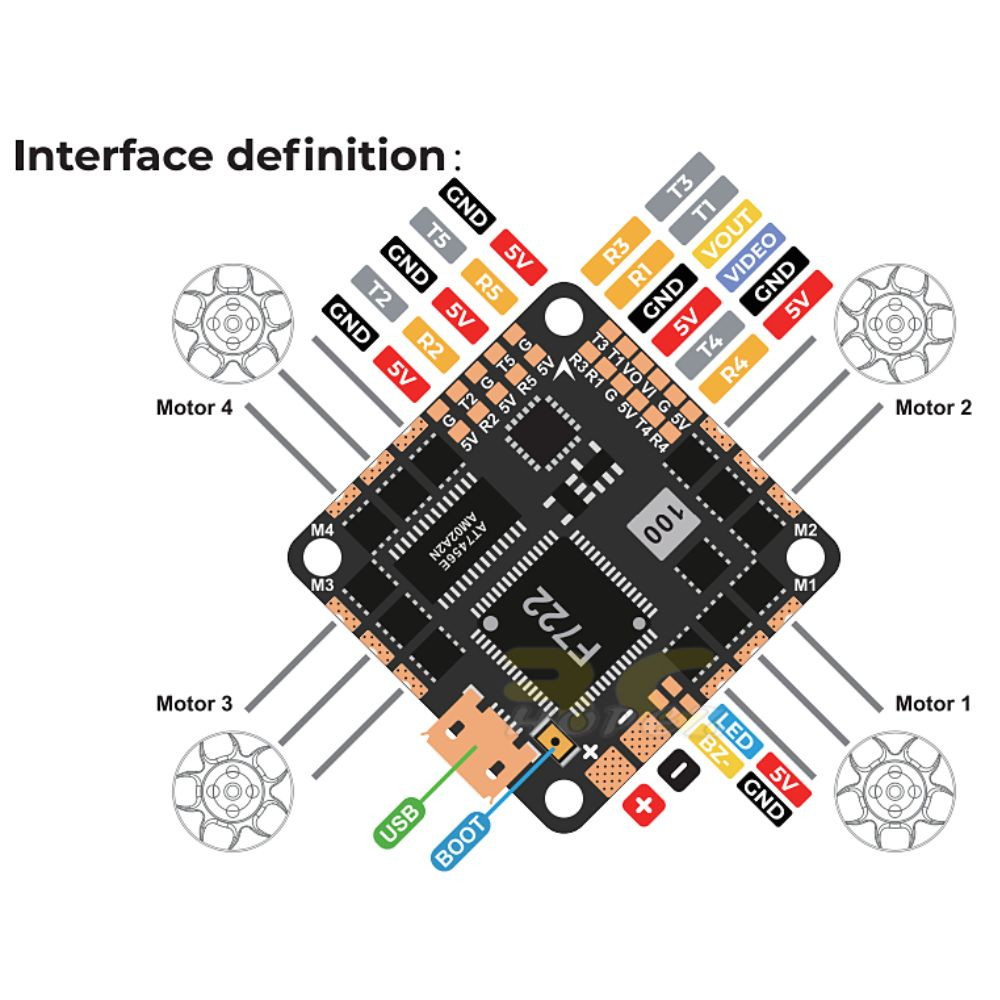

UART Ports: R1 T1 / R2 T2 / R3 T3 / R4 T4 / R5 T5
Beeper: YES
LED: YES
USB: Micro USB
BEC output: 5V@1A
Intergrated LC Filter
ESC MCU: 8BB21F16G
Continuous current: 45A
MAX current: 55A (10s)
Input: 2~6S
Supports: Dshot600,Oneshot,Multishot
BlackBox: 16Mb
Traget: G_H_30

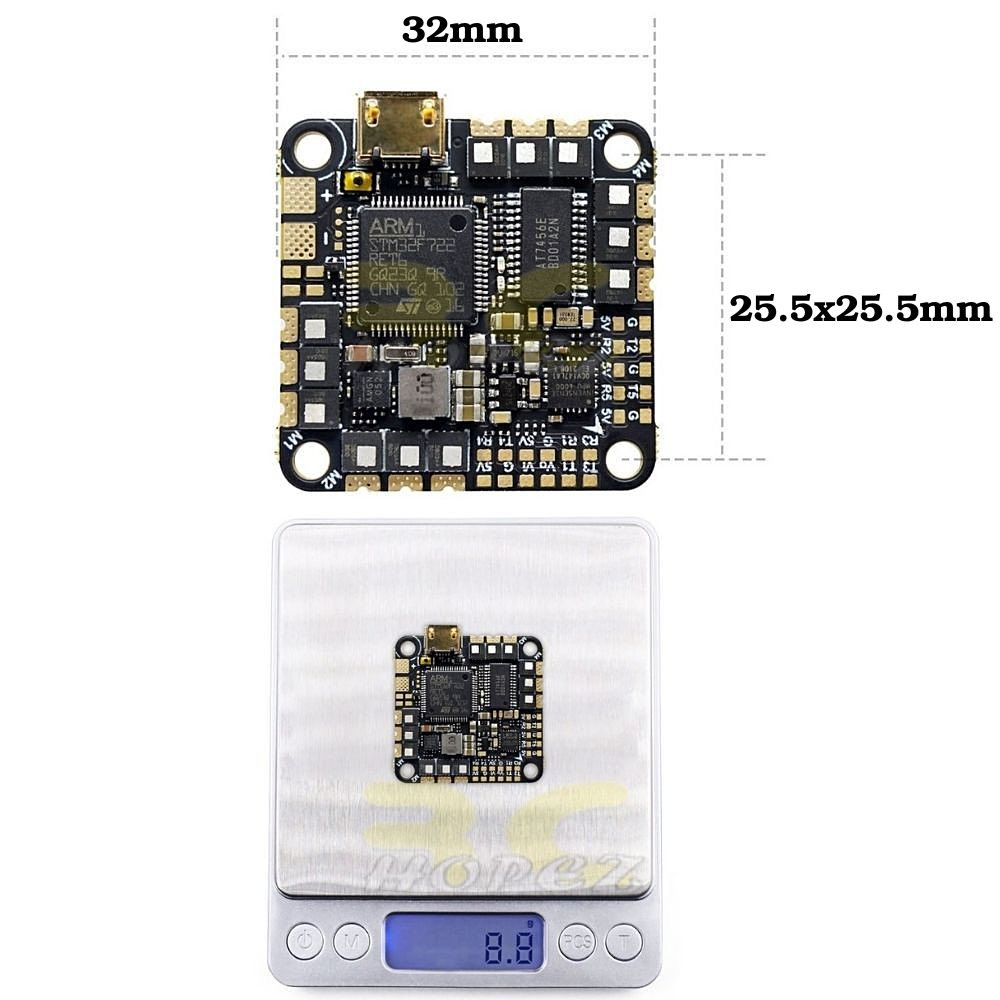

Size: 32x32mm Board
Mounting Hole: 25.5×25.5mm
Weight: 8.8g

Features:
MCU:STM32F722,with strong performance and higher computing speed.
It has 5 full UART ports, which can connect more external devices
Design 6p connector for DJI AIR UNIT MODULE, and just plug and play .
The BLheili_S 45A ESC can handle 45A continuous current(55A burst), totally support the 2-6S lipo battery, which can bring the drone a stronger flight performance.
Support OSD parameter adjustment, buzzer, led and other functions.
8g ultra light weight
5mm * 25.5mm mounting hole, suitable for most frames

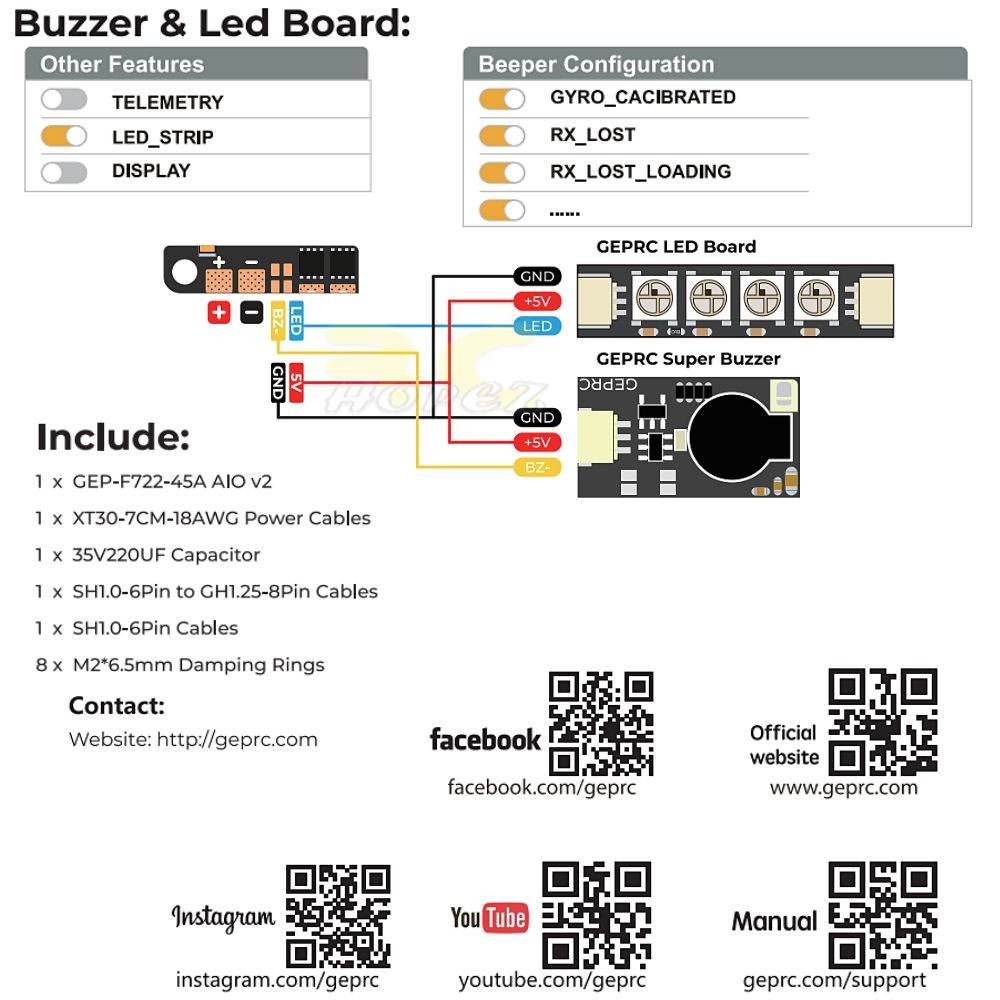

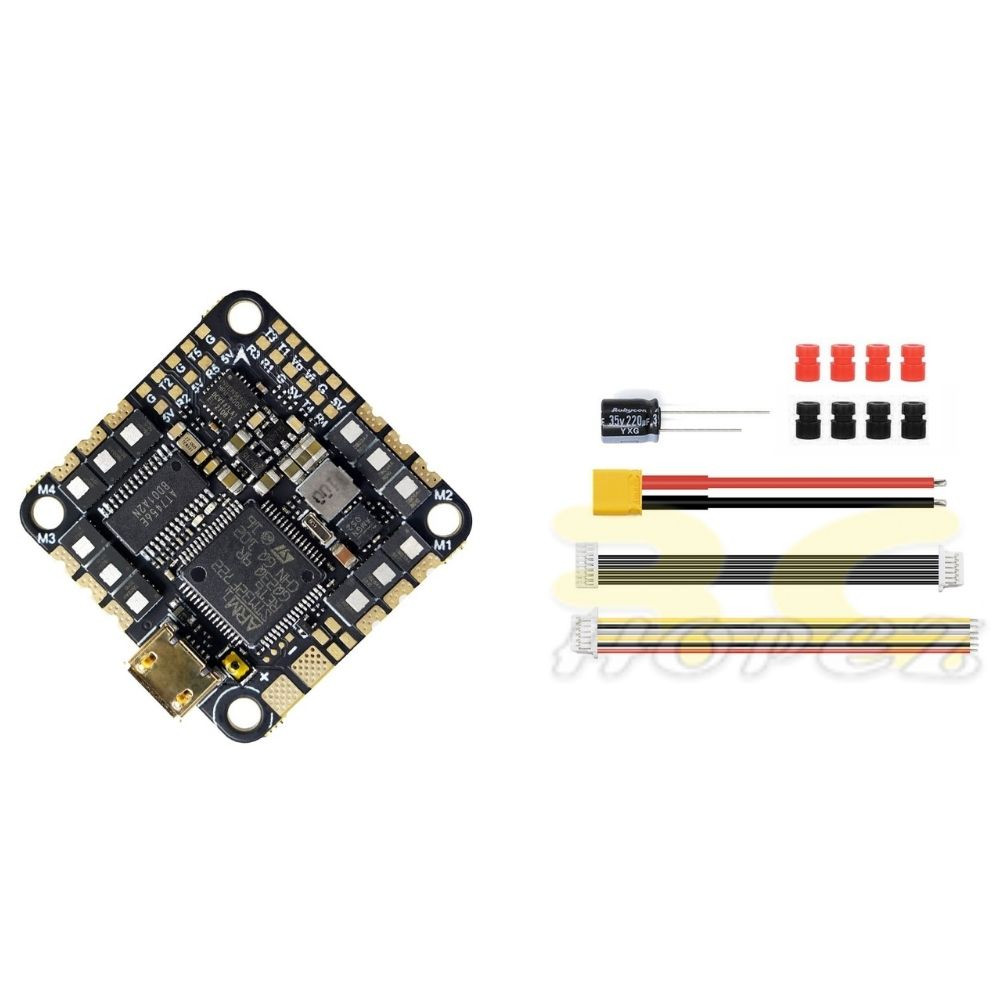

Includes:
1 x GEP-F722-45A AIO V2
1 x XT30-7CM-18AWG Power cables
1 x 35V220UF capacitor
1 x SH1.0-6Pin to GH1.25-8Pin cables
8 x M2*6.5mm Damping rings
