GEPRC GEP-F411-35A AIO 2-6S 8 bits Brushless ESC (25.5×25.5mm) for Cinelog25 FPV Racing Drone GEP-35A-F4
Summary：
I am glad to introduce a new member of GEP FC AIO, GEP-F4-35A,it is released now.
GEP-F4-35A is developed on the basis of GEP-F4-20A. It can handle 35A continuous current and (40A burst), totally supports the 2-6S lipo battery.It can be used with 1204/1404/1507/1805/2004 motors and 2-5 inch propellers. Support OSD parameter adjustment. It’s 8.8g ultra light weight, and 25.5mm * 25.5mm mounting holes, suitable for most of the frames on the market.

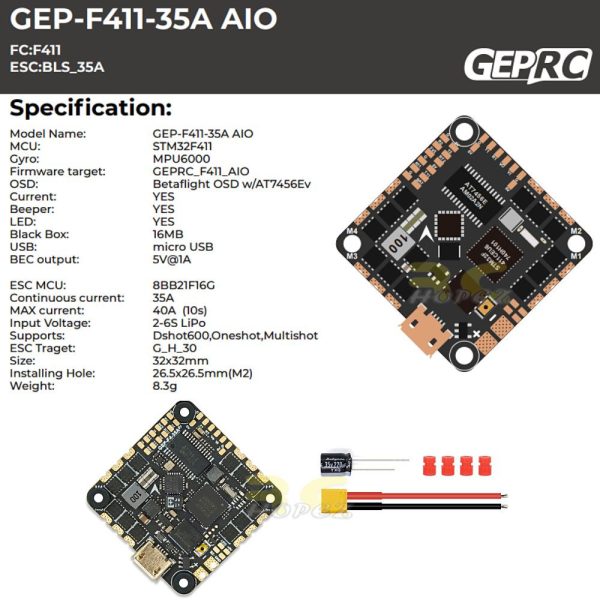

Specification:
Model: GEP-F411-35A AIO
MCU: STM32F411
IMU: BMI270/accelerometer(SPI)
Target: GEPRC_F411_AIO
OSD: Betaflight OSD w/ AT7456Ev
UART Ports: T1 R1 / T2 R2
Beep: YES
LED: YES
USB Connector: micro USB
ESC MCU: 8BB21F16G
Intergrated LC Filter
Continue Current: 35A
Burst Current: 40A(10s)
Input Voltage: 2~6S (LIPO Battery)
ESC Protocol: Dshot300/600,Oneshot,Multishot
Blackbox:16Mb
ESC Target: G_H_30 BLS
Size: 32x32mm Board
Mount Holes: 25.5×25.5mm

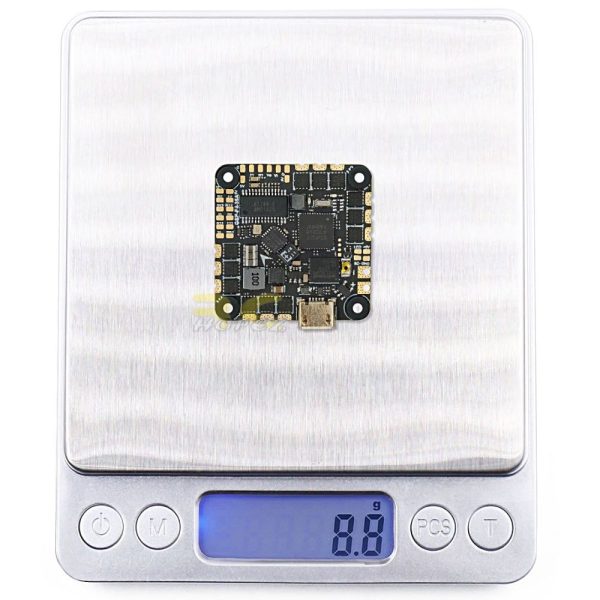

Weight: 8.8g
Features:
– BLhelis_ S 35A ESC, support 2-6S LIPO battery input, it can handle 35A continuous current (40A burst), with current meter.
– Mainstream STM32F411 FC and runs stably.
– BMI270 gyroscope with 8K sampling frequency.

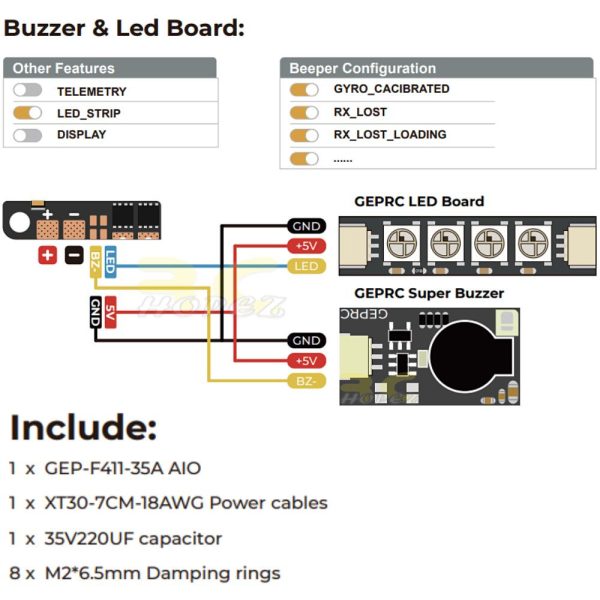

– Rich external ports, it supports buzzer and LED light function.
– 25.5mm * 25.5mm mounting holes and ultra light weight, suitabe for most of the frame on the market.
Packing Include:
1 x GEP-F4-35A-AIO
1 x XT30-7CM-18AWG cables
1 x 35V220UF capacitance
8 x M2*6.5mm Damping rings
