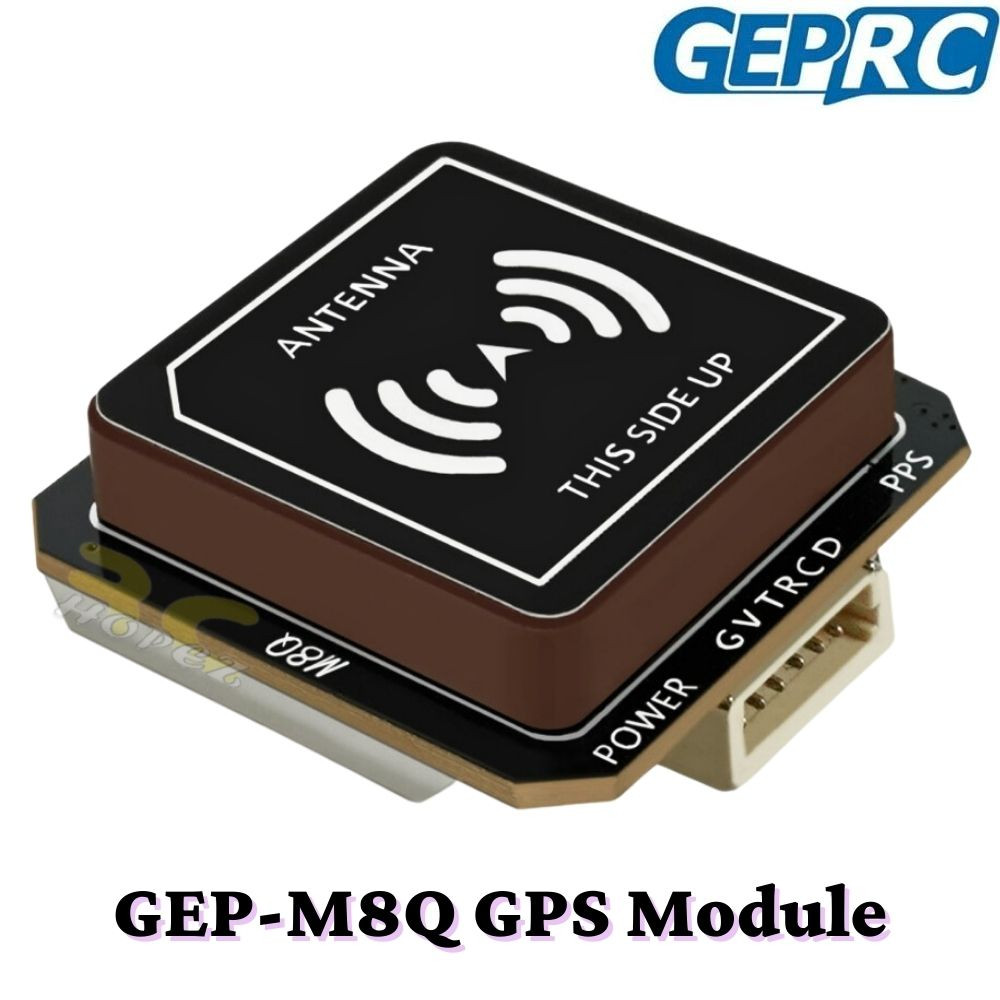

GEPRC GEP-M8Q GPS Module – GLONASS MS5611 Barometer Compass GEP-M8Q

GEPRC GEP-M8Q GPS Module – GLONASS MS5611 Barometer Compass GEP-M8Q

Summary
Hello all FPV enthusiasts, in order to upgrade the user experience, the GEPRC team has developed a new integrated multi-functional GPS positioning module: GEP-M8Q, which is based on the GEP-M8U.

GEP-M8Q has the features of small size, fast positioning, stable connection and easy to use. The right circularly polarized patch antenna provides excellent reception capability. Built-in QMC5883L high-precision magnetometer provides accurate azimuth pointing. Integrated MS5611 high precision barometer, subtle altitude changes are not to be missed, more stable flight. Ideal for use on FPV drones, multi-rotor, fixed-wing and other model products.

Specifications

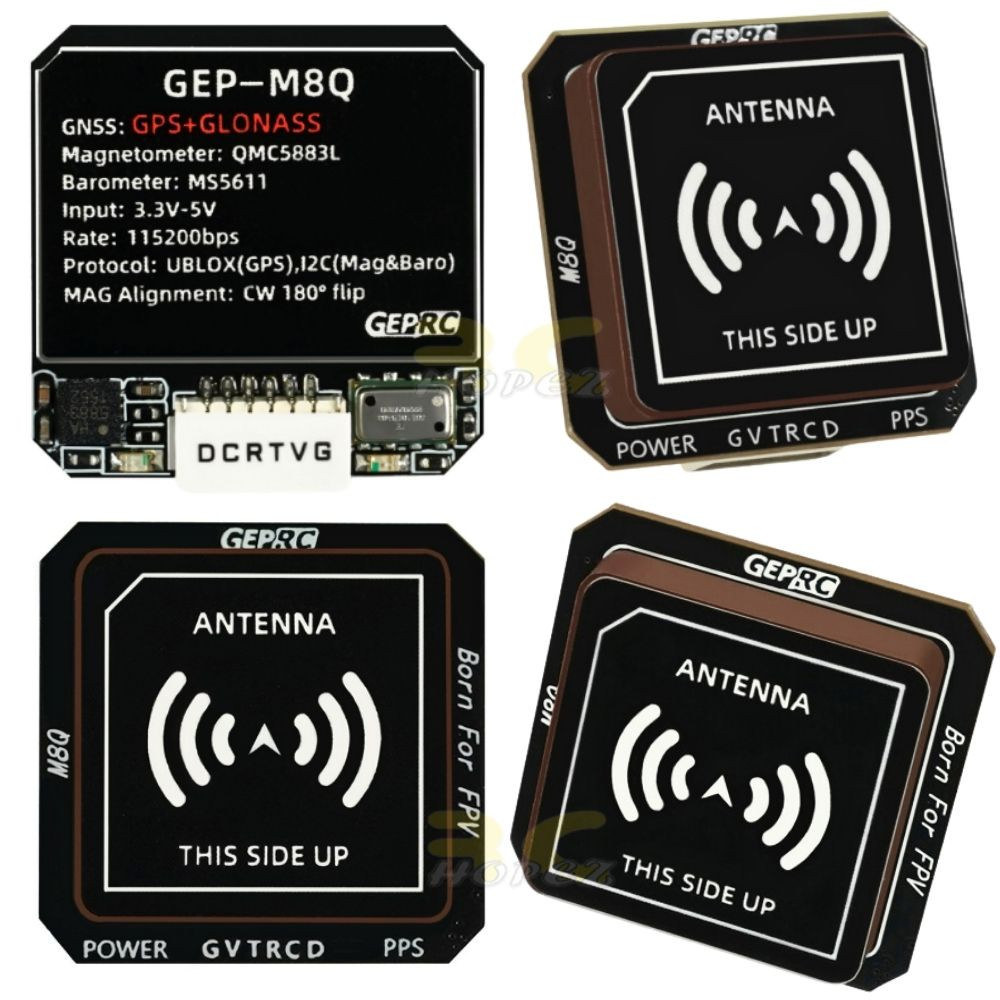

Model: GEP-M8Q GPS module
Input Voltage: 3.3V-5V
Receiving Format: GPS，GLONASS
Channel: 72ch
Compass: QMC5883L
Barometer：MS5611
Baud Rate: 115200bps
Output Connector: SH1.0-6P
Communication Protocol: UBLOX(GPS)、I2C(Mag&Baro)
Output Frequency: 10Hz
MAG Alignment：CW 180° flip
Speed Accuracy: 0.05 m / s
Horizontal positioning accuracy: horizontal <2.5M, SBAS < 2.0M
Timing Accuracy: 30 ns
Receiving Sensitivity: Trace -162dBm, Capture-160dBm
Dynamic Characteristics : Max Height: 50000m, Max Speed: 500m/s
Max Acceleration: 4G

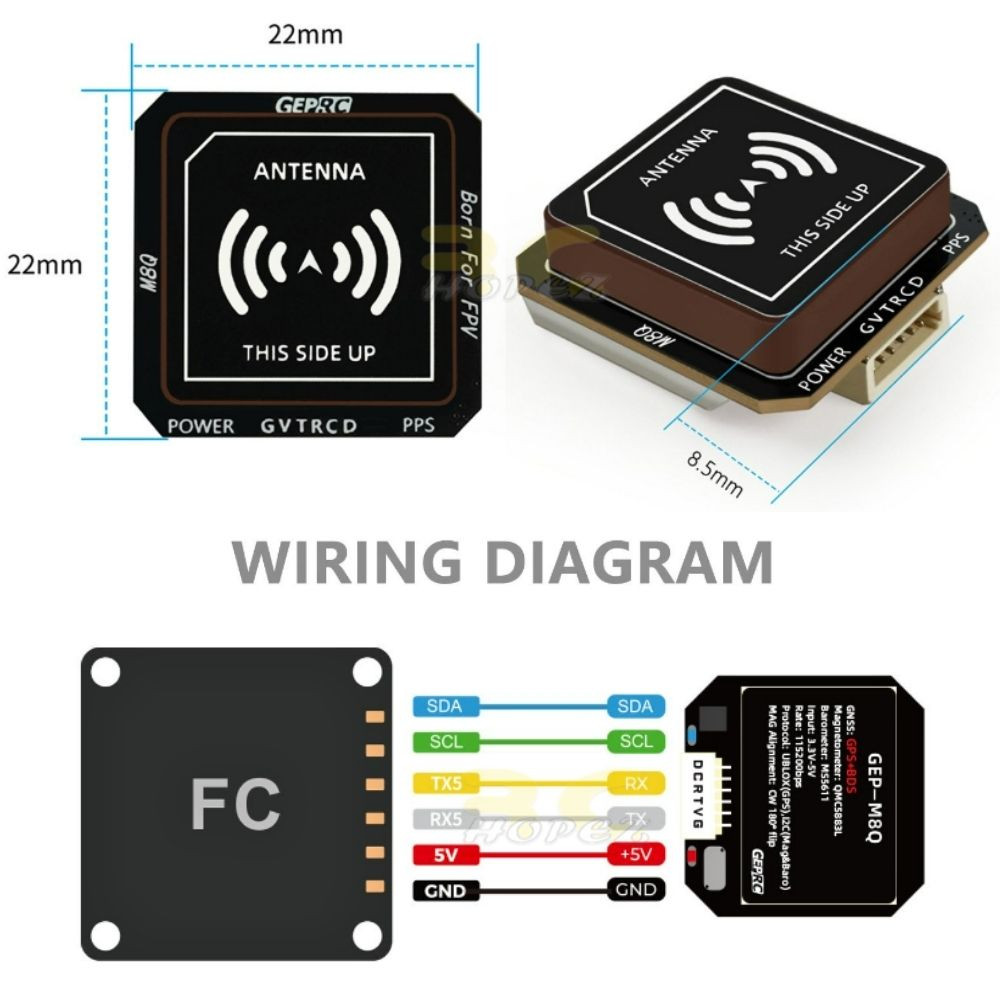

Size: 22mm x 22mm x 8.5mm
Weight: 8g

Feature
1. Fast positioning speed
2. Stable connection
3. Unique appearance design
4. Small size and light weight
5. SH1.0-6Pin terminal design, no soldering required.

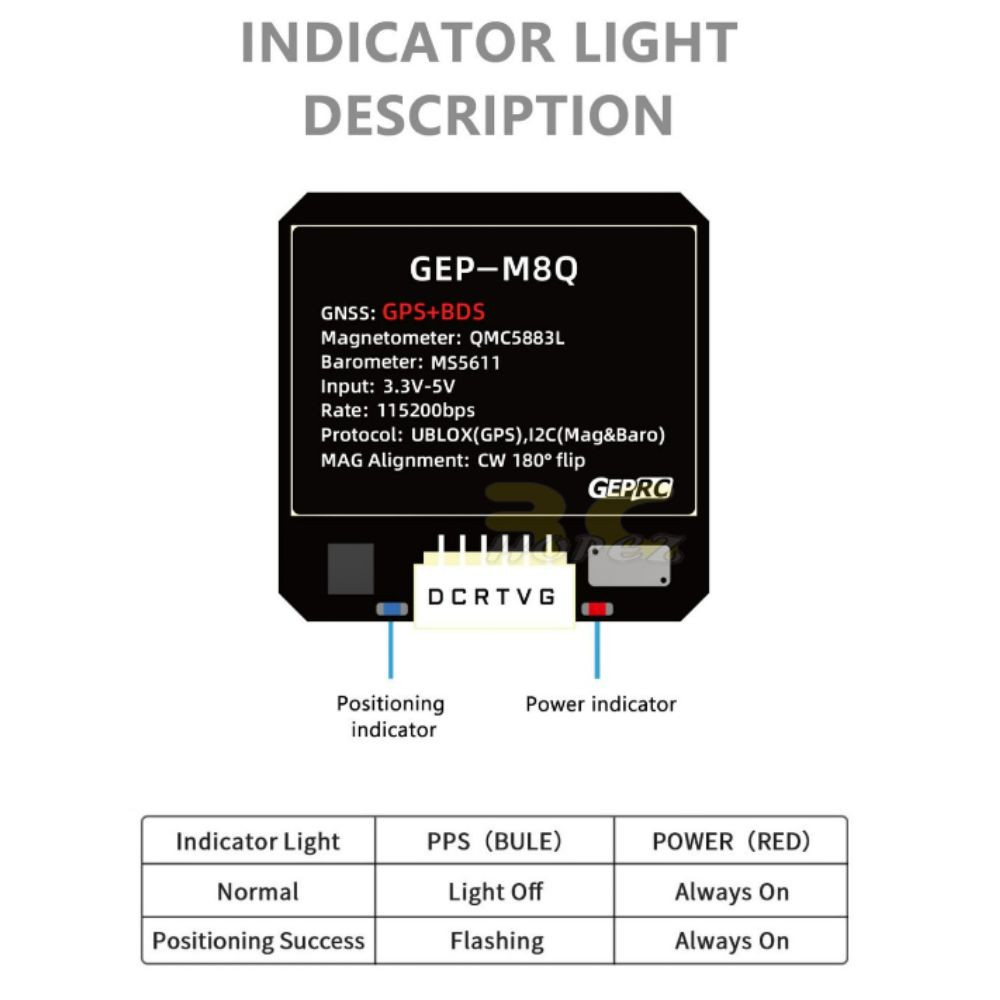

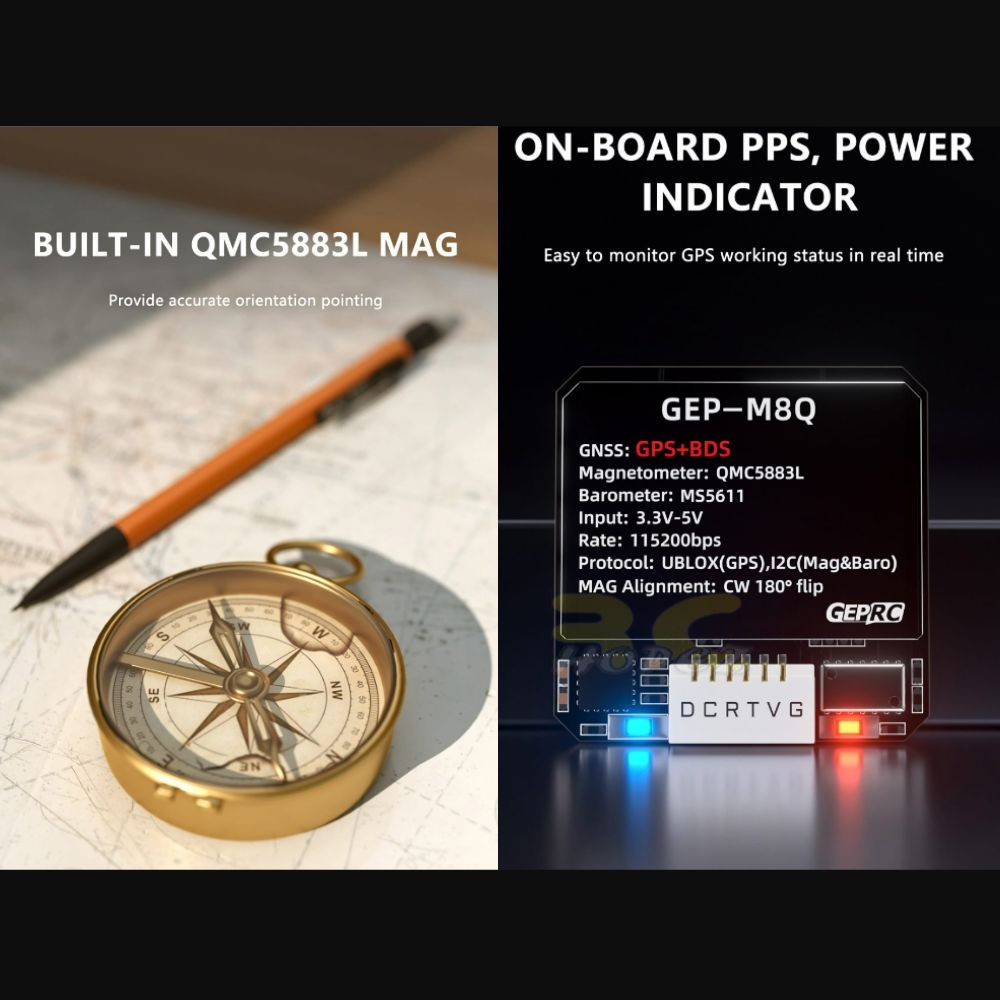

6. On-board PPS positioning and power indicator, easy to use.
7. QMC5883L Magnetometer chip，Precise pointing

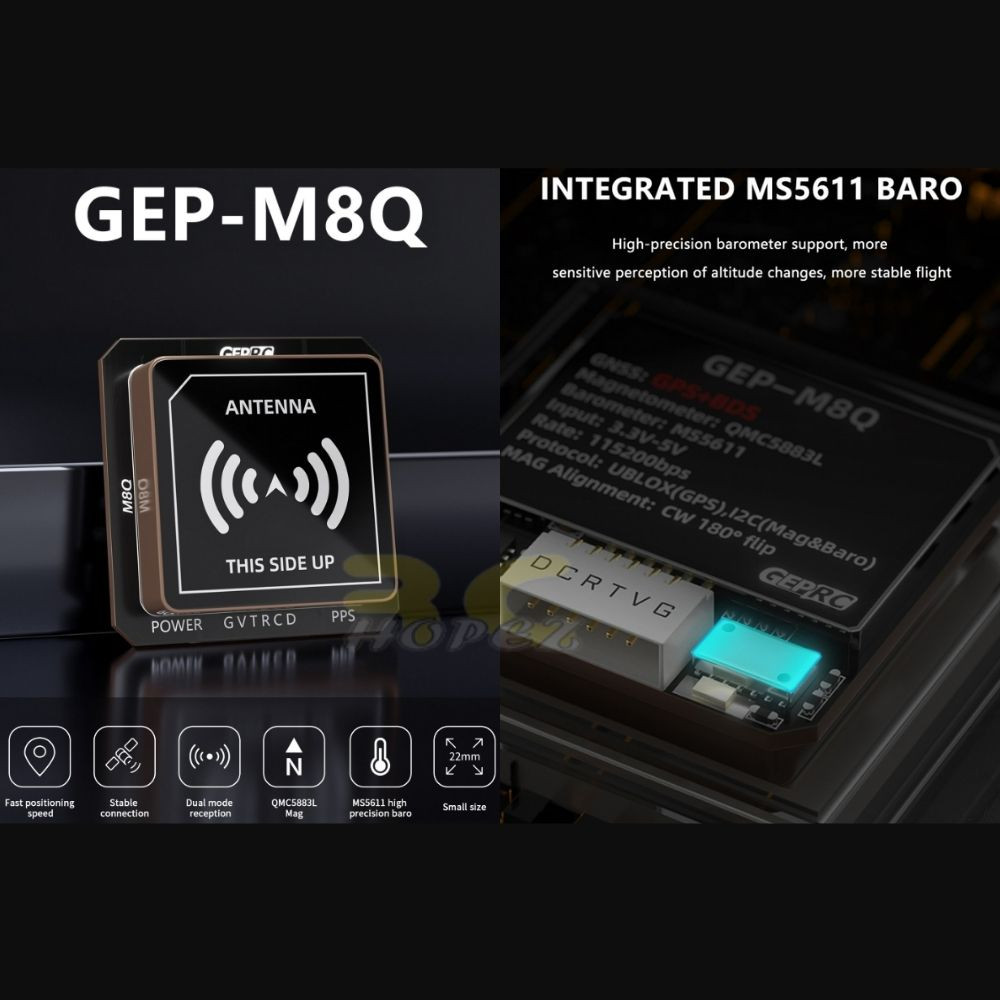

8. Integration MS5611 High precision barometer

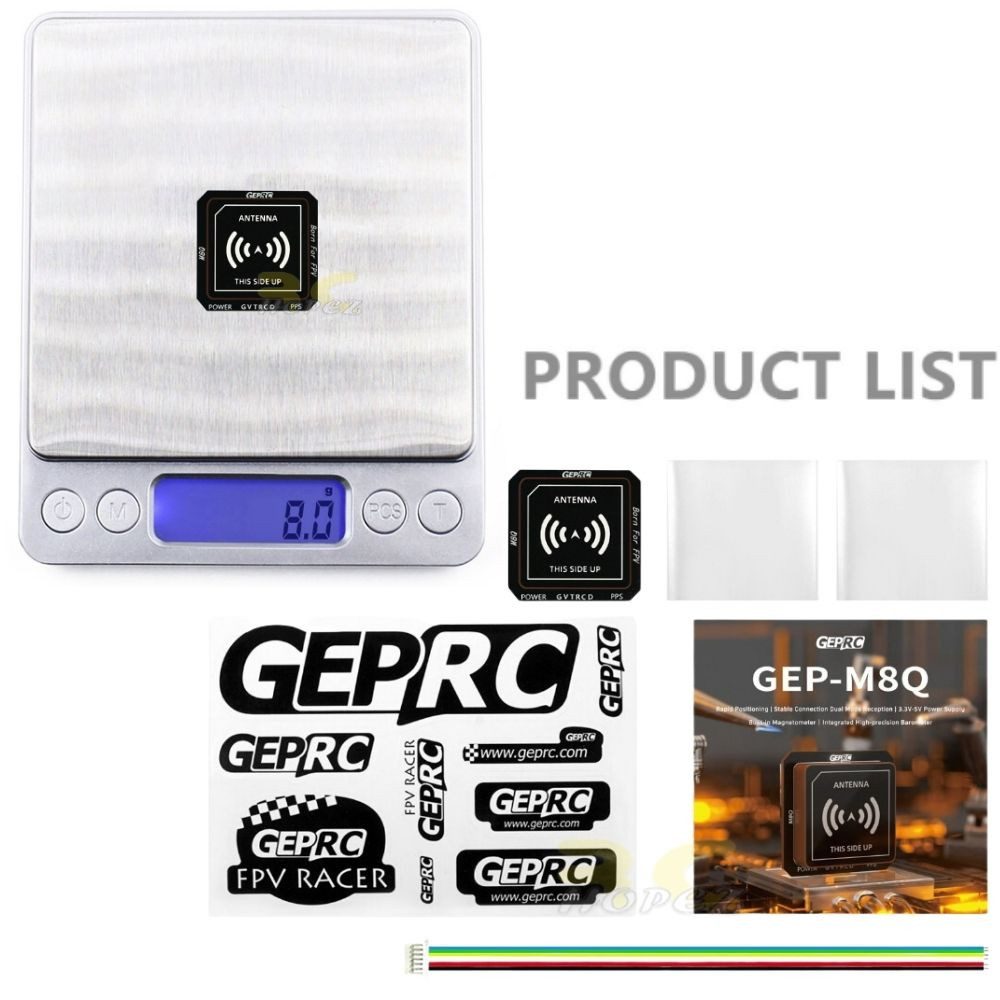

Includes
1 x GEPRC GEP-M8Q GPS Module – GLONASS MS5611 Barometer Compass
1 x SH1.0-6Pin terminal cable
1 x GEP-M8Q GPS user manual
1 x GEPRC Sticker
2 x Heat shrink tube
