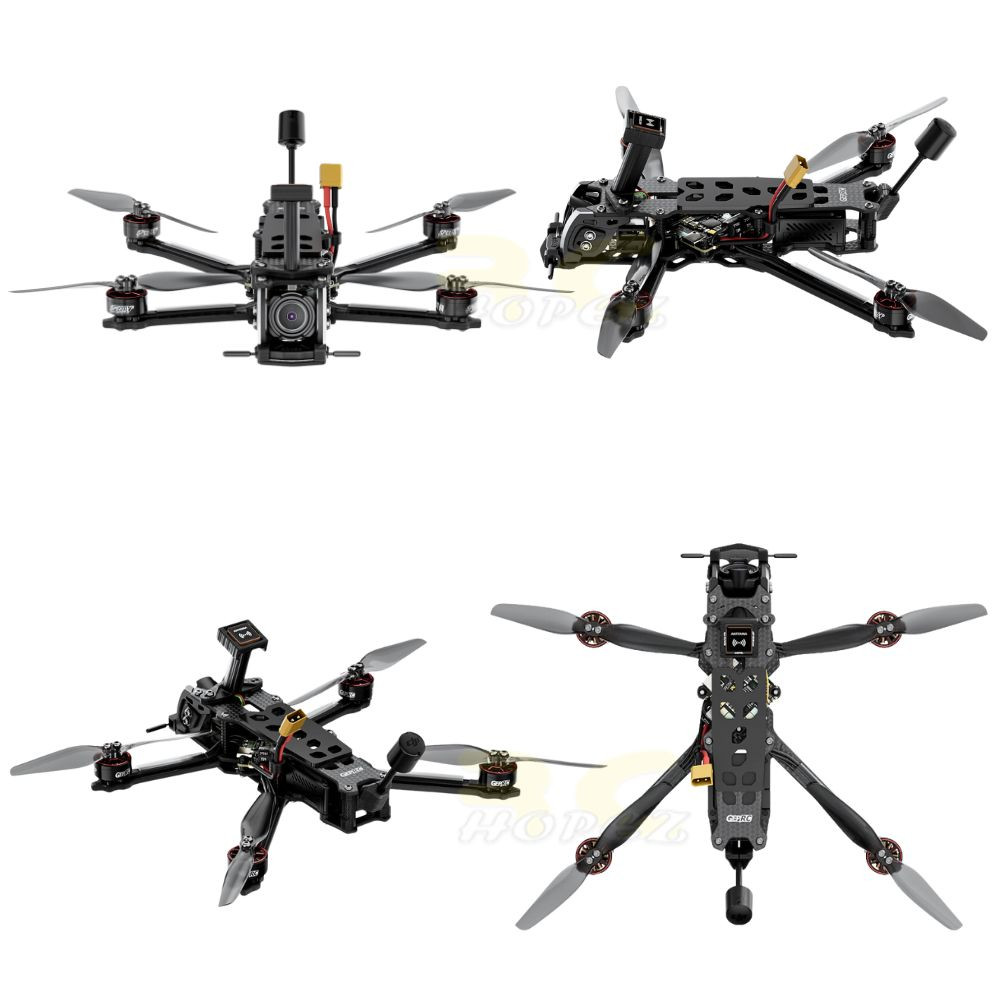

GEPRC Tern-LR40 HD w/DJI O3 Air Unit With GPS Long Range 4Inch 4S FPV Drone GEP-LR40HD

RM2,039.00RM2,169.00

SKU: GEP-LR40HD Categories: ,

GEPRC Tern-LR40 HD w/DJI O3 Air Unit With GPS Long Range 4Inch 4S FPV Drone GEP-LR40HD

Summary

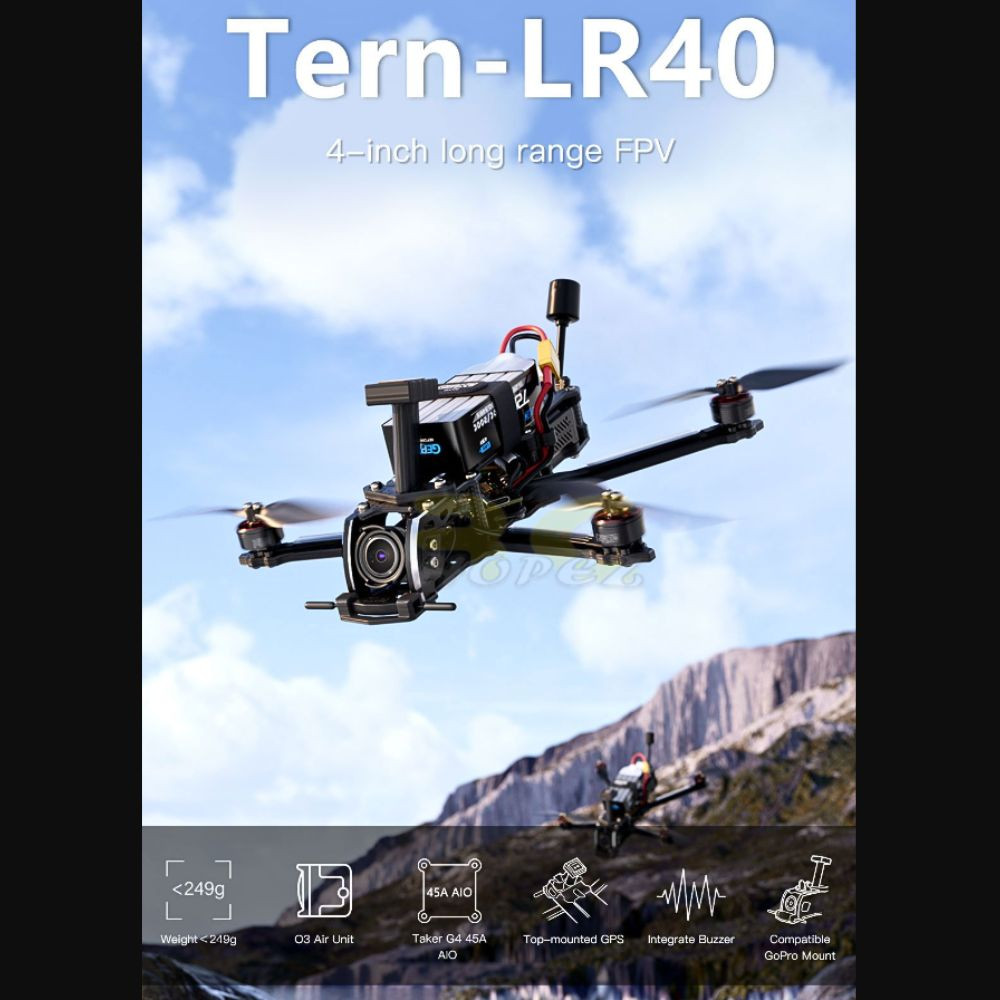

In the GEPRC family, we have welcomed a new member: Tern-LR40. This is a 4-inch long range FPV with excellent performance and reliability. It adopts a DC-type structure. Its careful lightweight design uses aviation-grade 7075 aluminum parts. Light and rigid.

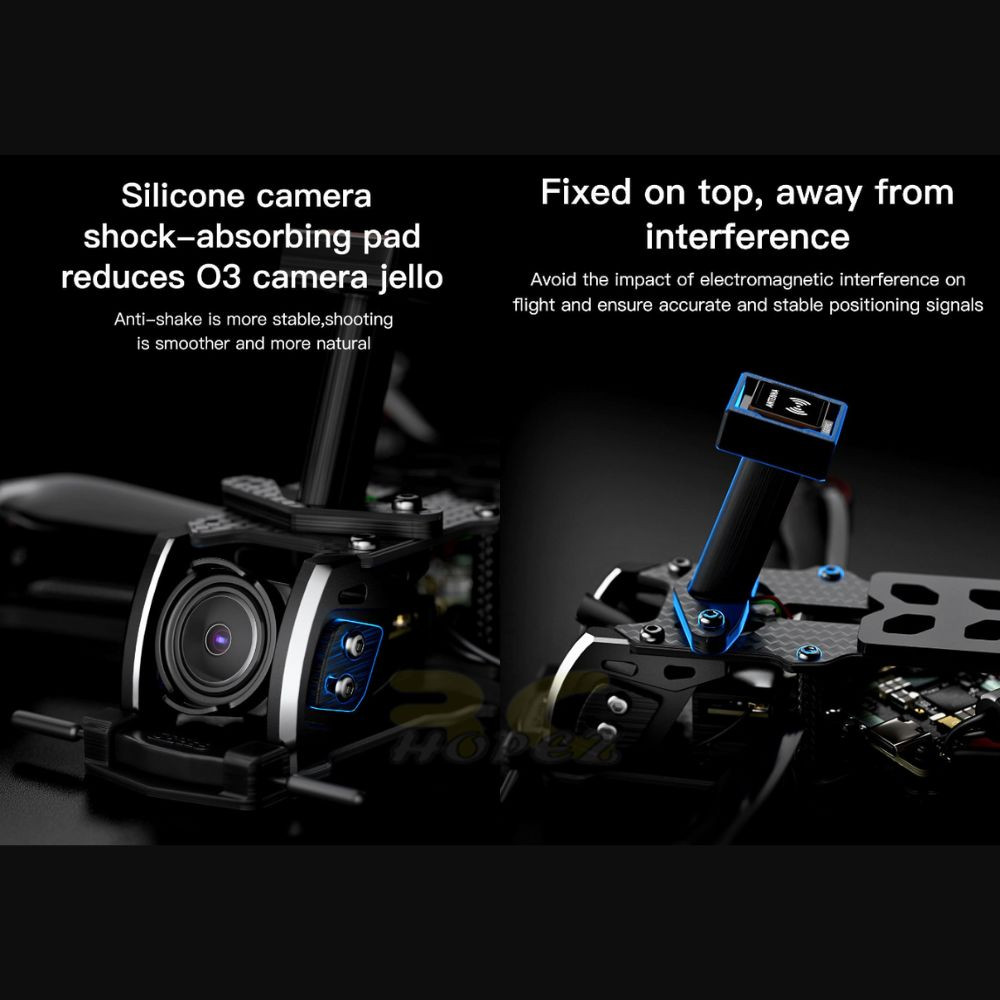

Equipped with Taker G4 45A AIO flight control, which has higher computing power redundancy. The use of a top-mounted fixed GPS can avoid the impact of its own electromagnetic interference on flight, and the rescue function is more stable.Silicone camera shock-absorbing pad prevents high-frequency jello from O3 camera.

The Tern-LR40 is like a bird with spread wings, flying freely through the blue sky without being restrained. Choosing it is not only a high-quality flight, but also an artistic journey.

Feature
1. New lightweight design, weight under 249g.
2. Expand interference GPS fixation method and stay away from interference sources
3. DC structure cannot see the propellers during flight, which is more suitable for straight-line aerial photography.
4. Install BB ring to set the battery low voltage alarm

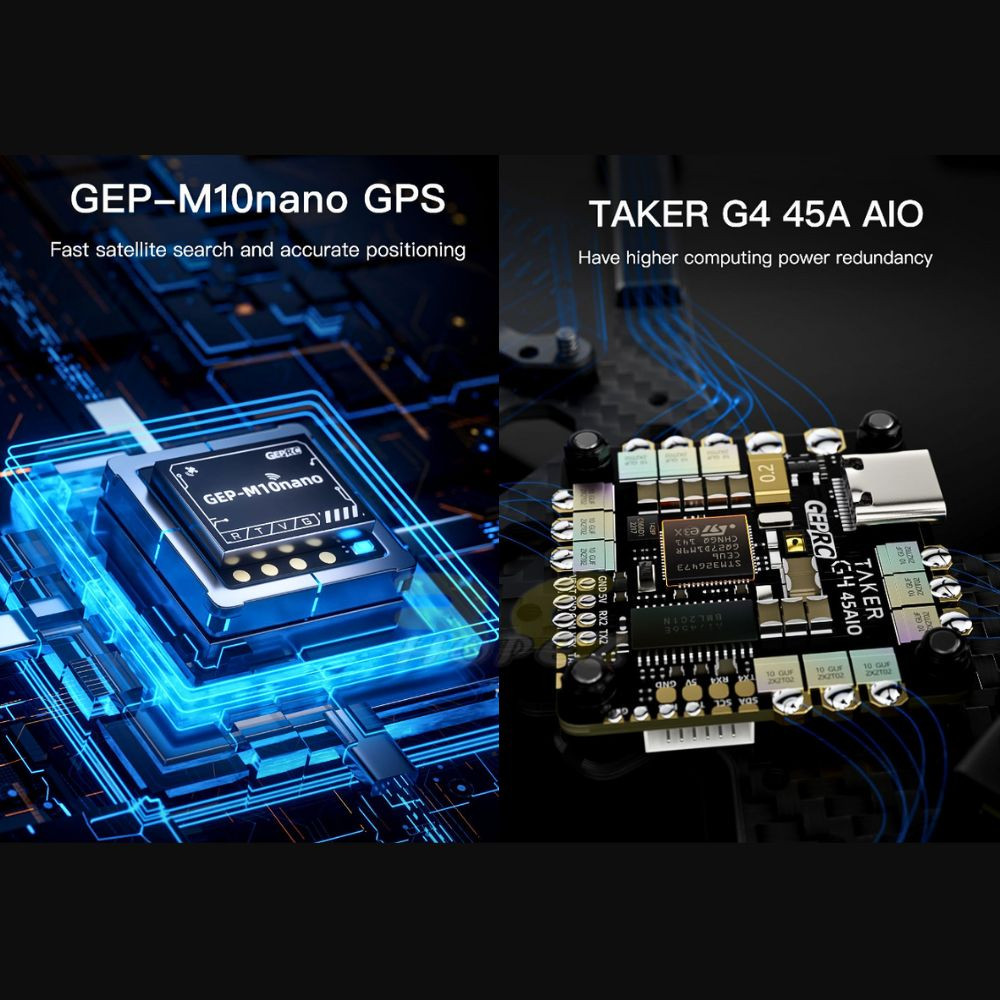

5. Using GEP-M10nano GPS, the satellite search speed is faster and the rescue mode is more stable.

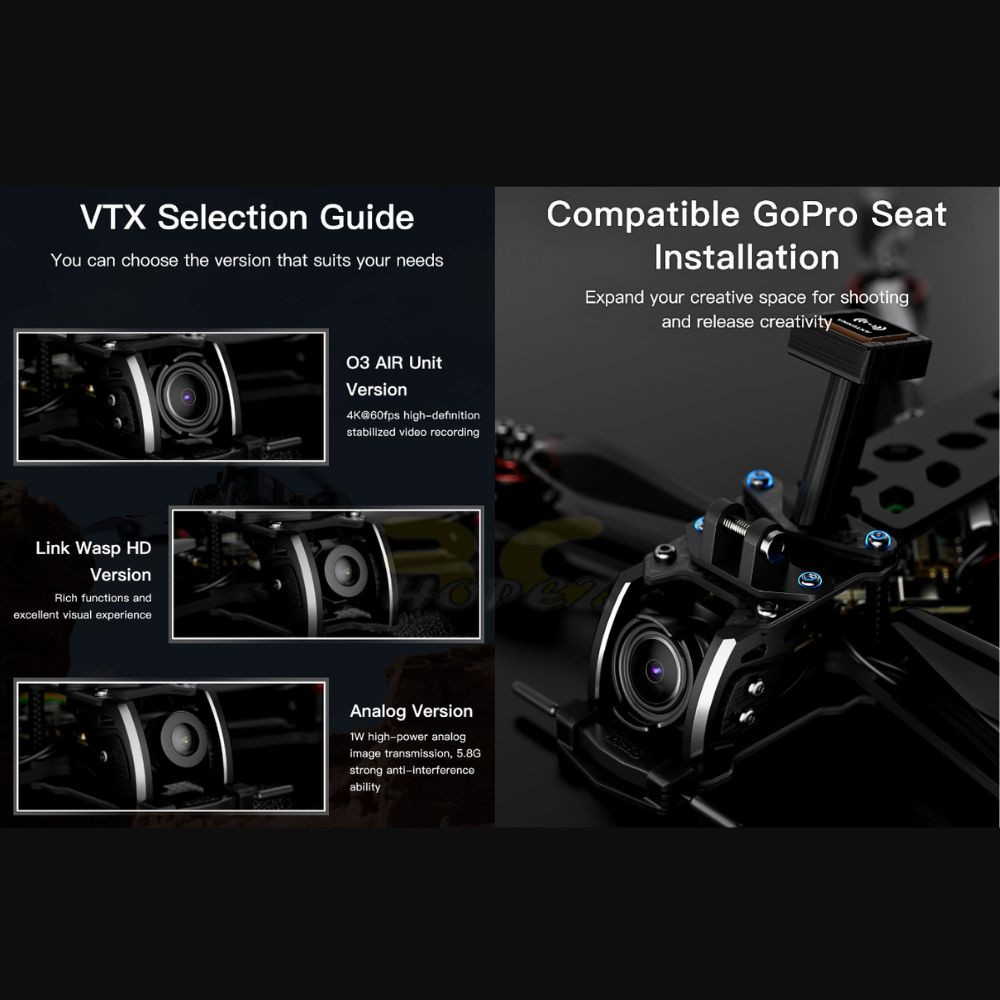

6. Compatible gopro mount installation, expandable shooting creation.

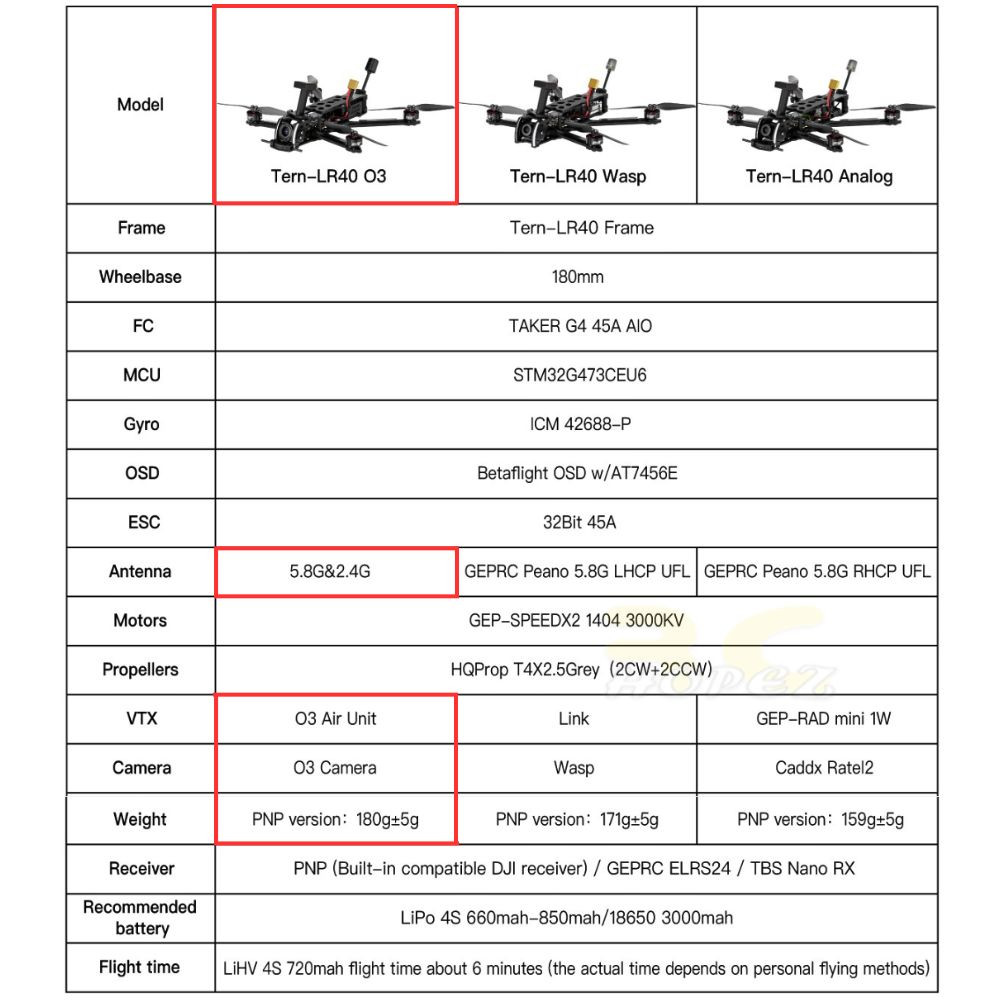

Specifications
Model: Tern-LR40
Frame: Tern-LR40 Frame
Wheelbase: 180mm
Top plate: 1.5mm
Mid plate: 2.0mm
Bottom plate: 1.5mm
Arm thickness: 3.5mm
FC: Taker G4 45A AIO
MCU: STM32G473CEU6
Gyro: ICM 42688-P
OSD: Betaflight OSD w/AT7456E
ESC: 32Bit 45A
VTX: O3 Air Unit
Camera: O3 camera

Antenna: 5.8G&2.4G
Motors: GEP-SPEEDX2 1404 3000KV
Connector:XT30
Propellers: HQProp T4X2.5Grey (2CW+2CCW)
Tern-LR40 O3 PNP version weight: 180g±5g
Receiver: PNP/GEPRC ELRS24/TBS Nano RX (Option)

Recommended battery (NOT Included) :
LiPo 4S 660mah-850mah/18650 3000mah
Flight time: 10-25min

*Recommend (NOT Included) :
GEPRC 660mAh 90c 4S
GEPRC 720mAh 100c 4S
GEPRC VTC6 18650 4S1P 3000mAh 15C
for Tern-LR40

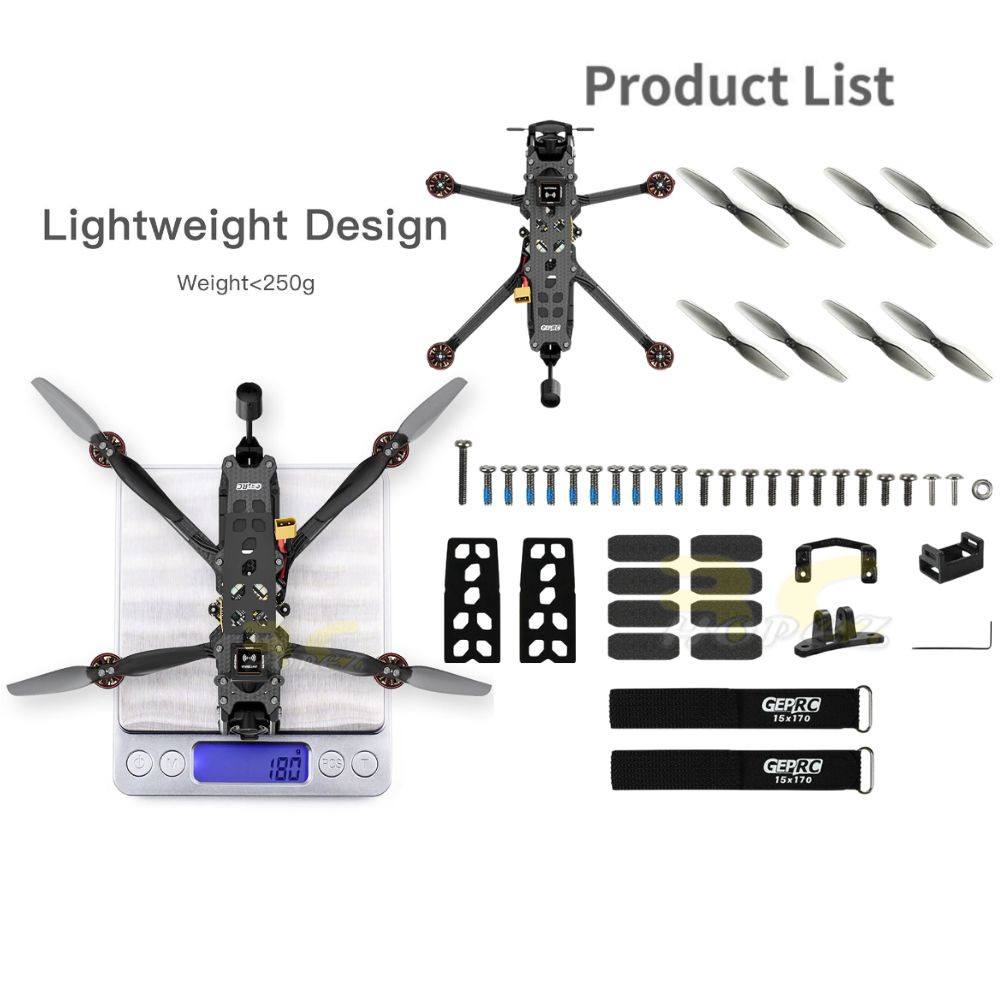

Includes
1 x Tern-LR40
2 x HQProp T4X2.5Grey (2CW+2CCW)
2 x battery anti-slip mat
1 x screw pack
2 x  Battery strap M15*170mm
1 x L-shaped screwdriver 1.5mm
1 x  GoPro camera mount holder
1 x T-type Antenna mount
1 x RC Printed

Weight 0.50 kg
Dimensions 5.00 × 5.00 × 5.00 cm
Receiver

DJI/PNP, ELRS 2.4G, TBS Crossfire Nano
