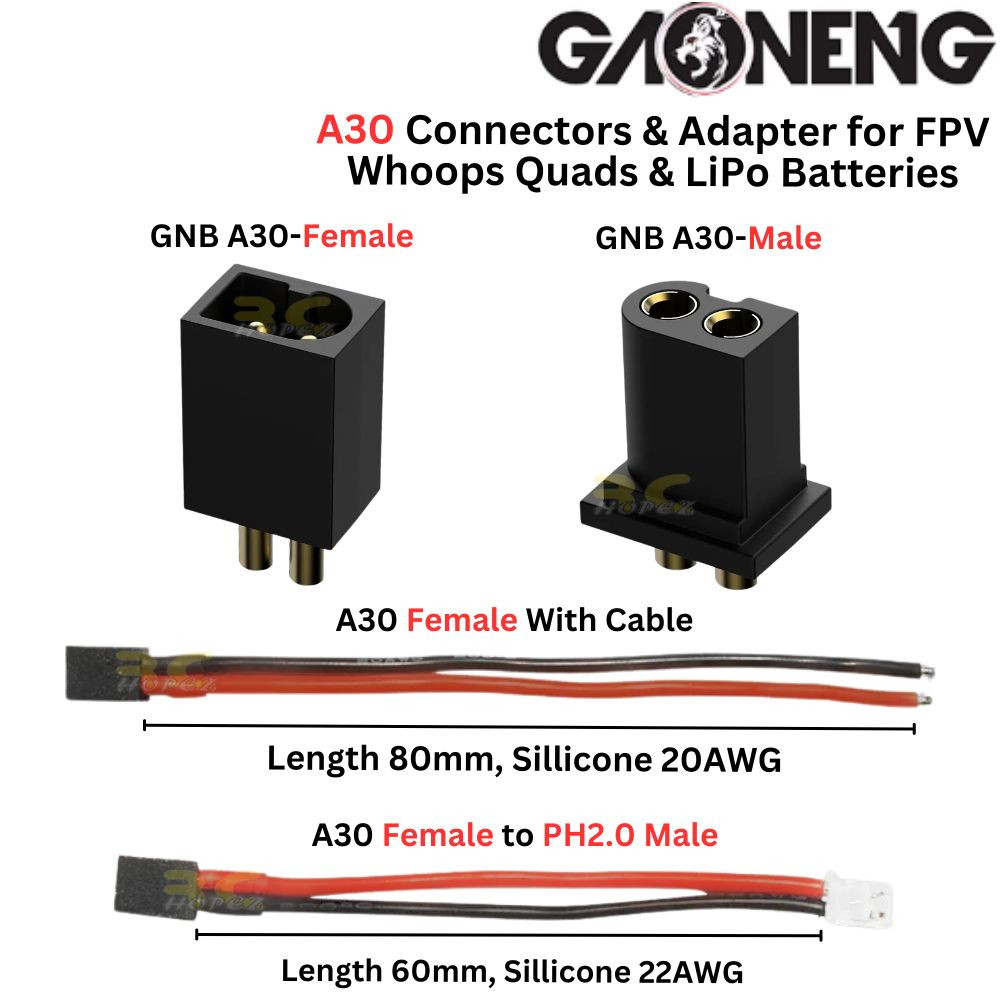

Gaoneng GNB A30 Connectors & Adapter for FPV Whoops Quads & LiPo Batteries GNB-A30

RM2.50RM4.90

Gaoneng GNBA30 Connectors & Adapter for FPV Whoops Quads & LiPo Batteries GNB-A30

Feature:
GAONENG A30 connector can support 15A continuous current, while the PH2.0 connector supports ONLY 4.5A continuous current Compared with the PH2.0 crimped pins, GNB A30 connector is more durable which can discharge more currents in the same capacity and provide far more power. You can get more flight time in full throttle on 1S whoop

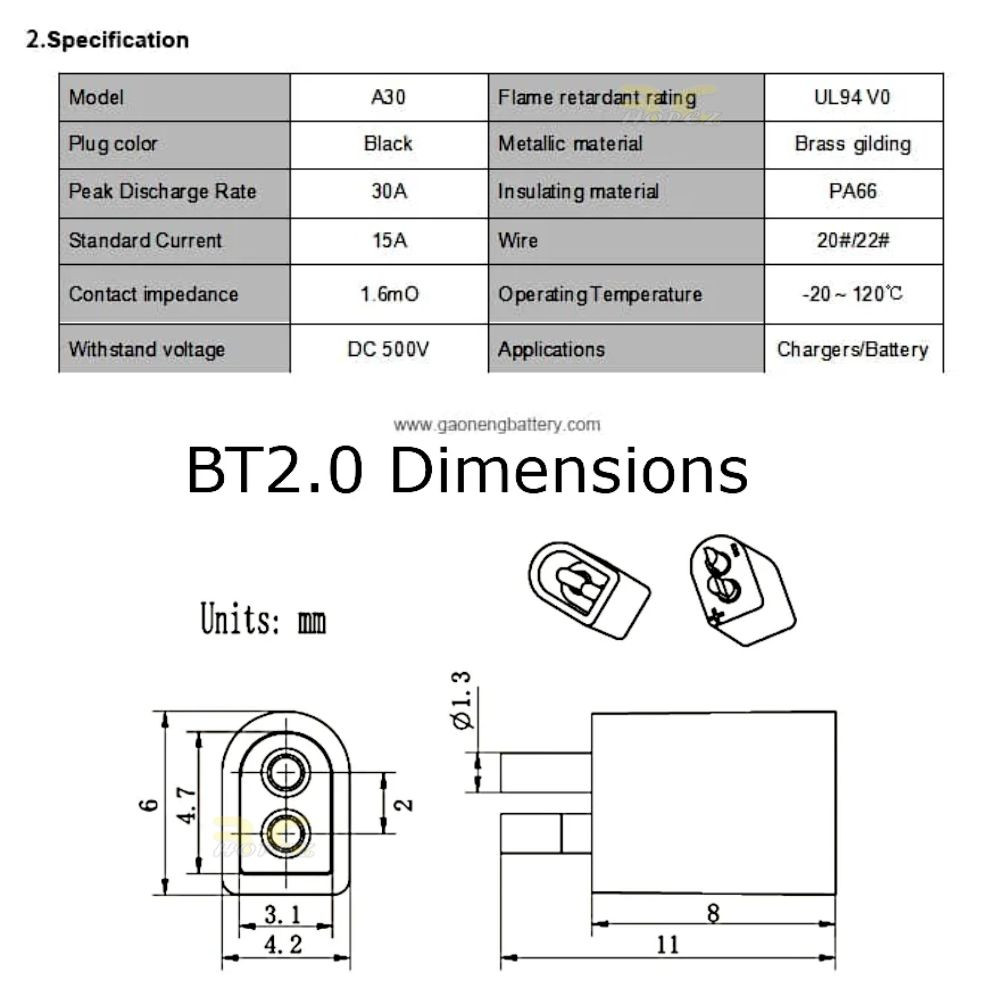

Description:
Model: A30
Peak Discharge Rate: 30A
Standar Current: 15A
Contact Impedance: 1.6mΩ
With Stand Voltage: DC 500V
Flame Retardant Ranting: UL94 V0
Metallic Material: Brass Gilding
In Sulating Material: PA66
Wire :20#/22#
Operating Temperature: -20~120℃
Applications: Chargers/Battery

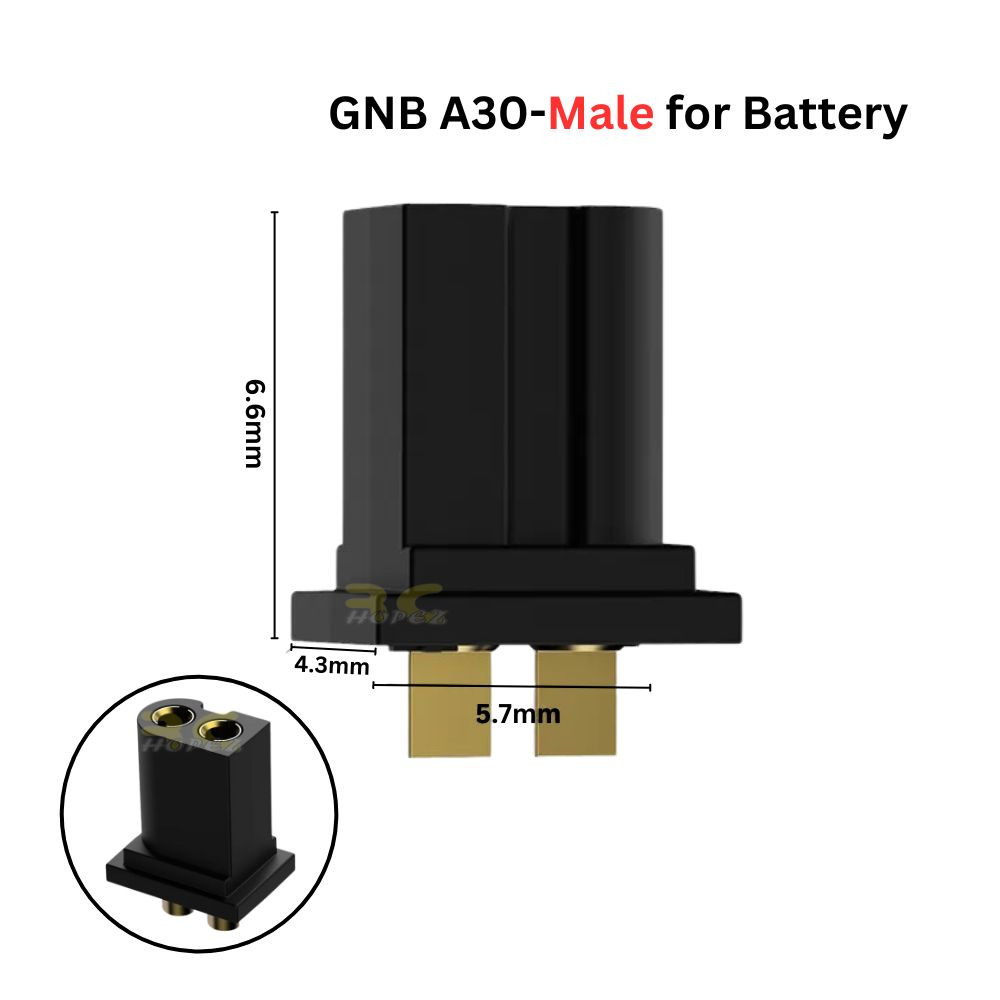

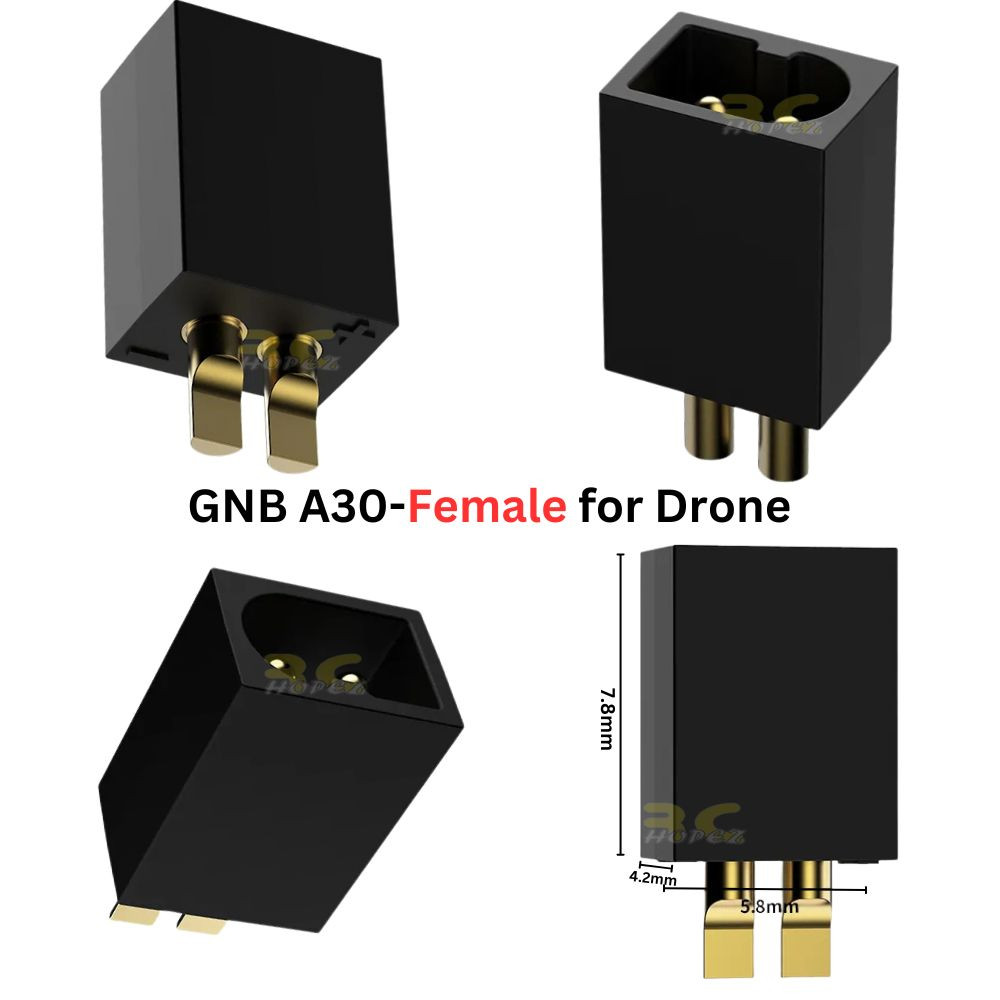

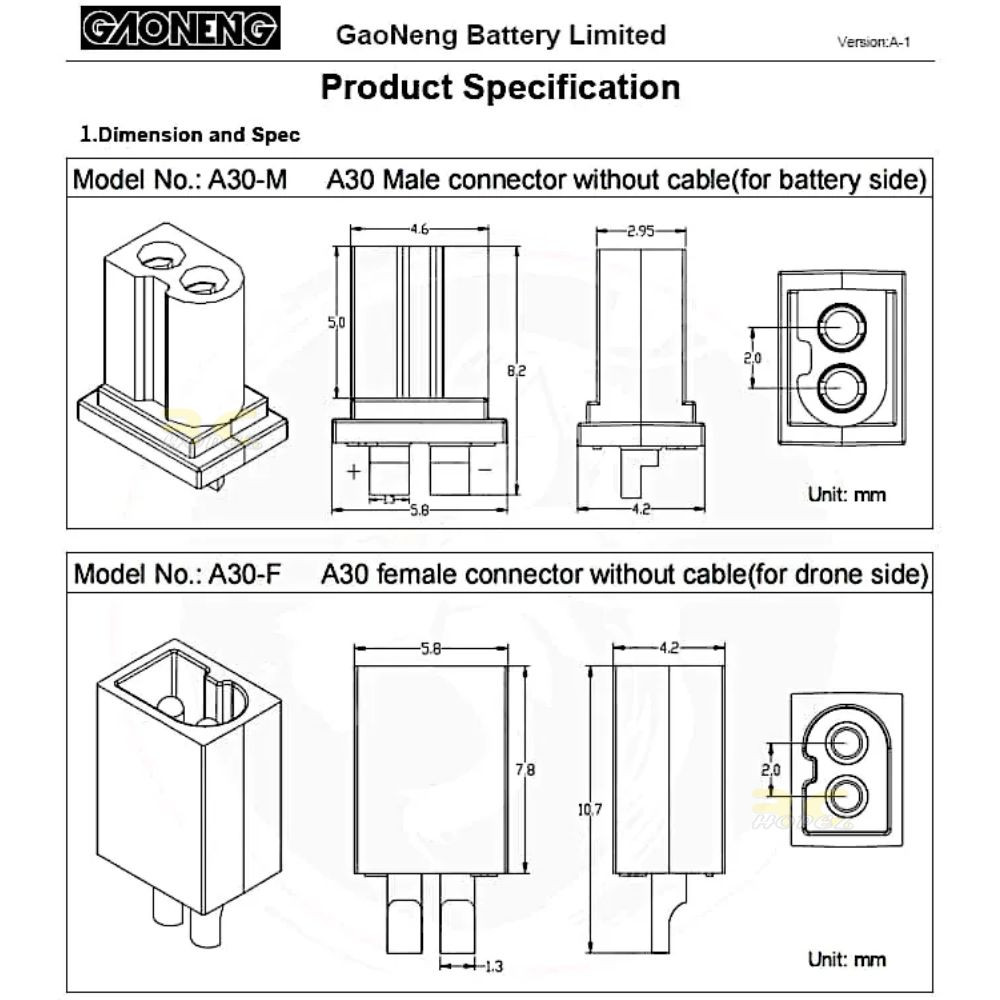

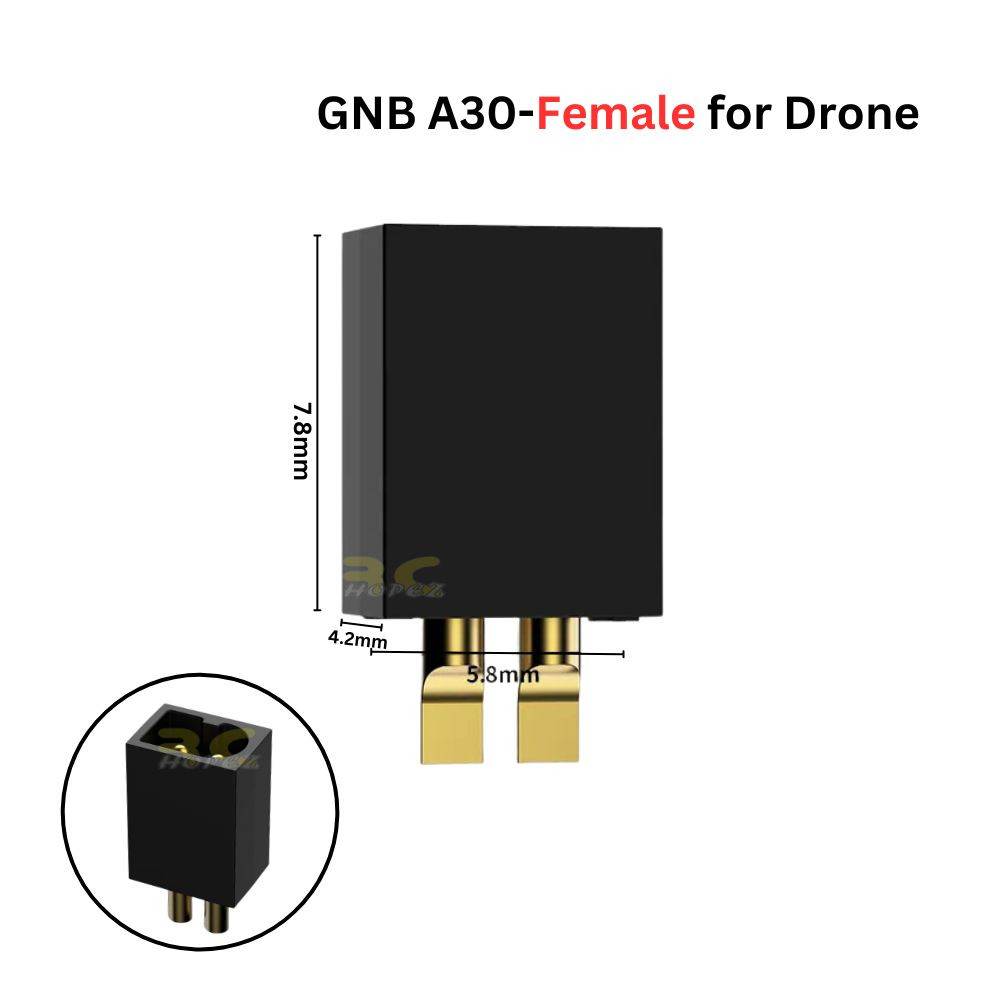

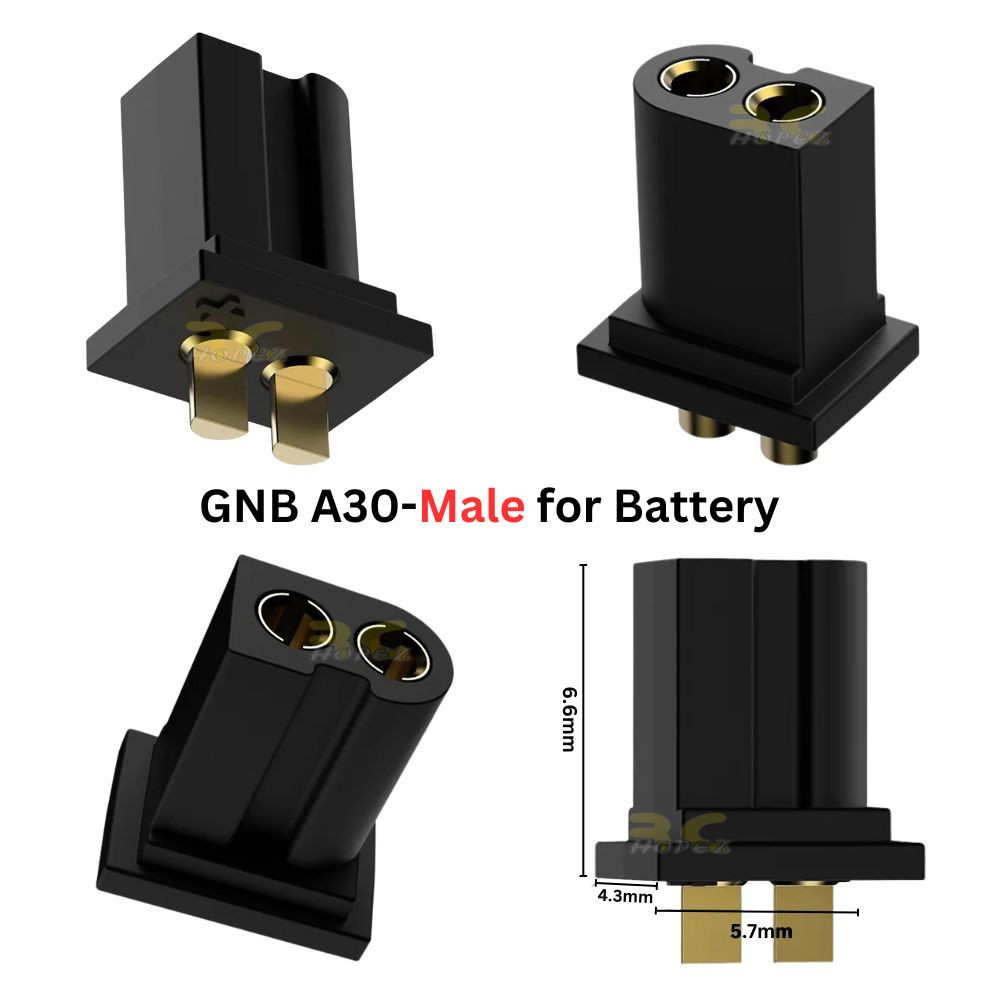

Specifications: (GNB A30-Female / A30-male)
Item: GAONENG
Suitable For: 1S Micro Whoop Female / 1S Lipo Battery Male
Color: Black
Dimensions: 5.8mm x 4.2mm x 7.8mm Female / 5.7mm x 4.3mm x 6.6mm Male (LxWxH)
Weight: 0.36g Female / 0.24g Male
Quantity: 1pc

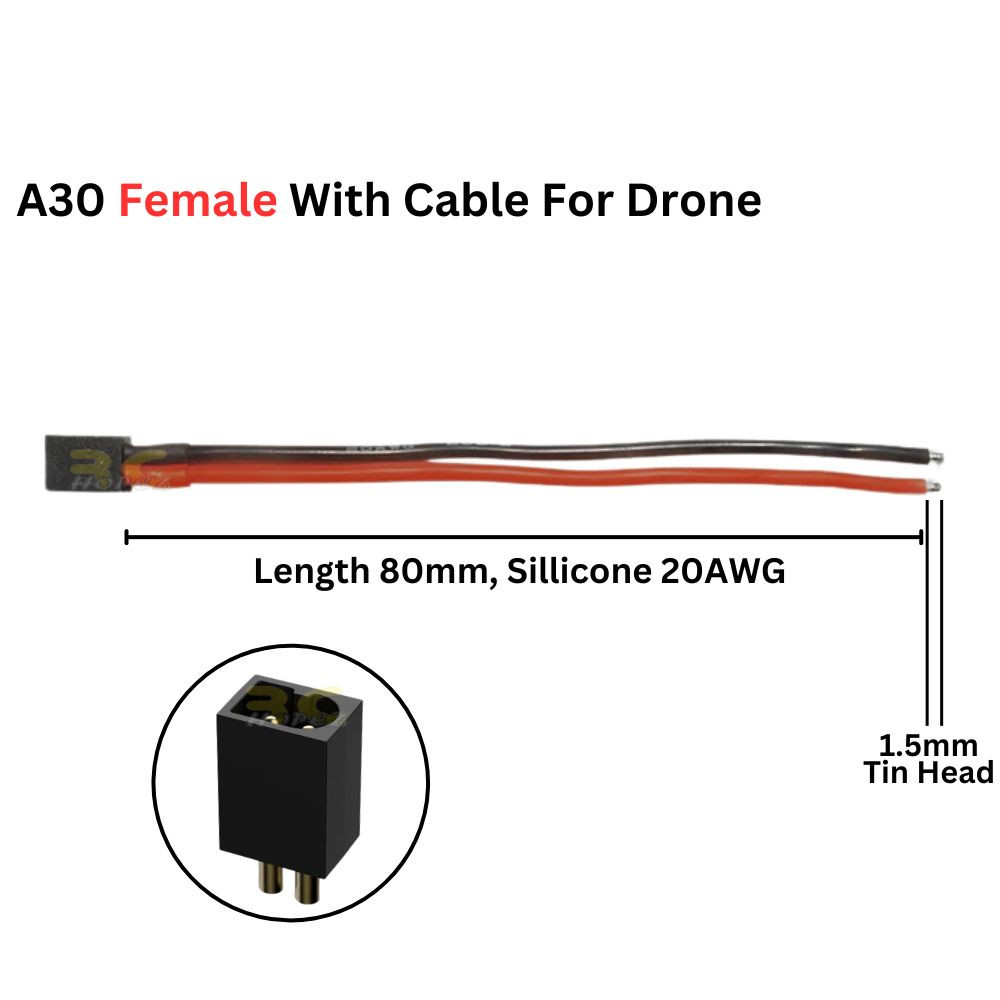

Specifications: (A30 Female With Cable)
Item: GAONENG
Suitable For: 1S Micro Whoop
Length: 80mm
Weight: 1.5g
Quantity: 1pc

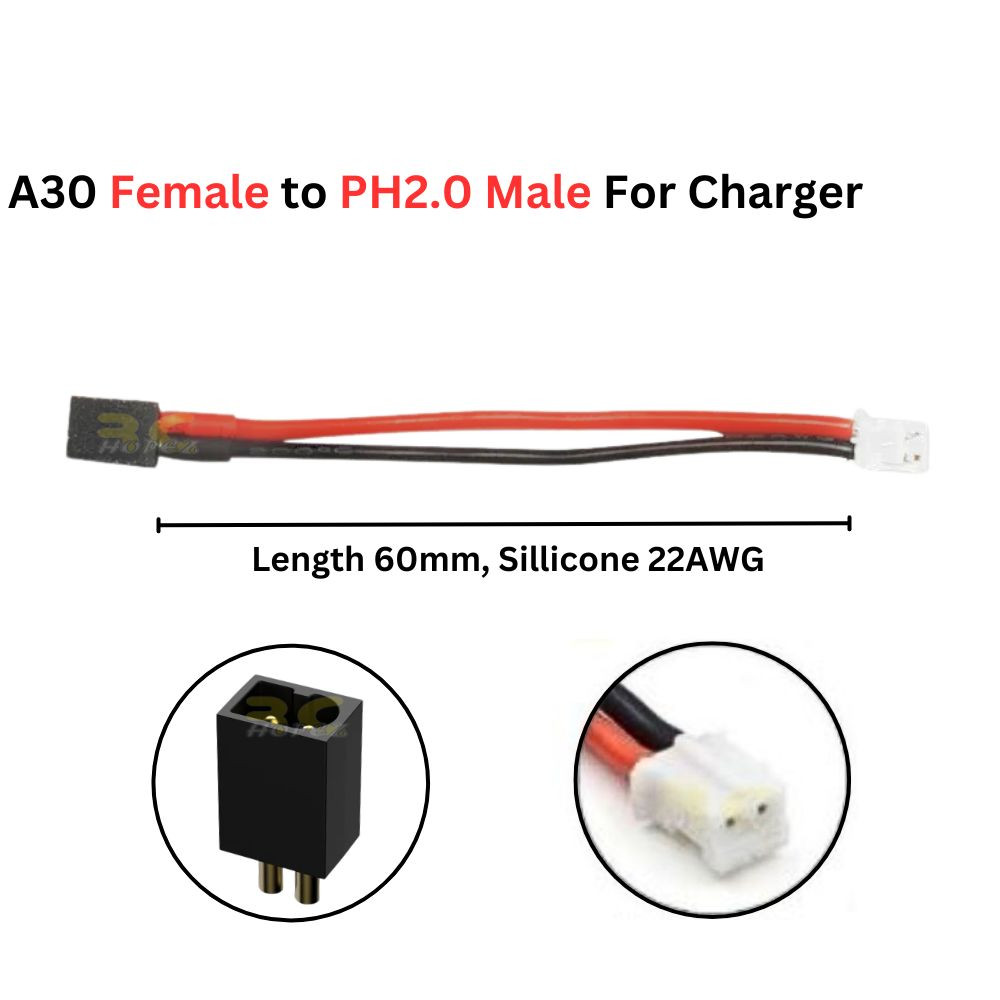

Specifications: (A30 Female to PH2.0 Male)
Item: GAONENG
Suitable For: Micro USB Battery Charger
Length: 60mm
Weight:1.2g
Quantity: 1pc

Note:
We define this connector's "gender" by plastic not by metal bullet. Female is used on the Drone side while Male is used on the Battery side. This is opposite of XT30 and XT60.

Package Included:
1 x GNB A30 Female Connector

OR

1 x GNB A30 Male Connector

OR

1 x A30 Female With Cable

OR

1 x A30 Female to PH2.0 Male



Weight 0.05 kg
Dimensions 3.00 × 3.00 × 3.00 cm
Optional

GNB A30-Female, GNB A30-Male, A30 Female W/ Cable, A30 F to PH2.0 M
